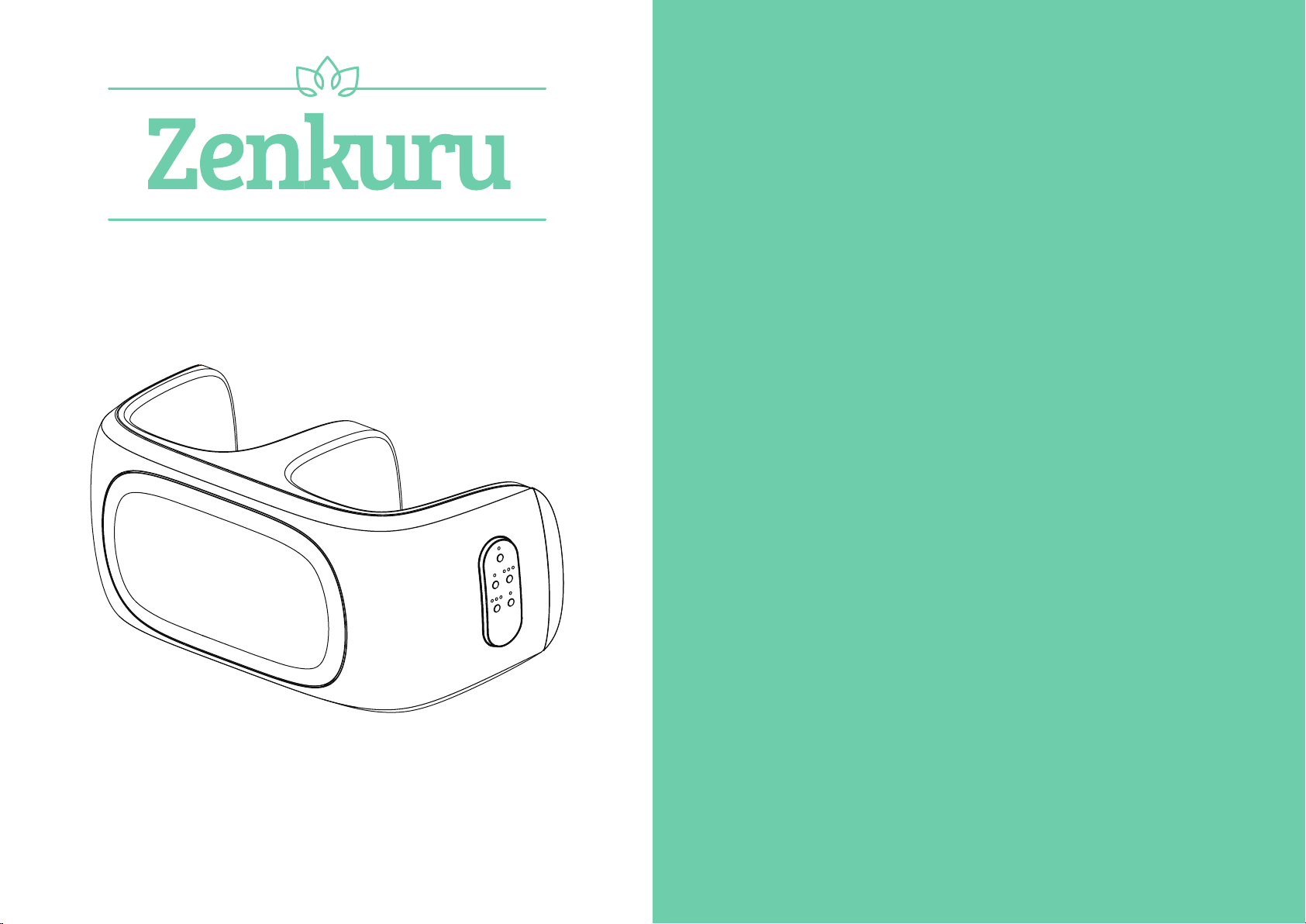

Zenkuru Knee and Leg Massager User manual

Zenkuru
Knee and Leg Massager
USER MANUAL
EN DE SE DK NO FI
PLEASE READ THIS MANUAL THOROUGHLY BEFORE USING THE UNIT AND KEEP
THIS MANUAL FOR FUTURE REFERENCE.
腿部腿部 膝部膝部 足底足底
自动自动 部位部位
强度强度 加热加热

SPECIFICATIONS
• Suitable for knees, calves and feet
• 3 massage modes and 3 intensity levels
• Optional heating function
• Remote control for easy access buttons to control heat, mode and intensity
• Battery capacity: 2600mAh (lithium battery)
• Battery time: approx. 70 minutes
• Charging time: 3-4 hours
• Input: 5V/2A
• Output: 12V/1A
• Power: 12W
• Voltage: 12V
• Cord length: 125 cm
• Measurements: 42.5 x 19 x 20.6 cm
• Weight: 2.6 kg
• Materials: Lycra, microfiber, SBR composite Lycra, ABS
• Wipe clean with a dry cloth
• Package contains: Leg massager, Remote control, USB cable, User manual
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions before use to use this product properly. Improper usage
may result in serious injury and product malfunction.
• Keep out of reach from children.
• Never immerse the product into water or other liquids
• Do not operate the unit under a blanket or pillow. Excessive heating can occur and
cause fire, electric shock, or injury.
• Do not place heavy objects on the product.
• Do not stand or sit on the product to avoid product failure.
• Do not operate the product, the power cord or the control panel with wet hands.
• Do not use the unit on other than the designated voltage.
• Do not use if the appliance or the power cord is damaged.
• Do not use the appliance in damp or humid places.
• Do not leave the product outdoors.
• Do not damage the power cord. Do not attempt to damage, bend, pull, twist or tightly
bundle the power cord.
• Do not place the unit in areas exposed to direct sunlight, or near heaters, hot air
blowers or any other heating devices to avoid damages.
• If a power outage occurs during charging, immediately unplug the power cord from
the outlet to avoid an accident in case the power is restored.
• Stop using the product to prevent from malfunctions and accidents if you observe
any of the following: scorched smell, hot power cord, power switching from on to o
by itself. Turn o the unit immediately.
• Only one person should be using the unit at one time to avoid malfunction or injury.
• Never attempt to repair or disassemble the unit by yourself.
USE CAREFULLY
• The appliance has heated surfaces. Persons insensitive to heat must be careful when
using the appliance.
• Do not put hands or fingers close to and into the gap to avoid injury.
• Stop using the massager immediately if you experience any discomfort.
• Do not fall asleep while using the unit.
• Persons with any of the conditions listed below or who are undergoing medical
treatment should consult with their physicians before using this unit:
EN EN
• Pregnancy
• Fever
• Illness
• Thrombosis or aneurysm
• Heart diseases
• Pacemaker or other medical devices that are
prone to electromagnetic interference.
• Malignant tumors
• Skin infections
• Osteoporosis or spinal fracture

SAFETY INSTRUCTIONS
PLEASE NOTE
• Keep the unit more than 1 meter away from TV, radio and other audio-visual
equipment to prevent signal interference from the remote control.
• If the product is moved from a low temperature to a warmer place, the inner parts
may be aected by the accumulation of moisture, which may aect the function of
the product and even cause mechanical failure. It is recommended to leave the unit
at normal room temperature for one hour before using it to avoid this.
PRODUCT COMPONENTS
ENEN
AIRBAG
WIRELESS REMOTE
CONTROL
SHELL
POWER ADAPTER
ZIPPER
CLOTH COVER
AIRBAG BUMPS
HEATING
VIBRATION MASSAGE
TROUBLESHOOTING
PROBLEM
Friction, air exhausting or
noise from the compressor
when the product is in use.
The unit does not start.
Sudden cease of operation.
CHECK POINTS
The noises occur from
internal parts due to the
mechanical design when the
product is in use. They will
not have any eect on the
operation of the unit.
Does the battery need to be
charged?
Check whether the POWER
ON/OFF button has been
turned on. Check whether no
massage function has been
selected.
Protection from overheat.
The rated operating time has
elapsed (15 minutes).
TROUBLESHOOTING
No need for any actions.
Fully charge the battery
before use.
Turn on the power switch.
Select a massage function.
Turn o the power. Restart
the unit after a 30 minute
break.
Turn o the power. Restart
the unit after a 10 minute
break.

MAINTENANCE AND STORAGE
CLEANING
• Before cleaning, make sure the power switch is turned o and the power
plug is unplugged from the outlet.
• Wipe the surface of the product with a soft dry cloth.
• If the product is dirty, wipe the unit with a dry cloth moistened in diluted
neutral detergent or water and thoroughly wrung out, and then use a
clean and dry cloth to wipe the unit again. Thereafter, allow the unit to dry
naturally.
• Do not pull the zipper too hard when removing the detachable cloth cover to
avoid damage.
• Hand-wash the cloth cover with a neutral detergent.
ENEN
CONTROL PANEL
WARNING
• NEVER IMMERSE THE PRODUCT INTO WATER OR OTHER LIQUIDS.
• DO NOT RINSE THE PRODUCT WITH WATER OR GET WATER OR OTHER
LIQUIDS INSIDE THE PRODUCT.
• DO NOT USE ABRASIVE DETERGENTS OR CHEMICALS SUCH AS THINNER
OR ALCOHOL TO CLEAN THE UNIT TO AVOID DAMAGE.
WARNING
• DO NOT SPLASH WATER OR OTHER LIQUIDS ON THE CONTROL PANEL.
• DO NOT PRESS AND HOLD THE BUTTON TOO HARD TO AVOID PROGRAM
ERRORS.
MAINTENANCE
• Prior to the maintenance work, make sure to power o the product and
disconnect the power plug from the outlet.
• Keep the unit clean and away from environments with humidity and high
temperature to avoid moisture and dust.
• When the unit is not being used for a long period of time, place a cover over
the unit to protect it from dust and direct sunlight to avoid discoloration or
deterioration on the surface of the holster.
LEG KNEE FOOT
AUTO
STRENGTH
PART
HEATING
POWER BUTTON
MODE BUTTON
HEATING BUTTON
AUTO BUTTON
INTENSITY BUTTON

NAME AND FUNCTION OF EACH PART
CONTROL BUTTON FUNCTION ANALYSIS
(Indicator for each button)
HOW TO USE
PREPARATION
• Fully charge the battery before first use
DIFFERENT WAYS TO USE THE MASSAGER
EN EN
腿部膝部足底
自动 部位
强度 加热
POWER BUTTON
Press this button to turn the power on, and press again to turn the massager
o. A massage cycle lasts for 15 minutes, after this the massager will
automatically turn o and you need to press the power button to turn it back
on if you want to continue the massage.
AUTO BUTTON
When the power is turned on, press this button to select the auto massage
program. The corresponding indicator lights up.
MODE BUTTON
When the power is turned on, press this button to cycle through the three
massage modes for targeted massage suitable for leg, knee and foot. The
corresponding indicator lights up to show which mode is chosen.
• Leg: Air pressure massage to relaxes your legs and relieve tense
muscles.
• Knee: The air pressure and vibrating massage is targeted to promote
blood circulation in your knee.
• Foot: A combination of air pressure and foot vibration can relieve your
feet while massaging your soles.
INTENSITY BUTTON
When the massager is on, press this button to cycle through three intensities
of massage: Strong, Medium and Soft. The corresponding indicator light will
light up. Medium intensity is the default setting.
HEATING BUTTON
Press this button to turn on the heating function. Press this button again to
turn o the heating function. Heating is turned on by default, as shown by the
heat indicator light.
LEG MASSAGE
Sit down and place the product on the upper part of
your legs, as shown in picture 1. Turn on the Power
button, then press the Mode button to switch to Leg
massage.
KNEE MASSAGE
Sit down and place the massager on your knees as
shown in picture 2. Turn on the Power button, then
press the Mode button to switch to Knee massage.
FOOT MASSAGE
Sit down and place your foot into the massager as
shown in picture 3. Turn on the Power button, then
press the Mode button to switch to Foot massage.
AFTER USE
• The recommended duration of use is 15 minutes at a time.
• Turn o the power switch on the remote control.
1
2
3
CHARGING INSTRUCTIONS
1. Connect the output plug on the USB power cord to the power cord jack on the
product.
2. Insert the other end of the USB cord to a power source.
3. Unplug the power cord from the power outlet after fully charging the appliance.
WARNING
• MAKE SURE THE CORD AND OUTLET ARE NOT DAMAGED BEFORE CHARGING.
• DO NOT HANDLE THE CORD OR POWER PLUG WITH WET HANDS.
