1Overview
1.1 Introduction
FMD Pro 2.0 is a metal detection pole that offers a checkpoint specific solution
to airports, bus terminals, conferences, customs, docks, and railway stations.
FMD Pro 2.0 can detect concealed metal objects, smartphones, and
smartwatches on a person's body. Its sensitive detection and huge screening
capacity outperform the hand-held metal detectors.
1.2 Appearance

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |8
1.3 Dimensions

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |9
1.4 Specifications
Feature
Descriptions
Maximum Detection Distance
120cm
Detection Radius
Up to 80cm
Throughput Rate
50 people/minute
Sensitivity Level
100
Alarm Zone
3 zones
Touch Screen Size
3.5inches
Alarm Volume
1 to 10 Levels
Alarm Ring
6 Types (selectable)
Input Voltage
15V
Embedded Rechargeable
Battery
8Hrs to be fully charged
Supports 28Hrs of operation
Battery Capacity
10000mAh
Input Voltage
15V
Operating Current
260mA
Operating Power
3.9W
Housing Material
Aluminum Alloy
Protection Level
IPX5

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |10
Operating Temperature
-10°C to 50°C
Storage Temperature
-35°C to 70°C
Operating Humidity
0%RH to 95%RH (non-condensing)
Dimension(L*W*H)
360.6*380.0*1969.4(mm)
Dimension with
Packing(L*W*H)
470*545*2380(mm)
Net Weight
16kg
Weight with Packing
41kg
Certification(s)
CE FCC
1.5 Performance and Technical Features
Adjustable Sensitivity: Each detection zone has 100 sensitivity levels (0 to
100). You can preset the metal size, by excluding coins, keys, jewelry, belt
buckle, etc.
Digital Pulse Technology: Digital signal processing and filtering system in the
detector has an excellent anti-interference ability.
Harmless: With no radiation emitted, the detector is safe for pregnant women,
people who implanted pacemakers.
Easy to install: The detector has an integrated design which makes it easy to
assemble and disassemble.

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |11
1.6 Detection Distance
Since different objects have different lengths, volumes, masses, densities, etc.,
the detection distance for each different object is also different. Please refer to
the actual detection location for the detection distance.
Object
Distance
Keys
30cm
Smartwatch
60cm
Utility knife
70cm
Smartphone
80cm
Screwdriver
120cm

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |12
1.7 Components
1. Indicator
2. Speaker
3. 3.5-inch Touch Screen
4. Alarm Zone LED
5. Power Button
6. Foot Cup
7. Magnetic Sensor
8. Interface
9. Base

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |13
2Installation Setup
2.1 Safety Precautions
Install the detector on a stable and smooth area. Make sure that the
detector is installed firmly on the selected area.
It can be used for both indoor and outdoor operations.
Wait for the detector to be calibrated for 2 seconds when it starts initially.
Do not touch the detector during a security check to avoid false alarm.
Do not disassemble the unit without the guidance of a professional
technician.
2.2 Installation Site
The following section describes the requirements of the installation
environment.
2.2.1 Movable Metallic Items
The movable metallic objects must be kept away at 2 meters from the detector
to avoid false alarms.
2.2.2 Floor Vibration
The installation floor must be flat and fixed to avoid false alarm raised from the
movement of the people walking through the detector.
2.2.3 Electromagnetic Radiation and Interference
Since the detector uses Bilateral receiver technology, the detector must be
installed away at a distance of at least 1 meter from the sources of
electromagnetic radiation or electromagnetic interference. The parameters
that define the distance are determined by the installation environment and
the parameters vary for different installation environments.

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |14
The sources of electromagnetic radiation and electromagnetic interference are
given below:
Electrical Control Box, Radio frequency equipment, Interphone, High Power
Motor, Power Transformer, AC Power Lines, Thyristor Control Circuit (High
Power Switching Power Supply, Inverter Welder), Engine, Motor, etc.
2.2.4 Installation Steps
Make sure that the device is installed as per the following installation
instructions. If you want to open the chassis, you should contact the agent for
permission. Otherwise, you will bear any consequence resulting from your
actions.
Install on the base
Insert the pole into the hexagonal slot of the base.

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |15
Install on the wall
1. Fix the back plates on the wall according to the pole position using wall
mounting screws;
2. Attach the pole to the back plates.
Note: The detector's sensor needs to point to the North Pole.

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |16

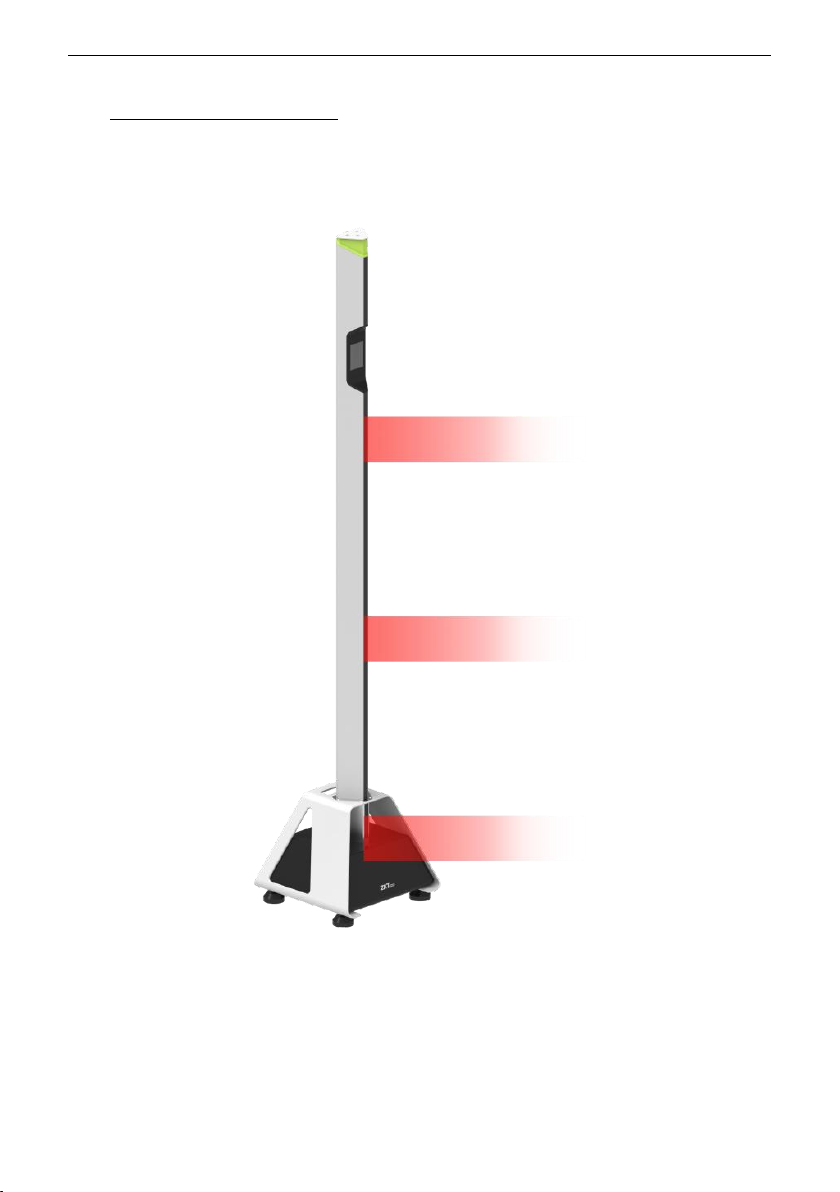

3Detection Zones
The FMD Pro 2.0 detector can detect a wide range of threat objects/weapons
composed of magnetic.
The three detection zones and accurate detection ensures that if the metal
composition reaches or exceeds the preset value, the alarm LED of the specific
zone where the material is hidden will glow and an alarm will be triggered.

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |17
4Operational Procedure

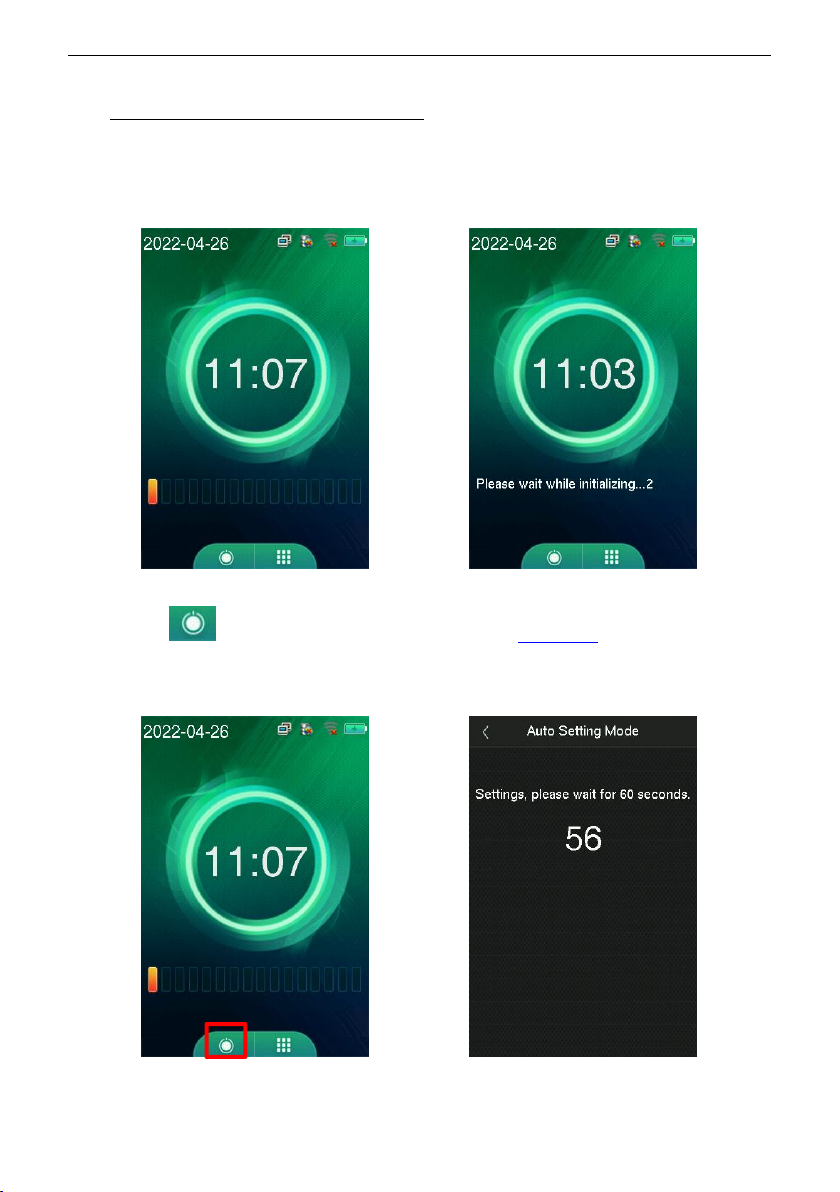

Connect the power supply to the detector. Press the power button, and after 5
seconds of initialization, you can perform the following operations.
Press on the home screen and input the password to set the sensitivity
quickly.

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |18
4.1 Main Menu
Press on the home screen to open the main menu, as shown below:
Item
Descriptions
Sensitivity
There are three zones, to set the sensitivity of
detection. The larger the value, the more sensitive the
system would be, i.e. if a larger value is set, the probe
zone is much easier and frequently triggered. The
valid value ranges from 0 to 100.
Security Level
Sets the metal detection level. The level can be set to
different security levels according to different
application area. There are three modes: "High",
"Medium", and "Low". It is recommended to use the
default level of "Medium".

FMD Pro 2.0 User Manual and Installation Guide
Copyright©2022 ZKTECO CO., LTD. All rights reserved.
P a g e |19
Application Area
You can set the usage area as per your requirements
such as airports, customs, docks, prisons, train
stations and bus stations.
Alarm Settings
To set the volume, alarm count, tone of the alarm and
relay delay.
Autotest
To automatically test whether each module functions
properly, including the Zone, LED and Speaker.
System Password
To set the password for data security.
Record Query
When a person passes through the metal detection
pole, the corresponding details will be saved in the
device. This function allows the user to check the
detection records.
System Settings
You may customize the sleep mode, system time,
language settings and reset the device.
System Info
You can view the device name, serial number, MAC
address, firmware and manufacturer information.
COMM.
To set the relevant parameters of Network, PC
Connection, Wireless Network and Cloud Server.
4.2 Adjusting Sensitivity
There are three zones, to set the sensitivity of detection. The larger the value,
the more sensitive the system would be.
Click Sensitivity on the main menu.
