Zodiac SIROCCO 110 User manual

Installation instructions
Air dehumidifier for indoor swimming pools
Réf. : N.D.005.A.EN - Ver. 02-2010
SIROCCO 55-80-110

1
1. Installation...............................................................................................................2
1.1 General.............................................................................................................................2
1.1.1 Precautions................................................................................................................................2
1.1.2 General terms of delivery...........................................................................................................2
1.1.3 Storage and transport conditions...............................................................................................3
1.1.4 Field of application.....................................................................................................................3
1.1.5 Operating principle.....................................................................................................................3
1.2 Description........................................................................................................................3
1.2.1 Technical specifications.............................................................................................................3
1.2.2 Operating conditions..................................................................................................................3
1.3 Installation ........................................................................................................................4
1.3.1 Electrical regulations for swimming pools..................................................................................4
1.3.2 Installation requirements............................................................................................................5
1.3.3 Access to technical compartment..............................................................................................5
1.3.4 Connection to surrounding air....................................................................................................6
1.3.5 Inset connection.........................................................................................................................7
1.3.6 Connection of the condensation drainage.................................................................................8
1.3.7 Electric connections...................................................................................................................8
1.3.8 Connection of the options........................................................................................................12
1.4 Commissioning...............................................................................................................13
1.4.1 Starting the appliance..............................................................................................................13
1.4.2 Checks.....................................................................................................................................13
1.4.3 Commissioning the options......................................................................................................13
2. Troubleshooting....................................................................................................14
2.1 Status and faults in the ECP 600 settings ......................................................................14
2.2 Troubleshooting procedures...........................................................................................16
3. Maintenance..........................................................................................................18

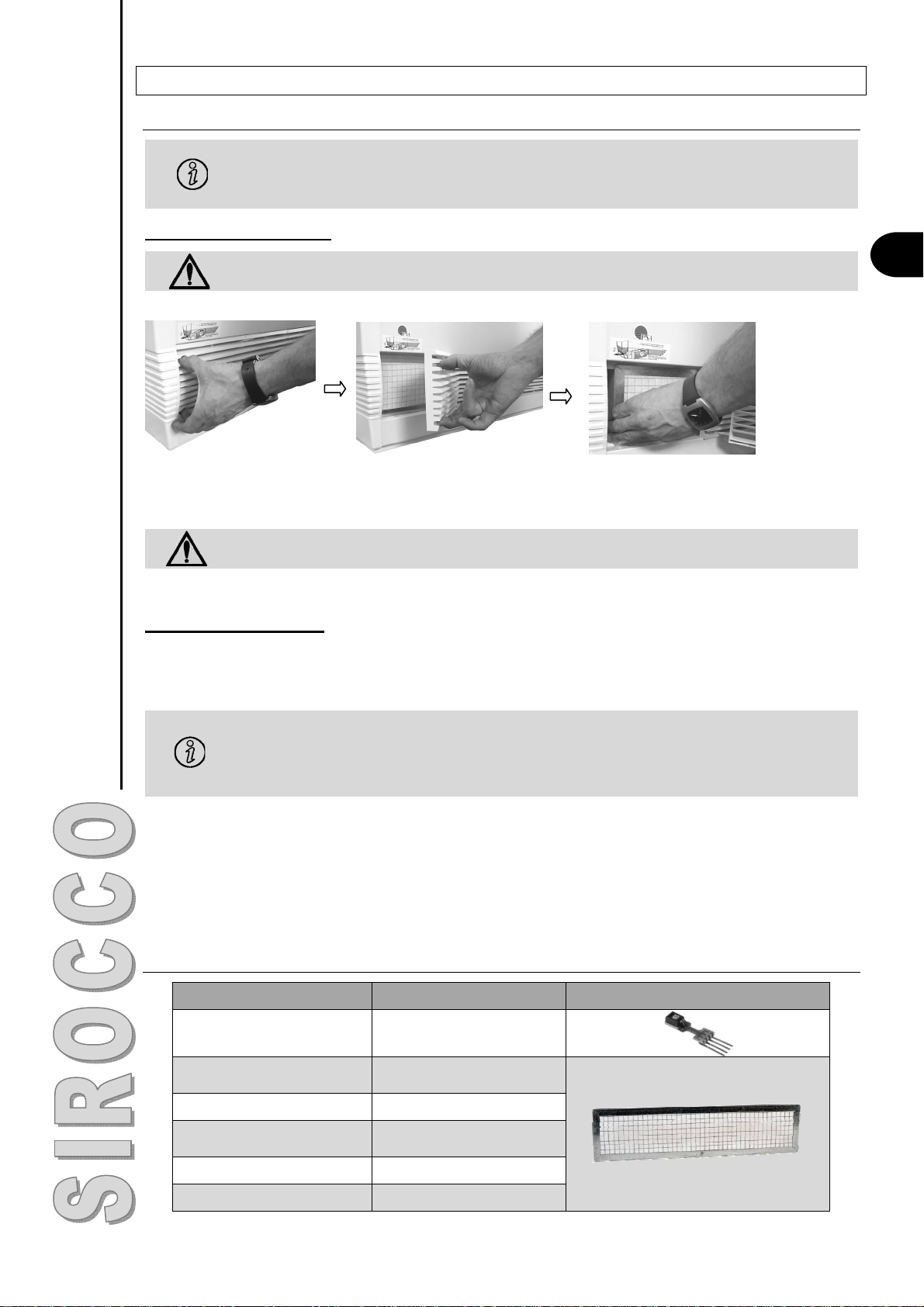

3.1 Maintenance instructions................................................................................................18
3.1.1 Monthly checks ........................................................................................................................18
3.1.2 Annual checks..........................................................................................................................18
3.2 Spare parts.....................................................................................................................18
3.3 Recycling the product.....................................................................................................19
3.4 EC compliance certificate...............................................................................................19
Available in the appendices at the end of the manual:
- electric diagram
- dimensions

2

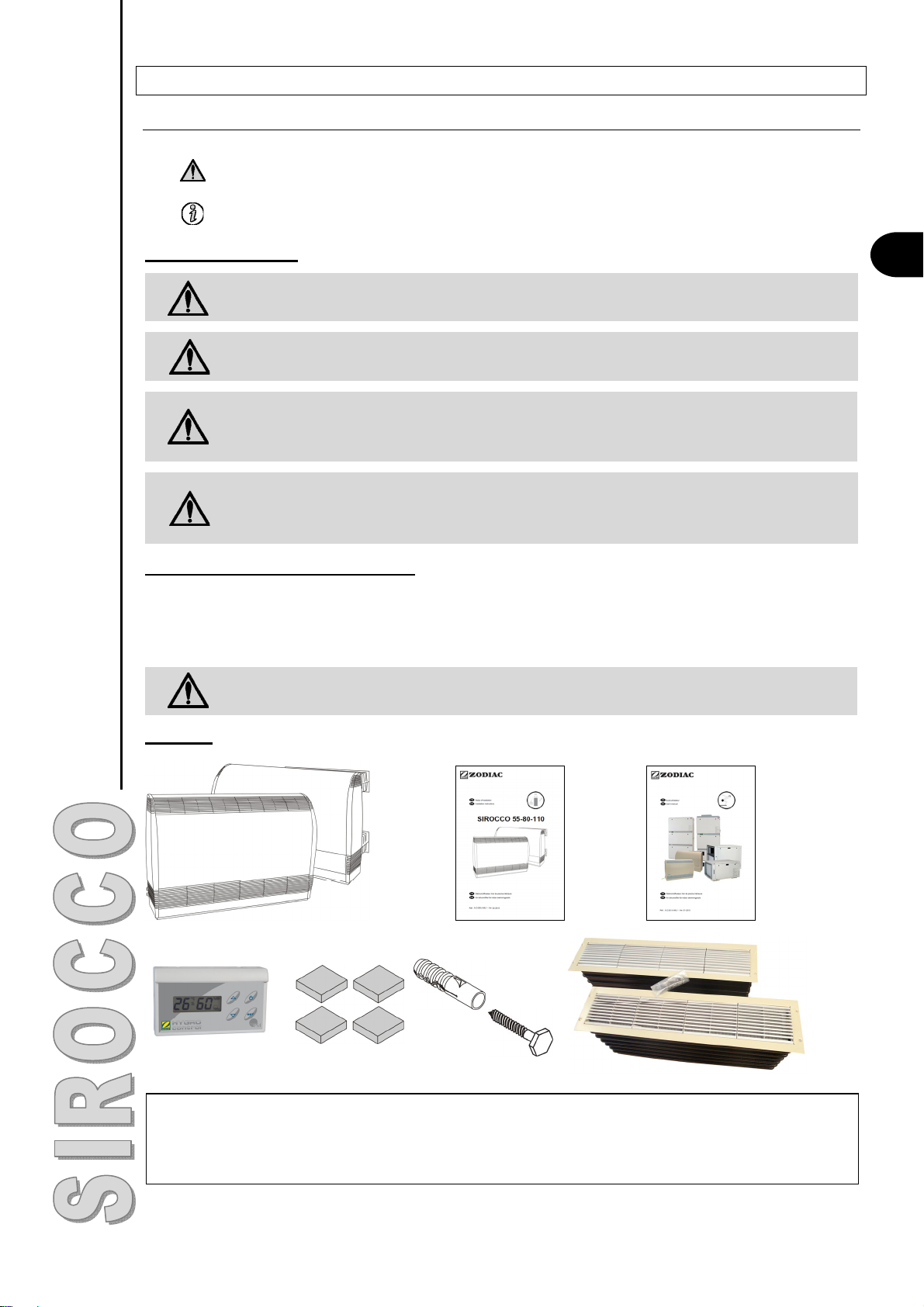

1. Installation
1.1 General
Read this manual carefully before installing, maintaining or repairing this appliance!
The symbol indicates important information that must be taken into account in order to
avoid the risk of injury and/or damage to the appliance.
The symbol indicates useful information.
1.1.1 Precautions
1.1.2 General terms of delivery
Any equipment, even CARRIAGE and PACKING FREE, travels at the recipient’s risk. The recipient
must indicate any reserves in writing on the carrier's delivery bill in the case of damage caused during
transport (confirmation to be sent to the carrier within 48 hours by registered mail and
Acknowledgement of Receipt).
Contents:
+++
Supplied parts:
Hygro Control +anti-vibration studs x4 + dowel x 2 long bolt x 2
For Sirocco can be inset : sleeve x 2 + frame with cadre suction grid and filter x 1 + frame
with blowing grid + frame fixture kit x 1
The appliance must be transported upright on its pallet, in its original packaging.
If the appliance has been overturned make written reserves in writing to the transporter.
Removing or shunting any of the safety or remote control parts will automatically
void the guarantee; the same will apply for the replacement of parts by non-
original parts.
Do not discharge R407C fluid into the atmosphere: R407C is a fluorinated
greenhouse effect gas, covered by the Kyoto Protocol, with a Global Warming
Potential (GWP) = 1653 - (Directive EC 842/2006).
Before working on the appliance, ensure that it is disconnected from the power
supply.
This device must be installed and serviced by certified professionals approved in
the electrical, hydraulic and cooling domains.








EN

3

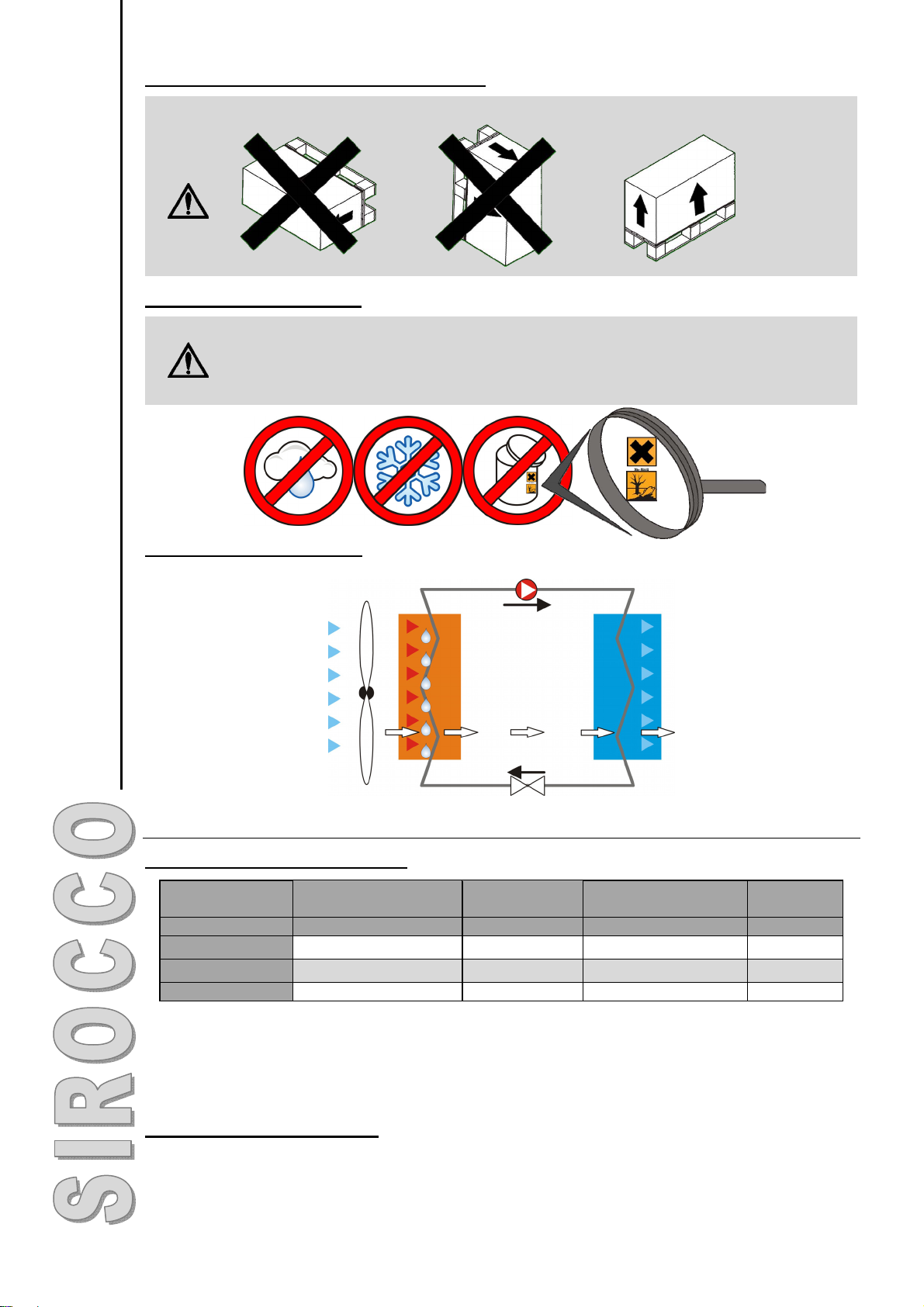

1.1.3 Storage and transport conditions
1.1.4 Field of application
1.1.5 Operating principle
1.2 Description
1.2.1 Technical specifications
Appliance Dehumidifying
capacity* Power consumed* Restored power at room temperature* Nominal air flow
without option L/h W W m³/h
Sirocco 55 2.3 L/h 990 W 2080 W 600 m3/h
Sirocco 80 3.3 L/h 1100 W 2310 W 800 m3/h
Sirocco 110 4.6 L/h 1340 W 2810 W 1000 m
3
/h
* under the following nominal conditions: air 30°C - humidity 70%.
unit protection class: Sirocco ambient: IP 44 ; Sirocco can be inset: IP 45
class: I
refrigerant gas: R407C
refrigerant charge: see product information plate
1.2.2 Operating conditions
operating range: 10°C to 40°C (temperature in the swimming pool hall)
optimum operating conditions: between 25 °C and 30 °C
Hygro Control on request
Exclusive use: dehumidifying swimming pool halls.
Not to be used for any other purpose.
Install in a dry, ventilated technical room, protected from frost and damp, and not
used to store pool maintenance products.
The appliance must be transported upright on its pallet.
Condensation
Air
+35°C
40%HR
Air
+28°C
65%HR
Compressor
Expansion valve

4
1.3 Installation
1.3.1 Electrical regulations for swimming pools
Refer to the current regulations for your country.
French standard C15.100 Section 702 - U.T.E:
In volumes 0 and 1, only protection using Very Low Voltage (article 411.1) with a nominal voltage not
exceeding 12 V AC or 30V DC is allowed. The protection must be installed outside volumes 0, 1 and 2
(the appliance has a protection index of at least IP X5).
In volume 2 (see figures 702A and 702B), the appliances must be:
- either class II for lighting,
- or class I protected by a 30 mA or less ground fault circuit breaker,
- or powered by a separation transformer in compliance to paragraph 413.5.1
The appliance has a protection index of at least IP X2.
h: unknown variable
V: volume
EN

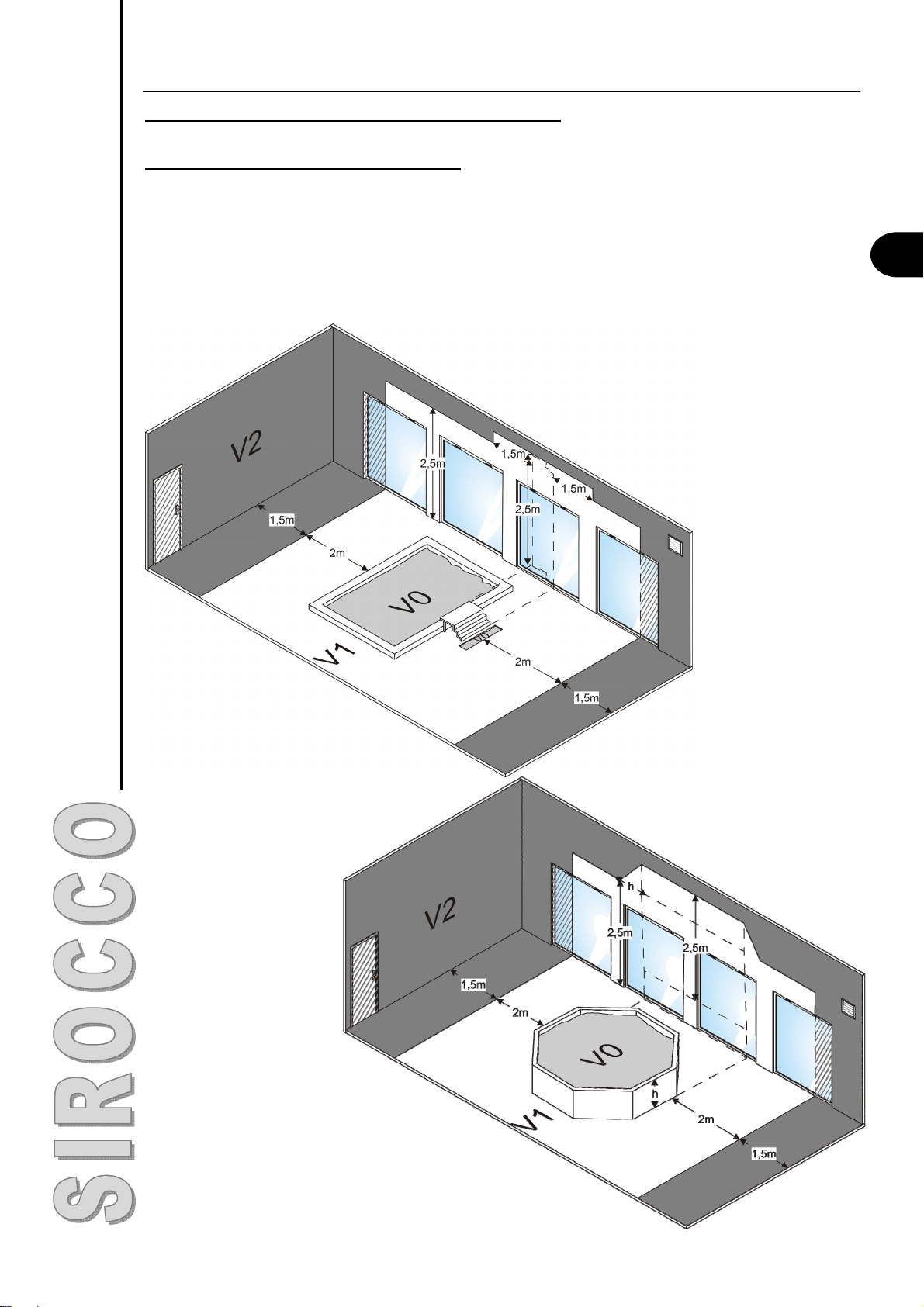

Figure 702 A: volume sizes for in-ground
pools and foot baths
Figure 702 B: volume sizes for
above-ground pools

5

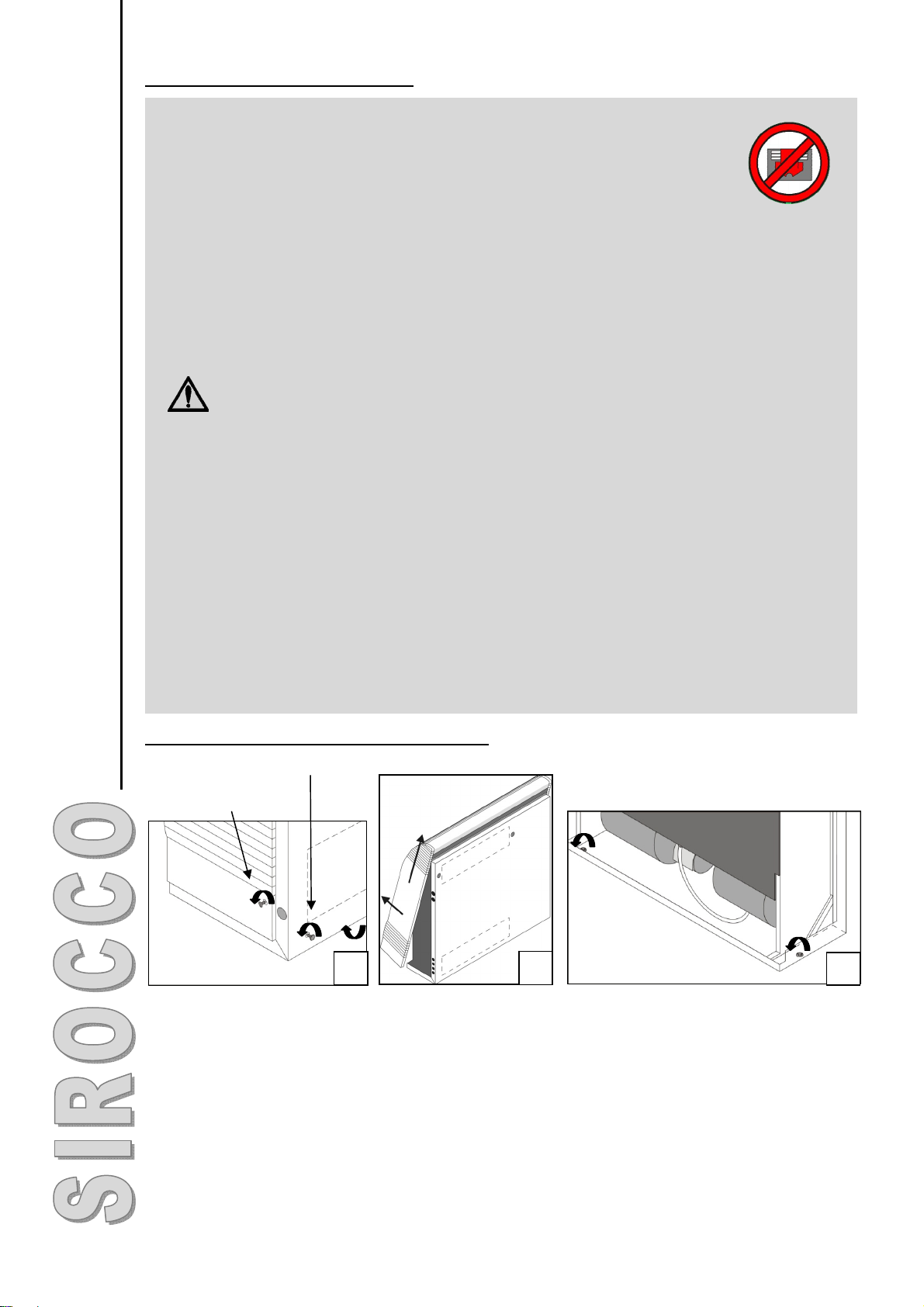

1.3.2 Installation requirements
1.3.3 Access to technical compartment
1) install the appliance on a level base, to avoid any overflows from the condensation
tray (adjustment by two hexagonal screws, see figure 1.3.3),
2) easy access to the appliance for maintenance and connections,
3) place nothing in front of or on the blowing and suction grates,
4) anti-vibration studs (supplied) must be installed under the base when the appliance
is placed on the floor or on a support,
5) for a swimming pool building with a high ceiling or visible roof frame:
- destratification of the upper layers of the room = one or several fans with PVC
blades or an air extractor with fresh air intake.
Warning! 230 V AC appliances = must be outside volume 1 (see §1.3.1),
6) building requirements: swimming pool building = very damp room
During building make sure that:
- the materials used are compatible with a swimming pool environment,
- the walls are sufficiently waterproofed and insulated to avoid condensation forming in
the room when relative humidity reaches 60 to 70%.
Light structure buildings (verandas, shelters...): there is no risk of deterioration of the
structure, even in case of dew as they are designed to support this (even with a relative
humidity of 70%)
7) risk of stratification:
- height of the room < 4 to 5 meters: mechanical ventilator unit or extractor,
- height of the room > 7 to 8 meters: ceiling fans with large blades,
8) ventilation, renewal of air,
- private pools: highly recommended
- public pools: compulsory
The air can be renewed by:
- a simple mechanical ventilation unit,
- a wall or roof extractor with fresh air intakes.
This ventilation ensures the hygienic renewal of air, the removal of any chloramines
present in the air, and the elimination of excessively hot air, whilst contributing to the
dehumidification of the room.
3
2
Adjusting screw to level the appliance
on each side
1
or

6

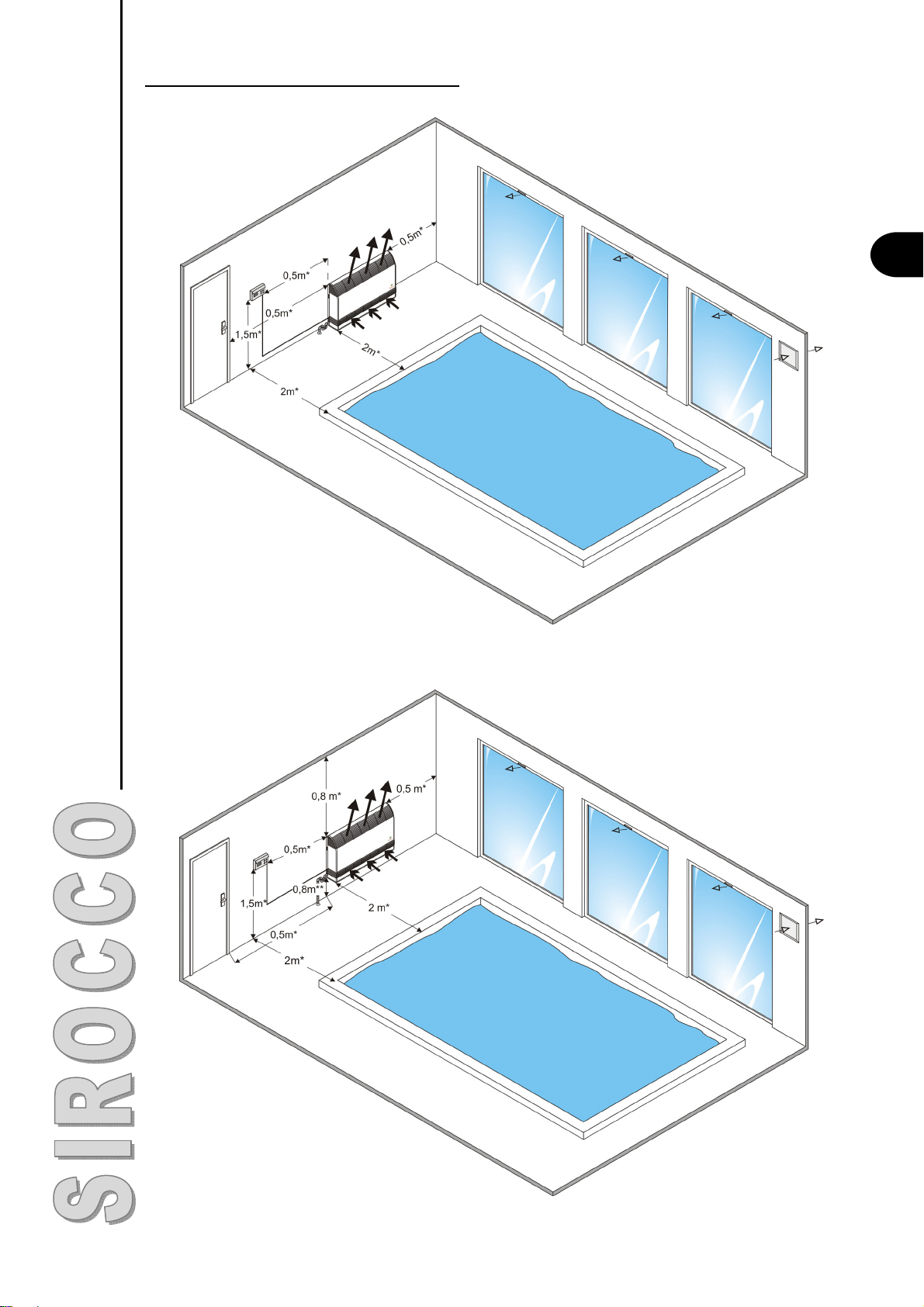

1.3.4 Connection to surrounding air
1.3.4.1 Appliance on the ground (or on a support)
1.3.4.2 Appliance fixed to the wall
Using the two anchoring points at the back of the appliance (with two bolt screws, washers and plugs
(supplied) in a “solid wall”)
Pool

*minimum distance
Sirocco 55-80-110
suction grid
blowing grid
Hygro Control
condensation drainage
air renewal system (see §1.3.2)
fresh air intake







Pool
* minimum distance
** maximum distance
Sirocco 55-80-110
suction grid
blowing grid
Hygro Control
condensation drainage
air renewal system (see §1.3.2)
fresh air intake








EN

7
1.3.5 Inset connection
Install the appliance in a technical room that is protected from freezing.
Reserve dimensions (+2 mm / -0 mm)
mm
Sirocco 55 618 x 165
Sirocco 80 808 x 165
Sirocco 110 998 x 165
the sleeves are:
- to be incorporated in the wall at the time of construction,
- or for sliding into the previously made reservations in the wall, plan for a gasket between the
wall and the outside surface of each sleeve of the technical room and swimming pool room side,
present the base of the appliance (without the cover) to the wall, opposite the sleeves and mark
the two inside anchoring points,
install the fixing plugs into the “solid wall” using the marks,
present the appliance again and from the inside screw in the bolt-screws + washers into each plug
plan for an earth for the blowing and suction grid frame, following the electrical standards in force
in the country (in France: standard NFC 15100, see §1.3.1).
At this moment, the frames fixed to the back of the appliance must easily slot into each
sleeve.
The blocks of polystyrene must remain in the sleeves to protect them from
crushing.
Pool
* minimum distance
** maximum distance
Sirocco 55-80-110
suction grid
blowing grid
Hygro Control
condensation drainage
air renewal system (see §1.3.2)
fresh air intake
Technical
room
Swimming
pool
hall









8
1.3.6 Connection of the condensation drainage
Plan for an adequate slope to ensure a good flow. Drainage shall be via a siphon or a funnel
(condensation drainage pipe Ø12/18). Outlet provided for at the left of the appliance (condition ex-
works), with possibility of moving it to the right.
Make sure the siphon is filled with water in such a way as not to create air suction by the condensation
drainage pipe.
For placing the condensation drainage: see mark “A Ø12/18” § “dimensions” in the appendix.
1.3.7 Electric connections
1.3.7.1 Access to the electric box
1.3.7.2 Voltage and protection
The electrical supply must be provided through a protection and circuit breaking device (not
supplied) complying with the standards and regulations in force in the country where it is installed (in
France standard NF C 15100).
Electrical protection: 30 mA ground fault circuit breaker (at the head of the line).
1.3.7.3 Cable sizes
Supply cable size: for cables of a maximum length of 20 metres (calculation basis: 5A/mm²), this
must be checked and adapted depending on installation conditions.
Option Voltage Nominal
power
consumption
Maximum
power
consumption Cable size
Unit A A mm²
Sirocco 55
single-phase
without option or
hot water battery 230V-50Hz- 4.45 5.9 3 x 2.5 3G2.5
Extra heating 2
kW 230V-50Hz- 13.2 14.6 3 x 4 3G4
Sirocco 80
single-phase
without option or
hot water battery 230V-50Hz- 5.05 8 3 x 2.5 3G2.5
Extra heating 3
kW 230V-50Hz- 18 21 3 x 6 3G6
Sirocco 110
single-phase
without option or
hot water battery 230V-50Hz- 6.35 9.8 3 x 2.5 3G2.5
Extra heating 4.5
kW 230V-50Hz- 26 29.4 3 x 10 3G10
Sirocco 110
three-phase
without option or
hot water battery 400V-50Hz- 2.8 3.8 5 x 2.5 5G2.5
Extra heating 4.5
kW 400V-50Hz- 9.3 10.3 5 x 2.5 5G2.5
Acceptable voltage variation tolerance: ± 10% (during operation),
Electric cables must be fixed.
Prior to any operation, check that the voltage on the identification plate of the
appliance corresponds to the mains voltage available on site.
2
On each side
1 3
EN

9

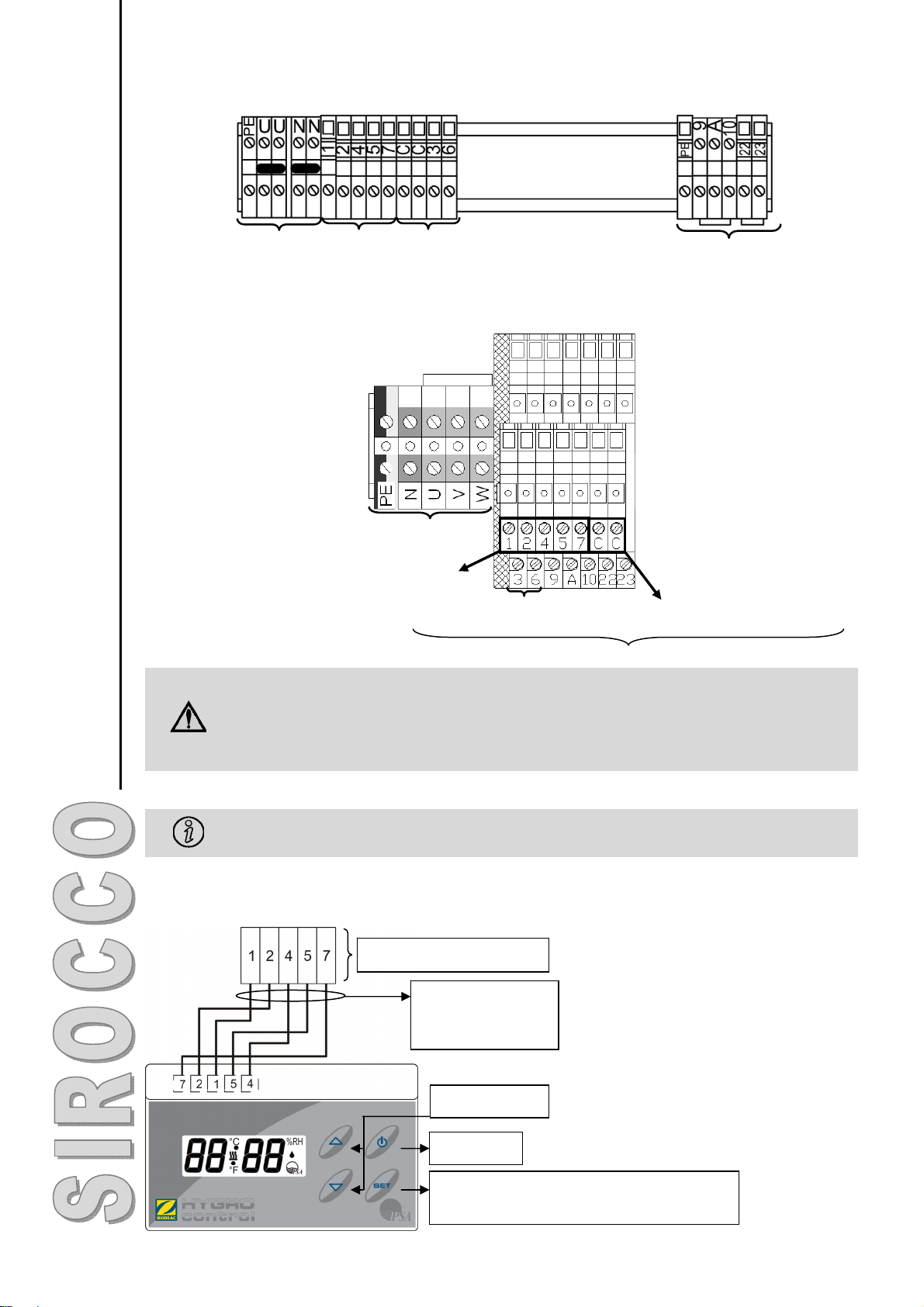

1.3.7.4 Connections
Terminal Sirocco single-phase 230V-1N-50Hz:
Terminal Sirocco 110 three-phase 400V-3N-50HZ:
1.3.7.5 Hygro Control connection
- for installation location: see §1.3.3 and refer to § 1.3.1,
- correctly influenced by the swimming pool room air,
- connect to terminals on the electric box.
Hygro Control = digital display hygro-thermostat = display and setting of pool hall
temperature* and humidity
The appliance must be earthed.
Risk of electrical shock inside the device. Only a qualified and experienced
technician must install the device cables.
If the power cable is damaged it must be replaced by a qualified technician or by a
Zodiac Pool Care Europe service station.
Main supply
(see § 1.3.7.3)
Regulation connection
(see §1.3.7.5) Contact “normally
open” control of heat source Main supply 230Vac-50Hz
for circulator
(used with hot water battery, see §1.4.3.2)
or
Main supply
(see § 1.3.7.3) Regulation
connection
(see §1.3.7.5)
Circulator connection (C-
C) or control of heat
source by contact “NO”
(3-6) (see §1.4.3.2)
Internal connection
terminals (do not modify
the connections)
Cable 5 x 1 mm²,
maximum length:
30 meters
“on/off”
General Sirocco terminal

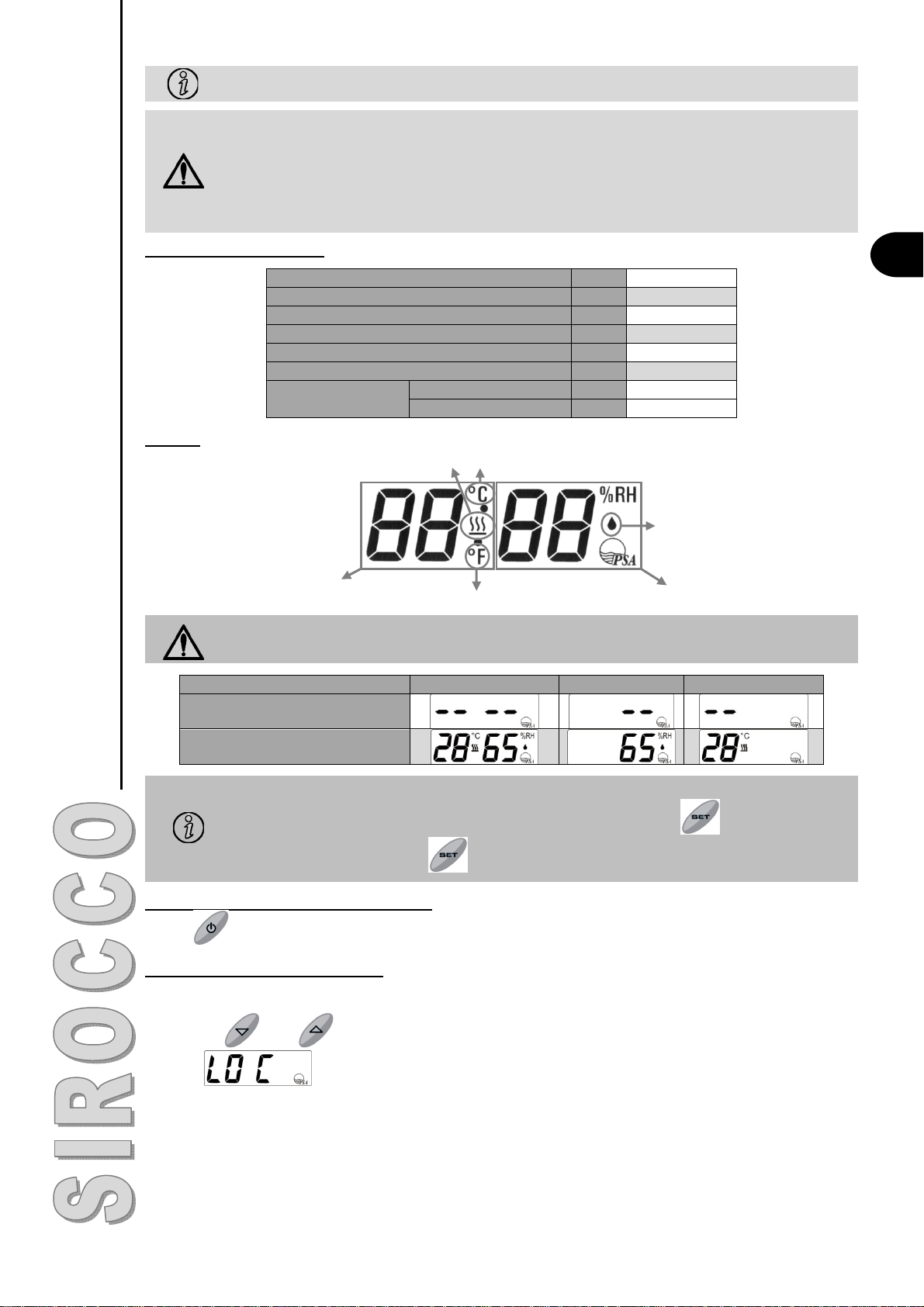

Temperature* and humidity programming
or hygro-thermostat settings
Value settings
