Instructions and Parts List
120af Type 19600
Adjustable
Case Sealer
with
Taping Heads
3
3M-Matic
TM
AccuGlide II
TM

Replacement Parts and Service Information
3M Packaging Systems Division
3M Center, Building 220-8W-01
St. Paul, MN 55144-1000
To Our Customers:
This is the 3M-Matic/AccuGlide/Scotch brand equipment you
ordered. It has been set up and tested in the factory ith "Scotch" brand
tapes. If technical assistance or replacement parts are needed, call or Fax
the appropriate number listed belo .
Included ith each machine is an Instructions and Parts List manual.
Replacement Parts and Additional Manuals
Order parts by part number, part description and quantity required. Also,
when ordering parts and/or additional manuals, include machine name,
number and type. A parts order form is provided at the back of this manual.
3M/Tape Dispenser Parts
241 Venture Drive 1-800/344 9883
Amery, WI 4001-132 FAX# [phone]
Technical Assistance:
3M Matic Helpline  1 800/328 1390. Please provide the customer support
coordinator with the machine number, machine type/model and serial number.
If you have a technical question that does not require an immediate response,
you may Fax it to 715/381 0248.
Minimum billing on parts orders will be $25.00. eplacement part prices available on request.
Note : Out ide the U.S., contact the local 3M ub idiary for part ordering information.
$10.00 restocking charge per invoice on returned parts.
"3M-Matic", "AccuGlide" and Scotch are trademarks of
3M, St. Paul, Minnesota 551 -1000
Printed in U.S.A.
© 3M 1999 -0009-1851- (E79.0)
3

Replacement Parts And Service Information
To Our Customers:
This is the 3M-Matic/AccuGlide/Scotch brand equipment you
ordered. It has been set up and tested in the factory ith "Scotch" brand
tapes. If any problems occur hen operating this equipment, and you
desire a service call, or phone consultation, call, rite or Fax the
appropriate number listed belo .
Included ith each machine is an Instructions and Parts List manual.
SERVICE, REPLACEMENT PARTS AND ADDITIONAL MANUALS
AVAILABLE DIRECT FROM:
Order parts by part number, part description and quantity required. Also, when
ordering parts and/or additional manuals, include machine name, number and
type.
1-800/328 1390
"3M-Matic", "AccuGlide" and Scotch are trademarks of
3M, St. Paul, Minnesota 551 -1000
Printed in U.S.A.
© 3M 1999 -0009-1852-2(D79.0)
3M Packaging Systems Division
3M Center, Building 220-8W-01
St. Paul, MN 55144-1000
3

Instruction Manual
120af Adjustable Case Sealer, Type 19600
This instruction manual is divided into two sections as follows:
Section IInclude all information related to in tallation, operation and part for the ca e ealer.
Section II Include pecific information regarding the AccuGlide II STD 2 Inch Taping Head .
Table of Contents Page
Section I  120af Adjustable Case Sealer
De cription ...................................................................................................................................... 1
Equipment Warranty and Limited Remedy ...................................................................................... 2
120af Content ................................................................................................................................ 2
Important Safeguard ...................................................................................................................... 3 - 5
Specification .................................................................................................................................. 7 - 10
In tallation and Set-Up .................................................................................................................... 11 - 15
Receiving and Handling ..................................................................................... 11
Machine Set-Up.................................................................................................. 11 - 15
Packaging and Separate Part ................................................................. 11 - 15
Taping Head ........................................................................................... 15
Box Size Capacity of Ca e Sealer ............................................................ 15
Initial Start-Up of Ca e Sealer .................................................................. 15
Operation ........................................................................................................................................ 17 - 25
Machine Control , Valve and Switche ............................................................ 18 - 19
Operating "Warning " ......................................................................................... 20
Box Size Set-Up ................................................................................................. 21 - 24
Box Sealing ........................................................................................................ 24
Box Jam ............................................................................................................ 25
Maintenance .................................................................................................................................... 27 - 30
Cleaning ............................................................................................................. 27
Lubrication .......................................................................................................... 27
Drive Belt Replacement ...................................................................................... 28 - 29
Air Line Filter ...................................................................................................... 30
Circuit Breaker.................................................................................................... 30
Knife Replacement, Taping Head....................................................................... 30
i
(Table of Contents continued on next page)

Table of Contents (Continued) Page
Adju tment ........................................................................................................................... 31
Air Pre ure Regulator ....................................................................................... 31
Compre ion Roller .......................................................................................... 31
Drive Belt Ten ion .............................................................................................. 31
Taping Head Adju tment .................................................................................. 31
Special Set-Up Procedure ............................................................................................................... 33 - 35
Changing Tape Leg Length ................................................................................ 33 - 34
Outer Column Re-Po itioning ............................................................................. 34 - 35
Trouble hooting............................................................................................................................... 36
Electrical/Pneumatic Diagram ........................................................................................................ 37 - 39
Replacement Part and Service Information ................................................................................... 41
Spare Part ........................................................................................................ 41
Label Kit ............................................................................................................. 41
Tool Kit ............................................................................................................... 41
Option /Acce orie ........................................................................................................................ 42
Replacement Part Illu tration and Part Li t .....................................................(Yellow Section) 43 - 77
ii
Section II  AccuGlide II STD 2 Inch Taping Heads
(See Section II for Table of Content )

1
Description
The 3M-MaticTM 120af Adjustable Case Sealer with AccuGlideTM II Taping Heads is designed to accept filled
regular slotted containers from an existing conveyor, fold the top flaps and apply a C clip of ScotchTM brand
pressure-sensitive film box sealing tape to the top and bottom center seam of the box The 120af is manually
adjustable to a wide range of box sizes (see "Specifications  Box Weight and Size Capacities", Page 8)
3M-MaticTM 120af Adjustable Case Sealer, Type 19 00

2
ScotchTM, AccuGlideTM, and 3M-MaticTM are Trademarks of 3M, St. Paul, Minnesota 55144-1000
Contents  120af Adjustable Case Sealer
(1) 120af Adjustable Case Sealer, Type 19600
(1) Tool/Spare Parts Kit
(1) Instruction and Parts Manual
Equipment Warranty and Limited Remedy: THE FOLLOWING WARRANTY IS MADE IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTY OF MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE AND ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING, A CUSTOM OR
USAGE OF TRADE:
3M sells its 3M-Matic 120af Adjustable Case Sealer, Type 19 00 with the following warranties:
1 The drive belts and the taping head knives, springs and rollers will be free from all defects for ninety (90)
days after delivery
2 All other taping head parts will be free from all defects for three (3) years after delivery
3 All other parts will be free from all defects for two (2) years after delivery
If any part is proved to be defective within its warranty period, then the exclusive remedy and 3Ms and sellers
sole obligation shall be, at 3Ms option, to repair or replace the part, provided the defective part is returned
immediately to 3Ms factory or an authorized service station designated by 3M A part will be presumed to have
become defective after its warranty period unless the part is received or 3M is notified of the problem no later than
five (5) calendar days after the warranty period If 3M is unable to repair or replace the part within a reasonable
time, then 3M at its option, will replace the equipment or refund the purchase price 3M shall have no obligation
to provide or pay for the labor required to install the repaired or replacement part 3M shall have no obligation to
repair or replace (1) those parts failing due to operator misuse, carelessness, or due to any accidental cause
other than equipment failure, or (2) parts failing due to non-lubrication, inadequate cleaning, improper operating
environment, improper utilities or operator error
Limitation of Liability: 3M and seller shall not be liable for direct, indirect, special, incidental or consequential
damages based upon breach of warranty, breach of contract, negligence, strict liability or any other legal theory
The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability may be changed only by a
written agreement signed by authorized officers of 3M and seller

3
Important Safeguards

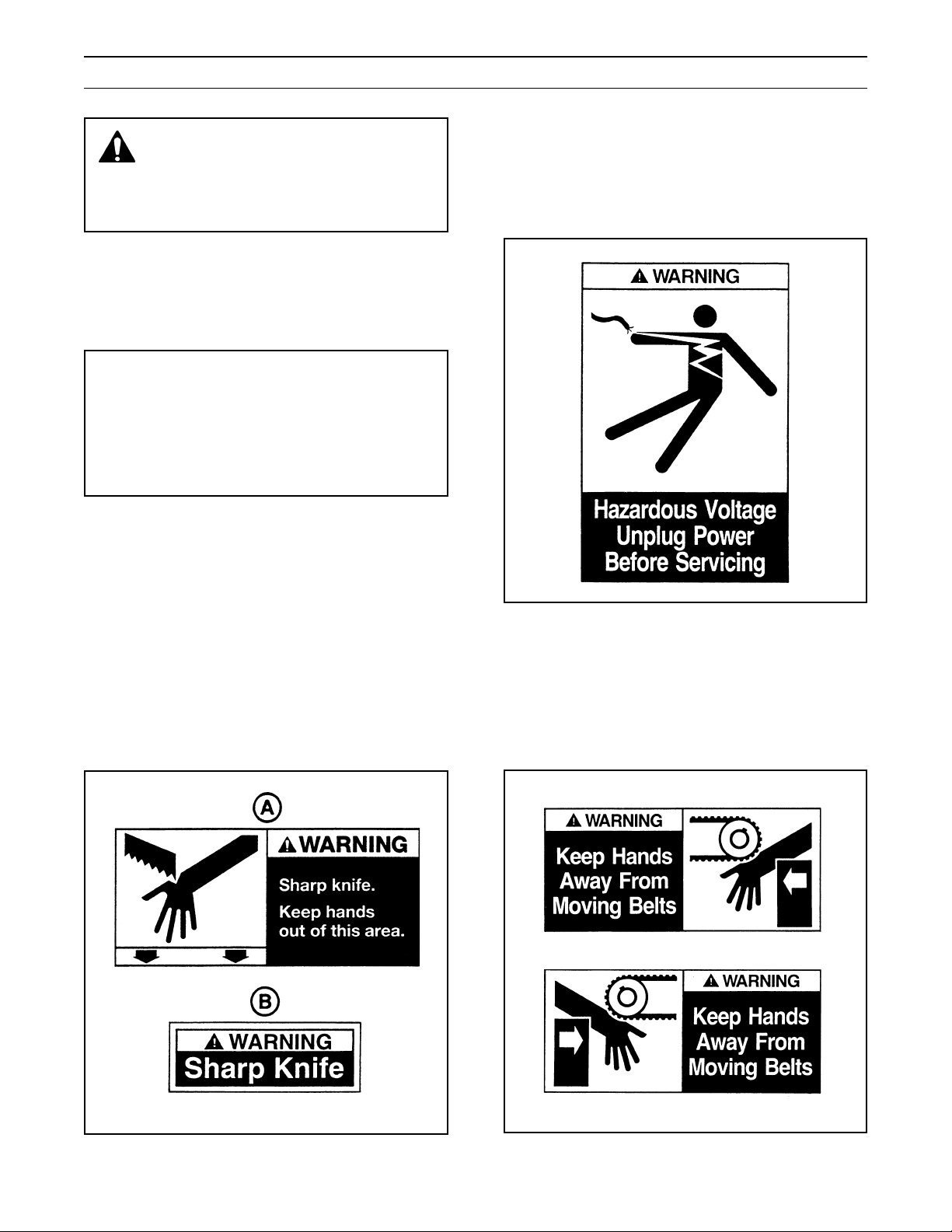

Figure 1-1  Knife Warning Label Figure 1-3  Box Drive Belt Warning Label
This safety alert symbol identifies
important messages in this manual.
READ AND UNDERSTAND THEM BEFORE
INSTALLING OR OPERATING THIS
EQUIPMENT.
Important  In the event the following safety
labels are damaged or destroyed, they must be
replaced to ensure operator safety A label
kit, part number 78-8113-6779-2 is available as
a stock item or individual labels can be ordered
See Parts Illustration/List, Section I, pages 76 &
77
Figure 1-2  Electrical Warning Label
The "Warning  Hazardous Voltage" label, shown
in Figure 1-2, is attached to the cover of the
electrical control box The label warns service
personnel to unplug the power supply before
attempting any service work on the case sealer
The "Warning  Keep Hands Away From Moving
Belts" labels, shown in Figure 1-3, are located on
the infeed end of the machine bed on each side
The labels warn operators to keep hands away from
this area when drive belts are running
The "Warning  Sharp Knife" label (A), shown in
Figure 1-1, is attached to both sides of the upper
frame at the location of the cut-off knife on the upper
taping heads The "Warning  Sharp Knife" label
(B), shown in Figure 1-1, is attached to the orange
cut-off knife guard on both taping heads The labels
warn operators and service personnel of the very
sharp knife used to cut the tape at the end of the
tape application

4
Important Safeguards (Continued)

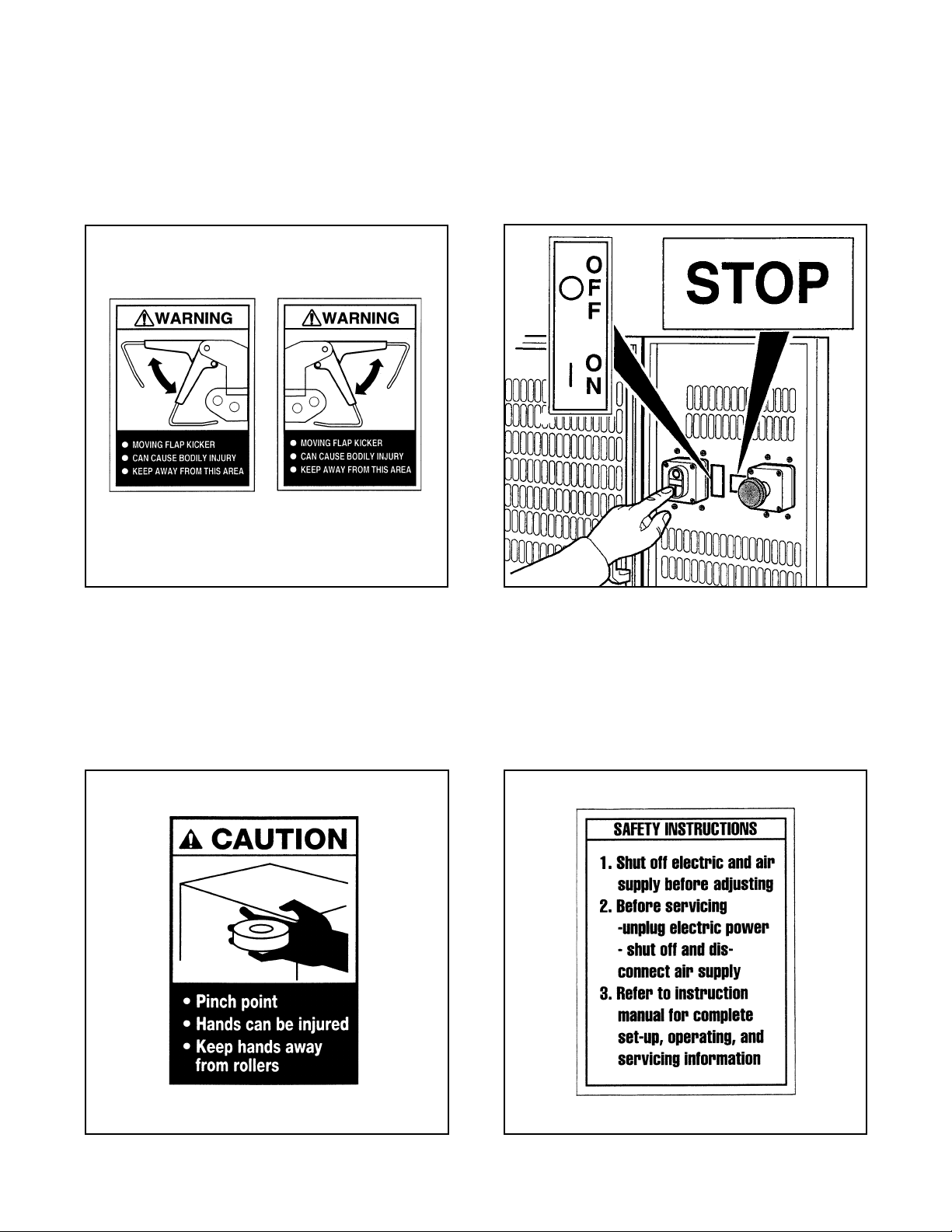

Figure 1-  Stop and On/Off Labels
Figure 1-7  Safety Instructions Label
Figure 1-5  Pinch Point Caution Label
Figure 1-4  Moving Flap Kicker
The "Caution  Pinch Point" label, shown in
Figure 1-5, is attached to the top of the compression
roller brackets on both sides of the machine The
label reminds operator to keep hands away from
compression rollers when machine is running
The "Safety Instructions" label, shown in
Figure 1-7, is attached to both side columns The
label provides convenient safeguard instructions for
the operator and service personnel
The "Warning  Moving Flap Kicker" labels,
shown in Figure 1-4, are attached to the machine
guards on the infeed end, close to the top These
labels remind the operator and service personnel to
keep away from flap kicker when machine is running
Two emergency stop switches are located, one on
each side of the machine, on the guard at the infeed
end of the machine The "Stop" label, shown in
Figure 1- , is located near these switches and
remind operators and other personnel of the function
of these switches In addition, an "On/Off" label is
attached next to the electrical On/Off switch on the
infeed side guard

5
Important Safeguards (Continued)

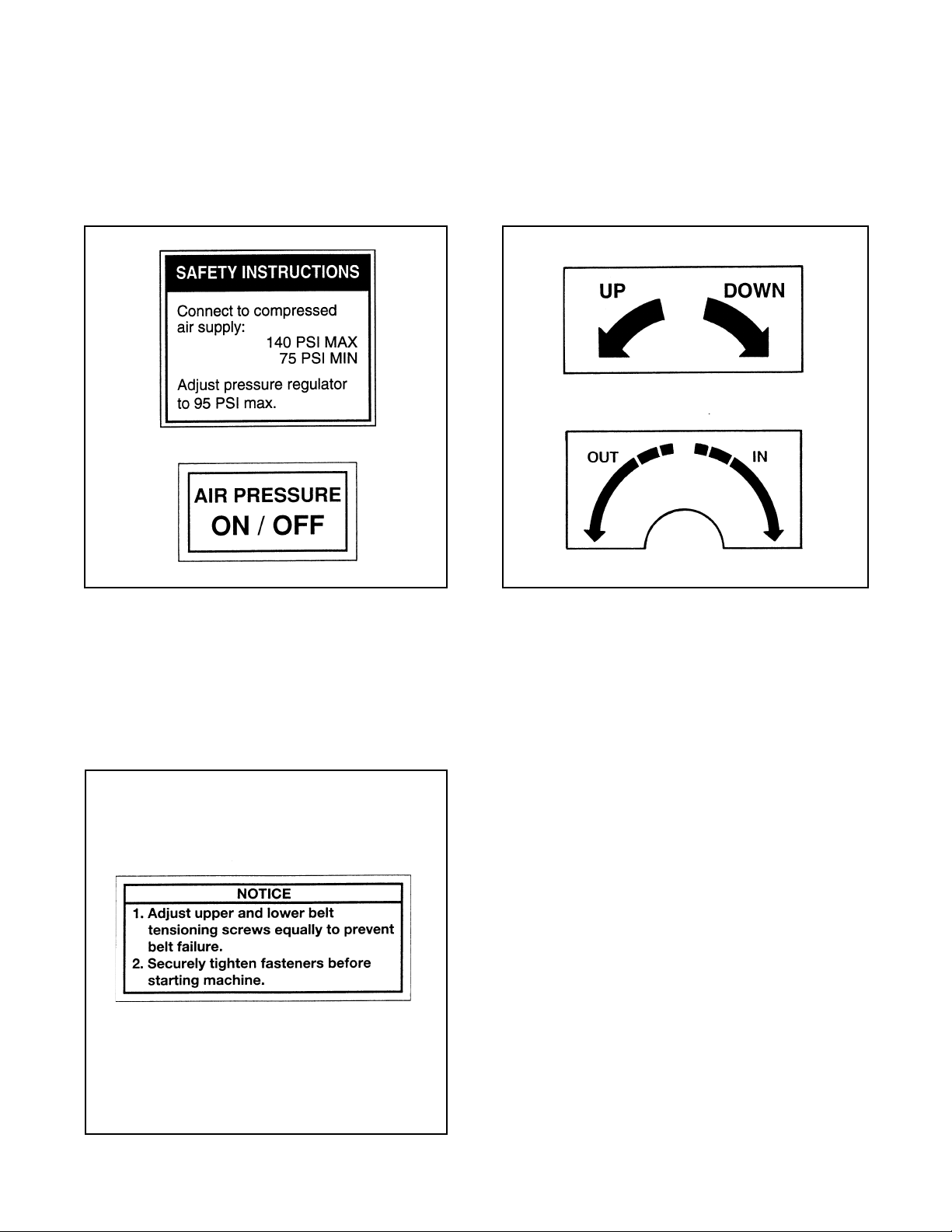

The "Safety Instructions" label, shown in
Figure 1-8, is attached to the frame next to the air
valve/regulator and reminds operator of the correct
air pressure to use The "On/Off" label reminds
operators of the location of the pneumatic On/Off
valve
Two "Operating Notice" labels, shown in
Figure 1-9, are located on the top, infeed end of
both drive belt assemblies The labels remind
operators of correct belt adjustment procedures
The "Up/Down" label, shown in Figure 1-10, is
located on the top surface, on each side, of the
upper column assembly The label reminds the
operator of the direction to turn the height
adjustment crank to raise and lower the upper
assembly/taping head
Figure 1-10  Up/Down, In/Out Labels
Figure 1-8  Pneumatic Labels
Figure 1-9  Operating Notice Label
The "In/Out" label, shown in Figure 1-10, is
attached to the side of the machine frame, next to
the drive belt width adjusting crank It reminds the
operator of direction to turn crank to adjust belts for
box width

6
THIS PAGE IS BLANK

7
(Specifications continued on next page)
1 Power Requirements:
Electrical  115 VAC, 60 Hz, 2 8 Amp
Pneumatic  5 2 bar gauge pressure [75 PSIG]
42 litre/min @ 21° C, 1 01 bar [1 5 SCFM] at 27 boxes per minute
An air regulator/filter is included
The machine is equipped with two 1/9 HP motors and comes with a PVC covered power cord and a grounded
plug

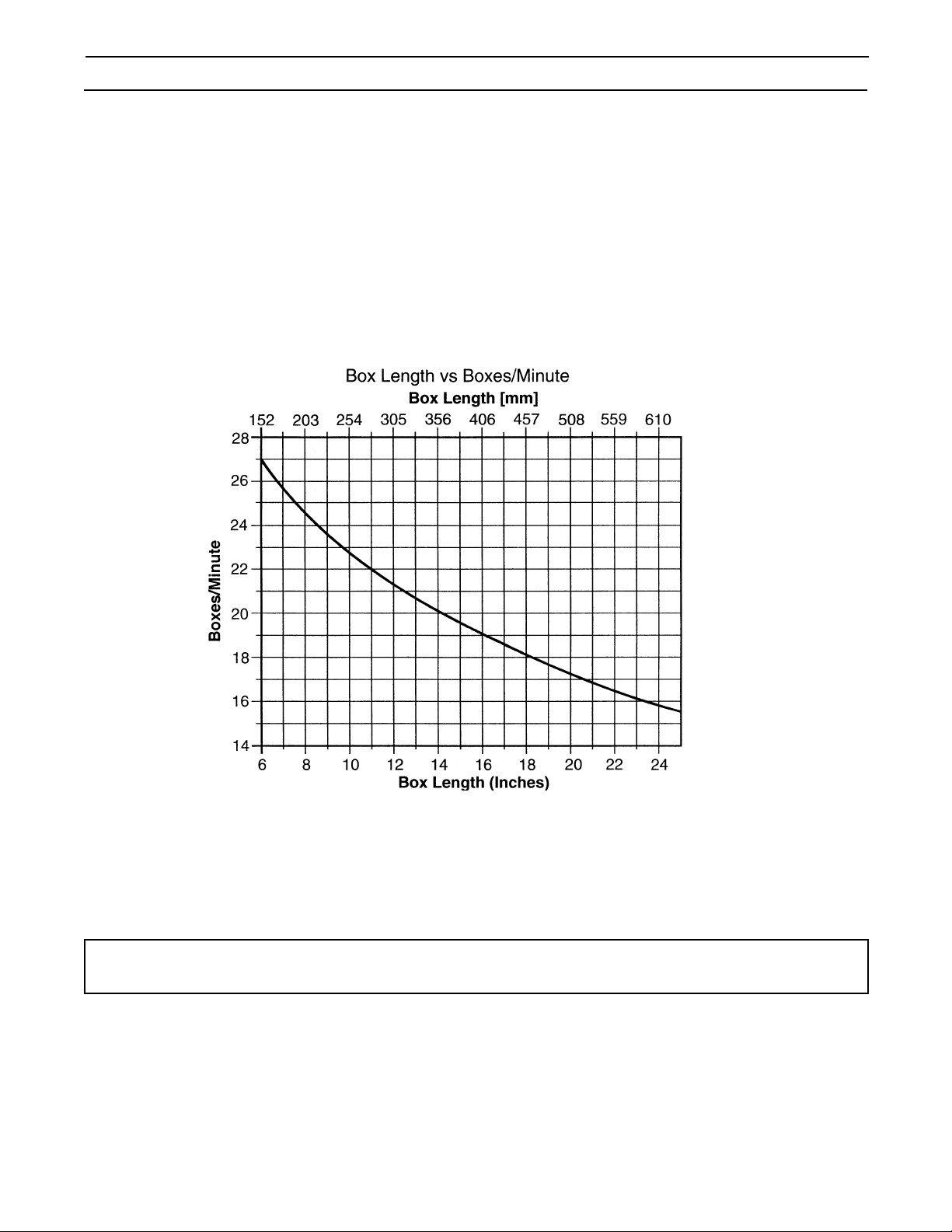

2 Operating Rate:
Box drive belt speed is 23 m/min [75 ft/min]
Specifications
3 Operating Conditions:
Use in dry, relatively clean environments at 4° to 50° C [40° to 120° F] with clean, dry, boxes
Note  Machine should not be washed down or subjected to conditions causing moisture condensation
on components

8
Specifications (Continued)
(Specifications continued on next page)
4 Tape:
ScotchTM brand pressure-sensitive film box sealing tapes
5 Tape Width:
36 mm [1-1/2 inch] minimum to 48 mm [2 inch] maximum
6 Tape Roll Diameter:
Up to 405 mm [16 inch] maximum on a 76 2 mm [3 inch] diameter core
(Accommodates all system roll lengths of ScotchTM brand film tapes )
7 Tape Application Leg Length  Standard:
70 mm ± 6 mm [2-3/4 inch ±1/4 inch]
Tape Application Leg Length  Optional:
(See "Special Set-Up Procedure", page 33 )
50 mm ± 6 mm [2 inch ±1/4 inch]
8 Box Board:
Style  regular slotted containers  RSC
125 to 275 P S I bursting test, single wall B or C flute
9 Box Weight and Size Capacities:
A Box Weight:
Minimum  contents must support top flaps and weight must be sufficient to hold carton on the conveyor
bed with bottom flaps fully closed (4 lbs minimum)
Maximum  29 kg [65 lbs ]

9
Specifications (Continued)
(Specifications continued on next page )
B Box Size: Minimum Maximum
Length  150 mm [6 0 inch] 635 mm [25 0 inch]
Width  120 mm [4 75 inch] 510 mm [20 0 inch]
Height  120 mm [4 75 inch]*510 mm [20 0 inch]
*100 mm [4 inch] with tape application leg length set at 50 mm [2 inch] (See "Special Set-Up Procedure,
page 33) Boxes less than 120 mm [4 75 inch] in height must be wider than 170 mm [6 75 inch]
Note  The maximum width box is 495 mm [19 5 inch] with optional 120af-if Infeed Conveyor
Special modifications may be available for carton sizes not listed above.
Contact your 3M Representative for information.
Notes:
1. Boxes lower than 165 mm [6 5 inch] and wider than 300 mm [11 75 inch] require removal of
compression rollers
2. With columns adjusted to upper position, maximum box height increases to 615 mm [24 25 inch] and
minimum box height increases to 205 mm [8 00 inch] See "Special Set-Up Procedure  Outer
Column Re-Positioning", page 34
3. The case sealer is designed to accommodate most boxes complying with the 1976 FBA and PMMI
voluntary standard "Tolerances for Top Opening" regular slotted containers (RSC)
Two of the requirements of the standard are the following:
1 The box length is not more than twice the box width
2 The box length is not more than four times the box height
In addition, the box score lines must be sufficient to facilitate automatic flap folding Certain
environmental conditions, such as high humidity, can be detrimental to automatic flap folding
4. A minimum spacing, equal to 405 mm [16 inch] between boxes at a maximum conveyor speed of 0,30
m/s [60 F P M ], must be maintained for boxes entering the case sealer
5. The case sealer can accommodate most boxes within the size range listed above However, if the
box length (in direction of seal) to box height ratio is 6 or less, then several boxes should be test run
to assure proper machine performance
DETERMINE THE BOX LIMITATIONS BY COMPLETING THIS FORMULA:
BOX LENGTH IN DIRECTION OF SEAL SHOULD BE GREATER THAN .
BOX HEIGHT
Any box ratio approaching this limitation should be test run to assure performance

10
Specifications (Continued)
10. Machine Dimensions:
A* H1** H2** H3 W1 W2 W3 L1 L2 L3 L4
Minimum
mm 120 585 1355 585 770 900 570 1525 1920 955 955
[Inches] [4 81] [23] [53 38] [23] [30 25] [35 38] [22 5] [60] [75 5] [37 5] [37 5]
Maximum
mm 120 715 1880 715 770 900 570 1525 1920 955 1150
[Inches] [4 81] [28 13] [74] [28 13] [30 25] [35 38] [22 5] [60] [75 5] [37 5] [45 25]
* Casters are optional
** Includes the height of a plastic foot, which is removed if casters are used
Minimum dimension assumes a 405 mm [16 in] diameter tape roll
Weight  290 kg [631 lbs] crated (approximate)
250 kg [545 lbs] uncrated (approximate)
11 Set-Up Recommendations:
 Machine must be level
 Customer supplied infeed conveyors (if used) should provide straight and level box entry
 Exit conveyors (powered or gravity) must convey sealed boxes away from machine

11
Receiving And Handling
After the machine has been uncrated, examine the
case sealer for damage that might have occurred
during transit If damage is evident, file a damage
claim immediately with the transportation company
and also notify your 3M Representative
Machine Set-Up
Note  A tool kit consisting of metric open
end and hex socket wrenches is provided
with the machine These tools should be
adequate to set-up the machine, however,
other tools supplied by the customer will be
required for machine maintenance
PACKAGING AND SEPARATE PARTS
1 Follow "Unpacking Instructions" label attached
to corrugated packing cover
2 Height adjustment crank is shipped in upside
down position Remove the crank and install
right side up as shown in Figure 2-1A
Note: Height adjustment crank can be
installed on either column for operator
convenience.
3 Cut and remove tie down straps that secure
upper assembly to machine bed on each side of
machine at vertical columns
4 Crank the upper assembly up and remove the
2 x 4 wood frame that supports the flap folder
assembly
5 Secure pneumatic controls to side frame as
shown in Figure 2-1B
6 Install the tape drum bracket on the upper taping
head as shown in Figure 2-1C
7 Hold taping head BUFFING ROLLER and cut
and remove cable tie that holds applying/buffing
arms retracted on both taping heads See
Figure 2-1D Allow buffing/applying arms to
extend slowly Also cut and remove cable ties
that secure lower taping head in place
Installation and Set-Up
Important  Read "Warnings", on page 20,
before attempting to set-up the case sealer
for operation
The following instructions are presented in the order
recommended for setting up and installing the case
sealer, as well as for learning the operating
functions and adjustments Following them step
by step will result in your thorough understanding of
the machine and an installation in your production
line that best utilizes the many features built into the
case sealer Refer to Figure 3-1 and 3-2 to identify
the various components of the case sealer
It is recommended that the case sealer be set-up
and operated with product before placing it in the
production line This approach will allow your
thorough review and familiarization with the case
sealer before subjecting it and operating personnel
to a production situation where time for set-up,
adjustments, and operator training usually becomes
limited
For future reference, record machine serial number
on front cover of this manual in the space provided
WARNING  Follow this step
carefully as spring pressure is
applied to applying and buffing arms when
cable tie is removed. Keep hands/fingers
away from tape cut-off knife under orange
knife guard. Knife is extremely sharp and
can cause severe injury.
8 Push buffing roller into head to check for free,
smooth action of upper and lower taping heads
WARNING  Keep hands/fingers
away from tape cut-off knife under
orange knife guard. Knife is extremely
sharp and can cause severe injury.

12
9 Remove fasteners that secure case sealer legs
to pallet
Use appropriate material handling equipment to
remove the machine from the pallet and move it
into position
Whenever the machine is lifted with a fork truck,
insure that the forks span completely across the
machine frame and do not contact any wiring or
mechanism under the machine frame Remove
lower taping head by lifting head straight up
out of machine bed. Also make certain to have
one side of the fork on each side of the vertical
column and electrical control box as shown in
Figure 2-3
CAUTION  Machine weighs
approximately 250 kg [545 lbs]
uncrated.
Installation and Set-Up (Continued)
Figure 2-1  Machine Set-Up

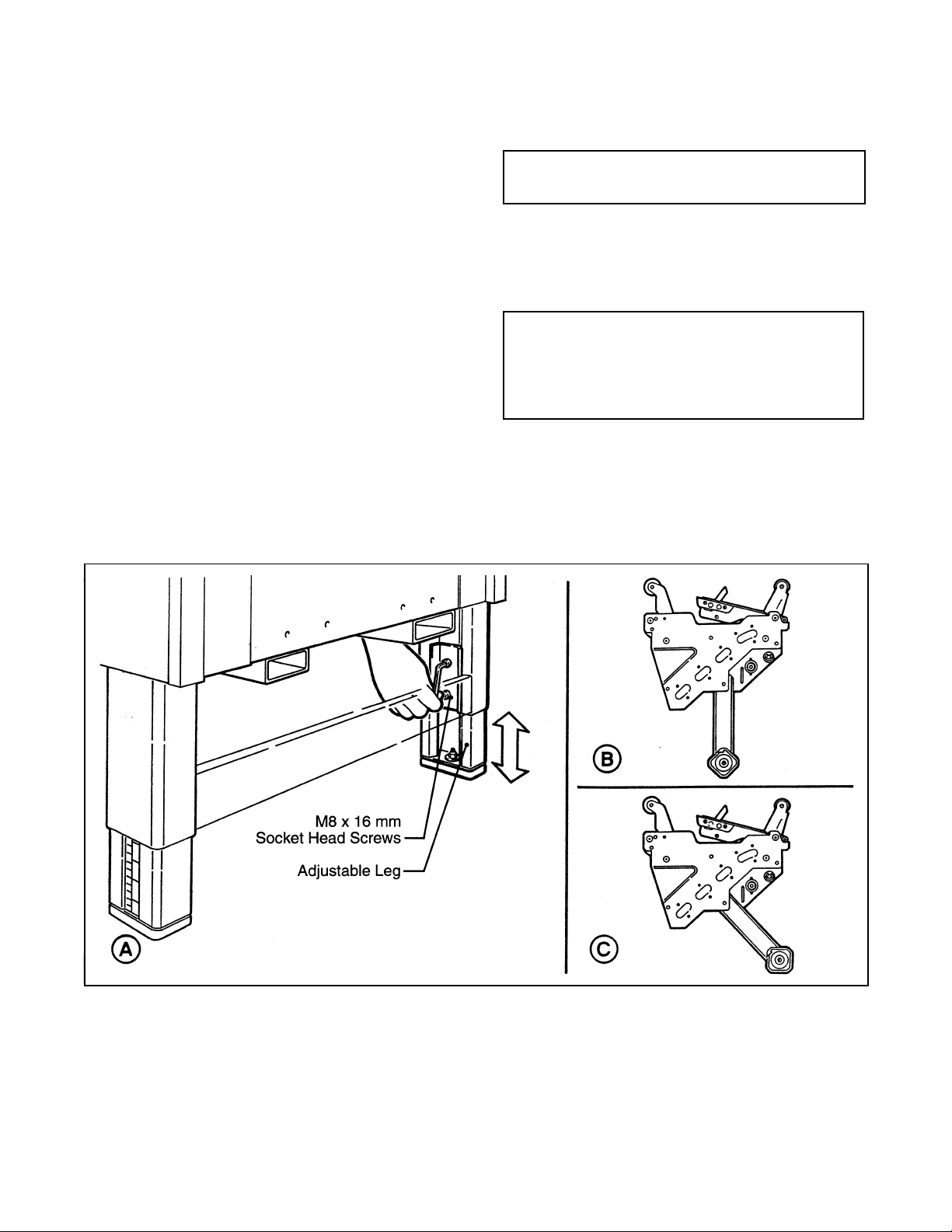

Refer to Figure 2-2A and set the machine bed
height as follows:
a Use appropriate material handling
equipment and blocking techniques to raise
the machine frame to allow adequate leg
adjustment
b Loosen, but do not remove, two M8 x 16
socket head screws in one leg (use M6 hex
wrench) Adjust the leg length for the
desired machine bed height Retighten the
two screws to secure the leg Adjust all four
legs equally
10 Adjust machine bed height The case sealer is
equipped with four adjustable legs that are
located at the corners of the machine frame
The legs can be adjusted to obtain different
machine bed heights from 585 mm [23 inch]
minimum to 715 mm [28-1/8 inch] maximum

13
Installation and Set-Up (Continued)
Note  Case sealer must be installed level, it is
not designed to convey boxes uphill
Figure 2-2  Machine Bed Height Adjustment and Lower Tape Drum Bracket
Contact your 3M Representative for assistance
in selecting conveyor requirements and speed
that will comply with your box capability
11 The lower taping head tape drum bracket has
two mounting positions to allow maximum tape
roll capacity
For machine bed height 650 mm [25 63 inch]
and above, use mounting position shown in
Figure 2-2B
For machine bed heights below 585 - 650 mm
[23 00 - 25 63 inch], use mounting position
shown in Figure 2-2C
Note  A minimum spacing, equal to 405 mm
[16 inch] between boxes at a maximum
conveyor speed of 0 30 m/s [60 F P M ] must
be maintained for boxes entering the case
sealer

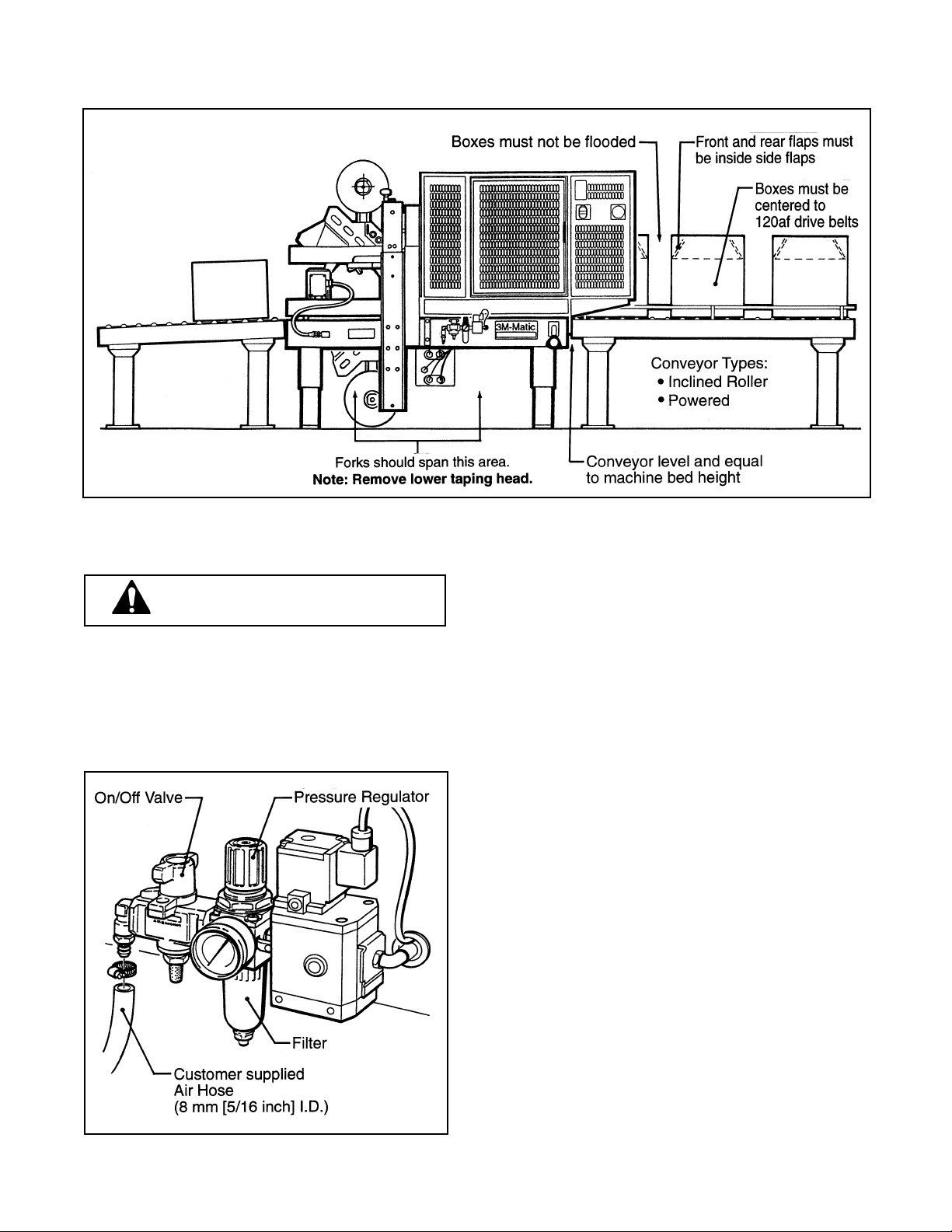

Refer to Figure 2-3 for suggested conveyor
types that can be used in production line
12 Install case sealer in production line

14
Installation and Set-Up (Continued)
WARNING  Use care when working
with compressed air.
The case sealer requires a 5 2 bar gauge
pressure [75 psig] 42 litre/min, @21°C, 1 01 bar
[1 5 SCFM] compressed air supply at 27 boxes
per minute As shown in Figure 2-4, an on/off
valve, pressure regulator, and filter are provided
to service the air supply
a Read and remove safety tag from pneumatic
"On/Off" valve Make sure the valve is in the
"EXH" (off) position
b Connect the main air supply line to the inlet
side of the on/off valve using the barbed
fitting and hose clamp provided See Figure
2-4 The customer supplied air hose
(8 mm [5/16 inch] ID) must be clamped
tightly to the barbed fitting
If another type of connector is desired, the
barbed fitting can be removed and replaced
with the desired 1/4-18 NPT threaded
connector
Always turn the air valve "off" when the air
supply line is being connected or
disconnected
Figure 2-4  Air Connection
13 Pneumatic connection
Figure 2-3  Conveyor Systems

15
Installation and Set-Up (Continued)
TAPING HEADS
Tape Width  the taping heads have been pre-set to
accommodate 48 mm [2 inch] wide tape rolls To
apply 36 mm [1 5 inch] or 42 mm [1 75 inch] wide
tapes, refer to Section II, "Adjustments  Tape Web
Alignment", page 11
Tape Leg Length  taping heads are pre-set to
apply 70 mm [2 75 inch] long tape legs To change
tape legs to 50 mm [2 0 inch], refer to Section II,
"Adjustments  Changing Tape Leg Length",
page 13
BOX SIZE CAPACITY OF CASE SEALER
At its factory setting, the case sealer handles
box sizes up to 508 mm [20 inch] maximum
height If larger capacity is needed, the machine
can be adjusted to accommodate boxes up to
615 mm [24 25 inch] high Refer to "Special
Set-Up Procedure  Outer Column Re-
Positioning", page 34 Note  Adjusting
machine to accommodate 15 mm
24.25 inch] high boxes also increases
minimum box size to 205 mm [8.0 inch].
INITIAL START-UP OF CASE SEALER
After completing the "Installation and Set-Up"
procedure, continue through "Operation" for tape
loading and start-up to be sure case sealer is
properly adjusted to run boxes
WARNING  To prevent shock and
fire hazard: Position extension cord
where it will be out of the way of foot or
vehicle traffic. Extension cord is only for
temporary use  do not use for a
permanent installation.
Note  Machines outside the U S may be
equipped with 220/240 Volt, 50 Hz systems
or other electrical requirements compatible
with local practice
14 Electrical Connection
The electrical control box (mounted on the lower
right side of the machine frame), contains the
pre-set circuit breaker The box can be
relocated to the other side of the machine if
desired A standard three conductor power cord
with plug is provided at the back of the electrical
control box for 115 V , 60 Hz, 2 8 Amp electrical
service The receptacle providing this service
shall be properly grounded Before the power
cord is plugged into 115 Volt, 60 Hz outlet make
sure that all packaging materials and tools are
removed from the machine Do not plug
electrical cord into outlet until ready to run
machine.
Use of an extension cord is not recommended
However, if one is needed for temporary use, it
must have a wire size of 1 5 mm diameter
[AWG 16 ], have a maximum length of 30 5 m
[100 ft], and must be properly grounded
15 Continue with the remainder of the Installation
and Set-Up procedure on this page
