3M 3M-Matic 7000r-I Datasheet

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page i Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
Important Safety Information
BEFORE INSTALLING OR OPERATING THIS EQUIPMENT
Read, understand and follow all safety and operating instructions.
Spare Parts
It is recommended you immediately order the spare parts listed in the “Spare
Parts/Service Information” section. These parts are expected to wear through
normal use, and should be kept on hand to minimize production delays.

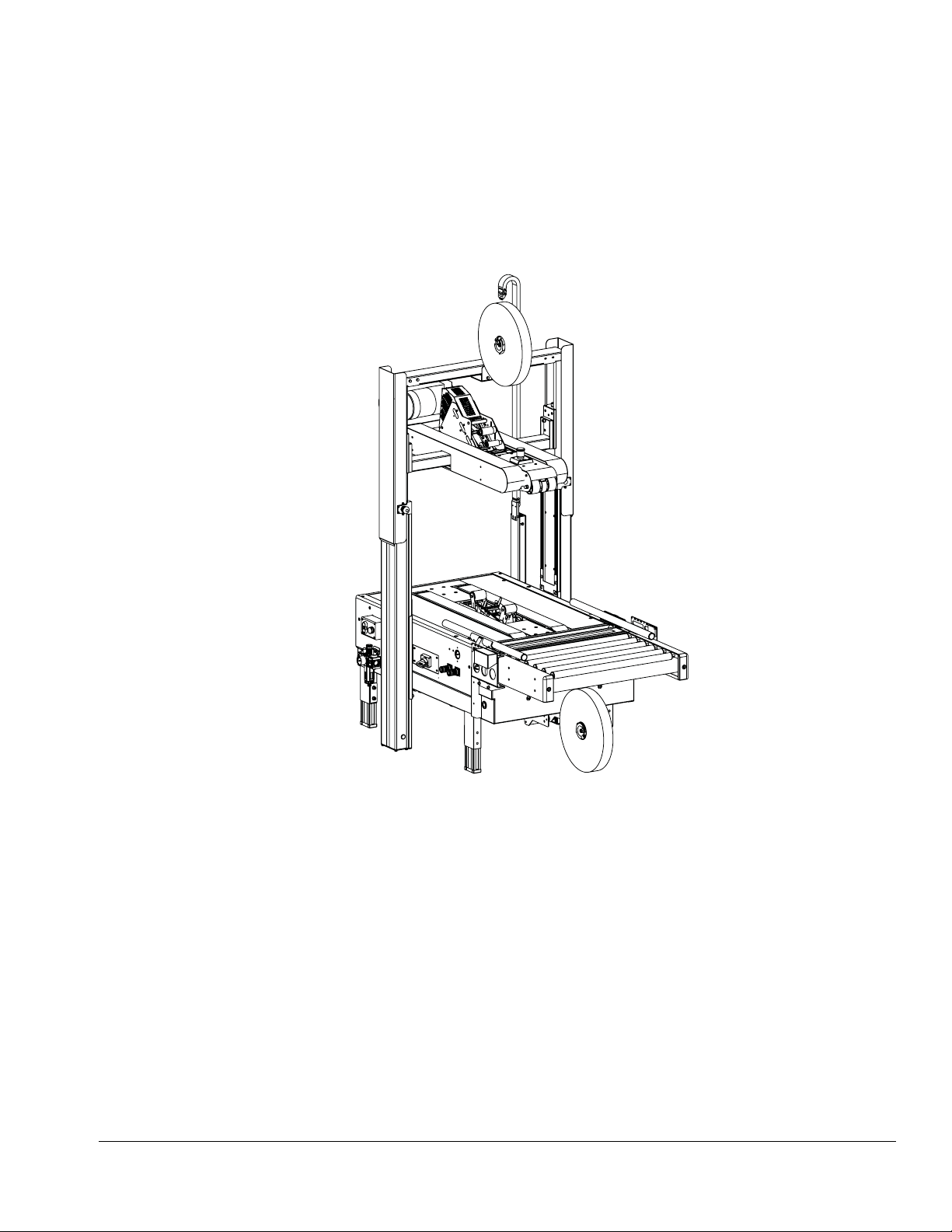

3M-Matic™
7000r-I / 7000r3-I Pro
Type 11700
Random Case Sealer
AccuGlide™3
Taping Heads
Serial #:
For reference, record machine serial number here.
Instructions and Parts List

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page ii Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page iii Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
Replacement Parts and Service Information
To Our Customers:
This is the 3M-Matic™/AccuGlide™/Scotch®equipment you ordered.
It has been set up and tested in the factory with Scotch®Tapes.
If technical assistance or replacement parts are needed, call or fax
the appropriate number listed below.
Included with each machine is an Instructions and Parts List Manual.
Technical Assistance/Replacement Parts and Additional Manuals:
Contact your local service provider.
Provide the customer support coordinator with the model/machine name,
machine type, and serial number that are located on the identication plate
(For example: Model 7000r-I / 7000r3-I Pro - Type 11700 - Serial Number 13282).
Identi cation Plate

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page iv Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045

1 July 2021
EU DECLARATION OF CONFORMITY
Original
Name and address of the manufacturer and, where applicable, his authorised representative:
3M Deutschland GmbH, Closure and Masking Systems Division
Carl-Schurz-Strasse 1
D41453 Neuss, Germany
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Product model/product (product, type, batch or serial number):
7000a-I, 7000a3-I, 7000r-I, 7000r3-I, 7000a-I Pro, 7000a3-I Pro, 7000a6-I Pro, 7000r-I Pro, 7000r3-I Pro, 8000a-I,
8000a3-I, 800asb-I, 8000asb-I, 8000ab-I, 8000ab3-I, 8000at-I, 8000at3-I,8000af-I, 8000af3-I
Object of the declaration
3M-Matic Case Sealers, Serial Numbers: 50000– through –999999
The object of the declaration described above is in conformity with the relevant Union harmonisation: legislation
Machinery Directive: 2006/42/EC
EMC Directive: 2014/30/EU
RoHS Directive: 2011/65/EU
References to the relevantharmonised standards used or references to the other technical specications inrelation to which conformity is
declared. References must be listed with their identication number and version and, where applicable, date of issue:
Safety:
EN ISO 12100:2010 Safety of machinery. General principles for design. Risk assessment and risk
reduction
EN 60204-1:6.0:2016 Safety of machinery. Electrical equipment of machines. General
requirements
EN ISO 13849-1:2015 Safety of machinery. Safety-related parts of control systems. Part 1.
General principles for design
EN ISO 11202:2010/AMD 1:2020 Acoustics — Noise emitted by machinery and equipment. Determination
     ofemissionsoundpressurelevelsataworkstationandatotherspecied
positions – w/corrections
EMC:
EN 61000-6-2: 3.0:2016 Electromagnetic compatibility (EMC). Generic standards. Immunity
standard for industrial environments
EN 61000-6-4:2018 Electromagnetic compatibility (EMC). Generic standards. Emission standard
for industrial environments
Signed for and on behalf of:
Signature: Date: Place:
Name of Signer: Title:
Person authorized to compile the technical le, established in the Community:
Name and Title: Address:
Mr. Benno Staudenmeir
Product Responsibility Specialist
3M Deutschland GmbH, CTC-Competence Centre,
Carl-Schurz-Strasse 1
D41453 Neuss, Germany
Neuss, Germany
Vice President, EMEA Research and Development
Camila Cruz Durlacher

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page vi Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
Replacement Parts and Service Information
To Our Customers:
This is the 3M-Matic™/AccuGlide™/Scotch®equipment you ordered. It has been set
up and tested in the factory with Scotch®tapes. If any problems occur when operating
this equipment and you desire a service call or phone consultation, call, write, or fax
the appropriate number listed below.
Included with each machine is an Instructions and Parts List Manual.
Order parts by part number, part description, and quantity required.
Also, when ordering parts or additional manuals, include model/machine name,
machine type, and serial number that are located on the identication plate.
Service, replacement parts, and additional manuals available direct from:

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page vii Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
Table of Contents — Manual 1:
7000r-I / 7000r3-I Pro Random Case Sealer
(For Taping Head information, see Manual 2 or 3: AccuGlide™3 Taping Heads, 2 Inch or 3 Inch)
7000r-I / 7000r3-I Pro Random Case Sealer Page
Cover Page
Replacement Parts/Declaration of Conformity/Service Information . iii– vi
Table of Contents........................................vii– xi
Acronyms and Abbreviations ................................. xii
1. Introduction
 1.1 ManufacturingSpecications/Description/IntendedUse ........... 1
 1.2 HowtoReadandUsetheManual.............................. 2
1.2.1 ImportanceoftheManual .................................... 2
1.2.2 Manual Maintenance ........................................ 2
1.2.3 ConsultingtheManual....................................... 2
1.2.4 HowtoUpdatetheManualinCaseofModications................ 2
2. General Information
 2.1 IdenticationData .......................................... 3
2.2 After-Sale Service .......................................... 3
2.3 Warranty / Contents......................................... 4
3. Safety
3.1 General Safety Information ................................... 5
3.2 Signal Words Explanation .................................... 5
3.3 Table of Warnings ....................................... 6 – 7
 3.4 Operator’sQualicationsDenition ............................ 8
3.5 Number of Operators........................................ 8
 3.6 SafeUseoftheMachineInstructions ........................... 8
3.7 Residual Hazards .......................................... 8
 3.8 PreventOtherHazards—RecommendationsandMeasures ........ 8
3.9 Personal Safety Measures ................................... 8
3.10 Incorrect / Predictable Actions Not Allowed ....................... 8
3.11 Operator’s Required Skill Levels ............................... 9
3.12 Component Locations ...................................... 11
3.13 Table of Warnings and Replacement Labels ..................12 - 13
4. Technical Specications
4.1 Power Requirements ....................................... 14
4.2 Operating Rate ........................................... 14
4.3 Operating Conditions....................................... 14
4.4 MachineNoiseLevels ...................................... 14
4.5 Tape.................................................... 15
4.6 TapeWidth .............................................. 15
4.7 Tape Roll Diameter ........................................ 15
 4.8 TapeApplicationLegLength—Standard ....................... 15
  TapeApplicationLegLength—Optional
4.9 Box Board ............................................... 15
4.10 BoxWeightandSizeCapacities ...........................15 - 16
4.11 MachineDimensions ....................................... 17
4.12 Set-UpRecommendations .................................. 17

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page viii Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page ix Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
5. Shipment, Handling, and Storage
 5.1 PackedMachineShipmentandHandling ....................... 19
 5.2 OverseasShipmentPackaging(Optional) ...................... 19
 5.3 HandlingandTransportationofUncratedMachine ................ 19
 5.4 MachineStorage ...........................................19
6. Unpacking
 6.1 Uncrating ................................................ 20
6.2 Packaging Materials Disposal ................................ 20
7. Installation
7.1 Operating Conditions........................................21
 7.2 SpaceRequirementsforMachineOperationandMaintenance ...... 21
 7.3 ToolKitSuppliedwiththeMachine ............................ 21
 7.4 MachinePositioning ....................................... 21
7.5 Plastic Ties Removal ....................................... 22
 7.6 AssemblyCompletion/MachineSet-Up .....................22 - 24
7.7 Infeed Conveyor Assembly .................................. 25
7.8 Centering Guides.......................................... 25
7.9 Outboard Tape Roll Mounting ................................ 25
7.10 TapeLegLength .......................................... 25
7.11 Column Cap and Bumper Supports............................ 26
7.12 Box Size Capacity ......................................... 26
7.13 Electrical Connection and Controls ............................ 26
7.14 InitialStart-UpofCaseSealer ................................ 26
7.15 Controls,Valves,SwitchLocations .........................27 - 28
7.16 TapeLoading/Threading ................................... 29
7.17 TheoryofOperation........................................ 30
7.18 Box Sealing .............................................. 31
7.19 Taping Heads Completion ................................... 31
7.20 Outboard Tape Roll Holder .................................. 31
7.21 Preliminary Electric Inspection ............................... 31
7.22 MainPowerMachineConnectionandInspection ................. 31
8. Theory of Operation
8.1 Working Cycle Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
 8.2 RunningModeDenition .................................... 32
8.3.1 Normal Stop Procedure ......................................32
8.3.2 Emergency Stop .......................................... 32
9. Controls
9.1 “On/O󰀨”Switch .......................................... 33
9.2 “Start/Stop”Button......................................... 33
9.3 Emergency Stop Button..................................... 33
9.4 MainAirOn-O󰀨Valve/Regulator/Filter........................ 33
9.5 UpperDriveActuator(Raising)Switch ......................... 34
9.6 ActuatingtheRaisingSwitch ................................. 34
9.7 AirPressureRegulator/UpperDriveForceAdjustment ............ 34
9.8 AirRegulator/Gauge/UpperDrive ............................ 35
9.9 Box Conveying / Tape Seat Application......................... 35
10. Safety Devices
10.1 Blade Guards............................................. 36
10.2 Emergency Stop Button..................................... 36
10.3 Electric System / Circuit Breaker .............................. 36
Table of Contents (continued) — Manual 1:
7000r-I / 7000r3-I Pro Random Case Sealer
(For Taping Head information, see Manual 2 or 3: AccuGlide™3 Taping Heads, 2 Inch or 3 Inch)

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page x Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page xi Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
11. Set-Up and Adjustments
 11.1 BoxWidthAdjustment .................................... 37
 11.2 BoxHeightAdjustment.................................... 37
 11.3 TopFlapCompressionRollerAdjustment ..................... 37
 11.4 ChangingtheTapeLegLength ............................. 37
11.5 RunBoxestoCheckAdjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
12. Operation
12.1 Operator’s Correct Working Position ..........................39
 12.2 StartingtheMachine ......................................39
12.3 Starting Production . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
 12.4 TapeReplacementandThreading ........................... 39
 12.5 BoxSizeAdjustment ......................................39
12.6 Cleaning ................................................39
 12.7 TableofAdjustments/OperatorQualications .................. 39
12.8 Safety Devices Inspection ..................................39
 12.9 TroubleShooting .....................................40 - 41
13. Maintenance
 13.1 SafetyMeasures(seesection3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
 13.2 ToolsandSparePartsSuppliedwithMachine .................. 42
 13.3 MaintenanceOperations—RecommendedInspections/Frequency . 42
13.4 Inspections Performed Before/After Every Maintenance Operation . 42
 13.5 SafetyFeatures(InspectionE󰀩ciency)........................ 42
 13.6 MachineCleaning ........................................ 42
13.7 Cutter Blade Cleaning..................................... 42
13.8 Drive Belt Replacement ................................... 43
13.9 Drive Pulley Ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
13.10 Box Drive Belt Tensioning ...............................44 - 46
13.11 SpecialSet-UpProcedure-ColumnBumperInstallation .......... 47
13.12 SpecialSet-UpProcedure-OuterColumnRepositioning ......48 - 49
13.13 Maintenance Work Log .................................... 51
14. Additional Instructions
 14.1 MachineDisposalInformation .............................. 53
 14.2 Fireemergency ......................................... 53
15. Enclosures and Special Information
15.1 Statement of Conformity .................................. 53
15.2 Hazardous Substances Emission ........................... 53
15.3 SafetyFeaturesList ...................................... 53
15.4 CopiesofTestReports,Certication,etc ...................... 53
16. Technical Documentation and Information
16.1 Electric Diagrams .....................................54 - 59
16.2 Pneumatic Diagram ...................................... 60
16.3 Electrical Component Timing Diagram ........................ 61
16.4 Spare Parts / Ordering .................................62 - 63
Drawings and Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 – End of Manual
Taping Head Information
Manual 2 and 3: AccuGlide™3TapingHeads—2Inchor3Inch
(SeeManual2or3forTableofContents)
Table of Contents (continued) — Manual 1:
7000r-I / 7000r3-I Pro Random Case Sealer
(For Taping Head information, see Manual 2 or 3: AccuGlide™3 Taping Heads, 2 Inch or 3 Inch)

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page xii Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
Abbreviations and Acronyms
List of Abbreviations/Acronyms
3M-Matic ...... Trademark of 3M St. Paul, MN 55144-1000
AccuGlide ...... Trademark of 3M St. Paul, MN 55144-1000
Scotch ......... Trademark of 3M St. Paul, MN 55144-1000
Drw. ........... Drawing
Ex. ............. For Example
Fig. ............ Exploded View Figure no. (spare parts)
Figure .......... Illustration
Max. ........... Maximum
Min............. Minimum
Nr. ............. Number
N/A ............ Not Applicable
OFF............ Machine Not Operating
ON ............ Machine Operating
PLC ............ Programmable Logic Control
PP ............. Polypropylene
PU/PU Foam .... Polyurethane Foam
PTFE ........... Polytetraourethelene
PVC............ Poly-vinyl chloride
W............. Width
H.............. Height
L.............. Length

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 1 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
1. Introduction
3M-Matic™7000r-I / 7000r3-I Pro
Automatic Case Sealer
Type 11700
The 3M-MaticTM case sealing machines have been designed and manufactured following the
Machinery Directive: 2006/42/ECEMC Directive: 2014/30/EU,RoHS Directive: 2011/65/EU in
compliance with the legal requirements at the date of inception.
Reference Documents - Safety:
ENISO12100 Safetyofmachinery.Generalprinciplesfordesign.
Riskassessmentandriskreduction
EN60204‐1 Safetyofmachinery.Electricalequipmentofmachines.
Generalrequirements
ENISO13849‐1 Safetyofmachinery.Safety‐relatedpartsofcontrolsystems.
Part1.Generalprinciples for design
ENISO11202  Acoustics—Noiseemittedbymachineryandequipment.
Determinationofemission soundpressurelevelsataworkstation
andatotherspeciedpositions–w/corrections
EMC:
EN61000‐6‐2  Electromagneticcompatibility(EMC).Genericstandards.
Immunitystandardfor industrialenvironments
EN61000‐6‐4  Electromagneticcompatibility(EMC).Genericstandards.
Emissionstandardfor industrialenvironments
1.1 ManufacturingSpecications/Description/Directives/IntendedUse
The 3M-MaticTM 7000r-I / 7000r3-I Pro Random Case Sealer with AccuGlideTM 3
Taping Heads is designed to apply a “C” clip of Scotch® pressure-sensitive lm
box sealing tape to the top and bottom center seam of regular slotted containers.
The 7000r-I / 7000r3-I Pro automatically adjusts to a wide range of box sizes
(see “Specications Section – Box Weight and Size Capacities”). The 3M-Matic™
case sealing machines have been designed and manufactured in compliance with
the legal requirements at the date of inception.

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 2 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
1. Introduction (continued)
1.2 HowtoReadandUsetheInstructionManual
This instruction manual covers safety aspects, handling and transport, storage,
unpacking, preparation, installation, operation, set-up and adjustments, technical and
manufacturing specications, maintenance, troubleshooting, repair work and servicing,
electric diagrams, warranty information, disposal (ELV), a denition of symbols, plus a
parts list of the 3M-Matic™7000r-I / 7000r3-I Pro Random Case Sealer.
3M Closure and Masking Systems Division
3M Center
 St.Paul,MN55144-1000(USA)
Edition 2021 © 3M 2021. All rights reserved. The manufacturer
reserves the right to change the product at any time without notice.
Publication © 3M 2021/44-0009-2165-8.
1.2.1 Importance of the Manual
The manual is an important part of the machine; all information contained herein is
intended to enable the equipment to be maintained in perfect condition and operated
safely. Ensure that the manual is available to all operators of this equipment and is kept
up to date with all subsequent amendments. Should the equipment be sold or disposed
of, please ensure that the manual is passed on. Electrical and pneumatic diagrams are
included in the manual. Equipment using PLC controls and/or electronic components
will include relevant schematics or programs in the enclosure and in addition, the
relevant documentation will be delivered separately.
1.2.2 Manual Maintenance
Keep the manual in a clean and dry place near the machine. Do not remove, tear, or
rewrite parts of the manual for any reason. Use the manual without damaging it.
In case the manual has been lost or damaged, ask your after sale service for a new copy.
1.2.3 Consulting the Manual
The manual is composed of:
- Pages which identify the document and the machine
- Index of the subjects
- Instructions and notes on the machine
- Enclosures, drawings and diagrams
- Spare parts (last section)
All pages and diagrams are numbered. The spare parts lists are identied by the
gure identication number. All the notes on safety measures or possible dangers
are identied by the symbol:
1.2.4 HowtoUpdatetheManualinCaseofModicationstotheMachine
Modications to the machine are subject to manufacturer’s internal procedures.
The user receives a complete and up-to-date copy of the manual together with
the machine. Afterwards the user may receive pages or parts of the manual
which contain amendments or improvements made after its rst publication.
The user must use them to update this manual.

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 3 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
2. General Information
2.2 Data for Technical Assistance and Service
Agent/Distributor or
Local After Sale Service:
2.1 Data Identifying Manufacturer and Machine
Identi cation Plate

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 4 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
2. General Information (continued)
2.3 Warranty
Within the limits of what is set out below, Seller agrees to repair or replace
without cost to Buyer any defective goods when such defect occurs within a
period of twelve (12) months from the date in which Seller’s goods have been put
into use, but in no event beyond fourteen (14) months from the date of shipment.
Expressly excluded from this warranty are those parts subject to normal wear and
tear (by way of illustration, but not limitation, such parts as belts, rubber rollers,
gaskets, brushes, etc.) and electrical parts. Buyer must immediately notify Seller of
any defect, specifying the serial number of the machine. Buyer shall send to Seller
the defective item for repair or replacement. Seller will perform the repairs or
 provideareplacementwithinareasonableperiodoftime.Uponeectingsuchrepair
 orreplacement,Sellershallhavefullleditswarrantyobligations.Intheeventthe
 repairsorreplacementmustbeeectedattheplacewherethemachineisinstalled,
all expenses for labor, travel and lodging of Seller’s personnel shall be sustained by
the Buyer. Buyer will be invoiced in conformity with Seller’s standard charges for
the services rendered. Seller is not responsible for defects resulting from:
- Events which develop subsequently to delivery
- Improper use of the machine
- Lack of proper maintenance
  -TamperingwiththemachineorrepairseectedbytheBuyer
Seller will not be liable for any injury to persons or things or for the failure of
production. With respect to the materials not manufactured by Seller, such as
motors and electrical equipment, Seller will grant to Buyer the same warranty
Seller receives from its supplier of such materials. Seller does not warrant the
compliance of its machines with the laws of non-EEC countries in which the
machines may be installed, nor does it warrant compliance with laws or standards
relating to the prevention of accidents or pollution. Adaptation of Seller’s machines
to the aforesaid laws or standards shall be the responsibility of Buyer who assumes
all liability therefore. Buyer shall indemnify and hold Seller harmless against any
claim by third parties resulting from failure to comply with the aforesaid laws and
standards.
Contents: 7000r-I / 7000r3-I Pro Random Case Sealer
(1) 7000r-I / 7000r3-I Pro Random Case Sealer, Type 11700
(1) Tool/Spare Parts Kit
(1) Instruction and Parts Manual

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 5 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
3.1 General Safety Information
Read all the instructions carefully
before starting work with the
machine; please pay particular
attention to sections
marked by the symbol:
The machine is provided
with a LATCHING
EMERGENCY STOP
BUTTON (Figure 3-1);
when this button is
pressed, it stops the
machine at any point in
the working cycle.
Maintain clear access
to power cord while
machine is operating.
Disconnect plug from power source
before machine maintenance (Figure 3-1).
Also disconnect air if the machine
has a pneumatic system.
Keep this manual in a handy place near the
machine. This manual contains information
that will help you to maintain the machine
in a good and safe working condition.
Figure 3-1
3. Safety
Caution
Prohibition
Information
Warning!
Sharp knife
Keep hands
out of work-
ing parts
Physical Earth
connection
on the
machine frame
Electrical sup-
ply Disconnect
before any ser-
vice or work on
the machine
E-Stop
"On-O"
This safety alert symbol
identiesimportant
messages in this manual.
READANDUNDERSTAND
THEM BEFORE INSTALLING
OR OPERATING THIS
EQUIPMENT.
3.2 Explanation of Signal Word and
Possible Consequences
Indicates a potentially
hazardous situation,
which, if not avoided,
may result in minor or
moderate injury and/
or property damage.
Indicates a potentially
hazardous situation,
which, if not avoided,
could result in death
or serious injury and/
or property damage.
Caution
Warning
Emergency
Stop
(Latching)

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 6 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
3. Safety (continued)
3.3 Table of Warnings
Figure 3-4
• To reduce the risk associated with
mechanical and electrical hazards:
- Read, understand, and follow all safety
and operating instructions before
operating or servicing the case sealer.
- Allow only properly trained and
qualied personnel to operate and
service this equipment.
Warning
• To reduce the risk associated with
pinches and entanglement hazards:
- Do not leave the machine running
while unattended.
- Turn the machine o when not in use.
- Never attempt to work on any part of
the machine, load tape, or remove
jammed boxes from the machine while
the machine is running.
Warning
• To reduce the risk associated with
pinches, entanglement and hazardous
voltage:
- Turn peumatic and electrical supplies o
and disconnect before performing any
adjustments, maintenance or servicing
the machine or taping heads.
Warning
• To reduce the risk associated with
hazardous voltage:
- Position electrical cord away from foot
and vehicle trac.
Warning
Important! Cavity in the conveyor bed.
Never put your hands inside any part
of the machine while it is working.
Serious injury may occur (Figure 3-4).
Figure 3-2
Figure 3-3
Figure 3-3

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 7 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
Figure 3-7
Figure 3-8
Warning
Sharp Blade
Figure 3-5
Figure 3-6
3. Safety (continued)
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cuto blades under orange blade
guards. The blades are extremely
sharp.
• To reduce the risk associated with
pinch hazards:
- Keep hands clear of the upper head
support assembly as boxes are
transported through the machine.
- Keep hands, hair, loose clothing, and
jewelry away from box compression
rollers.
- Always feed boxes into the machine
by pushing only from the end of box.
• To reduce the risk associated with
muscle strain:
- Use appropriate rigging and material
handling equipment when lifting or
repositioning this equipment.
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift.
• To reduce the risk associated with
re and explosion hazards:
- Do not operate this equipment in
potentially ammable / explosive
environments.
Warning
Warning
Warning
Caution
Important! Tape cutting blade. Never
remove safety device which covers
blade on top and bottom taping units.
Blades are extremely sharp. Any error
may cause serious injuries (Figure 3-5).

International - ENG
February 2021
3M-Matic™7000r-I / 7000r3-I Pro - Type 11700 Original Instructions
Page 8 Source Document for all related Manuals/Translations
44-0009-2165-8 / ECO# 0078045
3.4Operator’sQualications
- Machine Operator
- Mechanical Maintenance Technician
- Electrical Maintenance Technician
- Manufacturer’s Technician/Specialist
(See Section 3)
3.5 Number of Operators
The operations described below have
been analyzed by the manufacturer;
the recommended number of opera-
tors for each operation provides the
best and safest work performance.
Note: A smaller or greater number of
operators could be unsafe.
3.6 InstructionsforaSafeUseofthe
 Machine/DenitionofOperator’s
 Qualications
Only persons who have the skills
described in the skill levels section
should be allowed to work on the
machine. It is the responsibility of
the user to appoint the operators
having the appropriate skill level and
the appropriate training for each
category of job.
3.7 Residual Hazards
The case sealer 7000r-I / 7000r3-I Pro
incorporates various safety protec-
tions which should never be removed
or disabled. It is essential that the
operator and service personnel be
warned that hazards exist which
cannot be eliminated:
3.8 Recommendations and Measures to
Prevent Other Hazards which Cannot
be Eliminated
- The operator must stay on the
working position shown in the
Operation Section. He must never
touch the running driving belts or
put his hands inside any cavity.
- The operator must pay attention
to the blades during the tape
replacement.
3.9 Personal Safety Measures
Safety glasses, safety gloves, safety
helmet, safety shoes, air lters, ear
mus - None is required except
when recommended by the user.
3.10 Predictable Actions which are
Incorrect and Not Allowed
- Never try to stop/hold the box
while being driven by the belts.
- Never remove or disable the
safety devices.
- Only authorized personnel should
be allowed to carry out the adjust-
ments, repairs or maintenance
which require operation with
reduced safety protections.
During such operations, access to
the machine must be restricted.
When the work is nished, the
safety protections must immedi-
ately be reactivated.
- The cleaning and maintenance
operations must be performed
after disconnecting the pneumatic
system and electric power.
- Do not modify the machine or any
part of it.
- Clean the machine using only dry
cloths or light detergents. Do not
use solvents, petrols, etc.
- Install the machine following the
suggested layouts and drawings.
3. Safety (continued)
• To reduce the risk associated with
mechanical and electrical hazards:
- Read, understand, and follow all safety
and operating instructions before
operating or servicing the case sealer.
- Allow only properly trained and
qualied personnel to operate and
service this equipment.
Warning
