3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page i
44-0009-2146-8 / ECO# 0078045
Instructions and Parts List
Important Safety Information
BEFORE INSTALLING OR OPERATING THIS EQUIPMENT
Read, understand and follow all safety and operating instructions.
Spare Parts
It is recommended you immediately order the spare parts listed in the “Spare
Parts/Service Information” section. These parts are expected to wear through
normal use, and should be kept on hand to minimize production delays.
3M-Matic™
Accuglide™4
High Performance
Taping Heads
2 and 3 Inch
Type 11800
Serial #:
For reference, record machine serial number here.

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page ii
44-0009-2146-8 / ECO# 0078045

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page iii
44-0009-2146-8 / ECO# 0078045
Replacement Parts and Service Information
To Our Customers:
This is the 3M-Matic™/AccuGlide™/Scotch®equipment you ordered.
It has been set up and tested in the factory with Scotch®Tapes.
Included with each machine is an Instructions manual.
Identication Plate
For Commercial Use Only
Technical Assistance / Replacement Parts and Additional Manuals:
For technical assistance, contact our help line at 1-800-328-1390.
Provide the customer support coordinator with the model/machine name,
machine type, and serial number that are located on the identication plate
(For example: Model - Accuglide 4 (2 & 3 inch) Taping Head - Type 11800 - Serial Number 13282).
To order replacement parts, contact us:
CSPD division of Combi Packaging Systems LLC.
5365 East Center Dr. N.E.1-800-344-9883
Canton,OH 44721 e-mail: [email protected]
www.combi.com

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page iv
44-0009-2146-8 / ECO# 0078045

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page v
44-0009-2146-8 / ECO# 0078045
Replacement Parts and Service Information (continued)
To Our Customers:
This is the 3M-Matic™/AccuGlide™/Scotch®equipment you ordered.
It has been set up and tested in the factory with Scotch®tapes.
Included with each machine is an Instructions Manual.
Order parts by part number, part description, and quantity required.
Also, when ordering parts or additional manuals, include model/machine name,
machine type, and serial number that are located on the identication plate.
Service, replacement parts, and additional manuals available direct from:

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page vi
44-0009-2146-8 / ECO# 0078045

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page vii
44-0009-2146-8 / ECO# 0078045
Table of Contents - Manual 2: Accuglide 4 High Performance -
2 and 3 inch (Upper and Lower Taping Heads)
Accuglide 4 High Performance Taping Head Manual - 2 and 3 inch Page
Cover Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Replacement Parts and Service Information . . . . . . . . . . . . . . . . . . . . . iii– v
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Equipment Warranty and Limited Remedy. . . . . . . . . . . . . . . . . . . . . . . . viii
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Taping Head Contents / How to Use Manual . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safeguards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Dimensional Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Receiving and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tape Leg Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tape Width Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Taping Head Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tape Loading – Upper Taping Head. . . . . . . . . . . . . . . . . . . . . . . . 10-11
Tape Loading – Lower Taping Head
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Blade Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Blade Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
Tape Alignment and Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Applying Mechanism Spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
One-Way Tension Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tape Roll Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tape Leg Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Leading Tape Leg Length Adjustment. . . . . . . . . . . . . . . . . . . . 16
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Spare Parts/Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Replacement Parts and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page viii
44-0009-2146-8 / ECO# 0078045
Warranty
Warranty
Equipment Warranty and Limited Remedy: THE FOLLOWING WARRANTY IS
MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY,
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND
ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING,
A CUSTOM OR USAGE OF TRADE:
3M sells its 3M-Matic™Accuglide 4 Taping Head, Type 11800
with the following warranties:
1. The Taping Head blade, springs and rollers will be free from defects in material and
manufacture for ninety (90) days after delivery.
2. All other Taping Head parts will be free from defects in material and manufacture for
three (1) years after delivery.
If any part is defective within this warranty period, your exclusive remedy and 3M’s and
seller’s sole obligation shall be, at 3M’s option, to repair or replace the part. 3M must
receive actual notice of any alleged defect within a reasonable time after it is discovered,
but in no event shall 3M have any obligation under this warranty unless it receives such
notice within ve (5) business days after the expiration of the warranty period.
All notices required hereunder shall be given to 3M solely through the 3M-Matic™
Help line (800-328-1390). To be entitled to repair or replacement as provided under this
warranty, the part must be returned as directed by 3M to its factory or other authorized
service station designated by 3M. If 3M is unable to repair or replace the part within a
reasonable time after receipt thereof, 3M, at its option, will replace the equipment or
refund the purchase price. 3M shall have no obligation to provide or pay for the labor
required to remove any part or equipment or to install the repaired or replacement part or
equipment. 3M shall have no obligation to repair or replace those parts failing due to
normal wear, inadequate or improper maintenance, inadequate cleaning, non-lubrication,
improper operating environment, improper utilities, operator error or misuse, alteration or
modication, mishandling, lack of reasonable care, or due to any accidental cause.
Limitation of Liability: Except where prohibited by law, 3M and seller will not be liable
for any loss or damage arising from this 3M equipment, whether direct, indirect, special,
incidental, or consequential, regardless of the legal theory asserted, including breach of
warranty, breach of contract, negligence, or strict liability.
Note: The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability
may be changed only by a written agreement signed by authorized representatives
of 3M and seller.
AccuGlide™, Scotch™and 3M-Matic™are Trademarks of 3M, St. Paul, Minnesota 55144-1000

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 1
44-0009-2146-8 / ECO# 0078045
Intended Use
AccuGlide™ 4 Upper Taping Head - 2 and 3 inch, Type 11800
The intended use of the AccuGlide™ 4 High Performance - 2 and 3 Inch is to apply a
“C” clip of Scotch®pressure-sensitive lm box sealing tape to the top and/or bottom
center seam of regular slotted containers.
The compact size and simplicity of the taping head also makes it suitable for mounting in
box conveying systems other than 3M-Matic™ case sealers. This includes replacement
of other types of taping, gluing or stapling heads in existing case sealing machines.
The AccuGlide™ 4 High Performance Taping Heads - 2 and 3 Inch have been designed
and tested for use with Scotch®pressure-sensitive lm box sealing tape.

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 2
44-0009-2146-8 / ECO# 0078045

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 3
44-0009-2146-8 / ECO# 0078045

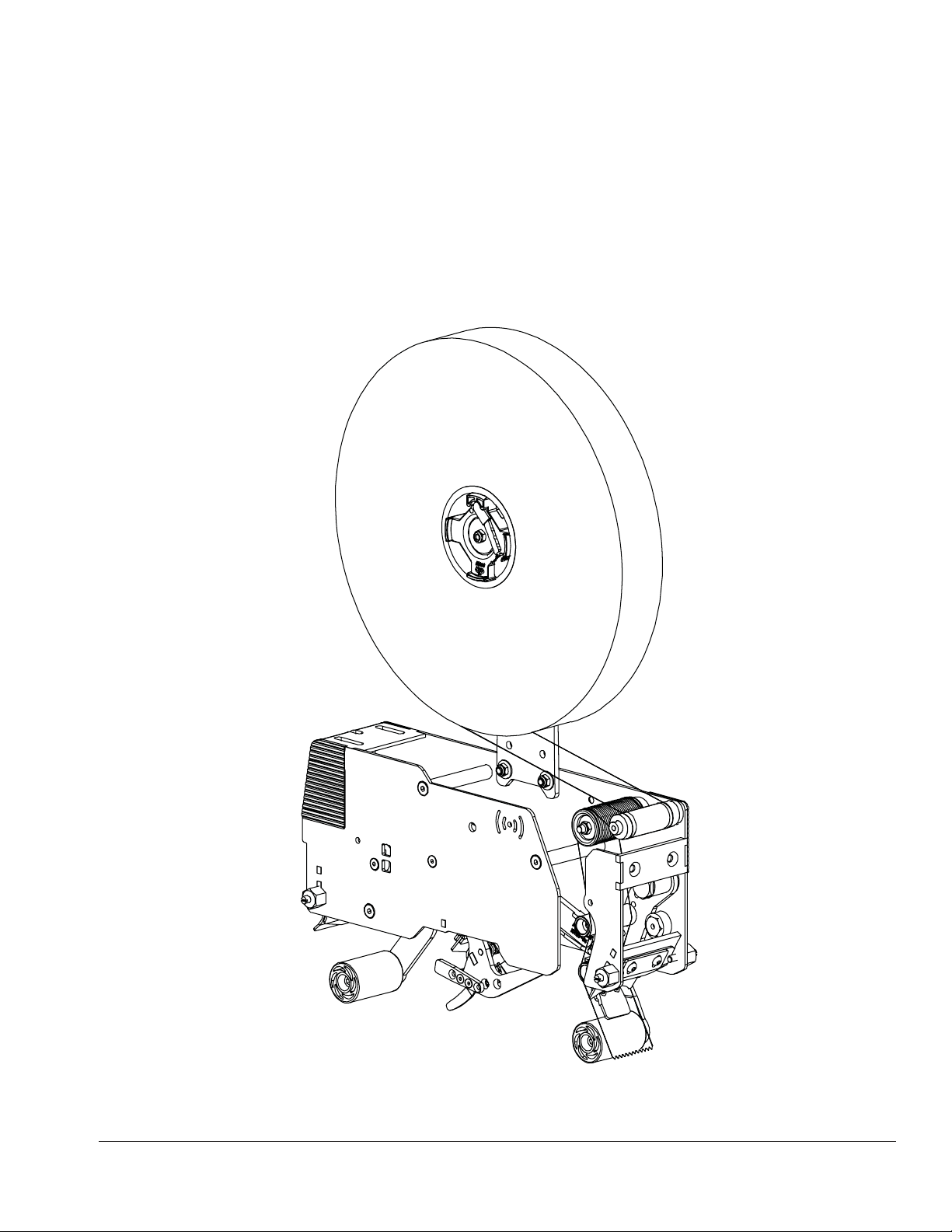

AccuGlide™4 High Performance - 2 and 3 Inch Upper and Lower Taping Heads consist of:
Qty. Part Name
1 Taping Head Assembly
1 Tape Drum and Bracket Assembly
General Information
This instruction manual covers safety aspects, handling and transport, storage, unpacking,
preparation, installation, operation, set-up and adjustments, technical and manufacturing
specications, maintenance, troubleshooting, repair work and servicing, electric diagrams,
warranty information, disposal (ELV), a glossary with a denition of symbols, plus a parts
list of the 3M-Matic™ Accuglide 4 (2 and 3 inch) 3M Industrial Adhesives and Tapes Division
3M Center, Bldg. 220-5E-06 St. Paul, MN 55144-1000 (USA) Edition April 2018 /
Copyright 3M 2018. All rights reserved The manufacturer reserves the right to change
the product at any time without notice.
Publication © 3M 2018. 44-0009-2146-8.
How to use this Manual
The manual is an important part of the machine; all information contained herein is
intended to enable the equipment to be maintained in perfect condition and operated
safely. Ensure that the manual is available to all operators of this equipment and the
manual is kept up to date with all subsequent amendments. Should the equipment be
sold or disposed of, please ensure that the manual is passed on with the machine.
Keep the manual in a clean and dry place near the machine. Do not remove, tear or
rewrite parts of the manual for any reason. Use the manual without damaging it.
However, if the manual has been lost or damaged, ask your after sale service for a new
copy (if it is possible, please have the manual name, part number, and revision information
and/or model/machine name, machine type, and serial number) that are located on the
identication plate:
(For example: Model - Accuglide 4 - 2 and 3” - Type 11800 - Serial Number 13282).
Note: All the important warning notes related to the operation of the machine are
identied by the symbol:
Updating the Manual
Modications to the machine are subject to manufacturer’s internal procedures.
The user may receive pages or parts of the manual which contain amendment
made after its rst publication. The user must use them to update this manual.
Taping Head Contents

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 4
44-0009-2146-8 / ECO# 0078045
(Important Safeguards continued on next page)
Explanation of Signal Word and Possible Consequences
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury and/or
property damage.
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury and/or
property damage.
This safety alert symbol identies important messages in this
manual. READ AND UNDERSTAND THEM BEFORE INSTALLING OR
OPERATING THIS EQUIPMENT.
Caution:
Warning:
• To reduce the risk associated with
mechanical hazards
- Read, understand and follow all safety
and operating instructions before
operating or servicing the case sealer
−Allow only properly trained and
qualied personnel to operate
and or service this equipment
Caution
• To reduce the risk associated with
muscle strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift
• To reduce the risk associated with
impact hazards
- Place the taping head on a smooth
level surface when maintaining or
servicing this equipment
Warning
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
Warning
• To reduce the risk associated with
shear, pinch, and entanglement
hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box
drive system is running
Warning
Important Safeguards

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 5
44-0009-2146-8 / ECO# 0078045
Figure 1-1 Replacement Labels/3M Part Numbers
Important Safeguards (continued)
Important - In the event the following safety labels are damaged or destroyed, they must be replaced to ensure
operator safety. See "Replacement Parts Illustrations and Parts Lists" for label part numbers.
34-8720-2918-5
34-8720-2917-7
3MTM AccuGlideTM Taping Head
78-0025-0308-0
CAUTION
Sharp Knife

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 6
44-0009-2146-8 / ECO# 0078045
(Specications continued on next page.)
Specications
1. Tape:
For use with Scotch®pressure-sensitive lm box sealing tapes.
2. Tape Width:
48mm [2 inches] to 72mm [3 inches].
3. Tape Roll Diameter:
Up to 390mm [15 1/2 inches] maximum on a 76.2mm [3 inch] diameter core.
(Accommodates all system roll lengths of Scotch®lm tapes.)
4. Tape Application Leg Length -
1.25 inches [31mm] to 2.75 [70mm]inches.
5. Box Size Capacities:
For use with center seam regular slotted containers.
When upper and lower taping heads are used on “3M-Matic” case sealers, refer to the
respective instruction manual specications for box weight and size capacities.
6. Operating Rate:
Conveyor speeds up to 0.76m/s [150fpm] maximum.
Note: Higher speeds require special taping head adjustment.
7. Operating Conditions:
Use in dry, relatively clean environments at 5° to 40°C [40° to 105°F] with clean dry boxes.
Important – Taping heads should not be washed down or subjected to conditions causing
moisture condensation on components.
8. Taping Head Dimensions:
Length – 380mm [14.96 inches]
Height – 363mm [14.29 inches] (with tape)
Width – 2” Tape Head 3.15 inches [80mm] - 3” Tape Head 4 inch [101mm]
Weight – Packaged: 2” - 14.3 lbs. [6.49kg] 3”- 15.1 lbs. [6.85kg]
Unpackaged: 2” - 12.9 lbs [5.85kg] 3”- 13.9 lbs. [6.30kg]

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 7
44-0009-2146-8 / ECO# 0078045
Specications (continued)
End View
Roll Diameter - Maximum
390mm [15.5 Inches]
10.95 Inches [278mm] M6 1.42 Inches
[36mm]
13.78 Inches [350mm] M6
14.96 Inches [380mm] M6
363mm [14.3 Inches]
74mm [2.9 Inches]
72mm
[2.83”]
153mm
[6 inches]
2 inch Head:
1.89 inches [48mm]
3 inch Head:
2.84 inches [72mm]
2 inch Head:
3.15 inches [80mm]
3 inch Head:
4 inches [101mm]
16mm [0.63 Inches]
Figure 2-1 Dimensional Drawing

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 8
44-0009-2146-8 / ECO# 0078045
Receiving And Handling
After the taping head assembly has
been unpackaged, examine the unit
for damage that might have occurred
during transit. If damage is evident,
le a damage claim immediately with
the transportation company and also
notify your 3M Representative.
Installation Guidelines
The taping head assembly can be
used in converting existing or in
custom made machinery.
It can be mounted for top taping
or bottom taping. Refer to “Box Size
Capacities,” as well as Figure 2-1
in the Specications section, for
following points making installations:
Important – Always conduct a hazard
review to determine appropriate
guarding requirements when the
installation is in an application
other than 3M-Matic™equipment
1. The box conveying system
must positively propel the box in
a continuous motion, not exceeding
0.81 m/s [160 feet per minute],
past the taping head assembly
since the box motion actuates
the taping mechanism.
2. If a dancer arm is present, pull the
shaft until the latches stops it in place.
This will prevent the dancer arm from
interfering with the reloading process.
3. Information is provided for the physical
dimensions and mounting locations for
both the 2” and 3” Taping Heads in
Figure 2-1.
4. Turn lock lever away from locking position.
Remove spent core. Reload with a new
roll (make sure the adhesive side of tape
faces toward incoming cartons).
Return lock lever to secure position after
reloading tape. Also check and make
sure the spring lock was not bent during
this process.
Note: Make sure lock lever is in correct
position during and after loading.
Pushing or pulling a roll of tape while
lock is engaged may bend spring lock.
If lock is deformed, the lock must be
bent back to a straight position.
5. Press release latch on dancer arm
(if present) so dancer arm roller rests
between new tape roll and tape thread.
Tape Leg Length
Taping heads are factory set to apply
tab length 2” (48mm) to tape leg.
Both upper and lower heads must be
set to apply the same tape leg length.
Also, conveyor speed at which the
product moves through taping heads
aects the leading and trailing tape leg
length. See “Adjustments section -
Leading Tape Leg Length Adjustment.”
Tape Width Adjustment
Taping heads are factory set to apply
48mm [2 inch] wide tape. If it is
necessary to align the tape or to apply
narrower tapes, refer to “Adjustments –
Tape Web Alignment” set-up procedure.
Caution
• To reduce the risk associated with
muscle strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
Warning
Installation

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 9
44-0009-2146-8 / ECO# 0078045

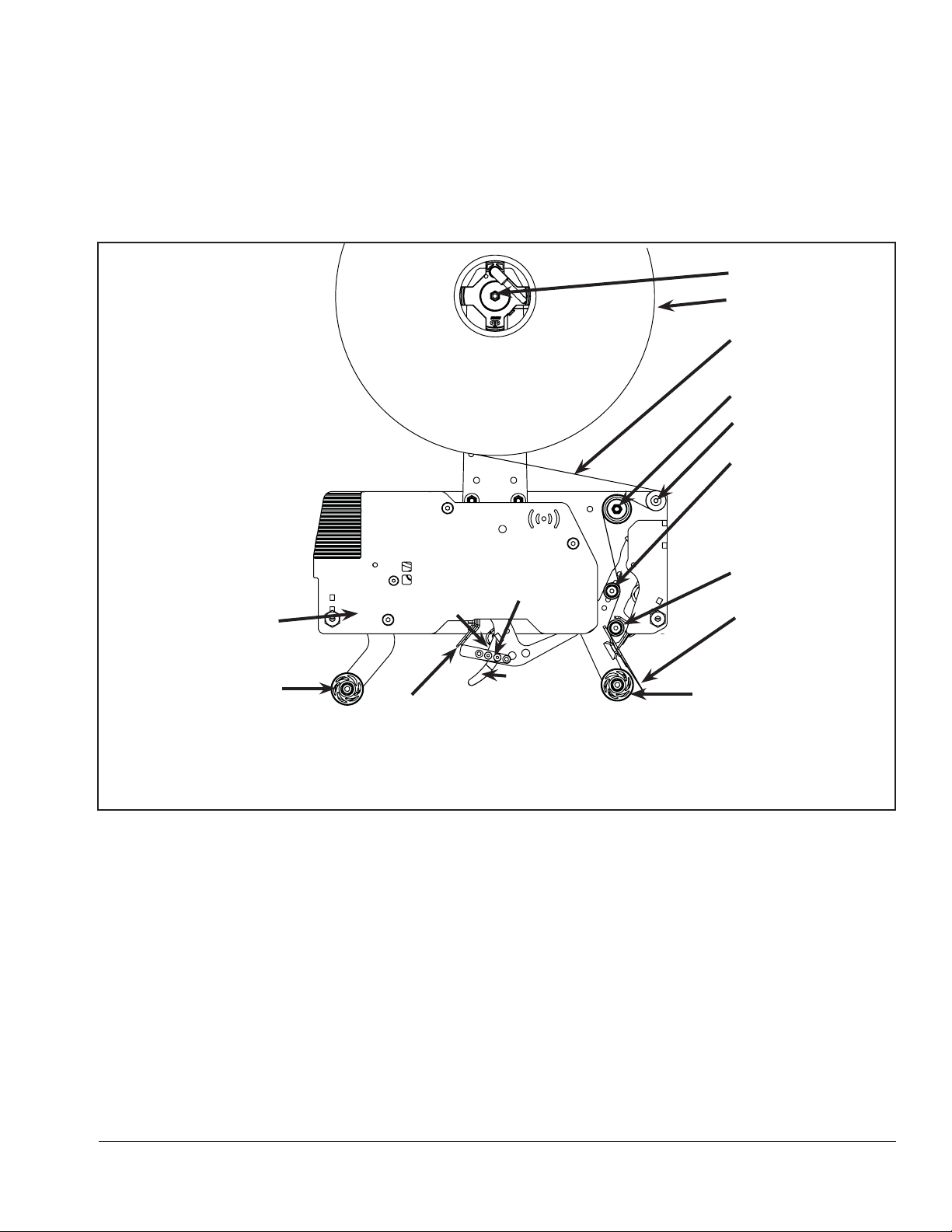

Operation
Tape Drum
Tape Supply Roll
Tape Adhesive Side
Tension Wrap Roller
Knurled
Roller
Tab Adjustment
Roller
Threading Needle
Applying Roller
One-Way
Tension Roller
Applying
Mechanism Spring
(not shown)
Bung Arm
Cover
Bung
Roller
Figure 3-1 Taping Head Components/Threading Diagram - Upper Head
Knife Guard
Tape
Cut-O
Knife
Adjustment
Bar
Intermediate
Wipe

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 10
44-0009-2146-8 / ECO# 0078045
One-Way
Tension Roller
Dancer
Arm Roller
(optional)
Also refer to exploded
view Figure 3-4
Applying
Roller
Tension
Wrap Roller
1
2
4
3
Figure 3-3: Insert threading needle through
rollers in direction indicated by arrows.
Operation (continued)
It is recommended that the detailed
instructions and sketches in this manual
be referred to the rst few times the
taping head is loaded/threaded until the
operator becomes thoroughly familiar
with the tape loading operation.
Note: If practical, remove tape roll before
removing taping head from
machine to minimize weight.
Note: Threading can usually be accomplished
without removing the tape applicator
from the case sealer, due to the open
design. Arrow shaped stickers along
the rollers should direct threading of tape.
Tape Loading – Upper Taping Head
1. Place the upper taping head in a
convenient working position.
2. Using Figures 3-2/3-3/3-4/3-5 and 3-6.
Position tape roll so adhesive side of
tape faces front of taping head as it’s
pulled from supply roll.
3. Thread tape over dancer arm roller
(if dancer arm used).
Guide tape around tension wrap roller
(Position 1) then around one-way
tension roller (Position 2).
4. Pull it over knurled roller so
adhesive side is in contact with
this roller (Position 3).
5. Pull tape down over tab adjustment
roller. Pull it under knurled roller and
between crescent tape guide and
support pad (Position 4) The tape
should extend ½” - 13mm) past the
applying/compression roller).
6. Cut away any excess tape.
Important – Do not cut against apply roller -
roller damage could occur.
Tape Loading – Lower Taping Head
See upper head instructions.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
Warning
Caution
• To reduce the risk associated with
muscle strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift
• To reduce the risk associated with
impact hazards
- Place the taping head on a smooth
level surface when maintaining or
servicing this equipment
• To reduce the risk associated with
shear, pinch, and entanglement hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box drive
system is running
Warning
Figure 3-2 Tape Loading/Threading
Tab Adjustment
Roller
Knurled /
Roller

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 11
44-0009-2146-8 / ECO# 0078045
Figure 3-4 Tape Loading/Threading
Figure 3-5
Tape Loading/
Threading
Operation (continued)
Figure 3-4 and 3-5
Place tape roll on tape drum to
dispense tape with adhesive side
forward. Seat tape roll fully against
back ange of drum.
Manually turn tape roll to create
slack tape while pulling tape through
tape applying mechanism until tape is
through and tape is in alignment with
applying roller. Excess tape can be cut
with a scissors at 1/2 inch past the
applying roller.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
Warning
Crescent
Tape Guide
Tape
Support
Pad
(underneath)
Figure 3-3
Knurled
Roller
Figure 3-6
Tape Hub /
Mechanism Lock
Lock Lever
Spring Lock
(under tape core)
Tape Roll Hub
Dancer Arm
(optional)
Latch
(push to release)

North American - ENG
Date Released:
05-22-18
3M-Matic™Accuglide 4 - 2 and 3 Inch Taping Head - Type 11800
Page 12
44-0009-2146-8 / ECO# 0078045
(maintenance continued on next page.)
Figure 4-1 Blade Replacement
Maintenance
The AccuGlide™ 4 High Performance 2 and
3 Inch Taping Head has been designed
for long, trouble free service. The taping
head will perform best when it receives
routine maintenance and cleaning.
Taping head components that fail or
wear excessively should be promptly
repaired or replaced to prevent damage
to other portions of the head or product.
Tools
Metric Hex Keys - Ball end set recommended.
2mm, 2.5mm, 3mm, 4mm, 5mm, and 6mm.
Wrenches - 8mm, 10mm, 5/18 inch, 15/16 inch.
Thread Lock Compound/Fasteners -
Critical fasteners may be secured with
thread locking compound. To loosen
and remove a dicult fastener, apply heat.
Blade Replacement
Upper and Lower Taping Heads – Figure 4-1
1. Remove Blade Screw (position 1).
2. Remove blade cover plate and blade
(position 2).
3. Replace blade and cover plate.
4. Reinsert and tighten screw.
Note – Check the blade position
to insure proper clearance
between blade and guard by
slowly pivoting blade guard back.
Blade Guard
The blade guard covers the blade
whenever a box is not being taped.
Periodically check to be sure the
blade guard is functioning properly
and returning to cover the blade.
Replace any defective parts.
Blade Grease Pad
To reduce adhesive build-up, the taping
heads are equipped with a factory pre-
lubricated felt grease pad that provides
a lm of grease on the cutting edge of
the blade. Blade maintenance should
include keeping felt pad saturated with
grease. Should tape adhesive build-up
occur on blade, carefully wipe clean with
light solvent or grease soaked cloth.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
Warning
• To reduce the risk associated with
shear, pinch, and entanglement hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box drive
system is running
Warning
1
2
3
Knife
Guard
Knife
Holder
