User Instructions
3M™ Particulate Respirator 8511 with
3M™ Multi Use Duct Tape
IMPORTANT: Keep these User Instructions for reference
NIOSH approved for use only with 3M™ Particulate Respirator 8511 and any color 3M™ Multi Use Duct Tape (1.88
inch [48mm]).
• Black (3920-BK, 3960-BK)
• Red (3920-RD, 3960-RD)
• White (3920-WH, 3960-WH)
• Blue (3920-BL)
• Brown (3920-BR)
• Green (3920-GR)
• Orange (3920-OR)
• Yellow (3920-YL)
Important information is provided in the User Instructions for 3M™ Particulate Respirator 8511. Failure to follow User
Instructions for these products may result in sickness or death.
Use For
The 3M™ Particulate Respirator 8511can be used with 3M™ Multi Use Duct Tape (1.88 inch [48mm]) when source control
is required.
Inspection
Inspect the valved respirator and the tape prior to use.
1) Inspect the respirator exhalation valve to ensure there is no damage or missing parts.
2) Inspect the tape for holes and ensure adhesive is intact.
Do not use if the respirator or tape is damaged. Both products have no replaceable components.
WWARNING
Respirators help protect against certain airborne contaminants. Misuse may result in sickness or death. For proper
use, consult supervisor and User Instructions, or call 3M in U.S.A., 1-800-243-4630. In Canada, call Technical
Service at 1-800-267-4414.
This product contains no components made from natural rubber latex.

2
Installation of 3M™ Multi Use Duct Tape

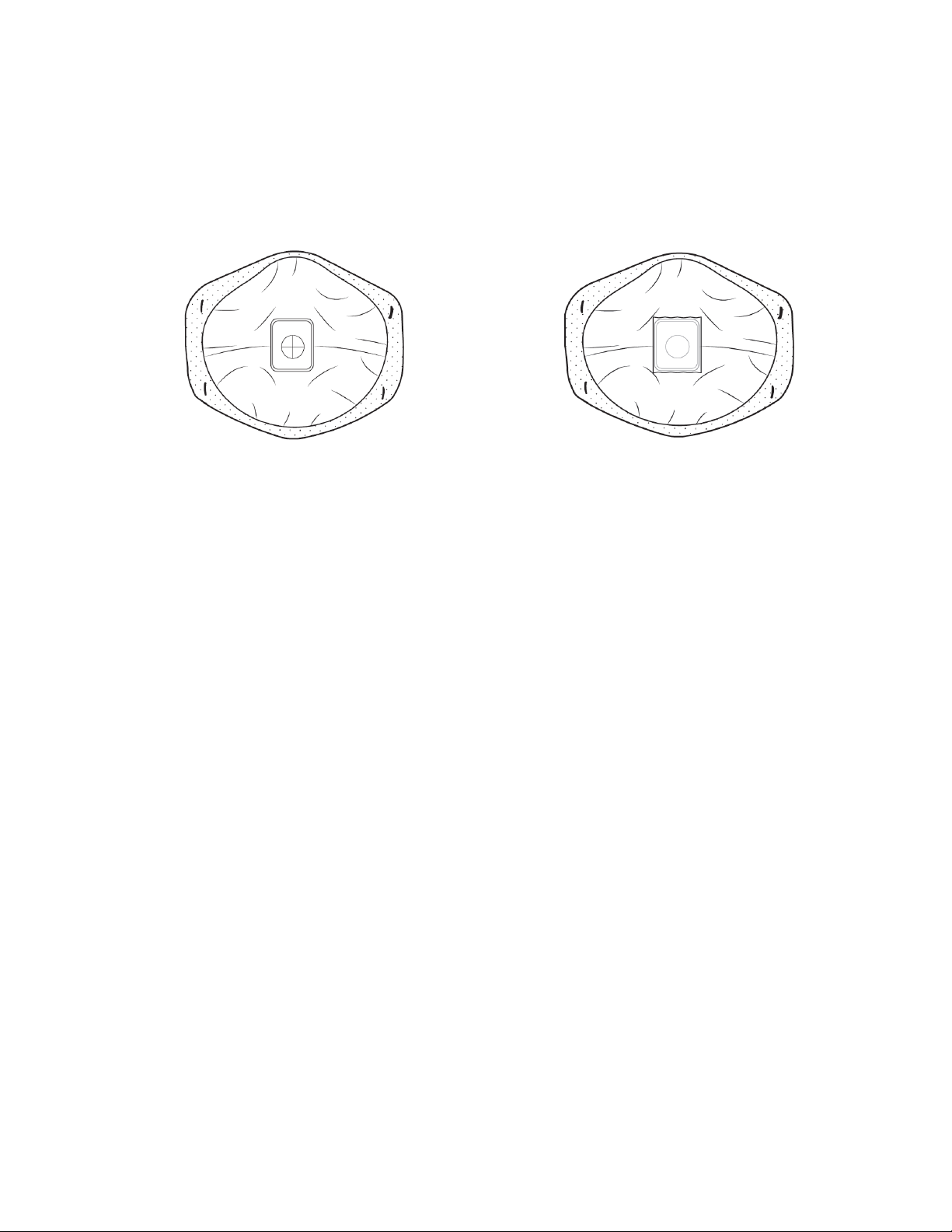

1) Ensure the inside of the exhalation valve of the respirator is free from dirt and is undamaged. It is located on the inside
of the respirator. Fig. 1.
2) Cut tape to length of valve (approximately 41 mm) and attach tape to the inside of the exhalation valve, covering it
completely. Fig 2.
Seal Checks
Negative Pressure Seal Check
1) Place both hands completely over the respirator and inhale sharply.
2) A negative pressure should be felt inside the respirator. If air leaks around the nose or respirator edges, readjust the
nosepiece and straps.
3) Repeat above steps until a tight faceseal is obtained.
Positive Pressure Seal Check
1) Place both hands completely over the respirator and exhale sharply.
2) If air leaks around the nose or respirator edges, readjust the nosepiece and straps.
3) Repeat above steps until a tight faceseal is obtained.
If you CANNOT achieve a proper seal, DO NOT enter the contaminated area. See your supervisor.
Time Use Limitations
If respirator or tape become damaged, soiled, or breathing becomes difficult, leave the contaminated area immediately and
replace both products. If tape becomes delaminated and no longer sticks properly, dispose the entire respirator.
Disposal
Dispose of used product in accordance with applicable regulations.
Fig. 1 Fig. 2 Fig. 1 Fig. 2

FOR MORE INFORMATION
In United States, contact:
Website: www.3M.com/PPESafetywww.3M.
Technical Assistance: 1-800-243-4630
Made in U.S.A. with U.S. and imported materials.
3M Personal Safety Division
3M Center, Building 0235-02-W-70
St. Paul, MN 55144-1000
3M is a trademark of 3M or its affiliates,3M
used under license in Canada.
3M PSD products for occupational use only.
