Aaeon PCM-5335 User manual

PCM-5335
All In One NS Geode GX1 with
SVGA/ LCD/ Ethernet Interface
PC/ 104 CPU Module
PCM-5335 Rev. BManual
Oct. 2003

PC/104 Module PCM-5335
i
Copyright Notice
This document is copyrighted, 2003. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any in-
fringements upon the rights of third parties which may result from its
use.
The material inthis document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its accuracy,
AAEON, assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

PC/104 Module PCM-5335
ii
Acknowledgments
All other product names or trademarks are properties of their
respective owners.
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.,
Award is a trademark of Award Software International, Inc.
Intel and Pentium III are trademarks of Intel Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Micrsystems Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA Technology, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.

PC/104 Module PCM-5335
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
•1 PCM-5335 PC/104 CPU Module
•1 Quick Installation Guide
•1 CD-ROM for manual (in PDF format), drivers,
and utility
•1 2.5" IDE flat cable, 44-pin to 44-pin
•1 PS/2 keyboard & mouse cable
•2serial port cables
•1 parallel cable
•1 FDD flat cable
•1 VGA flat cable
•1 LAN cable
•1 USB cable
•1 Jumper kit
•1 Short-Copper and Support kit
If any of these items are missing or damaged, contact your distributor
or sales representative immediately.

PC/104 Module PCM-5335
iv
Contents
Chapter 1 General Information
1.1 Introduction.........................................................................................1-2
1.2 Features................................................................................................1-3
1.3 Specifications.......................................................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions...............................................................................2-2
2.2 Location of Connectors and Jumpers.............................................2-3
2.3 Mechanical Drawing...........................................................................2-5
2.4 List of Jumpers....................................................................................2-7
2.5 List of Connectors..............................................................................2-8
2.6 Jumper Setting.....................................................................................2-9
2.7 Clear CMOS (JP1)..............................................................................2-10
2.8 LCD Clock Selection (JP2)................................................................2-10
2.9 COM2 RS-232/422/485 Selection (JP3, JP5) .............................. 2-10
2.10 LCD Voltage Selection (JP4)..........................................................2-11
2.11 Front Panel Connector (CN1)........................................................2-11
2.12 External Power Connector (CN2)................................................ 2-12
2.13 PC/104 Connector(CN3)...............................................................2-13
2.14 Keyboard/ Mouse Connector (CN4)............................................2-14
2.15 PC/104 Connector(CN5)..............................................................2-15
2.16 USB Connector (CN6).....................................................................2-17
2.17 VGA Connector(CN7)....................................................................2-18
2.18 Parallel Port Connector (CN8)....................................................... 2-19
2.19IDE Connector (CN9)..................................................................... 2-20

PC/104 Module PCM-5335
v
2.20 COM1 RS-232 Connector (CN10)................................................. 2-22
2.21 Floppy Connector (CN11)............................................................... 2-23
2.22 COM1 RS-232/422/485 Connector (CN12)................................ 2-25
2.23 TTL LCD Connector (CN13)......................................................... 2-26
2.24 10/100Base-T Ethernet Connector (CN14)................................. 2-27
2.25 Main Power Connector (CN15)...................................................... 2-27
2.26 CompactFlash Socket (CN16)......................................................... 2-28
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization............................................................ 3-2
3.2 Award BIOSSetup...............................................................................3-3
Chapter 4 Driver Installation
4.1 Installation 1..........................................................................................4-2
4.2 Installation 2..........................................................................................4-3
4.3Installation 3..........................................................................................4-4
Appendix A Programming the Watchdog Timer
A.1 Sample Program of the watchdog timer..........................................A-2

PC/104 Module PCM-5335
Chapter 1 General Information 1-1
General
Information
Chapter
1

PC/104 Module PCM-5335
Chapter 1 General Information
1
-
2
1.1 Introduction
The PCM-5335 is the ultimate cost-effective solution for limited
space applications. It is a new NS Geode PC/104 CPU Model with
enhanced graphic function. It uses a NS CS5530A chipset which
supports TFT LCDs. It offers all the functions of AT-compatible
industrial computers on a single board. The PCM-5335 comes with
an embedded high-performance GX1-300 processor onboard. For
maximum performance, the PCM-5335 Series also supports an
SDRAM SODIMM socket that can accept up to512 MB memory.
Onboard features include an Ethernet interface, socket for Compact
Flash Card, Enhanced IDE interface with up to Ultra DMA 33
transfer protocol, one parallel port, two serial ports (RS-232 and
RS-232/422/485) and a PS/2 keyboard/mouse interface. A
SVGA/LCD display controller (LCD, and CRT displays) allows LCD
screen resolutions up to 1024 x 768 and CRT resolutions up to 1280
x 1024.
The PCM-5335 complies with the "Green Function" standard and
supports three types of power saving features: Normal, Doze, and
Sleep modes.
The display type configuration is done through the software. A single
Flash chip holds the system BIOS and the VGA BIOS. This
minimizes the chip usage and simplifies configuration. You can
change the display BIOS simply by programming the Flash chip.
If you need additional functions, the PCM-5335 has a PC/104
connector for future upgrades.

PC/104 Module PCM-5335
Chapter 1 General Information
1
-
3
1.2 Features
•Onboard low power NS Geode GX1 300MHz CPU
•Support 18-bit TFT panels
•Onboard 10/100Base-T Fast Ethernet
•Supports CompactFlash. memory
•Supports Up to 512 MB SDRAM
•Simple and reliable fanless operation

PC/104 Module PCM-5335
Chapter 1 General Information 1 -4
1.3 Specifications
System
lCPU NS Geode GX1-300 MHz
(low-power) processor
lSystem Memory SDRAM SODIMM x 1, up to
512MB
lChipset NC CS5530A
lI/O Chipset Windbond W83977F. Full 16-bit
I/O decoded
lBIOS Award 256 KB Flash BIOS
lEthernet Realtek RTL8139DL, 10/100Base-T
RJ-45 connector x 1
lSSD CompactFlashsocket
lWatchdog Timer Can generate a system reset. (15sec
~ 127min15sec, 30sec/step)
lExpansion Interface PC/104 connector x 1
lBattery Lithium battery
lDMA 7 DMA channels (8237 equivalent)
lInterrupt 15 interrupt levels (8259 equivalent)
lPower Supply Voltage +5V (4.75V to 5.25V)
lSize 3.55”(L) x 3.775”(W) (90 mm x 96
mm)
lGross Weight 0.6lb (0.25Kg)

PC/104 Module PCM-5335
Chapter 1 General Information
1
-
5
•Operating Temperature: 32 to 140℉(0 to 60℃)
I/O
•MIO : IDE x 1, FDD x 1, KB x 1
, Mouse x 1, RS-232 x 2,
Parallel x 1
•IrDA : IrDA header x 1
•USB: 2 USB Ports
Display
•Chipset: NS CS5530A LCD/CRT
controller
•Memory Size: Shared memory up to
4MB
•Resolution: 1024 x 768@16bpp (CRT),
1024 x 768@18bpp (TFT
LCD)
•LCD Interface: up to 18-bit TFT LCD
panel

PC/104 Module PCM-5335
Chapter 2 Quick InstallationGuide
Quick
Installation
Guide
Chapter
2
Part No. 2007533524 Printed in TaiwanOct. /2003
Notice:
The Quick Installation Guide is derived from Chap
ter 2 of
user manual. For other chapters and
further installation
instructions, please refer to the user manual CD-ROM
that
came with the product.

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
2
2.1 Safety Precautions
Always completely disconnect the power cord from
your board whenever you are working on it. Do not
make connections while the power is on, because
sensitive electronic components can be damaged by
a sudden rush of power.
Always ground yourself to remove any static charge
before touching the board. Modern electronic
devices are very sensitive to static electric charges.
Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative surface
or in astatic-shielded bag when they are not in the
chassis

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide 2 -3
2.2Location of Connectors and Jumpers
Locating connectors and jumpers (component side)

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
4

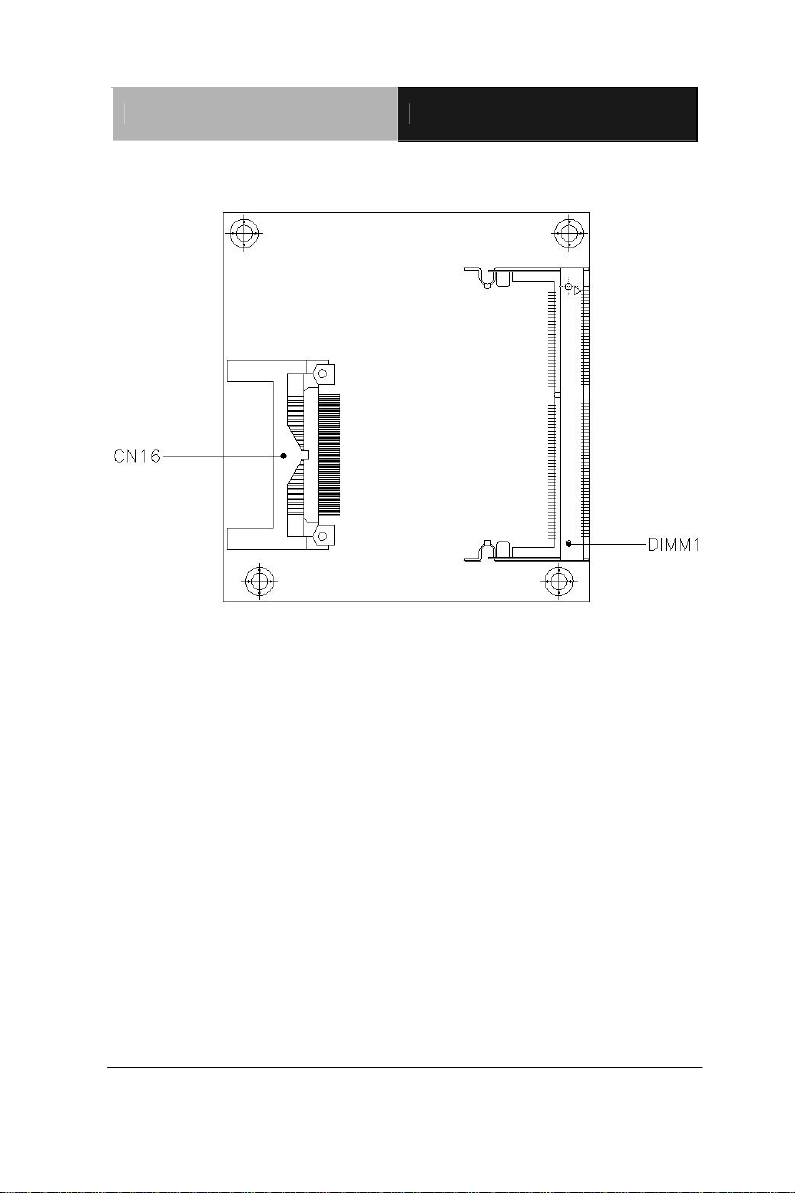

Locating connectors (solder side)

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
5

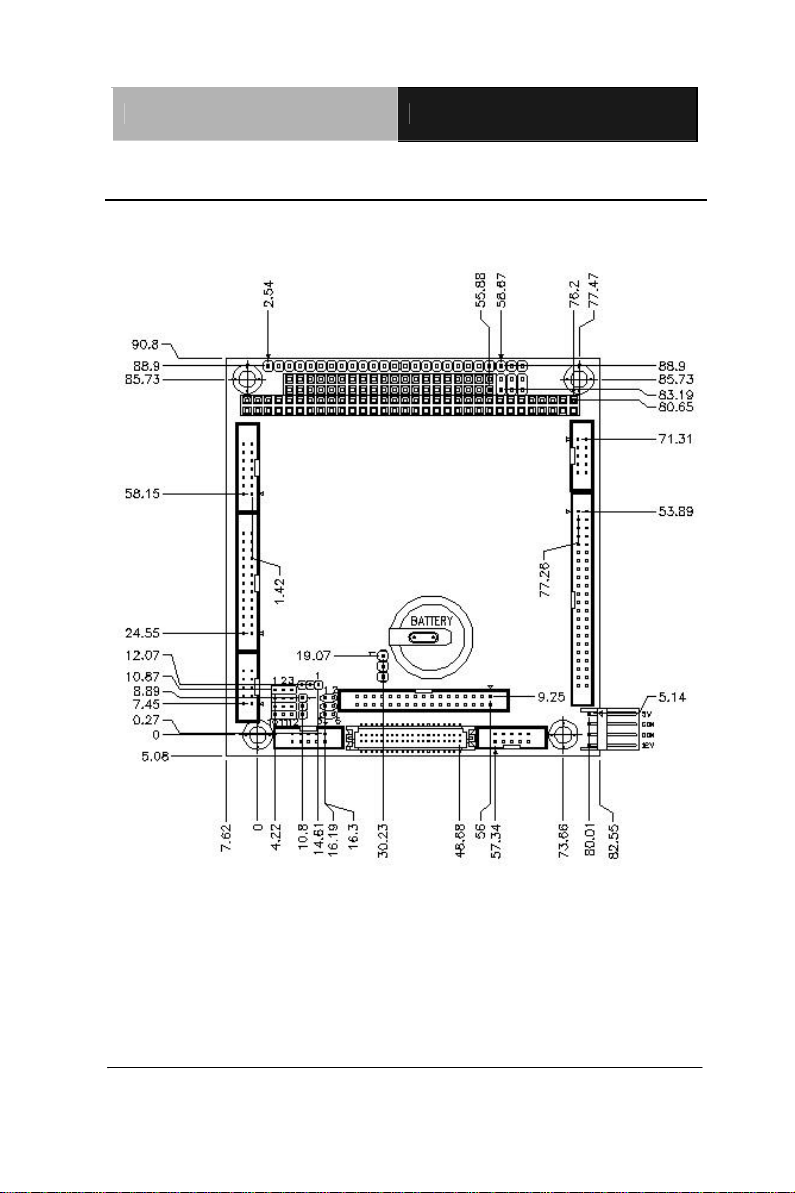

2.3 Mechanical Drawing
Mechanical drawing (component side)

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
6
Mechanical Drawing (solder side)

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
7
2.4List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of eachjumper:
Jumpers
Label Function
JP1Clear CMOS
JP2LCD Clock Selection
JP3COM2 RS-232/422/485 Selection
JP4LCD Voltage Selection
JP5COM2 RS-232/422/485 Selection

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
8
2.5List of Connectors
The board has a number of connectors that allow you to configure
your system to suit your application.
The table below shows the function of each connector:
Connectors
Label Function
CN1 Front panel connector
CN2 External power connector
CN3 PC/104 connector
CN4 Keyboard/ mouseconnector
CN5 PC/104 connector
CN6 USB connector
CN7 VGAconnector
CN8 Parallel port connector
CN9 IDE connector
CN10 COM1 RS-232 connector
CN11 Floppyconnector
CN12 COM2 RS-232/422/485 connector
CN13 TTL LCD connector
CN14 10/100Base-T Ethernetconnector
CN15 Main power connector
CN16 CompactFlashsocket

PC/104 Module PCM-5335
Chapter 2 Quick Installation Guide
2
-
9
2.6Jumper Setting
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected by
a plastic cover) that slides over the pins to connect them. To “close”
a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will
have three pins, labeled 1, 2 and 3. In this case you would connect
either pins 1 and 2 or 2 and 3.
12
3
Open Closed Closed 2-3
A pair of needle-nose pliers may be helpful when working with
jumpers.
If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales representative
before you make any changes.
Generally, you simply need a standard cable to make most
connections.
