Aaeon GENE-6350 User manual

SubCompact Board GENE-6350
GENE-6350
Intel
®Ultra Low Voltage
Celeron®400/650MHz Processor
SubCompact Board
With LCD, Ethernet,
6 Channel Audio & Mini-PCI
GENE-6350 Rev. A Manual 5th Ed.
Dec. 2006

SubCompact Board GENE-6350
i
Copyright Notice
This document is copyrighted, 2006. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
its use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

SubCompact Board GENE-6350
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 VIA is a trademark of VIA Technologies, Inc.
 Microsoft Windows®is a registered trademark of Microsoft
Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.
Please be notified that all other products’ name or trademarks not
be mentioned above are properties of their respective owners.

SubCompact Board GENE-6350
iii
Packing List
Before you begin installing your card, please make sure that
the following materials have been shipped:
• 1 GENE-6350 CPU Card
• 1 IDE cable
• 1 FDD cable
• 1 PS/2 KB mouse cable
• 2 USB cables
• 1 Audio cable
• 1 5.1 channel Audio cable
• 3 COM Port cables
• 1 TV-Out cable (For TV-Out Model Only)
• 1 DVI cable (For DVI Model Only)
• 1 Parallel Port cable
• 1 Jumper Cap
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

SubCompact Board GENE-6350
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-4
1.3 Specifications............................................................1-5
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-7
2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers ......................................................2-10
2.7 Clear CMOS Selection (JP1) ..................................2-11
2.8 COM 3 Ring /+5V/+12V Selection (JP2).................2-11
2.9 COM 4 Ring/+5V/+12V Selection (JP3)..................2-11
2.10 COM 2 RS-232/422/485 Selection (JP4 & JP5) ...2-12
2.11 TFT_LCD Clock Selection (JP6)...........................2-12
2.12 SIR Connector (CN1)............................................2-12
2.13 USB Connector (CN2)...........................................2-13
2.14 USB Connector (CN3)...........................................2-13
2.15 Audio Input/Output Connector (CN4)....................2-13
2.16 Audio 5.1 Channel Connector (CN5) ....................2-14
2.17 Floppy Connector (CN6) .......................................2-14

SubCompact Board GENE-6350
v
2.18 Primary IDE Hard Drive Connector (CN7) ............2-15
2.19 Digital IO Connector (CN8)...................................2-16
2.20 LPT Port Connector (CN9)....................................2-16
2.21 RS-232 Serial Port Connector (CN10, CN13 & CN21)
.......................................................................................2-17
2.22 DVI Connector (CN11)..........................................2-17
2.23 TV-Out Connector (CN12) ....................................2-17
2.24 RS-232/422/485 Serial Port Connector (CN14)....2-18
2.25 10/100Base-T Ethernet Connector (CN15)...........2-18
2.26 Option ATX Power Connector (CN16)..................2-19
2.27 Big 4P Power Connector (CN17)..........................2-19
2.28 TTL_LCD Connector (CN18) ................................2-19
2.29 PS/2 / KB / Mouse Connector (CN19)...................2-20
2.30 CRT Display Connector (CN20)............................2-21
2.31 Front Panel Connector (CN22) .............................2-21
2.32 CompactFlash Disk Connector (CN23).................2-21
2.33 Fan Connector (Fan2)...........................................2-22
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3

SubCompact Board GENE-6350
vi
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 W83697UF Watchdog Timer Initial Program.........A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-2
B.3 IRQ Mapping Chart................................................B-3
B.4 DMA Channel Assignments...................................B-3

SubCompact Board GENE-6350
Chapter1GeneralInformation 1-1
General
Chapter
1
Information

SubCompact Board GENE-6350
Chapter 1 General Information 1-2
1.1 Introduction
GENE-6350 is AAEON’s subcompact board which provides higher
performance, multi-functional choice and develops comprehensive
applications of 3.5” board.
High stability computing platform
GENE-6350 applies for Intel®Ultra Low Voltage Celeron®
400/650MHz processor owning the Intel processor style which is
high-performance and high-stable feature. Compared with other
same level processors, Intel®Ultra Low Voltage Celeron®400/650
can support higher computing ability but the power consumption
won’t increase for the sake of the high performance. The processor
will be your best choice in the pursuit of high performance with low
power consumption.
Your marvelous choice for compact multi-media platform
GENE-6350 not only plays DVD format but also supports 5.1
channel sound effect output which makes your multi-media platform
offer the excellent video display and 3D surrounding audio qualities.
Undoubtedly, GENE-6350 is the model with multi-orientation.
Besides, it provides several display interfaces including CRT, LCD,
TV, DVI. Furthermore, under the CRT/LCD, LCD/TV, LCD/DVI
configuration, the model can show the different contents in two
separate display monitor. For the merits of multi-media platform,
GENE-6350 is your marvelous and unique choice.

SubCompact Board GENE-6350
Chapter1 GeneralInformation1-3
Extensive possibility
GENE-6350 supports comprehensive functions even it is just a 3.5”
size embedded board. All functions and applications you need have
almost integrated to the model. But it can still be expanded other
function on it, which minimize your effort. Onboard Type-III Mini-PCI
is right for you to have the quick and cheap expandable program.
Mini-PCI is a standard expanded interface. The users can purchase
Mini-PCI easily from the retail market to go with wireless LAN,
modem, capture card, etc. It will upgrade largely the capability and
efficiency for your application. The merits mentioned above have
broken the stereotype that the compact size board lacks of the
expansion possibility. We believe that GENE-6350 is exactly the
perfect model for your choice.

SubCompact Board GENE-6350
Chapter 1 General Information 1-4
1.2 Features
• Onboard Intel®Ultra Low Voltage Celeron®
Processor
• Up to 24-bit TTL TFT LCD
• 10/100Mbps Fast Ethernet
• AC-97 3D surround 5.1 channel Audio
• Supports Type II CompactFlash™ Memory
• 4 COM / 4 USB 2.0 / TV-out / Mini PCI / Digital I/O
• +5V only operation

SubCompact Board GENE-6350
Chapter1 GeneralInformation1-5
1.3 Specifications
System
 CPU: Onboard Intel®Ultra Low
Voltage Celeron®400 /650MHz
Processor
 Memory: 200-pin DDR SODIMM x 1, Max.
512MB (DDR 266MHz)
 Chipset: VIA CLE 266 + VIA VT8235
 Ethernet: Realtek RTL8100BL,
10/100Base-TX RJ-45
connector x 1
 BIOS: AWARD 256KB FLASH ROM
 Watchdog Timer: Generates a time-out system
reset
 H/W Status Supports power supply
voltages, Monitoring and
temperatures monitoring
 SSD: Type II CompactFlash slot x 1
 Expansion Interface:Type III Mini PCI socket x 1
 Battery: Lithium battery
 Power Supply Voltage: +5V. AT/ATX
 Board Size: 5.75”(L) x 4”(W) (146mm x
101.6mm)
 Gross Weight: 0.88lb (0.4kg)

SubCompact Board GENE-6350
Chapter 1 General Information 1-6
 Operating Temperature: 32°F~140°F (0°C~60°C)
Display
 Chipset VIA CLE 266
 Memory size: Shared system memory up to
64 MB
 Resolutions: Up to 1280 X 1024 @ 32 bit
colors for CRT; Up to 1024 X
768 @ 24 bpp colors for LCD
 TV-Out: Supports NTSC and PAL
Standard; Supports CRT/LCD,
CRT/TV, LCD/TV, CRT/DVI
(Optional) & LCD/DVI (Optional)
Simultaneous display
Supports CRT/LCD, LCD/TV,
LCD/DVI (optional) dual view
(Win 98 / XP Only)
 DVI: Manufacturer option
I/O
 MIO: EIDE x 1(UDMA100 x 1), FDD x
1, KB x 1, Mouse x 1, RS-232 x
3, RS-232/422/485 x 1, Parallel
x 1
 IrDA: One IrDA Tx/Rx header

SubCompact Board GENE-6350
Chapter1 GeneralInformation1-7
 Audio: MIC-in, Line-in, Line-out /
Speaker-out 5.1 output / CD-in,
S/P DIF in/out
 USB: Two 5 x 2 pin headers support 4
USB 2.0 ports
 Digital I/O Supports 8 ports of digital I/O,
and each port can be set to
Input or Output.

SubCompact Board GENE-6350
Chapter2QuickInstallationGuide 2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007635010 Printed in Taiwan July. 2004

SubCompact Board GENE-6350
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

SubCompact Board GENE-6350
Chapter2 QuickInstallationGuide2-3

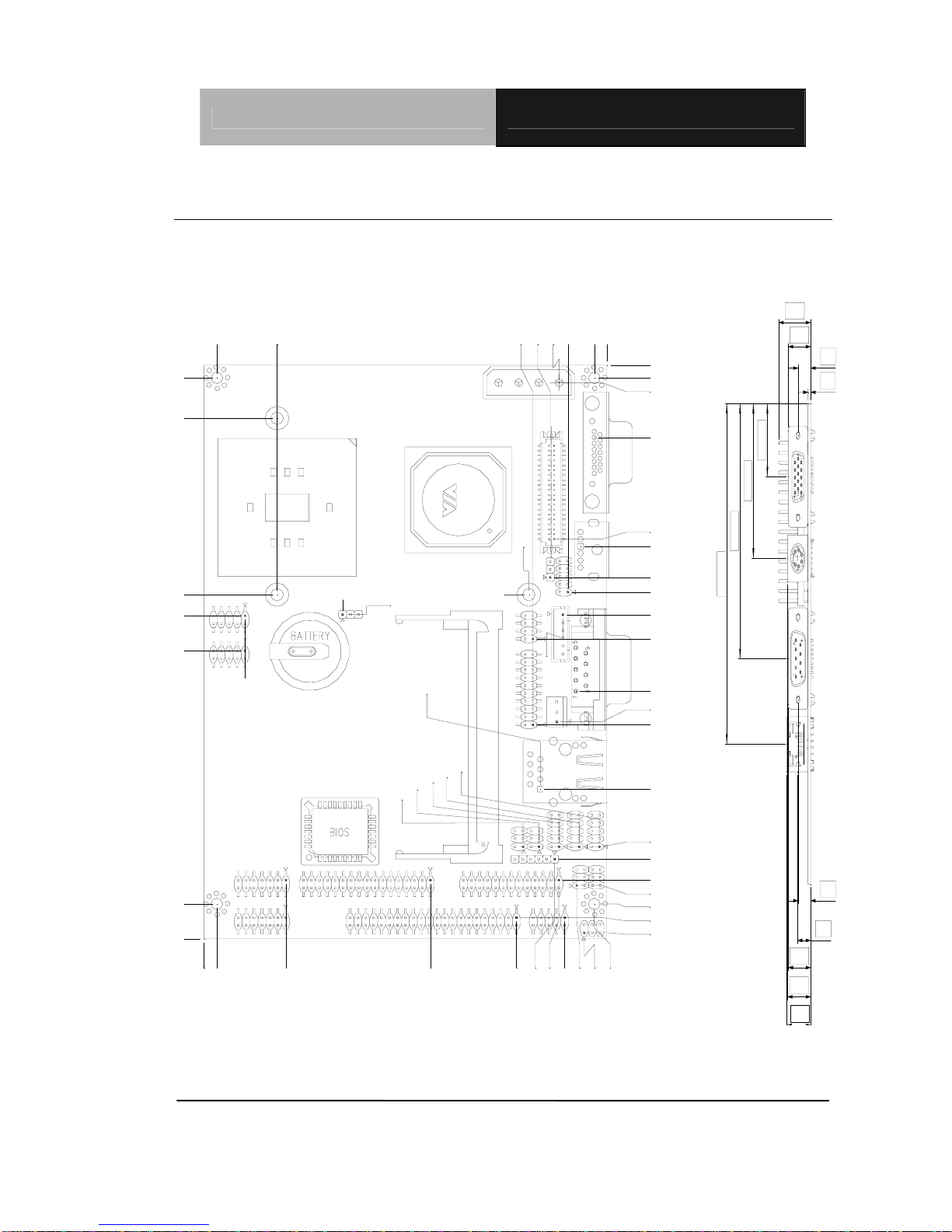

2.2 Location of Connectors and Jumpers
Component Side
1
12
8
3
14
10
39
40
1511
6
5
1
2
12
11
9
10
8
2
7
1
1
2
5
836
CN17
CN20
CN18
CN19
CN22
CN16
CN12
CN21
CN11
FAN2
CN15
CN10
CN13
CN8
CN1
JP4
JP5
CN3
CN2
CN5
CN4
CN6
CN9
CN7
JP2
JP3
CN14
JP6
JP1

SubCompact Board GENE-6350
Chapter 2 Quick Installation Guide 2-4

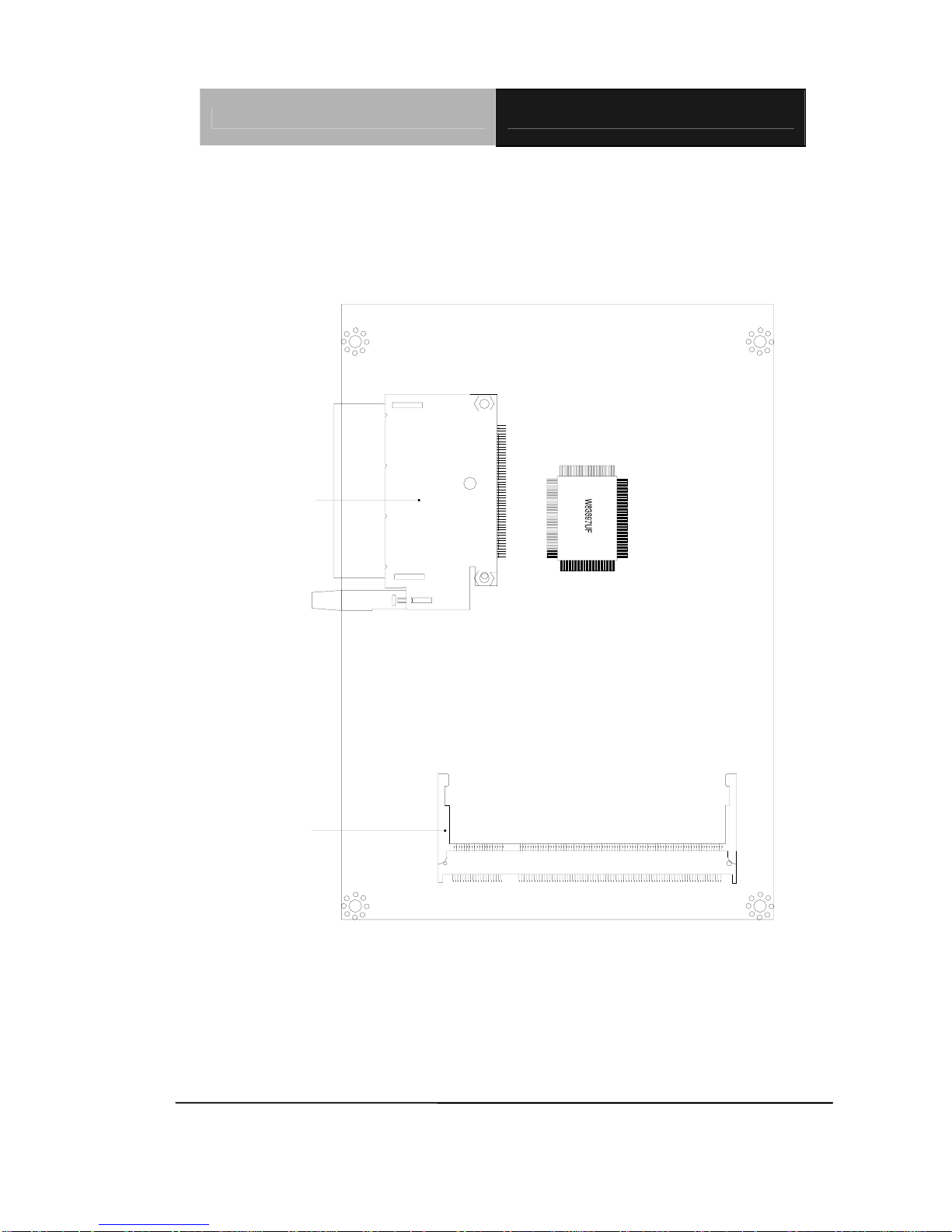

Solder Side
MART@
SIO
CN23
SODIMM1

SubCompact Board GENE-6350
Chapter2 QuickInstallationGuide2-5
2.3 Mechanical Drawing
Component Side
1
12
8
3
14
10
39
40
1511
6
5
1
2
12
11
9
10
8
2
7
1
1
2
5
836
0.00
0.00
8.89
3.23
95.20
133.93
98.37
137.16
118.75
91.07
54.15
83.19
79.38
73.66
67.49
45.61
46.36
29.22
14.61
11.43
6.08
4.76
3.45
7.30
17.38
53.86 75.56 86.24 85.20 92.66 87.77
90.75
77.23
81.23
86.31
91.39
96.47
81.58
31.70
73.66
79.69
84.09 88.53
87.26
92.90
132.72
86.31
7.12
73.39
64.50
0.00
95.20
0.00
133.93
15.19
78.69
78.74
123.66
78.74
1.60
7.88
14.15
20.10
8.28
7.88
14.50
14.15
14.95
22.23
46.99
77.47
103.51

SubCompact Board GENE-6350
Chapter 2 Quick Installation Guide 2-6
Solder Side
MART@
SIO
0.00
0.00
3.23
8.89
95.20
0.00
133.93
95.20
0.00
133.93
22.91
127.93
55.53
30.38
