Aaeon ETX-945GSE User manual

ETX CPU Module ETX-945GSE
ETX-945GSE
Onboard Intel®AtomTM N270
Processor
Non-ECC DDRII 400/533 Memory
With LCD, Ethernet, PCI, ISA,
Audio, SATA, SDVO
ETX-945GSE Manual Rev. A 3rd Ed.
Sept. 2010

ETX CPU Module ETX-945GSE
i
Copyright Notice
This document is copyrighted, 2010. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, or for any in-
fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy,
AAEON assumes no liabilities resulting from errors or omissions in
this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

ETX CPU Module ETX-945GSE
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 Intel®, and AtomTM are trademarks of Intel®Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 WINBOND is a trademark of Winbond Electronics Corporation.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Please be notified that all other products’ name or trademarks not be
mentioned above are properties of their respective owners.

ETX CPU Module ETX-945GSE
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 ETX-945GSE CPU Module
• 1 CD-ROM for manual (in PDF format) and drivers
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

ETX CPU Module ETX-945GSE
iv
Application Notes
1. After installing drivers in AT power mode under Windows®XP
operation, there is no message: “It is now safe to turn off your
computer” during the procedure of turn-off.
2. Hyper threading technology only supports ATX mode rather than
AT mode.
3. If you are going to use the add-on PCI Video Card instead of the
onboard Intel®945GSE VGA function, you have to uninstall the
onboard Intel®VGA driver before installing the driver of add-on
PCI Video Card.
4. While installing OS into SATA HDD, please do not attach any
IDE HDD during installation. If you need one IDE HDD as
storage device, please attach IDE HDD after finishing the
installation.
5. If using LCD by 800x480 pixel,
A. Please set LCD as primary
B. Operation procedure to run dual display or extended display
under Window®XP:
a. Please use control panel -> display device-> adjust
b. Use right button of mouse to select
6. Under DOS mode, if setting simultaneous displays
A. 24-bit LVDS LCD (from Chrontel 7308) + VGA: the screen
shrinks at any resolution.
B. 18-bit LVDS LCD + VGA: the screen shrinks at resolution
640x480.
7. DIO address is “200H.”
8. Module can run without RTC battery.
9. Two options to select AT/ATX power mode
 Auto switch circuit
 SMT jumper
10. SDVOCTL_CLK & SDVOCTL_DATA are connected to 945GSE;
SMBUS is connected to ICH7M; I2C bus is connected to
Winbond SIO.

ETX CPU Module ETX-945GSE
v
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Mechanical Drawing..................................................2-3
2.3 List of Jumpers..........................................................2-4
2.4 List of Connectors .....................................................2-4
2.5 AT/ATX & Back Light Selection (JP1) .....................2-5
2.6 SDVO Extension Slot (CN2) .....................................2-5
2.7 SPI Flash Programming Connector (Optional) (CN3)2-6
2.8 ETX Connector (X1A)................................................2-6
2.9 ETX Connector (X1B)................................................2-7
2.10 ETX Connector (X1C) ............................................. 2-8
2.11 ETX Connector (X1D) ............................................. 2-10
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3

ETX CPU Module ETX-945GSE
vi
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 W83627HG Watchdog Timer Initial Program ........A-6
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments...................................B-4

ETX CPU Module ETX-945GSE
Chapter 1 General Information 1 - 1
General
Chapter
1
Information

ETX CPU Module ETX-945GSE
Chapter 1 General Information 1 - 2
1.1 Introduction
ETX-945GSE is able to equip with Intel®AtomTM N270 processor
and has one 200-pin DDR II 400/533 SODIMM to support system
memory up to 1GB. ETX-945GSE adopts Intel®945GSE+ ICH7M
chipset that implements serial technologies with high performance.
In addition, ETX-945GSE accommodates user-friendly expansion
interfaces, ex: four 32-bit PCI, one ISAbus, one SMBus and one
I2C interface.
For the display specifications, ETX-945GSE integrates Intel®
945GSE and shared system memory is up to 224MB/DVMT 3.0.
The display of ETX-945GSE supports CRT and 18/24-bit
dual-channel LVDS LCD. Moreover, it supports NTSC/ PAL and
Composite Video, S-Video on the carrier board. In addition, one
SDVO port can be used through the SDVO connector to provide
more flexibility for display function.
If you are looking for an economic, time-saving and high
performance solution, ETX-945GSE definitely is your first choice.

ETX CPU Module ETX-945GSE
Chapter 1 General Information 1 - 3
1.2 Features
 Onboard Intel®Atom™ N270 Processor
 Intel®945GSE + ICH7M
 DDRII 400/533 Memory, Max. 1GB
 10/100Base-TX Ethernet
 CRT, Up to 24-bit Dual-channel LVDS LCD, TV, SDVO
Connector x 1
 AC97 2.3 Codec 2CH Audio
 PATA x 1, SATA II x 2
 USB2.0 x 4
 +5V Only Operation

ETX CPU Module ETX-945GSE
Chapter 1 General Information 1 - 4
1.3 Specifications
System
 CPU Onboard Intel®Atom™ N270 Processor
1.6GHz, FSB 533MHz
 Memory One 200-pin DDR II SODIMM, supports
DDR II 400/533 up to 1GB, non ECC
function only
 Chipset Intel®945GSE+ICH7M
 Ethernet Intel®EP82562ET, 10/100Base-TX
 BIOS Award, SPI type, 8 Mb ROM
 Watchdog Timer Generates a Time-out System Reset
 H/W Status Monitoring Supports Power Supply Voltages, Fan
Speed and Temperatures Monitoring
 Wake on LAN Yes
 Expansion Interface 32-bit PCI x 4
ISA Bus x 1
SMBus x 1
I2C x 1
 Power Supply Voltage
 EEPROM
+5V DC
Atmel AT24C02, SOP 8, 2Kb, Serial
EEPROM
 Board Size 4.5”(L) x 3.75”(W) (114mm x 95mm)
 Gross Weight 0.66lb (0.3kg)
 Operating Temperature 32°F~140°F (0°C~60°C)

ETX CPU Module ETX-945GSE
Chapter 1 General Information 1 - 5
 Storage Temperature
 OS Support
-40°F~176°F (-40°C~80°C)
Windows 32-bit XP Pro/ WinCE 6.0/
Windows XP Embedded/ Windows
32-bit Vista/ Linux Fedora
Display: Supports CRT/LCD, CRT/TV, LCD/TV simultaneous/
dual view displays
 Chipset Intel®945GSE integrated
 Memory Shared system memory up to 224MB/
DVMT 3.0
 Resolution Up to 2048x1536 (QXGA) for CRT; Up to
1600x1200 (UXGA) for LCD
 LCD Interface
 SDVO Port
 TV-Out
18-bit dual-channel LVDS
(TF-ETX-945GSE-A10);
24-bit dual-channel LVDS
(TF-ETX-945GSE-A10-01)
SDVO port x 1
Intel 945GSE integrated, supports
NTSC/PAL;
HDTV support: 480p/720p/1080i
Supports Composite Video, S-Video on
the carrier board
I/O
 Storage PATA x 1 (two devices), SATA II x 2,

ETX CPU Module ETX-945GSE
Chapter 1 General Information 1 - 6
Floppy Disk Drive x 1
 Serial Port 2
 Parallel Port 1
 USB USB2.0 x 4
 GPIO
 PS/2 Port
2
Keyboard x 1, Mouse x 1
 IrDA One IrDATx/Rx header
 Audio Mic-in, Line-in, Line-out

ETX CPU Module ETX-945GSE
Chapter2QuickInstallationGuide 2-1
Quick
Installation
Chapter
2
Guide

ETX CPU Module ETX-945GSE
Chapter 2 Quick Installation Guide 2-2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

ETX CPU Module ETX-945GSE
Chapter2QuickInstallationGuide 2-3

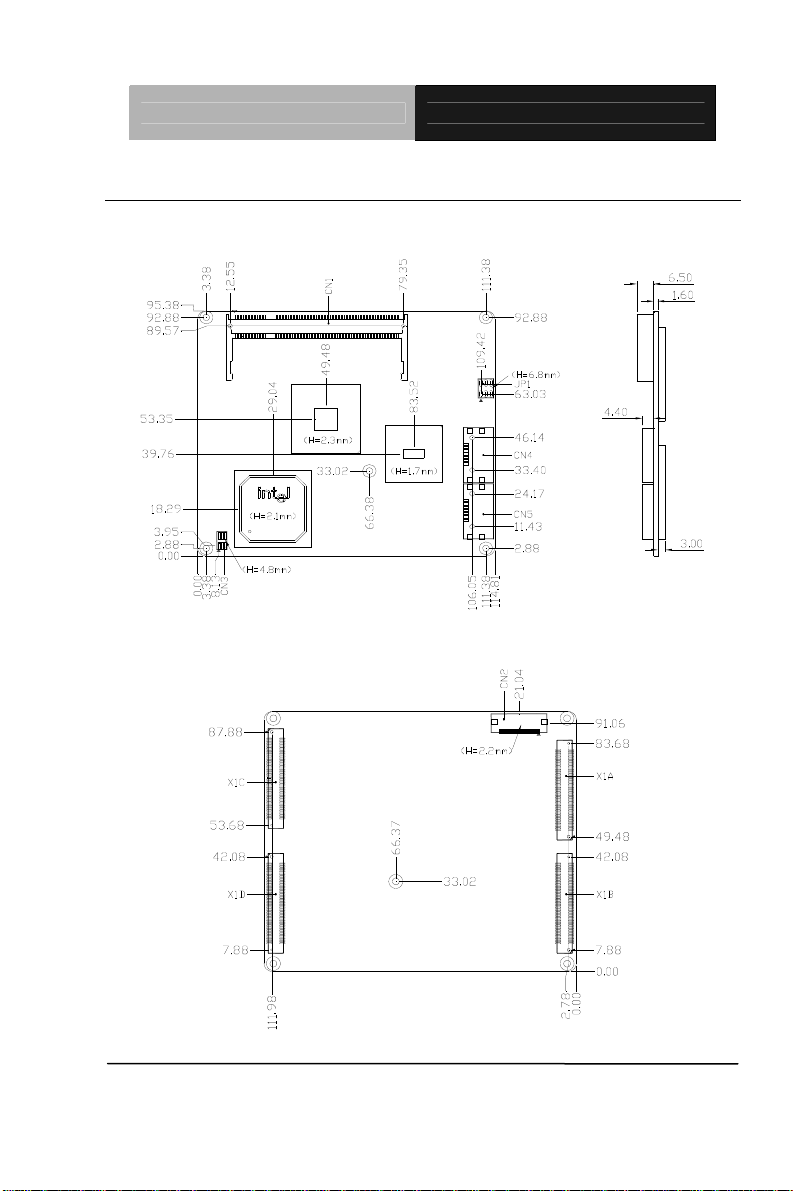

2.2 Mechanical Drawing
Component Side
Solder Side

ETX CPU Module ETX-945GSE
Chapter 2 Quick Installation Guide 2-4
2.3 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP1 AT/ATX & Back Light Selection
2.4 List of Connectors
The board has a number of connectors that allow you to configure your
system to suit your application.
The table below shows the function of the board's connectors:
Connectors
Label Function
CN1 DDRII SODIMM Slot
CN2 SDVO Extension Slot
CN3 SPI Flash Programming Connector (Optional)
CN4, CN5 SATA Connector
X1A PCI / USB / Audio
X1B ISA Signals
X1C VGA / LCD / Video out / COMs / LPT / FDD / IrDA /
Mouse / Keyboard
X1D IDE 1 / IDE 2 / Miscellaneous

ETX CPU Module ETX-945GSE
Chapter2QuickInstallationGuide 2-5
2.5 AT/ATX & Back Light Selection (JP1)
JP1 Function
1-3 AT mode
3-5 ATX mode (Default)
2-4 Back light high enable (Default)
4-6 Back light low enable
2.6 SDVO Extension Slot (CN2)
Pin Signal Pin Signal
1 GND 2 SDVO_BCLKN
3 SDVO_BCLKP 4 GND
5 SDVO_GREEN# 6 SDVO_GREEN
7 GND 8 SDVO_INT#
9 SDVO_INT 10 GND
11 SDVO_BLUE# 12 SDVO_BLUE
13 GND 14 SDVO_RED#
15 SDVO_RED 16 GND
17 SDVO_FLDSTALL# 18 SDVO_FLDSTALL
19 GND 20 SDVOCTRL_CLK
21 SDVOCTRL_DATA 22 RESET#
23 +3.3V 24 +2.5V
25 +5V 26 GND
27 SDVO_TVCLKIN# 28 SDVO_TVCLKIN
29 +3.3V 30 +5V

ETX CPU Module ETX-945GSE
Chapter 2 Quick Installation Guide 2-6
2.7 SPI Flash Programming Connector (Optional) (CN3)
Pin Signal Pin Signal
1 +3.3V 2 GND
3 SPI_CS#0 4 SPI_CLK
5 SPI_SO 6 SPI_SI
2.8 ETX Connector (X1A)
Pin Signal Pin Signal Pin Signal Pin Signal
1 GND 2 GND 51 VCC 52 VCC
3 PCICLK3 4 PCICLK4 53 PAR 54 SERR#
5 GND 6 GND 55 PERR# 56 NC
7 PCICLK1 8 PCICLK2 57 PCI_PME 58 USB2N
9 REQ3# 10 GNT3# 59 PLOCK# 60 DEVSEL#
11 GNT2# 12 3V 61 TRDY# 62 USB3N
13 REQ2# 14 GNT1# 63 IRDY# 64 STOP#
15 REQ1# 16 3V 65 FRAME# 66 USB2P
17 GNT0# 18 NC 67 GND 68 GND
19 VCC 20 VCC 69 AD16 70 CBE2#
21 DREQ2
/SERIRQ 22 REQ0# 71 AD17 72 USB3P
23 AD0 24 3V 73 AD19 74 AD18
25 AD1 26 AD2 75 AD20 76 USB0N
27 AD4 28 AD3 77 AD22 78 AD21
29 AD6 30 AD5 79 AD23 80 USB1N
31 CBE0# 32 AD7 81 AD24 82 CBE3#
33 AD8 34 AD9 83 VCC 84 VCC
35 GND 36 GND 85 AD25 86 AD26
37 AD10 38 LIN_L 87 AD28 88 USB0P

ETX CPU Module ETX-945GSE
Chapter2QuickInstallationGuide 2-7
39 AD11 40 MIC_IN 89 AD27 90 AD29
41 AD12 42 LIN_R 91 AD30 92 USB1P
43 AD13 44 VCCAUD 93 PCIRST# 94 AD31
45 AD14 46 LOUT_L 95 INTC# 96 INTD#
47 AD15 48 GNDAUD 97 INTA# 98 INTB#
49 CBE1# 50 LOUT_R 99 GND 100 GND
2.9 ETX Connector (X1B)
Pin Signal Pin Signal Pin Signal Pin Signal
1 GND 2 GND 51 VCC 52 VCC
3 SD14 4 SD15 53 SA6 54 IRQ5
5 SD13 6 MASTER# 55 SA7 56 IRQ6
7 SD12 8 DREQ7 57 SA8 58 IRQ7
9 SD11 10 DACK7# 59 SA9 60 SYSCLK
11 SD10 12 DREQ6 61 SA10 62 REFSH#
13 SD9 14 DACK6# 63 SA11 64 DREQ1
15 SD8 16 DREQ5 65 SA12 66 DACK1#
17 MEMW# 18 DACK#5 67 GND 68 GND
19 MEMR# 20 DREQ0 69 SA13 70 DREQ3
21 LA17 22 DACK0# 71 SA14 72 DACK3#
23 LA18 24 IRQ14 73 SA15 74 IOR#
25 LA19 26 IRQ15 75 SA16 76 LOW#
27 LA20 28 IRQ12 77 SA18 78 SA17
29 LA21 30 IRQ11 79 SA19 80 SMEMR#
31 LA22 32 IRQ10 81 IOCHRD 82 AEN
33 LA23 34 IO16# 83 VCC 84 VCC
35 GND 36 GND 85 SD0 86 SMEMW#
37 SBHE# 38 M16# 87 SD2 88 SD1
