Aaeon GENE-8315 User manual

SubCompact Board GENE-8315
GENE-8315
Onboard Intel®ULV Celeron®M
600MHz/1.0GHz ZC or
Celeron®M 1.3GHz/1.5GHz
Processor
SubCompact Board
With 18/24-bit Dual-channel LVDS
AC972CHAudio
GENE-8315 Manual Rev. A 3rd Ed.
February 2009

SubCompact Board GENE-8315
i
Copyright Notice
This document is copyrighted, 2009. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
its use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

SubCompact Board GENE-8315
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 Intel®, Celeron®M are trademarks of Intel®Corporation.
 Microsoft Windows®is a registered trademark of Microsoft
Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.
Please be notified that all other products’ name or trademarks not
be mentioned above are properties of their respective owners.

SubCompact Board GENE-8315
iii
Packing List
Before you begin installing your card, please make sure that
the following materials have been shipped:
• 1 GENE-8315 CPU Card with thermal solution
• 1 IDE Cable
• 1 KB/Mouse Cable
• 1 USB Cable
• 1 Jumper Cap
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

SubCompact Board GENE-8315
iv
Contents
Chapter 1 General Information
1.1 Introduction ...................................................................1-2
1.2 Features........................................................................1-3
1.3 Specifications................................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions........................................................2-2
2.2 Location of Connectors and Jumpers........................... 2-3
2.3 Mechanical Drawing......................................................2-5
2.4 List of Jumpers..............................................................2-7
2.5 List of Connectors.........................................................2-8
2.6 Setting Jumpers..........................................................2-10
2.7 Clear CMOS (JP1)......................................................2-11
2.8 COM2 RI/+5V Selection (JP2)....................................2-11
2.9 LVDS Inverter Voltage Selection (JP3).......................2-11
2.10 CFD Operating Voltage Selection (JP4)...................2-11
2.11 LVDS Operating Voltage Selection (JP5).................2-11
2.12 Internal USB2.0 Ports (CN1).....................................2-12
2.13 Primary IDE Hard Drive Connector (CN2)................2-12
2.14 Serial Port 1 Connector (CN3)..................................2-13
2.15 Serial Port 2 (CN4)....................................................2-13
2.16 Digital I/O Connector (CN5)......................................2-14
2.17 LVDS Inverter Connector (CN6)...............................2-15

SubCompact Board GENE-8315
v
2.18 Front Panel (CN7).....................................................2-15
2.19 Parallel Port Connector (CN8) ..................................2-15
2.20 LVDS Connector (CN9).............................................2-16
2.21 Audio In/Out/CD-in and MIC Connector (CN10).......2-16
2.22 4P Power Connector (CN11)....................................2-17
2.23 Ethernet #3 10/100Base-TX RJ-45 Phone Jack (CN12)
..........................................................................................2-17
2.24 Ethernet #2 10/100Base-TX RJ-45 Phone Jack (CN13)
..........................................................................................2-17
2.25 Ethernet #1 10/100Base-TX RJ-45 Phone Jack (CN14)
..........................................................................................2-18
2.26 External 5VSB/PSON# (CN16).................................2-18
2.27 FAN Connector (CN17).............................................2-19
2.28 Mini-DIN PS/2 Connector (CN18).............................2-19
2.29 External Battery (BAT1)............................................2-19
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization.......................................3-2
3.2 Award BIOS Setup........................................................3-3
Chapter 4 Driver Installation
4.1 Installation.....................................................................4-3
Appendix A Programming The Watchdog Timer
A.1 Programming............................................................... A-2
A.2 ITE 8712 Watchdog Timer Initial Program .................. A-5

SubCompact Board GENE-8315
vi
Appendix B I/O Information
B.1 I/O Address Map.......................................................... B-2
B.2 1st MB Memory Address Map ...................................... B-2
B.3 IRQ Mapping Chart...................................................... B-3
B.4 DMA Channel Assignments......................................... B-3
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables ........................C-2

SubCompact Board GENE-8315
Chapter 1 General Information 1 - 1
General
Chapter
1
Information

SubCompact Board GENE-8315
Chapter 1 General Information 1 - 2
1.1 Introduction
The GENE-8315 is based on Intel®ULV Celeron®M 600MHz/
1.0GHz ZC or Celeron®M 1.3GHz (Optional)/ 1.5GHz processor
and 200-pin DDR SODIMM up to 1GB system memory. It is
designed to provide the ideal combination of low power, excellent
performance, and small size for applications that require a small
form factor like AAEON SubCompact Board –GENE-8315.
The most significant feature of GENE-8315 is the LAN port
deployment. It accommodates three 10/100Base-TX RJ-45
connectors that allow more and faster network connections.
GENE-8315 equips one Intel EP82562ET Ethernet controller and
two Realtek RTL8100BL-LF Ethernet controllers for multi-task data
transmission in the network. It also provides a basic display mode
that is CRT & LVDS multi-displays and has fulfilled market
demands to achieve the target of cost efficiency.
For a wide expansion capability, GENE-8315 equips flexible I/O
interfaces—2 COM, 4 USB2.0, Parallel port, Digital I/O,
Keyboard/Mouse interfaces, etc. In addition, one PATA-33 IDE
and one Type II CompactFlash slots to enlarge the storage of
GENE-8315. The GENE-8315 combines superb performance and
controllable power usage. It is the best solution for supporting
diverse applications.

SubCompact Board GENE-8315
Chapter 1 General Information 1 - 3
1.2 Features
 Onboard Intel®ULV Celeron®M 600MHz/ 1.0GHz ZC or
Celeron®M 1.3GHz (Optional)/ 1.5GHz Processor
 Up to 24-bit Dual-Channel LVDS LCD
 CRT & LVDS Multiple Displays
 DDR266 SODIMM, Max. 1GB
 Three Ethernet Ports
 IDE & Type II CompactFlash™ Slot
 COM x 2/ USB2.0 x 4/ 2CH AC97 2.0 Codec
 +5V Only Operation

SubCompact Board GENE-8315
Chapter 1 General Information 1 - 4
1.3 Specifications
System
 CPU Onboard Intel®ULV Celeron®M
600MHz/ 1.0GHz ZC or
Celeron®M 1.3GHz (Optional)/
1.5GHz
 Memory 200-pin DDR SODIMM x 1,
Max. 1GB (DDR 266)
 Chipset Intel®852GM+ICH4
 I/O Chipset IT8712IX
 Ethernet Intel®82562 x 1 + Realtek
RTL8100BL x 2,
10/100Base-TX, RJ-45
connector x 3
 BIOS Award 1MB Flash ROM
 Watchdog Timer ITE 8712IX, generates a
time-out system reset
 Hardware Monitoring ITE 8712IX, supports power
supply voltages, fan speed, and
temperature monitoring
 Battery Lithium battery
 Power Requirement 4-pin AT power connector + Mini
6-pin connector, supports
ATX/AT power, +5V only power

SubCompact Board GENE-8315
Chapter 1 General Information 1 - 5
input
 Power Consumption
(Typical)
Intel®Celeron®M 1.5GHz, DDR
1GB; 5.21A @ +5V
 Board Size 5.75”(L) x 4” (W)
(146mm x 101.6mm)
 Gross Weight 0.88 lb (0.4Kg)
 Operating Temperature 32°F~140°F (0°C~60°C)
-4°F~158°F (-20°C~70°C) (for
GENE-8315W1 w/ ULV 1.0GHz
ZC only)
 Storage Temperature -40°F~176°F (-40°C~80°C)
 Operating Humidity 0% ~ 90% relative humidity,
non-condensing
 MTBF (Hours) 90,000
Display: Supports CRT/LCD simultaneous/ dual view
display
 Chipset Intel®852GM integrated VGA
 Memory Shared system memory up to
32MB
 Resolutions Up to 1600 x 1200 @ 85Hz for
CRT; Up to 1920 x 1440 @
60Hz for CRT; Up to 1600 x
1200 @ 18/24-bit dual-channel
for LCD

SubCompact Board GENE-8315
Chapter 1 General Information 1 - 6
I/O
 Storage PATA-33 x 1 (supports two
ATAPI devices), Type II
CompactFlash x 1
 Serial Port RS-232 x 1, RS-232/422/485 x
1 (RS-485 w/auto flow)
 Parallel Port Supports SPP/EPP/ECP mode
 USB USB2.0 x 4 (one internal
pin-header & one stack type A
connector)
 PS/2 Port One Mini-DIN PS/2 K/B and
Mouse connector
 Digital I/O Supports 8-bit (Programmable)
 IrDA One IrDATx/Rx header
 Audio Realtek ALC655 2CH, MIC-in/
Line-in/ Line-out/ CD-in

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Chapter
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007831510 Printed in Taiwan July 2008

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2 - 3

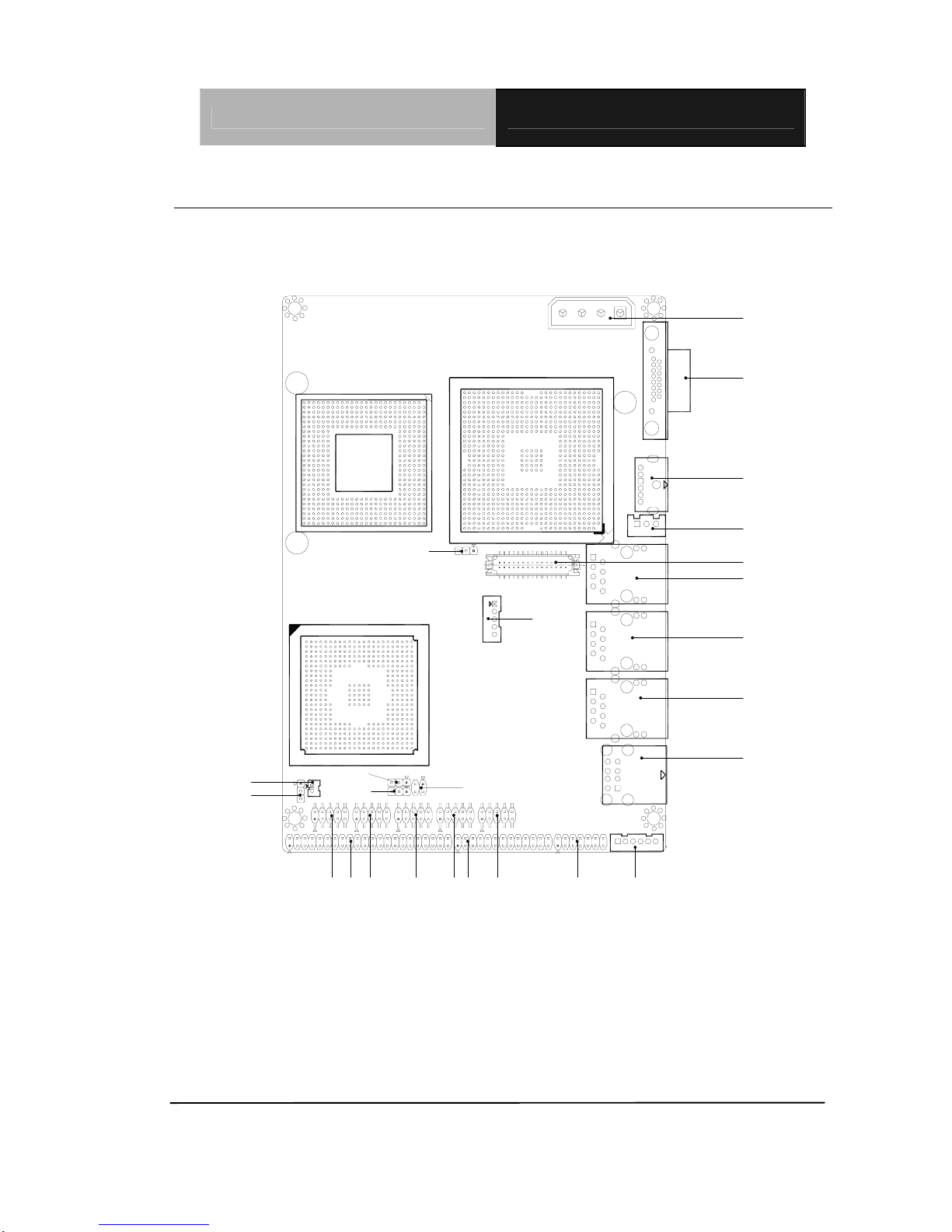

2.2 Location of Connectors and Jumpers
Component Side
CN16
CN10
CN7 CN8 CN4 CN3 CN1 CN2
BAT1
JP1 JP4
JP3
CN11
CN19
CN18
CN17
CN14
CN13
CN12
CN15
CN9
CN6
JP5
CN5
JP2

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2 - 4

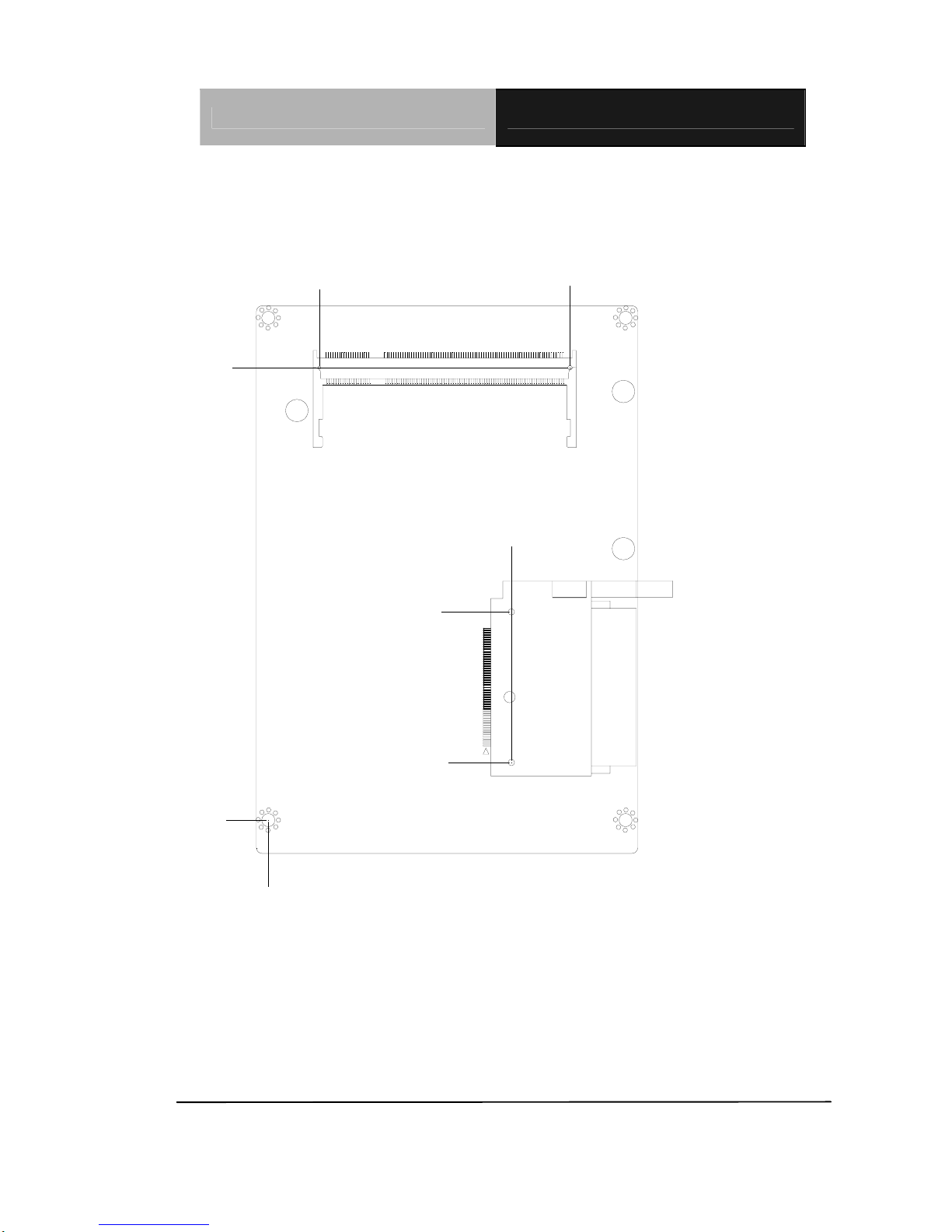

Solder Side
SO-DIMM
CFD

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2 - 5

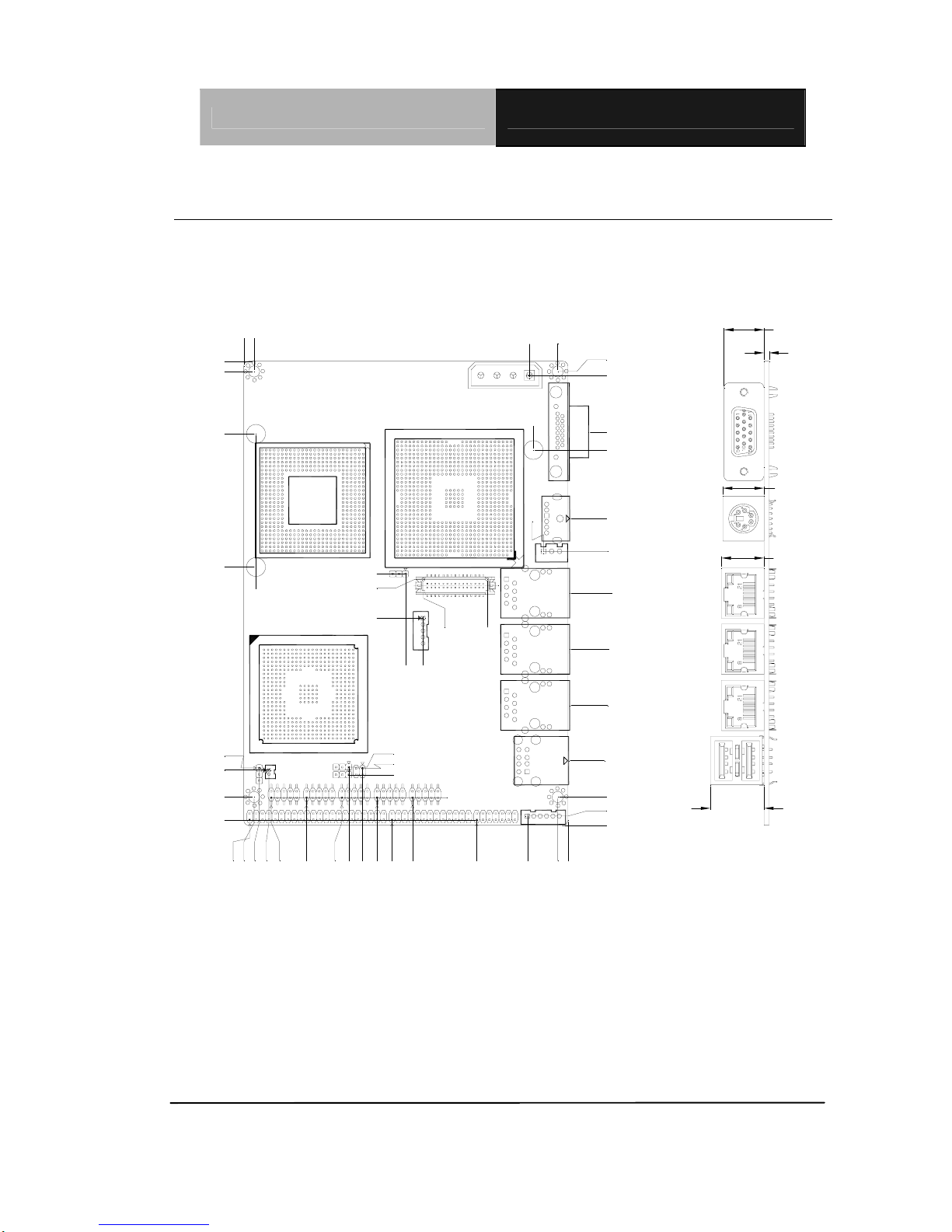

2.3 Mechanical Drawing
Component Side
0.00
0.00
9.50
25.40 51.94
96.57
7.19
0.00
95.20
8.51
9.14
65.53
61.21
9.40
9.02
6.99
87.63
4.40
114.94
132.72
133.93
8.89
3.18
133.93
137.16
98.42 95.20
109.22
7.62
94.62
72.39
114.30
47.75
70.23
56.32
42.23
68.52
22.11
42.11
0.00
8.89
(12.55)
(1.60)
(12.90)
(13.35)
(16.80)
6.02
89.85 78.78
67.70
56.63 45.55 90.55
11.44
28.83
46.48
64.14
77.34
93.60
0.21

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2 - 6
Solder Side
0.00
0.00
64.77
55.53
15.37
120.65
13.59
80.39

SubCompact Board GENE-8315
Chapter 2 Quick Installation Guide 2 - 7
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP1 Clear CMOS
JP2 COM2 RI/+5V Selection
JP3 LVDS Inverter Voltage Selection
JP4 CFD Operating Voltage Selection
JP5 LVDS Voltage Selection
