User’s Manual
ACS580-0P 3R Irrigation Packaged Drive
Supplement to ACS580-U1 User’s Manual

2 ACS580-0P 3R Irrigation Packaged Drive
ACS580 Drive Manuals
GENERAL MANUALS
ACS580-01 User’s Manual (1…200 HP)
• Safety
• Installation
• Start-Up
• Embedded Fieldbus
• Fieldbus Adapter
• Diagnostics
• Maintenance
• Technical Data
ACS580 Technical Reference Manual
(available in electronic format only)
• Detailed Product Description
• Practical Engineering Guides
© 2020 ABB Inc. All Rights Reserved.

ACS580-0P 3R Irrigation Packaged Drive 3
Table of Contents
Table of Contents
Safety
Use of Warnings and Notes..............................................4
Installation
Application .......................................................................5
Input Disconnect Features and Functions ........................5
Installation Flow Chart......................................................7
Preparing for Installation ..................................................8
Preparing for Installation ..................................................9
Installing the Drive............................................................10
Mounting optional foot kit on 3R irrigation panel ...............13
Installing the Wiring .........................................................16
Typical Control Schematic................................................19
Application Guides
Ratings.............................................................................22
Input Power Connections and Terminals ..........................23
Dimensions and Weights..................................................24
Ambient Conditions..........................................................25
Applicable Standards
Maintenance Intervals......................................................27
Drive Module Fan Replacement.......................................27

4 ACS580-0P 3R Irrigation Packaged Drive
Safety
Safety
WARNING! The ACS580 adjustable speed AC drive with Input Disconnect
should ONLY be installed by a qualied electrician.
WARNING! Even when the motor is stopped, dangerous voltage is present at
the Power Circuit terminals U1, V1, W1 and U2, V2, W2 and, depending on the
frame size, UDC+ and UDC-, or BRK+ and BRK-.
WARNING! Dangerous voltage is present when input power is connected. After
disconnecting the supply, wait at least 5 minutes (to let the intermediate circuit
capacitors discharge) before removing the cover.
WARNING! Even when power is removed from the input terminals of the
ACS580, there may be dangerous voltage (from external sources) on the
terminals of the relay outputs.
WARNING! When the control terminals of two or more drive units are
connected in parallel, the auxiliary voltage for these control connections must
be taken from a single source which can either be one of the units or an
external supply.
WARNING! The ACS580 will start up automatically after an input voltage
interruption if the external run command is on.
WARNING! When the ACS580 with Input Disconnect is connected to the line
power, the Motor Terminals T1, T2, and T3 are live even if the motor is not
running. Do not make any connections when the ACS580 with Input Disconnect
is connected to the line. Disconnect and lock out power to the drive before
servicing the drive. Failure to disconnect power may cause serious injury or
death.
Note! For more technical information, contact the factory or your local ABB sales
representative.
Use of Warnings and Notes
There are two types of safety instructions throughout this manual:
• Notes draw attention to a particular condition or fact, or give information on a
subject.
• Warnings caution you about conditions which can result in serious injury or death
and/or damage to the equipment. They also tell you how to avoid the danger. The
warning symbols are used as follows:
Dangerous voltage warning warns of high voltage which can cause physical injury
and/or damage to the equipment.
General warning warns about conditions, other than those caused by electricity,
which can result in physical injury and/or damage to the equipment.

ACS580-0P 3R Irrigation Packaged Drive 5
Installation
Installation
Study these installation instructions carefully before proceeding. Failure to observe the
warnings and instructions may cause a malfunction or personal hazard.
WARNING! Before you begin read “Safety” on page 1.
WARNING! When the ACS580 with Input Disconnect is connected to the line
power, the Motor Terminals T1, T2, and T3 are live even if the motor is not
running. Do not make any connections when the ACS580 with Input Disconnect
is connected to the line. Disconnect and lock out power to the drive before
servicing the drive. Failure to disconnect power may cause serious injury or
death.
Application
This manual contains supplemental information that is unique to ACS580 input
disconnect congurations (0P). Refer to the base manual, ACS580-01 User’s Manual, for
all other information.
Input Disconnect Features and Functions
The ACS580 with Input Disconnect is an ACS580 AC adjustable frequency drive
packaged with an input disconnect switch and with a door mounted, external operating
handle. The operating handle can be padlocked in the OFF position (padlock not
supplied). Enclosure are UL Type 3R (NEMA 3R).
The following is a typical power diagram.
ACS580
Drive with Input Disconnect
Motor
3 Phase
Drive 3
3
Disconnect Switch
or Circuit Breaker
Input Power

6 ACS580-0P 3R Irrigation Packaged Drive
Installation

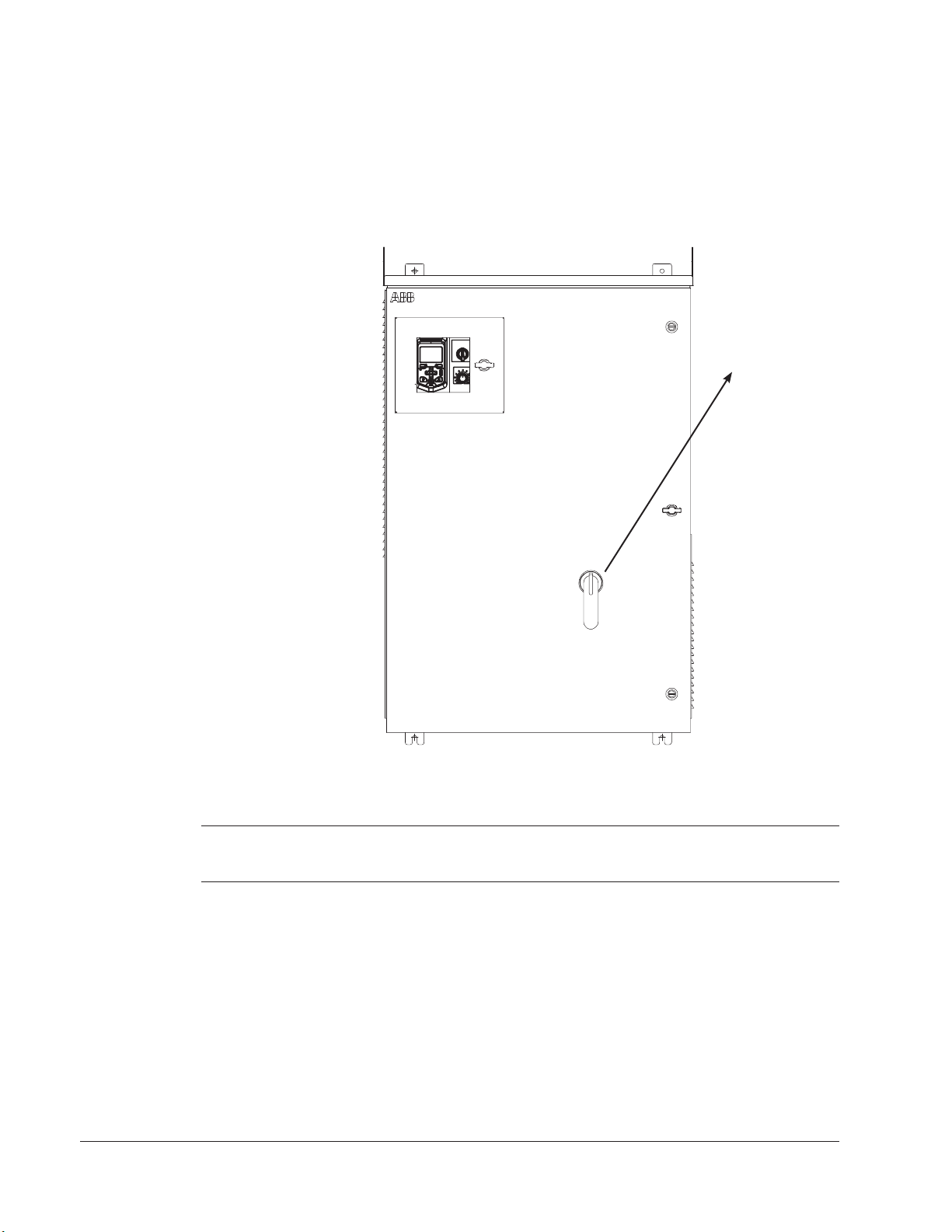

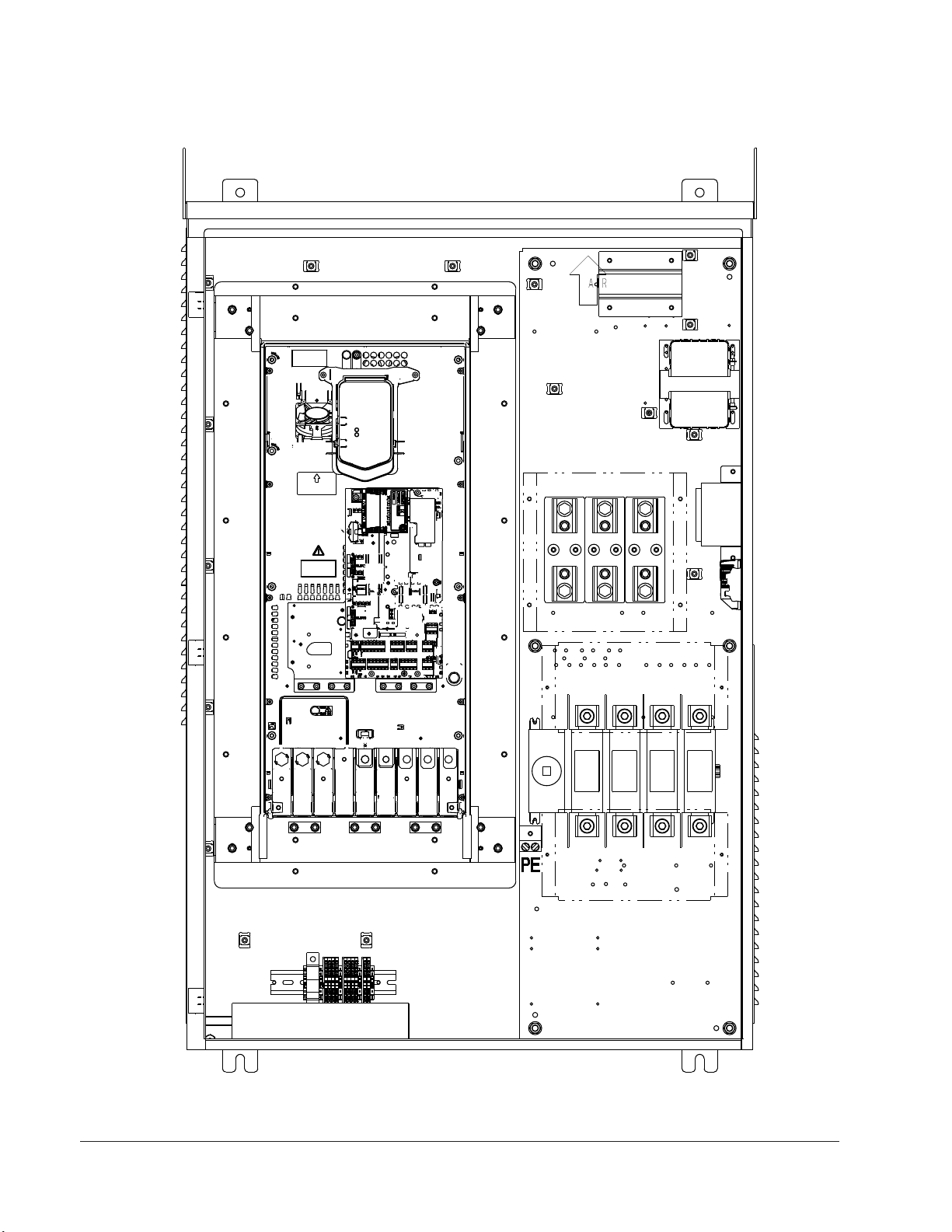

The following gures show the front view of the ACS580 Drive with Input Disconnect
standard congurations, and identify the major components.
UL Type / NEMA 3R Enclosures
Operating
Handle for
Disconnect
Switch
?
OFF
HANDAU
POT
Note! UL Type 3R enclosures are designed to be mounted on a wall. See section
“Prepare the UL Type 3R ACS580 for UNISTRUT®mounting” for more details.

ACS580-0P 3R Irrigation Packaged Drive 7
Installation
Installation Flow Chart
The installation of Input Disconnect congurations for ACS580 drives follows the outline
below. The steps must be carried out in the order shown. At the right of each step are
references to the detailed information needed for the correct installation of the unit.
Note! References in the middle column below are to the ACS580-01 User’s Manual.
References in the third column below are to this manual.
Task
Refer to the
ACS580-01 User’s
Manual “Installation”
section
Additional Reference in
this Manual
PREPARE for
installation
“Preparing for Installation” • “Drive Identication” on page 9.
• “Suitable Mounting Location” on
page 10.
PREPARE the
Mounting Location
“Prepare the Mounting Location” • “Dimensions and Weights”
MOUNT the drive “Mount the Drive” --
INSTALL wiring “Wiring Overview” and
“Install the Wiring”
“Installing the Wiring”
CHECK installation “Check Installation” --
APPLY power “Apply Power” --
START-UP “Start-Up” --

8 ACS580-0P 3R Irrigation Packaged Drive
Installation
Preparing for Installation (Supplement to ACS580-01 User’s Manual)
Lifting the Drive

ACS580-0P 3R Irrigation Packaged Drive 9
Installation
Preparing for Installation (Supplement to ACS580-01 User’s Manual)
Drive Identication
To identify the type of device you are installing, refer to the type code number on the
device identication label.
• Wall mounting base drives – label attached on the side surface of the heat sink.
• Packaged drive – label attached to outside surface on the left side of the
enclosure.
• Enclosure with hinged cover/door – label on inside surface of the cover/door.
Type Code Number
Use the following to interpret the type code found on the identication label.
ACS580-0P-124A-4 +C192
AC Drive = 580 Product Series
Construction
0P = Drive with disconnect switch
Output current rating (See ratings chart for details)
Voltage rating
2 = 208/230 VAC
4 = 460 VAC
Enclosure protection class
+C192 = 3R Irrigation Drive
Ratings and Frame Size
Charts in the “Ratings” sections of the ACS580-01 User’s Manual and this manual list
technical specications, and identify the drive’s frame size.
Note! Some instructions in this document vary, depending on the drive’s frame size.
To read the Ratings table, you need the “Output current rating” entry from the type
code (see above).
Suitable Mounting Location
For selecting a suitable mounting location for congurations, refer to:
• Preparing for installation in the ACS580-01 User’s Manual, and
• The Technical Data section of this manual for information on dimensions, weights
and free space requirements.

10 ACS580-0P 3R Irrigation Packaged Drive
Installation
Installing the Drive (Supplement to ACS580-01 User’s Manual)
WARNING!
Metal shavings or debris in the enclosure can damage electrical equipment and
create a hazardous condition. Where parts, such as conduit plates require
cutting or drilling, rst remove the part. If that is not practical, cover nearby
electrical components to protect them from all shavings or debris.
Do not connect or disconnect input or output power wiring, or control wires,
when power is applied.
Never connect line voltage to drive output Terminals T1, T2 and T3.
Do not make any voltage tolerance tests (Hi Pot or Megger) on any part of the
unit. Disconnect motor wires before taking any measurements in the motor or
motor wires.
Make sure that power factor correction capacitors are not connected between
the drive and the motor.
Prepare the Mounting Location
The ACS580 should only be mounted where all of the requirements dened in “Preparing
for Installation” are met.
Mount the Drive
1. Use a hoist to move the cabinet into position.
Note! If the cabinet location does not provide access to the cabinet sides, be
sure to re-mount side panels before positioning cabinet.
2. Install and tighten mounting bolts.

ACS580-0P 3R Irrigation Packaged Drive 11
Installation
Installing the Drive - continued

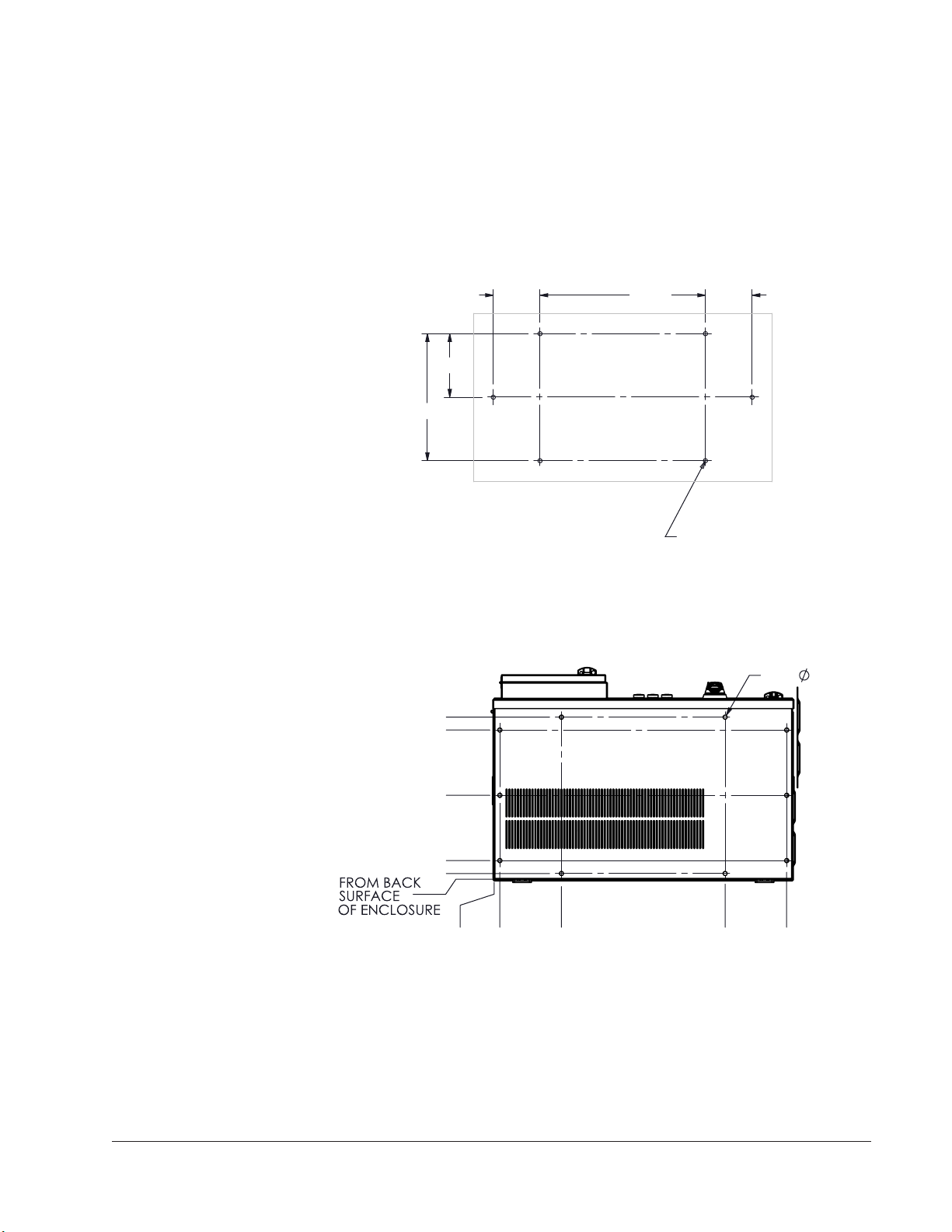

Prepare the UL Type 3R ACS580 for UNISTRUT®mounting or wall mounting
The ACS580 UL Type 3R cabinet frame sizes are designed to be mounted on a solid
vertical surface or using UNISTRUT. An optional oor/ground mounting kit is available for
purchase.
26
32.5
52.3
49
WALL MOUNT
BACK VIEW

12 ACS580-0P 3R Irrigation Packaged Drive
Installation
Installing the Drive - continued

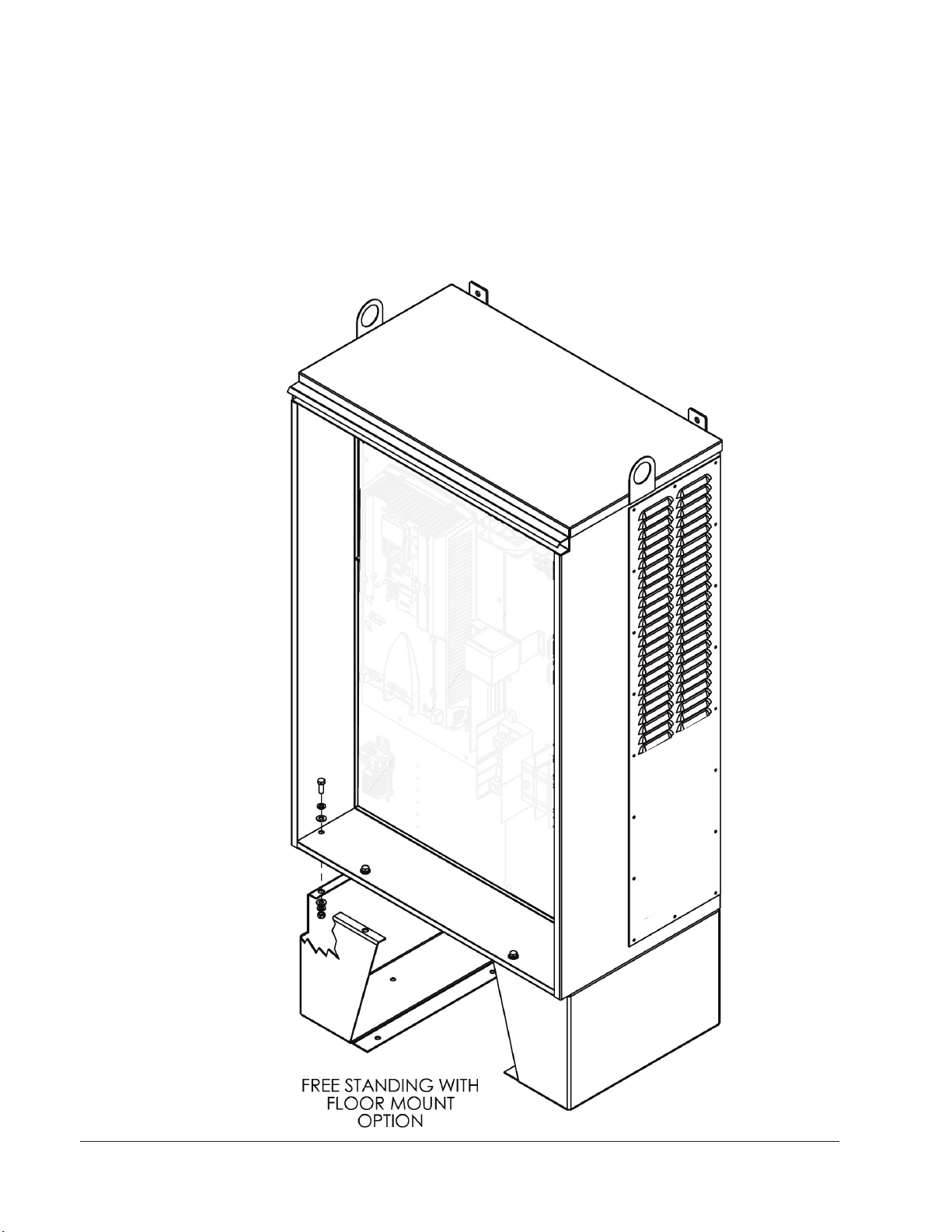

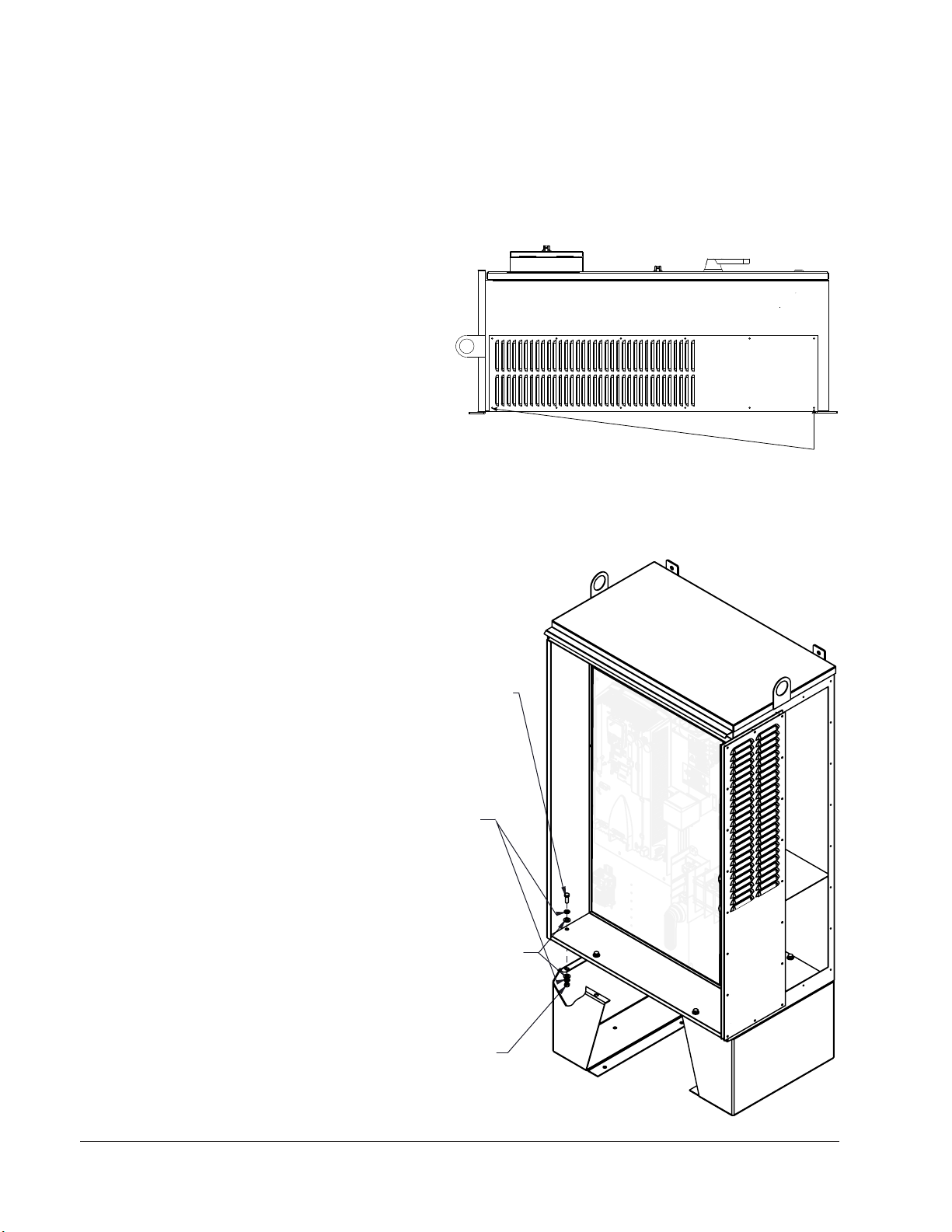

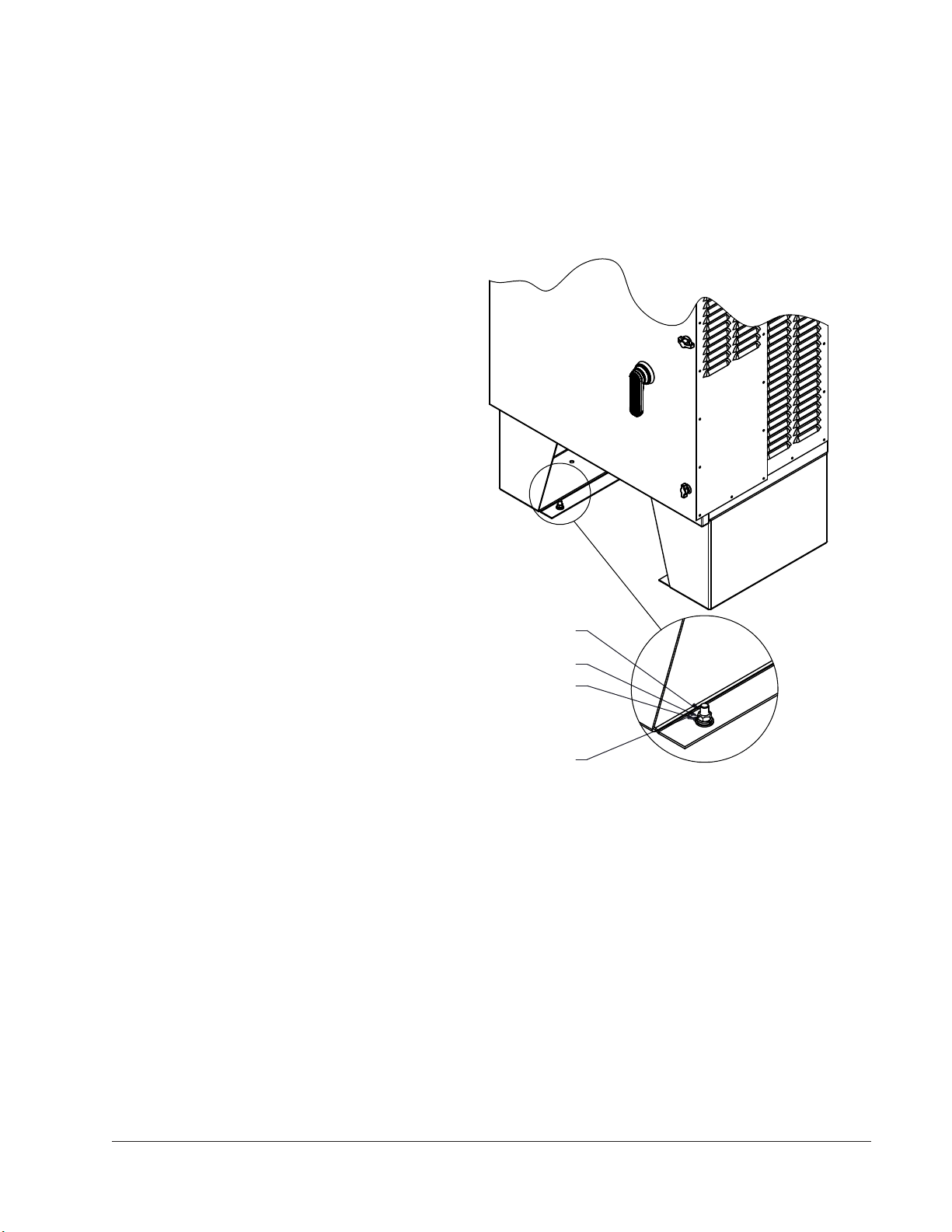

Optional Floor/Ground Mounting Kit
An optional oor/ground mounting kit is available for purchase.

ACS580-0P 3R Irrigation Packaged Drive 13
Installation
3/8 FLAT WASHER
HW1000A38
(24) REQ'D.
3/8 LOCK WASHER
HW1001A38
(24) REQ'D.
3/8-16X1
HEX HEAD
CAP SCREW
10XN3816A16
(12) REQ'D.
3/8-16
HEX NUT
V6401538
(12) REQ'D.
5.01 5.01 17.74
6.81
13.62
FLOOR PLAN LAYOUT
(6) X 3/8-16 STUD
GRADE 5 OR BETTER
REMOUNTED SCREWS
10 X .44
.62
2.00
16.00
17.38
9.00
FROM LEFT
SURFACE OF
ENCLOSURE
.62
7.22
24.78 31.38
BOTTOM VIEW
3/8-16 FLAT WASHER
GRADE 5 OR BETTER
3/8-16 LOCK WASHER
GRADE 5 OR BETTER
3/8-16 HEX NUT
GRADE 5 OR BETTER
3/8-16 STUD
GRADE 5 OR BETTER
3/8 FLAT WASHER
HW1000A38
(24) REQ'D.
3/8 LOCK WASHER
HW1001A38
(24) REQ'D.
3/8-16X1
HEX HEAD
CAP SCREW
10XN3816A16
(12) REQ'D.
3/8-16
HEX NUT
V6401538
(12) REQ'D.
5.01 5.01 17.74
6.81
13.62
FLOOR PLAN LAYOUT
(6) X 3/8-16 STUD
GRADE 5 OR BETTER
REMOUNTED SCREWS
10 X .44
.62
2.00
16.00
17.38
9.00
FROM LEFT
SURFACE OF
ENCLOSURE
.62
7.22
24.78 31.38
BOTTOM VIEW
3/8-16 FLAT WASHER
GRADE 5 OR BETTER
3/8-16 LOCK WASHER
GRADE 5 OR BETTER
3/8-16 HEX NUT
GRADE 5 OR BETTER
3/8-16 STUD
GRADE 5 OR BETTER
Step 1
Prepare mounting surface for
enclosure.
Step 2
With the enclosure laying on it’s
back, drill the (10) holes as
shown below using a 7/16 inch
drill bit.
Assembly instructions for mounting optional foot kit on 3R irrigation panel

14 ACS580-0P 3R Irrigation Packaged Drive
Installation
3/8 FLAT WASHER
HW1000A38
(24) REQ'D.
3/8 LOCK WASHER
HW1001A38
(24) REQ'D.
3/8-16X1
HEX HEAD
CAP SCREW
10XN3816A16
(12) REQ'D.
3/8-16
HEX NUT
V6401538
(12) REQ'D.
REMOUNTED SCREWS
Step 3
Remove the vent plate on the right side
of the enclosure to be able to assemble
the hardware for the mounting feet.
The vent plate can be remounted using
two screws for safe keeping.
Step 4
Assemble foot kit with mounting
hardware.
Assembly instructions for mounting optional foot kit on 3R irrigation panel

ACS580-0P 3R Irrigation Packaged Drive 15
Installation
Step 5
Using the lifting eyes, lift the enclosure
and place onto mounting studs and
assemble hardware.
Assembly instructions for mounting optional foot kit on 3R irrigation panel
3/8-16 FLAT WASHER
GRADE 5 OR BETTER
3/8-16 LOCK WASHER
GRADE 5 OR BETTER
3/8-16 HEX NUT
GRADE 5 OR BETTER
3/8-16 STUD
GRADE 5 OR BETTER

16 ACS580-0P 3R Irrigation Packaged Drive
Installation
Installing the Wiring (Supplement to ACS580-01 User’s Manual)
Wiring Requirements
Refer to the “Wiring Requirements” Section in the ACS580-01 User’s Manual. The
requirements apply to all ACS580 drives. In particular:
• Use separate, metal conduit runs for the following di󰀨erent classes of wiring:
– Input power wiring.
– Motor wiring.
– Control/communications wiring.
• Properly and individually ground the drive, the motor and cable shields.
Wiring Overview
Power Connection – Standard Drive with Input Disconnect (Wall Mounted)
The following gures show the Standard Drive with Input Disconnect (wall mounted)
typical layout. (Refer to the ACS580-01 User’s Manual and 3R Irrigation Control
Schematic for control connections to the drive.)
Install the Line Input Wiring
Line Input Connections – Standard Drive with Input Disconnect Congurations
Connect input power to the terminals of the disconnect switch. Connect the
equipment grounding conductor to the ground lug. The gure below shows typical
connection points for Standard ACS580 Drive with Input Disconnect congurations.
WARNING! Check the motor and motor wiring insulation before connecting
the ACS580 to line power. Follow the procedure in the ACS580-01 User’s
Manual. Before proceeding with the insulation resistance measurements,
check that the ACS580 is disconnected from incoming line power. Failure
to disconnect line power could result in death or serious injury.
Note! For the remainder of the installation and start-up (motor and control wiring)
refer to the ACS580-01 User’s Manual.

ACS580-0P 3R Irrigation Packaged Drive 17
Installation
Typical Power Connections for Single and Three Phase
[002-R-3]
[002-B-4]
#14 AWG BLK
#16 AWG RED
312
#16 AWG WHT
#16 AWG RED
1L31L21L1
L3L2L1 N
7L1 7L2
#14 AWG GRN/YEL
BLK
T3
T2
T1 U1
V1
W1 GND/PE
3L3
3L2
3L1
1L3
1L2
1L1
GRN/YEL
460V
7L1 7L2
230V
230 VAC INPUT
7L1 7L2
208V
208 VAC INPUT
4
6
CUSTOMER
CONTROL
POWER
+G304
5
5CUSTOMER
CONTROL
POWER
+G304
115 VAC
100 VA MAX
T1 T2 T3 N
L1 L2 L3 N
DISC
PE
CUSTOMER SUPPLIED 240/480VAC
3HP - 60Hz
L2L1 N
T1 T2 N
L1 L2 L3 N
DISC
PE
CUSTOMER SUPPLIED 240VAC
1HP - 60Hz

18 ACS580-0P 3R Irrigation Packaged Drive
Installation
ACS580-0P 10-200 hp
*Typical ACS580 3R irrigation panel layout

ACS580-0P 3R Irrigation Packaged Drive 19
Installation
Typical Control Schematic
#16 AWG RED #16 AWG RED #16 AWG WHT
[001-G-78]
[001-B-78]
#16 AWG RED
#16 AWG WHT
[003-H-5][003-B-5]
MAIN COOLING FAN
#16 AWG RED #16 AWG WHT#16 AWG RED
NOTES:
1. PROGRAMMING : NO OPTIONS OR +G302 - Par 96.04 = HAND / AUTO, Par 28.11 = CONTROL REF (18).
: +G302+G303 OR +G303 - Par 96.04 = HAND / AUTO
2. DASHED LINE INDICATE CUSTOMER INSTALLED DEVICES AND WIRING.
3. COPPER WIRE RATED FOR 60 C INSULATION IF RATED LESS THAN 100A OR 75 C INSULATION IF
RATED 100A OR MORE MUST BE USED.
4. REFER TO USER MANUAL FOR OPERATION, CONNECTIONS, AND TIGHTENING TORQUE VALUES.
5. FUSE REPLACEMENT LABEL IS NEAR DEVICE.
6. SHORT CIRCUIT CURRENT: 100kA RMS SYMMETRICAL, 480V MAXIMUM.
7. REVERSE FED DISCONNECT

20 ACS580-0P 3R Irrigation Packaged Drive
Installation
X1 REFERENCE VOLTAGE AND ANALOG I/O
SIGNAL CABLE SHIELD (SCREEN) OUTPUT FREQUENCY/SPEED REF 0-10 V, HAND
ANALOG INPUT CIRCUIT COMMON
REFERENCE VOLTAGE 10 VDC
ANALOG INPUT CIRCUIT COMMON
OUTPUT FREQUENCY 0-20mA
MOTOR CURRENT 0-20 mA
ANALOG OUTPUT CIRCUIT COMMON
AUX VOLTAGE OUTPUT +24 VDC 250 mA MAX
AUX VOLTAGE OUTPUT COMMON
DIGITAL INPUT COMMON FOR ALL
START (1) / STOP (0) - HAND
FORWARD (0) / REVERSE (1) HAND HAND (0) / AUTO (1) RUN ENABLE
FORWARD (0) / REVERSE (1) AUTO
STOP (0) / START (1) - AUTO
EMBEDDED FIELDBUS EFB (EIA-485)
TERMINATION SWITCH
BIAS RESISTORS SWITCH
SAFE TORQUE OFF.
READY RUN
250VAC / 30VDC 2A
RUNNING
250VAC / 30VDC 2A
FAULT (-1)
250VAC / 30VDC 2A
FACTORY CONNECTION. BOTH CIRCUITS MUST BE CLOSED
FOR THE DRIVE TO START.
NOTE: TERMINALS 40 AND 41 AVAILABLE ON R6 AND LARGER ONLY.
EXTERNAL 24V AC/DC INPUT TO POWER THE
CONTROL UNIT WHEN THE MAIN SUPPLY IS
DISCONNECTED.
SHLD
#16 AWG BLU
#16 AWG BLU
#16 AWG BLU
#16 AWG BLU
