ABB REM615 ANSI Datasheet

Relion® 615 Series
Motor Protection and Control
REM615 ANSI
DNP3 Point List Manual

Document ID: 1MAC254287-MB
Issued: 4/14/2011
Revision: B
Product version: 4.0
© Copyright 2011 ABB. All rights reserved.

Copyright
This document and parts thereof must not be reproduced or copied without written
permission from ABB, and the contents thereof must not be imparted to a third party, nor
used for any unauthorized purpose.
The software or hardware described in this document is furnished under a license and may
be used, copied, or disclosed only in accordance with the terms of such license.
Trademarks
ABB and Relion are registered trademarks of ABB Group. All other brand or product
names mentioned in this document may be trademarks or registered trademarks of their
respective holders.
Warranty
Please inquire about the terms of warranty from your nearest ABB representative.
ABB Inc.
Distribution Automation
4300 Coral Ridge Drive
Coral Springs, FL 33065, USA
Toll-free: 1 [phone]
Phone: [phone]
Fax: [phone]
http://www.abb.com/substationautomation

Disclaimer
The data, examples and diagrams in this manual are included solely for the concept or
product description and are not to be deemed as a statement of guaranteed properties. All
persons responsible for applying the equipment addressed in this manual must satisfy
themselves that each intended application is suitable and acceptable, including that any
applicable safety or other operational requirements are complied with. In particular, any
risks in applications where a system failure and/or product failure would create a risk for
harm to property or persons (including but not limited to personal injuries or death) shall
be the sole responsibility of the person or entity applying the equipment, and those so
responsible are hereby requested to ensure that all measures are taken to exclude or
mitigate such risks.
This document has been carefully checked by ABB but deviations cannot be completely
ruled out. In case any errors are detected, the reader is kindly requested to notify the
manufacturer. Other than under explicit contractual commitments, in no event shall ABB
be responsible or liable for any loss or damage resulting from the use of this manual or the
application of the equipment.

Conformity
This product complies with the directive of the Council of the European Communities on
the approximation of the laws of the Member States relating to electromagnetic
compatibility (EMC Directive 2004/108/EC) and concerning electrical equipment for use
within specified voltage limits (Low-voltage directive 2006/95/EC). This conformity is
the result of tests conducted by ABB in accordance with the product standards EN 50263
and EN 60255-26 for the EMC directive, and with the product standards EN 60255-6 and
EN 60255-27 for the low voltage directive. The IED is designed in accordance with the
international standards of the IEC 60255 series and ANSI C37.90. The DNP protocol
implementation in the IED conforms to "DNP3 Intelligent Electronic Device (IED)
Certification Procedure Subset Level 2", available at www.dnp.org .

1MAC254287-MB B Section
REM615 ANSI 1
Point List Manual
Section 1 Introduction ...........................................................................3
This manual ..............................................................................................3
Intended audience ....................................................................................3
Product documentation.............................................................................4
Product documentation set..................................................................4
Document revision history ...................................................................5
Related documentation........................................................................5
Symbols and conventions.........................................................................5
Safety indication symbols ....................................................................5
Manual conventions............................................................................. 6
Functions, codes and symbols ............................................................7
Section 2 DNP3 data mappings............................................................9
Overview...................................................................................................9
Binary/Analog Inputs................................................................................. 9
DNP Binary Outputs ...............................................................................35
Section 3 DNP3 protocol implementation ...........................................37
DNP3 device profile ................................................................................ 37
DNP3 implementation table .................................................................... 40
Section 4 Glossary..............................................................................45

Section 1MAC254287-MB B
2 REM615 ANSI
Point List Manual

1MAC254287-MB B Section 1
Introduction
REM615 ANSI 3
Point List Manual
Section 1 Introduction
1.1 This manual
The point list manual describes the outlook and properties of the data points specific to the
IED. The manual should be used in conjunction with the corresponding communication
protocol manual.
1.2 Intended audience
This manual addresses the communication system engineer or system integrator
responsible for pre-engineering and engineering for communication setup in a substation
from an IED perspective.
The system engineer or system integrator must have a basic knowledge of communication
in protection and control systems and thorough knowledge of the specific communication
protocol.

Section 1 1MAC254287-MB B
Introduction
4 REM615 ANSI
Point List Manual
1.3 Product documentation
1.3.1 Product documentation set

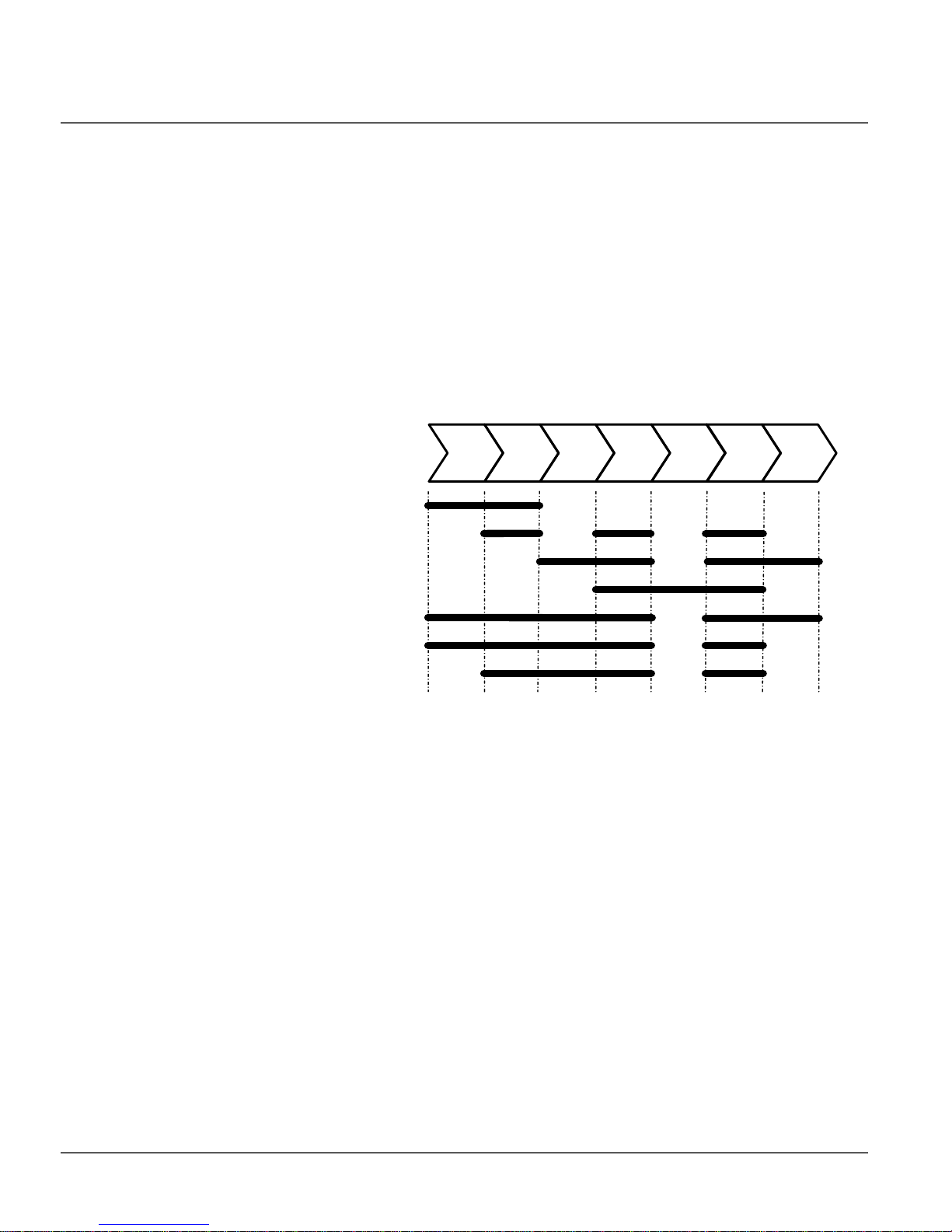

Figure 1: The intended use of manuals in different lifecycles
The engineering manual contains instructions on how to engineer the IEDs using the
different tools in PCM600. The manual provides instructions on how to set up a PCM600
project and insert IEDs to the project structure. The manual also recommends a sequence
for engineering of protection and control functions, LHMI functions as well as
communication engineering for IEC 61850 and DNP3.
The installation manual contains instructions on how to install the IED. The manual
provides procedures for mechanical and electrical installation. The chapters are organized
in chronological order in which the IED should be installed.
The operation manual contains instructions on how to operate the IED once it has been
commissioned. The manual provides instructions for monitoring, controlling and setting
the IED. The manual also describes how to identify disturbances and how to view
calculated and measured power grid data to determine the cause of a fault.
The application manual contains application descriptions and setting guidelines sorted per
function. The manual can be used to find out when and for what purpose a typical
protection function can be used. The manual can also be used when calculating settings.
The technical manual contains application and functionality descriptions and lists function
blocks, logic diagrams, input and output signals, setting parameters and technical data
Planning & purchase
Engineering
Installing
Commissioning
Operation
Maintenance
Decommissioning Deinstalling & Disposal
Application manual
Operation manual
Installation manual
Engineering manual
Communication Protocol
manual
Technical manual
Protocol Points List
manual

1MAC254287-MB B Section 1
Introduction
REM615 ANSI 5
Point List Manual
sorted per function. The manual can be used as a technical reference during the
engineering phase, installation and commissioning phase, and during normal service.
The communication protocol manual describes a communication protocol supported by
the IED. The manual concentrates on vendor-specific implementations. The point list
manual describes the outlook and properties of the data points specific to the IED. The
manual should be used in conjunction with the corresponding communication protocol
manual.
1.3.2 Document revision history
1.3.3 Related documentation
1.4 Symbols and conventions
1.4.1 Safety indication symbols
Although warning hazards are related to personal injury, it should be understood that
operation of damaged equipment could, under certain operational conditions, result in
degraded process performance leading to personal injury or death. Therefore, comply fully
with all warning and caution notices.
Document revision/date Product series version History
A/01/20/2010 2.0 First release
B/03/31/2011 4.0 Contents updated for 615 series v4.0
ANSI release
Download the latest documents from the ABB web site
http://www.abb.com/substationautomation.
Name of the document Document ID
DNP3 Communication Protocol Manual 1MAC052460-MB
The caution icon indicates important information or warning related to the
concept discussed in the text. It might indicate the presence of a hazard
which could result in corruption of software or damage to equipment or
property.
The information icon alerts the reader to important facts and conditions.
The tip icon indicates advice on, for example, how to design your project
or how to use a certain function.

Section 1 1MAC254287-MB B
Introduction
6 REM615 ANSI
Point List Manual
1.4.2 Manual conventions
Conventions used in IED manuals. A particular convention may not be used in this
manual.
• Abbreviations and acronyms in this manual are spelled out in the glossary. The
glossary also contains definitions of important terms.
• Push button navigation in the LHMI menu structure is presented by using the push
button icons, for example:
To navigate between the options, use and .
• HMI menu paths are presented in bold, for example:
Select Main menu > Settings.
• LHMI messages are shown in Courier font, for example:
To save the changes in non-volatile memory, select Yes and press .
• Parameter names are shown in italics, for example:
The function can be enabled and disabled with the Operation setting.
• Parameter values are indicated with quotation marks, for example:
The corresponding parameter values are "Enabled" and "Disabled".
• IED input/output messages and monitored data names are shown in Courier font, for
example:
When the function picks up, the PICKUP output is set to TRUE.
• Dimensions are provided both in inches and mm. If it is not specifically mentioned
then the dimension is in mm.

1MAC254287-MB B Section 1
Introduction
REM615 ANSI 7
Point List Manual
1.4.3 Functions, codes and symbols
Table 1: Functions included in standard configurations
Standard configuration functionality IEC 61850 ANSI/C37.2 IEC60617
Protection
Three-phase non-directional overcurrent
protection, low stage, instance 1
PHLPTOC1 51P 3I> (1)
Three-phase non-directional overcurrent
protection, high stage, instance 1
PHHPTOC1 50P 3I>> (1)
Non-directional ground-fault protection, low stage,
instance 1
EFLPTOC1 51G Io> (1)
Non-directional ground-fault protection, high
stage, instance 1
EFHPTOC1 50G Io>> (1)
Directional ground-fault protection, low stage,
instance 1
DEFLPDEF1 67/51N Io> -> (1)
Residual overvoltage protection, instance 1 ROVPTOV1 59G Uo> (1)
Residual overvoltage protection, instance 2 ROVPTOV2 59N Uo> (2)
Three-phase under-voltage protection, instance 1 PHPTUV1 27 3U< (1)
Three-phase overvoltage protection, instance 1 PHPTOV1 59 3U> (1)
Positive-sequence undervoltage protection,
instance 1
PSPTUV1 27PS U1<(1)
Negative-sequence overvoltage protection,
instance 1
NSPTOV1 47 U2>(1)
Frequency protection, instance 1 FRPFRQ1 81 f>/f<,df/dt(1)
Negative-sequence overcurrent protection for
motors, instance 1
MNSPTOC1 46M-1 I2>M(1)
Negative-sequence overcurrent protection for
motors, instance 2
MNSPTOC2 46M-2 I2>M(2)
Loss of load supervision, instance 1 LOFLPTUC1 37M-1 3I<(1)
Loss of load supervision, instance 2 LOFLPTUC2 37M-2 3I<(2)
Motor load jam protection JAMPTOC1 51LR Ist>
Motor start-up supervision STTPMSU1 66/51LRS Is2t n<
Phase reversal protection PREVPTOC1 46R I2>>
Thermal overload protection for motors MPTTR1 49M 3Ith>M
Motor differential protection MPDIF1 87M 3dl>M
Circuit breaker failure protection, instance 1 CCBRBRF1 50BF 3I>/Io>BF(1)
Master trip, instance 1 TRPPTRC1 86/94-1 Master Trip(1)
Master trip, instance 2 TRPPTRC2 86/94-2 Master Trip (2)
Arc protection, instance 1 ARCSARC1 AFD-1 ARC (1)
Arc protection, instance 2 ARCSARC2 AFD-2 ARC (2)
Arc protection, instance 3 ARCSARC3 AFD-3 ARC (3)
Control
Circuit-breaker control, instance 1 CBCBR1 52 I <-> O CB (1)
Emergency startup ESMGAPC1 62EST ESTART
Condition Monitoring
Circuit-breaker condition monitoring, instance 1 SSCBR1 52CM CBCM(1)

Section 1 1MAC254287-MB B
Introduction
8 REM615 ANSI
Point List Manual
Trip circuit supervision, instance 1 TCSSCBR1 TCM-1 TCS(1)
Trip circuit supervision, instance 2 TCSSCBR2 TCM-2 TCS(2)
Current circuit supervision CCRDIF1 CCM MCS 3I
Fuse Failure supervision, instance 1 SEQRFUF1 60 FUSEF(1)
Runtime counter for machines and devices,
instance 1
MDSOPT1 OPTM-1 OPTS(1)
Runtime counter for machines and devices,
instance 2
MDSOPT2 OPTM-2 OPTS(2)
Measurement
Three-phase current measurement, instance 1 CMMU1 IA, IB, IC 3I
Three-phase current measurement, instance 2 CMMU2 IA, IB, IC (2) 3I(B)
Sequence current measurement, instance 1 CSMSQI1 I1, I2, I0 I1, I2, I0
Sequence current measurement, instance 2 CSMSQI2 I1, I2, I0 (2) I1, I2, I0(B)
Residual current measurement, instance 1 RESCMMU1 IG Io
Three-phase voltage measurement, instance 1 VMMU1 VA, VB, VC 3U
Residual voltage measurement RESVMMU1 VG Uo
Sequence voltage measurement, instance 1 VSMSQI1 V1, V2, V0 U1, U2, U0
Single-phase power and energy measurement,
instance 1
SPEMMU1 SP, SE SP, SE
Three-phase power and energy measurement,
instance 1
PEMMU1 P, E P, E
Recorder
Disturbance recorder RDRE1 DFR -
Fault recorder FLTMSTA1 FR -
Sequence event recorder SER SER -
Other Functions
Minimum pulse timer (2 pcs), instance 1 TPGAPC1 TP - 1 TP (1)
Minimum pulse timer (2 pcs), instance 2 TPGAPC2 TP - 2 TP (2)
Minimum pulse timer (2 pcs), instance 3 TPGAPC3 TP - 3 TP (3)
Minimum pulse timer (2 pcs), instance 4 TPGAPC4 TP - 4 TP (4)
Pulse timer (8 pcs), instance 1 PTGAPC1 PT-1 PT (1)
Pulse timer (8 pcs), instance 2 PTGAPC2 PT-2 PT (2)
Time delay off (8 pcs), instance 1 TOFGAPC1 TOF-1 TOF (1)
Time delay off (8 pcs), instance 2 TOFGAPC2 TOF-2 TOF (2)
Time delay on (8 pcs), instance 1 TONGAPC1 TON -1 TON (1)
Time delay on (8 pcs), instance 2 TONGAPC2 TON -2 TON (2)
Set reset (8 pcs), instance 1 SRGAPC1 SR-1 SR (1)
Set reset (8 pcs), instance 2 SRGAPC2 SR-2 SR (2)
Move (8 pcs), instance 1 MVGAPC1 MV-1 MV (1)
Move (8 pcs), instance 2 MVGAPC2 MV-2 MV (2)
Standard configuration functionality IEC 61850 ANSI/C37.2 IEC60617

1MAC254287-MB B Section 2
DNP3 data mappings
REM615 ANSI 9
Point List Manual
Section 2 DNP3 data mappings
2.1 Overview
This document describes the DNP3 data points and structures available in REM615 Ver.
4.0 ANSI.
The point tables show all the available DNP3 data points in this IED. The data objects in
the point tables are listed based on the IEC61850 logical node name. Also the default point
indexes, class assignments and scaling configurations are shown. The DNP3 points can be
freely added, removed, reorganized and reconfigured using PCM600.
This list represents the superset of DNP3 points. The actual set of available points is
determined by the IED's ordercode. A “Yes” in a “No Events” column indicates that no
events can be generated for that point regardless of class assignment. A “No” in “Enabled”
column indicates that the point is not active. Inactive points can be made active through
PCM600.
2.2 Binary/Analog Inputs
Table 2: General Device Information (LLN0)
Table 3: Device Physical Information (LPHD1)
DNP
Object
Type
No
Event
Point
Index DNP Class Enable dDescription Scale Factor IEC61850 Data Attribute Name
BI 0 Class 1 and 0 Yes Protection LLN0 Settings Reservation LD0.LLN0.SetSeld.stVal
BI 1 Class 1 and 0 Yes Protection LLN0 Settings Change LD0.LLN0.SetChg.stVal
BI 588 Class 1 and 0 Yes Local / Remote (1- Local; 0-Remote) CTRL.LLN0.Loc.stVal
BI Yes 604 Class 0 Yes Protection LLN0 Reset all power quality data LD0.LLN0.PQRs.stVal
AI 406 Class 2 and 0 Yes Local / Remote state 0 CTRL.LLN0.LocRem.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI Yes 2 Class 0 Yes Physical Device Reset Device LD0.LPHD1.RsDev.stVal
AI 0 Class 2 and 0 Yes General Device State 0 LD0.LPHD1.PhyHealth.stVal
AI 1 Class 2 and 0 Yes Physical Sevice Warning 0 LD0.LPHD1.PhyHealth1.stVal
AI Yes 2 Class 0 Yes Number Of Power Ups 0 LD0.LPHD1.NumPwrUp.stVal
AI Yes 3 Class 0 Yes Number Of Warm Starts 0 LD0.LPHD1.WrmStr.stVal
AI Yes 4 Class 0 Yes Number Of Watchdog Device Resets 0 LD0.LPHD1.WacTrg.stVal
AI 402 Class 2 and 0 Yes Internal Fault 1 LD0.LPHD1.PhyHealth2.stVal

Section 2 1MAC254287-MB B
DNP3 data mappings
10 REM615 ANSI
Point List Manual
Table 4: LED Condition monitoring (LEDPTRC1)
Table 5: LED Status (LEDGGIO1)
Table 6: X100-Binary Inputs/Outputs (XGGIO100)
Table 7: X110-Binary Inputs/Outputs (XGGIO110)
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 3 Class 1 and 0 Yes Global Conditioning Trip (Operate) LD0.LEDPTRC1.Op.general
BI 4 Class 1 and 0 Yes Global Conditioning Phase-A Trip (Operate) LD0.LEDPTRC1.Op.phsA
BI 5 Class 1 and 0 Yes Global Conditioning Phase-B Trip (Operate) LD0.LEDPTRC1.Op.phsB
BI 6 Class 1 and 0 Yes Global Conditioning Phase-C Trip (Operate) LD0.LEDPTRC1.Op.phsC
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 150 Class 1 and 0 Yes Led 1 On LD0.LEDGGIO1.SPCSO1.stVal
BI 151 Class 1 and 0 Yes Led 2 On LD0.LEDGGIO1.SPCSO2.stVal
BI 152 Class 1 and 0 Yes Led 3 On LD0.LEDGGIO1.SPCSO3.stVal
BI 153 Class 1 and 0 Yes Led 4 On LD0.LEDGGIO1.SPCSO4.stVal
BI 154 Class 1 and 0 Yes Led 5 On LD0.LEDGGIO1.SPCSO5.stVal
BI 155 Class 1 and 0 Yes Led 6 On LD0.LEDGGIO1.SPCSO6.stVal
BI 156 Class 1 and 0 Yes Led 7 On LD0.LEDGGIO1.SPCSO7.stVal
BI 157 Class 1 and 0 Yes Led 8 On LD0.LEDGGIO1.SPCSO8.stVal
BI 158 Class 1 and 0 Yes Led 9 On LD0.LEDGGIO1.SPCSO9.stVal
BI 159 Class 1 and 0 Yes Led 10 On LD0.LEDGGIO1.SPCSO10.stVal
BI 160 Class 1 and 0 Yes Led 11 On LD0.LEDGGIO1.SPCSO11.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 144 Class 1 and 0 Yes X100-Output 1 PSM LD0.XGGIO100.SPCSO1.stVal
BI 145 Class 1 and 0 Yes X100-Output 2 PSM LD0.XGGIO100.SPCSO2.stVal
BI 146 Class 1 and 0 Yes X100-Output 3 PSM LD0.XGGIO100.SPCSO3.stVal
BI 147 Class 1 and 0 Yes X100-Output 4 PSM LD0.XGGIO100.SPCSO4.stVal
BI 148 Class 1 and 0 Yes X100-Output 5 PSM LD0.XGGIO100.SPCSO5.stVal
BI 149 Class 1 and 0 Yes X100-Output 6 PSM LD0.XGGIO100.SPCSO6.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 128 Class 1 and 0 Yes X110-Input 1 BIO LD0.XGGIO110.Ind1.stVal
BI 129 Class 1 and 0 Yes X110-Input 2 BIO LD0.XGGIO110.Ind2.stVal
BI 130 Class 1 and 0 Yes X110-Input 3 BIO LD0.XGGIO110.Ind3.stVal
BI 131 Class 1 and 0 Yes X110-Input 4 BIO LD0.XGGIO110.Ind4.stVal
BI 132 Class 1 and 0 Yes X110-Input 5 BIO LD0.XGGIO110.Ind5.stVal
BI 133 Class 1 and 0 Yes X110-Input 6 BIO LD0.XGGIO110.Ind6.stVal

1MAC254287-MB B Section 2
DNP3 data mappings
REM615 ANSI 11
Point List Manual
Table 8: X130-Binary Inputs/Outputs (XGGIO130)
Table 9: X120-Binary Inputs/Outputs (XGGIO120)
Table 10: 51P:Three-phase non-directional overcurrent protection-low stage - instance 1 (PHLPTOC1)
BI 134 Class 1 and 0 Yes X110-Input 7 BIO LD0.XGGIO110.Ind7.stVal
BI 135 Class 1 and 0 Yes X110-Input 8 BIO LD0.XGGIO110.Ind8.stVal
BI 136 Class 1 and 0 Yes X110-Output 1 BIO LD0.XGGIO110.SPCSO1.stVal
BI 137 Class 1 and 0 Yes X110-Output 2 BIO LD0.XGGIO110.SPCSO2.stVal
BI 138 Class 1 and 0 Yes X110-Output 3 BIO LD0.XGGIO110.SPCSO3.stVal
BI 139 Class 1 and 0 Yes X110-Output 4 BIO LD0.XGGIO110.SPCSO4.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 115 Class 1 and 0 Yes X130-Input 1 LD0.XGGIO130.Ind1.stVal
BI 116 Class 1 and 0 Yes X130-Input 2 LD0.XGGIO130.Ind2.stVal
BI 117 Class 1 and 0 Yes X130-Input 3 LD0.XGGIO130.Ind3.stVal
BI 118 Class 1 and 0 Yes X130-Input 4 LD0.XGGIO130.Ind4.stVal
BI 119 Class 1 and 0 Yes X130-Input 5 LD0.XGGIO130.Ind5.stVal
BI 120 Class 1 and 0 Yes X130-Input 6 LD0.XGGIO130.Ind6.stVal
BI 121 Class 1 and 0 Yes X130-Output 1 LD0.XGGIO130.SPCSO1.stVal
BI 122 Class 1 and 0 Yes X130-Output 2 LD0.XGGIO130.SPCSO2.stVal
BI 123 Class 1 and 0 Yes X130-Output 3 LD0.XGGIO130.SPCSO3.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 124 Class 1 and 0 Yes X120-Input 1 AIM LD0.XGGIO120.Ind1.stVal
BI 125 Class 1 and 0 Yes X120-Input 2 AIM LD0.XGGIO120.Ind2.stVal
BI 126 Class 1 and 0 Yes X120-Input 3 AIM LD0.XGGIO120.Ind3.stVal
BI 127 Class 1 and 0 Yes X120-Input 4 AIM LD0.XGGIO120.Ind4.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 210 Class 1 and 0 Yes 51P Trip (Operate) LD0.PHLPTOC1.Op.general
BI 211 Class 1 and 0 Yes 51P Phase A Trip (Operate) LD0.PHLPTOC1.Op.phsA
BI 212 Class 1 and 0 Yes 51P Phase B Trip (Operate) LD0.PHLPTOC1.Op.phsB
BI 213 Class 1 and 0 Yes 51P Phase C Trip (Operate) LD0.PHLPTOC1.Op.phsC
BI Yes 214 Class 0 Yes 51P Enable Signal For Current Multiplier LD0.PHLPTOC1.InEnaMult.stVal

Section 2 1MAC254287-MB B
DNP3 data mappings
12 REM615 ANSI
Point List Manual
Table 11: 50P:Three-phase non-directional overcurrent protection-high stage - instance 1 (PHHPTOC1 )
Table 12: 51G:Non-directional ground-fault protection-low stage - instance 1 (EFLPTOC1)
Table 13: 50G:Non-directional ground-fault protection-high stage - instance 1 (EFHPTOC1)
Table 14: 67/51N:Directional ground-fault protection-low stage - instance 1 (DEFLPTOC1)
Table 15: 59G:Residual overvoltage protection-instance 1 (ROVPTOV1)
Table 16: 59N:Residual overvoltage protection-instance 2 (ROVPTOV2)
Table 17: 27:Three-phase undervoltage protection-instance 1 (PHPTUV1)
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 192 Class 1 and 0 Yes 50P Trip (Operate) LD0.PHHPTOC1.Op.general
BI 193 Class 1 and 0 Yes 50P Phase A Trip (Operate) LD0.PHHPTOC1.Op.phsA
BI 194 Class 1 and 0 Yes 50P Phase B Trip (Operate) LD0.PHHPTOC1.Op.phsB
BI 195 Class 1 and 0 Yes 50P Phase C Trip (Operate) LD0.PHHPTOC1.Op.phsC
BI Yes 196 Class 0 Yes 50P Enable Signal For Current Multiplier LD0.PHHPTOC1.InEnaMult.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 100 Class 1 and 0 Yes 51G Trip (Operate) LD0.EFLPTOC1.Op.general
BI Yes 101 Class 0 Yes 51G Enable Current Multiplier LD0.EFLPTOC1.InEnaMult.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 98 Class 1 and 0 Yes 50G Trip (Operate) LD0.EFHPTOC1.Op.general
BI Yes 99 Class 0 Yes 50G Enable Current Multiplier LD0.EFHPTOC1.InEnaMult.stVal
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 113 Class 1 and 0 Yes 67/51N Trip (Operate) LD0.DEFLPTOC1.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 257 Class 1 and 0 Yes 59G Trip (Operate) LD0.ROVPTOV1.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 258 Class 1 and 0 Yes 59N Trip (Operate) LD0.ROVPTOV2.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 273 Class 1 and 0 Yes 27 Trip (Operate) LD0.PHPTUV1.Op.general
BI 274 Class 1 and 0 Yes 27 Phase A Trip (Operate) LD0.PHPTUV1.Op.phsA
BI 275 Class 1 and 0 Yes 27 Phase B Trip (Operate) LD0.PHPTUV1.Op.phsB
BI 276 Class 1 and 0 Yes 27 Phase C Trip (Operate) LD0.PHPTUV1.Op.phsC

1MAC254287-MB B Section 2
DNP3 data mappings
REM615 ANSI 13
Point List Manual
Table 18: 59:Three-phase overvoltage protection-instance 1 (PHPTOV1)
Table 19: 27PS:Positive-sequence undervoltage protection-instance 1 (PSPTUV1)
Table 20: 47:Negative-sequence overvoltage protection-instance 1 (NSPTOV1)
Table 21: 81:Frequency protection-instance 1 (FRPTRC1)
Table 22: 81:Frequency protection-instance 1 (FRPTOF1)
Table 23: 81:Frequency protection-instance 1 (FRPTUF1)
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled IEC61850 Data Attribute Name Description Scale Factor
BI 265 Class 1 and 0 Yes LD0.PHPTOV1.Op.general 59 Trip (Operate)
BI 266 Class 1 and 0 Yes LD0.PHPTOV1.Op.phsA 59 Phase A Trip (Operate)
BI 267 Class 1 and 0 Yes LD0.PHPTOV1.Op.phsB 59 Phase B Trip (Operate)
BI 268 Class 1 and 0 Yes LD0.PHPTOV1.Op.phsC 59 Phase C Trip (Operate)
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 263 Class 1 and 0 Yes 27PS Positive Sequence Under Voltage
1
LD0.PSPTUV1.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 261 Class 1 and 0 Yes 47 Trip (Operate) LD0.NSPTOV1.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI Yes 349 Class 0 Yes 81 Frequency Trip (Operate) LD0.FRPTRC1.Op.general
AI Yes 202 Class 0 Yes 81 Ratio Of Pickup (Start) Time / Trip
(Operate) Time Instance 1
100 LD0.FRPTRC1.StrDur.mag.f
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 350 Class 1 and 0 Yes 81 Over-Frequency Trip (Operate) LD0.FRPTOF1.Op.general
AI Yes 203 Class 0 Yes 81 Ratio Of Pickup (Start) Time / Trip
(Operate) Time Overfrequency Instance
1
100 LD0.FRPTOF1.StrDur.mag.f
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 351 Class 1 and 0 Yes 81 Under-Frequency Trip (Operate) LD0.FRPTUF1.Op.general
AI Yes 204 Class 0 Yes 81 Ratio Of Pickup (Start) Time / Trip
(Operate) Time Underfrequency
Instance 1
100 LD0.FRPTUF1.StrDur.mag.f

Section 2 1MAC254287-MB B
DNP3 data mappings
14 REM615 ANSI
Point List Manual
Table 24: 81:Frequency protection-instance 1 (FRPFRC1)
Table 25: 46M-1:Negative-sequence overcurrent protection for motors-instance 1 (MNSPTOC1)
Table 26: 46M-2:Negative-sequence overcurrent protection for motors-instance 2 (MNSPTOC2)
Table 27: 37M-1:Loss of load supervision-instance 1 (LOFLPTUC1)
Table 28: 37M-2:Loss of load supervision -instance 2 (LOFLPTUC2)
Table 29: 51LR:Motor load jam protection (JAMPTOC1)
Table 30: 66/51LRS:Motor start-up supervision (STTPMSS1)
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 352 Class 1 and 0 Yes 81 Frequency Gradient Trip (Operate) LD0.FRPFRC1.Op.general
AI Yes 205 Class 0 Yes 81 Ratio Of Pickup (Start) Time / Trip
(Operate) Time Frequency Gradient
Instance 1
100 LD0.FRPFRC1.StrDur.mag.f
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 328 Class 1 and 0 Yes 46M-1 Negative Sequence Overcurrent
Protection For Motors 1
LD0.MNSPTOC1.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 329 Class 1 and 0 Yes 46M-2 Negative Sequence Overcurrent
Protection For Motors 2
LD0.MNSPTOC2.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 330 Class 1 and 0 Yes 37M-1 Loss Of Load Supervision 1 LD0.LOFLPTUC1.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 331 Class 1 and 0 Yes 37M-2 Loss Of Load Supervision 2 LD0.LOFLPTUC2.Op.general
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 320 Class 1 and 0 Yes 51LR Motor Jam Trip (Operate) LD0.JAMPTOC1.Op.general
BI 321 Class 1 and 0 Yes 51LR Motor Jam Phase A Trip (Operate) LD0.JAMPTOC1.Op.phsA
BI 322 Class 1 and 0 Yes 51LR Motor Jam Phase B Trip (Operate) LD0.JAMPTOC1.Op.phsB
BI 323 Class 1 and 0 Yes 51LR Motor Jam Phase C Trip (Operate) LD0.JAMPTOC1.Op.phsC
DNP
Object
Type
No
Event
Point
Index DNP Class Enabled Description Scale Factor IEC61850 Data Attribute Name
BI 324 Class 1 and 0 Yes 66/51LRS Trip (Operate)/Trip Signal For
Stalling Protection
LD0.STTPMSS1.Op.general
