ABB FEN-01 User manual
—
OPTIONS FOR ABB DRIVES AND CONVERTERS
TTL Encoder Interface FEN-01
User's manual
Table of contents
1 Safety instructions
7Contents of this chapter ........................................................................
7Overview ............................................................................................
7General safety instructions .....................................................................
2 Introduction
9Contents of this chapter ........................................................................
9Intended audience ................................................................................
9Before you start ...................................................................................
3 Hardware description
11Contents of this chapter ........................................................................
12The FEN-01 TTL Encoder Interface ............................................................
13FEN-01 connections ..........................................................................
14Isolation areas .................................................................................
14Compatibility ......................................................................................
4 Installation
15Contents of this chapter ........................................................................
16Setting the supply voltage ......................................................................
17Mounting ...........................................................................................
17Terminal designations ...........................................................................
17Abbreviations ..................................................................................
18TTL encoder input (X31) .....................................................................
19TTL encoder input with commutation signal support (X32) ........ . . . ....... . . . ....
20TTL encoder emulation output (X33) .....................................................
20Digital inputs for position latching (X34) ................................................
21General encoder wiring guidelines ............................................................
22TTL encoder input (X31) .....................................................................
23TTL encoder input with commutation signal support (X32) ........ . . . ....... . . . ....
25TTL Emulation output (X33) ................................................................
26Digital inputs for position latching (X34) ................................................
27General encoder phasing principle ...........................................................
5 Start-up
29Contents of this chapter ........................................................................
29Programming ......................................................................................
6 Fault tracing
31Contents of this chapter ........................................................................
31Diagnostic LEDs ..................................................................................
7 Technical data
33Contents of this chapter ........................................................................
Table of contents 5
34Dimensions ........................................................................................
34General ..............................................................................................
34Connectors .........................................................................................
35TTL encoder input (X31) .........................................................................
35TTL encoder input with commutation support (X32) ......... . . ........ . . ........ . . ......
35TTL encoder emulation output (X33) .........................................................
36Digital inputs for position latch (X34) ........................................................
Further information
6 Table of contents
Safety instructions
Contents of this chapter
The chapter contains the warning symbols and the safety instructions which you must
obey when you install or connect an optional module to a drive or converter. If you
ignore the safety instructions, injury, death or damage can occur. Read this chapter
before you start the installation.
Overview
This chapter states the general safety instructions that must be followed when
installing and operating the FEN-01.
In addition to the safety instructions given below, read the complete safety instructions
of the specific drive you are working on.
These warnings are intended for all who work on the drive. Ignoring the instructions
can cause physical injury or death, or damage the equipment.
General safety instructions
WARNING!
All electrical installation and maintenance work on the drive must be carried
out by qualified electricians only.
The drive and adjoining equipment must be properly earthed.
Do not attempt any work on a powered drive. After switching off the mains, always
allow the intermediate circuit capacitors 5 minutes to discharge before working on
the frequency converter, the motor or the motor cable. Check (with a voltage tester)
that the drive is in fact discharged before beginning work.
1
Safety instructions 7
The motor cable terminals of the drive are at a dangerously high voltage when mains
power is applied, regardless of motor operation.
There can be dangerous voltages inside the drive from external control circuits even
when the drive mains power is shut off.
Exercise appropriate care when working on the unit.
These warnings are intended for all who work on the drive. Ignoring the instructions
can cause physical injury or death, or damage the equipment.
For complete safety instructions see the drive manuals.
8 Safety instructions
Introduction
Contents of this chapter
This chapter introduces this manual.
Intended audience
The manual is intended for the people who are responsible for commissioning and
using the FEN-01. The reader is expected to have a basic knowledge of electrical
fundamentals, electrical wiring practices and how to operate the drive.
Before you start
It is assumed that the drive is installed and the drive power supply is switched off
before starting the installation of the extension module. Ensure that all dangerous
voltages connected from external control circuits to the inputs and outputs of the
drive are switched off.
In addition to conventional installation tools, have the drive manuals available during
the installation as they contain important information not included in this manual.
The drive manuals are referred to at various points of this document.
2
Introduction 9
10
Hardware description
Contents of this chapter
This chapter contains a short description of the FEN-01 TTL Encoder Interface module.
3
Hardware description 11

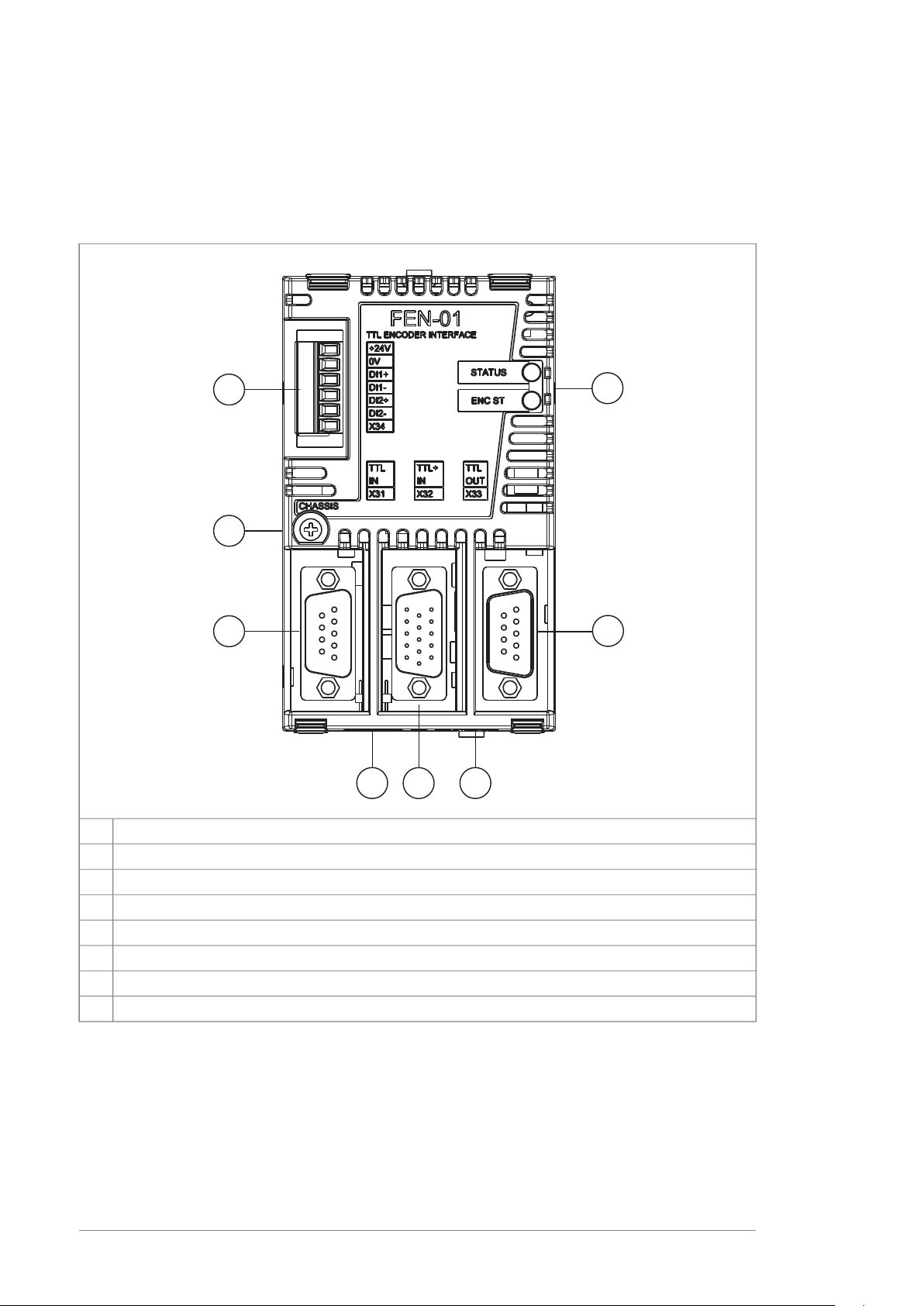

The FEN-01 TTL Encoder Interface
The FEN-01 offers an interface for two TTL encoder connections, one with commutation
signals and PTC support. It also offers a TTL encoder output for emulation purposes
and two digital latch inputs for position latching.
6
7
5
4
2
3
1
8
2 digital latch inputs (X34)1
Fixing screw2
TTL encoder input (X31)3
Encoder voltage selection jumper (X301)4
TTL encoder input with commutation and PTC support (X32)5
Diagnostic LEDs6
TTL encoder output (X33)7
Locking tab8
12 Hardware description
￭FEN-01 connections
The following figure shows an overview of the connections of the FEN-01.
ACSXXX ACSXXX
X31
FEN-01
X32
X33
X34
Sensor
(optional)
Encoder
Hardware description 13

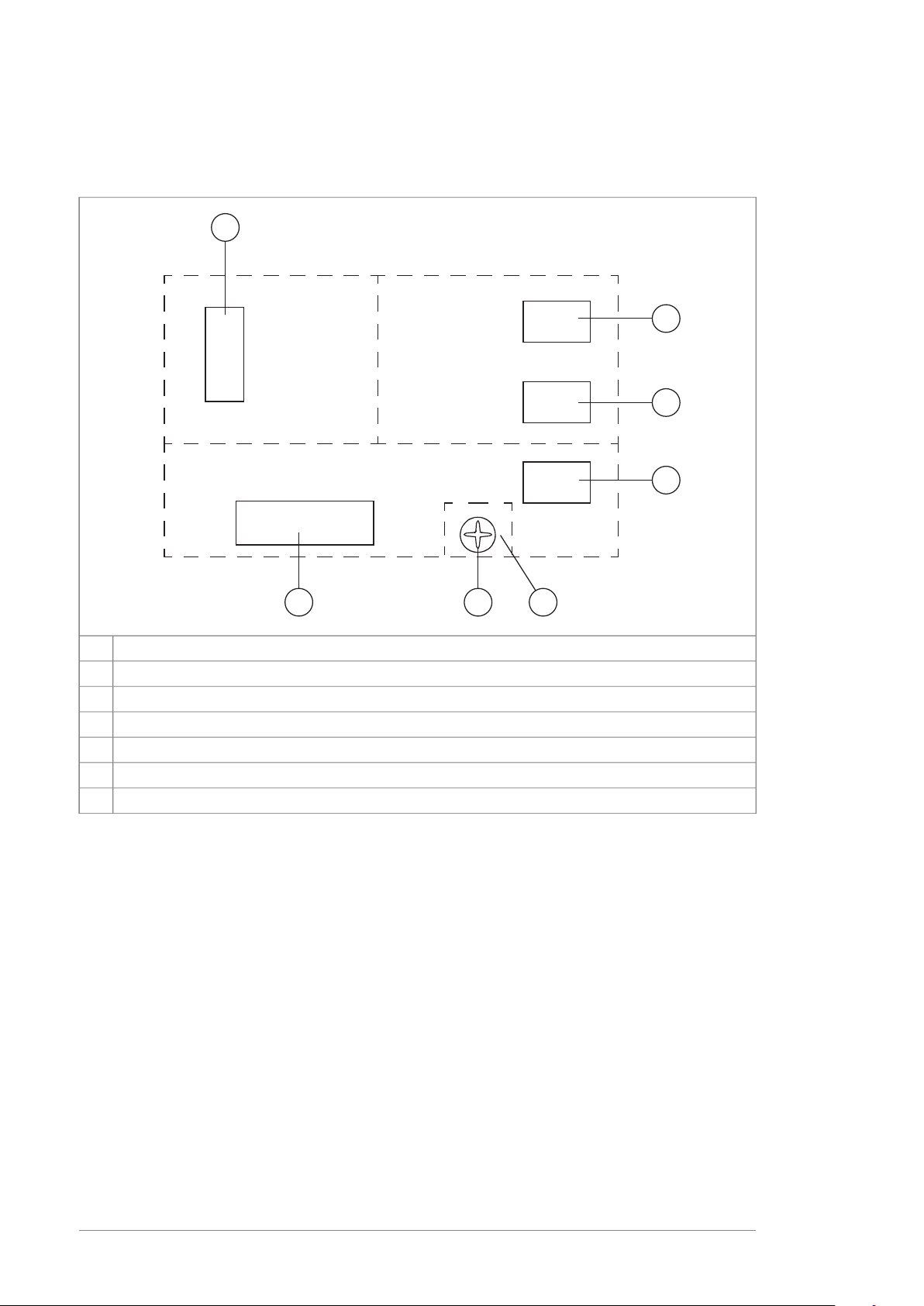

￭Isolation areas
The following figure describes the different isolation areas of the module.
X201
X33
X32
X31
A B
C
2
3
4
6 7
1
5
X34
Connection to the drive1
TTL encoder emulation output2
TTL encoder input with commutation support3
TTL encoder input4
Digital latches5
Fixing screw6
Chassis7
The shields of sockets X31 and X32 and plug X33 are connected to chassis. The fixing
screw connects the chassis to ground.
Compatibility
FEN-01 is compatible with the following encoders.
• TTL incremental encoder, 1...65535 pulses/rev, supports reference mark
• TTL incremental encoder, 1...65535 pulses/rev, supports block commutation and
reference mark.
14 Hardware description
Installation
Contents of this chapter
This chapter contains instructions on installing the TTL Encoder Interface module.
WARNING!
Follow the safety instructions given in this guide and in the drive's hardware
manual.
4
Installation 15
Setting the supply voltage
WARNING!
Selecting the wrong supply voltage may damage or break the encoder.
A selectable supply voltage is provided for the TTL encoders' input. A +5.5 V or a +24 V
voltage for either TTL encoder can be selected by vertically mounted jumpers as
described by the following figure.
+24 V +5.5 V +5.5 V +8 V
TTL Encoder (X31) TTL+ Encoder (X32)
+24 V +5.5 V +5.5 V +24 V
Note: If an external power supply is used, the appropriate jumper must be removed.
Note: If another FEN interface's TTL emulation output is connected to TTL input, the
appropriate jumper must be removed.
16 Installation
Mounting
WARNING!
Before installation, do the electrical safety precautions given in section Safety
instructions.
Note: Before mounting the option module, set the supply voltage jumpers as described
above.
The option module is to be inserted into the option slot of the drive. See the drive
hardware manual for more information.
The module is held in place with plastic retaining clips, a locking tab and one screw.
The screw also provides the earthing of the cable shields connected to the module
and interconnects the GND signals of the module and the drive.
On installation of the module, the signal and power connection to the drive is
automatically made through a 20-pin connector.
Numbers in brackets refer to the layout drawing in section layout.
Mounting procedure:
1. Pull out the locking tab (8)
2. Insert the module carefully into the option slot until the retaining clips lock the
module into position
3. Push in the locking tab (8)
4. Fasten the screw (included) to the stand-off.
If you need to remove the adapter module after it has been installed into the drive,
use a suitable tool (e.g. small pliers) to carefully pull out the locking tab.
Note: Correct installation of the screw is essential for fulfilling the EMC requirements
and for proper operation of the module.
Terminal designations
￭Abbreviations
Analog inputAI
Digital inputDI
Digital outputDO
Power outputPO
Installation 17

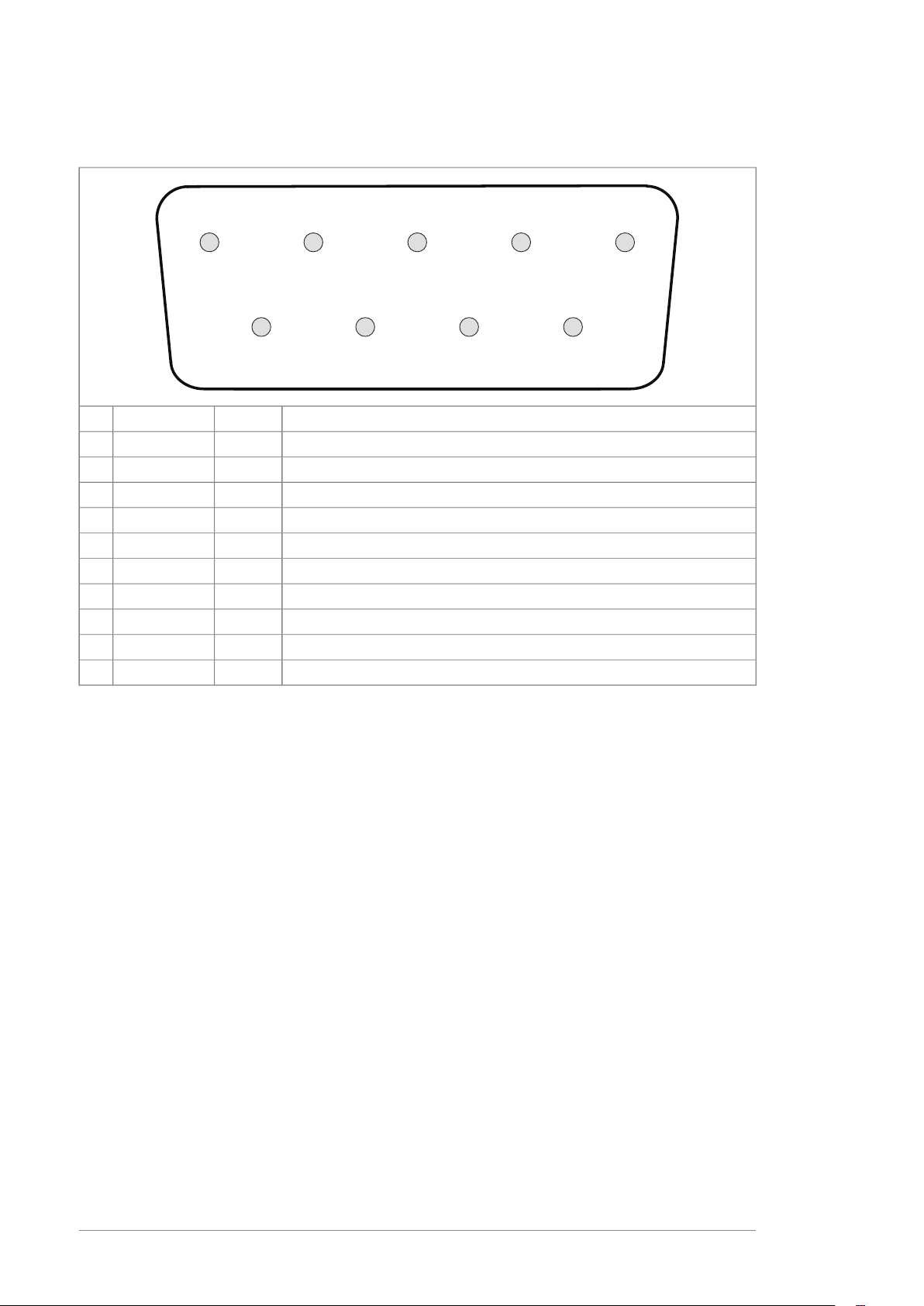

￭TTL encoder input (X31)
5
987 6
4321
DescriptionDirectionNamePin
Channel A+DIA+1
Channel B+DIB+2
Channel Z+DIZ+3
Common-COM_C4
Supply voltage (5.5 V or 24 V)POVCC_ENC_15
Channel A-DIA-6
Channel B-DIB-7
Channel Z-DIZ-8
Common-COM_C9
Shield-Shield-
18 Installation

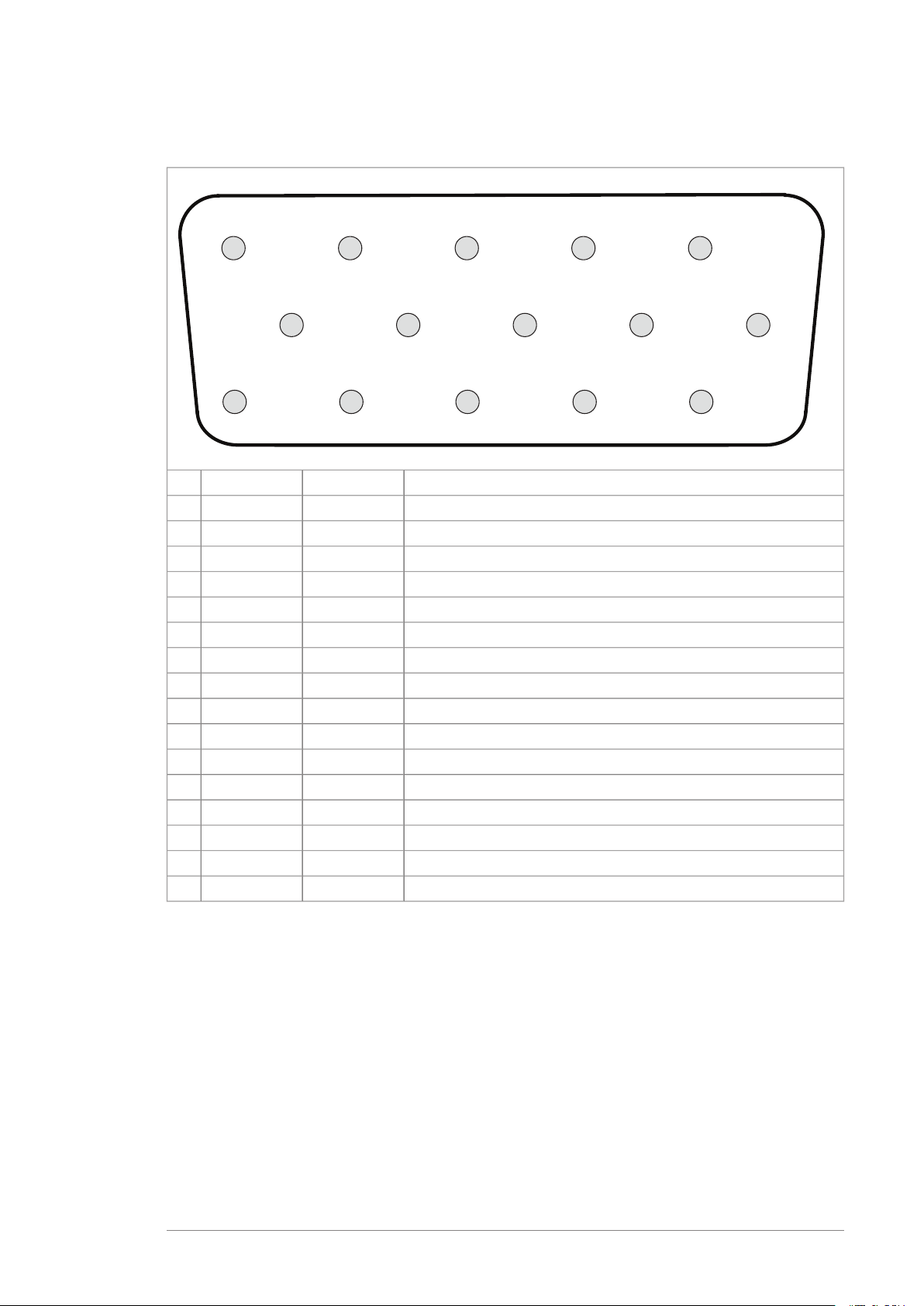

￭TTL encoder input with commutation signal support (X32)
5 4 3 2 1
10
15 14 13 12 11
9 8 7 6
V+
V-
W- W+
U+
U-
PTC B+ A+
A-B-Z+
Z- COM_B VCC_ENC_2
DescriptionDirectionNamePin
Channel A+DIA+1
Channel B+DIB+2
Temperature sensorAIPTC3
Channel U+DIU+4
Channel V+DIV+5
Channel A-DIA-6
Channel B-DIB-7
Channel Z+DIZ+8
Channel U-DIU-9
Channel V-DIV-10
Supply voltage (5.5 V or 24 V)POVCC_ENC_211
0V, common-COM_B12
Channel Z-DIZ-13
Channel W+DIW+14
Channel W-DIW-15
Shield-Shield-
Installation 19
￭TTL encoder emulation output (X33)
1 2 3 4 5
8 9
67
DescriptionDirectionNamePin
Channel A+DOEM_A+1
Channel B+DOEM_B+2
Channel Z+DOEM_Z+3
Common-COM_B4
Common-COM_B5
Channel A-DOEM_A-6
Channel B-DOEM_B-7
Channel Z-DOEM_Z-8
Common-COM_B9
Shield-Shield-
￭Digital inputs for position latching (X34)
DescriptionDirectionNamePin
Supply voltagePO+24V_C1
Common-COM_C2
Latch signal 1DIDI_1+3
Latch signal 1 return-DI_1-4
Latch signal 2DIDI_2+5
Latch signal 2 return-DI_2-6
20 Installation
