IMPORTANT INFORMATION
1
Important Information
Safety information contained in this manual
This instruction manual contains important information for the installation and setup
of the ABL eMC2 charging station it refers to. Please ensure that you read and follow
the safety notices provided.
In particular, the warnings and safety measures clearly marked in this manual must be
followed. The symbols carry the following meanings:
DANGER!
Sections marked with this symbol draw attention to electrical voltages
that represent a danger to life and limb. Actions marked with this sym-
bol must NOT be carried out under any circumstances.
CAUTION!
Sections marked with this symbol draw attention to further hazards that
may lead to damage to the station itself or to other electric devices. Ac-
tions marked with this symbol must be carried out with special care.
PLEASE NOTE:
Sections marked with this symbol draw attention to further important
information and particularities that are necessary for operating the de-
vice successfully. Actions marked with this symbol should be carried
out as required.
Safety notices on the device
Further safety notices and operating instructions can be found on and inside the charg-
ing pole. These symbols carry the following meanings:
WARNING!
Please ensure that you read the instruction manual (this document)
before you open the housing of your eMC2 charging pole.
WARNING!
After opening, dangerous electrical voltages may be present inside the
housing.

IMPORTANT INFORMATION
2
In case the charging pole is operated by several users, the contents of this manual and
the safety notices in particular must under all circumstances be passed on or made
available to each individual user.
General safety information
This charging pole represents the current state of technology and fulfils all existing
technical safety requirements, guidelines and norms.The safety notices in this manual
serve to ensure proper installation and safe operation of the device. Disregard of or ac-
tions contrary to the safety information and instructions contained in this manual may
lead to electric shock, fire and/or severe injury.
The charging pole may only be used after technically sound installation and subse-
quent inspection by a qualified electrical contractor. Malfunctions that affect the safety
of persons, connected devices or the device itself may only be repaired by authorized
or qualified specialist personnel.
In case of installation faults or malfunctions that can be traced back to faulty installa-
tion, always contact the contractor that carried out installation first. If the malfunction
can still not be resolved, please contact the technical service department of ABL.
Contact us by email emobility[email protected]
or telephone [phone] - 188 600
Service is required when…
• … the housing has suffered mechanical damage,
• … the housing cover has been removed or can no longer be closed or locked,
• … sufficient splash protection or protection against foreign bodies seems no lon-
ger present
• … charging sockets and/or external charging cables have been functionally or vis-
ibly damaged
• … the charging pole does not function properly or has been otherwise damaged.
Please also pay attention to the following points:
• Read this manual carefully.
• Keep this manual in a safe place where it can be accessed at all times.
• Heed all warnings.
• Follow all instructions.
• Only use accessories intended and sold for the device by the manufacturer.

IMPORTANT INFORMATION
3
• Do not install this device in close vicinity to running water or water jets. However,
the eMC2 is sufficiently protected against water splashes and sprays according to
IP44.
• The eMC2 charging pole must not be installed in explosive atmosphere areas (EX
areas).
• The eMC2 charging pole must not be installed in areas subject to flooding.
• Please note that the eMC2 charging pole must under no circumstances be in-
stalled directly on blacktop: For safe and proper installation, a concrete foundation
must be planned for with specifications according to the requirements listed on
page 33.
• The charging pole must also be installed on a suitable plinth: The plinth can be ob-
tained from ABL as an optional accessory (see also page “Available accessories”
on page 11).
• Please note that additional overvoltage protection may be required depending on
the vehicle to be connected or national regulations.
• Please not that some countries and/or different vehicle manufacturers may require
a different tripping characteristic for the residual current circuit breaker (Type B). In
this case, please contact your distributor.
Operating instructions / Maintenance
Please note the following instructions for the operation and maintenance of your
charging pole:
• The device must at all times be connected to the protective earth conductor of
your power supply.
• Ensure that the rated voltage and rated current of the device comply with the
parameters of your local electricity grid and that the rated output is not exceeded
during charging operations.
• Comply at all times with local safety regulations for the country in which you oper-
ate the charging pole.
• To disconnect the charging pole completely from the power grid, the power supply
must be cut at the upstream domestic miniature circuit breakers (MCB).
• Never install or operate the charging pole in confined spaces. It must be ensured
in particular that, for charging, vehicles can be positioned at the required distance
from the charging pole and connected without any strain on the charging cable.
• Make sure that the door at the front of the charging pole is always locked to pre-
vent unauthorized opening of the housing. Keep the door key in a place that is only
known to authorized users.

IMPORTANT INFORMATION
4
• You must under no circumstances make any changes to the housing or the internal
wiring of the device: Any disregard of this instruction fundamentally breaches the
guarantee provisions and voids the warranty with immediate effect.
• No parts to be maintained by the user are located inside the device.
• Only have qualified, specialist personnel repair and/or install the device.
CAUTION!
This eMC2 charging pole is intended for connection to and operation
on 230 / 400 V 50 Hz mains power. The power supply must be insert-
ed into the housing through a suitable cable conduit or tube.
• Use a dry or slightly damp, well-wrung cloth for cleaning the charging pole. Do not
use aggressive cleaning agents, waxes or solvents (such as cleaning fluid or paint
thinner) because they can dull the displays and damage the paint finish.
• The eMC2 charging pole must under no circumstsances be cleaned with a pres-
sure cleaner or any similar device where liquids hit the surface of the device with
high pressure.
• Regularly check the charging sockets and the separately available charging cables
of your eMC2 charging pole for wear and tear. Should any separately available
charging cable show signs of damage, please replace it immediately: No further
charging processes are permitted in this case.
DANGER!
Should you, after installation, detect any damage to the housing, the
charging sockets or their respective charging cables, you must take
the charging pole out of operation immediately.
Please contact the service department of ABL!
• Relevant local regulations for operating electrical devices always apply.

SCALE DRAWINGS AND DIMENSIONS
5
Scale drawings and dimensions
The eMC2 charging pole is delivered fully assembled and checked. All dimensions as
well as the mounting points are indicated in the scale drawings below.
Charging pole

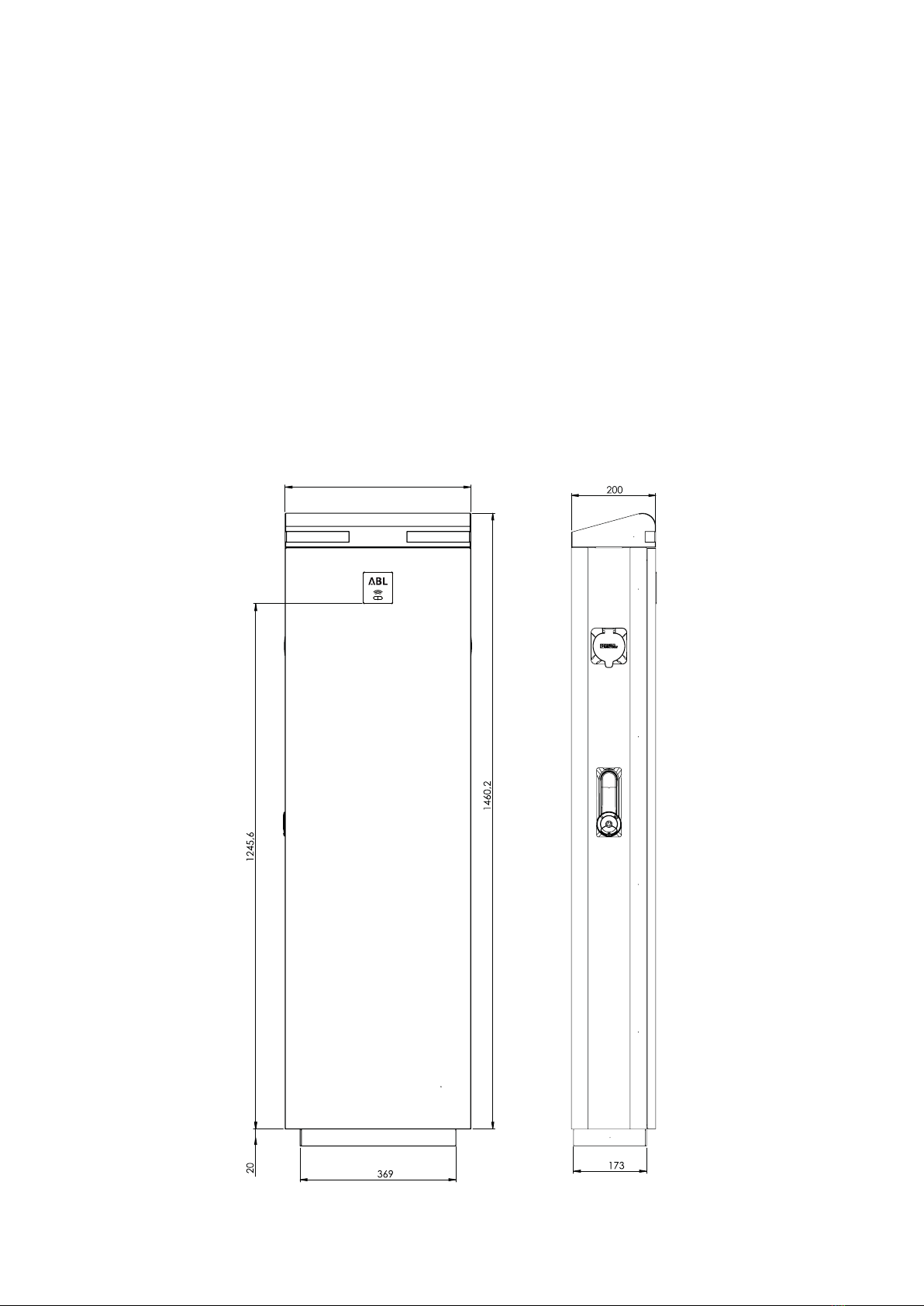

Plan and elevation of the eMC2 series incl. EMC9997
plinth (Scale 1:10, all dimensions in mm, plinth not included as standard)
440

SCALE DRAWINGS AND DIMENSIONS
6
Plinth
For installation of the eMC2 charging pole, ABL offers two separately available
plinths: The higher plinth EMC9998 is intended for installation on a subsurface con-
crete foundation. For the lower plinth EMC9997, the top of the foundation should be
flush with the ground level.

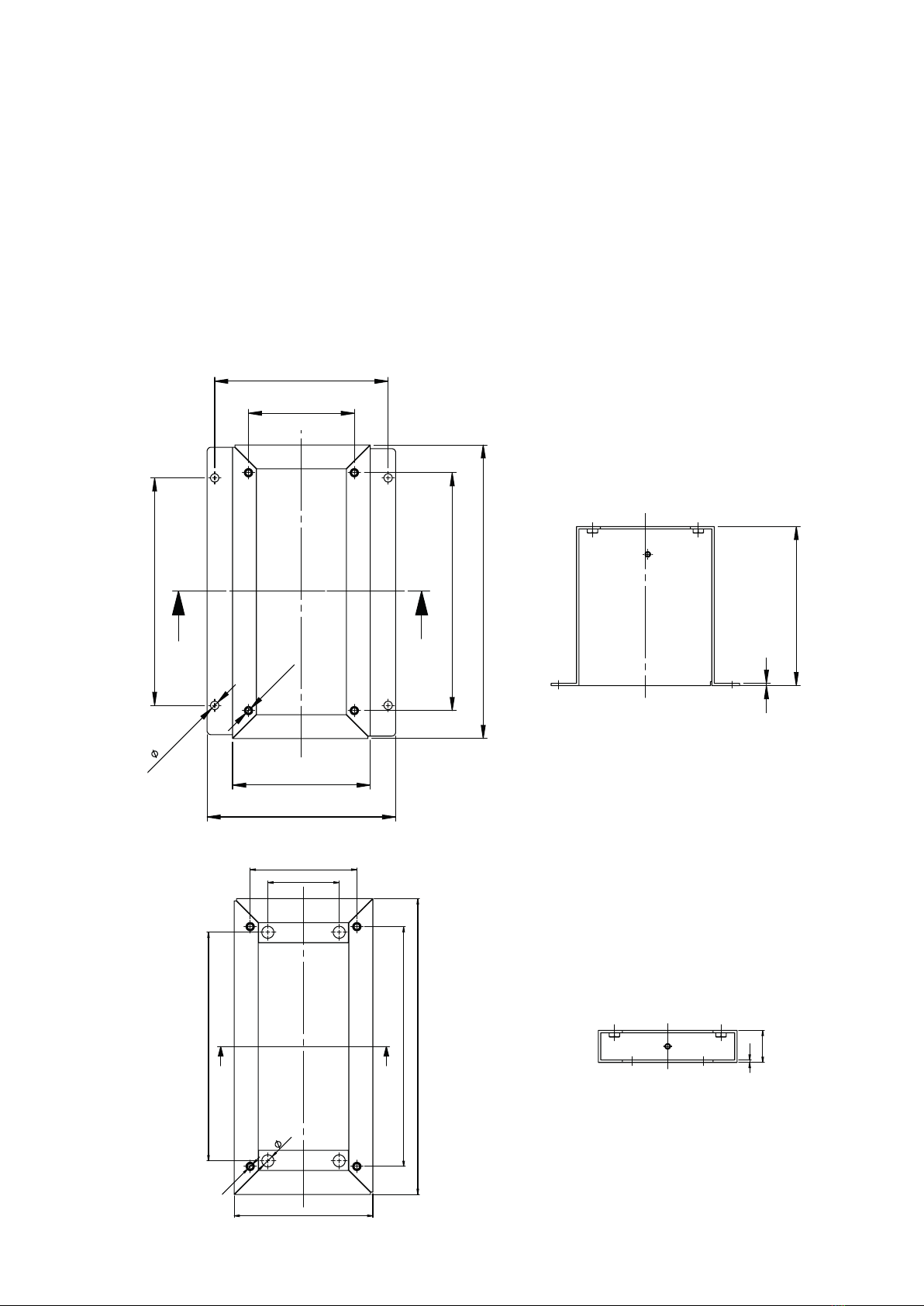

Plan and elevations of the plinths (scale 1:5, all dimensions in mm)
EMC9998
EMC9997
3
200
237
369
286
299
218
133
173
10,50
M8
40
3
369
173
133
89
285
299
15
M8
3
200
237
369
286
299
218
133
173
10,50
M8
40
3
369
173
133
89
285
299
15
M8
3
200
237
369
286
299
218
133
173
10,50
M8
40
3
369
173
133
89
285
299
15
M8
3
200
237
369
286
299
218
133
173
10,50
M8
40
3
369
173
133
89
285
299
15
M8

SCALE DRAWINGS AND DIMENSIONS
7
Foundations
For ground installation, ABL offers the EMC9999 precast foundation block, which pro-
vides the necessary stability and security for the charging pole and has an integrated
tube to protect the power supply. The foundation block is made from grade C 30/37
concrete and complies with exposure classes XC4, XF1 and WF.
The dimensions of the separately available foundation block are given at the scale of
1:8 (all dimensions in mm). Should you wish to lay your own foundation for the eMC2
charging pole, you must consider the requirements listed on page 33.
285
286
426
89
218
338
800
120
Bolt anchor RD12
High temperature platic tube DN1000
w elbow 45° (0.77m)
Scheibe
Anzahl: 4
Sechskantschraube M12x25
Festigkeit 8.8
Anzahl: 4
Aufbau nach Bewehrungsplan Pos. ST04
(21454ST04_Betofundament)
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
Norm
Blatt
1
1
Bl.
Maßstab
Zeichnungsnummer
Benennung
Gewicht
Datum Name
Oberfläche / Farbe
Gepr.
Bearb.
Index Änderung
Datum Name
Ersatz für:
MATERIAL:
A3
EMC9999
Fundamentstütze
Elektroladesäule
Betonstahl B500A
Betongüte C30/37
0,288 to. 1:5
Kiesel 18.02.
2015
KK 19.06.15 ------ a
Werkstoff
unbemaßte Fasen 7x45°
Fehlende Maße sind dem 3D-Modell zu entnehmen
Allgemeintoleranzen DIN ISO 2768-1m
b ------ 29.10.15 KK
Undimensioned beveled edges 7 x 45°

INTRODUCTION
8
Introduction
Thank you for choosing the eMC2 charging pole byABL! With this charging pole from
our ‘electric Mobility City’ series, you are investing in an innovative and future-proof
solution for public and industrial applications.
The eMC series charging poles are delivered pre-configured and, on a well prepared
site, can be installed with minimal technical input and in a short time. For particularly
fast and easy installation, ABL offers a matching, precast foundation block, which is
designed especially for installing the eMC2 and can be ordered separately.
Using the energy management module, the eMC2 can be integrated into an existing
photovoltaic system. When operated as part of a grid connection, the pole can then
use 100% solar electricity for charging.
Thanks to controlled access via an internal RFID module, charging processes can be
administered and controlled efficiently, while the integrated energy meters take care
of the exact measurement of electricity consumption: The data collected can then be
made available to external applications on a Smartphone, tablet or PC in real time.
The eMC2 series charging poles are constantly developed further and at all times
comply with all regulations and norms for the charging of electric vehicles applicable
throughout Europe according to IEC 61851-1, Mode 3. Please also see the section
on “Standards & guidelines” on page 31.
If you are looking for additional information about your charging pole or would like
to find out more about available accessories and the rest of the ABL product range,
please visit our website at www.abl.de
Product description
Your eMC2 charging pole allows you to comfortably and safely charge electric vehicles
according to IEC 61851-1, Mode 3. Depending on the model variant, the switching
circuits, cable dimensions and connectors of the eMC2 are engineered to offer the
shortest possible charging times for electric vehicles.

INTRODUCTION
9
The eMC2 does not have an integrated charging cable but instead features two charg-
ing sockets according to IEC 62196-2, Type 2. For these charging sockets, ABL offers
you two separately available charging cables configured alternatively with Type 2 only
or with mixed (Type 2 to Type 1) charging connectors. The eMC2 is also available with
SCHUKO sockets: You can obtain further information from your distributor.
We place the highest value on user safety in all our products. This is why the eMC2
charging pole also features, in addition to internal safety switches, residual current cir-
cuit breakers, which, in combination with the protective measures that are part of onsite
electrical installations, offer effective protection from short circuit, electric shock and
other operational hazards. Access to the internal switching devices is controlled via the
flip-out handle at the side of the charging pole so that only authorized users can open
the charging pole.
PLEASE NOTE:
A locking cylinder for the double-cylinder flip-out handle is NOT pre-
installed by the factory. A suitable size 40 or 45 Euro profile half cyl-
inder lock must be obtained from a specialist supplier and installed in
the flip-out handle according to the respective manufacturer’s instruc-
tions. The screws needed for installation are included with the eMC2.
It is strongly recommended never to operate the eMC2 in a public area
without installing a cylinder lock.
Users are at all times informed about the current status of the charging pole and the
charging status of the connected electric vehicle via the two status lights at the upper
edge of the housing as well as the LEDs for charging login and authorization located
in the central control panel. Should a malfunction occur during operation or login, the
cause is indicated here or by the LEDs above the charging sockets: You can find a list
of possible faults as well as suitable suggestions to resolve them in section “Opera-
tional disruptions and solutions” on page 28.
The sturdy housing of the eMC2 is prepared for protection rating IP44 and can be
installed on a suitable outdoor installation site using a concrete foundation laid by the
user or separately available from ABL. You can find detailed information for assembly
and installation in Chapter “Preparing for installation” from page 13.
Identifying your product variant
The eMC2 series comprises several model variants that differ in terms of charging
sockets and/or charging capacity and therefore suit different applications. A serial plate
for identifying the model variant is located on the inside of the housing cover: Before
installing and taking the charging pole into operation, open the housing cover and
double check the model variant on the serial plate.

INTRODUCTION
10
PLEASE NOTE:
Mechanical installation is identical for all eMC2 model variants. Varia-
tions in the steps for electrical installation only arise from the integration
of separately available modules (e.g. photovoltaic system or load man-
agement module, if supported).
For identification, the model code (EMC
XXXX) as well as the power supply ratings
(voltage, frequency, current) indicated below
it are especially relevant.
If the charging pole includes an internal GSM
ready component, its respective CEXXXX No-
tified Body identifier is indicated on the serial
plate.
You can find detailed information on the eMC2 charging poles in section “Specifica-
tions” on page 30.
Includes
Your eMC2 charging pole comes with a range of components, which are necessary
for the proper installation and operation of the device. Therefore, please check imme-
diately after unpacking whether the following basic components are included:
Component Quantity Description
eMC2 charging pole 1 Charging pole, consisting of metal housing with
lockable cover
Installation and User
Manual 1
Instructions for mechanical and electrical instal-
lation as well as for taking the charging pole into
operation (this document)
Wiring diagram 1 Schematic of the supply connections and wiring
up of internal electronics
Sealing profile 1 Metal profile for sealing the gap between plinth
and pole with sealing tape
Installation kit 1
Blind cylinder including two M4 x 16 countersunk
head screws for installing a separately available
locking cylinder in the flip-out handle.
Inspection report 1 Report of the factory based operational test
Should one or more components be missing after unpacking, please contact your lo-
cal distributor immediately: You can find the necessary contact details on page ii
in this manual.
1605EMC444k
16-06-12
EMC444k
230/400V 50Hz 63A
IP44
IEC 61851-1
IEC 61439-7 ACSEV
MADE IN GERMANY
ABL SURSUM Bayrische Elektrozubehör GmbH & Co. KG
1605EMC44k000

INTRODUCTION
11

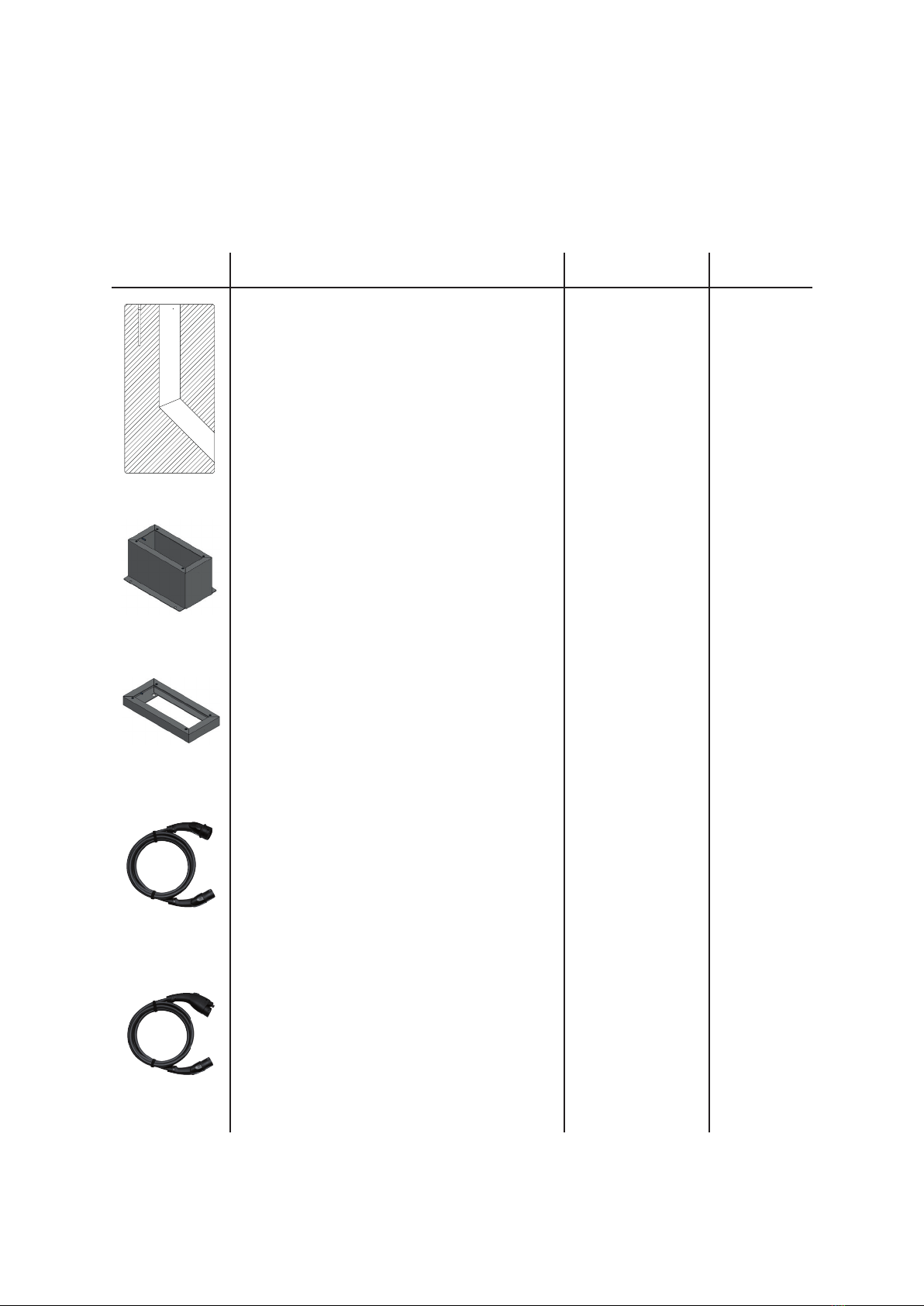

Available accessories
ABL offers the following accessories for the eMC2 charging pole:
Designation Model number Quantity
Concrete foundation block
for the secure installation of the charg-
ing pole using the four hexagonal
head bolts and internal RD12 bolt
anchors included, concrete grade
C30/37 (XC4/XF1/WF), power sup-
ply via integrated high temperature
plastic tube, incl. 2 lifting anchors
L x W x D: 426 x 338 x 800 mm
EMC9999 1
237
369
286 299
218
133
173
10,50
M8
3
200
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
Norm
Blatt
1
1
Bl.
Maßstab
Zeichnungsnummer
Benennung
Gewicht
Datum Name
Oberfläche / Farbe
Gepr.
Bearb.
Index Änderung
Datum Name
Ersatz für:
MATERIAL:
A3
8480202
Sockel - 200
Ladesäule II
-----------------------
------------ 1:5
Kiesel 04.08.
2015
------------------- a
Werkstoff
Plinth 200
Metal plinth, high version, for install-
ing the charging pole on the separately
available concrete foundation block
using the four screws included,
L x W x D: 369 x 237 x 200 mm
EMC9998 1
369
173
133
89
285
299
15
M8
40
3
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
Norm
Blatt
1
1
Bl.
Maßstab
Zeichnungsnummer
Benennung
Gewicht
Datum Name
Oberfläche / Farbe
Gepr.
Bearb.
Index Änderung
Datum Name
Ersatz für:
MATERIAL:
A3
8480201
Sockel - 40
Ladesäule II
-----------------------
------------ 1:2
Kiesel 04.08.
2015
------------------- a
Werkstoff
Plinth 40
Metal plinth, low version, for installing
the charging pole on the separately
available concrete foundation block us-
ing the four screws included,
L x W x D: 369 x 173 x 40 mm
EMC9997 1
Type 2 charging cable
for connection with all eMC2 charging
poles and vehicles with charging sock-
ets according to IEC 62196-2, Type 2,
32 A 240 / 415 V AC and IP44 splash
protection rating
Length: 4 meters
LAK32A3 1
Adapter cable Type 2 to Type 1
for connection to all eMC2 charging
poles with charging sockets according
to IEC 62196-2, Type 2, with charging
connector according to IEC 62196-2,
Type 1, 32 A 230 V AC, and IP44 splash
protection rating
Length: 4 meters
LAKT2T1 1

INTRODUCTION
12
Designation Model number Quantity
eCB1 LAN Module
Load management module, 3-phase
effective power energy meter up to 63
A, with RS 485 LAN interface
LAST2LR
LAST1LR
1
1
eCB1 WLAN Module
Photovoltaics management module,
3-phase effective power energy meter
up to 63 A, with RS485 WLAN and
LAN interface
PV10LWR
LAST1LR
1
1
Surge protector
for 3-phase power supplies with sepa-
rate N und PE (5 wire system: L1,
L2, L3, N, PE), with remote signaling
device
on request 1
PLEASE NOTE:
Depending on your order, a range of accessory components may al-
ready be preinstalled in the eMC2.
Please contact your local distributor if you require additional information about these
accessory components or would like to place an order.
Please also visit our website at www.abl.de
You will find further information about our products and our entire product range there.
CAUTION!
Please note that self-installation of optional integrated components
(LAST2LR/1LR, PV10LWR) is not permitted: Please contact a qualified
contractor or arrange installation with your local distributor
.

PREPARING FOR INSTALLATION
13
Preparing for installation
To install the eMC2 charging station, a range of prerequisites regarding the site and
power connections must be met in order to guarantee safe operation.
Requirements for the installation site
The eMC2 charging pole was developed for indoor and outdoor applications. To ensure
a proper charging process, you as operator must comply with the following instruc-
tions regarding site and installation.
• Consider all local regulations for electrical installations, fire protection and accident
prevention.
• All rules for low voltage installations according to IEC 60364-1 and IEC 60364-5-52
apply.
• The installation surface must have sufficient strength to withstand the mechanical
stresses.
• It is recommended not to install the eMC2 directly on a blacktop or concrete floor,
but to use a concrete foundation of suitable specifications (see EMC9999).
• A sufficiently dimensioned cable for the power supply must be planned for the
installation site. The power supply must be positioned in the ground in relation to
the tube opening in the concrete foundation. In the vicinity of the foundation, the
power supply must, if necessary, be protected against mechanical impact (using a
suitable hose or tube).
• The ground at the installation site must allow the drainage of liquids that may have
entered the plinth.
• Protection against mechanical impact should include site-specific guards to pre-
vent potential collisions of electric vehicles with the charging pole.
• An electric vehicle parking spot must be planned for on both sides of the charging
pole. The minimum distance between vehicle and charging pole should be no less
than 50 cm and no more than 150 cm.
• Select an installation site for the charging pole that is easily accessible to emer-
gency services vehicles.
• The eMC2 charging pole should not be installed in areas with high pedestrian or
vehicle through-traffic. Please make sure especially that the charging cables are
clearly visible and that passers-by or pedestrian pathways are not obstructed by
the cables.
• In general, the eMC2 is engineered for operation in high ambient temperatures.
However, it must be ensured that the maximum operating temperature is not ex-
ceeded through external influences such as direct sunlight or similar. If required,
make contact with your local service partner and make an appointment for advice.

PREPARING FOR INSTALLATION
14
CAUTION!
Connecting the power supply to the domestic power distribution box
(rendered non-live by the operator of the distribution network) is car-
ried out by a qualified electrical contractor after installation and before
it is taken in into operation.
DANGER!
The power supply must be non-live at all times during the prepara-
tion of the foundation described in the following: The power supply
must only become live after installation is completed.
Violation of this rule results in danger of lethal electric shock!
Preparing for and setting the separately available foundation block
For the safe and proper installation of the eMC2 charging pole, ABL offers the sepa-
rately available EMC9999 concrete foundation block, which provides a level installation
surface and factory installed bolt anchors for M 12 x 20 hexagonal bolts (included), en-
suring a high level of stability. In combination with the separately available EMC 9998
and EMC9997 plinths, the foundation block can be installed either subsurface or flush
with the ground level at the installation site.
Please proceed as follows to lay down the separately available EMC9999 foundation
block for installation of the charging pole:
1. After selecting an appropriate site (see previous section), a pit to suit the founda-
tion block must be excavated. Please consider the dimensions of the foundation
block (LxWxD: 426x338x800mm), sufficient working space and, if necessary,
a slope angle.
PLEASE NOTE:
If you are using the separately available EMC9997 low plinth, the foun-
dation block is to be set flush with the ground surface.
If you are using the separately available EMC9998 high plinth, you can
set the foundation block at a depth of between 800 and 960 mm below
ground level. Please consider installation depth when excavating.
2. Bring the foundation block into position inside the excavated pit. Ensure that the
power supply meets the tube set into the foundation block for it. Protect the power
supply in the area near the foundation block with a suitable hose or tube if neces-
sary.
3. Insert the non-live power supply into the opening of the tube in the foundation
block and ensure that cables protrude sufficiently or can be pushed out further in
order to carry out electrical connection without any problems.

PREPARING FOR INSTALLATION
15
4. When the foundation block has been brought into position, adjusted with a spirit
level and the necessary power supply cables have been inserted, you can refill the
excavated pit and compact the fill.
Foundations laid by the operator
Alternatively, the operator may construct a foundation allowing for a similarly secure
and durable attachment of the charging pole. In this case, the specifications listed on
page 33 must be followed.
Proceed as follows to construct a foundation for installing the eMC2:
1. After selecting a suitable installation site (see page 13), excavate a sufficiently
large pit. Select dimensions ensuring stability in all directions and the secure instal-
lation of the eMC2 using one of the separately available plinths.
2. Construct the formwork (e.g. lost formwork).
3. Place an empty tube inside and insert the non-live power supply. If possible, fix the
tube into place in such a way that the power supply can be easily inserted into the
charging pole via the separately available plinth.
4. Seal the openings of the tube so that no moisture can enter.
5. Pour the foundation using grade C30/37 concrete.
6. Allow the concrete to cure completely before beginning with the installation of the
charging pole.
CAUTION!
In case of concrete foundations poured on site, calculations, design
and construction are the sole responsibility of the operator or the
company contracted by the operator to carry out the installation.

INSTALLING THE CHARGING POLE
16
Installing the charging pole
After laying the foundation, mechanical as well as electrical installation of your eMC2
charging pole can be carried out and it can then be taken into operation. In principle,
installation should be carried out by qualified personnel. Inspection before taking the
charging pole into operation must always be carried out by a qualified electrical con-
tractor.
Your eMC2 charging pole is an electrical device and is therefore subject to particular
prerequisites for indoor and outdoor installation: Although the housing of the eMC2
complies with the standards for the IP44 degree of protection, you must take into ac-
count certain environmental conditions, especially outdoors.
• For the safe operation of your charging pole, minimum distances to other technical
installations must be observed: You can obtain further information from your elec-
trical contractor or your distributor.
• The charging pole must be installed where it is freely accessible to all authorized
users.
• Choose an installation site that allows you to reach the charging socket of your
vehicle comfortably with the charging cable separately available for the eMC2:
The cable must not under any circumstances be strained when connected to the
vehicle.
Delivery and transport
The eMC2 is preassembled at the factory and is delivered to the customer in mechani-
cally and electrically faultless condition. During transport, the eMC2 is protected from
damage by special packaging. Should the charging pole show visible damage or mal-
functions when it is unpacked at the installation site, please contact the responsible
transport company to clarify any questions of liability.
PLEASE NOTE:
ABL guarantees the proper operation of the product after delivery and
installation within the applicable legal guarantee provisions. This guar-
antee is limited to damage that can be shown to have resulted from
normal use and obvious material or manufacturing defects.
Always make sure to keep the original packaging! In case of damage that cannot be
resolved on site, the eMC2 must be demounted and sent to the manufacturer for re-
pair. The following conditions must be met for appropriate return transport:
• For transport, the eMC2 charging station must be protected from mechanical dam-
age by the original or other packaging.
