Abus Nexello PLSG10100 User manual

PLSG10100
Nexello Outdoor siren
Important notes and FAQs about this product and other products can
be found on the website
www.abus.com
Manual version 1.0
Firmware version 1.01

2
English
Introduction
Dear customer,
we are pleased that you have decided to use our product and thank you for your trust! You have made
a good choice.
This outdoor siren (hereinafter referred to as "device") has been developed and manufactured with the
greatest care. Please read these operating instructions completely and observe all operating and safety
instructions, as this will ensure the best possible handling of the device. This document is to be
considered as assembly and maintenance instructions.
Hereby ABUS Security-Center declares that the enclosed product complies with the following
guidelines concerning the product:
RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS
Directive 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following
Internet address
www.abus.com/product/PLSG10100
It can also be obtained from the following address:
ABUS Security Center GmbH & Co KG,
Left Kreuthweg 5, 86444 Affing, GERMANY
If you have any questions or suggestions, please contact our customer service:
Mail: ABUS Support, Linker Kreuthweg 5, 86444 Affing, Germany
E-mail: [e-mail]
Phone: [phone]
Opening hours hotline: Mon-Thu: 08 - 17 hrs; Fri: 08 - 14 hrs
All company names and product designations contained herein are trademarks of their respective
owners. All rights reserved.
Disclaimer
This operating manual has been prepared with the utmost care. Should you nevertheless notice any
omissions or inaccuracies, please notify us in writing at the address given above.
Your rights are limited to the repair or replacement of this product in the condition it was delivered.
ABUS Security Center assumes no liability for any special, incidental or consequential damages,
including but not limited to loss of revenue, loss of profits, restrictions on use of the software, loss or
recovery of data, cost of replacement equipment, downtime, property damage and claims by third
parties, as a result of, and without limitation, the use of the software.a. contractual, statutory or
damage compensation claims arising from the warranty, irrespective of
other limited warranty
provisions or those implied by law, or in the event that the limited warranty does not apply, the scope
of liability of ABUS Security Center is limited to the purchase price of the product.
The contents of this manual are subject to change without prior notice.
© ABUS Security-Center GmbH & Co KG, 09/2019

3
English
Important Safety Instructions
Appropriate use
Use the device exclusively for the purpose for which it was built and designed! Any other use is
considered improper!
Damage caused by not following these safety instructions invalidates the warranty. We assume
no liability for consequential damage!
Unpacking
While unpacking the device, handle it with extreme care. Packaging and packaging aids are recyclable
and should always be sent for recycling.
If the original packaging is damaged, first check the device. If the unit is damaged, return it with
the packaging and inform the delivery service.
Please ensure that the packaging contains the DSK (Device Specific Key) card.
This card shows the DSK of your ABUS Z-Wave device. Please store it in a safe
place. Every S2 (Security 2) certified Z-Wave controller needs the DSK to include
(teach-in) the device.
Installation site Operating environment
Do not place any heavy objects on the unit. The unit is only designed for operation in rooms with the
appropriate temperature or humidity (e.g. bathrooms) or excessive dust. For exact specifications, check
the technical data of the individual units. Ensure that there is always sufficient ventilation, that no direct
heat sources act on the device, that no direct sunlight or strong artificial light falls on devices for indoor
use, that the device is not in the immediate vicinity of magnetic fields (e.g. loudspeakers), that no open
fire sources (e.g. Do not stand on or next to the device, avoid contact with splashing or dripping water
on devices for indoor use and aggressive liquids, do not operate the device near water, in particular,
never submerge the device (do not place objects filled with liquids, e.g. vases or drinks on or next to
the device), do not allow foreign objects to enter the device, do not expose the device to strong
temperature fluctuations, as air humidity can condense and lead to electrical short circuits, do not
expose the device to excessive shocks and vibrations.
Children
Do not allow electrical equipment to get into the hands of children! Never allow children to use electrical
appliances without supervision. Children are not always able to recognize possible dangers correctly.
Small parts can be life-threatening if swallowed. Also keep the packaging films away from children.
There is a danger of suffocation! This device should not be handled by children. Springy parts can jump
out if used improperly and cause injury (e.g. eyes) to children.

4
English
Notes on handling batteries
Make sure that batteries are not in the hands of children. Children could put batteries in their
mouths and swallow them. This can cause serious damage to health. In this case, consult a
doctor immediately!
Normal batteries must not be charged, heated or thrown into an open fire (danger of explosion!)
Do not expose the battery to a heat source or direct sunlight and do not store it in a place with a
very high temperature.
The battery must not come into contact with water.
The battery must not be disassembled, punctured or damaged.
The battery contacts must not be short-circuited.
Replace weakening batteries in good time.
Always replace all batteries at the same time and use batteries of the same type. Ideally, use
batteries of the same manufacturer as those from the original scope of delivery, as the device
has been intensively tested with these batteries and thus ensures optimal function.
Leaking or damaged batteries can cause burns if they come into contact with the skin. In this
case use suitable protective gloves. Clean the battery compartment with a dry cloth.
Cleaning
Dusty equipment must be cleaned. Dust deposits in the air slots can be sucked off or blown out.
If necessary, the dust can be removed with a brush.
The surface can be cleaned with a cloth slightly moistened with soapy water. Use only suitable
microfibre cloths for high-gloss surfaces.
Make sure that no water gets inside the device!
Do not put the appliance in the dishwasher!
Do not use any sharp, pointed, abrasive, caustic cleaning agents or hard brushes!
Do not use chemicals!
Do not clean the device with easily flammable liquids!
Notes on the disposal of the device
Attention: The EU Directive 2012/19/EU regulates the proper return, treatment and
recycling of used electronic equipment. This symbol means that, in the interest of
environmental protection, the device must be disposed of at the end of its service life in
accordance with the applicable legal regulations and separately from household or
commercial waste. The old device can be disposed of at the appropriate official
collection points in your country. Observe local regulations when disposing of the
materials. For further details about the take-back (also for non-EU countries), please
contact your local administration. Separate collection and recycling helps to conserve natural resources
and ensures that all regulations for the protection of health and the environment are observed when
recycling the product.

5
English
Table of contents
1. Product............................................................................................................................................. 6
1.1. Scope of delivery..................................................................................................................... 6
1.2. Device features........................................................................................................................ 6
1.3. Operating principle .................................................................................................................. 7
1.4. Performance features.............................................................................................................. 7
1.5. Use in systems of different manufacturers.............................................................................. 7
1.6. DSK code................................................................................................................................. 7
2. Functional overview.......................................................................................................................... 8
2.1. Inclusion / Teach-in device...................................................................................................... 8
2.2. Planning, assembly and installation ...................................................................................... 10
2.3. Exclusion / teach-in device.................................................................................................... 11
2.4. Reset to factory settings........................................................................................................ 11
2.5. System status........................................................................................................................ 12
3. Advanced Z-Wave Parameters...................................................................................................... 13
3.1. Association Groups ............................................................................................................... 13
3.2. WakeUp Time........................................................................................................................ 13
3.3. Reports .................................................................................................................................. 14
3.4. Overview Configuration Parameters...................................................................................... 15
3.5. Supported command classes................................................................................................ 16
3.6. Supported security levels ...................................................................................................... 16
4. Technical data................................................................................................................................ 17

6
English
1. Product
1.1. Scope of delivery
Nexello Outdoor siren
4x GP LR14 C batteries
mounting material: screws, dowels
Quick guide & safety instructions
DSK card
1.2. Device features
No Designation Comment
A Siren Siren for alarm tone
B LED display
Status display for different processes
(Inclusion, exclusion, reset, error)
C Battery compartment Observe polarity
D Power supply
connection For alternative permanent power supply
E Sabotage contact Triggers sabotage alarm (the siren sends the sabotage alarm to the
Z-Wave controller. If parameter 6 is set to the value 1, the siren
triggers an alarm independently).
F Link Button Manual triggering of the wake-up command, inclusion, exclusion and
reset
G Screw For locking the siren to the back plate
H Backplate For mounting on the wall.
I Cable inlet To feed through the power supply unit while maintaining the IP
protection class
J Upper boreholes For wall mounting
K Lower boreholes For wall mounting
L Alarm LEDs / Flash LEDs and flash light for alarm

7
English
1.3. Operating principle
The device was developed for use in alarm and home automation systems that use the Z-Wave wireless
standard. The device has the following functions:
Siren Alarm
When the unit is activated by the Z-Wave controller, the unit's piezoelectric siren will sound for 3
minutes (default setting) along with the LEDs and flash.
Display of the system status
The device can be used to signal a changed status (e.g. system is activated).
Sabotage protection / wall break contact
If the housing is opened or the unit is torn off the wall, the sabotage switch is triggered and the
unit sends a sabotage alarm to the Z-Wave controller.
The sabotage contact must remain pressed for three seconds to acknowledge the sabotage
alarm.
1.4. Performance features
The device..:
... is a battery-powered outdoor siren
... is due to its design only suitable for wall mounting
... is Z-Wave Plus compatible & certified
... supports the Z-Wave S2 standard (Security 2)
... has a low battery warning function
... was developed for mounting in protected outdoor areas (IP44)
1.5. Use in systems of different manufacturers
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other
manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor
to increase reliability of the network.
This product is based upon a slave Role Type implementing Security 2 with the Access Control Security
Class. The command classes are supported only when the Access Control Security Key has been
granted, therefore an S2 security enabled controller is required to operate the product.
1.6. DSK code
The DSK code (Device-Specific Key) is the device-specific key of your device and is required for secure
inclusion (teach-in) via S2 on the Z-Wave controller. The first 5 digits, known as the PIN Code, of the
DSK can be found underneath the QR Code on the side of the product.
Please enter them in the inclusion process when prompted. Alternatively, you can transfer the entire
DSK code that you find on the enclosed DSK card to the Z-Wave controller via QR Code Scan. Please
keep the DSK card in a safe place!
Hint:
We recommend the secure S2 inclusion (must be supported by the Z-Wave controller). Please scan
the DSK QR code when prompted by your App.

8
English
2. Functional overview
2.1. Inclusion / Teach-in device
This product supports SmartStart:
SmartStart-enabled products can be added to a Z-Wave network by scanning the Z-Wave QR code
present on the product with a controller that provides SmartStart integration. No further action is
required, and the SmartStart product will be automatically added near the network within 10 minutes of
power-up.

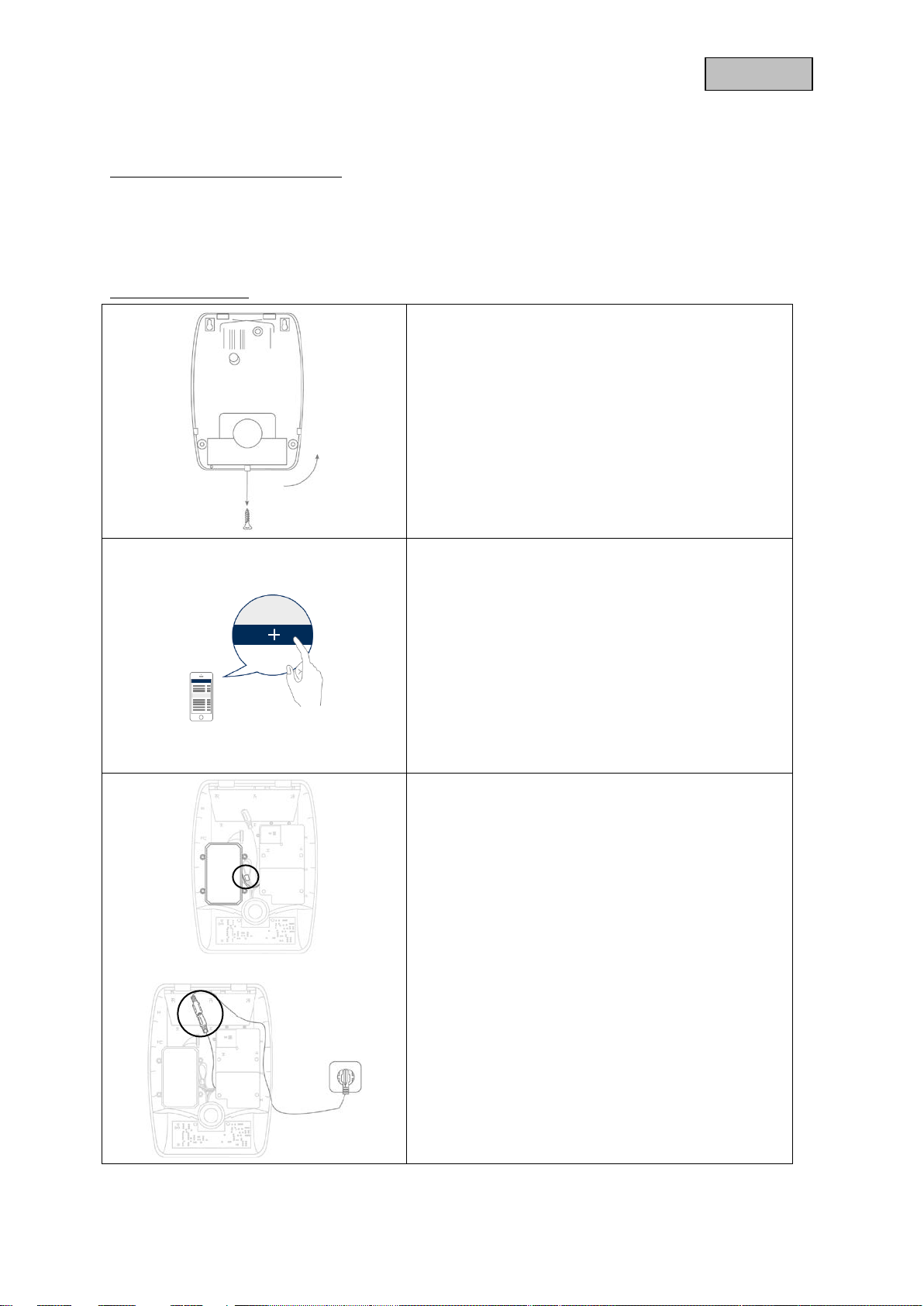

Alternative Inclusion
Remove the bracket by unscrewing the screw on the
bottom.
If your Z-Wave controller does not support SmartStart,
follow these instructions for Product Classic Inclusion:
Activate the inclusion mode (teach-in mode) on the Z-
Wave controller. (for more details, please refer to the
Z-Wave controller's user manual)
Press the "+" button (Add / Inclusion) in your Z-Wave
app and follow the instructions to set the Z-Wave
controller into inclusion mode.
or
The siren can be operated by batteries or mains
adapter.
Pure battery operation:
The batteries are already inserted.
Simply connect the plug that comes from the battery
compartment to the appropriate socket.
We recommend the exclusive use of the original GP
batteries from the scope of delivery.
Power supply operation:
Pierce the rubber seal of the cable inlet e.g. with a
screwdriver. Do not damage the seal more than
necessary to maintain the weather protection class of
the device. Insert the power supply cable from the
rear through the cable inlet and connect the plug to
the appropriate socket.
Tip:
You can also connect the battery plug, in which case
the siren automatically switches to battery operation
in the event of a power failure.

9
English
Remove the cover over the Link Button and LED
indicator by loosening the three screws.
Keep the device within range of the Z-Wave controller.
Press the Link
button 3 times quickly (within 1.5
seconds) to start the inclusion on the device.
Successful inclusion is displayed in the app or on the
Z-Wave controller and the status LED on the device
stops flashing.
Repeat the inclusion process if it was not successful.
If a new attempt fails as well, first carry out a factory
reset on the device, see 2.4.
Lock the cover over the Link button and the LED
display again with the three screws!

10
English
2.2. Planning, assembly and installation
The device uses low power radio signals to communicate with the Z-Wave controller. For best results,
please note the following:
Please do not attach directly to metal planes or metal constructions, as this may limit the range.
The device has a radio range of up to 40m.
The battery life of the device is reduced if the wireless connection to the Z-Wave controller is not
direct but via a repeater.
The device is suitable for protected outdoor use (protection class IP44).
Make sure that the siren is installed outside the "hand area" at a height of at least 3m.

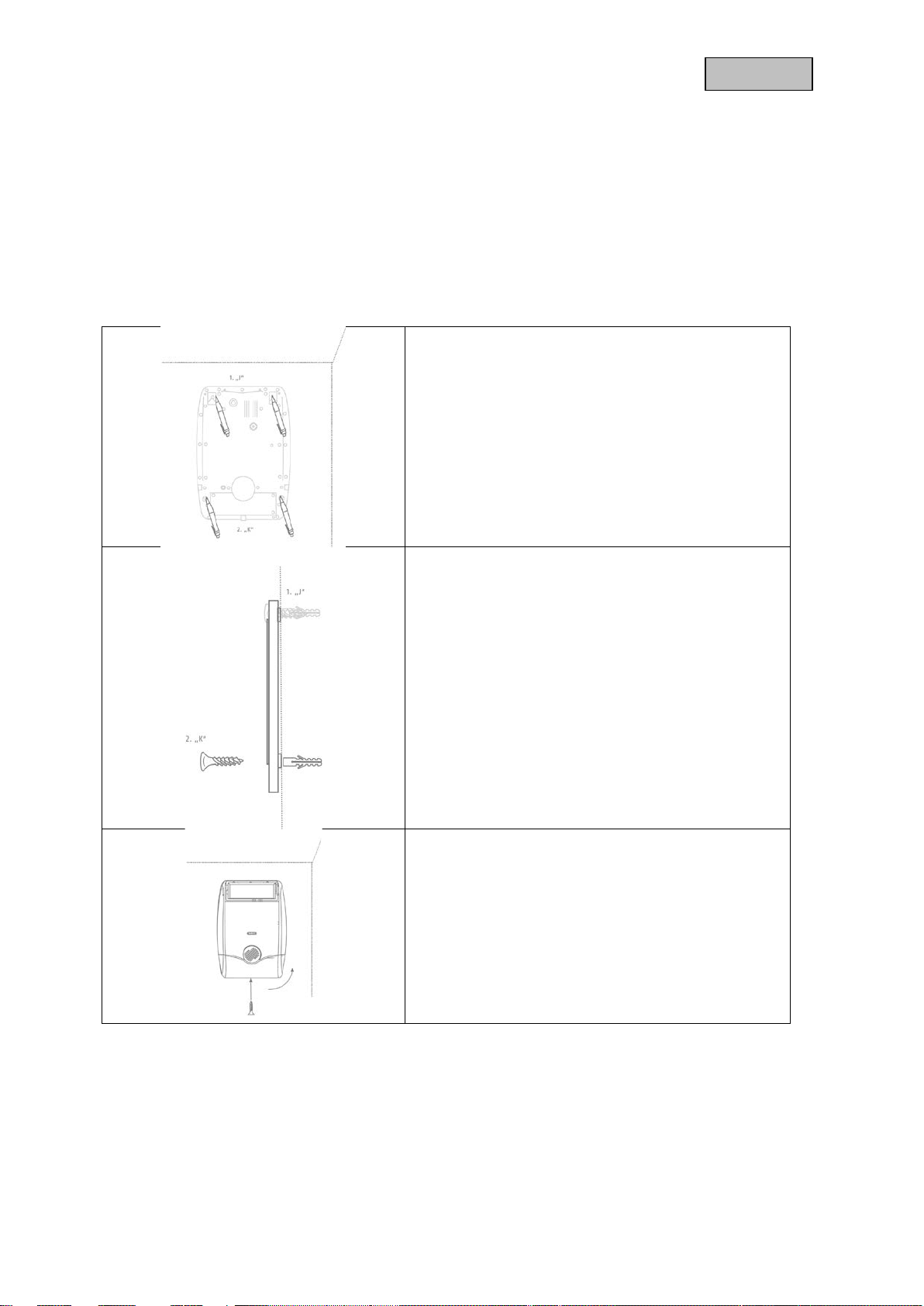

Assembly instructions:
Use the bracket as a template to mark the position of
two drill holes on the wall.
Fix the bracket to the wall using the plugs and screws
provided.
First the upper drill holes "J", then the lower drill
holes "K" for fixing and alignment.
Do not overtighten the screws to avoid damaging the
bracket.
Gently place the unit on the bracket from above and
then press the unit against the wall.
Lock the device in place using the screw on the
bracket.
To remove the base from the bracket, open the screw
and pull the base forward and up from the bracket.

11
English
2.3. Exclusion / teach-in device
Activate the exclusion mode (learn mode) on the Z-
Wave controller. (for more details, please refer to the
Z-Wave controller's user manual)
Or press the "-" button (Remove / Exclusion) in your Z-
Wave appand follow the instructions to set the Z-Wave
controller to Exclusion mode.
Press the Link button 3 times quickly (within 1.5
seconds) to start the exclusion on the device.
The successful exclusion is displayed in the app or
on the Z-Wave controller
2.4. Reset to factory settings
Press the Link button 3 times
quickly (within 1.5
seconds). Press quickly (within 1 second) a fourth time
and hold down the Link Button for at least 5 seconds.
The siren is now reset to factory settings.
Hint:
This procedure should only be used if the primary
network controller is not capable of acting.
If the device is set to factory default, the status is set
to "not included" and the association settings and
possible configurations are reset to default.

12
English
2.5. System status
The siren can be informed of various events. These events are distinguished by the LEDs lighting up
and the siren behaviour.
Event LEDs Siren
System was
deactivated Flashing 2 times briefly Beeps 2 al briefly in one second
System has
been activated Lights up for one second Beeps once for one second
System was
activated
internally Lights up for one second Beeps once for one second
Inevitability Lights up for 2 seconds Beeps 1 time long and 2 times short
Invalid code Flashing 3 times briefly Beeps 3 times briefly

13
English
3. Advanced Z-Wave Parameters
3.1. Association Groups
Z-Wave devices can control other devices directly. This direct control is called association in Z-Wave.
The device ID of the device to be controlled must be stored in the controlling devices. This is done in
so-called association groups. An association group is always linked to an event in the controlling device
(keystroke or triggering of a sensor). When this event occurs, a control command - usually a BASIC
SET - is sent to all devices stored in an association group.
The device supports one association group:
Group-
Number Maximum Devices Group name Profile command class
Group 1 5 Lifeline General
notification report
battery report
Device Reset Locally Notification
Switch Binary Report
Group 1 (Association Z-Wave Controller)
The Lifeline Association is automatically established between the Z-Wave controller and the
device at inclusion and defines what information is exchanged between the Z-Wave controller
and the device.
3.2. WakeUp Time
The device is a FLiRS (Frequently Listening Receiver Slave) and therefore does not require a wake-up
function. The outside siren can be controlled by the Z-Wave controller at any time.

14
English
3.3. Reports
notification report
Event Type Attribut
e Parameters Length Event Parameters
Power is applied for the first time 0x08 0x01
0x00
Power supply unit separated 0x08 0x02
0x00
Power supply unit connected again 0x08 0x03
0x00
Sabotage alarm
(Sabotage contact opened after it was closed
for more than three seconds) 0x07 0x03 0x00
Sabotage alarm acknowledgement (sabotage
contact is pressed for more than 3 seconds) 0x07 0x00 0x01 0x03
battery report
Value Description
0x14 - 0x64
(20 – 100) Battery charge level in percent (%)
0xFF
(256) Low battery
Switch Binary Report
Shows the status of the siren's piezo alarm
Value Description
0x00
(0) Siren is off
0xFF
(256) Siren is on

15
English
3.4. Overview Configuration Parameters
Z-Wave products can be used directly after inclusion in the network. However, configuration settings
can be used to adapt the behaviour of the device even better to the requirements of the application and
to activate additional functions.
Para-
meter Byte size Function Default value Description
1 2 Alarm duration 180
Setting how long an alarm of the piezo siren
lasts when triggered.
Adjustable from 5 - 600 in seconds
(Hexadecimal: 0x05 - 0x258)
2 2 Alarm 0
Setting the reaction in case of an alarm.
0 = siren and LEDs / flash
1 = Siren only
2 = LEDs only / flash light
(Hexadecimal: 0x00 - 0x02)
3 2 Siren volume 0
Adjusts the volume of the siren.
0 = > 100dB
1 = > 85dB
(Hexadecimal: 0x00 - 0x01)
4 2 Sabotage Alarm 0
Defines whether an alarm should be triggered
directly in the event of a sabotage alarm.
0 = The siren does not automatically
trigger an alarm, the sabotage alarm is
triggered by the Z-Wave controller.
This function is deactivated by default,
because when activated, a sabotage
alarm is always triggered directly by the
siren, even if the Z-Wave controller/alarm
system is in maintenance mode, for
example.
1 = The siren always triggers an alarm
automatically, regardless of the status of
the Z-Wave controller.
Note:
Sabotage Alarm will also be triggered
while maintenance mode.
(Hexadecimal: 0x00 - 0x01)
5 2 Status display 0
Setting whether only certain status events
should be displayed.
0 = activation & deactivation
1 = Only activation
2 = Only deactivation
3 = No activation & deactivation
(Hexadecimal: 0x00 - 0x03)

16
English
3.5. Supported command classes
Command class Version
Association version 2
Association Group Info
Battery
Configuration
Device Reset Locally
Firmware Update MD version 2
Indicator
Manufacturer Specific version 2
Multi Channel Association version 2
Notification Version 4
Power level
Security
Security 2
Supervision
Switch Binary
Transport Service version 2
Version version 2
ZwavePlus Info version 2
3.6. Supported security levels
Security S2 Authenticated
Security S2 Unauthenticated
Security S0 Authenticated

17
English
4. Technical data
Parameters PLSG10100
Dimensions (H x W x D) 225 x 316 x 95 mm
Weight 1283g
Operating temperature > -20° – 40°C
IP class IP 44 (Protected outdoor area)
Radio frequency 868.42 MHz (Z-Wave Plus, Europe)
Modulation FSK (BFSK/GFSK)
Transmitting power: < 5 dbm
Power supply 9V DC
Type of battery 4x LR14 C
Battery life Approx. 2 years
Sabotage protection yes
Firmware updateable Yes, OTA
Z-Wave manufacturer ID 0x0403
Z-Wave Product Type ID 0x0003
Z-Wave Device ID 0x0006
Z-Wave beaming supported Yes
Z-Wave SmartStart supported Yes
Z-Wave Plus supports Yes
Z-Wave Network Security Yes
Z-Wave AES-128 Security (S0) Yes
Z-Wave S2 Security Yes (S2 Authenticated)
Z-Wave Chip Generation 500
