Ackuretta FreeShape 120 User manual

This product, this document, and any items associated with this product or document
are the express property of Ackuretta Technologies Pvt. Ltd. Replication or copying, in
either partial or complete form, of the product or the documentation without the
express written consent of Ackuretta Technologies Pvt. Ltd. is strictly prohibited.
Ackuretta Technologies Pvt. Ltd. reserves the right to make changes to this document
and to the product described herein without notice. Features of the product may
change without modification of this document, and this document may not describe
every feature of the product.
FreeShape 120, Alpha 3D, Omega 3D, Ackuretta, and all associated logos are trademarks
of Ackuretta Technologies Pvt. Ltd. Other company names or products mentioned herein
are registered trademarks of their owners.
Copyright ©2019. Ackuretta Technologies Pvt. Ltd. All rights reserved.
Document Number: TM3M2EP0310
Document Version: 2.0
Product Version: FreeShape 120, firmware version 1.0.0
Release Date: May 2019

UV Light Safety
This product uses a light engine that outputs ultraviolet light in the UV-A range, with possible trace amounts in the
UV-B range. This product is compliant with the international standard ISO 3059:2012 in accordance with non-destructive
penetration testing of UV irradiance. This product encloses the light engine in opaque and UV-filtered material to
prevent UV light exposure. However, incidental UV light may extrude from the machine due to any of the following:
• Leaving the door open during usage
• Gaps or holes in the sides of the machine
• Transparent or translucent resins
During operation, do not stand near this product for prolonged periods of time, and do not look directly into the lighted area. Improper
exposure to UV light can cause painful eye and skin injuries.
UV Protective Gear
Prolonged Exposure
UV light exposure is most potentially damaging to the eyes. Wear UV-filtered glasses, goggles, or a
face shield to protect your eyes from the damaging effects.
Eye Protection
Thick Clothing
Other areas of the skin may be exposed, especially if the product is used in cramped environments.
Wear long-sleeved shirts with collars, long pants, and even cloth hats to protect your skin from
incidental exposure.
Skin Protective
Substances
Topical agents such as sunblock, sun cream, or similar substances can protect against the effects of UV
light, but these are generally designed for outdoor use. Do not rely on such substances in lab
environments, but use them as an extra layer of protection if necessary.
Gloves Skin exposure is most likely on the hands, which are oftentimes closest to the product during operation.
Wear thick cloth or rubber gloves to protect your hands from UV exposure.
Direct UV-A light into the eye can lead to irritation, temporary blindness, and the forming of cataracts
on the lens of the eye. UV-B light can compound the cataract-forming effect, and can also lead to
photokeratitis and photoconjunctivitis.
Eye Exposure
Skin Exposure Direct UV-A and UV-B light on the skin can cause localized tanning, burning of the skin, and can lead
to skin cancer in extreme long-term situations.
Resin Safety
Resins provided by Ackuretta are non-carcinogenic acrylic-based photopolymer liquids that give off a light odor. These
resins may cause skin, eyes and respiratory system irritation, and skin sensitivities or allergic reactions by skin contact.
Inhalation of a high high-vapour concentration may cause headaches and nausea. Ackuretta recommends the
following protective gear when handling photopolymer resins, whether from Ackuretta or from another company:

Resin Protective Gear
The hands are the most likely affected area when handling resins. Wear rubber, nitrile, polyvinyl
chloride, or other chemical-resistant gloves.
Gloves
Face Mask or
Respirator
If the room does not have sufficient ventilation, wear a respirator or medical face mask to protect
against inhalation or accidental exposure to the mouth.
Thick Clothing
Prolonged exposure to resin may cause irritation or may cause allergies to develop where they
previously did not seem to occur. Wear long-sleeved shirts with collars, long pants, and even cloth
hats to protect your skin from incidental exposure.
Eye Protection While using air compressors or due to usage or handling, resin may splash into the eyes. Wear protective
goggles, safety glasses with side shields, or a face shield.
Acute Exposure
This product may cause skin irritation. Symptoms may include a slightly localized redness or rash and
swelling. Repeated exposure may cause sensitization and allergic skin reaction in some individuals
resulting in contact dermatitis, severe irritation, dryness and cracking.
Skin Contact
Inhalation
This product may be a suspect slight respiratory tract irritation hazard, especially if used at elevated
temperature or processes which may generate aerosols or mists. Symptoms of irritation may include
coughing, headache and nausea, mucous production and shortness of breath.
Ingestion
This product may be harmful if swallowed. It may cause nausea, headache, vomiting, diarrhoea, and/or
central nervous system effects. Keep all food in an area separate from storage and use locations.
Prohibit eating, drinking and smoking in areas where there is a potential for significant exposure to this
material. Thoroughly wash hands before eating.
Eye Contact This product may cause eye irritation. Symptoms may include excessive tearing, itching, irritation,
blinking and redness.
Chronic Exposure
Prolonged contact may cause sensitivities and allergic reactions. People with pre-existing skin conditions
may incur more significant irritation. Repeated exposure may cause sensitization and allergic skin
reactions in some individuals resulting in contact dermatitis, severe irritation, dryness and cracking.
Skin Contact
Inhalation Prolonged or repeated overexposure may cause irritation, headaches, and nausea.
Ingestion Prolonged or repeated swallowing may be a slight ingestion hazard. Chronic ingestion of high doses
has shown damage to testes in studies with animals.
Eye Contact Prolonged contact may cause redness of eye tissue.

Resins provided by Ackuretta are not readily biodegradable. Releasing these resins into the environment may be illegal according to
the regulations in the usage area.
* Properly dispose of resins in accordance with all applicable federal, state, and local regulations.
For more information, please refer to the Material Safety Data Sheet for your particular resin.
Disposal
To clean prints, Ackuretta recommends using solutions of 95% ethyl alcohol or 95-99% isopropyl alcohol (IPA). Both compounds are
colorless, transparent, and naturally give off strong odors. Both compounds have the following major safety concerns:
•Highly flammable and potentially explosive.
•Toxic and can cause adverse conditions from ingestion, inhalation, or direct contact.
•Evaporate quickly so they can become an airborne toxins.
Adverse conditions may include:
Skin Contact This product may cause skin irritation. Symptoms may include skin discoloration, dryness, and cracking.
Eye Contact This product may cause eye irritation. Symptoms may include excessive tearing, itching, irritation,
blinking and redness.
Inhalation This product may be a slight respiratory tract irritation hazard. Symptoms may include nose, throat,
and lung irritation, coughing, and/or shortness of breath.
Ingestion This product may be harmful if swallowed. It may cause nausea, headache, vomiting, and/or
unconsciousness. It can also affect concentration and vision.
Chronic Exposure
Skin Contact
Prolonged contact may cause sensitivities and allergic reactions. Repeated exposure may cause
sensitization and allergic skin reaction in some individuals resulting in contact dermatitis, severe
irritation, dryness and cracking. Alcohol can be absorbed through the skin and may result in
symptoms similar to those listed under acute ingestion.
Eye Contact Prolonged contact may cause redness of eye tissue.
Inhalation Repeated high exposure may affect the liver and the nervous system.
Ingestion
Occupational exposure is unlikely to cause cancer, but direct and repeated ingestion may increase
the risk of liver, esophagus, breast, prostate, and colorectal cancers. Pregnant women should not
ingest alcohol, and repeated exposure may cause spontaneous abortions, birth defects, and other
developmental problems. Repeated ingestion may also reduce fertility in males.
To avoid these potential issues, do the following:
•Store in cool, dry, and well-ventilated areas.
•Label containers with instructions regarding handling and storage.
•Keep away from any sources of heat, fire, and sparks.
•Keep away from strong oxidizers, acetaldehyde, chlorine, ethylene oxide, acids and isocyanates.
•Close containers tightly with a strong seal immediately after use.
•Dispose in accordance with all applicable federal, state, and local regulations.
Cleaning Alcohol Safety
Acute Exposure

Contents
Chapter 1
About the FreeShape 120
01 Specifications
01 Features
02 Package Contents
02 Machine Overview
03 Machine Console Interface
03 Web Console Interface
Chapter 2
Getting Started
04 Unboxing Your Machine
06 What You Need
07 Setup Environment
08 Connecting to Your Wi-Fi Network
11 Attach Your Vat
12 Fill Your Vat With Resin
13 Attach Your Build Platform
Chapter 3
Printing
15 Designing Your 3D Model
15 Making Your Print File
16 Printing Using a USB Device
19 Printing Using the Web Console
21 Printing Process
Chapter 4
Finishing Your Print
23 Removing Your Print from the Printer
25 Separating Your Print from the Build Platform
27 Cleaning and Drying Your Print
29 Cutting Supports
30 Curing Your Print in a UV Oven
Chapter 5
Configuring Your Printer
32 Machine Settings
36 Update Settings
38 Material Settings
42 Connecting to Your LAN Network
43 Configuring a Static IP Address
45 Using the Clean Vat Function
48 Replacing the LCD Panel
53 Replacing the Vat Film
Chapter 6
Maintaining Your Printer

Chapter 1: About the FreeShape 120

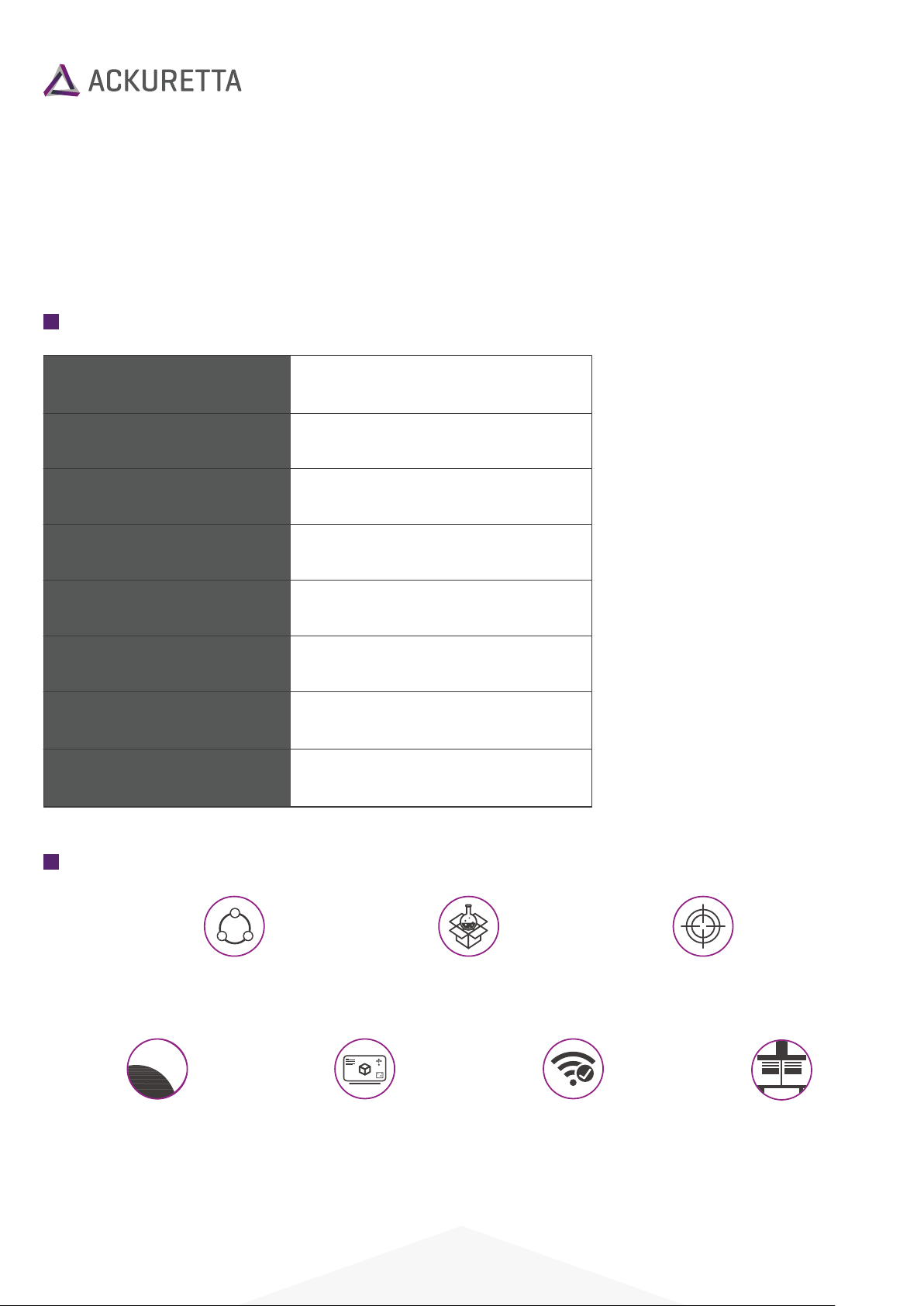

Specifications
Machine Size 25 ×23×38 cm
Weight 9 kg
Printing Size 120 ×68 ×140 mm
XY Resolution 47 μm
Slice Thickness 30 - 200 μm
Resin Wavelength 405 nm
Power Supply 110-240VAC, 50-60Hz
LCD
3D Printing Technology
Resin-based 3D printing has advanced in several stages, starting from laser-based SLA machines to much faster
DLP printers. Ackuretta brings its technical expertise into the next stage of printing with the FreeShape 120, a
desktop LCD printer that delivers high-resolution, smooth surface prints at a price point that is ideal for the
entry-level market.
FreeShape 120 Manual
01
Features
Open Material
System
High Resolution
47 µm
Complete Workflow
Solutions
Advanced
Software
Wi-Fi
Enabled
Smooth Surface
Printing
Auto
Calibration

FreeShape 120 Manual
02
Package Contents
Wi-Fi dongle
FreeShape 120
Power cable
Ethernet cable
LCD panels (×2) Hex key
Vat
Build platform
Vat film sheets (×2)
Machine Overview
Front Side
Console
Build platform
Vat
Hood
Back Side
Fan
USB ports
Ethernet/LAN port
Serial number sticker
Power
port
Power
switch
Guideway

Web Console Interface
The web console is very similar to the machine console interface, with the functions arranged in a browser-friendly
format. To access the web console, you will need to connect to a LAN or Wi-Fi network. For details, see
Connecting to Your Network.
FreeShape 120 Manual
03
Machine Console Interface
When you turn on your FreeShape 120, the machine will spend a few seconds loading, and then will arrive on
the home screen. The home screen has the following functions:
If your print fails, use the Clean function to remove pieces of prints that did not stick to
the build platform during printing. The Clean function cures one layer of resin at the
bottom of the vat, and then you can easily remove that cured layer and throw away any
lingering debris with it. For more information, see Using the Clean Vat Function.
Clean
Connect to a Wi-Fi network or a static IP address. For instructions on how to set up a
network connection, go to Connecting to a LAN or Wi-Fi Network.
Network
View the FreeShape 120 print, system, and error logs.
Log History
Configure your FreeShape 120 system settings, or update your printer firmware. For
more information, see Configuring Your Printer.
Settings
If your printer encounters a problem, use the Diagnostics functions to determine the
source of the issue. For more information about FreeShape 120 diagnostics, send a
request email with your FreeShape 120 serial number to [email protected].
Diagnostics
The Print screen is your main center for uploading files and getting your printer started.
For more information, see Printing.
Print

FreeShape 120 Manual
04
Chapter 2: Getting Started
After you receive your FreeShape 120 printer, you will need to do a little bit of work to get your printer
up-and-running. This section describes all of the setup you need to do for your machine, so you can go from
package to printing as soon as possible.
The topics covered in this section are as follows:
•Unboxing Your Machine
•What You Need
•Setup Environment
•Connecting to Your Wi-Fi Network
•Attach Your Vat
•Fill Your Vat With Resin
•Attach Your Build Platform
Unboxing Your Machine
1. Open the printer box.
The FreeShape 120 is visible with attached handles,
and 4 smaller boxes are to the side of it.
2. Lift the printer out of the box by the handles.
Place the printer on a sturdy table to make it easier
to remove the other parts of the packaging.
3. Remove the additional accessory boxes
from the main box.
4. Lift the hood off of the printer and place it to
the side.

FreeShape 120 Manual
05
5. Remove the machine from the rest of the
packaging.
When moving the machine, hold the bottom and
the build platform guideway. Be careful not to put
your fingers on the vat while moving. Keep the
machine vertical, without tilting it backwards, so
as to not bend or displace critical components.
6. Remove the vat film package from the hood,
and store it in a safe place.
The vat film package is taped to the front of the
hood over the plastic wrapping. It is covered with
paper on both sides. You can touch the paper by
hand, but do not touch the vat film directly. Be
careful not to bend the vat film while moving it.
7. Put the hood back on the printer. You may
remove the plastic wrap or leave it on.
8. Remove and store the contents of the 4
accessory boxes.
CABLE: 1 Ethernet cable and 1 power cable
TOOLS: 1 Hex key
PANEL: 2 LCD panels, packaged in bubble wrap
One box is unmarked, and is usually empty.
Tools Empty
Cable Panel

FreeShape 120 Manual
06
What You Need
Beyond the printer, you need several other items in order to make a complete print and use your printer effectively.
This section outlines the items that you need to acquire in addition to the items shipped with the printer.
2. Safety equipment – You should always wear chemical-resistant gloves when dealing with photopolymer resins.
Ackuretta also recommends wearing a respirator or face mask, and when dealing with the internal components
of the machine, wear UV-protective glasses. When removing prints from a build platform, you may also want
cut-resistant gloves in case your knife slips.
3. Cleaning alcohol – Most resins require isopropyl alcohol (99% solution) or ethyl alcohol (95% solution) for cleaning.
Consult your resin distributor regarding the proper cleaning alcohol to use. In addition, you may want an alcohol
bath, such as an ultrasonic cleaner.
4. Resin – the FreeShape 120 is tested with all Ackuretta Qura- resins, but you may use any 405 nm resin.
Minimum Recommended
CPU Intel i3 2.0 GHz dual-core
AMD Athalon 2.0 GHz dual-core
Intel i7 2.6 GHz quad-core
AMD Phenom II X4/ X6 at 2.6 GHz quad-core
GPU Dedicated GPU with 1 GB RAM NVidia GeForce 830
AMD Radeon R7 M340
1920 ×1080
Display 1600 ×900
Memory (RAM) 4 GB 8 GB
Disk Space 1 GB 2 GB
Operating system Windows 7 SP1, 8.1, or 10 Windows 7 SP1, 8.1, or 10
1. Computer – In order to run the Alpha 3D or Omega 3D print software, you will need a computer that meets the
following minimum requirements.

FreeShape 120 Manual
07

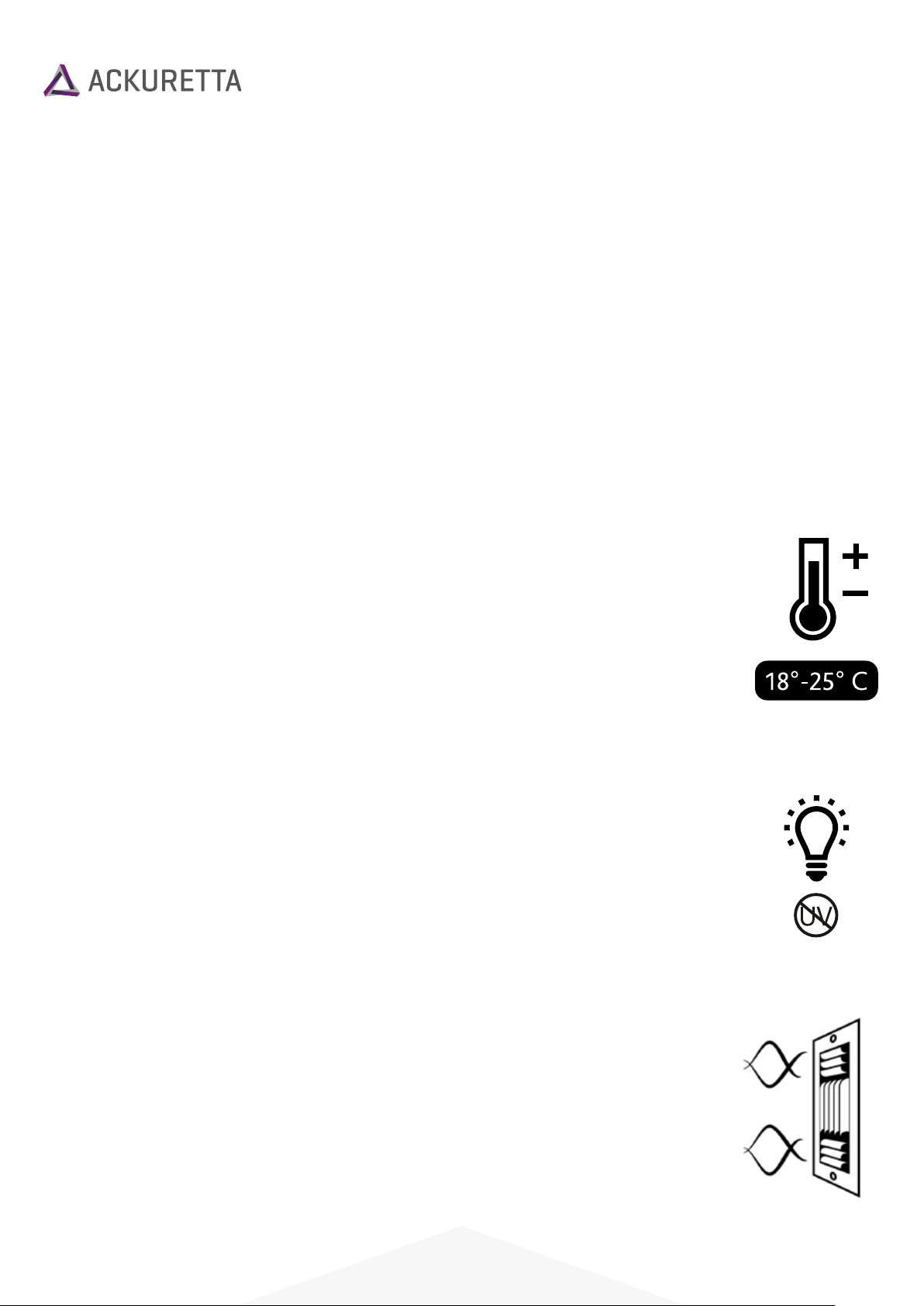

Consider the following when choosing where to set up your FreeShape 120 and your printing work space.
Setup Environment
1. Temperature: 18°- 25° C
Keep your printer and your resins in a dry, temperature-controlled room around 22° C (72° F).
Resins become more viscous when they are too cold. If the environment is around 15° C (59°
F), Ackuretta recommends increasing all curing times by 15%. Even colder temperatures may
require increasing curing times further or may cause print failures.
Similarly, resins may become very thin in hot temperatures. If the environment is hotter
than 35° C (95° F), resins may overcure or may melt during the print process.
2. UV-Filtered Lighting
The UV-protected hood of the FreeShape 120 protects the resin from outside lighting while
the hood is on the printer. As you use the printer, the door will be opened many times, and
the resin will be exposed to outside light.
To protect the resin, set up the printer in a place where the lighting is controllable or covered
by a UV filter. Similarly, use the same UV filtering in your finishing space and your resin storage
location.
3. Ventilation
Resins and cleaning alcohol evaporate over time like all liquids. These substances
can be corrosive to other equipment and may be harmful if inhaled over a long time.
Keep your printer, resins, and your cleaning work space well ventilated at all times.
Avoid lingering in the same room with uncovered resins for a long period of time.
5. UV oven – Ackuretta resins are all tested with the Ackuretta UV oven. Other resin suppliers may recommend
other UV ovens.
6. Knife or scraper – Sharper tools are better for removing prints from the build platform. Dull scrapers may damage
the build platform.
7. Wire cutters or scissors – These are standard tools for cutting supports off of prints. You may also want to use
an ultrasonic cutter or a rotary tool for this purpose.
8. Cleaning and drying tools – Remove resin thoroughly with an air compressor or air blower. You can use tissues
or small brushes to remove resin in hard-to-dry places. Keep a safe disposal space to throw away unused resin
in a legally safe manner.

FreeShape 120 Manual
08
4. Wi-Fi Connection
If you intend to use a Wi-Fi connection, consider the placement of the printer. Do not
place the printer in an enclosed area such as a cabinet or garage where the signal may be
disconnected. Instead, place the printer in a clean, open area. Avoid having any thick walls
or barriers between the router and the FreeShape 120.
Note:
If your environment uses a LAN connection, follow the instructions in Connecting to Your LAN Network
instead.
Connecting to Your Wi-Fi Network
Connect to a Wi-Fi network that you can access the printer web console and start up prints from your internet
browser.
Note:
After you connect your laptop to the FreeShape120, by default, your computer should be able to obtain an
IP address automatically. If your computer does not, then you may need to modify your network settings.
Go to Configuring a Static IP Address.
1. Ensure that your Wi-Fi dongle is connected to the printer.
2. Press Network.

FreeShape 120 Manual
09
3. Press Wi-Fi.
4. Ensure that the Connect to Wi-Fi box is turned On.
5. Press the arrow next to Choose a network.
6. Press the network that you want to use.
You can use the arrows on the right side to select different pages.

FreeShape 120 Manual
10
7. If your network is password-protected, a screen appears for you to type in the password.
8. When your printer connects to the network, an IP address appears on this screen.
9. Open an internet browser while on the same network as the FreeShape 120 and type the IP address shown
into the address bar. The FreeShape 120 web console opens.

Warning:
Always place the vat on the FreeShape 120 before placing the build platform. The vat protects the LCD,
which may become damaged if resin or the build platform falls on it.
Do not touch the vat film and do not place the vat directly on tables with the film side down. If the vat is
empty, place the vat upside-down on tables. If the vat has resin, place 2-3 tissues under the vat to protect
the vat film from scratching or other damage.
FreeShape 120 Manual
11
Attach Your Vat
The FreeShape 120 comes with a vat attached during shipping. If you remove your vat and need to reattach it,
do the following.

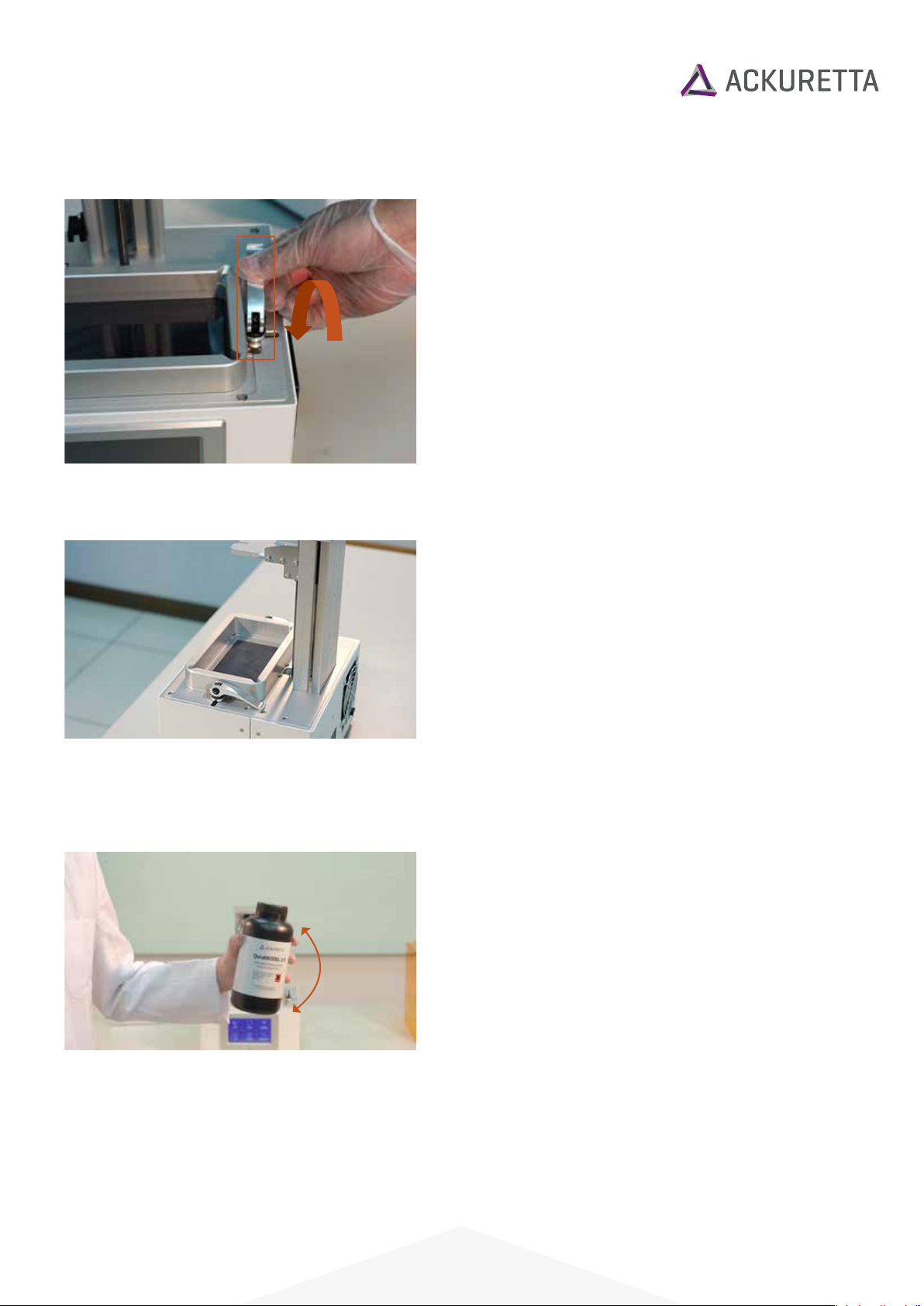

1. Place the empty vat on the LCD panel, so the metal grooves on the sides line up with the handle holes.
2. Hold the rubber stoppers of the handles and slide them inward toward the vat.

FreeShape 120 Manual
12
3. Turn the handles backwards and down so the handles touch the metal base.
If you turn the handles toward the front or to the sides, the handles may interfere with the door.
4. The vat is attached to the printer and is ready to add resin.
Fill Your Vat with Resin
1. Before pouring, shake your resin bottle for at least 2 minutes so the resin is thoroughly mixed.

FreeShape 120 Manual
13

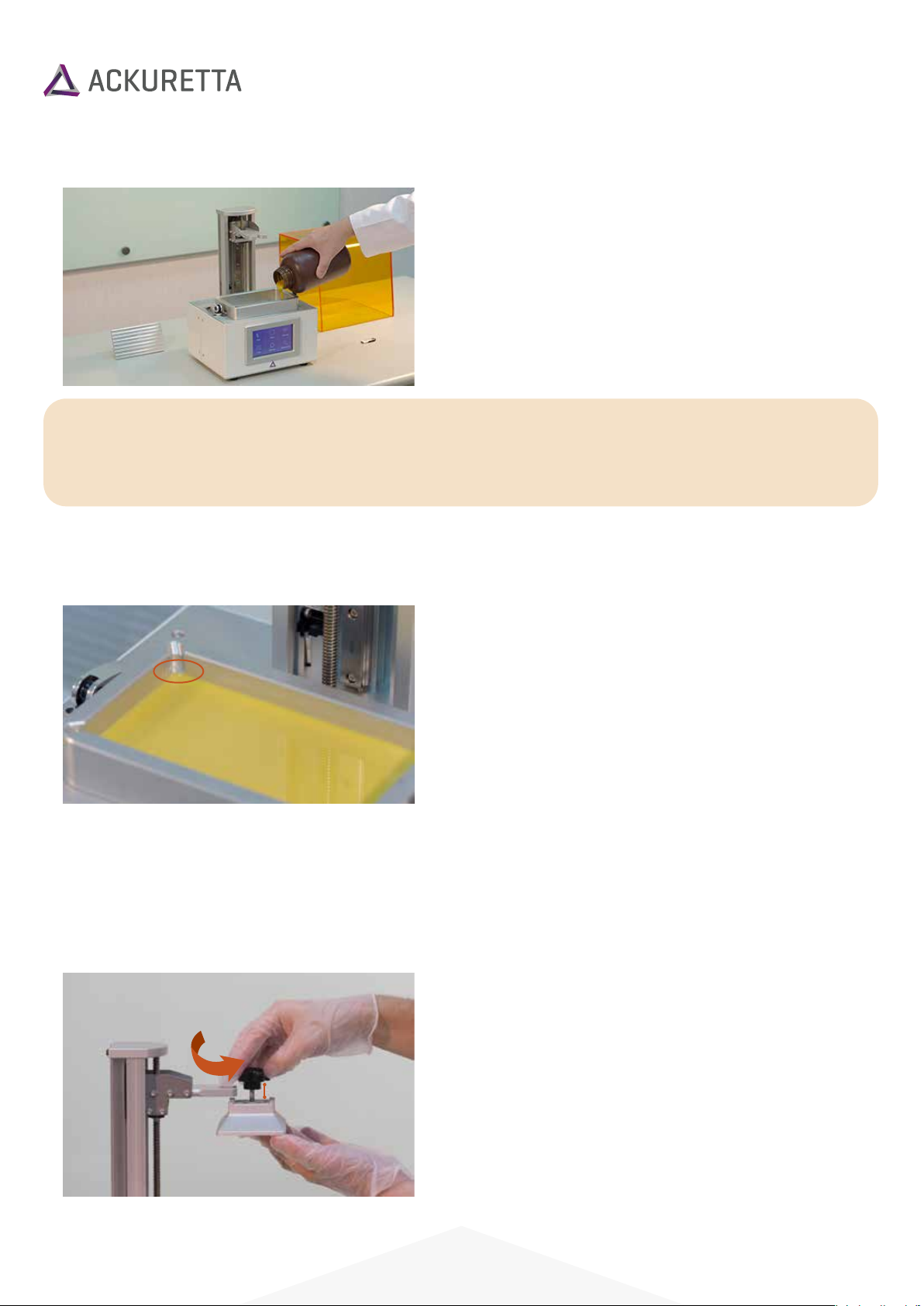

2. After shaking, slowly pour resin into the vat. Start pouring in one corner, and slowly move across the surface
of the vat, filling the vat evenly.
Note:
If any resin is in the vat, stir the old resin with the new resin using a rubber spatula. Pull resin from the bottom
of the vat so that if any resin particles separated, it mixes with the new resin properly.
3. The minimum level of resin should be at least 2 mm of resin over the whole vat surface. The maximum amount
of resin should be no higher than the resin level in the vat.
Attach Your Build Platform
The FreeShape 120 comes with a build platform attached during shipping. If you remove your build platform and
need to reattach it, do the following.
1. Turn the handle counterclockwise, so the space between the handle and build platform becomes wider.

FreeShape 120 Manual
14
2. Insert the screw portion of the build platform into the gap on the FreeShape 120 guideway.
3. Align the build platform so that the 4 prongs are adjacent to the guideway arm.
5. When the build platform is tight enough to hold itself, it is installed and ready for use.
4. Turn the handle clockwise to lock the build platform on the guideway.
