1.Safety Instruction
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
yUnpack and check carefully there is no transportation damage before using the unit.
yBefore operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
yThe unit is designed for use with the HID 150W or ELC 24V 250W (two version). Do not
use any other type of lamp.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yThe unit is for indoor use only. Use only in a dry location.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
yDisconnect main power before fuse/lamp replacement or servicing.
yReplace fuse/lamp only with the same type.
yMake sure there is no flammable materials close to the unit while operating as it is fire
hazard.
yUse safety cable when fixes this unit. Don’t handle the unit by taking its head only, but
always by taking its base.
yMaximum ambient temperature is TA: 40℃. Don’t operate it where the temperature is
higher than this.
yUnit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand during
its operation. Turn off the power and allow about 15 minutes for the unit to cool down
before replacing bulb or serving.
yIn the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always
use the same type spare parts.
yDon’t connect the device to any dimmer pack or power pack.
yDo not touch any wire during operation as high voltage might be causing electric shock.
Please read carefully the instruction, which includes important information
about the installation, usage and maintenance.
3J
Warning
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
yNever touch bulb with bare fingers as it is very hot after using.
yHot lamp explosion hazard. Do not open the unit within five minutes after switching off.
yDo not start on the unit without bulb enclosure or housing are damaged.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
yDo not look directly at the light while the bulb is on.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of 20
kgs for each unit.

4J
2. Technical Specification
•Voltage：AC 120V~60Hz or 230V/240V/250V~50/60Hz
•Bulb：HID 150W
ELC 24V 250W
•The unit is DMX 512 fixture. It features full DMX 512 control. It can be also linked together
in master/slave connection, as many as required and run by built-in program chase
sequences automatically or by sound activation through an internal microphone to create
an intelligent effect.
•It can be operated by DMX 512 control or can be used as an individual unit without a
controller.
•Consistent DMX channel enable iRock, iShow and iMove to be link together.
•Features different preprogrammed chase patterns.
•Please use a 3 pin XLR cable/plug when connecting units together.
•Accurate focusable optics system and ultra smooth stepping motors. Fan cooled.
•Pan : 540 deg. Tilt : 270 deg.
•Dimension : 290 x 330 x 380 mm
•Weight : 12 kg
Move Spot Independent gobo wheel with 14 gobos plus open and blackout, including 11
metal, 2 glass and 1 effect gobos with shaking and shutter effect, Independent
color wheel with 11 dichroic colors with rainbow effect.
Move Wash Independent color wheel with 11 dichroic colors with rainbow effect and
independent shutter & dimmer.
2.1 Beam Angle
5J
3. Lamp
Lamp :
HID 150W
ELC 24V 250W
1.Always switch off the main supply and never handle the lamp or luminaries when is
hot.
2.Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
3.Never operate the lamp without appropriate shielding.
4.Make sure the lamp is located in the center for the best spot.
Diagram for Lamp changing
In case of replacement of the lamp or maintenance, do not open the fixture
within 15 minutes until the unit cools down after switching off.

6J
HID 150W Lamp Installation Or Replacement
•Always switch power off before installing or replacing the lamp. Never try to replace the
lamp when it is hot.
•Do not touch the bulb with bare hands. Cleaning the lamp with denatured alcohol and wipe
with a lint free cloth when lamp is dirty.
1. Loose the screw on the housing cover.
2. Loose the screws of the lamp wire from terminator
3.Remove the old lamp from the fixture.
4. Please be care to install the lamp into case, make sure it wedge tightly that it
can not move easily. WARNING: impropriety install will cause the lamp
lifespan shorten and maybe explosion during operation.
5. Connect the lamp wire to the terminator as before.
6.Please reinstall step 2 and step 1.
7J
4. How To Set The Unit
4.1 Control Panel
Display
To show the various menus and the selected functions.
LED
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
Button
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Remote controller input
By connect to the 1/4” microphone jack to control the unit for stand by, function and mode
Sensitivity
To adjust the sound sensitivity.
Microphone
To receive audio signal for sound activation.
DMX input/output
For DMX512 link, use 3-pin XLR plug cable to link the unit together.

8J

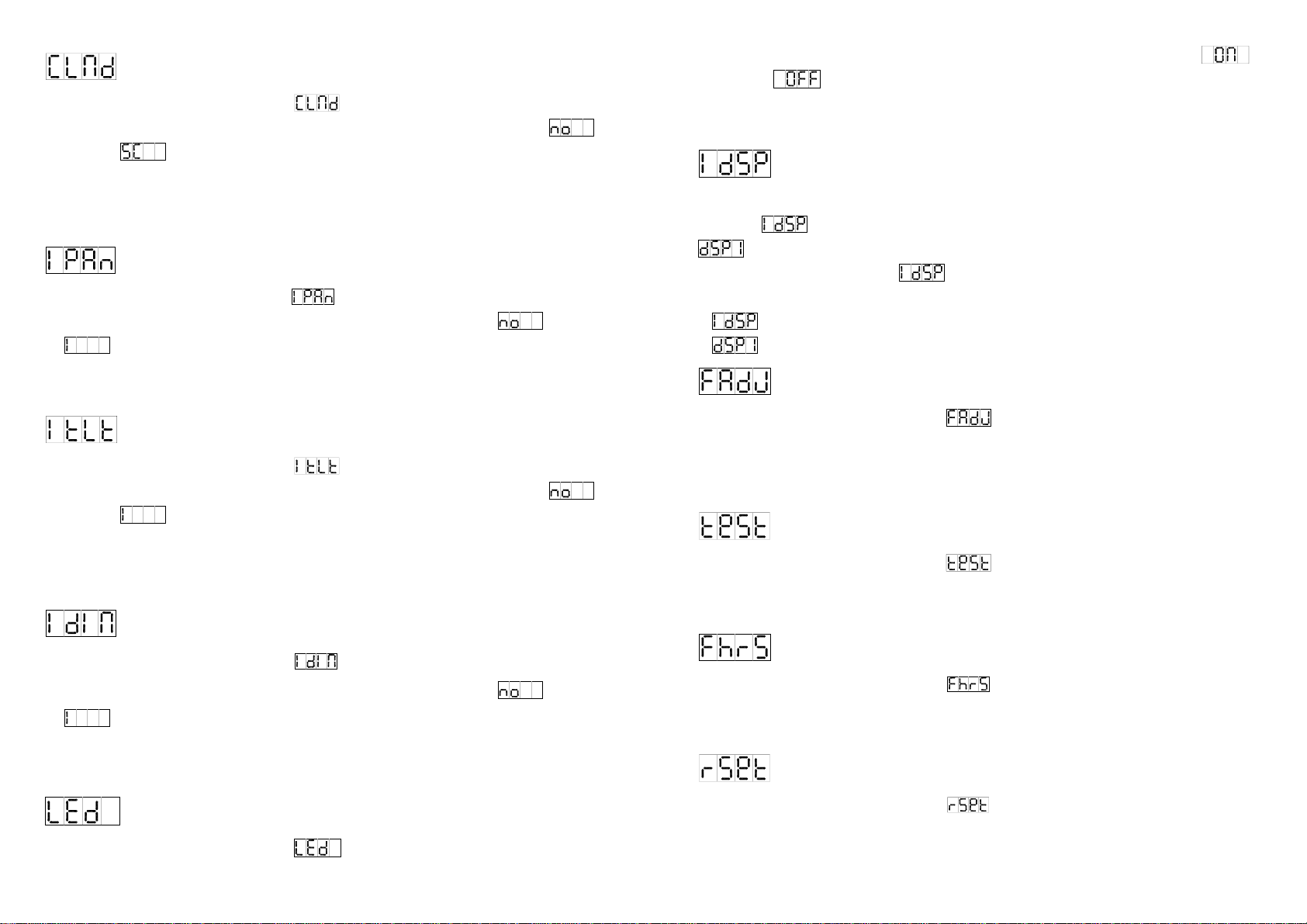

4.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup or it will automatically return to the main functions without
any change after idling 8 seconds. To go back to the functions without any change press the
MENU button. The main functions are showing below:
MENU
Focus Adjust
Self-Test
Reset
Fixture Hours
Display Inversion
Display Normal
Tilt Inversion
Tilt Normal
Pan Inversion
Pan Normal
Split Color
Normal Color
Show mode 4
Show mode 3
DMX512 Address Setting
Blackout Mode " No Blackout "
Blackout Mode " Yes Blackout "
Slave Mode " Normal "
Slave mode " 2 Light Show "
Show mode 1
Show mode 2
LED off
LED on
Dimmer Normal
Dimmer Inversion
DMX 512 Address Setting
Press the MENU button up to when the is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press the ENTER button to setup or automatically
return to the main functions without any change after 8 seconds. To go back to the functions
without any change press the MENU button again.
9J
Show Mode
Press the MENU button up to when the is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to select the (show 1)
or (show 2) or (show 3) or (show 4) mode. Once the mode has
been selected, press the ENTER button to setup or automatically return to the main
functions without any change after 8 seconds. To go back to the functions without any
change press the MENU button again.
Show 1 mode - Fixture is placed on the floor. Tilt movement angle 210°.
Show 2 mode - Fixture is fixed under ceiling. Tilt movement angle 90°.
Show 3 mode - Fixture is placed on the speaker, The spot is always projecting
to the audience’s direction; i.e in front of the stage. Pan
movement angle ( left to right to left ): 160°. Tilt movement
angle: 90° ( 60° above horizon; 30° below horizon.)
Show 4 mode - Fixture is fixed under ceiling. The spot is mainly projecting in
front of the stage. Pan movement angle ( left to right to
left ) :160°. Tilt movement angle: 90° ( vertically, front 75°;
back 15° )
Slave Mode
Press the MENU button up to when the is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the
(normal) or (2 light show) mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change
after 8 seconds. To go back to the functions without any change press the MENU button
again.
Blackout Mode
Press the MENU button up to when the is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to select the
(yes blackout) or (no blackout) mode. Once the mode has been selected, press
the ENTER button to setup or automatically return to the main functions without any change
after 8 seconds. To go back to the functions without any change press the MENU button
again.
