ACME Stage Panel 1080 User manual

User Manual
Please read the instruc on carefully before use
LP-1080

CONTENTS
1. Safety Instruction.............................................................................................................................2
2. Technical Specification....................................................................................................................3
3. How To Set The Unit .......................................................................................................................4
3.1 Control panel..............................................................................................................................4
3.2 Main Function............................................................................................................................5
4. How To Control The Unit..............................................................................................................10
4.1 Master/Slave Function.............................................................................................................10
4.2 DMX Controller.......................................................................................................................10
5. DMX512 Configuration.................................................................................................................11
6. DMX512 Connection.....................................................................................................................13
7. Troubleshooting .............................................................................................................................14
8. Fixture Cleaning.............................................................................................................................15
1C

1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this.
Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its
operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In the event of serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type spare
parts.
DO NOT touch any wire during operation as high voltage might be causing electric shock.
Please read carefully this instruction, which includes important
information about the installation, usage and maintenance.
2C

Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs
yourself. In the unlikely event your unit may require service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
The equipment must be fixed by the professionals. And it must be fixed at a place where is out of
the touch of people and has no one pass by or under it.
2. Technical Specification
- DMX Control: 1/3/4/4/4/4/6 Channels Mode
- Smooth 0~100% dimming and variable strobe speeds
- Three Operation Modes: DMX, Master/Slave, Sound Active
- The DMX Address code can be set by the DMX tester CA-T
- Variable strobe effects
- Beam Angle: 135°
If using a 230V 50Hz power supply, DO NOT connect in series more than 3 units; use
another main supply for the next 3 fixtures.
If using a 120V 60Hz power supply, DO NOT connect in series more than 2 units; use
another main supply for the next 2 fixtures.
3C

Voltage
：
AC 100-240V, 50/60Hz
Power Consumption
：
247W
LED: 1080pcs SMD RGB(Tri-color) LEDs
Fuse: T 6.3A
Dimension
：
515 x 225 x 142mm
Weight
：
8.9Kgs
3. How To Set The Unit
3.1 Control panel
○

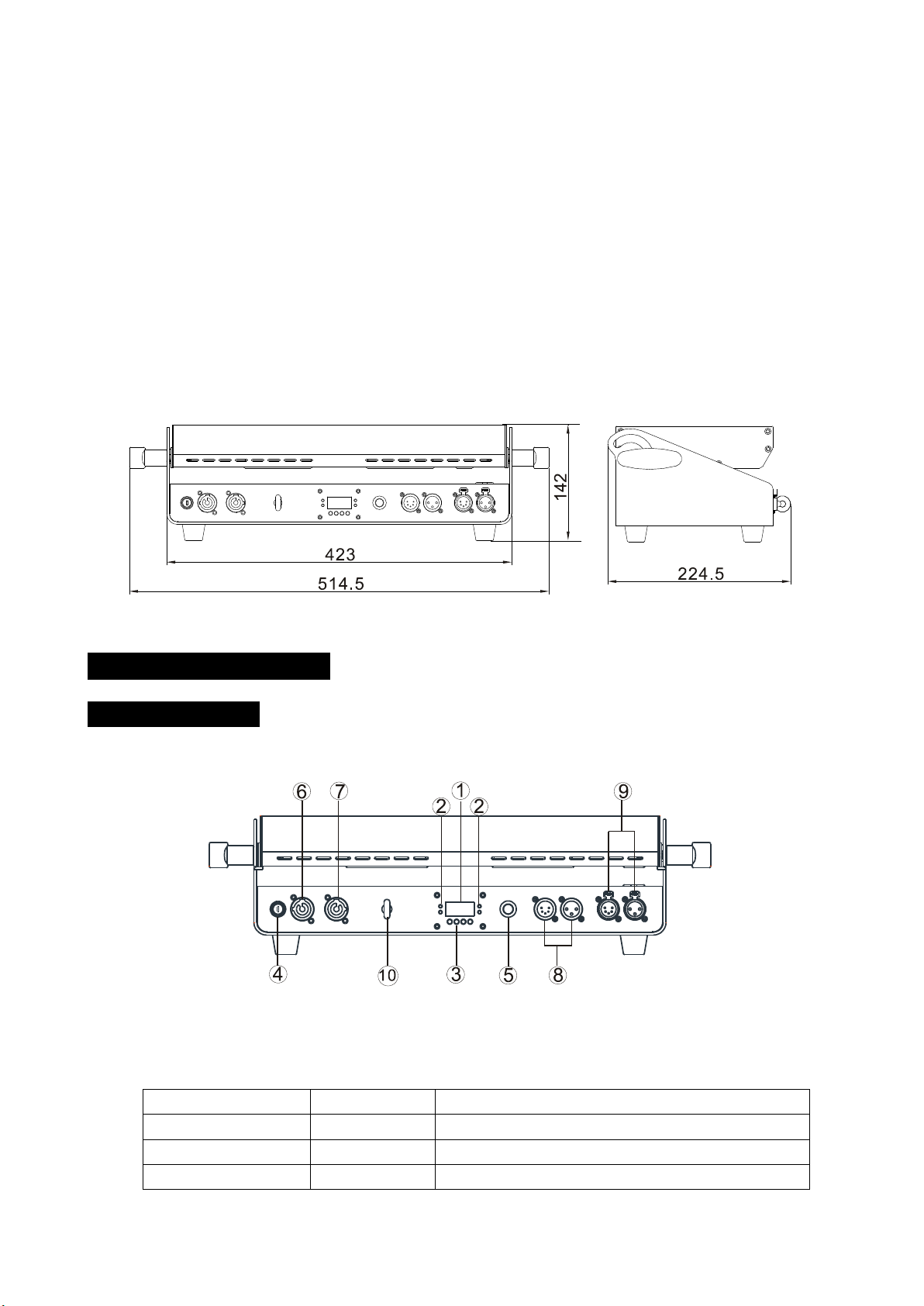

1E A Display: To show the various menus and the selected functions
A○ 2E A Indicator LED:
DMX
On
DMX input present
MASTER
On
Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
4C

A○ 3E A Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
A○ 4E A Fuse(T 6.3A): Protect the fixture from the damage of over-current.
A○ 5E A Microphone: To receive music for the sound active.
A○ 6E A Mains output: Connect to supply mains power for the next fixture.
A○ 7E A Mains input: Connect to supply mains power
A○ 8E A DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal
A○ 9E A DMX output: For DMX512 link, use 3/5-pin XLR plug cable to link the next fixture.
A○ 10EASafety Ring: Keep the installation safe.
3.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTERbutton and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute to exit the menu
mode.

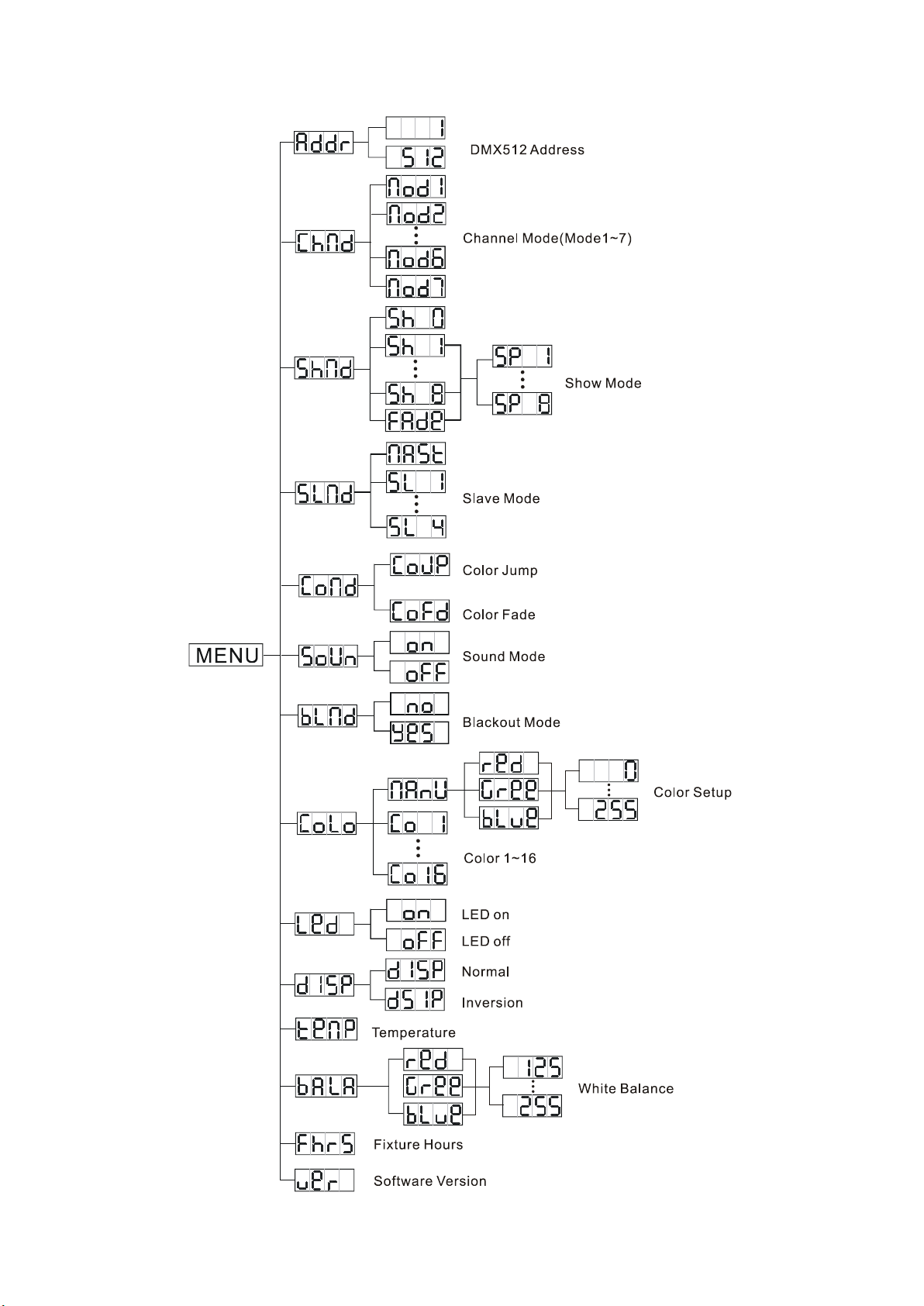

The main functions are showing below:
5C

6C

DMX 512 Address Setting
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to change the DMX 512Address. Once
the address has been selected, press the ENTER button to setup or automatically exit menu mode
without any change after 8 seconds. Back to the previous functions without any change press the
MENU button.
Channel Mode
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select (mode 1) or
(mode 2)… (mode 7), Once the mode has been selected, press theENTER button to setup or
automatically exit menu mode without any change after 8 seconds. Back to the previous functions
without any change press the MENU button.
Show Mode
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select (show 0), (show
1)… (show 8) or (Fade). Press either ...or , , you can adjust the
speed from (the slowest) to (the fastest). Once the mode has been selected, press the
ENTER button to setup or automatically exit menu mode without any change after 8 seconds. Back
to the previous functions without any change press the MENU button.
Slave Mode
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select (master), (slave
1) …or (slave 4). Once the mode has been selected, press the ENTER button to setup or
automatically exit menu mode without any change after 8 seconds. Back to the previous functions
without any change press the MENU button.
7C

Color Mode
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select (Color Jump) or
(Color Fade). Once selected, press the ENTER button to setup or automatically exit menu mode
without any change after 8 seconds. Back to the previous functions without any change press the
MENU button.
Sound Mode
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select or . Once the
mode has been selected, press the ENTER button to setup or automatically exit menu mode
without any change after 8 seconds. Back to the previous functions without any change press the
MENU button.
Blackout Mode
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select (black out) or
(normal). Once selected, press the ENTER button to setup or automatically exit menu mode
without any change after 8 seconds. Back to the previous functions without any change press the
MENU button.
Color Setup
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select , (color
1)… (color 16), when you have selected the button and press the ENTER button,
you can use the DOWN and the UP button select the (red), (green), (blue)
and you can adjust the intensity from to . Back to the previous functions without any
change press the MENU button.
8C

LED Display
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select (LED on) or
(LED off). Once selected, press the ENTER button to setup or automatically exit menu mode
without any change after 8 seconds. Back to the previous functions without any change press the
MENU button.
Display Inverse
Press the MENU button up until is shown on the display. Use the ENTER button to select
(normal) or (inverse). Back to the previous functions without any change press the
MENU button.
Temperature
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the unit will show the temperature. Back to the previous functions without any change press the
MENU button.
White Balance
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will blink. Use the DOWN and the UP button to select , or .
Once selected, press the ENTER button to adjust the value (125~255), or automatically exit menu
mode without any change after 8 seconds. Back to the previous functions without any change press
the MENU button.
Fixture Hours
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will show the number of working hours of the unit. Back to the previous functions
without any change press the MENU button.
9C

Software Version
Press the MENU button up until is shown on the display. Pressing the ENTER button and
the display will show the version of software of the unit. Back to the previous functions without
any change press the MENU button.
4. How To Control The Unit
You can operate the unit in two ways:
1. By master/slave function
2. By DMX controller
No need to turn the fixture off when you change the DMX address, as new DMX address setting
will be affected at once. Each time when you turn the fixture on, it will show “” on the
display.After that the fixture will be ready to receive DMX signal or run the built in programs.
4.1 Master/Slave Function
By linking the fixtures in master/slave connection, the first fixture will be master automatically.
You should set the master fixture effect via its knobs, then the other fixtures (slave) will lighting as
the same.
4.2 DMX Controller
An universal DMX controller to control the fixtures, you have to set DMX address from 1 to 512
channel so that the fixtures can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to change the DMX512 address. Once the
address has been selected, press and keep ENTER button pressed up to when the display stops
blinking or storing automatically 30 seconds later. To go back to the functions without any change
press the MENU button again.
10C

If you use please refer to the following diagram to address your DMX512 channel for the first 4
fixtures.
5. DMX512 Configuration
Mode1/2/3/4:
11C

Mode 5/6/7:
12C
Ch6
Strobe
0
000-007
182-189
008-015
016-131
Ch1 Ch2 Ch3
Mode 5
Ch4 Ch5
Red Green Blue Dimmer Colour
000-007 Open
070-077 Colour9
062-069 Colour8
055-061 Colour7
047-054 Colour6
039-046 Colour5
031-038 Colour4
024-030 Colour3
016-023 Colour2
008-015 Colour1
248-255 Colour32
240-247 Colour31
232-239 Colour30
224-231 Colour29
217-223 Colour28
209-216 Colour27
201-208 Colour26
194-200 Colour25
186-193 Colour24
178-185 Colour23
170-177 Colour22
163-169 Colour21
155-162 Colour20
147-154 Colour19
140-146 Colour18
132-139 Colour17
124-131 Colour16
116-123 Colour15
109-115 Colour14
101-108 Colour13
093-100 Colour12
085-092 Colour11
078-084 Colour10
0
255
0%
100%
0
255
0%
100%
0
255
0%
100%
0
255
0%
100%
Open
Off
Ch1 Ch3
Mode 6 Mode 7
Ch1
Red
Ch2
Green Blue Colour
000-015 Blackout
016-031 Red
032-047 Yellow(Red+Green)
048-063 Green
127 Marco
064-079 Cyan(Green+Blue)
080-095 Blue
+ Blue )
096-111 Magenta ( Red + Blue )
112-127 White ( Red + Green
128-191 Marco
preset colors from slow to fast
192-255 Fade
preset colors from slow to fast
0
255
0%
100%
0
255
0%
100%
0
255
0%
100%

6. DMX512 Connection
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
3
2
DMX -
1
COMMON
DMX +
31
2
DMX INPUT DMX OUTPUT
23
1
Termination reduces signal errors and to avoid signal
transmission problems and interference. It is always
advisable to connect a DMX terminal.
(Resistance 120 ohm 1/4W)between pin2(DMX-)and
pin3(DMX+) of the last fixture.
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the
fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the
signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one
of the fixtures’power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin
XLR-plug and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/5: not used
13C

7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
D. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
14C

8. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or particularly
dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning liquid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60
days.
15C

16C

17C

Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 +A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 +All:2009; EN 60598-2-17:1989 +A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
18C

Innovation, Quality, Performance
