ADF Web HD67604-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 1 of 33
User Manual
Revision 1.001
English
PROFINET / PROFIBUS Master - Converter
(Order Code: HD67604-A1)
for Website information:
www.adfweb.com/? roduct=HD67604
for rice information:
www.adfweb.com/? rice=HD67604-A1
Benefits and Main Features:
Very easy to configure
ROFIBUS up to 6Mbps
Two ROFINET ports
Industrial temperature range:
-40°C / +85°C (-40°F / +185°F)
For others ROFIBUS devices, see also the following links:
PROFIBUS Master from/to …
www.adfweb.com? roduct=HD67570 (… eviceNet Slave)
www.adfweb.com? roduct=HD67575 (… Ethernet)
www.adfweb.com? roduct=HD67577 (… CAN)
www.adfweb.com? roduct=HD67579 (… Modbus TCP Slave)
www.adfweb.com? roduct=HD67580 (… Modbus Slave)
EtherNet/IP from/to …
www.adfweb.com? roduct=HD67077 (… M-Bus)
www.adfweb.com? roduct=HD67589 (… NMEA 2000)
www.adfweb.com? roduct=HD67590 (… Serial)
www.adfweb.com? roduct=HD67591 (… Modbus Master)
www.adfweb.com? roduct=HD67592 (… Modbus Slave)
www.adfweb.com? roduct=HD67593 (… PROFIBUS Master)
www.adfweb.com? roduct=HD67594 (… PROFIBUS Slave)
www.adfweb.com? roduct=HD67595 (… CAN)
www.adfweb.com? roduct=HD67597 (… eviceNet Master)
www.adfweb.com? roduct=HD67598 (… eviceNet Slave)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 2 of 33
IN EX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ROFIBUS 10
ROFINET 10
USB 11
USE OF CONFIGURATOR SW67604 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SET COMMUNICATION 14
ROFIBUS NETWORK 15
MASTER ROFIBUS O TIONS 16
ROFIBUS DEVICE 17
- MODULE SELECTION 18
- USER ARAMETERS 20
- MODULE ARAMETERS 22
- CA ABILITIES 23
- O TIONS 24
U DATE DEVICE 25
MECHANICAL DIMENSIONS 27
ORDER CODE 28
ACCESSORIES 28
LC CONFIGURATION 29
DISCLAIMER 32
OTHER REGULATIONS AND STANDARDS 32
WARRANTIES AND TECHNICAL SU ORT 33
RETURN OLICY 33
RODUCTS AND RELATED DOCUMENTS 33
Pagina 2 di 33
UP ATE OCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated;
Related to the product you own.
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
To obtain the updated documentation for the product that you own, note
the “Document Code” (Abbreviated written "Doc. Code" on the label on
the product) and download the updated from our web site
www.adfweb.com/download/
REVISION LIST:
Revision ate Author Chapter escription
1.000 26/07/2012 Fl All First release version
1.001 09/01/2013 Nt All Added new chapters
WARNING:
ADFweb.com reserves the right to change information in this manual
about our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRA EMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 3 of 33
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for
each individual application, legal and safety regulation. The same applies also when using accessories.
I
NTEN E U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).
Q
UALIFIE P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who
have appropriate qualifications for their job.
R
ESI UAL R ISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated
by personnel untrained. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the
possibility of damage.
CE
CONFORMITY
The declaration is made by us. You can send an email to [e-mail] or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 4 of 33

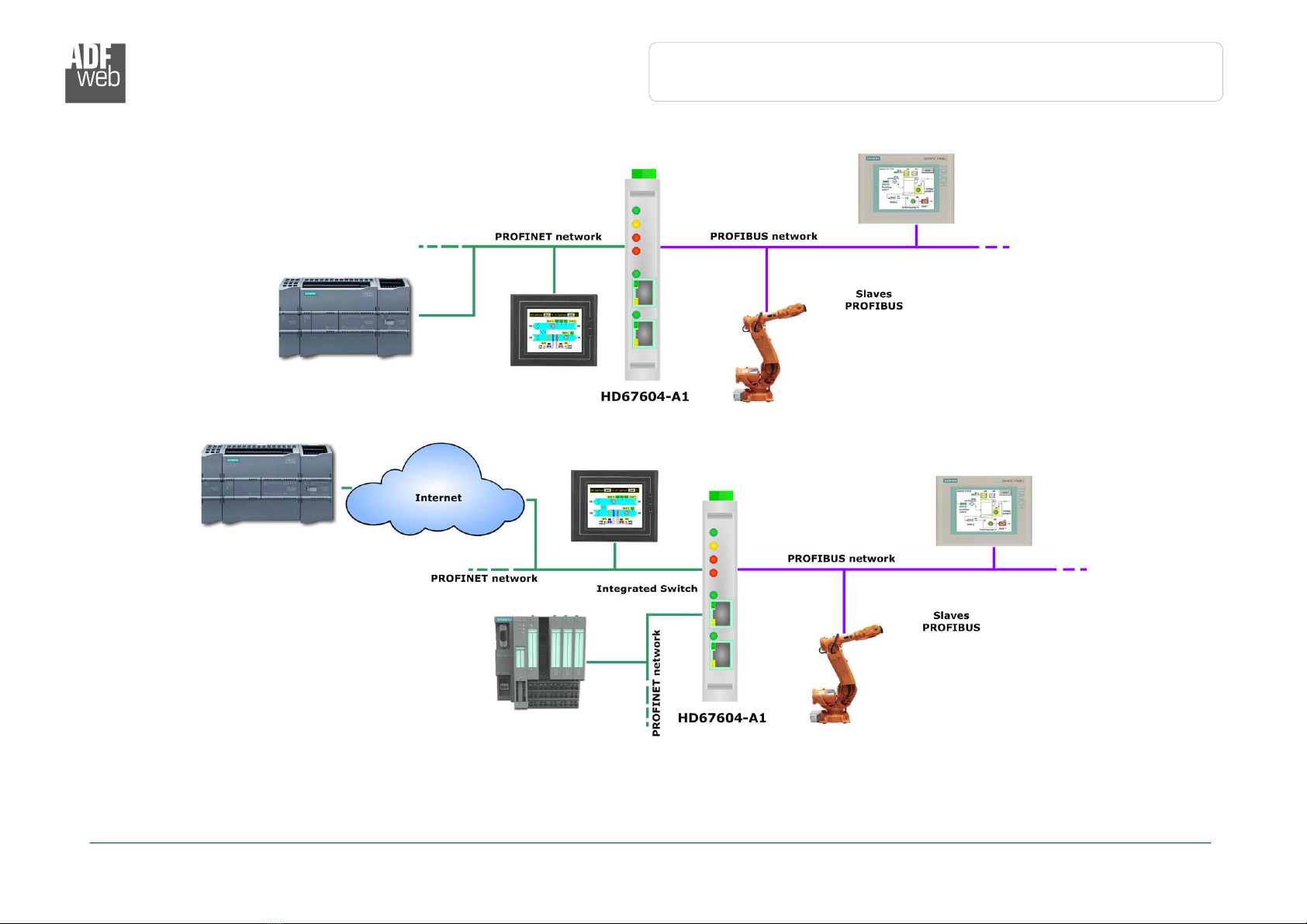

EXAMPLE OF CONNECTION:
Used with only one ROFINET connection.
Used like switch, it allows to connect a second device to the network, without using an external switch; or to connect the device to an Access
oint for connect them to a Wireless network (also internet).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 5 of 33
CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
604
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 6 of 33
CHARACTERISTICS:
The configurable “ ROFINET / ROFIBUS Master - Converter” allows the following characteristics:
Triple isolation between ROFINET/ ROFIBUS, ROFINET/ ower Supply, ROFIBUS/ ower Supply.
Mountable on 35mm Rail DIN;
ower Supply 8...24V AC or 12...35V DC;
Temperature range -40°C to +85°C;
Up to 1500 bytes from ROFINET to ROFIBUS (IN);
Up to 1500 bytes from ROFIBUS (OUT) to ROFINET;
Ethernet switch for enter/exit connection.
CONFIGURATION:
You need Compositor SW67604 software on your C in order to perform the following:
Define the parameter of the ROFIBUS;
Define the parameter of the ROFINET;
Define the ROFIBUS network.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 7 of 33
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
V C
Vmin Vmax Vmin Vmax
H 67604-A1 8V 24V 12V 35V
Consumption at 24V DC:
evice W/VA
HD67604-A1 4
Caution: Not reverse the polarity power
HD67
604
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 8 of 33
FUNCTION MO ES:
The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’:
The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip2 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position for working even if the Ethernet cable isn’t inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 9 of 33
LE S:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LE Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: MT [maintenance display]
(yellow)
ON: Device not able to communicate with at least one
ROFIBUS Slave
OFF: No maintenance are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BF [bus fault] (red)
ON: The Ethernet connection is defective; the I
address exists several times in the network; the own
NameOfStation exists several times in the network; no
I address has been set
Flashing: At least one configured AR is no longer in
the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: SF [group error] (red) ON: At least one AR is not in the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet1 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet2 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 10 of 33

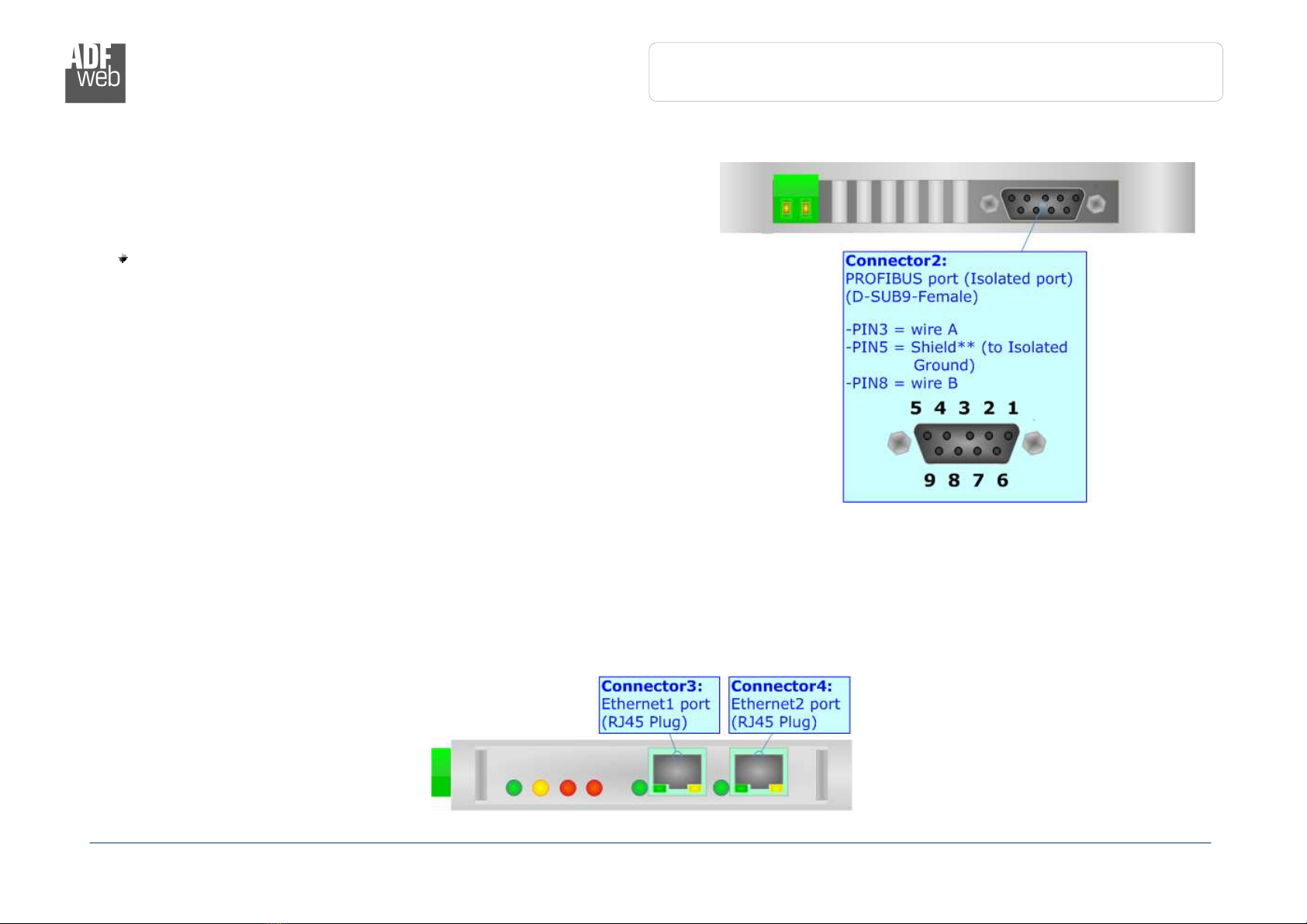

PROFIBUS:
The ROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/S -50
ROFIBUS Cable.
PROFINET:
The ROFINET connection must be made using Connector3 and/or Connector4 of HD67604-A1 with at least a Category 5E cable. The
maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is
recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 11 of 33

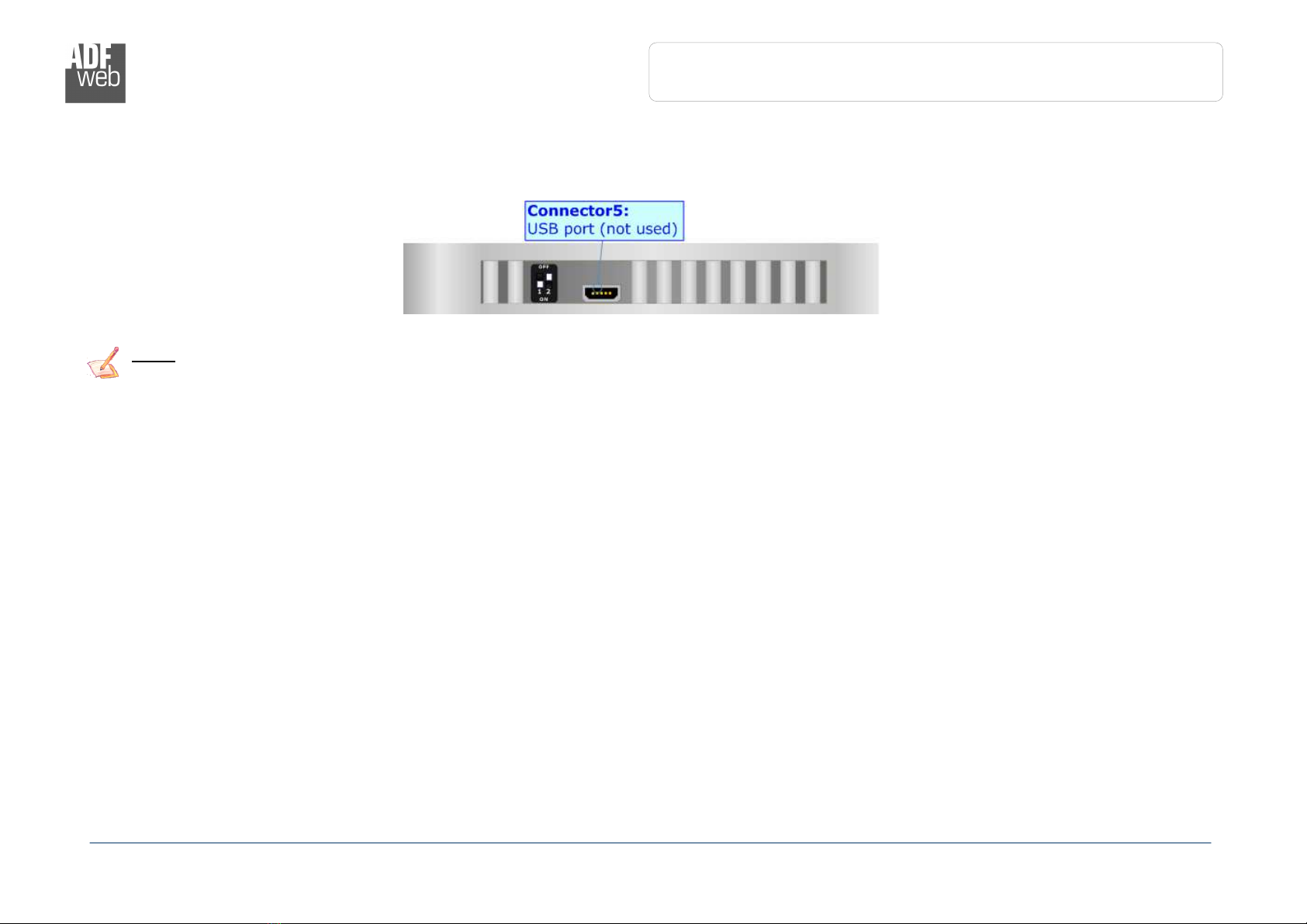

USB:
The USB connection, must be made with a USB cable with a USB Mini B plug.
Note:
The USB port is not used in this moment.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 12 of 33
USE OF CONFIGURATOR SW67604:
To configure the Converter, use the available software that runs with Windows, called SW67604. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (MS 2000, X , Vista, Seven, 8; 32/64bit).

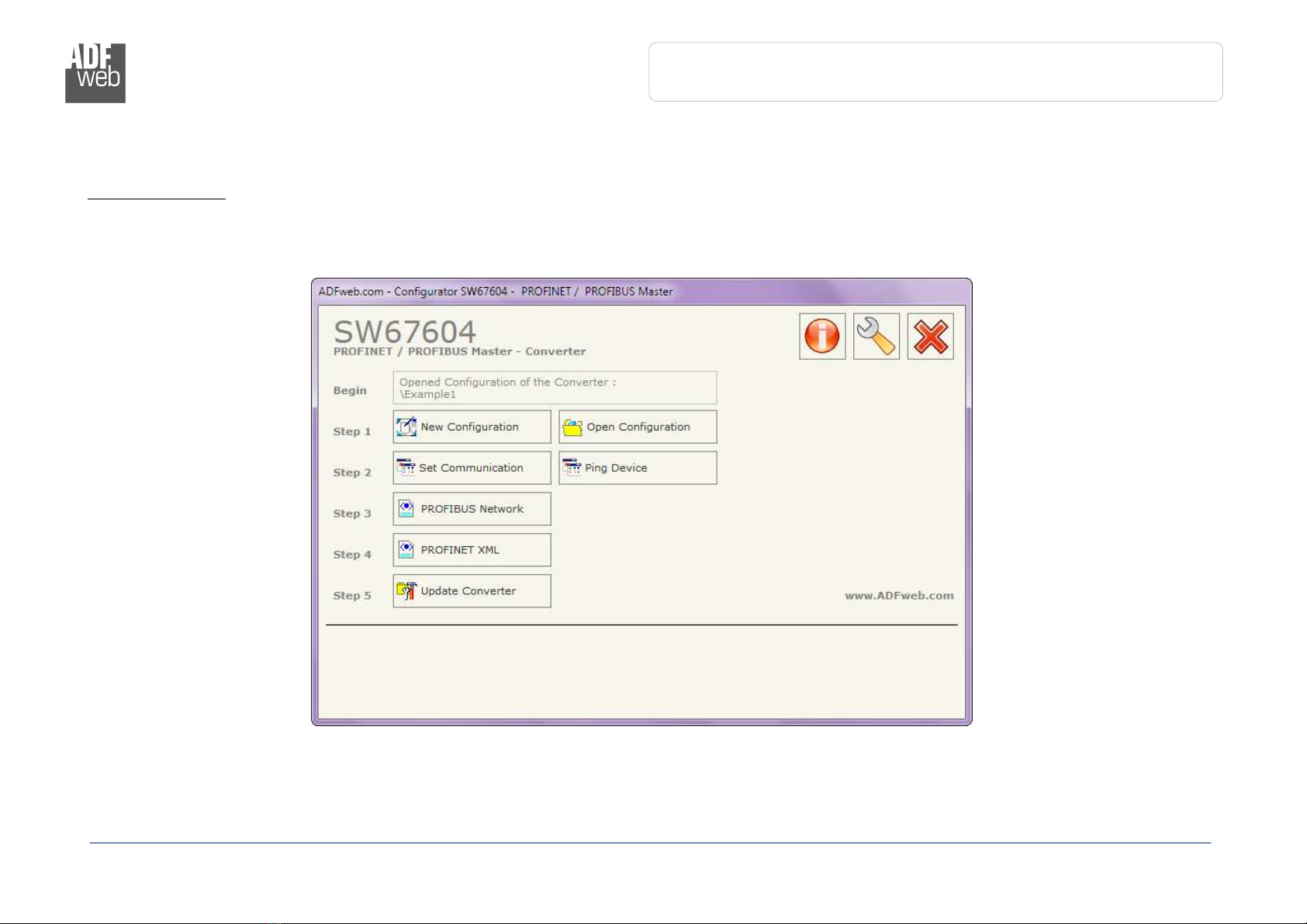

When launching the SW67604 this window appears (Fig. 2).
Figure 2: Main window for SW67604

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 13 of 33

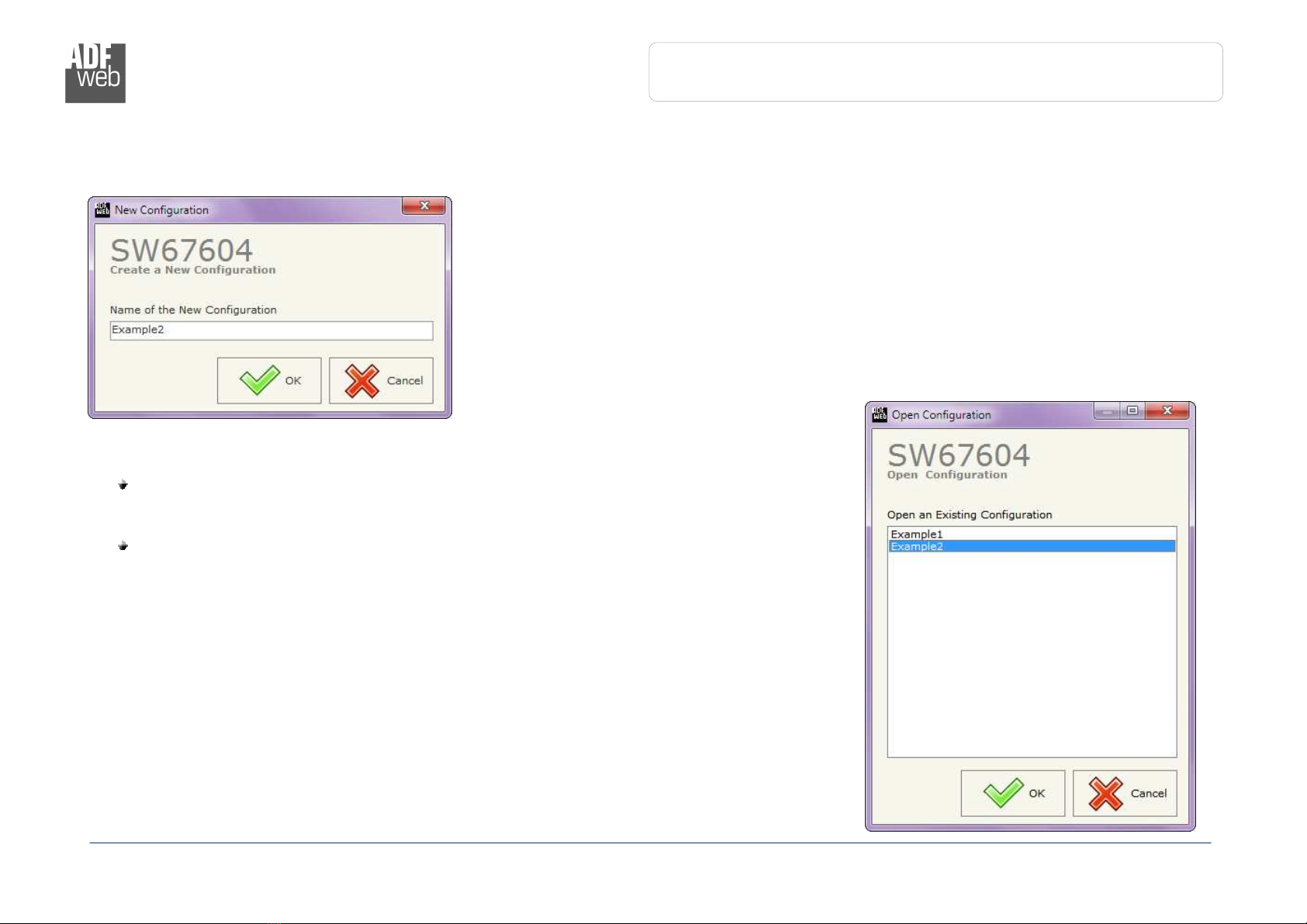

NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device configuration.
A device configuration can also be imported or exported:
To clone the configurations of a programmable “ ROFINET / ROFIBUS Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 14 of 33
SET COMMUNICATION:
This section defines the fundamental communication parameter of two buses, ROFIBUS and ROFINET.
By pressing the “Set Communication” button from the main window for SW67604 (Fig. 2) the window
“SET COMMUNICATION” appears (Fig. 3).
The window is divided in two sections, one for the ROFIBUS and the other for the ROFINET.
The means of the fields for “ ROFIBUS” are:
In the field “I ev.” the address of the ROFIBUS side is defined;
In the field “Baud rate” the baud rate for the ROFIBUS side is defined;
The means of the fields for “ ROFINET” are:
In the fields “IP” insert the I address that you want to give to the Converter;
In the fields “SUBNET Mask” insert the Subnet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for ROFINET communication is defined. The port has a fixed value
of 34964;
In the field "PROFINET Name of Station" is possible to assign a name to the ROFINET node.
Figure 3: “Set Communication”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 15 of 33
PROFIBUS NETWORK:
By pressing the “PROFIBUS Network” button from the main window for SW67604 (Fig. 2) the window “ ROFIBUS Network Management”
(Fig. 4) appears.
In this window is possible to:
Modify the ROFIBUS Master Options (“Master PROFIBUS Options”);
Add a ROFIBUS Slave in the Network of the Master (“Add Slave PROFIBUS”);
Modify a ROFIBUS Slave in the Network (“Modify Slave PROFIBUS”);
Remove a ROFIBUS Slave from the Network (“Remove Slave PROFIBUS”).
Figure 4: “ ROFIBUS Network” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 16 of 33
MASTER PROFIBUS OPTIONS:
By pressing the “Master PROFIBUS Options” button from the “ ROFIBUS Network” window (Fig. 4) the “ ROFIBUS Master Options”
window appears (Fig. 5).
In this window is possible to set the WatchDog Time for the ROFIBUS Slaves.
Note:
Fact1 and Fact2 could be write in decimal o hexadecimal (with prefix “0x” or “$”) and the values must between 1 and 255
Warning:
The WatchDog time must be between 200 and 650250 milliseconds.
Figure 5: “ ROFIBUS Master Options” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 17 of 33
PROFIBUS EVICE:
By pressing the “Add Slave PROFIBUS” and “Modify Slave PROFIBUS” button (or double click above an existent ROFIBUS Slave) from
the “ ROFIBUS Network” window (Fig. 4) the “ ROFIBUS Device” window appears (Fig. 6).
In this window is possible to:
Set the ROFIBUS Slave ID (“I Slave PROFIBUS”);
Select the Modules present
in the ROFIBUS Slave
from the Available Modules
in GSD file (“Module
Selection”);
Modify the User arameters
(if present) of the
ROFIBUS device (“User
Parameters”);
Modify the arameters (if
present) of the Module
Selected (“Module
Parameters”);
Watch Features and
Baudrate supported from
the ROFIBUS device
(“Capabilities”);
Select the Sync, Freeze
and Reset of Data Options
(“Options”).
Figure 6: “ ROFIBUS Device” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 18 of 33
M O ULE S ELECTION :
The section “Module Selection” is used to select
which Modules are present in the Slave (Fig. 7).
In this section is possible to:
Check the list of the Modules selected
(“Select Modules”) (Fig. 7, point (1)) and the
list of Modules Available in GSD file
(“Available Modules") (Fig. 7, point (7));
Add a Module from the list of GSD file (Fig. 7,
point (6));
Remove a Module from selected list (Fig. 7,
point (5));
Add all Modules present in the GSD file (Fig.
7, point (4));
Remove all Modules from selected list (Fig. 7,
point (3));
Insert a Module not present in the GSD file
(“Manual Module”) (Fig. 7 point (2)). For
more info see the section “Manual Module”
below;
Enable the read of configuration directly from
the ROFIBUS Slave (“Use module
configuration readed from device”) (Fig
7, point (8)). If this option is enable the
configuration of the modules is discorded and
the device read the correct configuration
directly to the ROFIBUS slave.
Figure 7: “ ROFIBUS Device – Module Selection”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 19 of 33
By pressing the “Manual Module” button from the “ ROFIBUS Device” window (Fig. 6) the “Add Module Manually” window appears (Fig. 8).
In this window is possible to add a Module manually, i.e. writing the configuration of the module (in hexadecimal).
The means of the fields are:
In the field “ escription of Module” a name of the Module is defined;
In the field “Insert the Configuration of Module (HEX)” the
configuration of the module is defined. The configuration must be write
in hexadecimal mode (without prefix “0x” o “$”).
To modify a Module inserted manually, is neccessary to do a double click on
the module to change in the “Select Module” list (Fig. 7, point (1)). It is
possible to change only the module inserted manually.
Note:
The Values inserted in the table must between 00 and FF Figure 8: “Add/Modify Module Manually” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual
PROFINET /
PROFIBUS
Master
-
Converter
Document code: MN67604_ENG Revision 1.001 age 20 of 33
U SER P ARAMETERS :
The section “User arameters” is used to modify the parameters of the ROFIBUS slave (Fig. 9).
In this section there are:
The List of all arameters available for the
ROFIBUS device (“User arameters”) (Fig.
9, point (1));
The Configuration of all parameters in RAW
(“ arameters in RAW (Hex)”) (Fig. 9,
point(2));
The “Use Parameter Inserted Manually”,
enable this option is possible to insert
manually the parameters of Device and also
of the Modules. Using the “Modify User
Parameters Manually” button is possible
to insert/modify the parametrization of the
device (and/or modules). For more info see
below. (Fig. 9, point(3));
The admited value for the selected
parameter. It is possible to select the value
desired and confirm it with the “Apply”
button. If no value appears in this table, the
“Min Value” and “Max Value” are the limit of
the parameter. (Fig. 9, point(4));
The “Apply” button is used to confirm the
new value of the parameter, the “ efault”
button is used to load the factory value for
the parameter. In “New Value” edit box it
is possible to set the new value. (Fig. 9,
point(5)).
Figure 9: “ ROFIBUS Device – User arameters” window
