ADF Web HD67086-IP-B2 MHz-0 Series User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 1 of 43
User Manual
Revision 1.100
English
M-Bus / M-Bus Wireless / BACnet
Slave - Converter
(Order Code: HD67086-I -B2-xxxMHz-0, HD67086-I -B2-xxxMHz-20,
HD67086-I -B2-xxxMHz-40, HD67086-I -B2-xxxMHz-80,HD67086-I -
B2-xxxMHz-160, HD67086-I -B2-xxxMHz-250)
(Order Code: HD67086-MST -B2-xxxMHz-0, HD67086-MST -B2-
xxxMHz-20, HD67086-MST -B2-xxxMHz-40, HD67086-MST -B2-
xxxMHz-80,HD67086-MST -B2-xxxMHz-160, HD67086-MST -B2-
xxxMHz-250)
For Website information:
www.adfweb.com? roduct=HD67086
For rice information:
www.adfweb.com? rice=HD67086-I -B2-xxxMHz-0
www.adfweb.com? rice=HD67086-I -B2-xxxMHz-20
www.adfweb.com? rice=HD67086-I -B2-xxxMHz-40
www.adfweb.com? rice=HD67086-I -B2-xxxMHz-80
www.adfweb.com? rice=HD67086-I -B2-xxxMHz-160
www.adfweb.com? rice=HD67086-I -B2-xxxMHz-250
www.adfweb.com? rice=HD67086-MST -B2-xxxMHz-0
www.adfweb.com? rice=HD67086-MST -B2-xxxMHz-20
www.adfweb.com? rice=HD67086-MST -B2-xxxMHz-40
www.adfweb.com? rice=HD67086-MST -B2-xxxMHz-80
www.adfweb.com? rice=HD67086-MST -B2-xxxMHz-160
www.adfweb.com? rice=HD67086-MST -B2-xxxMHz-250
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others M-Bus products see also the following link:
Converter M-Bus Wireless to
www.adfweb.com? roduct=HD67082 (Modbus Slave)
www.adfweb.com? roduct=HD67084 (Ethernet)
Converter M-Bus to
www.adfweb.com? roduct=HD67021 (RS2 2)
www.adfweb.com? roduct=HD67022 (RS485)
Analyzer / Scanner /Sniffer M-Bus
www.adfweb.com? roduct=HD67031
Isolator/Repeater M-Bus
www.adfweb.com? roduct=HD67032M
Gateway M-Bus / Modbus RTU
www.adfweb.com? roduct=HD67029M-232 (on RS2 2)
www.adfweb.com? roduct=HD67029M-485 (on RS485)
Gateway M-Bus / Modbus TCP
www.adfweb.com? roduct=HD67044
Gateway M-Bus / PROFIBUS
www.adfweb.com? roduct=HD67053M
Gateway M-Bus Concentrator
www.adfweb.com? roduct=HD67054M
Gateway M-Bus Slave / Modbus RTU master
www.adfweb.com? roduct=HD67059M-232
Do you have an your customer protocol?
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 2 of 43
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 9
CONFIGURATION 9
OWER SU LY 10
FUNCTION MODES 11
LEDS 12
ETHERNET 13
RS485 14
WM-BUS 15
M-BUS 15
USE OF COM OSITOR SW67086 16

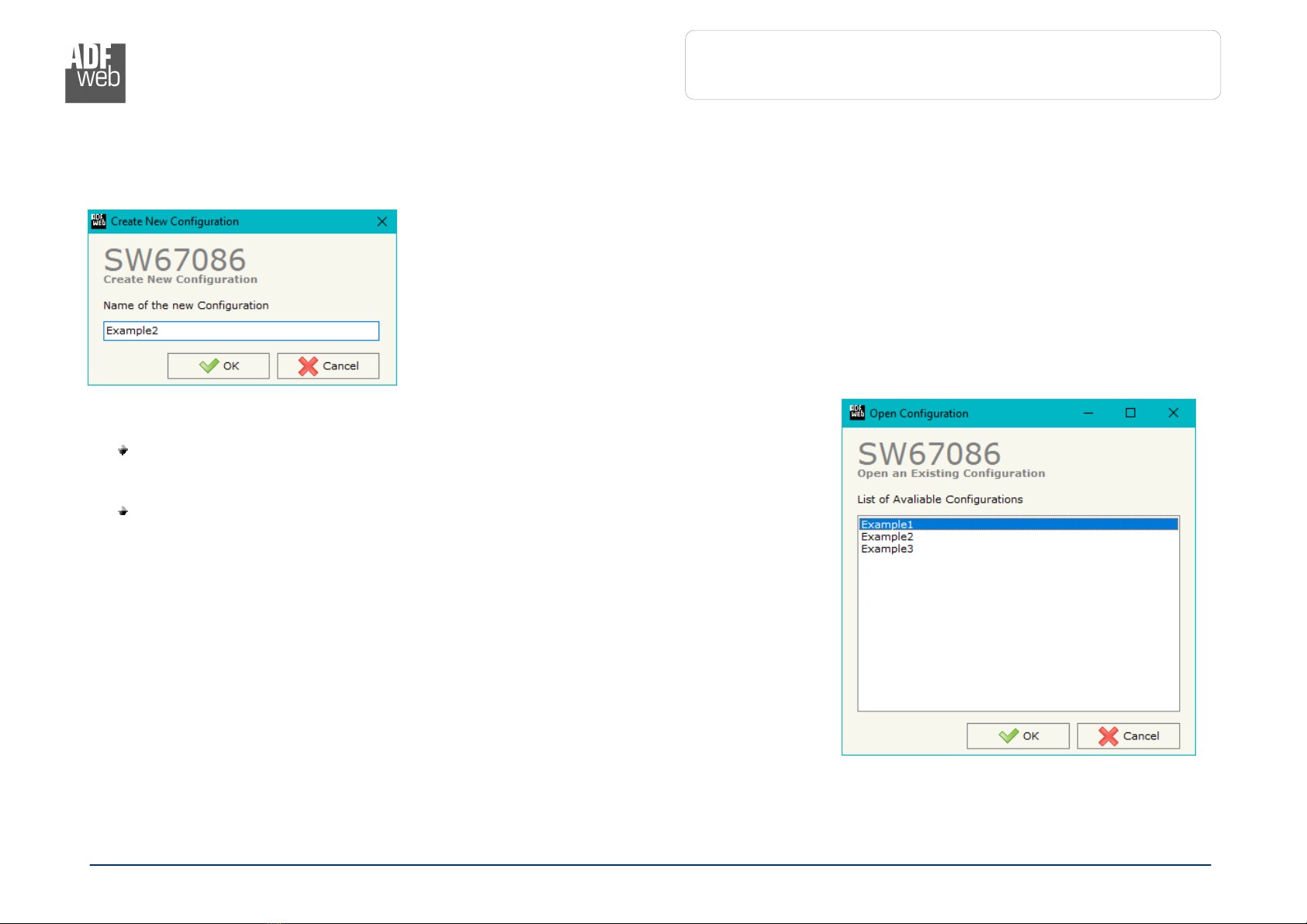

NEW CONFIGURATION / O EN CONFIGURATION 17

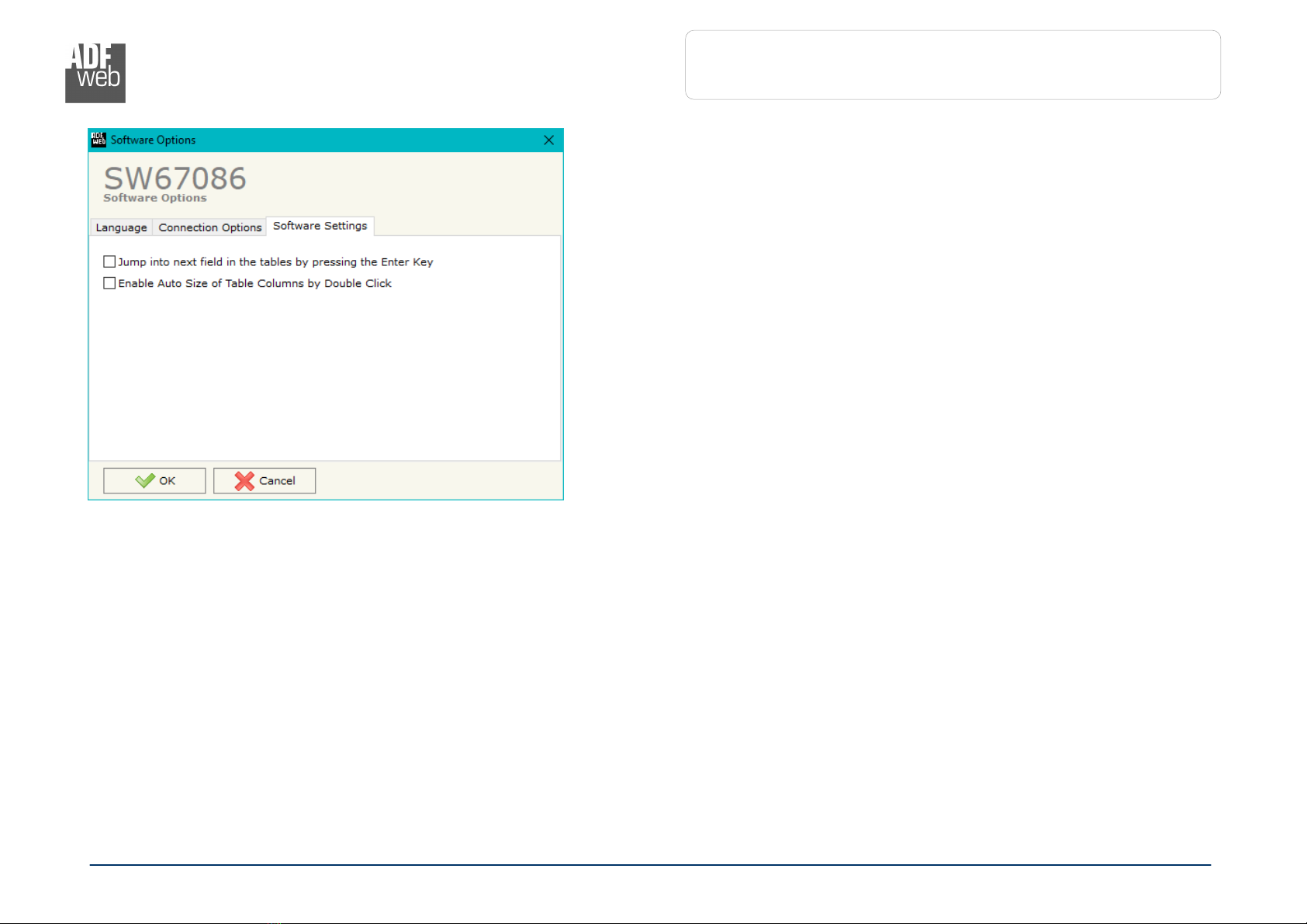

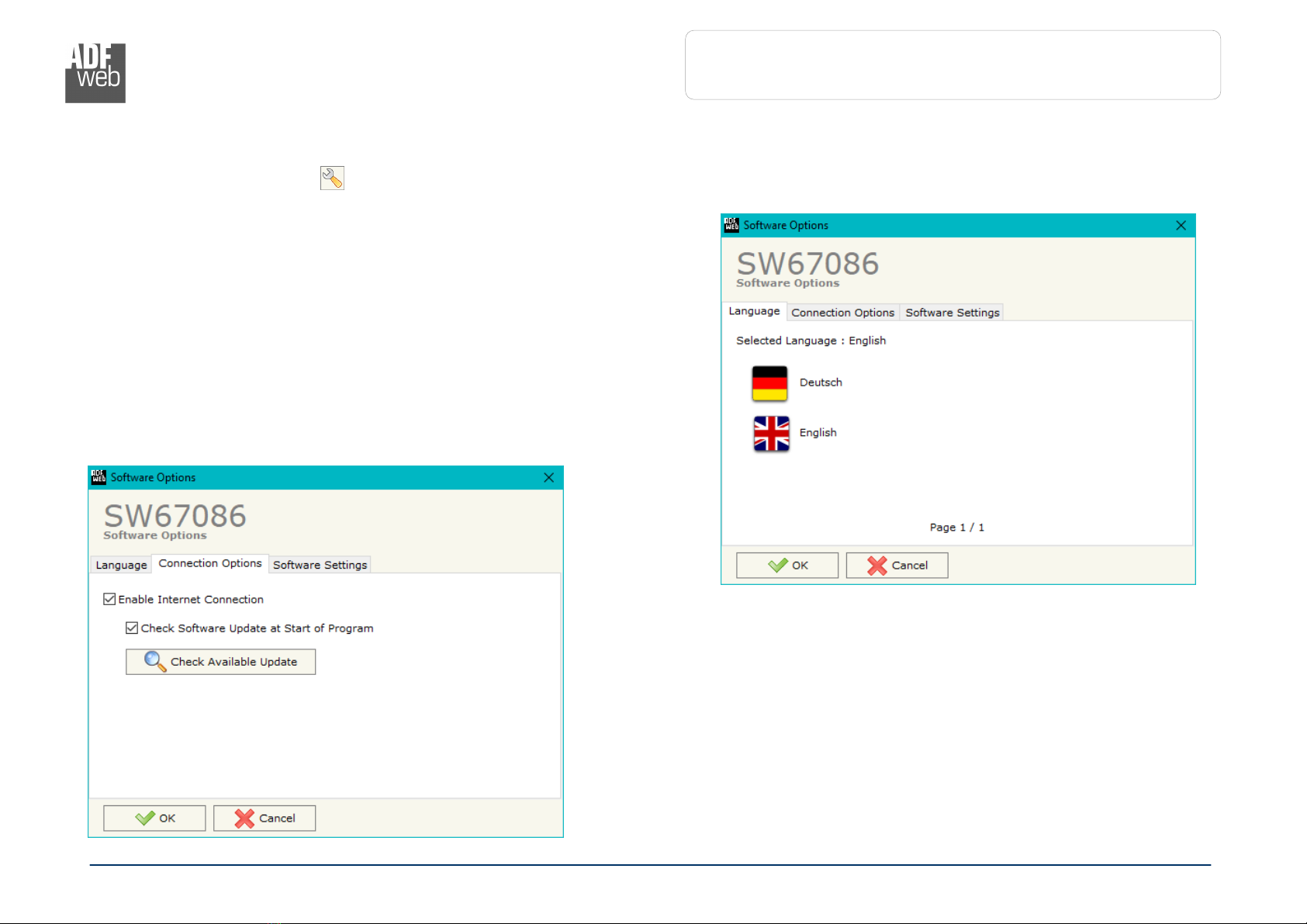

SOFTWARE O TIONS 18
SET COMMUNICATION 20
M-BUS 22
BACNET EDE FILE 35
U DATE DEVICE 36
SCAN & DECODE FUNCTION 38
MECHANICAL DIMENSIONS 39
ORDERING INFORMATIONS 40
ACCESSORIES 41
DISCLAIMER 42
OTHER REGULATIONS AND STANDARDS 42
WARRANTIES AND TECHNICAL SU ORT 43
RETURN OLICY 43
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you
that you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document
code” that appears at the top right-hand corner of each page of this
document.
With this “Document Code” go to web page
www.adfweb.com/download/ and search for the corresponding code on
the page. Click on the proper “Document Code” and download the
updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual
about our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 02/06/2016 Fl All First Release
1.100 19/01/2018 Ff All New hardware version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 3 of 43
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 4 of 43
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 5 of 43
CONNECTION SCHEME:

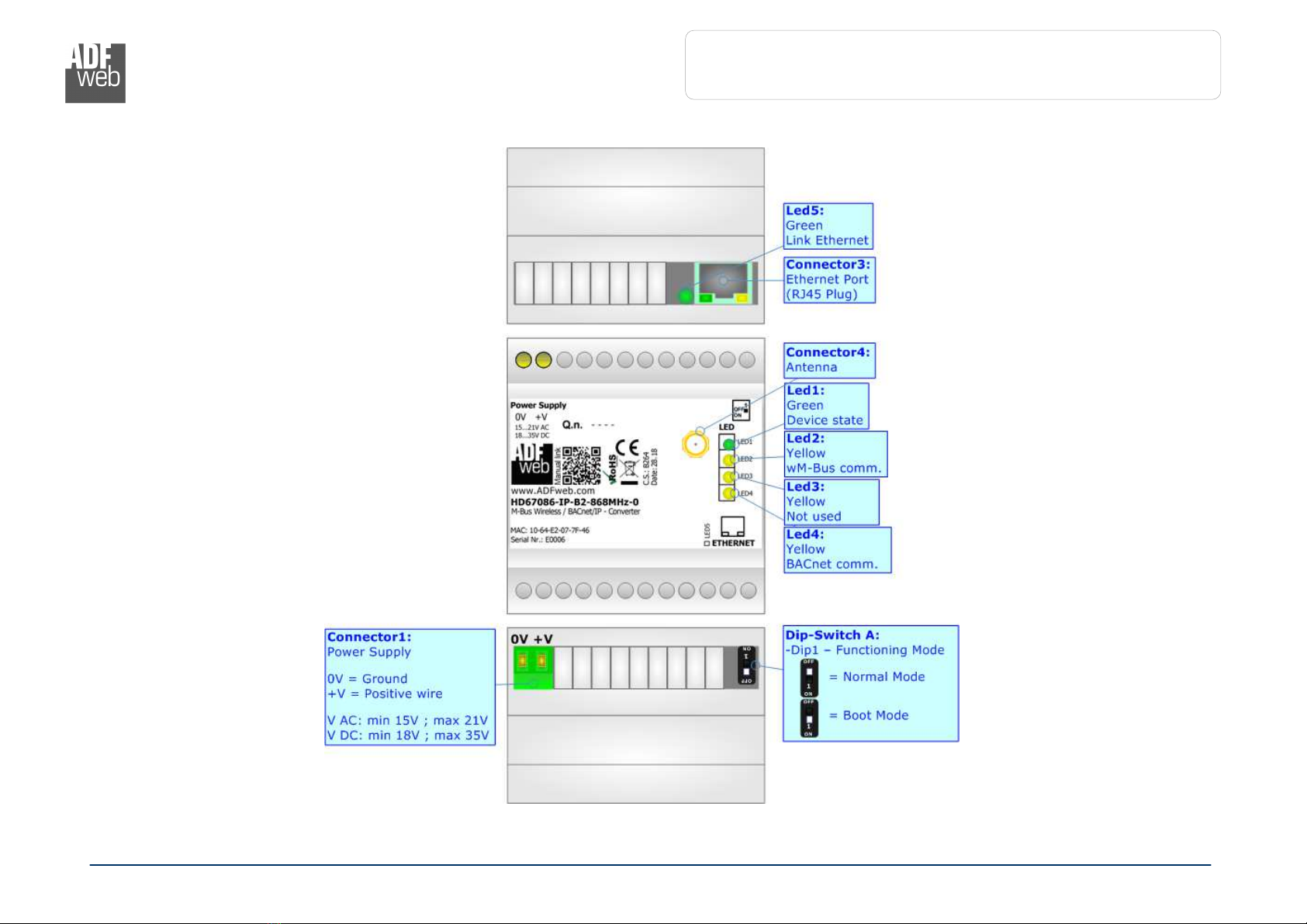

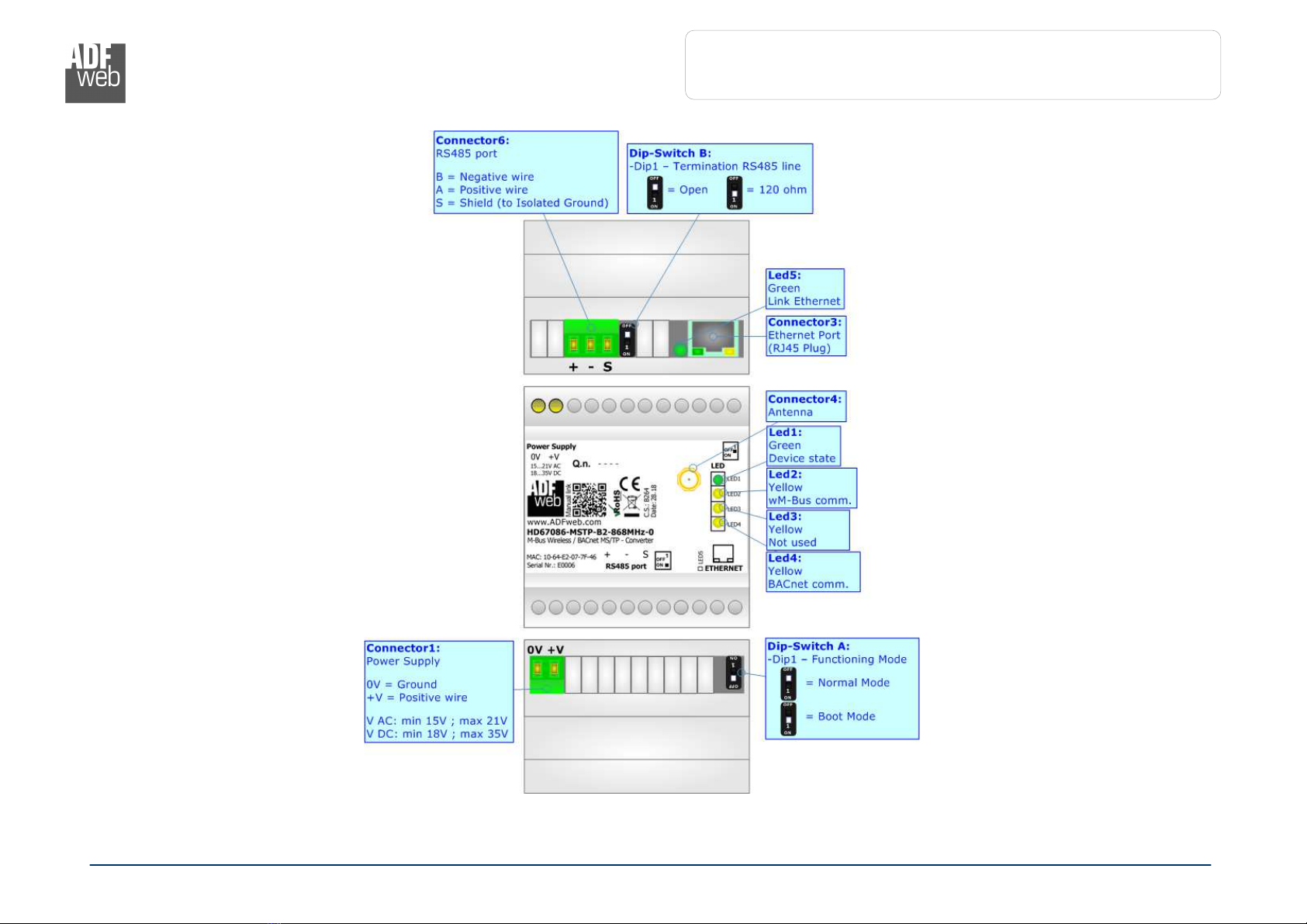

Figure 1a: Connection scheme for HD67086 IP B2 xxxMHz 0

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 6 of 43

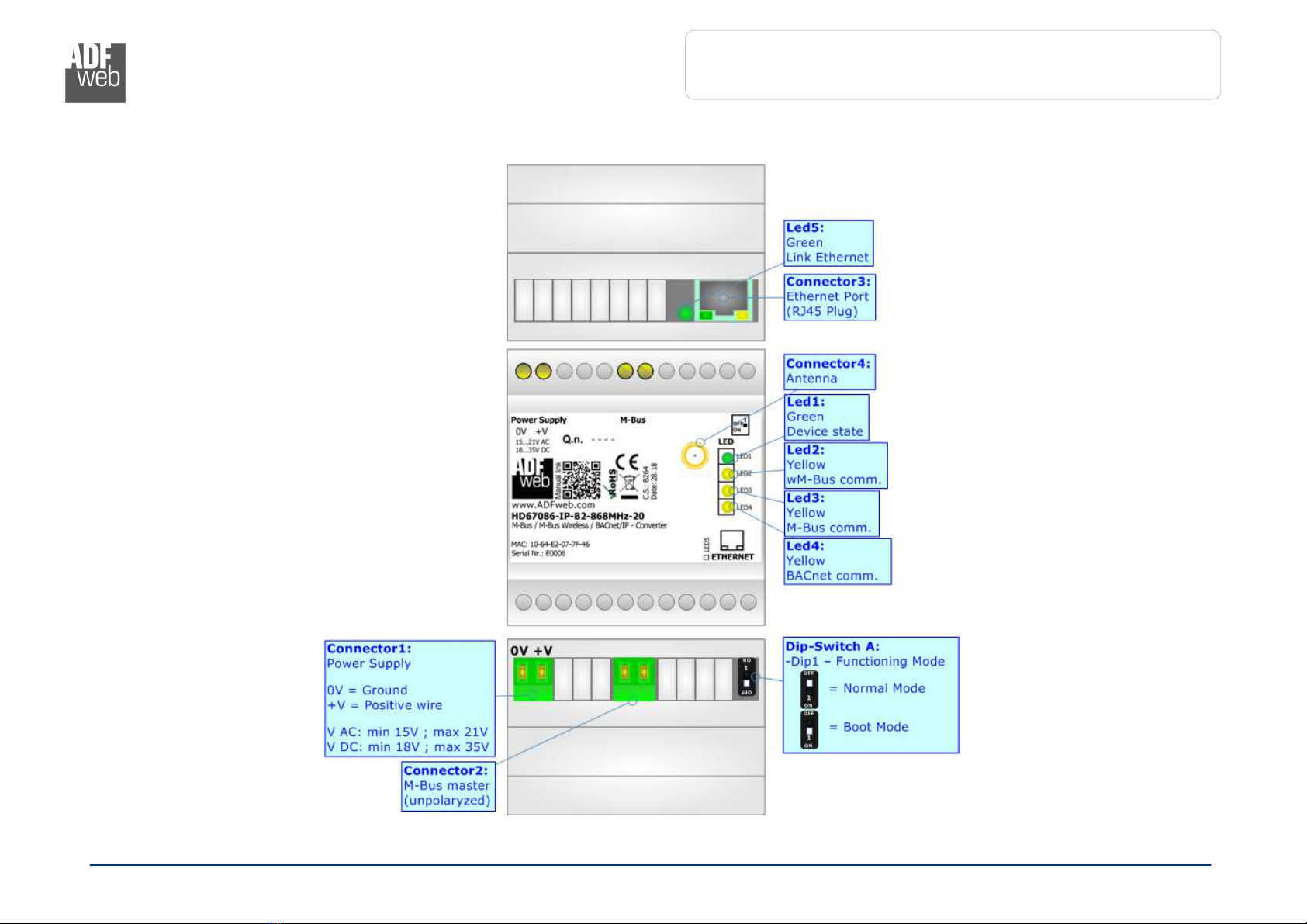

Figure 1b: Connection scheme for HD67086 IP B2 xxxMHz xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 7 of 43
Figure 1c: Connection scheme for HD67086 MSTP B2 xxxMHz 0

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 8 of 43
Figure 1d: Connection scheme for HD67086 MSTP B2 xxxMHz xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 9 of 43
CHARACTERISTICS:
The HD67086 are converters from M-Bus Wireless and M-Bus to BACnet Slave.
They allows the following characteristics:
Electrical isolation between Ethernet and M-Bus;
Baud Rate and arity (for M-Bus on wire) changeable with software;
Available wM-Bus frequency: 169 MHz or 433 MHz or 868 MHz (in relation to the order code);
Mountable on 35mm Rail DIN;
Wide power supply input range: 15…21V AC or 18…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67086 software on your C in order to perform the following:
Define the parameter of BACnet;
Define the parameter of M-Bus line;
Define the parameter of wM-Bus line;
Define which M-Bus variables are readable on BACnet;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 10 of 43
POWER SUPPLY:

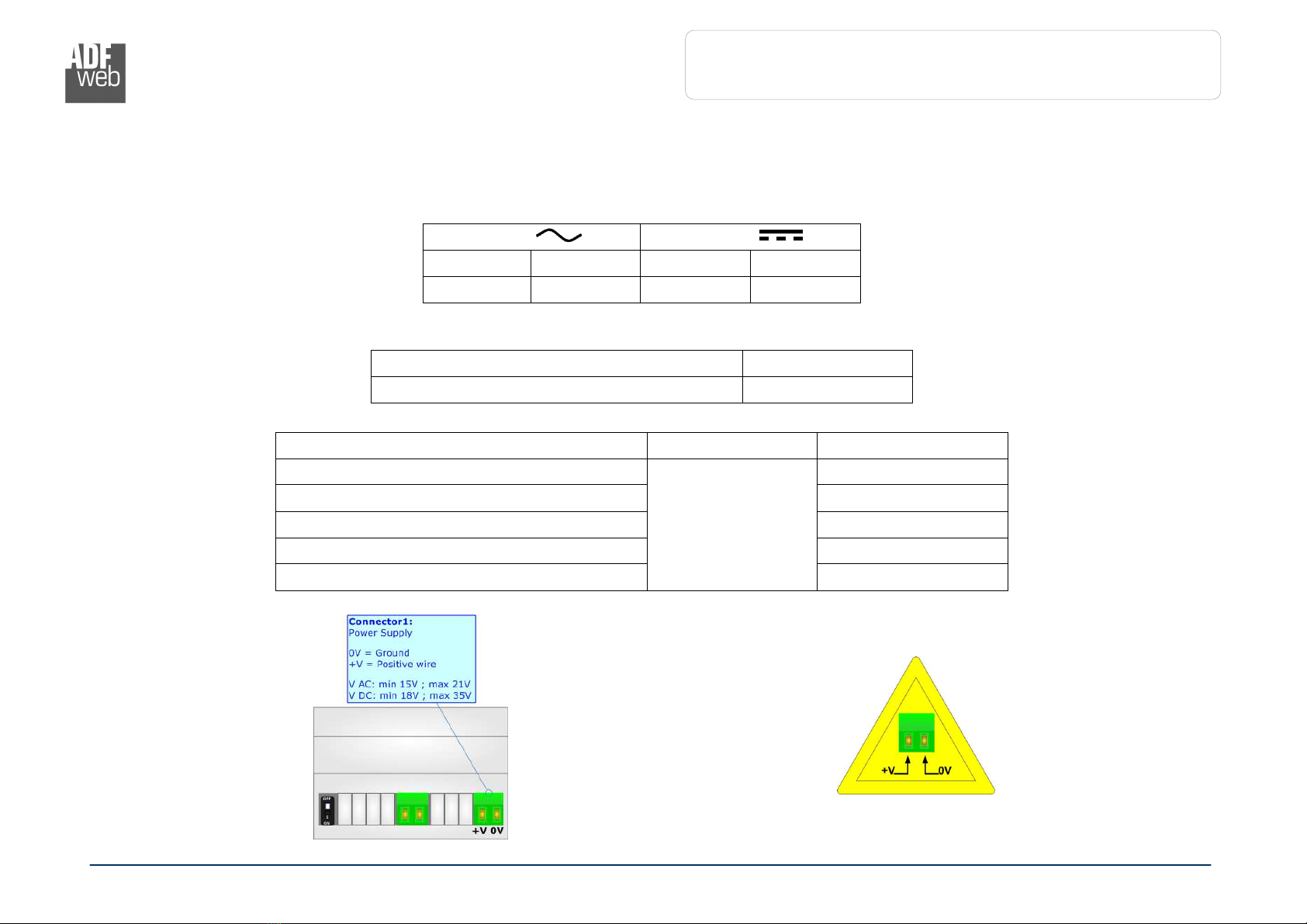

The devices can be powered at 15…21V AC and 18…35V DC. The consumption depends to the code of the device. For more details see the
two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
15V 21V 18V 5V
Consumption at 24V DC:
Device [W/VA]
HD67086-xxx-B2-xxxMHz-0 3.5
Device No Load [W/VA] Full Load [W/VA]*
HD67086-xxx-B2-xxxMHz-20
3.5
4
HD67086-xxx-B2-xxxMHz-40 5
HD67086-xxx-B2-xxxMHz-80 8
HD67086-xxx-B2-xxxMHz-160 14
HD67086-xxx-B2-xxxMHz-250 30
* This value is with all the Slave M-Bus devices of the code (20, 40, 80, 160, 250) connected to the line (wired side)
HD67086-xxx-B2-xxxMHz-0
HD670
86
-
xxx
-
B2
-
xxxMHz
-
xxx
Caution: Not reverse the
polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 11 of 43
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device;
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 12 of 43
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: wM-Bus comm.
(green)
Blinks quickly when data on
wM-Bus arrives
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: M-Bus comm. (green)
(only for HD67086-xxx-
B2-xxxMHz-xxx)
Blinks quickly when a reply to a M-
Bus request arrives
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: BACnet comm. Blinks quickly when BACnet
communication is running
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Link Ethernet (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 13 of 43
ETHERNET:
Ethernet port is used for BACnet/I communication and for programming the device.
The Ethernet connection must be made using Connector2 of HD67086-xxx-B2-xxxMHz-0 or HD67086-xxx-B2-xxxMHz-xxx with at least a
Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to
connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a C/ LC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 14 of 43
RS485:
RS485 port is used for BACnet MS/T communication.
To terminate the RS485 line with a 120Ω resistor, it is necessary to put dip 1 ON, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 15 of 43
M-BUS WIRELESS:
The standards of M-Bus Wireless are specified in EN 13757-4. The signal is @ 868Mhz or 433
MHz or 169 MHz (in relation to the order code). Our converter supports wM-Bus Mode S,
Mode T and Mode C.

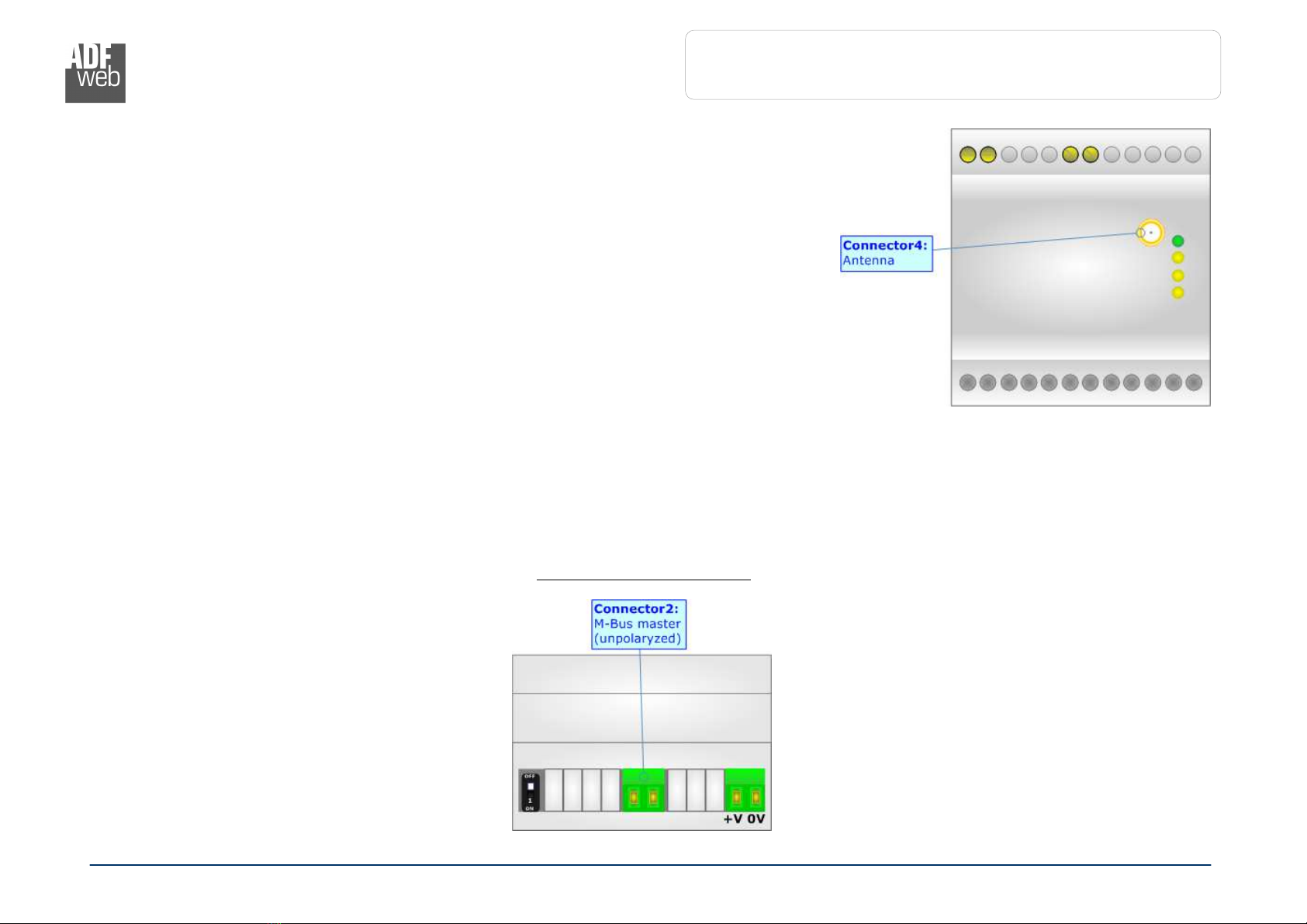

The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector.
M-BUS:
The M-Bus is a unpolarized bus.
A two wire standard telephone cable (JYStY N*2*0.8 mm) is used as the transmission medium for the M-Bus. The maximum distance
between a slave and the repeater is 350m; this length corresponds to a cable resistance of up 29Ω. This distance applies for the standard
configuration having Baud rates between 300 and 9600 Baud, and a maximum of 250 slaves. The maximum distance can be increased by
limiting the Baud rate and using fewer slaves, but the bus voltage in the space state must at no point in a segment fall below 12V, because
of the remote powering of the slaves. In the standard configuration the total cable length should not exceed 1000m, in order to meet the
requirement of a maximum cable capacitance of 180nF. (Taken from M Bus specifics)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 16 of 43
USE OF COMPOSITOR SW67086:
To configure the Converter, use the available software that runs with Windows called SW67086. It is downloadable from the site
www.adfweb.com and its operation is described in this document (this manual is referenced to the last version of the software present on our
web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67086, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67086

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 17 of 43
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “M-Bus / M-Bus Wireless / BACnet
Slave - Converter” in order to configure another device in the same manner, it is
necessary to maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 18 of 43
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67086 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 19 of 43
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
M
-
Bus / M
-
Bus Wireless / BACnet Slave
Document code: MN67086_ENG Revision 1.100 age 20 of 43
SET COMMUNICATION:
This section define the fundamental communication parameters of buses, BACnet, M-
Bus and M-Bus Wireless.
By ressing the “Set Communication” button from the main window for SW67086
(Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in
four sections.
In the field “Type” is possible to select the type of BACnet to use from:
BACnet/I (it uses ethernet);
BACnet MS/T (it uses RS485).
If selected “BACnet/I ” the means of the fields for “BACnet” are:
In the fields “IP ADDRESS” the I address of BACnet/I side of the converter
is defined;
In the fields “SUBNET Mask” the SubNet Mask of BACnet/I side of the
converter is defined;
In the fields “GATEWAY” the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature is
used for going out of the net;
In the field “Port” the port used for BACnet communication is defined. The
default port used for BACnet communication is 47808, but is possible to insert
any value;
In the field "BACnet Device Name" the name of BACnet/I side of the
converter is defined;
In the field “Device Identifier” the ID of BACnet/I side of the converter is
defined;
If the field “BACnet description up to 2 chars” is checked, the description
of the BACnet objects can be up to 32 chars;
If the field “Enable BBMD” is checked, the BBMD functions are enabled;
If the field “Accept FDR” is checked, the FDR function is enabled.
Figure 3: “Set Communication” window
