User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 1 of 28
User Manual
Revision 1.000
English
DMX / PROFINET – Converter
(Order Code: HD674-A028)
For Website information:
www.adfweb.com?Product=HD674-A028
For Price information:
www.adfweb.com?Price=HD674-A028
Benefits and Main Features:
Very easy to configure
Wide supply input range
Electrical isolation
Industrial temperature range:
-40°C / 105°C (-40°F / 221°F)
For others ateways / Bridges:
J 939 to Modbus
See also the following links:
www.adfweb.com?Product=HD67212 (Modbus RTU)
CANopen to Modbus
See also the following links:
www.adfweb.com?Product=HD67001 (Modbus RTU Master)
www.adfweb.com?Product=HD67002 (Modbus RTU Slave)
www.adfweb.com?Product=HD67004 (Modbus TCP Master)
www.adfweb.com?Product=HD67005 (Modbus TCP Slave)
For others ateways / Bridges:
For CAN bus 2.0A and/or CAN bus 2.0B to Modbus
See also the following links:
www.adfweb.com?Product=HD67011 (Modbus RTU Slave)
www.adfweb.com?Product=HD67012 (Modbus RTU Master)
www.adfweb.com?Product=HD67014 (Modbus TCP Slave)
www.adfweb.com?Product=HD67015 (Modbus TCP Master)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 2 of 28
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNIN 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFI URATION 7
POWER SUPPLY 8
LEDS 9
RS485 10
ETHERNET 11
USB 11
USE OF COMPOSITOR SW674-A028 12
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 15

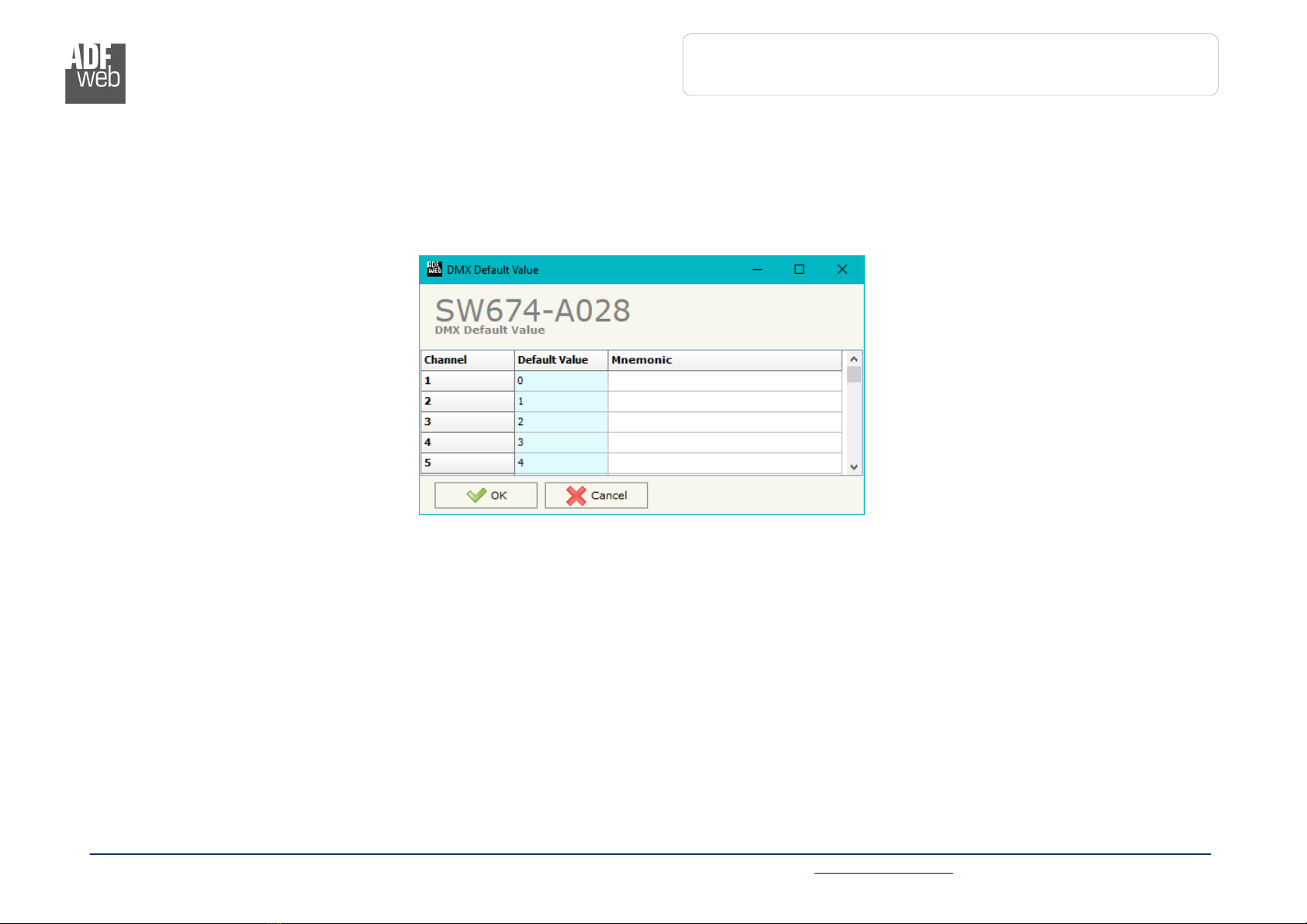

DMX DEFAULT VALUE 16
UPDATE DEVICE 17
PLC CONFI URATION 19
MECHANICAL DIMENSIONS 22
ORDER CODE 26
ACCESSORIES 26
DISCLAIMER 27
OTHER RE ULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SUPPORT 28
RETURN POLICY 28
Pagina 2 di 28
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 11/01/2019 Ff All First released version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 3 of 28
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 4 of 28
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 5 of 28
Figure
1a
: Connection scheme
for H
D674
-
A028
-
E4x
-
xx
CONNECTION SCHEME:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 6 of 28
Figure
1b
: Connection scheme
for HD674
-
A028
-
E7x
-
xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 7 of 28
CHARACTERISTICS:
The “HD674-A028” series are rugged devices used to interface DMX devices with PROFINET network.
With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,
vertical, oblique).
It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal 1.5”
connectors. If is resined, the enclosure, like the “AMP SuperSeal 1.5" connectors, is waterproof.
All the four series have these characteristics:
Triple 4kV isolation between Power Supply / PROFINET / DMX;
Varnished / Resined (optionally);
Wide power supply input range: 8…26V AC | 10…40V DC;
Mini-Fit® / AMP SuperSeal 1.5 connectors;
Metal enclosure with fixing lugs;
Possibility to use Metal hose clamps for fixing it without using lugs;
Microprocessor for data control;
Wide temperature range: -40°C / 105°C (-40°F / 221°F).
CONFIGURATION:
You need Compositor SW674-A028 software on your PC in order to perform the following:
Define the parameter of PROFINET line;
Define the parameter of DMX line;
Determinate which PROFINET byte transfer to DMX and vice versa;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 8 of 28

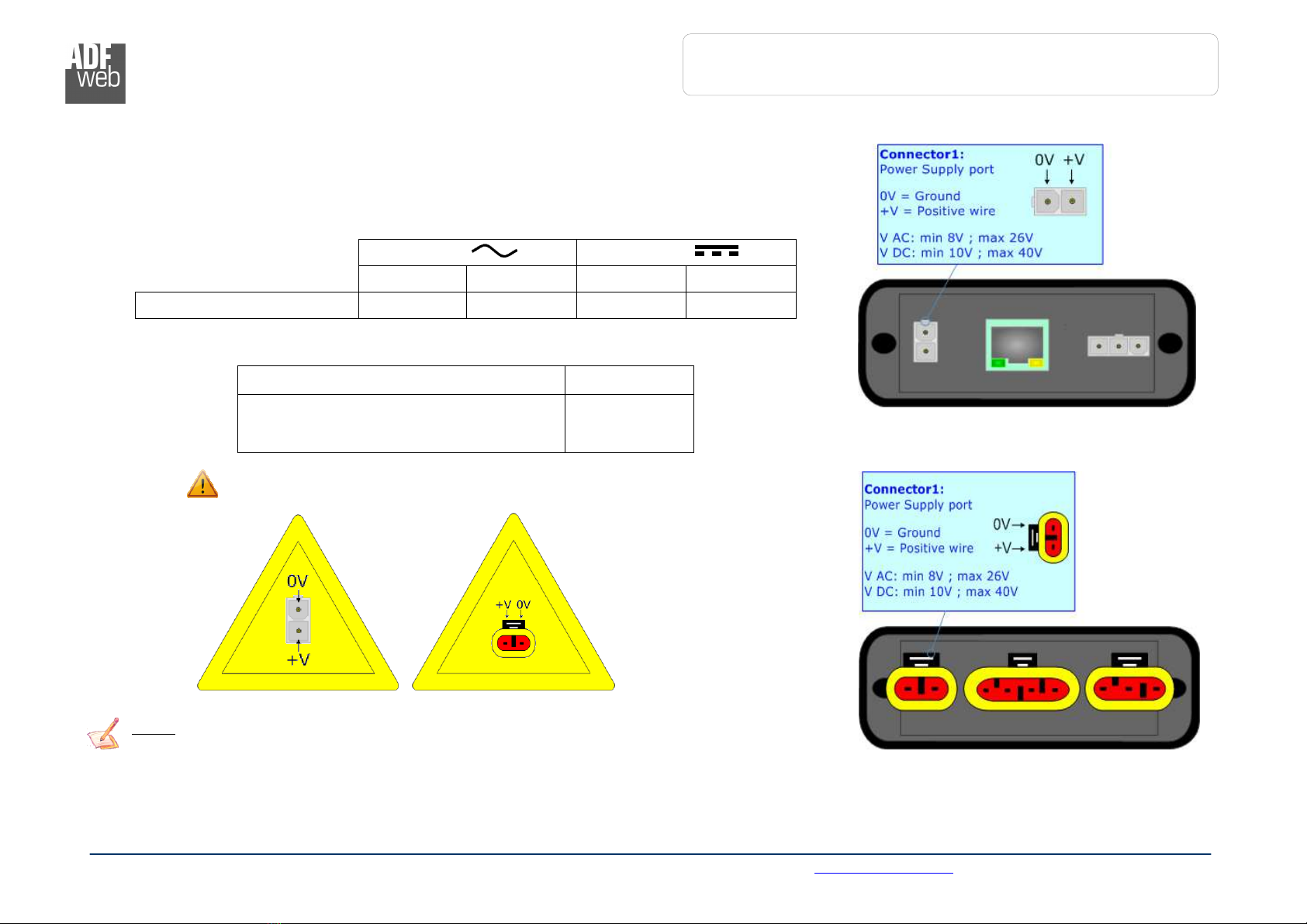

POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two
tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD674-A028-Exx-xx 8V 26V 0V 40V
Consumption at 24V DC:
Device W/VA
HD674-A028-Exx-xx 4
Note: It is possible to use also negative tensions. In this case the polarity must be
inverted.
Caution: Not reverse the polarity power
HD674-A028-E4x-xx HD674-A028-E7x-xx

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 9 of 28
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Serial Communication
(green) Blinks when DMX messages are received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: USB Link (yellow) ON: USB cable inserted
OFF: USB cable not inserted
ON: USB cable inserted
OFF: USB cable not inserted
4: Ethernet communication
(green)
Blinks when PROFINET communication is
working
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 10 of 28

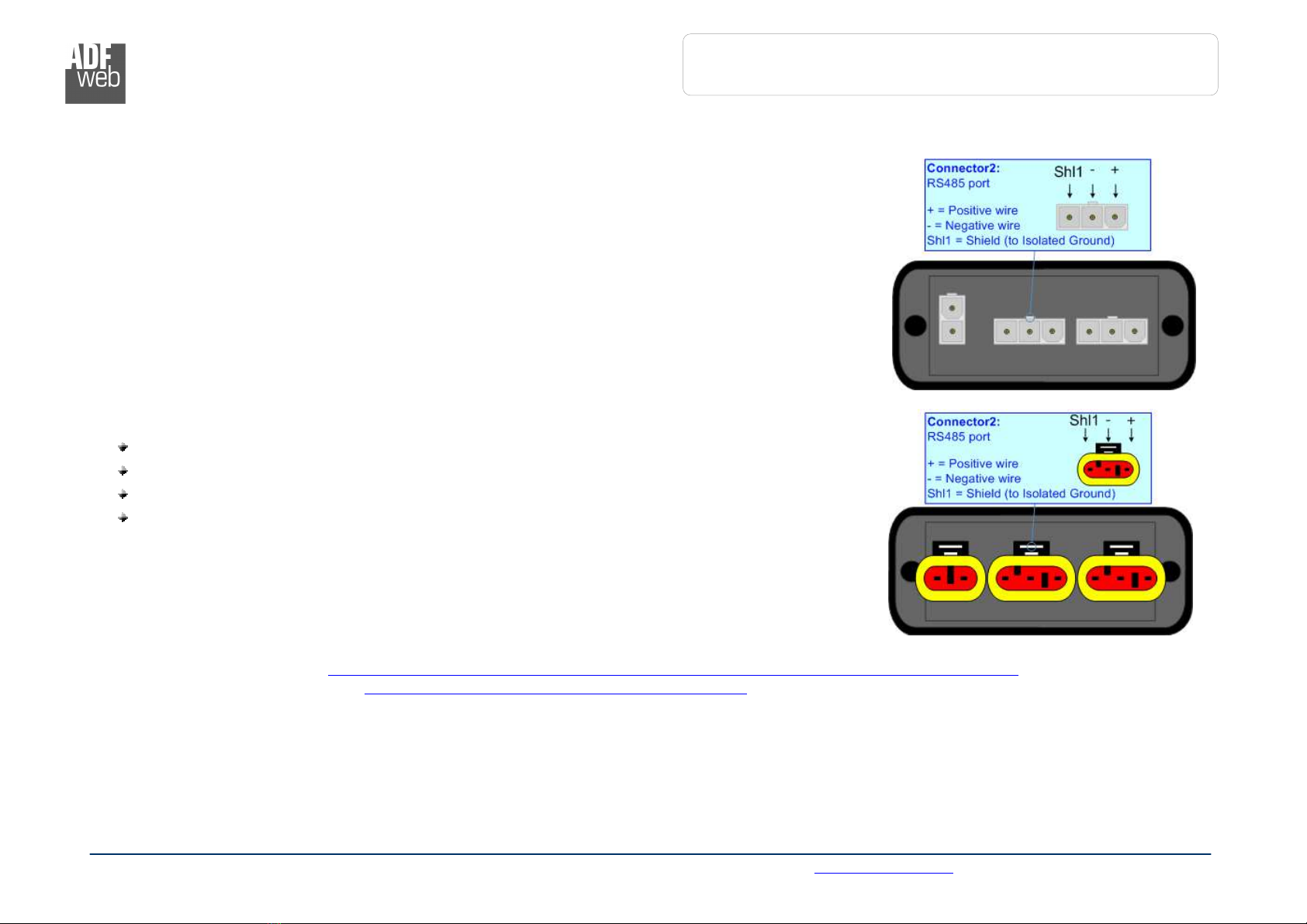

RS485:
The connection of the RS485 in the HD674-A028-E4x-xx device must be made with a 3way MiniFit
Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
The connection of the RS485 in the HD67-A028-E7x-xx device must be made with a AMP SuperSeal
1.5 Male connector. The pinout of Female connector of the board is at right side of the page.
The termination of RS485 line, with a 120Ω resistor, in the HD674-A028-Exx-xx is made internally
of the device; when the order is performed. If the device have the RS485 terminated the code is the
follow: HD674-A028-Exx-Yx; otherwise is this other: HD674-A028-Exx-Nx.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AW stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AW stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AW twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AW twisted pairs conductor + foil shield + braid shield.
Link for Mini-Fit® connectors: http://www.molex.com/molex/products/group?key=minifit_products&channel=products
Link for SuperSeal 1.5 connectors: http://www.te.com/catalog/cinf/en/c/10876/956

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 11 of 28
ETHERNET:
The connection of Ethernet in the HD674-A028 device must be made with at least a Category 5E cable. The maximum length of the cable
should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device
to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable.
The connection of Ethernet in the HD674-A028-E4x-xx device must be made with RJ45 connector.
The connection of the Ethernet in the HD674-A028-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of the
page.
USB:
The USB port is used to start the converter in Boot Mode. It is necessary to use a Micro USB type B cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 12 of 28
USE OF COMPOSITOR SW674-A028:
To configure the Converter, use the available software that runs with Windows called SW674-A028. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).

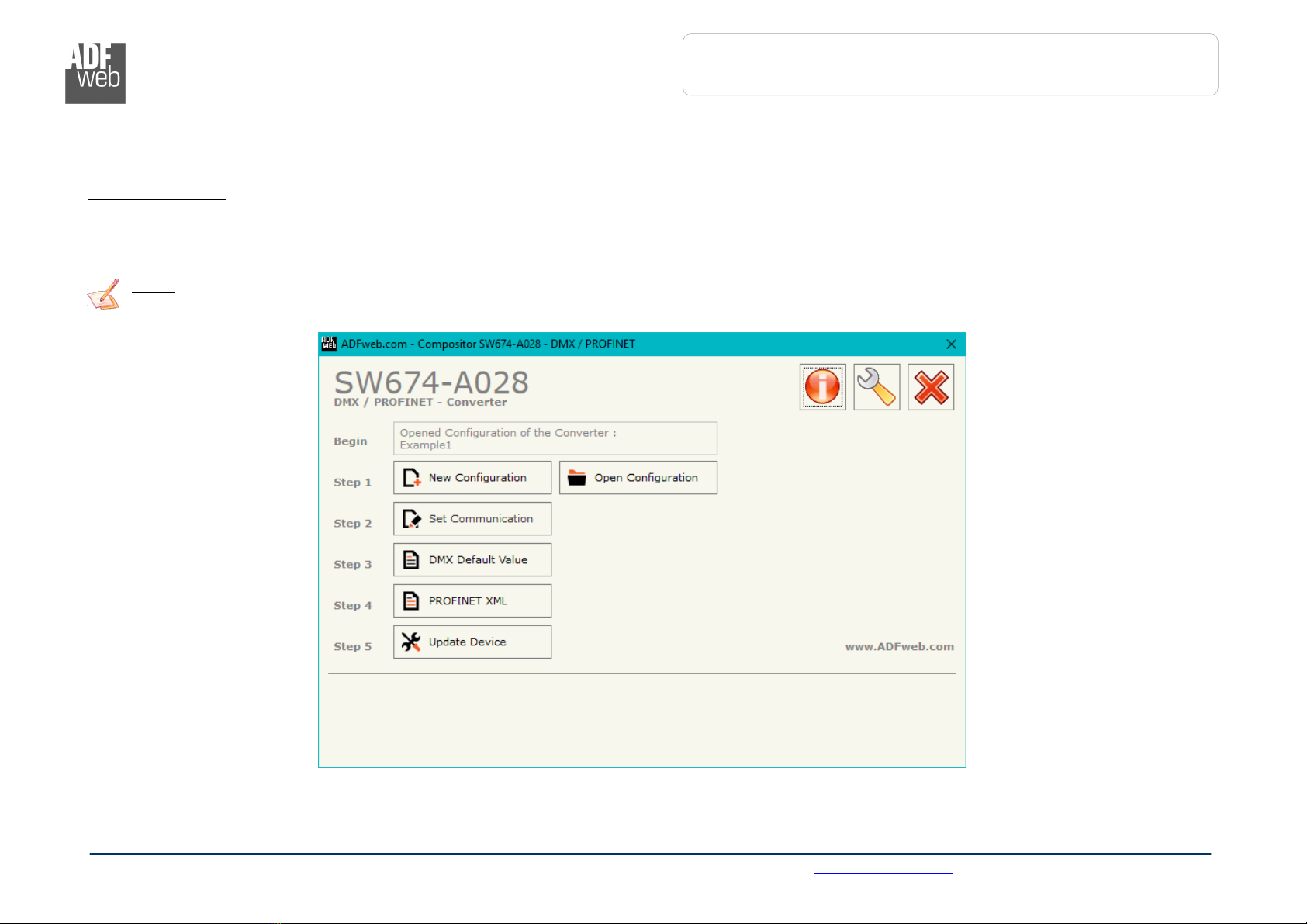

When launching the SW674-A028, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for
SW674
-
A0
28

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 13 of 28
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “ DMX / PROFINET - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 14 of 28
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW674-A028 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 15 of 28
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, DMX and PROFINET.
By Pressing the “Set Communication” button from the main window of SW674-A028 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The meaning of the fields of “PROFINET” are:
In the field “IP ADDRESS” the IP address of the PROFINET side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of the PROFINET side of the converter is
defined;
In the field “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for PROFINET communication is defined (fixed to ‘34964’);
In the field "PROFINET Name of Station" the name to the PROFINET side of the converter is
defined.
The means of the fields for the “DMX” section are:
In the field “DMX” it is possible to define if the converter will act as DMX controller (“OUT”) or
as DMX device (“IN”);
In the field “Channel Number” the number of channels of the DMX side is defined (up to 496
channels).
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 16 of 28
DMX DEFAULT VALUE:
By pressing the “DMX Default Value” button from the main window for SW674-A028 (Fig. 2) the “DMX Default Value” window appears (Fig.
4).
In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON.
Figure 4: “DMX Default Value” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 17 of 28
Figure
5
: “
Update Device
” window
s
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the
device; and also the Firmware, if necessary.
If you don’t know the actual IP address of the device you have to use this procedure:
Connect the USB cable;
Connect the Ethernet cable;
Turn ON the converter;
Insert the IP “ 92. 68.2.205”;
Press the “Ping” button, “Device Found! must appear”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK”, the updating is done;
Remove the USB cable;
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 18 of 28
Figure
6
:
“
rotection
” window
Note:
When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD674-
A028 device.
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD674-A028 device.
Warning:
If Fig. 6 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 10 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet. For
do this you have to launch the "Command Prompt" and write the command "arp -d".
Pay attention that with Windows Vista, Seven, 8, 10 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock.
In the case of HD674-A028 you have to use the software “SW674-A028”: www.adfweb.com\download\filefold\SW674-A028.zip.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 19 of 28
PLC CONFIGURATION:
The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the
TIA Portal software by Siemens. In the case of using a control system from another supplier, refer to attend to the associated
documentation.
These are the steps to follow:

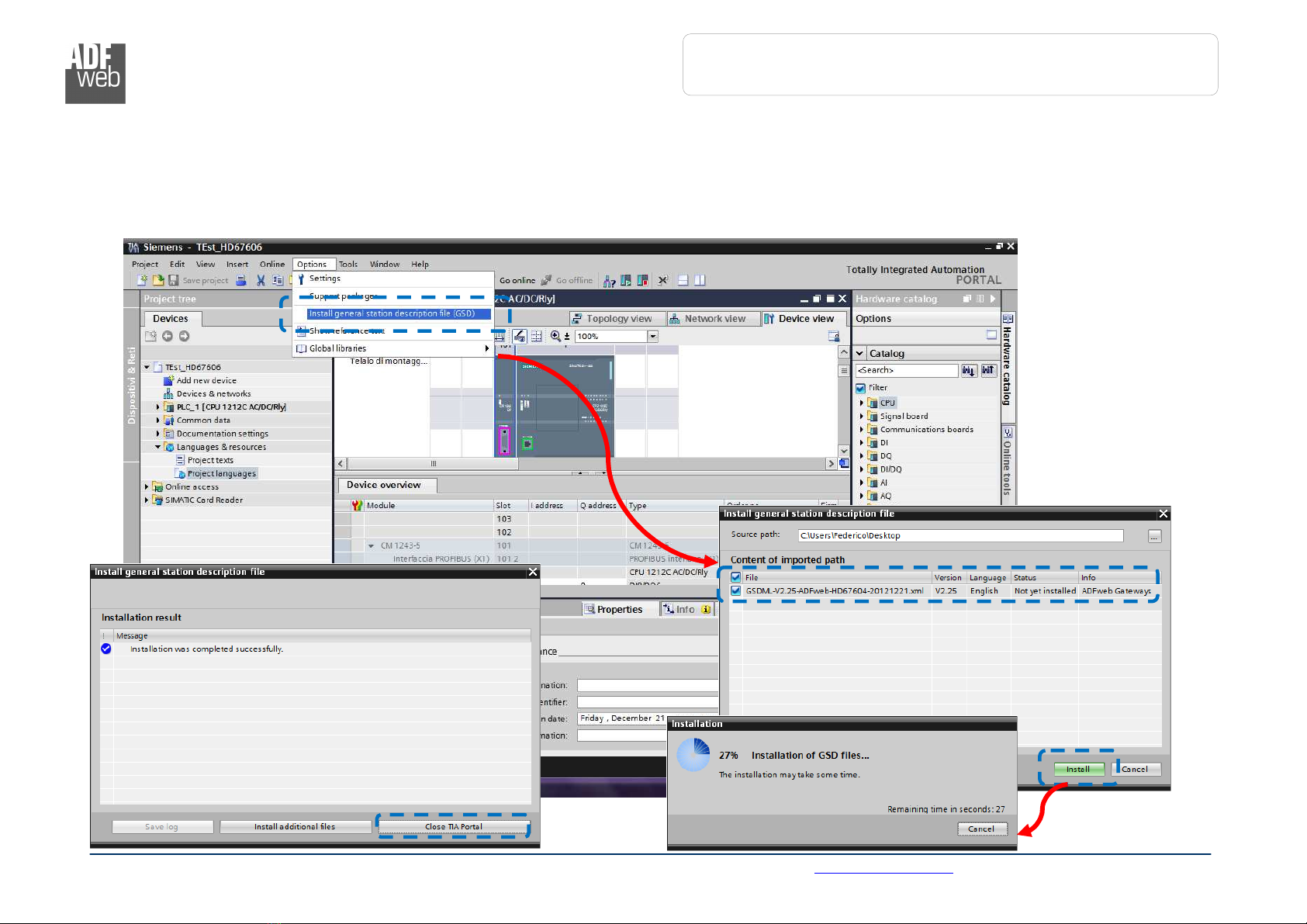

1) Install the
description file of the
module.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DMX / PROFINET
-
Converter
Document code: MN674-A028_EN Revision 1.000 Page 20 of 28

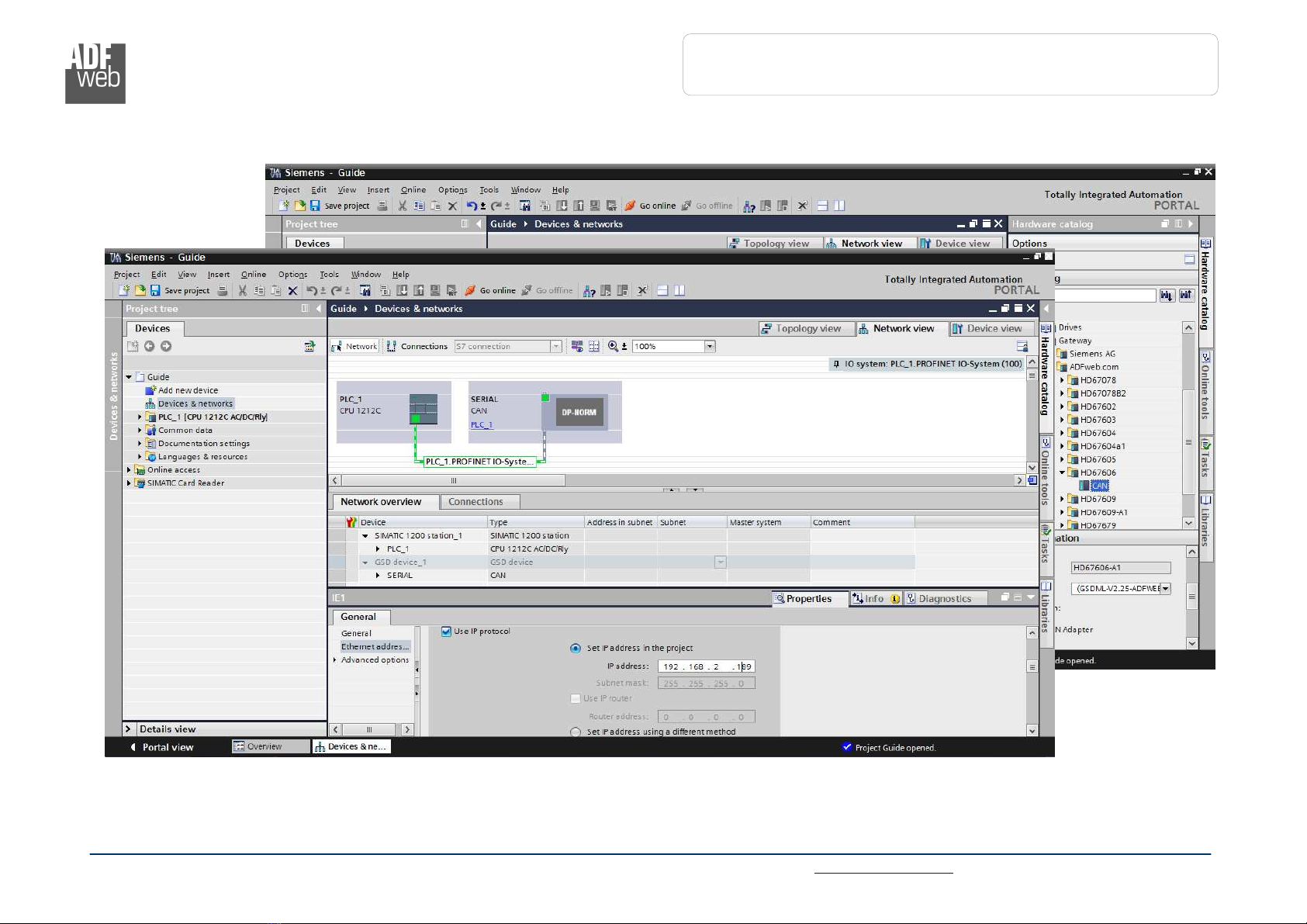

2) Import the module in the network; connect the device to the PLC network and edit the parameters of IP, station name etc.
