ADF Web HD67C65-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 1 of 27
User Manual
Revision 1.
English
EnOcean / IEC61850 Server - Converter
(Order Code: HD67C65-B2)
For Website information:
www.adfweb.com?Product=HD67C65-B2
For Price information:
www.adfweb.com?Price=HD67C65-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com?Product=HD67C5 (Seria )
www.adfweb.com?Product=HD67C52 (Modbus S ave)
www.adfweb.com?Product=HD67C54 (Modbus TCP S ave)
www.adfweb.com?Product=HD67C56 (BACnet S ave)
www.adfweb.com?Product=HD67C57 (CAN)
www.adfweb.com?Product=HD67C58 (CANopen)
www.adfweb.com?Product=HD67C61 (DeviceNet S ave)
www.adfweb.com?Product=HD67C63 (EtherNet/IP S ave)
www.adfweb.com?Product=HD67C66 (J1939)
www.adfweb.com?Product=HD67C67 (KNX)
www.adfweb.com?Product=HD67C7 (MQTT)
www.adfweb.com?Product=HD67C72 (NMEA 0183)
www.adfweb.com?Product=HD67C73 (NMEA 2000)
www.adfweb.com?Product=HD67C75 (PROFIBUS S ave)
www.adfweb.com?Product=HD67C77 (PROFINET S ave)
www.adfweb.com?Product=HD67C79 (SNMP Agent)
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Ma
nual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 2 of 27
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 1
ENOCEAN 11
USE OF COMPOSITOR SW67C65 12
NEW CONFIGURATION / OPEN CONFIGURATION 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
ENOCEAN ACCESS 17
IEC6185 ACCESS 2
TLS KNOWN CERTIFICATE 21
UPDATE DEVICE 22
MECHANICAL DIMENSIONS 24
ORDERING INFORMATIONS 25
ACCESSORIES 25
DISCLAIMER 26
OTHER REGULATIONS AND STANDARDS 26
WARRANTIES AND TECHNICAL SUPPORT 27
RETURN POLICY 27
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 5/12/2 19 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 3 of 27
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 4 of 27
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 5 of 27

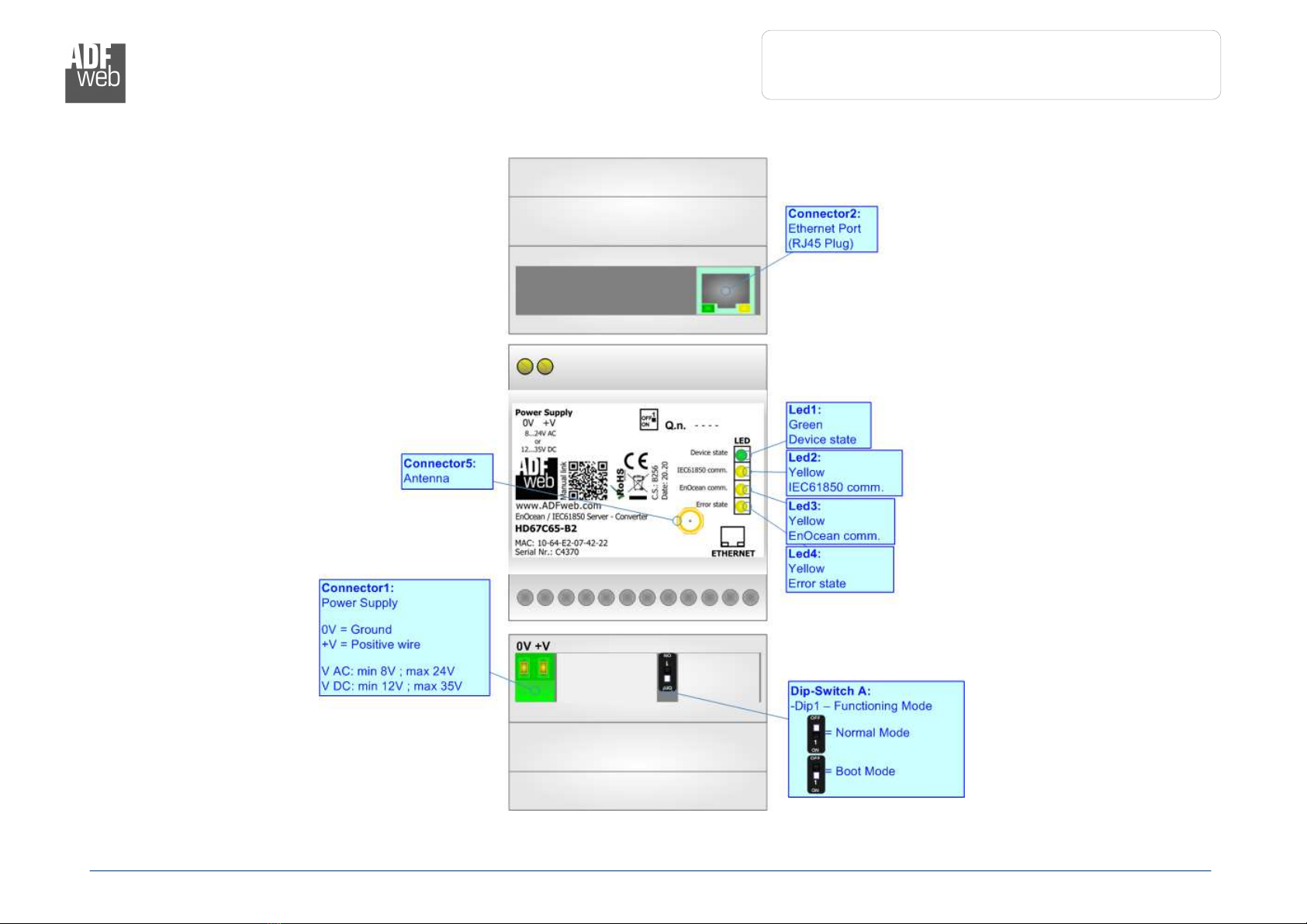

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67C65-B

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 6 of 27
CHARACTERISTICS:
The HD67C65-B2 is a EnOcean / IEC6185 Server Converter.
It allows the following characteristics:
Electrical isolation between Ethernet and Power Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67C65 software on your PC in order to perform the following:
Define the parameter of IEC6185 line;
Define the parameter of EnOcean line;
Define the list of IEC6185 variables available for the Client;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 7 of 27

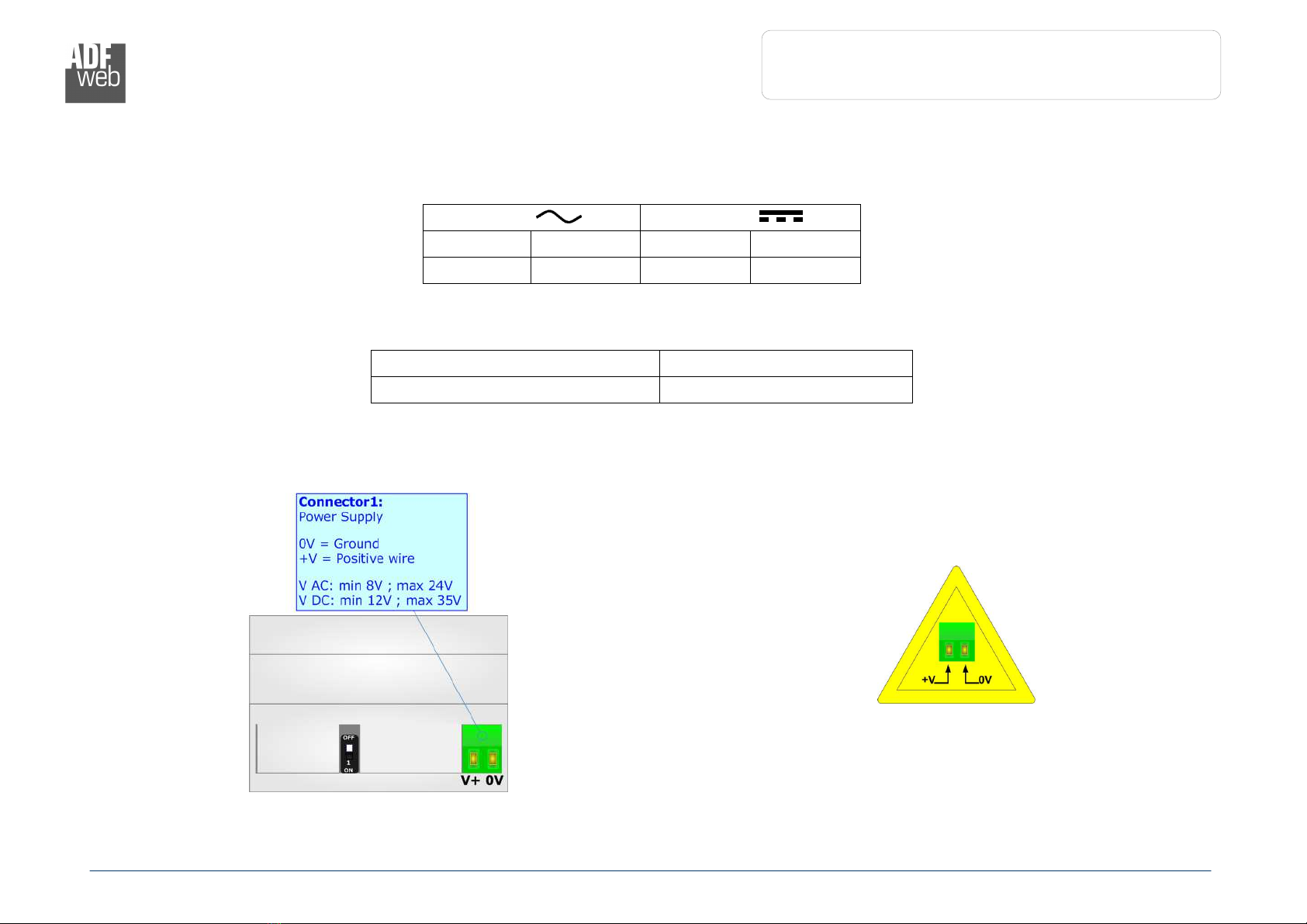

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C65-B2 3.5
HD67C65-B2
Caution: Not reverse the po arity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 8 of 27
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 9 of 27
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: IEC6185 communication
(yellow) Blinks when IEC6185 communication is running B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: EnOcean communication
(yellow) Blinks when EnOcean data is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 1 of 27

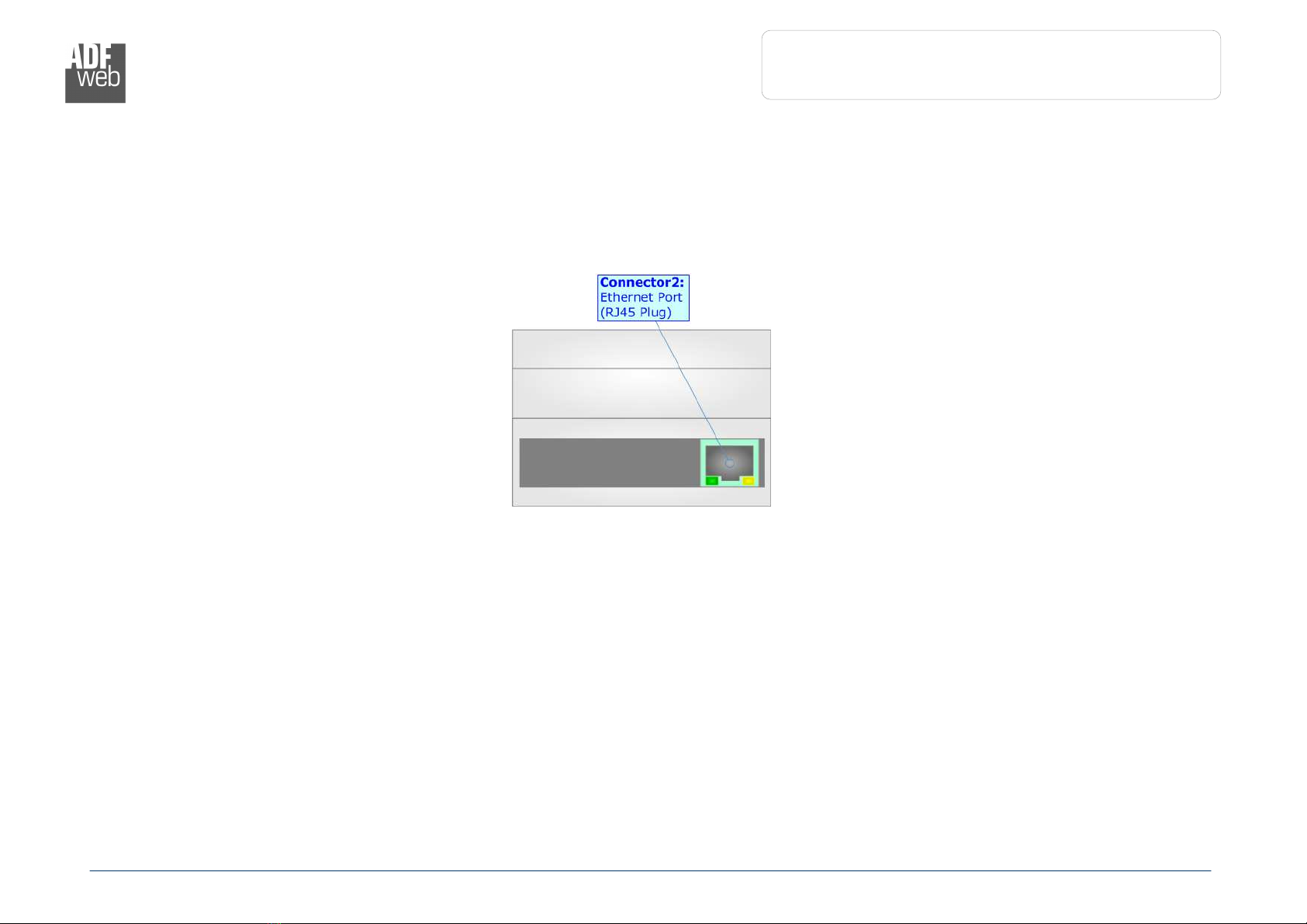

ETHERNET:
The Ethernet port is used for programming the device and for IEC6185 communication.
The Ethernet connection must be made using Connector2 of HD67C65-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 11 of 27
ENOCEAN:
EnOcean is a protocol designed for energy harvesting devices communication. The main
fields of application are building automation and domotics, but it can also be potentially
used in the industrial field.
EnOcean products include solutions for environment monitoring, smart metering and
lighting. Each device uses a unique ID for identification and one of the standardized profiles
(EEPs) for data transmission. Communication process may be secure or unsecure and may
be unidirectional or bidirectional (for devices that support Smart Acknowledge operating
mode).
EnOcean is based on wireless communication on 868.3 MHz ASK.
It is possible to connect up to 1 EnOcean devices to a single converter, where up to 32
can be in Secure Mode and up to 19 with Smart Acknowledge.

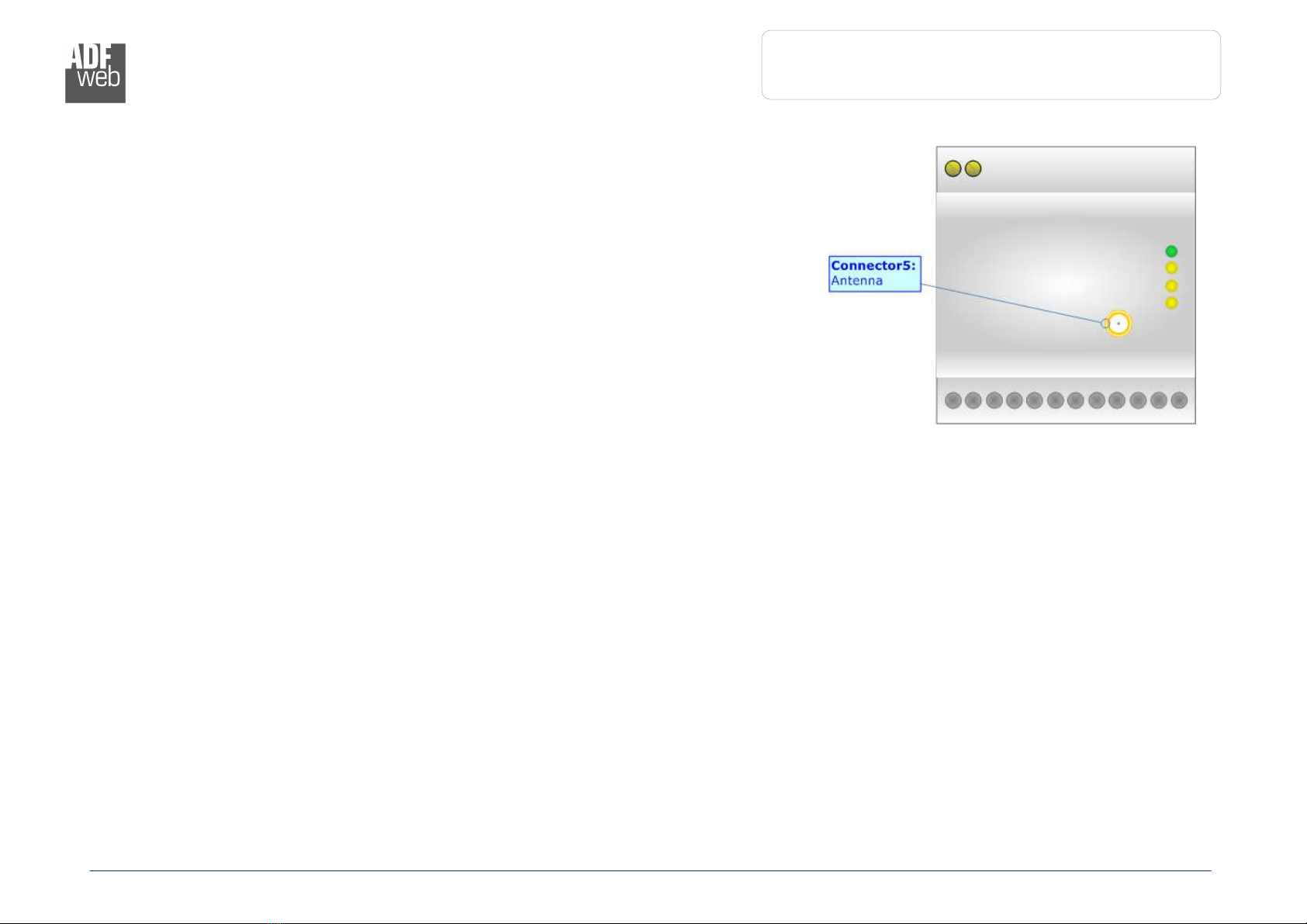

The Antenna connector is a SMA Female (‘Female Outer Shell’ and ‘Female Receptacle’) so
the Antenna must have a SMA Male connector.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 12 of 27
USE OF COMPOSITOR SW67C65:
To configure the Converter, use the available software that runs with Windows called SW67C65. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (XP, Vista, Seven, 8, 1 ; 32/64bit).

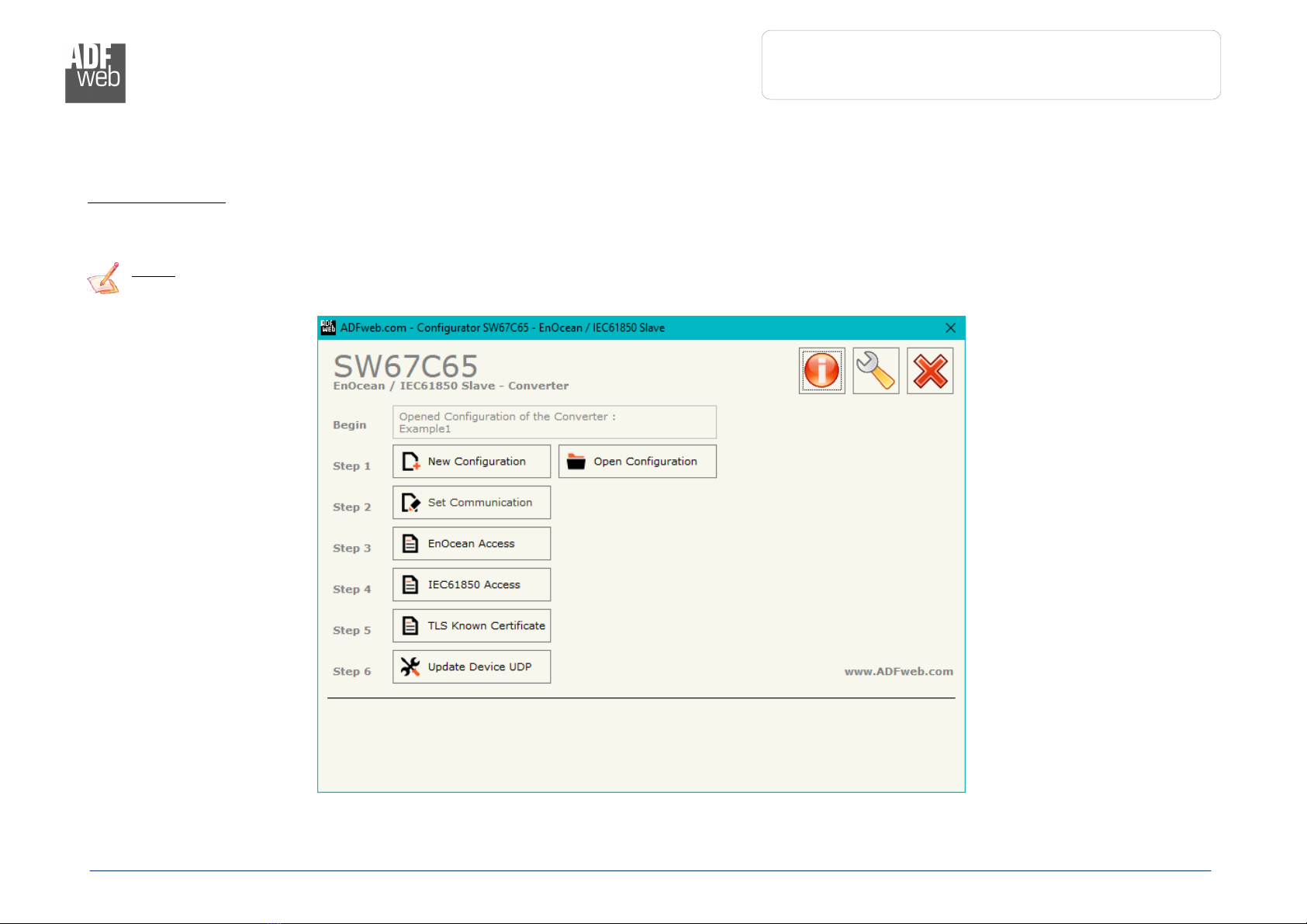

When launching the SW67C65, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure : Main window for SW67
C
65

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 13 of 27
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “EnOcean / IEC6185 Server -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 14 of 27

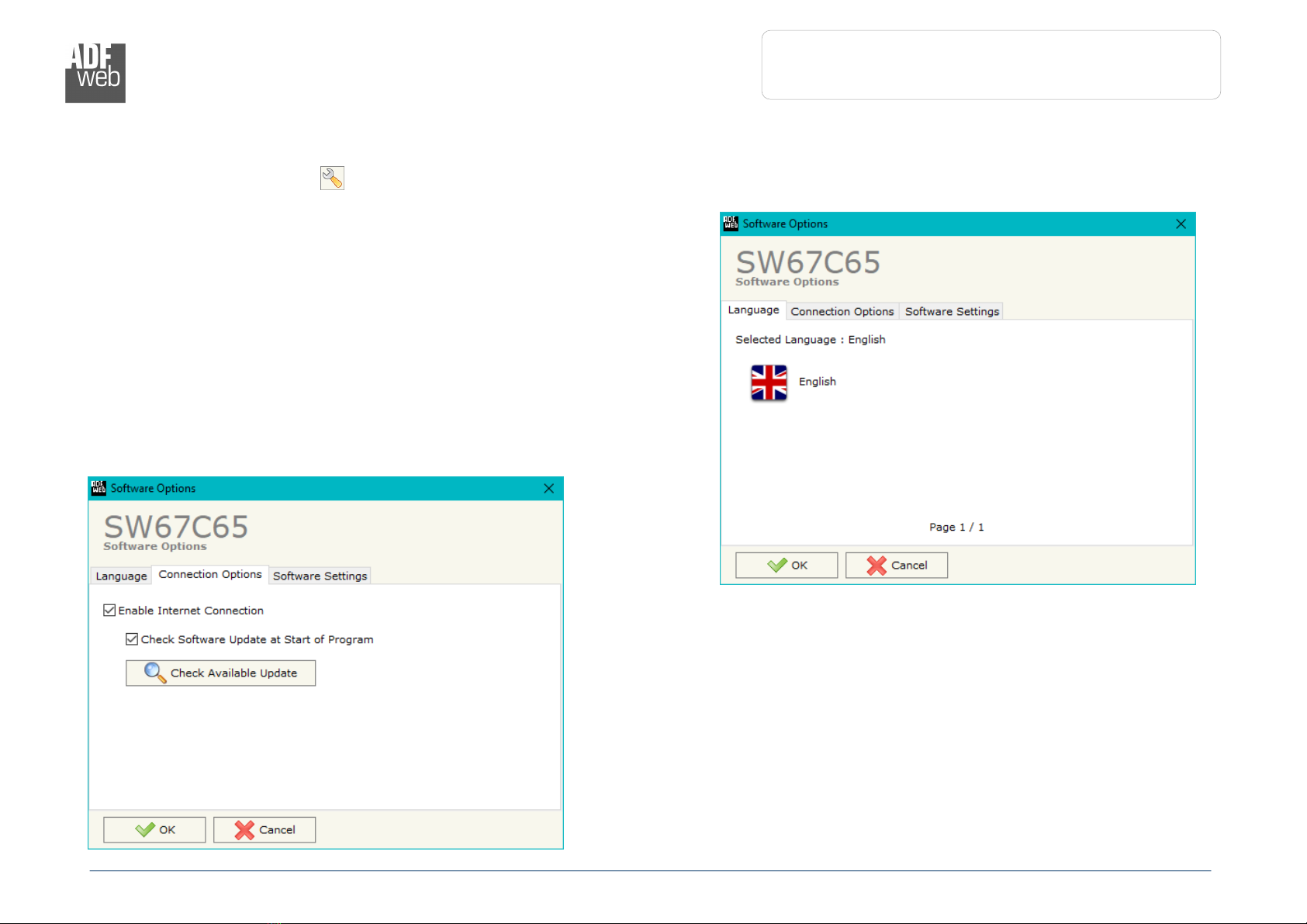

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67C65 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 15 of 27

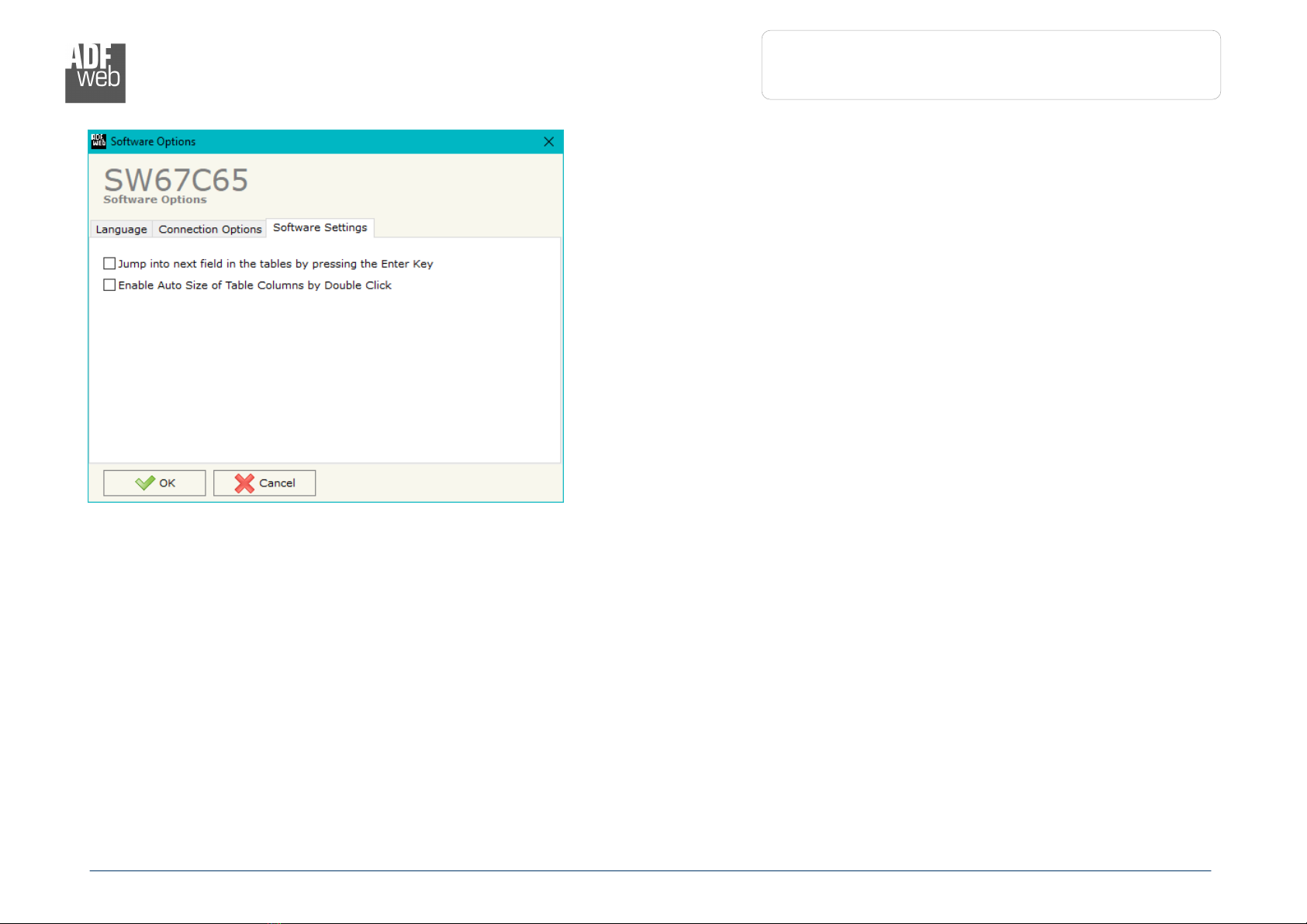

In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 16 of 27
SET COMMUNICATION:
By Pressing the “Set Communication” button from the main window for SW67C65 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “Ethernet” are:
In the field “IP Address” the IP address for IEC6185 side of the converter is
defined;
In the field “SubNet Mask” the SubNet Mask for IEC6185 side of the converter is
defined;
In the field “Gateway” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net.
The means of the fields for “IEC6185 Server” are:
In the field “Port” the port used for IEC 6185 communication is defined;
If the field “Password” the password used for accessing to IEC 6185 variables is
defined.
The means of the fields for “TLS (Transport Layer Security) Server” are:
If the field “Enab e TLS” is checked, the TLS protocol for secure connection is
enabled;
In the field “Key” the key for the authentication is defined;
In the field “Key Password” the password for decrypting the key is defined;
In the field “Server Certificate” the certificate for the server is defined;
In the field “Root Certificate” the root of the server is defined;
If the field “Enab e On y Known Certificates” is checked, the converter will accept
just connection from known Clients (defined in the section “TLS Known Certificate”).
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 17 of 27

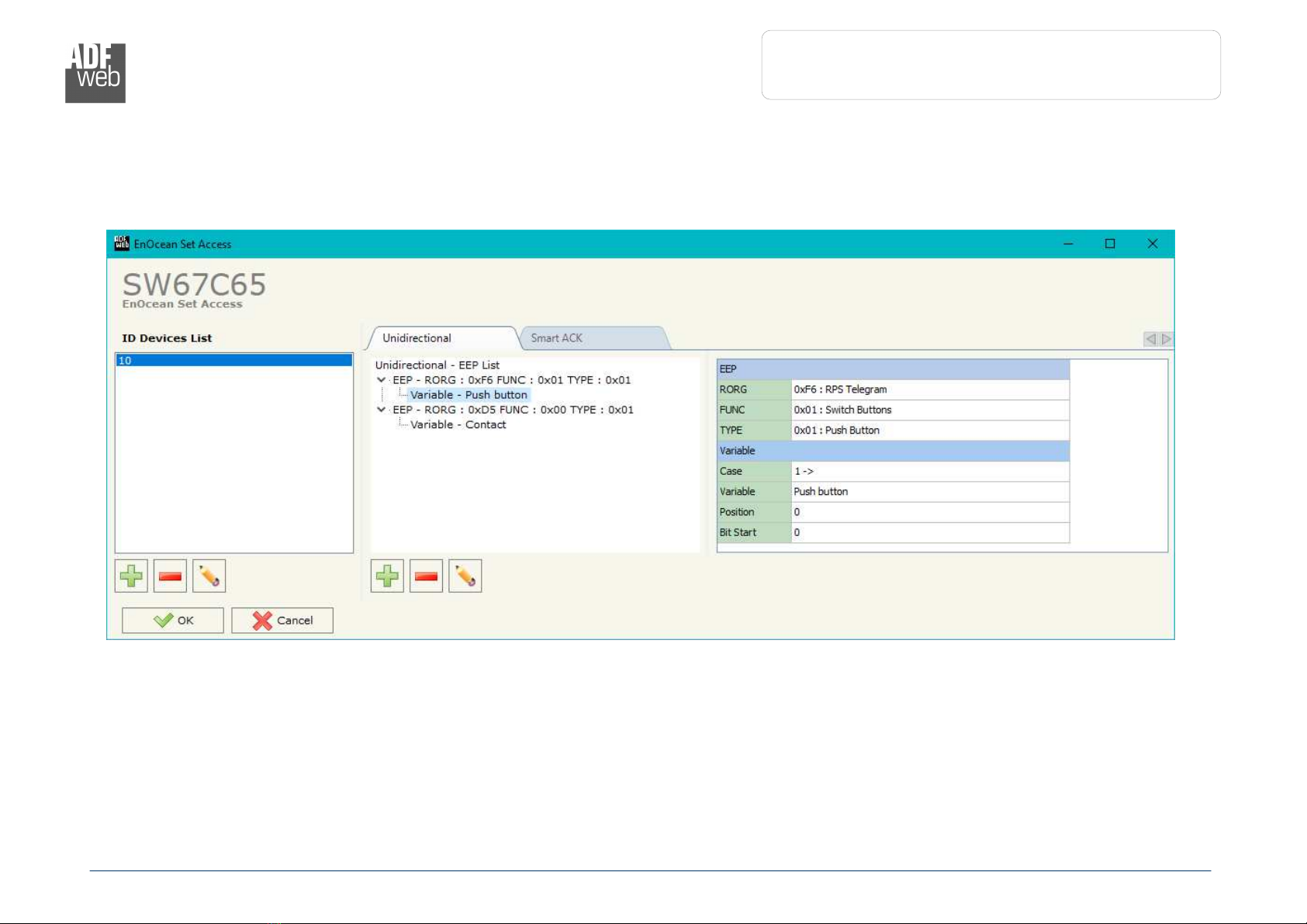

Figure 4: “
EnOcean
Access
” window
ENOCEAN ACCESS:
By Pressing the “EnOcean Set Access” button from the main window for SW67C65 (Fig. 2) the window “EnOcean Set Access” appears (Fig.
4). This section is used to define the list of the EnOcean devices to read/write.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 18 of 27

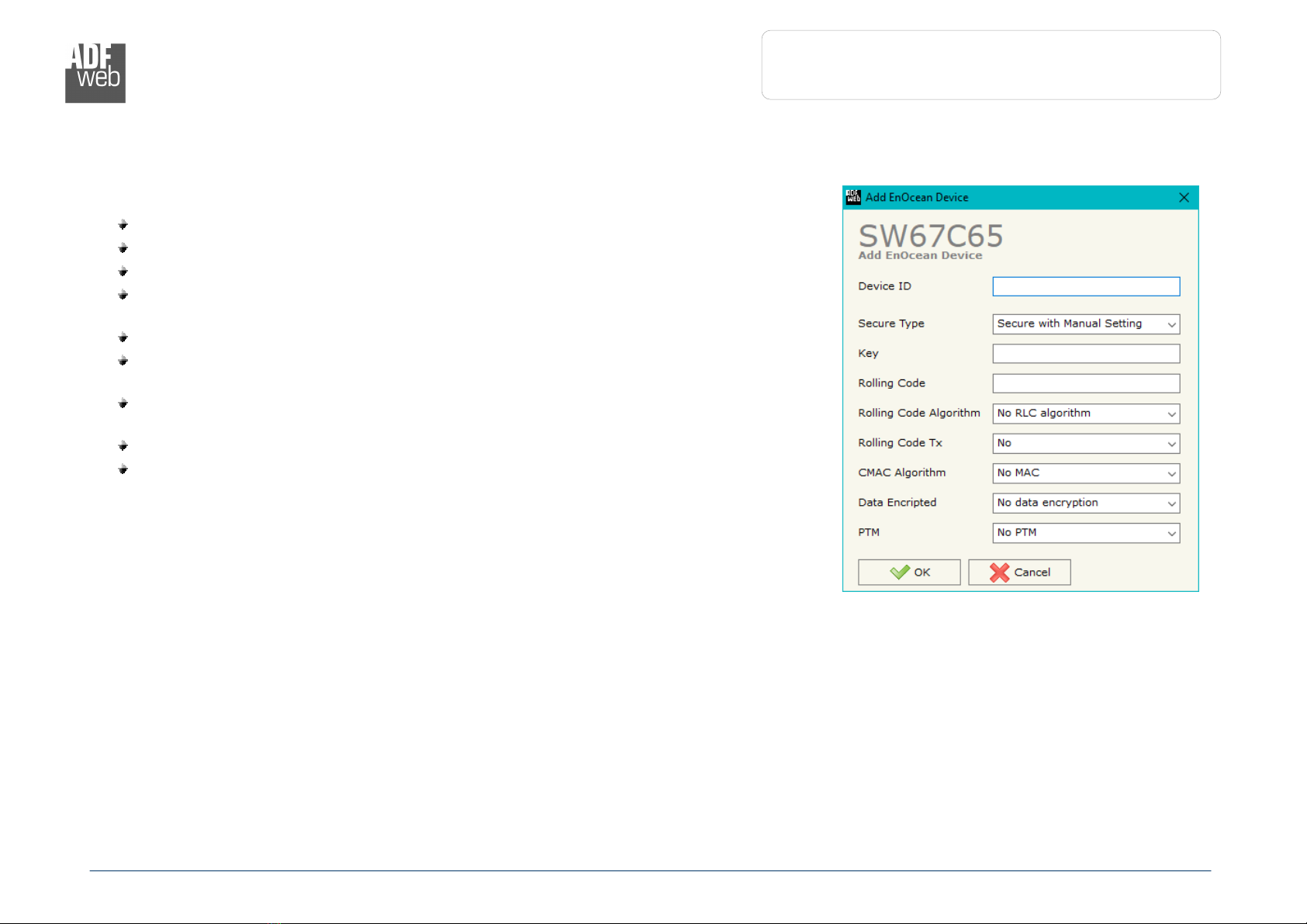

Figure 5: “Add/Modify EnOcean device”
window
By clicking on “+” or “Modify” under “ID Devices List”, it is possible to add/modify a new EnOcean device inserting its characteristics. The
window “Add/Modify EnOcean device” appears (Fig. 5).
The means of the fields are:
In the field “Device ID” the ID of the EnOcean device is defined;
In the field “Secure Type ” the type of EnOcean communication is defined;
In the field “Key” the key used for encryption of frames in Secure Mode is defined;
In the field “Ro ing Code” the Rolling Code for the EnOcean communication is
defined;
In the field “Ro ing Code A gorithm” the type of Rolling Code is defined;
In the field “Ro ing Code Tx” the transmission of the Rolling Code is
enabled/disabled;
In the field “CMAC A gorithm” the MAC field at the end of the EnOcean frame is
defined;
In the field “Data Encrypted” the encryption of the data is enabled/disabled;
In the field “PTM” the type of EnOcean device is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 19 of 27
Figure 6: “Add/Modify EnOcean variable”
window
By clicking on “+” or “Modify”, it is possible to add/modify a new variable for the selected ID. The window “Add/Modify EnOcean variable”
appears (Fig. 6).
The means of the EEP fields are:
In the field “Rorg” the type of EnOcean telegram is defined;
In the field “Func” the type of EnOcean instance is defined;
In the field “Type” the type of event is defined.
The means of the Variable fields are:
In the field “Case” the format of the EnOcean telegram is defined;
In the field “Variab e” the variable to read/write is defined;
In the field “Position” the starting byte of the internal array where
mapping/taking the variable is defined;
In the field “Bit Start” the starting bit of the defined Position where
mapping/taking the variable is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOcean
/
IEC
61850
S
erver
Document code: MN67C65_ENG Revision 1. Page 2 of 27
Figure 7: “IEC 61850 Access” window
IEC61850 ACCESS:
By Pressing the “IEC61850 Access” button from the main window for SW67C65 (Fig. 2) the window “Set Variables Access for IEC 6185 ”
appears (Fig. 7).
This section is used to define the IEC 6185 variables from/to which take/map the data of EnOcean devices.
The means of the fields are:
If the field “Enab e” is checked, the IEC 6185 variable is enabled;
In the field “Name” the name of the IEC 6185 variable is defined;
In the field “Type” the data format of the IEC 6185 variable is defined;
If the field “Read On y” is checked, the IEC 6185 variable is just in reading. Otherwise, it is writeable too;
In the field “Position” the starting byte of the internal memory arrays from/to which taking/mapping the data is defined;
In the field “Start Bit” the starting bit of the byte of the field “Position” is defined;
In the field “Conversion” the conversion of the data is defined. This option is used to convert the data format between Modbus and
IEC 6185 ;
In the field “Mo t. Factor” a multiplicative factor of the value is defined;
If the field “Swap” is checked, the bytes’ order is reversed;
If the field “Swap Word” is checked, the words’ order is reversed;
In the field “Mnemonic” a description of the variable is defined.
