ADF Web PROFIBUS Master User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 1 of 32
User Manual
Revision 2. 2
English
PROFIB
US Master / Modbus TCP Slave
- Converter
( Order Code: HD67579-A1 )
for Website information:
www.adfweb.com/?Product=HD67579
for Price information:
www.adfweb.com/?Price=HD67579-A1
Benefits and Main Features:
Very easy to configure
Industrial temperature range:
-4 °C / 85°C (-4 °F / 185°F)
For others PROFIBUS devices, see also the following links:
PROFIBUS Slave from/to …
www.adfweb.com?Product=HD67 45 (… Serial)
www.adfweb.com?Product=HD67 53 (… M-Bus Master)
www.adfweb.com?Product=HD67551 (… C Nopen)
www.adfweb.com?Product=HD67552 (… C N)
www.adfweb.com?Product=HD67553 (… J1939)
www.adfweb.com?Product=HD67554 (… DeviceNet Slave)
www.adfweb.com?Product=HD67555 (… DeviceNet Master)
www.adfweb.com?Product=HD67561 (… Modbus Master)
www.adfweb.com?Product=HD67562 (… Modbus Slave)
www.adfweb.com?Product=HD67563 (… Ethernet Server)
www.adfweb.com?Product=HD67564 (… Modbus TCP Client)
www.adfweb.com?Product=HD67565 (… Modbus TCP Server)
PROFIBUS Master from/to …
www.adfweb.com?Product=HD67575 (… Ethernet)
www.adfweb.com?Product=HD67577 (… C N)
www.adfweb.com?Product=HD6758 (… Modbus Slave)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 2 of 32
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
PROFIBUS 1
ETHERNET 1
USE OF COMPOSITOR SW67579 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 14

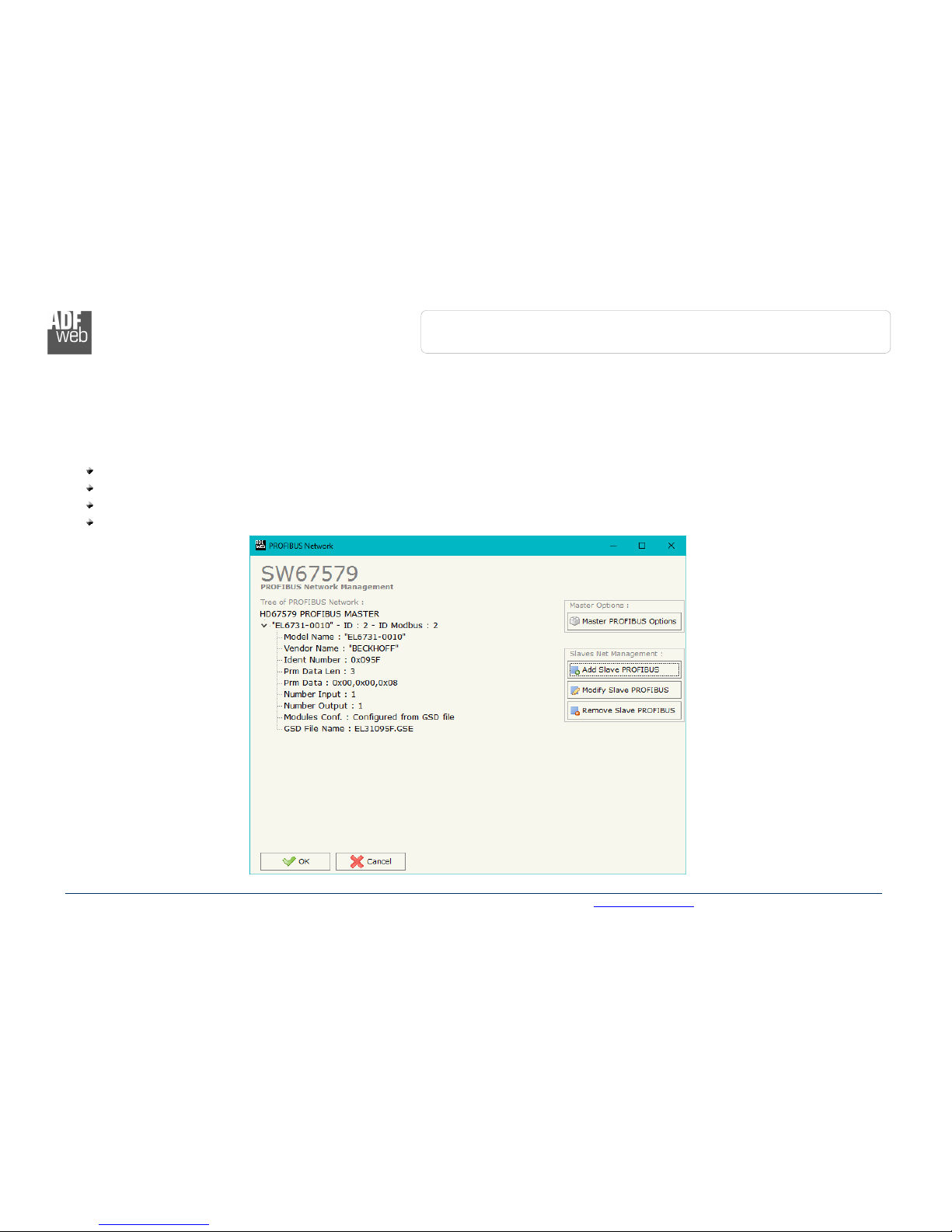

PROFIBUS NETWORK 15
MASTER PROFIBUS OPTIONS 16
PROFIBUS DEVICE 17
UPDATE DEVICE 25
MODBUS MAP 27
MECHANICAL DIMENSIONS 29
ORDER CODE 3
ACCESSORIES 3
DISCLAIMER 31
OTHER REGULATIONS AND STANDARDS 31
WARRANTIES AND TECHNICAL SUPPORT 32
RETURN POLICY 32
Pagina 2 di 32
UPD TED DOCUMENT TION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision
Date uthor
Chapter
Description
1. 2/12/2 11 Fl All First release version
2. 22/ 8/2 12 Fl All Software changed (v1. 1)
2. 1 9/ 1/2 13 Nt All Software changed (v1. 1)
2. 2 14/ 4/2 17 Ff All Revision
W RNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TR DEM RKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 3 of 32
SECURITY LERT:
G ENER L I NFORM TION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q U LIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDU L R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected] or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 4 of 32
EX MPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 5 of 32
CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
579
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 6 of 32
CH R CTERISTICS:
The configurable “PROFIBUS Master / Modbus TCP Slave - Converter” allows the following characteristics:
Triple isolation between Modbus/PROFIBUS, Modbus/Power Supply, PROFIBUS/Power Supply.
Mountable on 35mm Rail DIN;
Power Supply 8...24V AC or 12...35V DC;
Temperature range -4 °C to 85°C.
CONFIGUR TION:
You need Compositor SW67579 software on your PC in order to perform the following:
Define the parameter of the PROFIBUS;
Define the parameter of the Modbus line;
Define the PROFIBUS network.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 7 of 32
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
V C
VDC
Vmin Vmax Vmin Vmax
HD67579- 1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/V
HD67579-A1 4
Caution: Not reverse the polarity power
HD67
579
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 8 of 32
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’:
The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip2 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions see ‘LEDS’ section.
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 9 of 32
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Power (green) ON: Powered
OFF: Not powered
ON: Powered
OFF: Not powered
2: Modbus comm. (green) Blinks quickly when Ethernet commands are
received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: PROFIBUS comm. (green) Blinks quickly when there is PROFIBUS
communication
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 1 of 32
PROFIBUS:
The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure.
Here some codes of cables:
Belden: p/n 183 79A - Continuous Armor DataBus® ISA/SP-5 PROFIBUS Cable.
ETHERNET:
The Ethernet connection must be made using Connector4 of HD67579-A1 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 11 of 32
USE OF COMPOSITOR SW67579:
To configure the Converter, use the available software that runs with Windows called SW67579. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).

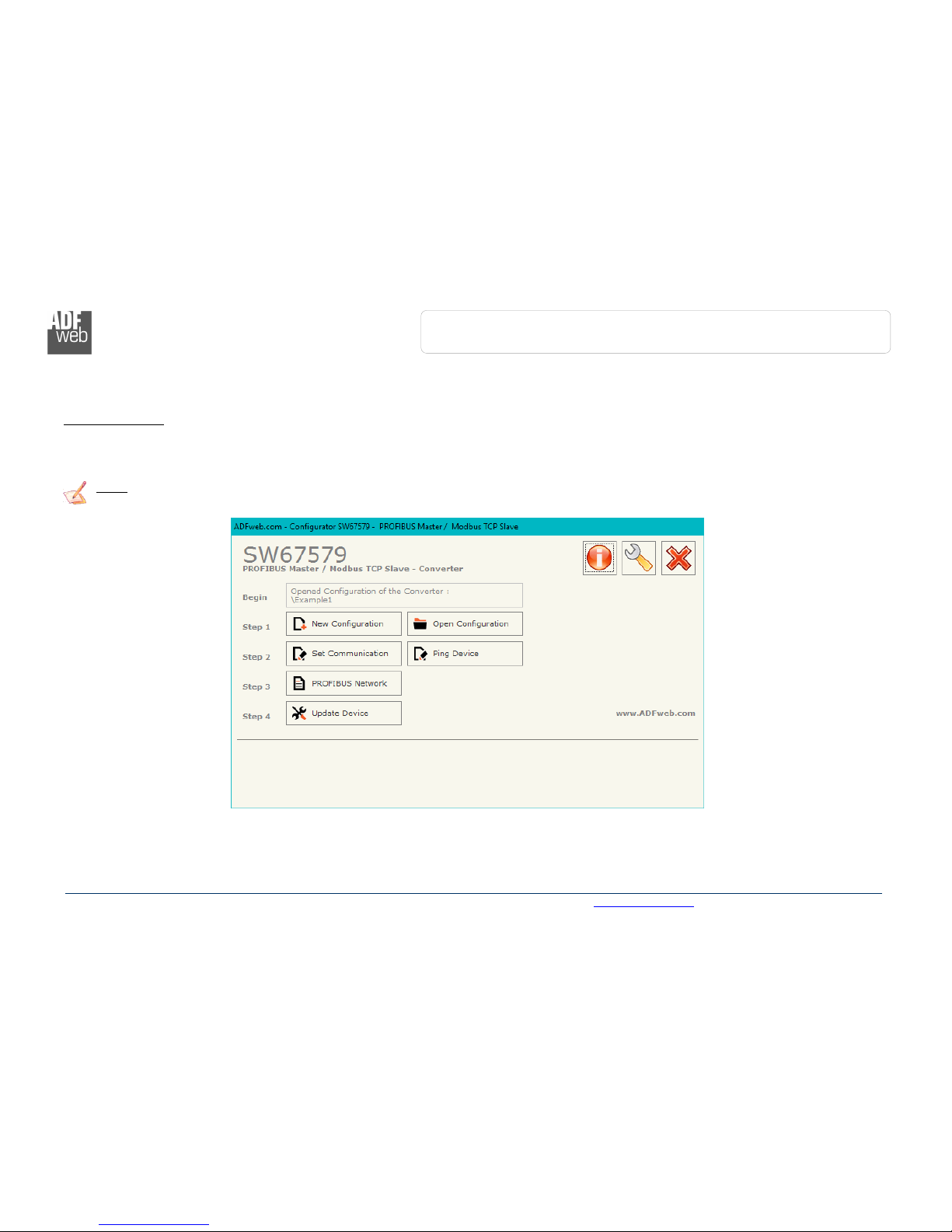

When launching the SW67579, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67579

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 12 of 32

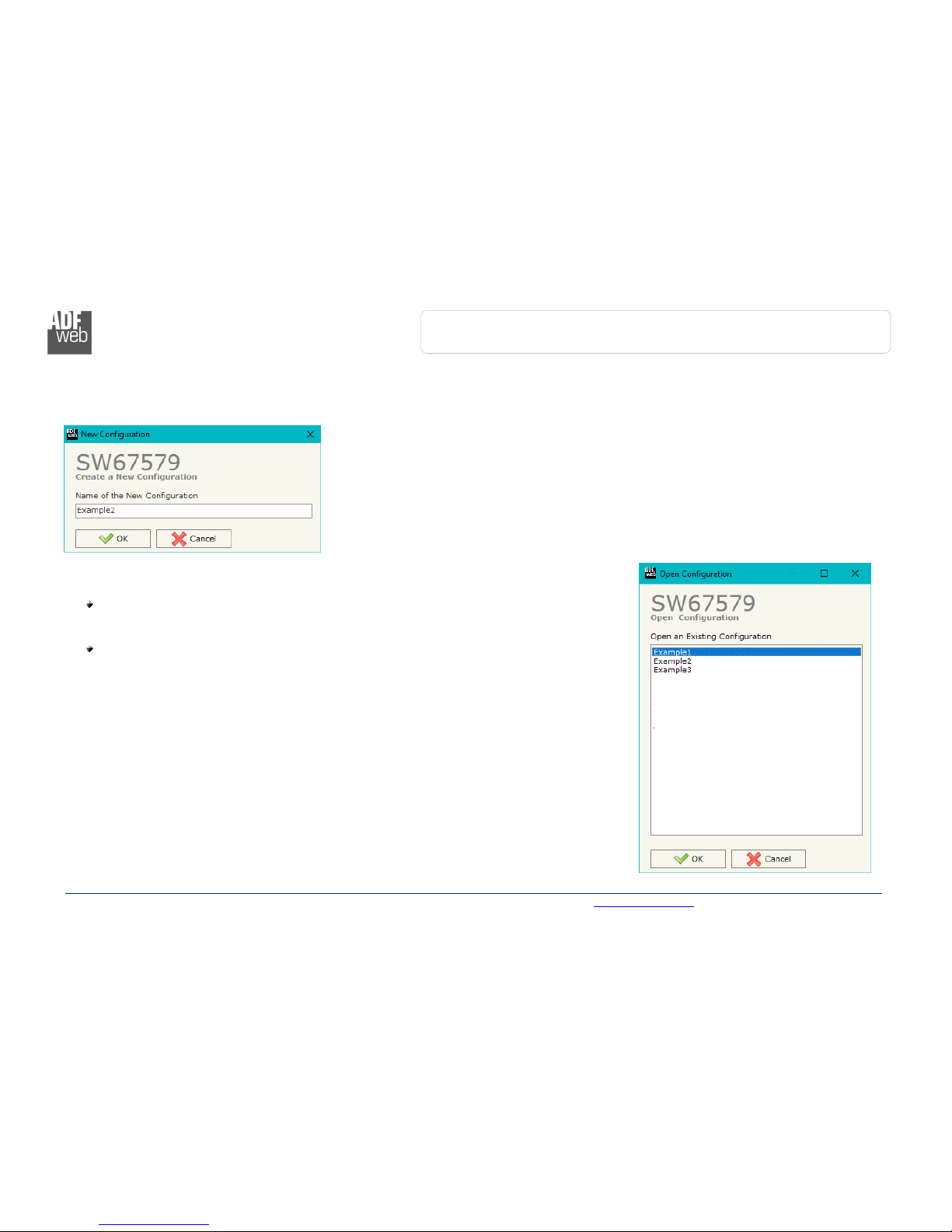

NEW CONFIGUR TION / OPEN CONFIGUR TION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “PROFIBUS Master / Modbus TCP Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 13 of 32

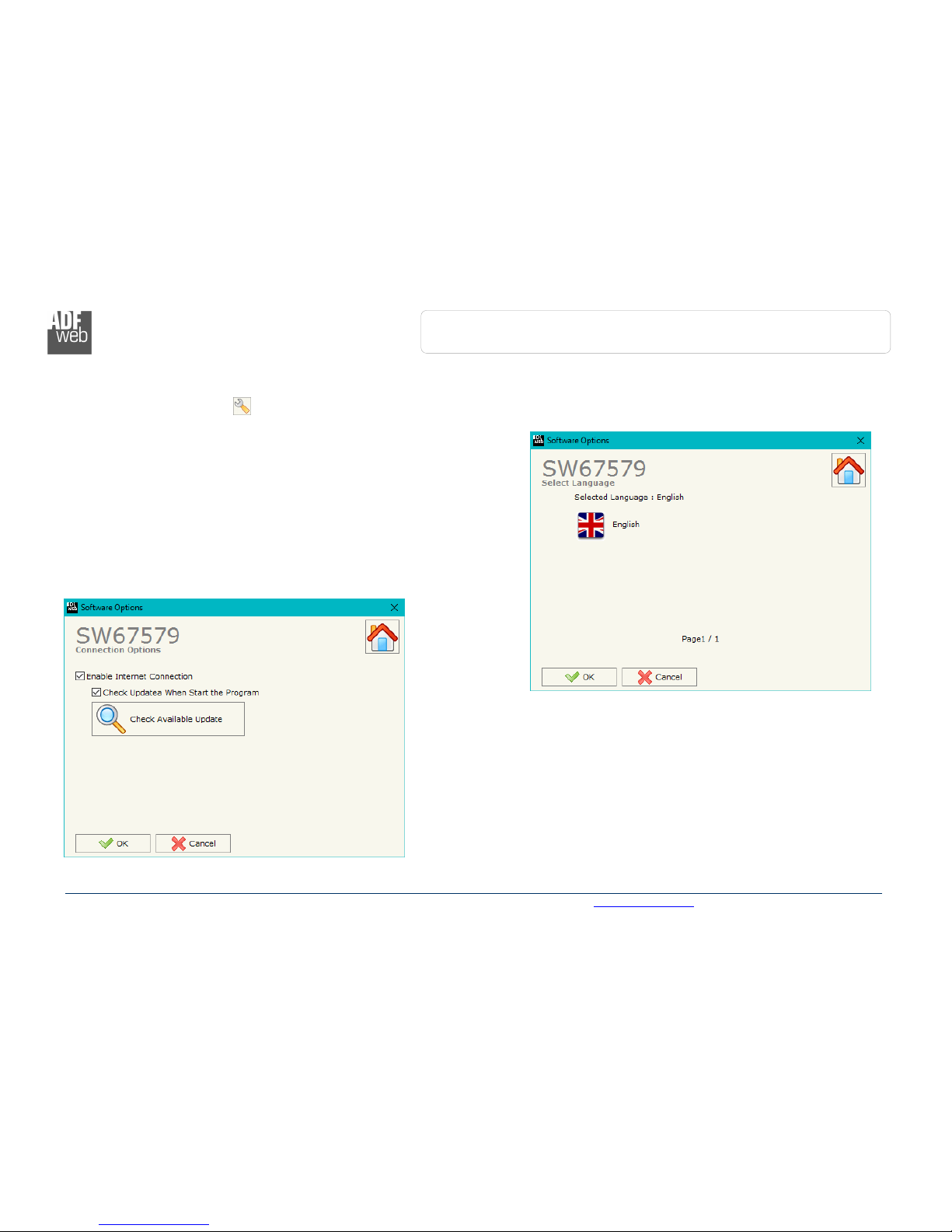

SOFTW RE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67579 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 14 of 32
SET COMMUNIC TION:
This section defines the fundamental communication parameter of two buses, PROFIBUS and Modbus
TCP.
By pressing the “Set Communication” button from the main window for SW67579 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the PROFIBUS and the other for the Modbus TCP.
The means of the fields for “PROFIBUS” are:
In the field “ID Dev.” the address of the PROFIBUS side is defined;
In the field “Baud rate” the baud rate for the PROFIBUS side is defined.
The means of the fields for “Modbus TCP Slave” are:
In the field “IP DDRESS” the IP address of Modbus TCP side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of Modbus TCP side of the converter is defined;
In the field “G TEW Y” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for Modbus TCP communication is defined;
If the field “Read with Input Register / Status Function” is checked, it is possible to read
the Input bytes of PROFIBUS side with Input Registers (Function 4) and write the Output
bytes of PROFIBUS side with Holding Registers (Function 6/16). The Output bytes are
readable with Function 3. Otherwise, only Holding Registers will be used and the Output
bytes of PROFIBUS side cannot be read back.
Figure
3
:
“Set Communication”
window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 15 of 32
PROFIBUS NETWORK:
By pressing the “PROFIBUS Network” button from the main window for SW67579 (Fig. 2) the window “PROFIBUS Network” (Fig. 4)
appears.
In this window is possible to:
Modify the PROFIBUS Master Options (“Master PROFIBUS Options”);
Add a PROFIBUS Slave in the Network of the Master (“ dd Slave PROFIBUS”);
Modify a PROFIBUS Slave in the Network (“Modify Slave PROFIBUS”);
Remove a PROFIBUS Slave from the Network (“Remove Slave PROFIBUS”).
Figure 4: “ ROFIBUS Network” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 16 of 32
M STER PROFIBUS OPTIONS:
By pressing the “Master PROFIBUS Options” button from the “PROFIBUS Network” window (Fig. 4) the “PROFIBUS Master Options”
window appears (Fig. 5).
In this window is possible to set the WatchDog Time for the PROFIBUS Slaves.
Note:
Fact1 and Fact2 could be write in decimal o hexadecimal (with prefix “ x” or “$”) and the values must between 1 and 255
Warning:
The WatchDog time must be between 2 and 65 25 milliseconds.
Figure 5: “ ROFIBUS Master Options” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 17 of 32
PROFIBUS DEVICE:
By pressing the “ dd Slave PROFIBUS” and “Modify Slave PROFIBUS” button (or double click above an existent PROFIBUS Slave) from
the “PROFIBUS Network” window (Fig. 4) the “PROFIBUS Device” window appears (Fig. 6).
In this window is possible to:
Set the PROFIBUS Slave ID (“ID Slave
PROFIBUS”);
Select the Modules present in the
PROFIBUS Slave from the Available
Modules in GSD file (“Module
Selection”);
Modify the User Parameters (if present)
of the PROFIBUS device (“User
Parameters”);
Modify the Parameters (if present) of the
Module Selected (“Module
Parameters”);
Watch Features and Baudrate supported
from the PROFIBUS device
(“Capabilities”);
Select the Sync, Freeze and Reset of
Data Options (“Options”).
Figure 6: “ ROFIBUS Device” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 18 of 32
M ODULE S ELECTION :
The section “Module Selection” is used to select which
Modules are present in the Slave (Fig. 7).
In this section is possible to:
Check the list of the Modules selected (“Select
Modules”) (Fig. 7, point (1)) and the list of Modules
Available in GSD file (“Available Modules") (Fig. 7,
point (7));
Add a Module from the list of GSD file (Fig. 7, point
(6));
Remove a Module from selected list (Fig. 7, point
(5));
Add all Modules present in the GSD file (Fig. 7, point
(4));
Remove all Modules from selected list (Fig. 7, point
(3));
Insert a Module not present in the GSD file (“Manual
Module”) (Fig. 7 point (2)). For more info see the
section “Manual Module” below;
Enable the read of configuration directly from the
PROFIBUS Slave (“Use module configuration
readed from device”) (Fig 7, point (8)). If this
option is enable the configuration of the modules is
discorded and the device read the correct
configuration directly to the PROFIBUS slave.
Figure 7: “ ROFIBUS Device – Module Selection” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 19 of 32
By pressing the “Manual Module” button from the “PROFIBUS Device” window (Fig. 6) the “Add Module Manually” window appears (Fig. 8).
In this window is possible to add a Module manually, i.e. writing the configuration of the module (in hexadecimal).
The means of the fields are:
In the field “Description of Module” a name of the Module is defined;
In the field “Insert the Configuration of Module (HEX)” the configuration of the module is defined. The configuration must be
write in hexadecimal mode (without prefix “ x” o “$”).
To modify a Module inserted manually, is neccessary to do a double click on the module to change in the “Select Module” list (Fig. 7, point
(1)). It is possible to change only the module inserted manually.
Note:
The Values inserted in the table must between and FF
Figure 8: “Add/Modify Module Manually” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFIBUS
Master
/ Modbus TCP Slave
-
Converter
Document code: MN67579_ENG Revision 2. 2 Page 2 of 32
U SER P R METERS :
The section “User Parameters” is used to modify the parameters of the PROFIBUS slave (Fig. 9).
In this section there are:
The List of all Parameters available for the
PROFIBUS device (“User Parameters”) (Fig.
9, point (1));
The Configuration of all parameters in RAW
(“Parameters in RAW (Hex)”) (Fig. 9,
point(2));
The “Use Parameter Inserted Manually”,
enable this option is possible to insert
manually the parameters of Device and also
of the Modules. Using the “Modify User
Parameters Manually” button is possible to
insert/modify the parametrization of the
device (and/or modules). For more info see
below. (Fig. 9, point(3));
The admited value for the selected
parameter. It is possible to select the value
desired and confirm it with the “ pply”
button. If no value appears in this table, the
“Min Value” and “Max Value” are the limit of
the parameter. (Fig. 9, point(4));
The “ pply” button is used to confirm the
new value of the parameter, the “Default”
button is used to load the factory value for
the parameter. In “New Value” edit box it is
possible to set the new value. (Fig. 9,
point(5)).
Figure 9: “ ROFIBUS Device – User arameters” window
