ADF Web HD67834-B2-Y User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 1 di 45
User Manual
Revision 1 000
English
DALI / CAN - Converter
(Order Code: HD67834-B2-Y, HD67834-B2-N)
for Website information:
www adfweb com?Product=HD67834
for Price information:
www adfweb com?Price=HD67834-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others DALI products, see also the following links:
Converter DALI to
www adfweb com?Product=HD67822 (KNX)
www adfweb com?Product=HD67831 (Serial)
www adfweb com?Product=HD67832 (BACnet/IP Master)
www adfweb com?Product=HD67833 (BACnet/IP Slave)
www adfweb com?Product=HD67835 (CANo en)
www adfweb com?Product=HD67836 (DeviceNet Master)
www adfweb com?Product=HD67837 (DeviceNet Slave)
www adfweb com?Product=HD67838 (DMX)
www adfweb com?Product=HD67839 (Ethernet)
www adfweb com?Product=HD67840 (EtherNet/IP)
www adfweb com?Product=HD67842 (Modbus Master)
www adfweb com?Product=HD67843 (Modbus Slave)
www adfweb com?Product=HD67844 (Modbus TCP Master)
www adfweb com?Product=HD67845 (Modbus TCP Slave)
www adfweb com?Product=HD67848 (PROFINET)
www adfweb com?Product=HD67849 (SNMP Manager)
www adfweb com?Product=HD67850 (SNMP Agent)
www adfweb com?Product=HD67941 (MQTT)
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 2 di 45
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
DALI 10
CAN 11
ETHERNET 12
USE OF COMPOSITOR SW67834 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17

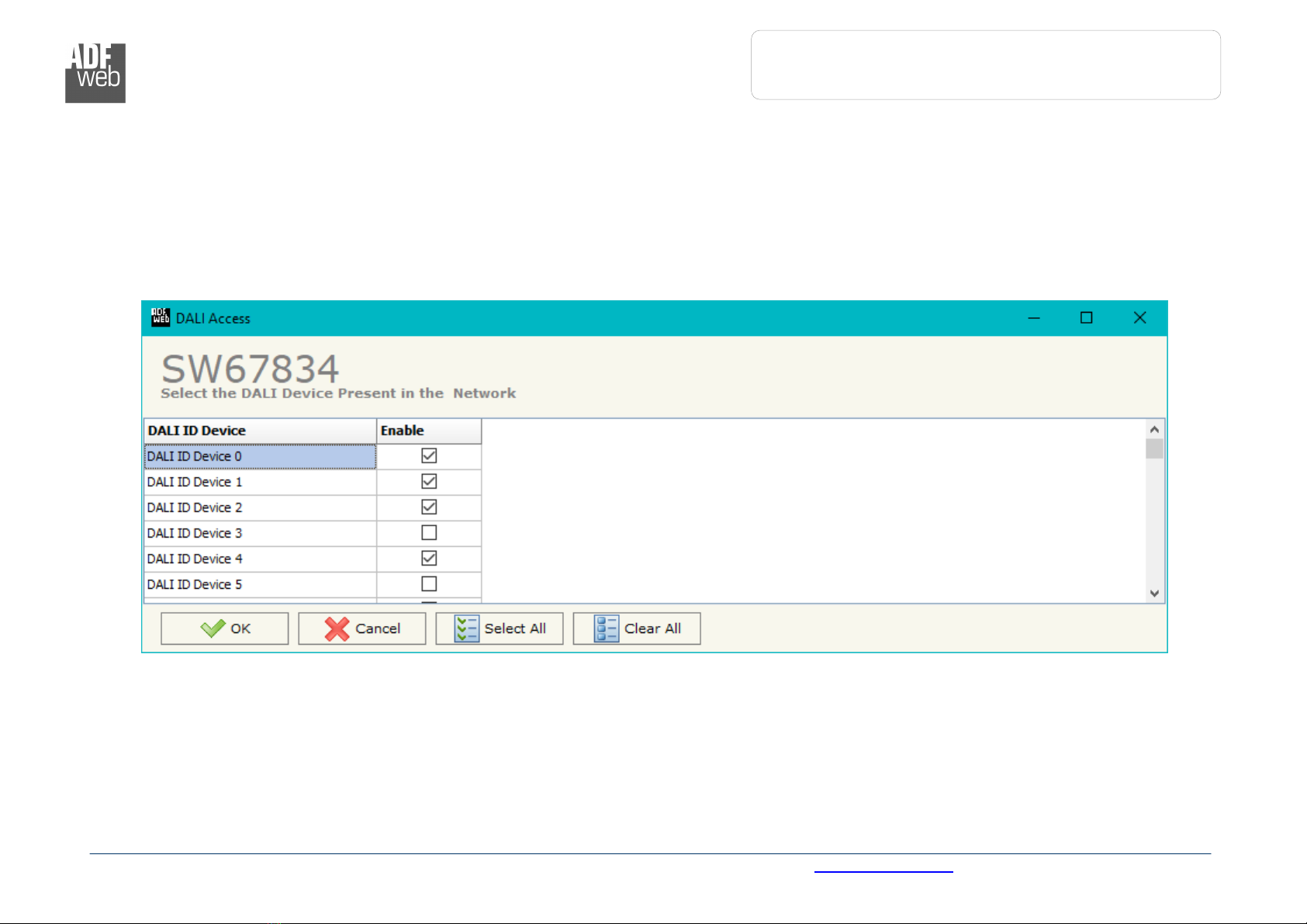

DALI ACCESS 18
RECEIVE FRAMES 19
SEND FRAMES 21
UPDATE DEVICE 23
USE OF DALI CONSOLE SOFTWARE 25
STRUCTURE OF THE SOFTWARE 26
SETUP 27
NETWORK SETTING 29
DALI MAP 34
MECHANICAL DIMENSIONS 42
ORDERING INFORMATIONS 43
ACCESSORIES 43
DISCLAIMER 44
OTHER REGULATIONS AND STANDARDS 44
WARRANTIES AND TECHNICAL SUPPORT 45
RETURN POLICY 45
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Cha ter Descri tion
1 000 15/06/2020 VDB All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 3 di 45
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 4 di 45

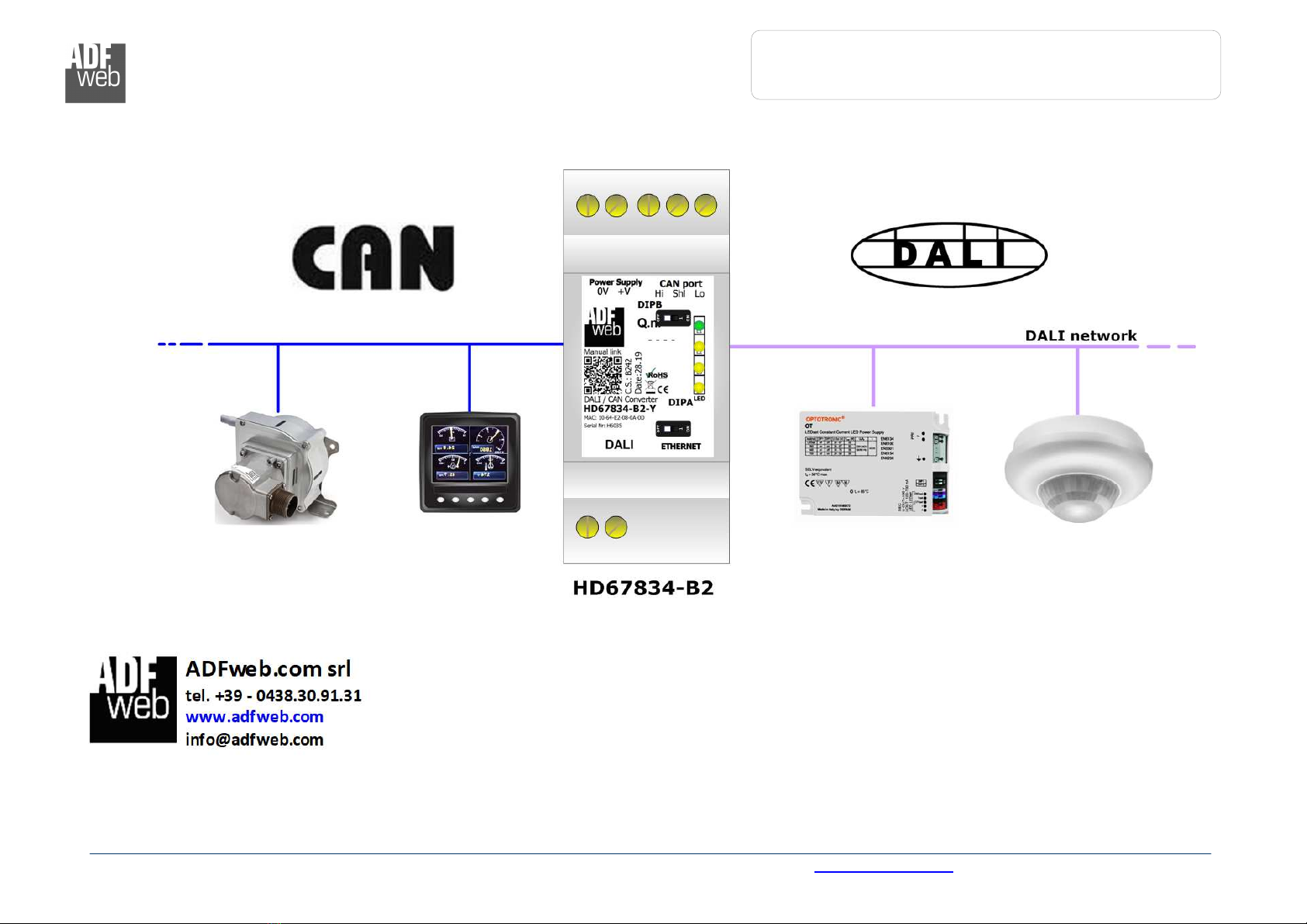

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 5 di 45
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67834-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 6 di 45
CHARACTERISTICS:
The HD67834 is a DALI / CAN - Converter
It has the following characteristics:
Up to 64 devices on DALI bus;
Configurator for DALI network/devices;
Isolation between DALI – CAN, Power Supply – CAN Additional isolation Power Supply – DALI for HD67834-B2-N version;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need “DALI Console” software on your PC in order to perform the following:
Configure the DALI network;
Setup the DALI devices (groups, scenes, IDs, …);
Test DALI communication
You need Compositor SW67834 software on your PC in order to perform the following:
Define the parameter of CAN line;
Define the parameter of DALI line;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 7 di 45
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consum tion [W/VA]
HD67834-B2 3 5
HD67834-B2
Caution: Not reverse the
olarity ower

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 8 di 45

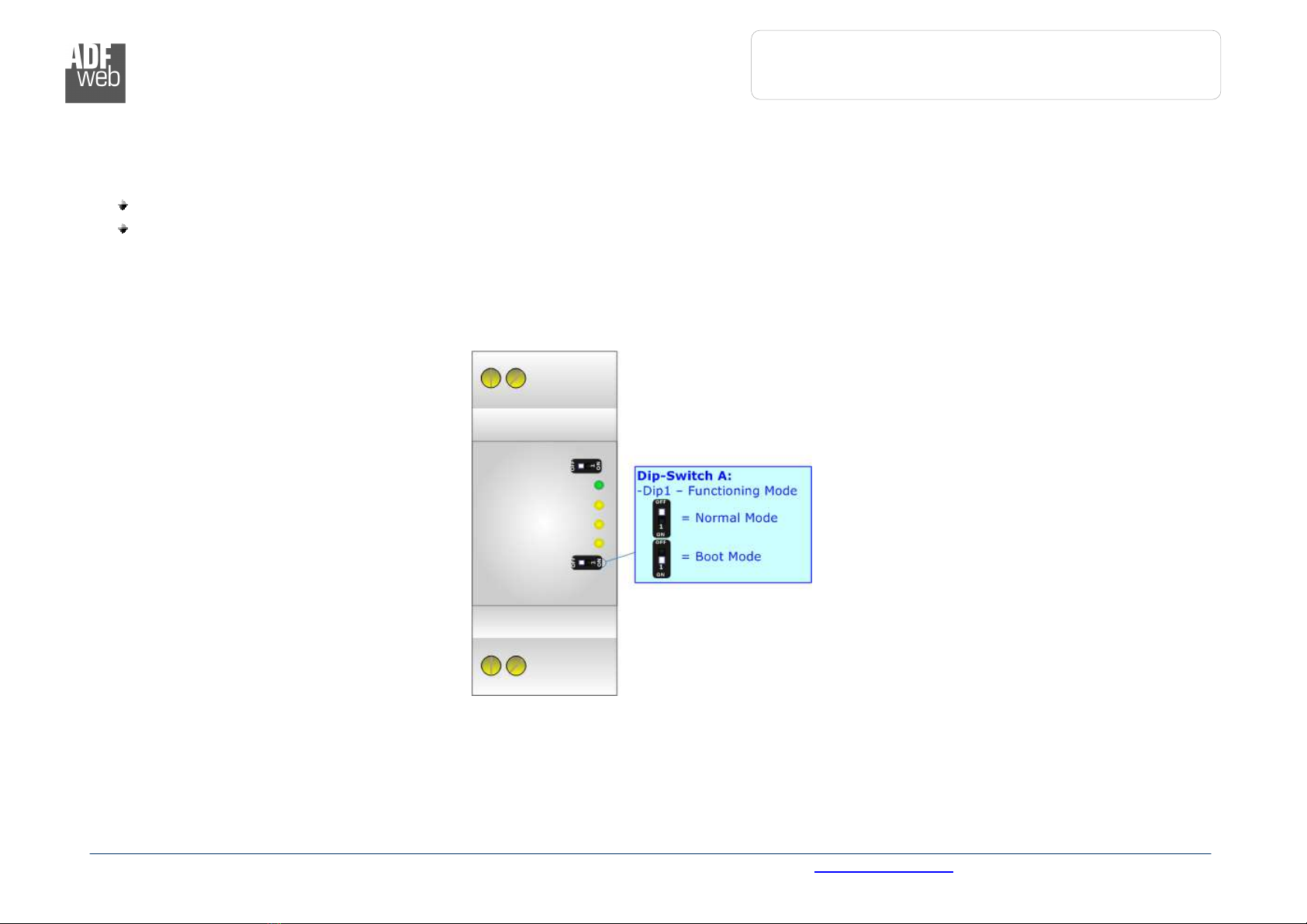

FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 9 di 45
LEDS:
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: CAN communication
(yellow) Blinks when CAN communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: DALI communication
(yellow) Blinks when DALI communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Comm error (yellow) Turns ON when DALI devices defined are not present Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 10 di 45

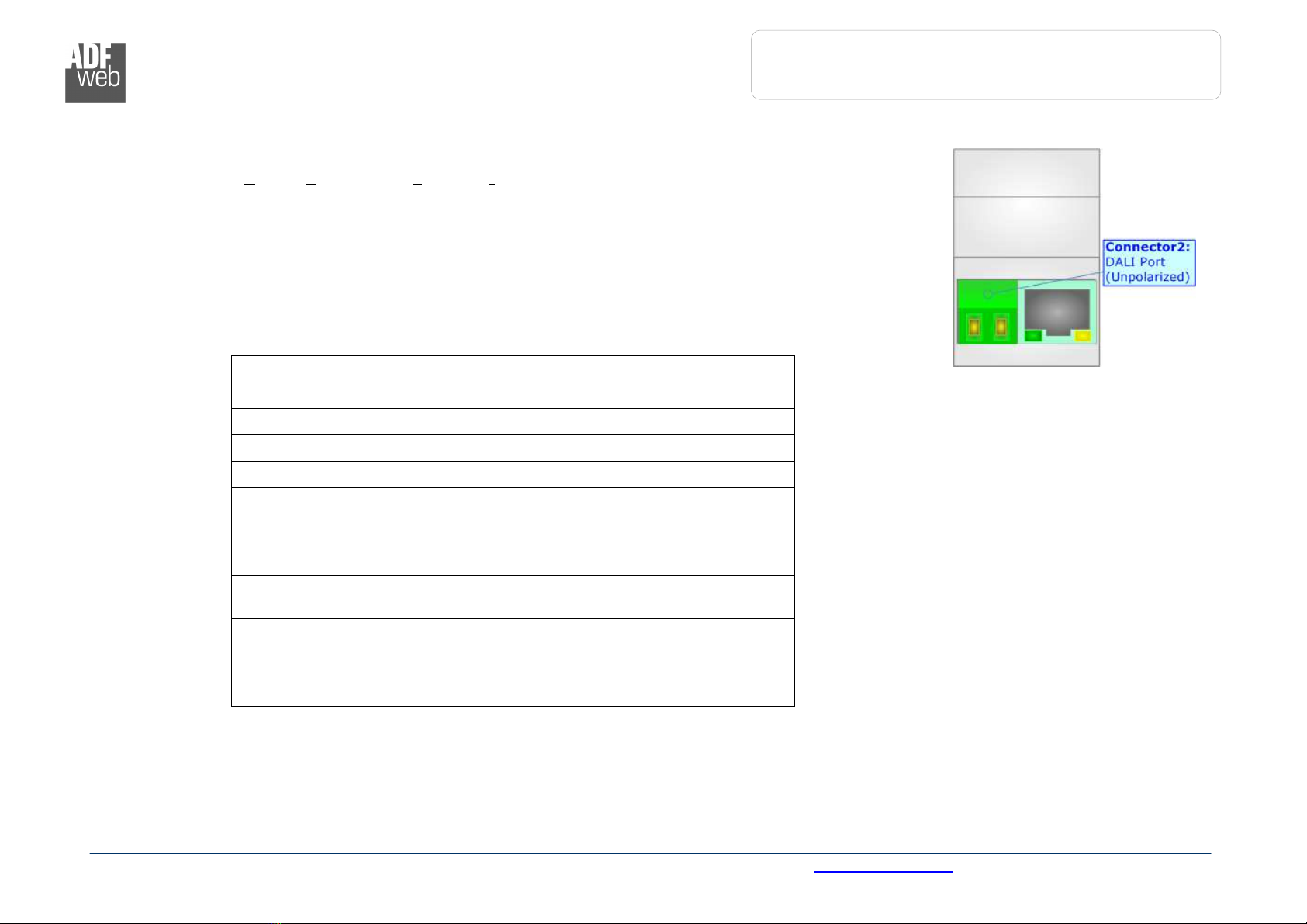

DALI:
DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc )
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources Using ADFweb com’s DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light
Characteristics Descri tion
Medium Shielded Twisted Pair
Topology Linear, Star or mixed
Device power consumption Max 250 mA
DALI voltage 9 5 V – 22 5 V (typical 16 V)
Maximum cable length 300 m (1 5 mm2 wire)
Maximum number of DALI
devices 64
Baud rate 1200 bps
Maximum number of DALI
groups 16
Maximum number of DALI
scenes 16

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 11 di 45
CAN:
For terminating the CAN line with a 120Ω resistor it is necessary to put Dip1 of ‘Dip-Switch B’ at ON position
Cable characteristics:
DC arameter: Impedance 70 Ohm/m
AC arameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [b s] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 12 di 45
ETHERNET:
The Ethernet port is used for programming DALI network and for programming the converter
The Ethernet connection must be made using Connector2 of HD67834-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 13 di 45
USE OF COMPOSITOR SW67834:
To configure the Converter, use the available software that runs with Windows called SW67834 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67834, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
F
igure 2: Main window for SW67834

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 14 di 45
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “DALI / CAN - Converter” in order to
configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “O en Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 15 di 45
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software U date at Start of Program”, the
SW67834 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 16 di 45
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 17 di 45
SET COMMUNICATION:
This section define the fundamental communication parameters of CAN and DALI buses
By Pressing the “Set Communication” button from the main window for SW67834 (Fig 2) the window
“Set Communication” appears (Fig 3)
The means of the fields for the “CAN” section are:
In the field “Baud Rate” the data rate of the CAN line is defined
The means of the fields for the “DALI” section are:
In the field “DALI Console Port” the UDP port used for Ethernet communication is defined;
If the option “Disable DALI Scan” is checked, the automatic scanning of DALI side is disabled
The DALI side is scanned only on Ethernet command;
If the option “Enable DALI 2” is checked, DALI 2 functions are enabled (normally used with DALI
sensors, actuators, exc )
The means of the fields for the “Ethernet” section are:
In the field “IP ADDRESS” the IP address of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask is defined;
In the field “GATEWAY” the default gateway of the Ethernet network is defined This feature can
be enabled or disabled pressing the Check Box field This feature is used for going out of the net
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 18 di 45
DALI ACCESS:
By pressing the “DALI Access” button from the main window for SW67834 (Fig 2) the window “Select the DALI Device Present in the
Network” appears (Fig 4)
This section is used to define the DALI devices connected to the converter It is enough to check/uncheck the connected/unconnected DALI
devices
Figure 4: “DALI Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 19 di 45
RECEIVE FRAMES:
By pressing the “Receive Frames” button from the main window for SW67834 (Fig 2) the “Receive CAN Frames” window appears (Fig 5)
The COB inserted in this table contains the data to write on DALI side These frames are accepted by the converter
The data of the columns have the following meanings:
If the field “Enable” is checked, the CAN frame is enabled;
In the field “Cob-ID” the COB of the CAN frame is defined;
In the field “Ty e” the type of CAN packet use for the Cob-ID is defined (2 0A (11 bits) or 2 0B (29 bits));
In the field “Dimension” the number of byte of the COB (from 1 to 8) is defined;
The field “TimeOut” is used for put at zero the data into internal array if the CAN frame arrives with a frequency less than the time
expressed in the field If the value in the field is ‘0’, it means that you don’t want to use this feature;
In the field “Byte1” insert the byte of the internal array where saving 1st byte of the CAN message;
In the field “Byte2” insert the byte of the internal array where saving 2nd byte of the CAN message;
In the field “Byte3” insert the byte of the internal array where saving 3rd byte of the CAN message;
In the field “Byte4” insert the byte of the internal array where saving 4th byte of the CAN message;
In the field “Byte5” insert the byte of the internal array where saving 5th byte of the CAN message;
In the field “Byte6” insert the byte of the internal array where saving 6th byte of the CAN message;
Figure 5: “Receive CAN Frames Set Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CAN
Document code: MN67834_ENG Revision 1 000 Pagina 20 di 45
In the field “Byte7” insert the byte of the internal array where saving 7th byte of the CAN message;
In the field “Byte8” insert the byte of the internal array where saving 8th byte of the CAN message;
In the field “Mnemonic” a brief description is defined
