ADF Web HD67D01-2-B2-868MHz User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 1 of 31
User Manual
Revision 1.000
En lish
LoRaWAN / Modbus Master - Converter
(Order Code: HD67D01-2-B2-868MHz, HD67D01-5-B2-868MHz)
For Website information:
www.adfweb.com?Product=HD67D01-B2
For Price information:
www.adfweb.com?Price=HD67D01-2-B2-868MHz
www.adfweb.com?Price=HD67D01-5-B2-868MHz
Benefits and Main Features:
Very easy to confi ure
Power Supply 18…35V DC and 8…24 V AC
Temperature ran e: -40°C/+85°C (-40°F/+185°F)
For others LoRaWAN products, see also the followin links:
Converter LoRaWAN to
www.adfweb.com?Product=HD67D02 (Modbus Slave)
www.adfweb.com?Product=HD67D03 (Modbus TC Master)
www.adfweb.com?Product=HD67D04 (Modbus TC Slave)
www.adfweb.com?Product=HD67D05 (Serial)
www.adfweb.com?Product=HD67D15 (M-Bus)
www.adfweb.com?Product=HD67D16 (BACnet Master)
www.adfweb.com?Product=HD67D17 (BACnet Slave)
www.adfweb.com?Product=HD67D18 (Ethernet)
www.adfweb.com?Product=HD67D19 (CAN)
www.adfweb.com?Product=HD67D20 (CANopen)
www.adfweb.com?Product=HD67D21 (DeviceNet Master)
www.adfweb.com?Product=HD67D22 (DeviceNet Slave)
www.adfweb.com?Product=HD67D23 (DMX)
www.adfweb.com?Product=HD67D24 (EtherNet/I Master)
www.adfweb.com?Product=HD67D25 (EtherNet/I Slave)
www.adfweb.com?Product=HD67D26 (J1939)
www.adfweb.com?Product=HD67D27 (KNX)
www.adfweb.com?Product=HD67D28 (NMEA 0183)
www.adfweb.com?Product=HD67D29 (NMEA 2000)
www.adfweb.com?Product=HD67D30 ( ROFIBUS Master)
www.adfweb.com?Product=HD67D31 ( ROFIBUS Slave)
www.adfweb.com?Product=HD67D32 ( ROFINET Master)
www.adfweb.com?Product=HD67D33 ( ROFINET Slave)
www.adfweb.com?Product=HD67D34 (IEC61850 Client)
www.adfweb.com?Product=HD67D35 (IEC61850 Server)
www.adfweb.com?Product=HD67D36 (MQTT)
www.adfweb.com?Product=HD67D37 (O C UA Client)
www.adfweb.com?Product=HD67D38 (O C UA Server)
www.adfweb.com?Product=HD67D39 (S7comm)
www.adfweb.com?Product=HD67D40 (SNM Manager)
www.adfweb.com?Product=HD67D41 (SNM Agent)
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 2 of 31
INDEX:
Pa e
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 7
CONFIGURATION 7
POWER SUPPLY 8
FUNCTION MODES 9
LEDS 10
LORAWAN 11
RS232 12
RS485 13
ETHERNET 14
USE OF COMPOSITOR SW67D01 15
NEW CONFIGURATION / OPEN CONFIGURATION 16
SOFTWARE OPTIONS 17
SET COMMUNICATION 19
LORAWAN ACCESS 21
MODBUS SET ACCESS 23
UPDATE DEVICE 25
LORAWAN PAYLOAD 27
MECHANICAL DIMENSIONS 28
ORDERING INFORMATIONS 29
ACCESSORIES 29
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SUPPORT 31
RETURN POLICY 31
U DATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the followin document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top ri ht-hand corner of each pa e of this document.
With this “Document Code” o to web pa e www.adfweb.com/download/
and search for the correspondin code on the pa e. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the ri ht to chan e information in this manual about
our product without warnin .
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belon to their respective
owners.
Revision Date Author Chapter Description
1.000 04/12/2020 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 3 of 31
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and
safety re ulation are required for each individual application. The same applies also when usin accessories.
I NTENDED U SE
Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the followin symbol:
This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or
death and / or the possibility of dama e.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 4 of 31
EXAM LE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 5 of 31

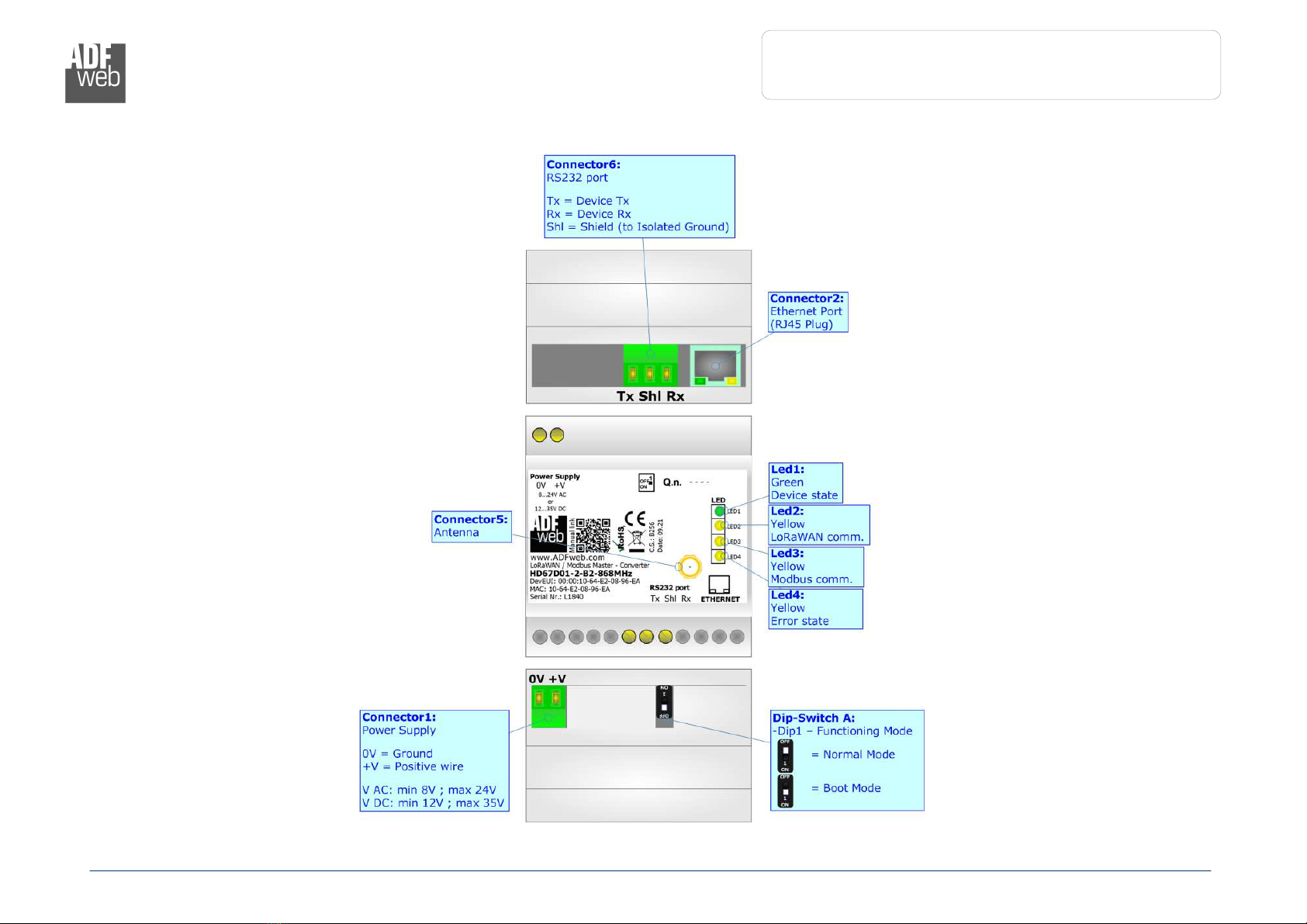

CONNECTION SCHEME:
Figure 1a: Connection scheme for HD67D01- -B -xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 6 of 31
Figure 1b: Connection scheme for HD67D01-5-B -xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 7 of 31
CHARACTERISTICS:
The HD67D01-B2 is a LoRaWAN / Modbus Master Converter.
It allows the followin characteristics:
Electrical isolation between Modbus and Power Supply;
Mountable on 35mm Rail DIN;
Wide power supply input ran e: 12…35V DC and 8…24V AC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67D01 software on your PC in order to perform the followin :
Define the parameter of Modbus line;
Define the parameter of LoRaWAN line;
Define the list of LoRaWAN messa es in uplink and downlink to the LoRaWAN ateway;
Define the Modbus re isters to read and write from/to the Modbus Slaves;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 8 of 31
OWER SU LY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D01-x-B2-xxxMHz 3.5
HD67D01
-
x
-
B2
-
xxxMHz
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 9 of 31
FUNCTION MODES:
The device has ot two functions mode dependin of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.
Accordin to the functionin mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 10 of 31
LEDS:
The device has ot four LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
2: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
3: Modbus communication
(yellow) Blinks when a Modbus response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in pro ress

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 11 of 31
LORAWAN:
The LoRaWAN® specification is a Low Power, Wide Area (LPWA) networkin protocol
desi ned to wirelessly connect battery operated ‘thin s’ to the internet in re ional, national
or lobal networks, and tar ets key Internet of Thin s (IoT) requirements such as bi-
directional communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topolo y in which ateways
relay messa es between end-devices and a central network server.
The wireless communication takes advanta e of the Lon Ran e characteristics of the LoRa
physical layer, allowin a sin le-hop link between the end-device and one or many
ateways. All modes are capable of bi-directional communication, and there is support for
multicast addressin roups to make efficient use of spectrum durin tasks such as
Firmware Over-The-Air (FOTA) up rades or other mass distribution messa es.
Converters from HD67D01 serie act as end-devices and they can communicate with one or
more LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 12 of 31

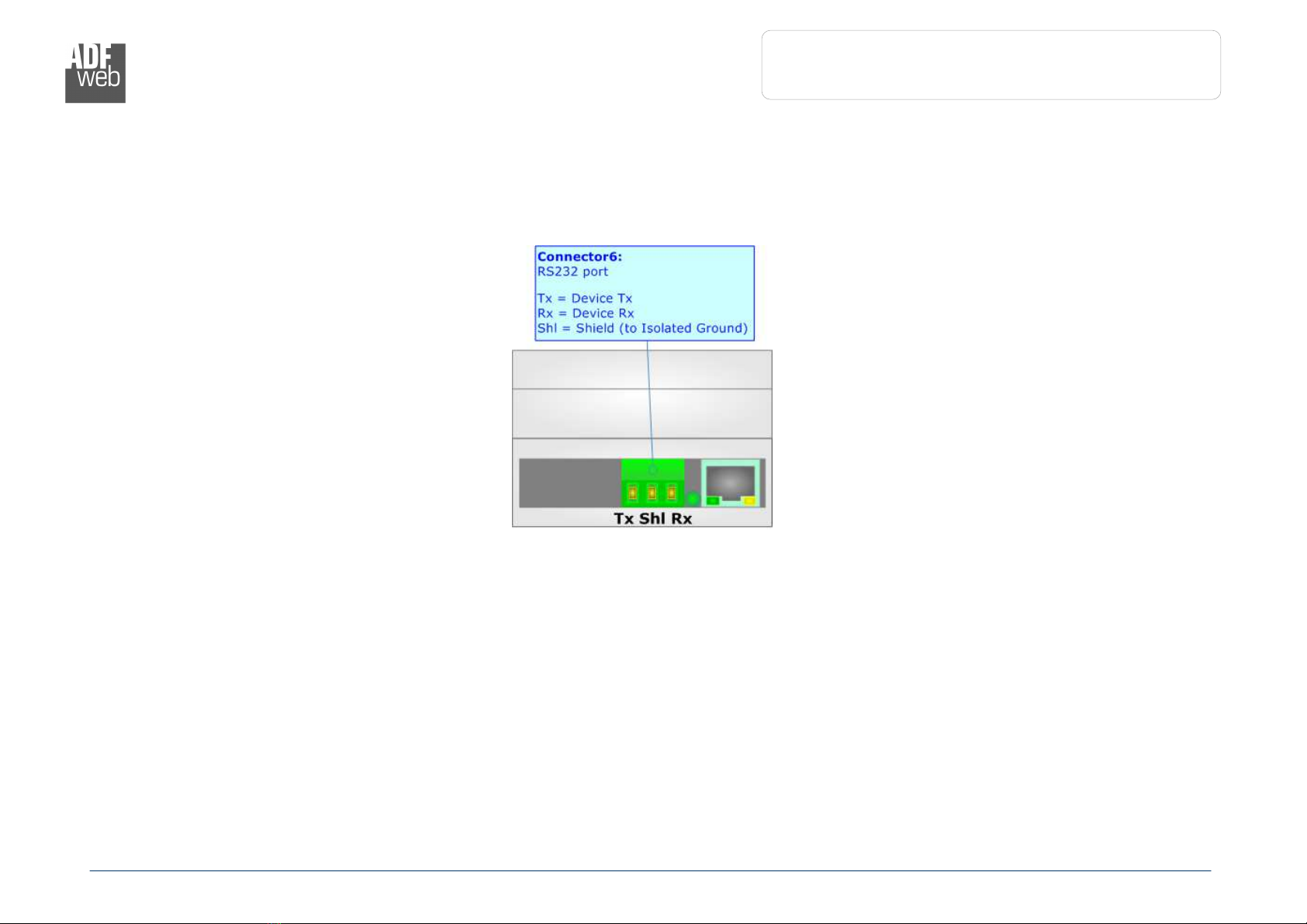

RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a
serial cable where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 13 of 31
RS485:
For terminatin the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in fi ure.
The maximum len th of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 14 of 31
ETHERNET:
The Ethernet port is used for pro rammin the device.
The Ethernet connection must be made usin Connector2 of HD67D01-B2 with at least a Cate ory 5E cable. The maximum len th of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 15 of 31
USE OF COM OSITOR SW67D01:
To confi ure the Converter, use the available software that runs with Windows called SW67D01. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (XP, Vista, Seven, 8, 10; 32/64bit).
When launchin the SW67D01, the window below appears (Fi . 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure : Main window for SW67D01

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 16 of 31
NEW CONFIGURATION / O EN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s confi uration.
A device’s confi uration can also be imported or exported:
To clone the confi urations of a Pro rammable “LoRaWAN / Modbus Master -
Converter” in order to confi ure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 17 of 31
SOFTWARE O TIONS:
By pressin the “Settings” ( ) button there is the possibility to chan e the lan ua e of the software and check the updatin s for the
compositor.
In the section “Lan ua e” it is possible to chan e the lan ua e of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatin s of the software compositor in ADFweb.com website.
Checkin the option “Check Software Update at Start of rogram”, the
SW67D01 check automatically if there are updatin s when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 18 of 31
In the section “Software Settin s”, it is possible to enable/disable some
keyboard’s commands for an easier navi ation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 19 of 31
SET COMMUNICATION:
By Pressin the “Set Communication” button from the main window for SW67D01 (Fi . 2)
the window “Set Communication” appears (Fi . 3).
The means of the fields for the “LoRaWAN” section are:
In the field “RF Band” the wireless band used for LoRaWAN communication is
defined;
In the field “Network Type” the type of LoRaWAN network is defined;
If the field “Adaptive Data Rate” is checked, the converter will enable the ADR
functionalities to select the best data rate to be used in relation to the environmental
conditions;
In the field “Data Rate” the data rate for LoRaWAN communication is defined;
In the field “Transmission Type” the type of LoRaWAN communication is defined;
In the field “Max ayload Size” the maximum dimension of the LoRaWAN
messa es is defined (fixed in relation to the data rate selected);
In the field “JoinEUI” the ID of the application server is defined;
In the field “Activation Method” the method used to join into a LoRaWAN network
is defined;
In the field “Device Address” the device identifier (DevEUI) is defined (only for ABP
method);
In the field “Network Session Key” the key used for the communication with the
LoRaWAN ateway (NwkSKey) is defined (only for ABP method);
In the field “Application Session Key” the key for encryption and decryption of the
payload (AppSKey) is defined (only for ABP method);
If OTAA method is selected, in the field “Application Key” the secret key for the
dynamic activation of the converter in the LoRAWAN network is defined.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
U
ser Manual
LoRaWAN / Modbus Master
Document code: MN67D01_ENG Revision 1.000 Pa e 20 of 31
The means of the fields for the “Modbus Master” section are:
In the field “Serial” the serial port to use is defined;
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “ arity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits of the serial line is defined;
In the field “TimeOut (ms)” the maximum time that the converter attends for the answer from the Slave interro ated is defined;
In the field “Cyclic Delay (ms)” the delay (idle time) between two Modbus requests is defined.
The means of the fields for “Ethernet” section are:
In the fields “I Address” the IP address for Ethernet side of the converter is defined;
In the fields “SubNet Mask” the SubNet Mask for Ethernet side of the converter is defined;
In the fields “Gateway” the default ateway of the net is defined. This feature can be enabled or disabled pressin the Check Box
field. This feature is used for oin out of the net;
In the fields “DNS” the IP address of the DNS server is defined
