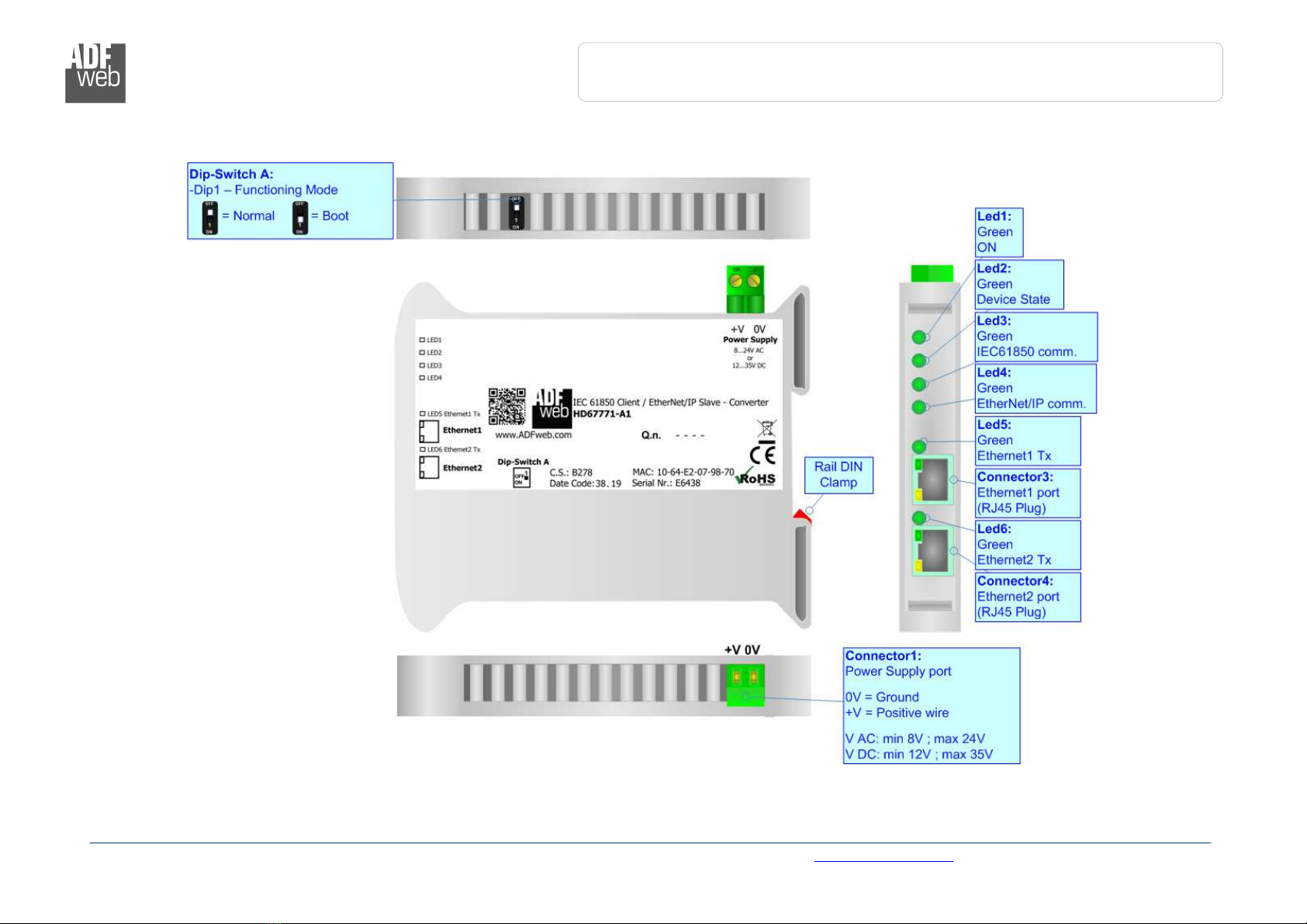

CONNECTION SCHEME
Figure
1
: Connection scheme for HD67
7
71
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 6 of 31
CHARACTERISTICS
The HD67771-A1 is a IEC61850 Client / EtherNet/IP Slave converter.
It allows the followin characteristics:
Up to 496 bytes in readin and 496 bytes in writin ;
Two-directional information between EtherNet/IP and IEC61850;
Mountable on 35mm Rail DIN;
Wide power supply input ran e: 8…24V AC or 12…35V DC;
Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION
You need Compositor SW67771 software on your PC in order to perform the followin :
Define the parameters of the IEC61850;
Define the parameters of the EtherNet/IP;
Define IEC61850 variables to be read by the EtherNet/IP master;
Define IEC61850 variables to be written by the EtherNet/IP master;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 7 of 31
POWER SUPPLY
The devices can be powered between a wide ran e of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67771-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67771-A1 4
Caution Not reverse the polarity power
HD67771-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 8 of 31
FUNCTION MODES
The device has ot two functions mode dependin of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory settin ), is used for the normal workin of the device.
The second, with Dip1 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updatin (see ‘UPDATE DEVICE’ section).
Accordin to the functionin mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 9 of 31
LEDS
The device has ot six LEDs that are used to ive information of the functionin status.
The various meanin s of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply volta e ]
( reen)
ON Device powered
OFF Device not powered
ON Device powered
OFF Device not powered
2: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
3: IEC61850 comm. ( reen)
ON At least one IEC61850 Server is disconnected
Flashing IEC61850 response
OFF No IEC61850 response
Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
4: EtherNet/IP comm.
( reen)
Flashing EtherNet/IP communication
OFF No EtherNet/IP communication
Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
5: Ethernet1 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress
6: Ethernet2 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly Boot state
Blinks very slowly (~0.5Hz) update in pro ress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 10 of 31
ETHERNET
The Ethernet connection must be made usin Connector3 or Connector4 of HD67771-A1 with at least a Cate ory 5E cable. The maximum
len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is recommended
the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 11 of 31
USE OF COMPOSITOR SW67771
To confi ure the Converter, use the available software that runs with Windows called SW67771. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit).
When launchin the SW67771, the window below appears (Fi . 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW677
71

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 12 of 31
NEW CONFIGURATION / OPEN CONFIGURATION
The “New Configuration” button creates the folder which contains the entire device’s confi uration.
A device’s confi uration can also be imported or exported:
To clone the confi urations of a pro rammable “IEC61850 Client / EtherNet/IP Slave -
Converter” in order to confi ure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 13 of 31
SOFTWARE OPTIONS
By pressin the “Settings” ( ) button there is the possibility to chan e the
lan ua e of the software and check the updatin s for the compositor.
In the section “Lan ua e” it is possible to chan e the lan ua e of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatin s of the software compositor in ADFweb.com website.
Checkin the option “Check Software Update at Start of Program”, the
SW67771 check automatically if there are updatin s when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 14 of 31
In the section “Software Settin s”, it is possible to enable/disable some
keyboard’s commands for an easier navi ation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 15 of 31
SET COMMUNICATION
This section define the fundamental communication parameters of two buses, IEC61850 and
EtherNet/IP.
By Pressin the “Set Communication” button from the main window for SW67771 (Fi . 2)
the window “Set Communication” appears (Fi . 3).
The means of the fields for “IEC61850 Client” are:
In the fields “IP Address” the IP address for IEC61850 side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for IEC61850 side of the converter is
defined;
In the fields “Gateway” the default ateway of the net is defined. This feature can be
enabled or disabled pressin the Check Box field. This feature is used for oin out of
the net;
In the field "VLAN" the identifier for the VLAN is defined;
In the field “Application ID” the Goose identification strin is defined.
The means of the fields for “EtherNet/IP” are:
In the fields “IP ADDRESS” the IP address for EtherNet/IP side of the converter is
defined;
In the fields “SUBNET Mask” the SubNet Mask for EtherNet/IP side of the converter
is defined;
In the fields “GATEWAY” the default ateway of the net is defined. This feature can
be enabled or disabled pressin the Check Box field. This feature is used for oin
out of the net;
In the field “Port” the port number used for EtherNet/IP communication is defined
(fixed to 44818);
In the field “Number Byte Input” the number of input byte of the slave station is
defined;
In the field “Number Byte Output” the number of output byte of the slave station
is defined.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 16 of 31
Figure 4: “IEC61850 Client Set Access” window
IEC61850 ACCESS
By Pressin the “IEC61850 Access” button from the main window for SW67771 (Fi . 2) the window “IEC61850 Client Set Access” appears
(Fi . 4).
This section is used to define the list of IEC61850 variables from/to which take/map the data of EtherNet/IP.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 17 of 31

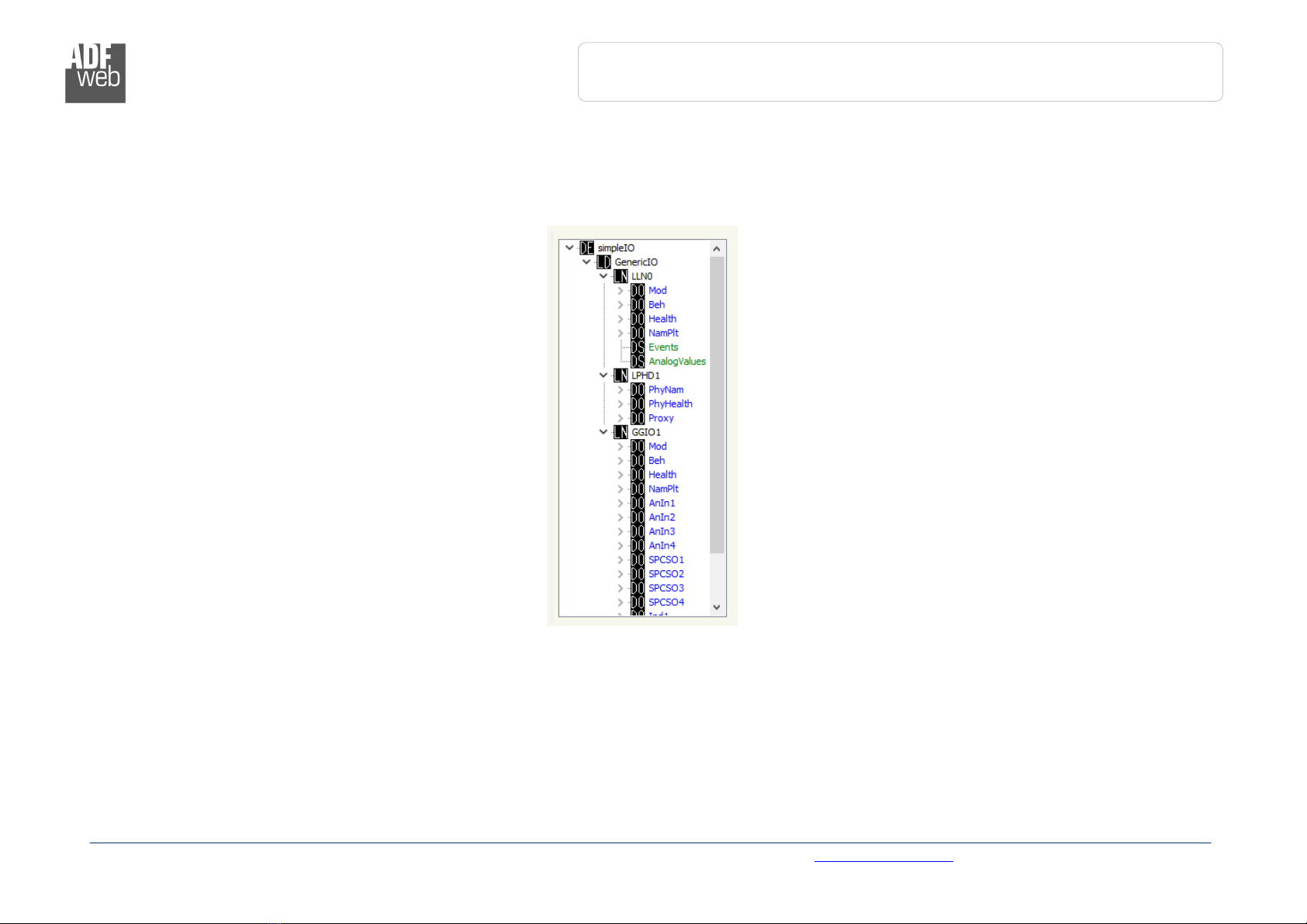

Figure 5: functional structure

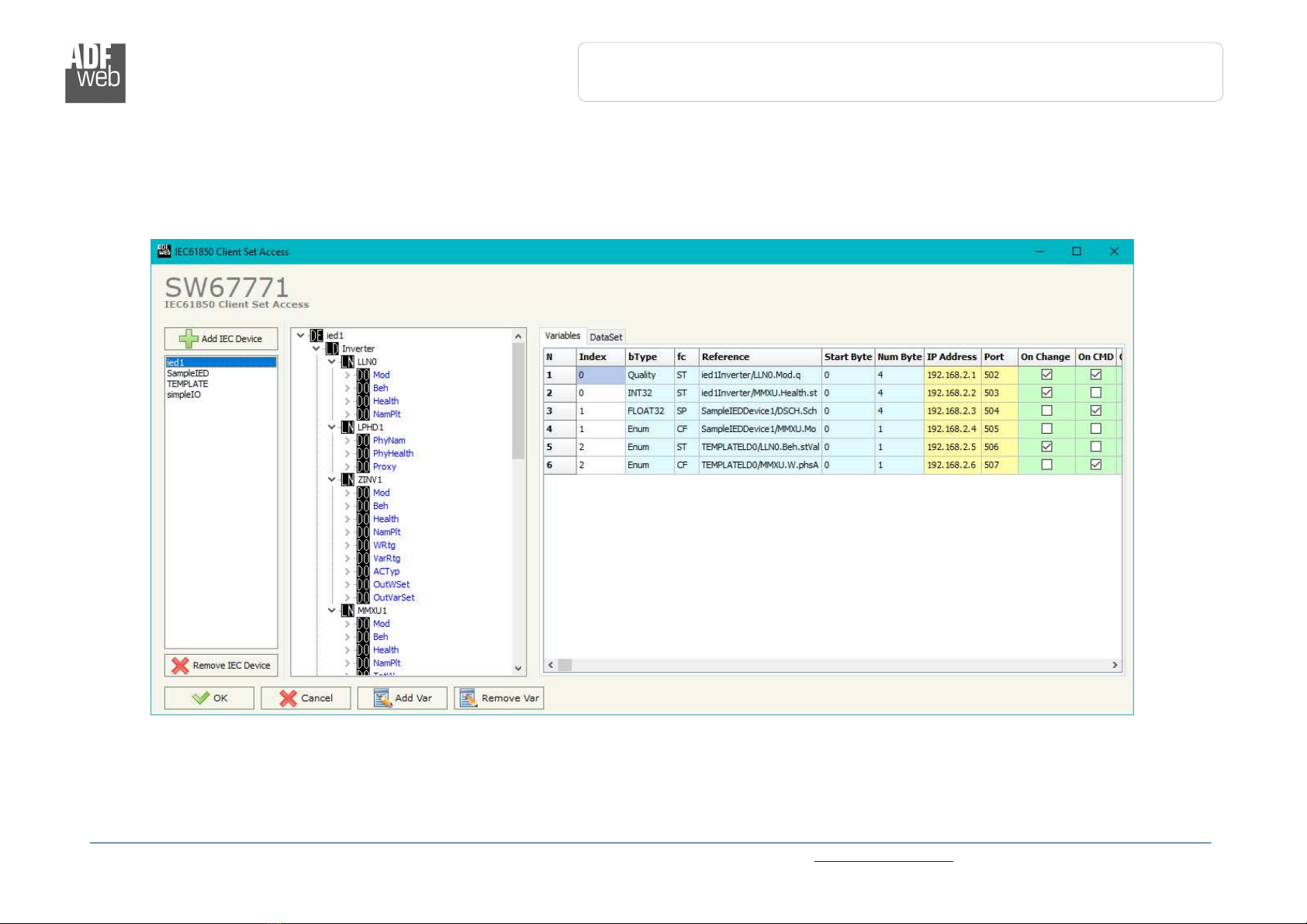

By clickin on “ADD IEC Device”, it is possible to add a new IEC61850 Server. A SCL file has to be selected (the allowed extensions are
.scd, .ssd, .sed, .icd, .iid or .cid). The functional structure of the Server (Lo ical Devices, Lo ical Nodes, Data Objects and Data Attributes)
will be visible (Fi . 5). The last leaves in the branches of the structure are the variables which can be added to the “Variables” section on the
ri ht (Fi . 6).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 18 of 31
Figure 6: “Variables” section
The meanin s of the fields are:
In the field “Index” the index of the server to which the IEC61850 variable belon s is defined;
In the field “bType” the data format of the IEC61850 variable is defined;
In the field “fc” the Functional Constraint of the IEC61850 variable is defined;
In the field “Reference” the path of the IEC61850 variable is defined;
In the field “IP Address” the IP Address of the server to which the IEC61850 variable belon s is defined;
In the field “Port” the Port of the server to which the IEC61850 variable belon s is defined;
If the field “On Change” is checked, the IEC61850 variable is sent when the data on EtherNet/IP chan es the value (only in write);
If the field “On CMD” is checked, the IEC61850 variable is sent when an EtherNet/IP explicit messa e is received (only in write);

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 19 of 31
If the field “On Timer” is checked, the IEC61850 variable is sent/read cyclically;
In the field “Time (ms)” the delay in ms between two readin s/writin s of the variable is defined (if “On Timer” is checked);
In the field “Position” the startin byte of the EtherNet/IP arrays where savin / ettin the value is defined;
In the field “Start Bit” the startin bit of the byte of the field “Position” is defined (only for BOOLEAN data);
In the field “R/W” the access type of the IEC61850 variable is defined;
In the field “Conversion” the type of conversion of the value is defined (only for FLOAT32/FLOAT64 data);
In the field “Molt Fact” the multiplication factor for the conversion is defined (if “Conversion” is defined as “ItoF/FtoI”);
In the field “Mnemonic” a description of the variable is defined.
Note:
Not all variables can be written. It depends on their Functional Constraints (fc).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
IEC61850 Client /
E
ther
N
et/
IP
Slave
Document code: MN67771_ENG Revision 1.000 Pa e 20 of 31

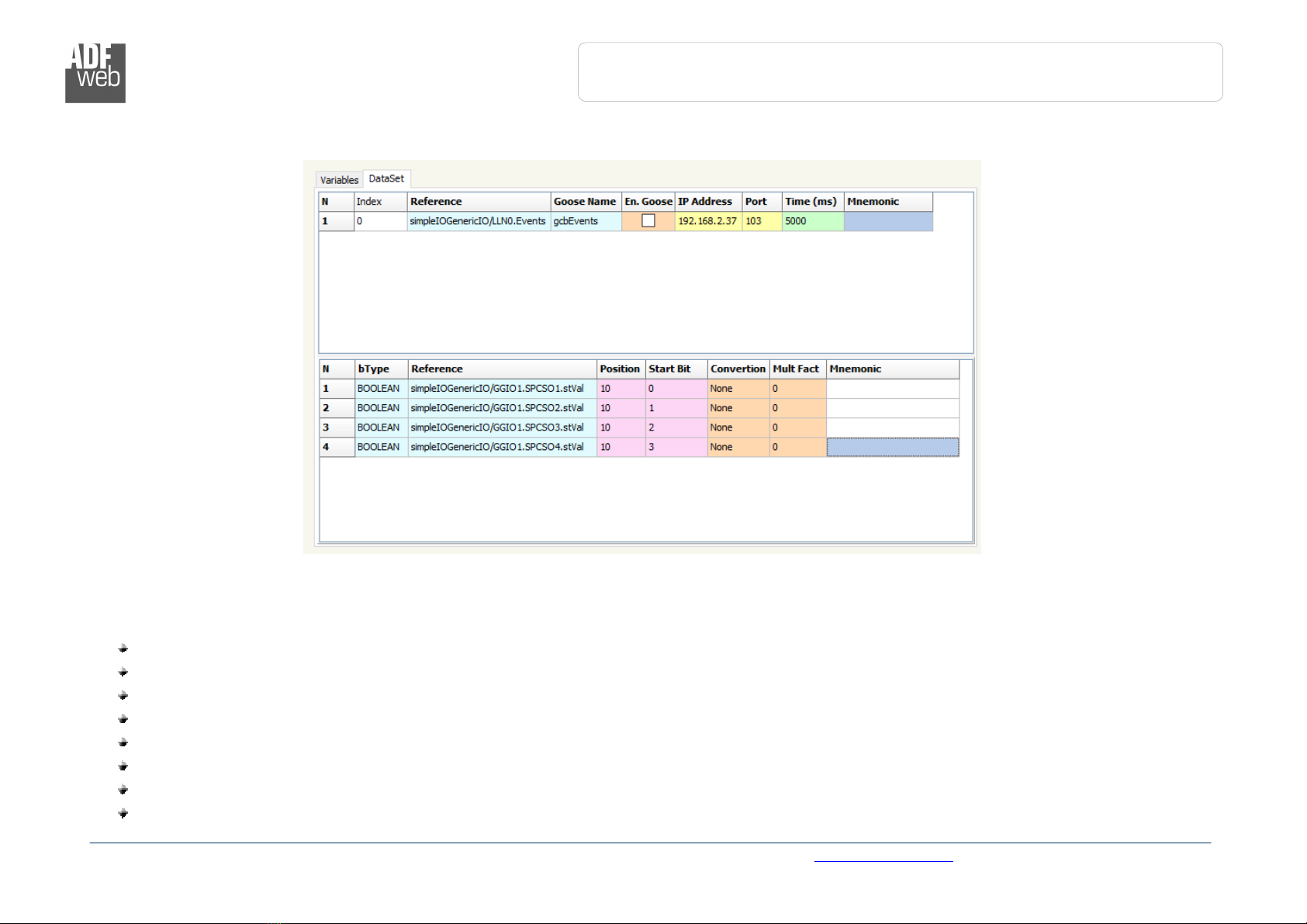

Figure 7: “DataSet” section
If they are available in the functional structure, it is also possible to add Datasets (DS) to “DataSet” section (Fi . 7).
In the upper part, there are all the inserted Datasets. The meanin s of the fields are:
In the field “Index” the index of the server to which the IEC61850 Dataset belon s is defined;
In the field “Reference” the path of the IEC61850 Dataset is defined;
In the field “Goose Name” the Goose Name of the IEC61850 Dataset is defined (if “En. Goose” is checked);
If the field “En. Goose” is checked, the Dataset is received as a Goose messa e;
In the field “IP Address” the IP Address of the server to which the Dataset belon s is defined (if “En. Goose” is unchecked);
In the field “Port” the Port of the server to which the Dataset belon s is defined (if “En. Goose” is unchecked);
In the field “Time (ms)” the delay in ms between two readin s of the Dataset is defined (if “En. Goose” is unchecked);
In the field “Mnemonic” a description of the Dataset is defined.
