ADF Web HD67507-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 1 of 38
User Manual
Revision 2.200
English
Modbus TCP Slave / Modbus Master - Converter
(Order Code: HD67507-A1, HD67507-A1-422, HD67507-B2,
HD67507-WiFi-B2-232, HD67507-WiFi-B2-485)
for Website information:
www.adfweb.com? roduct=HD67507
for rice information:
www.adfweb.com? rice=HD67507-A1
www.adfweb.com? rice=HD67507-B2
www.adfweb.com? rice=HD67507-WiFi-B2-232
www.adfweb.com? rice=HD67507-WiFi-B2-485
Benefits and Main Features:
Very easy to configure
32mm Rail DIN mount
Wide supply input range
Galvanic Isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others products, see also the following links:
RS232 / RS485 / SB / Ethernet
www.adfweb.com? roduct=HD67118 (RS232 / RS485 - Converter)
www.adfweb.com? roduct=HD67119 (USB / RS485 - Converter)
www.adfweb.com? roduct=HD67038 (RS485 / RS232 / Ethernet - Converter)
CAN / CANopen / Modbus / Modbus TCP
www.adfweb.com? roduct=HD67001 (CANopen / Modbus Master - Converter)
www.adfweb.com? roduct=HD67502 (CANopen / Modbus Slave - Converter)
www.adfweb.com? roduct=HD67011 (CAN / Modbus Master - Converter)
www.adfweb.com? roduct=HD67012 (CAN / Modbus Slave - Converter)
www.adfweb.com? roduct=HD67514 (CAN / Modbus TC Master – Converter)
www.adfweb.com? roduct=HD67515 (CAN / Modbus TC Slave – Converter)
Modbus RT Slave / Modbus TCP Master - Converter
www.adfweb.com? roduct=HD67510
Do you have your customer protocol? Then go to:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 2 of 38
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LES OF CONNECTION 4
CONNECTION SCHEME 6
CHARACTERISTICS 11
OWER SU LY 12
FUNCTION MODES 13
LEDS (for HD67507-A1 and HD67507-B2) 14
LEDS (for HD67507-WiFi-B2) 15
ETHERNET 16
WI-FI 16
RS232 17
RS485 18
RS422 19
USE OF COM OSITOR SW67507 20
NEW ROJECT / O EN ROJECT 21
SOFTWARE O TIONS 22
SET COMMUNICATION 23
O ERATION MODE 27
TRANSLATE TABLE 28
U DATE VIA SERIAL 30
U DATE VIA UD 31
MECHANICAL DIMENSIONS 33
ORDERING INFORMATIONS 35
ACCESSORIES 36
DISCLAIMER 37
OTHER REGULATIONS AND STANDARDS 37
WARRANTIES AND TECHNICAL SU ORT 38
RETURN OLICY 38
PDATED DOC MENTATION:
Dear customer, we thank you for your attention and we remind you that you
need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code” that
appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/ and
search for the corresponding code on the page. Click on the proper “Document
Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.110 03/09/2012 Fl All Software changed (v1.800)
2.000 14/01/2014 Fl All New hardware version
2.100 14/07/2014 Ff All Added chapters
2.200 27/12/2017 Ff All New Hardware for Wi-Fi
WARNING:
ADFweb.com reserves the right to change information in this manual about our
product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective owners.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 3 of 38
SEC RITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for
each individual application, legal and safety regulation. The same applies also when using accessories.
I NTENDED SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).
Q ALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who
have appropriate qualifications for their job.
R ESID AL R ISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated
by personnel untrained. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the
possibility of damage.
CE CONFORMITY
The declaration is made by us. You can send an email to [e-mail] or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 4 of 38

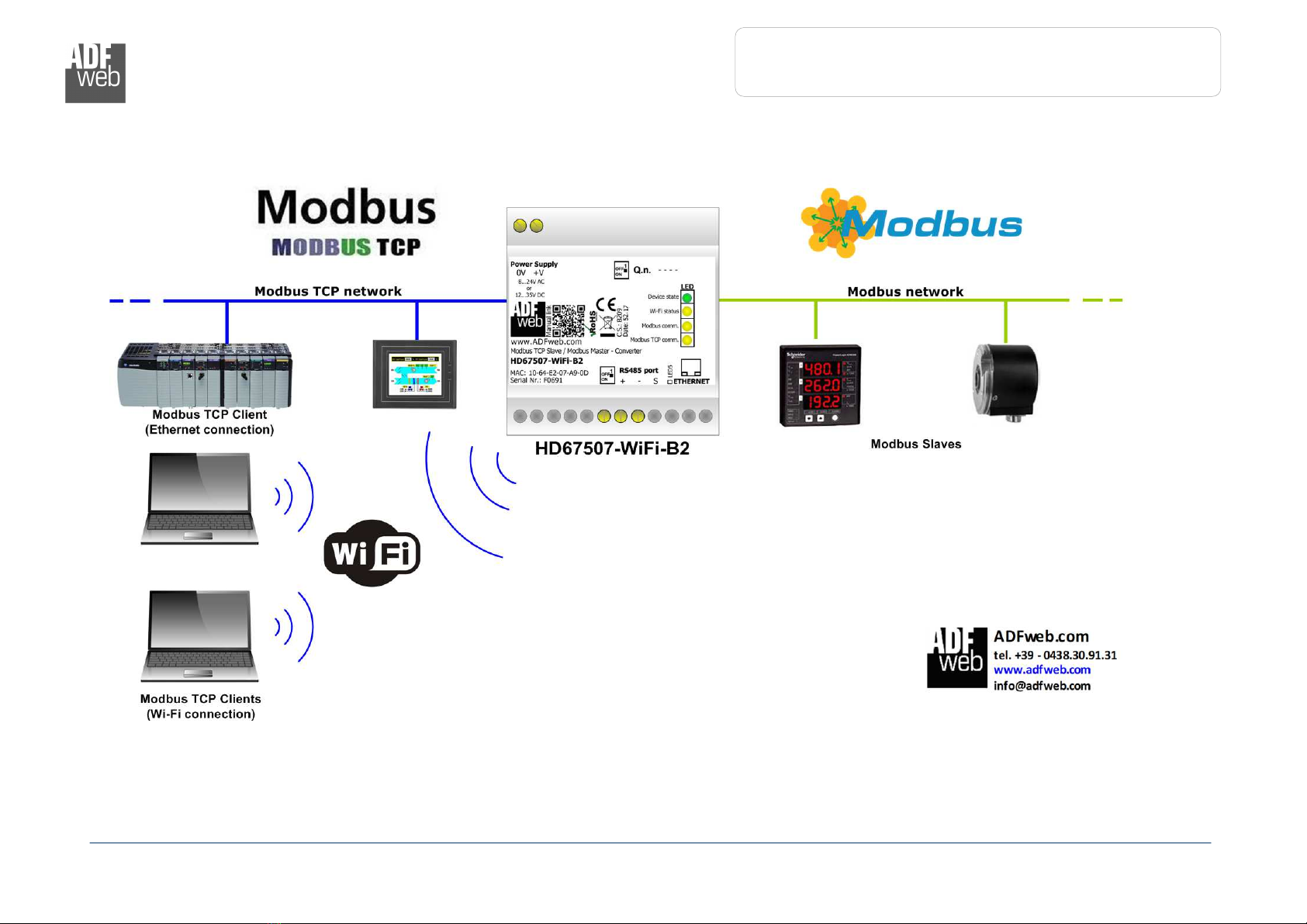

EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 5 of 38

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 6 of 38
CONNECTION SCHEME:

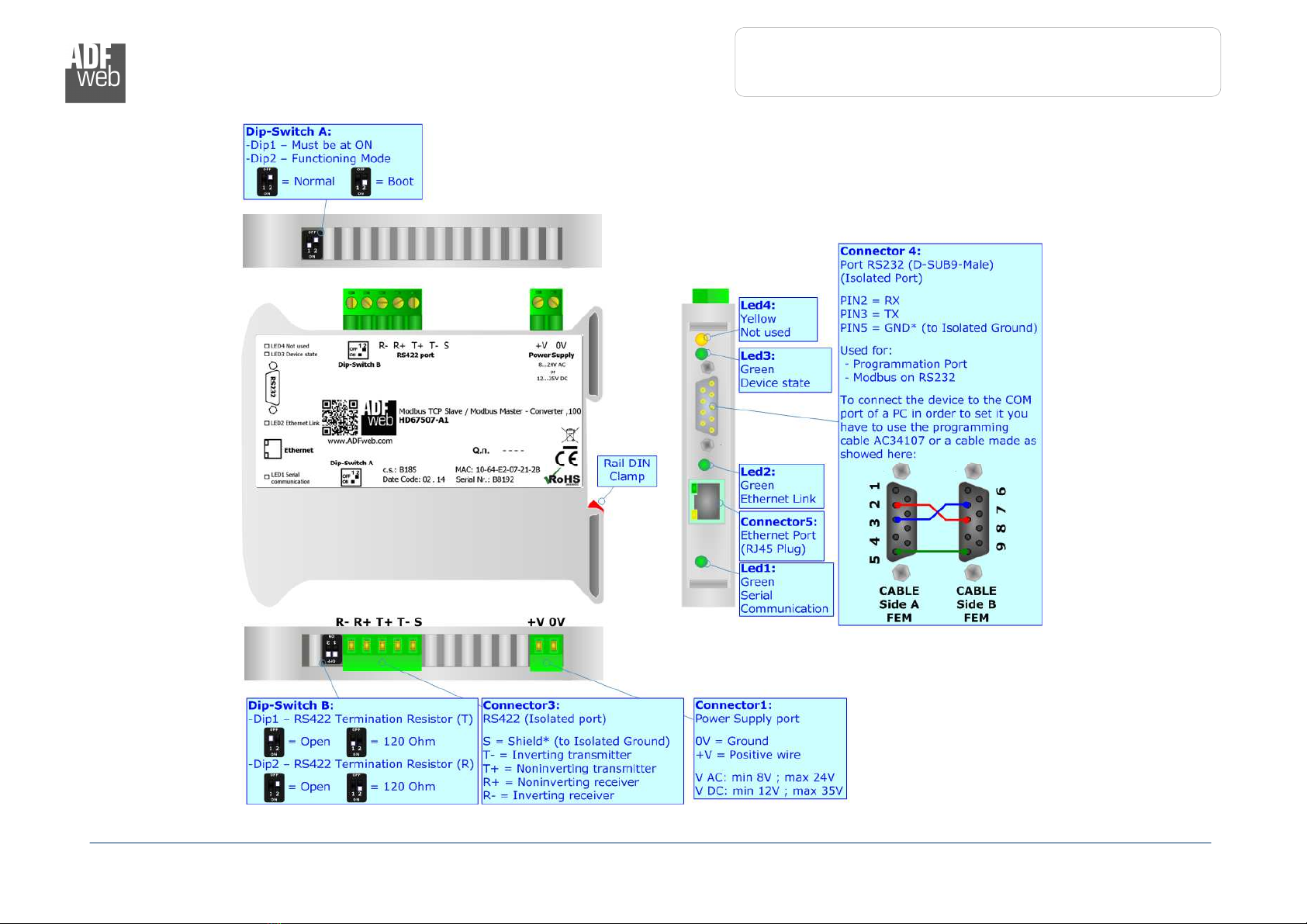

Figure 1a: Connection scheme for HD67507 A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 7 of 38

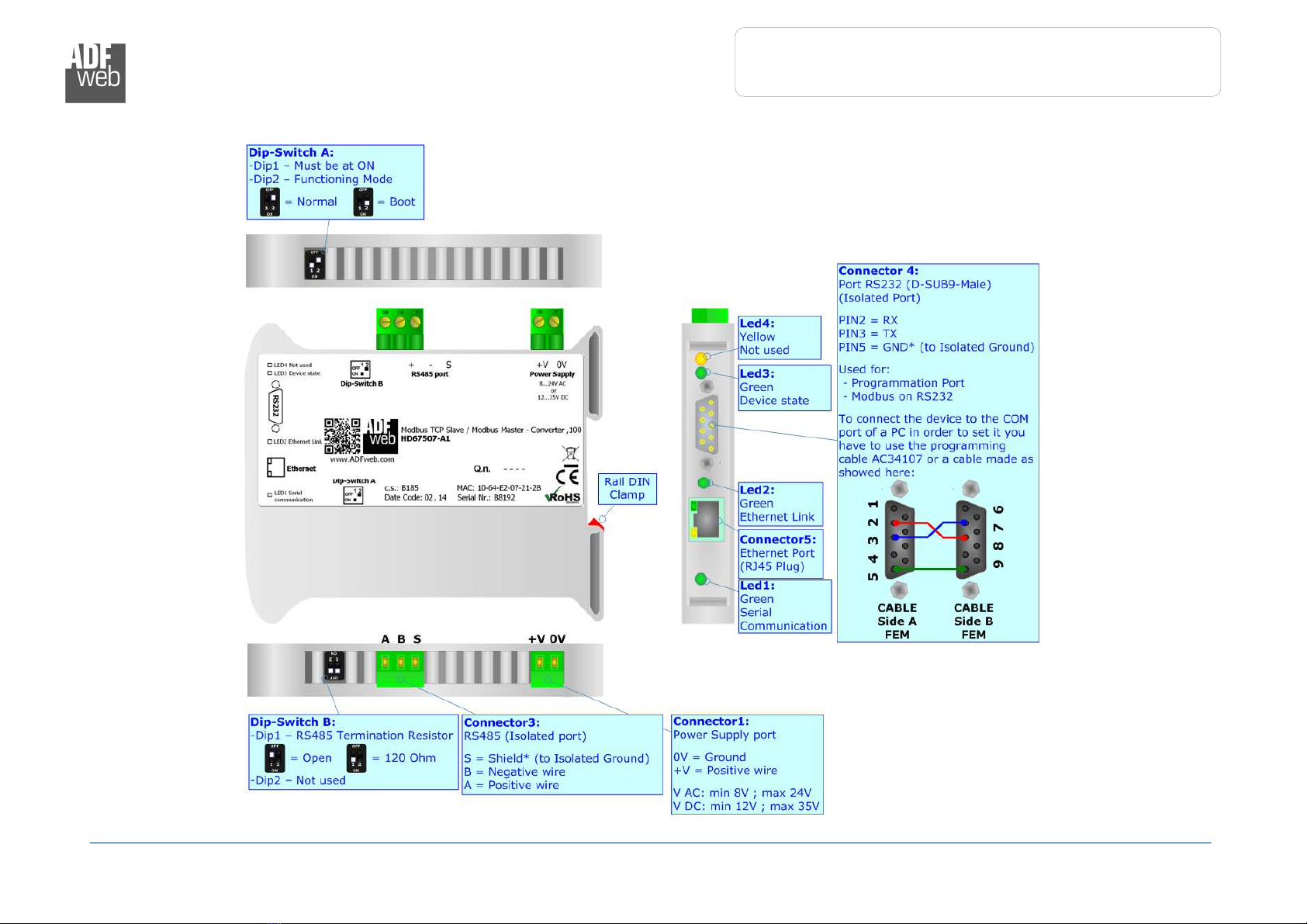

Figure
1b
: Connection
s
cheme for HD67507
A1
422

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 8 of 38

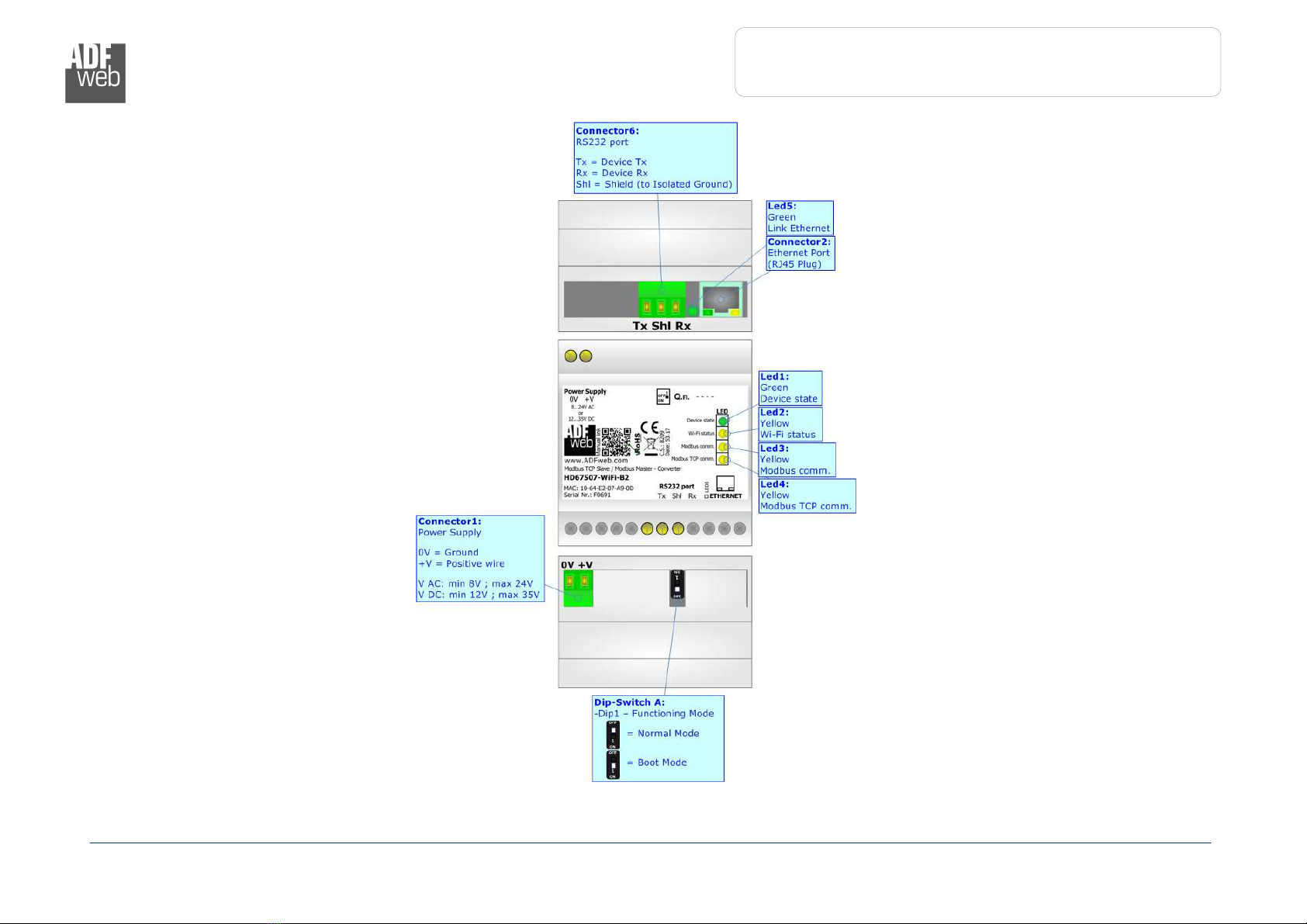

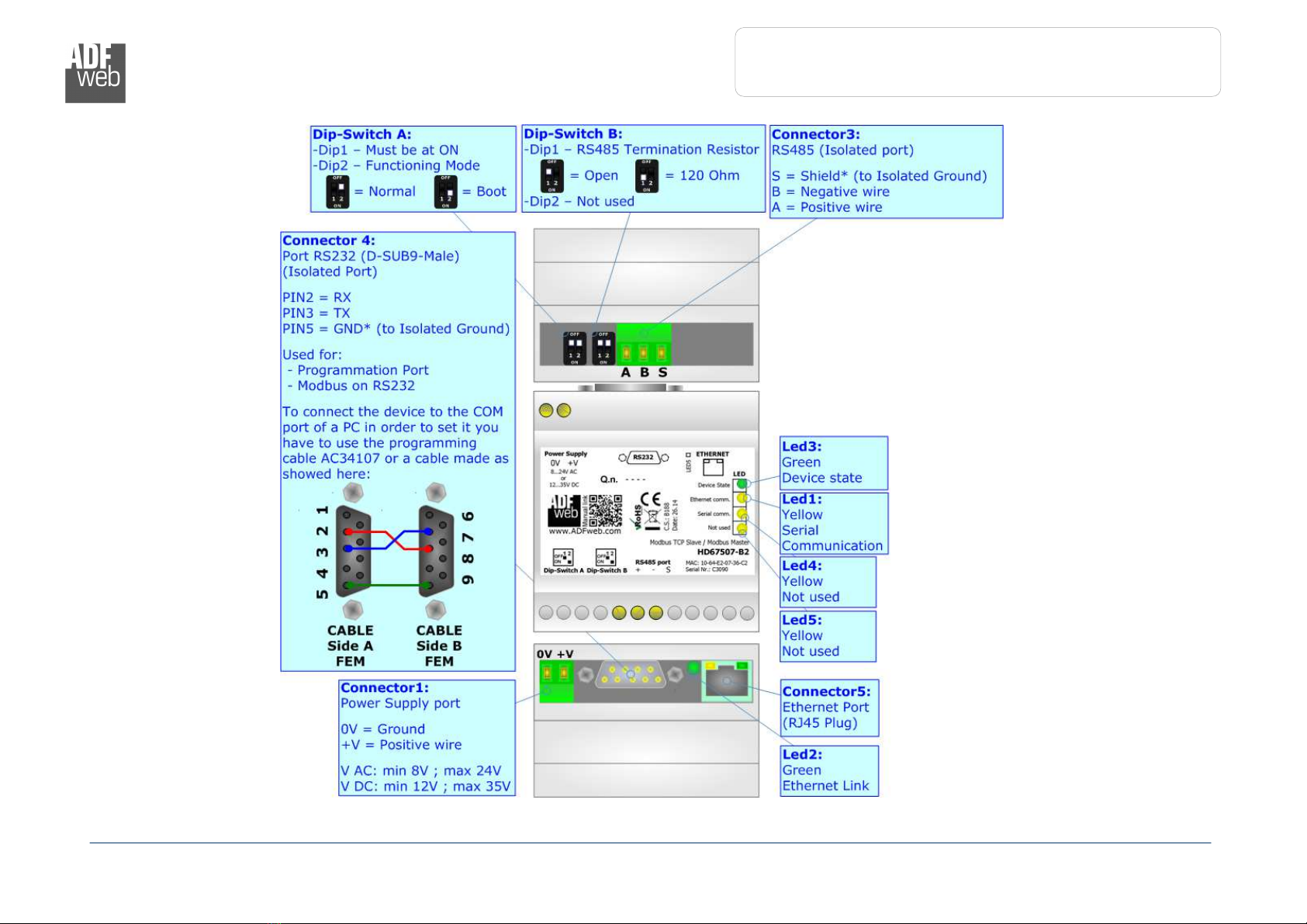

Figure 1c: Connection scheme for HD67507 B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 9 of 38
Figure 1d: Connection scheme for HD67507 WiFi B2 232

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 10 of 38

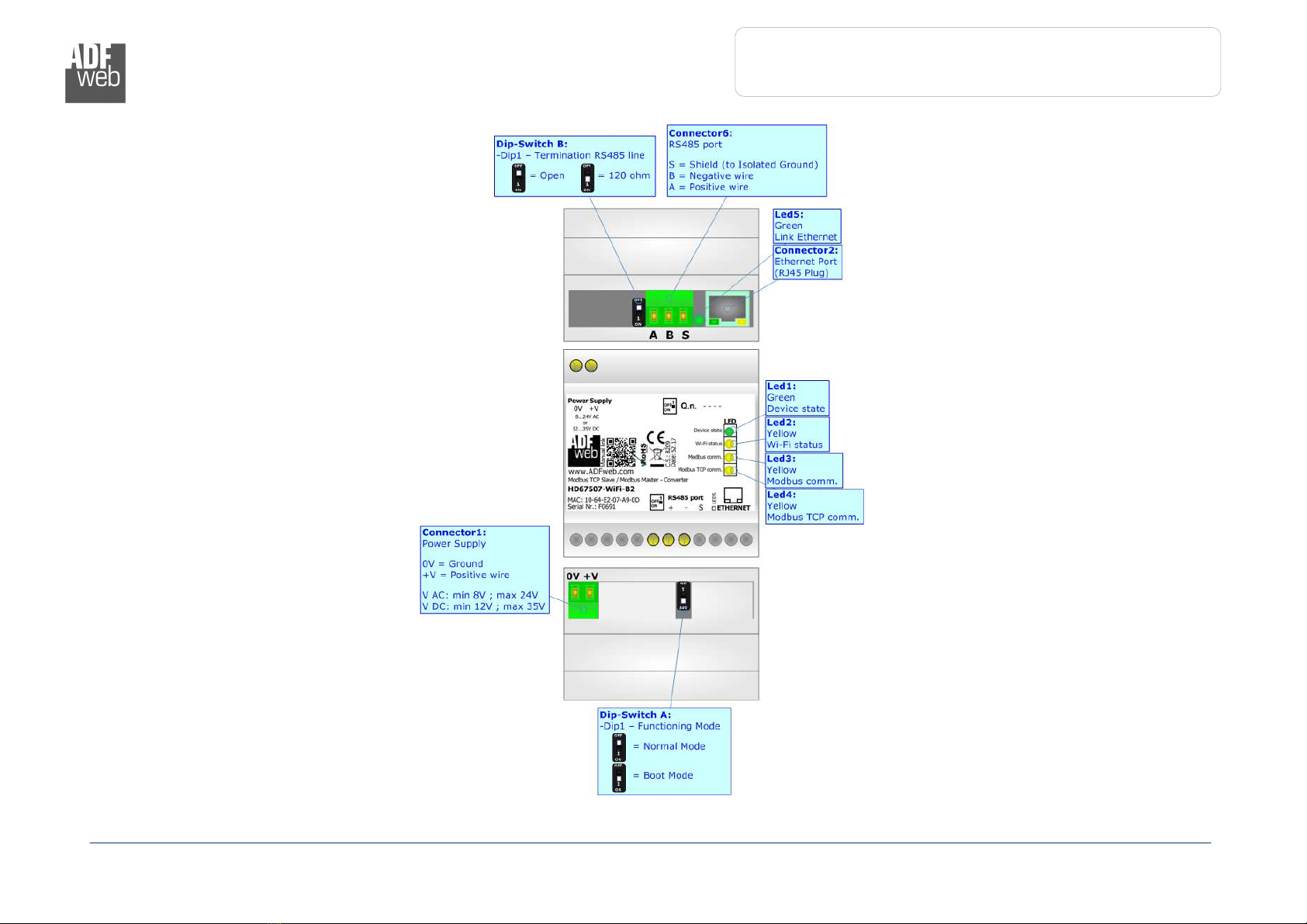

Figure 1e: Connection scheme for HD67507 WiFi B2 485

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 11 of 38
CHARACTERISTICS:
The HD67507 is a Modbus TC Slave / Modbus Master – Converter.
It allows for the following characteristics:
Triple isolation between Serial - ower Supply, Serial - Ethernet, ower Supply - Ethernet.
Ethernet 10Base-T / 100Base-T, autosensing for Modbus TC ;
For Wi-Fi version, Access oint or Client mode ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
This HD67507-A1/B2 is able to manage a maximum of ten simultaneous connections from Ethernet side.
It can be used in two operative ways:
In the “Routing Mode” the command Modbus is forwarded on the serial line using the same requested addresses.
In the “NAT Mode” the device addresses and data are altered through a translation table of the addresses.
CONFIG RATION:
You need Compositor SW67507 software on your C in order to perform the following:
Define the parameters of Modbus TC line;
Define the parameters of Modbus Serial line;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 12 of 38
POWER S PPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67507-A1 3.5
HD67507-A1-422 3.5
HD67507-B2 3.5
HD67507-WiFi-B2-xxx 3.5
Caution: Not reverse the polarity power
HD67507
-
A1
HD67507-A1-422
HD67507
-
B2
HD67507
-
WiFi
-
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 13 of 38
F NCTION MODES:
The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 14 of 38
LEDS (for HD67507-A1 and HD67507-B2):
The devices has got four (five for HD67507-B2) LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Serial Communication
(green)
Blinks when Modbus frame
(RS232/RS485/RS422) are received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used (yellow) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (yellow) ( resent
only on HD67507-B2) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 15 of 38
LEDS (for HD67507-WiFi-B2):
The devices has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Wi-Fi status (yellow) ON: Wi-Fi is being initialized
OFF: Wi-Fi is running
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Modbus comm. (yellow) Blinks when Modbus frames
(RS232/RS485/RS422) are received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus TC comm.
(yellow)
Blinks when Modbus TC frames (Ethernet or
Wi-Fi) are received
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 16 of 38
ETHERNET:
The Ethernet connection must be made using Connector5 of HD67507 with at least a Category 5E cable. The maximum length of the cable
should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device
to a Hub/Switch the use of a straight cable is recommended. To connect the device to a C/ LC/other the use of a cross cable is
recommended.
Wi-Fi (for HD67507-WiFi-B2):
The HD67507-WiFi-B2 can be configured as Wi-Fi Access oint or Wi-Fi Client. It supports DHC functions.
The type of Wi-Fi used is the 802.11b/g/n and it supports different type of security protocol: WE , W A, W A2 and none.
The antenna is integrated in the hardware, so any external antenna is ned.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 17 of 38
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a serial
cable where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.
The HD67507-A1/B2 is provided with a D-sub connector type DE-9 Male (also called DB-9). The cable must use a DE-9 Female connector.
The serial port is used for programming the device and for Modbus communication.
The HD67507-WiFi-B2-232 is provided with a 3way 5mm removable screw terminal.
The serial port is used for Modbus communication.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 18 of 38
RS485:

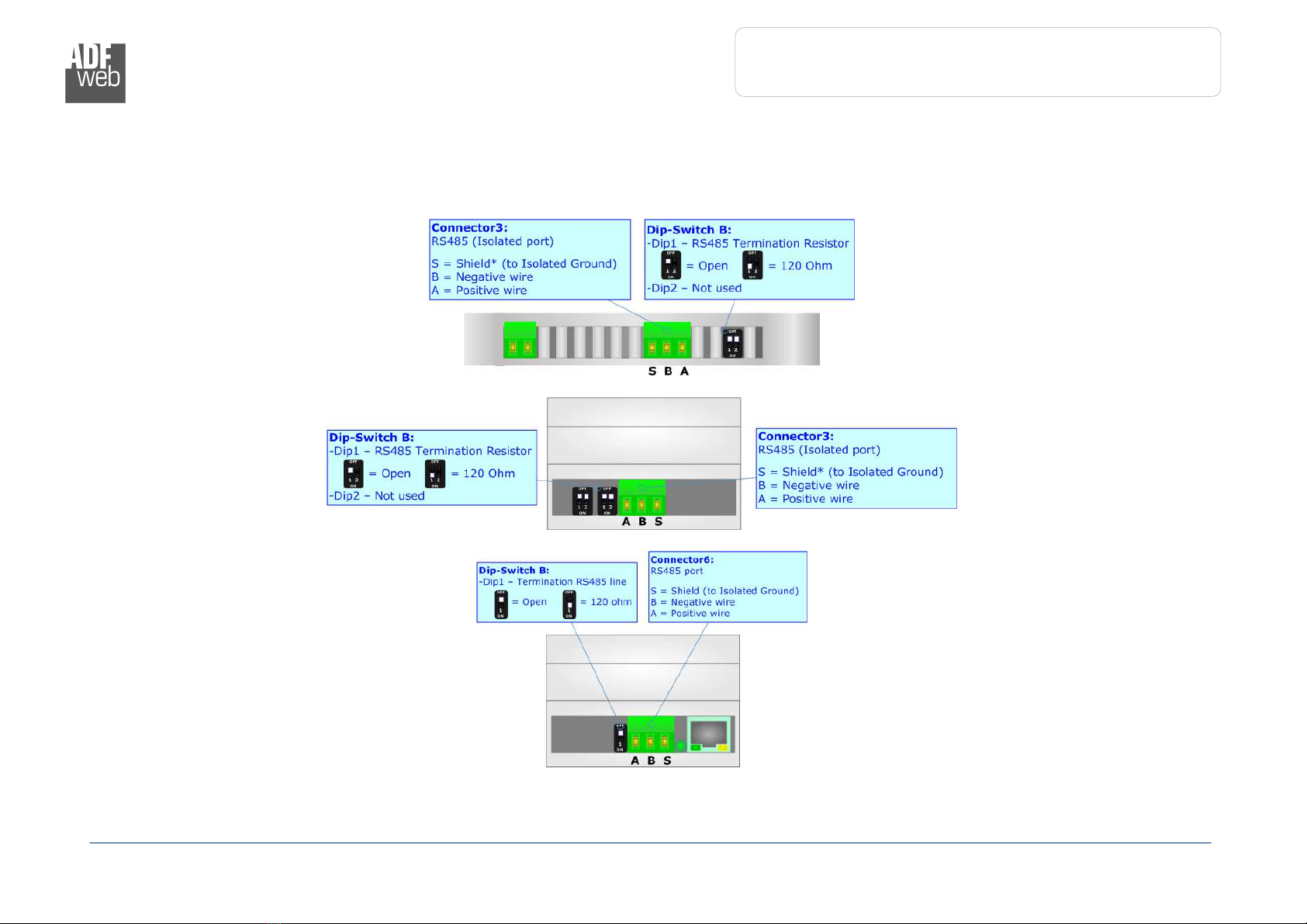

To terminate the RS485 line with a 120Ω resistor, it is necessary to put dip 1 ON, like in figure.
Ù

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 19 of 38
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.
RS422:
For terminating the RS422 line with a 220Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure.
The maximum length of the cable should be 1200m (4000 feet).

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67507_ENG Revision 2.200 age 20 of 38
SE OF COMPOSITOR SW67507:
To configure the Converter, use the available software that runs with Windows called SW67507. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67507, the window below appears (Fig. 2).
Note:
The minimum version of the configuration software must be the 2.000.
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67507
