Advantech-DLoG DLT-V6210FL User manual

1
Quick Start and
Installation Guide
(EN)
DLT-V6210FL
1 Introduction – For Your Safety
−Read and observe this document and
the accompanying “DLT-V6210 Safety
Instructions” carefully.
−Keep all documents for future
reference.
−Go to www.advantech.com for detailed
manuals, e.g. “DLT-V6210 Manual”
and “MDevice Configuration Manual”.
DANGER
Observe the intended use.
Observe the intended use of the DLT-V6210, e.g.: No use in potentially
explosive zones and on ships, on railed vehicles, no use in life-supporting
systems or security-critical facilities.
Observe the required qualification.
This document is intended for qualified skilled personnel. Only skilled
personnel may put the DLT-V6210 into operation.
−Do not put the DLT-V6210 into operation if it is damaged.
−Do not open or modify the DLT-V6210.
−Only connect or disconnect electrical connections when the device is in a
de-energized state (electrically dead).

2
Design method in this document
Hazards that pose a risk to life and limb – Personal injury:
DANGER / WARNING / CAUTION
DANGER: Danger that immediately leads to death or severe injury.
WARNING: Danger that can lead to death or severe injury.
CAUTION: Danger that can lead to slight injuries.
2 Technical data of DLT-V6210
DLT-V6210
Weight 3.2 kg
Dimensions Width x height x depth in mm: 285 x 256 x 70
(height including antenna cap)
Operating temp. -30 to +50 °C
Storage temp. -30 to +60 °C
Relative humidity 10~95% non-condensing
Ambient temperature +25 °C
IP protection class IP65
Shock/Vibration Class 5M3 according to EN 60721-3-5
US Highway Truck as MIL-STD 810F

3

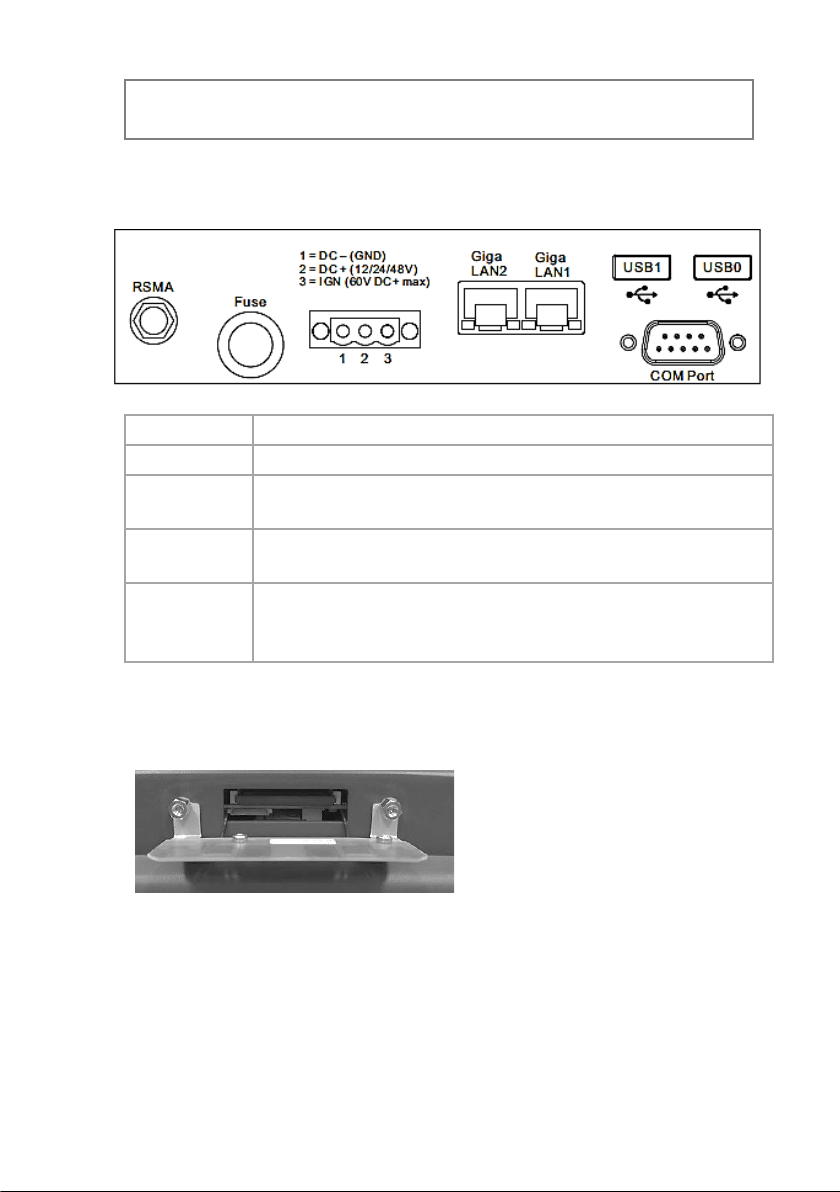

3 External connectors of DLT-V6210
Connectors under the cable cover
RSMA
External Wi-Fi antenna interface
Power
Power supply 12/24/48 nominal
Network
adapter
2 x network adapter (RJ45 connection jack) with
10/100/1000 Mbit per second
USB 2 x USB 2.0 Hi-Speed HOST A type, 5 VDC 500 mA
Fused at 0.5 A per channel
Serial COM Max. 115,200 Baud (16550A compatible, 16 byte FIFO)
Supports EIA-232-E on external 9-pin D-Sub connection
5V at Pin 9
CFast slot under the antenna cap
−
Exercise special care when
removing and re-inserting
the CFast card.
−Only use CFast cards that
have been approved by
Advantech.
Opening the antenna cap:
−Loosen the two screws of the antenna cap using a Torx screwdriver.
−Carefully lift up the antenna cap.

4
Closing the antenna cap:
−Place the antenna cap back onto DLT-V6210. The antenna cap seal must not
be damaged; it must be seated correctly in the groove.
−Tighten the two screws of the antenna cap again (1 Nm torque).

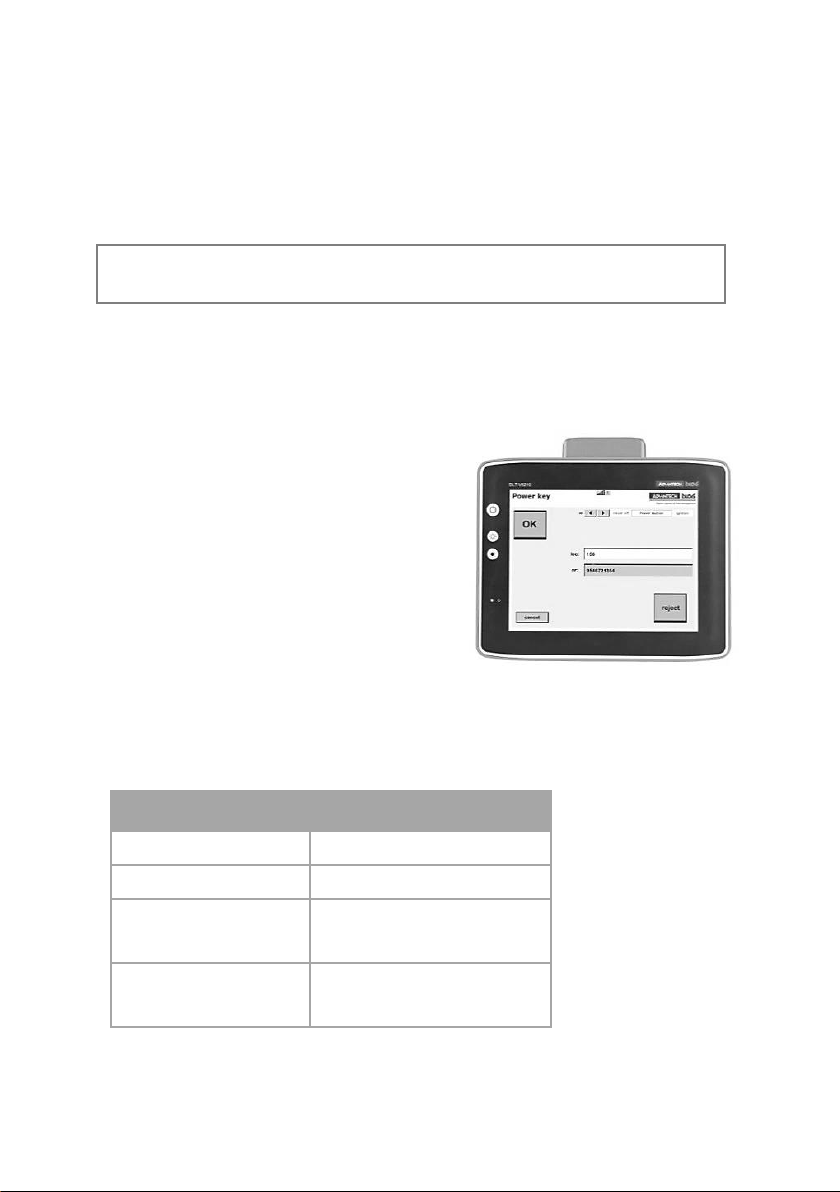

4 Overview of operation elements
NOTE: Users of the DLT-V6210 must be trained by skilled personnel and
instructed about the operation of the device.
Operate the touchscreen with:
−Clean, dry fingers
−Clean, dry, thin gloves
−Suitable touch stylus
Function of the front keys (left side):
−Power on/off
−LCD Brightness up
−LCD Brightness down
LED indication:
System Status LED Status
System power on Static on
System power off Off
System over/under
temperature
Blinking
0.2 sec. on / 0.8 sec. off
System thermal
sensor faulty
Blinking
0.5 sec. on / 0.5 sec. off

5
5 Software configuration (e.g. Wireless)
Basic software settings for DLT-V6210 are defined at the factory, for example
with regard to Wi-Fi settings, network settings, etc. To adapt this, use the
configuration tool for the respective operating system:
WES7, WE8S,
Win 10 IoT Ent., etc.
MDevice tool, etc.
WEC7 WEC7 WLAN Client manager, etc.
Linux ADLoG Standard Linux Image configuration.
Remark: DLT-V6210 with ADLoG Linux contains software
that is GPL licensed, e.g. the Linux kernel. You can, within
3 years, get the source code for those GPL programs from
Advantech. Contact [email protected]om.
Find details in the configuration manuals at www.advantech.com.
WARNING
Safety information about radiation emission.
This device emits high-frequency energy (abbreviation: HF). To protect
people from HF radiation and to comply with country-specific regulations:
−Install the DLT-V6210 so that persons maintain a minimum distance of
20 to 50 cm to the antenna.
−Observe the applicable regulations for your deployment location/country
with regard to channels, frequencies and the maximum permissible
transmitting power. Responsibility for this lies with the company operating
the DLT-V6210. The regulatory authorities in the relevant country can
provide information on this.
Any changes or modifications which are not expressly approved by the
party responsible for the compliance can lead to the withdrawal of the
operating license and guarantee for this device.

6
6 Important notes before installation
General:
The DLT-V6210 installation environment must not result in a closed system. The
cooling system of the device requires a supply of fresh air. Otherwise, there is a
danger of overheating and damage to the device.
Overview: Recommended installation steps
1. Find a suitable installation position for the DLT-V6210.
2. Please ensure an ergonomic operability of the DLT-V6210.
Additionally, on vehicles, the driver’s field of vision must remain free.
3. Secure the device mounting (mounting bracket, RAM mount) to the
targeted subject/vehicle.
4. Connect external accessories to the DLT-V6210.
5. Install an easily accessible disconnecting device such as a switch close
to the device.
6. Connect all cables (power supply, etc.).
7. Seal cable passages with cable grommets and dummy grommets.
8. Close the DLT-V6210 with the cable cover.
9. Install the DLT-V6210 on the device mounting (follow the mounting
instructions).
In case of installing the DLT-V6210 on vehicles: Observe the vehicle
manufacturer’s instructions
−Observe the vehicle manufacturer’s instructions about the installation of
peripheral devices. This is particularly important when welding or drilling load
bearing parts.
−Observe the instructions for connecting additional loads, for instance, in
conjunction with an emergency shut-off switch.
−The vehicles must be properly prepared (e.g. connection to the ignition,
correct voltage, etc.)

7
Notes about the attachment of device mounts and accessory mounts
Mechanical expert knowledge is required for correct attachment of device
mounts (e.g. mounting bracket, RAM mount) and accessory mounts (e.g. for
scanner, keyboard) on the DLT-V6210.
−Use suitable mounting material (screws and washers).
−Observe the maximum screw-in depth of the holes of the DLT-V6210:
The recommended screw-in depth of D x 1 always applies
(screw diameter x 1).
ATTENTION: Screws that are too long, e.g. in the VESA mounting hole
pattern, can pierce the rear side of the DLT-V6210 and cause irreparable
damage to the device.

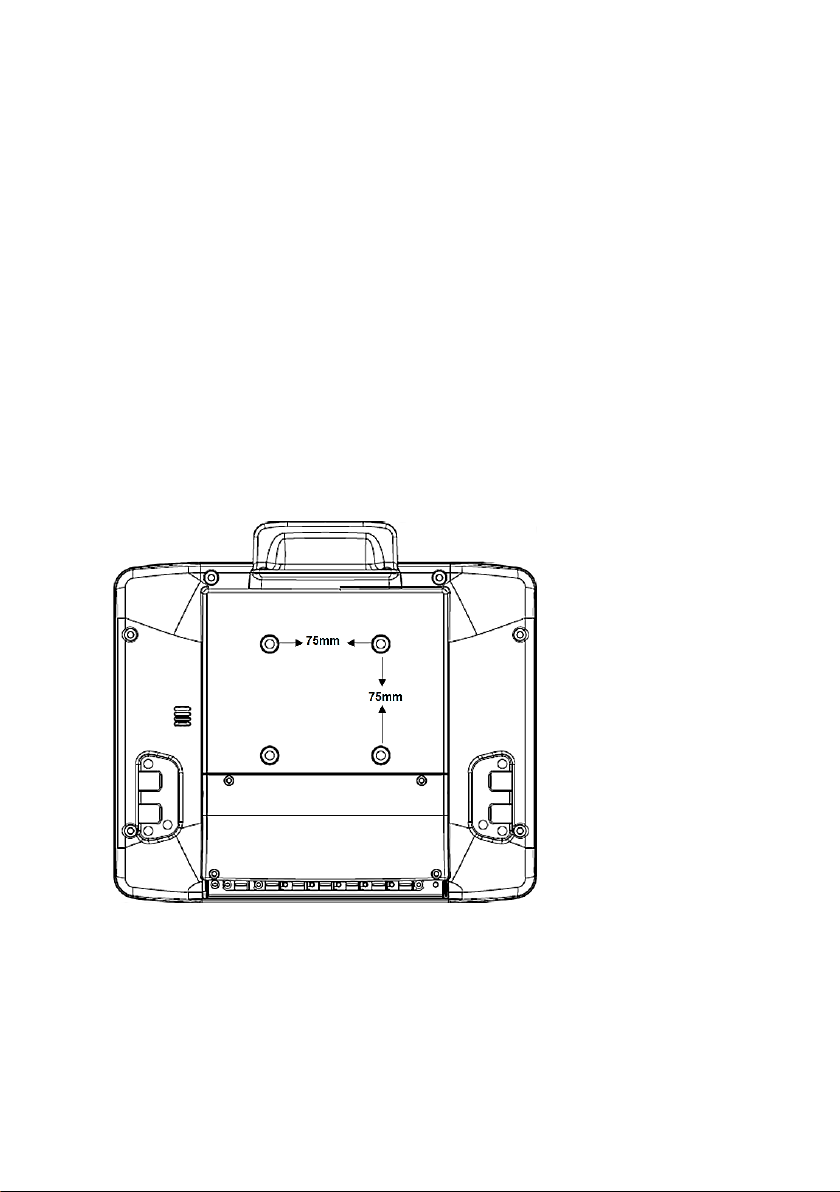

VESA mounting hole pattern 75 x 75 mm:

8

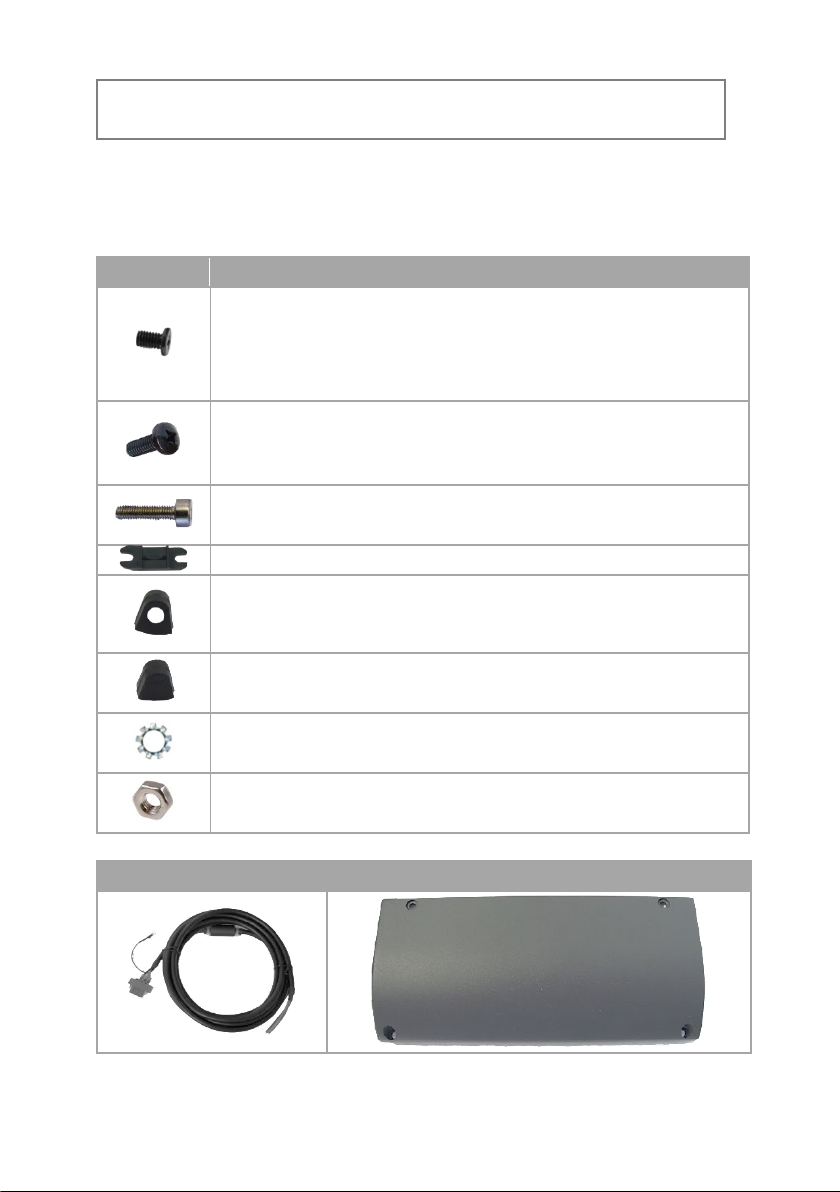

7 Connect cables and cable cover
Parts required
NOTICE: Some screws and grommets delivered are spare parts.
Part Name / Purpose
Phillips screw, flat screw head, M3x5L F/S D=5.0 H=0.8
(1+)SUS BZn NK:
−For fixing the cable cover to the terminal
−For securing thinner cables to the terminal’s strain relief rail
Phillips screw, middle round screw head, M3x10L R/S D=5.5
H=2.0 (2+)SUS BZn NK:
−For securing regular cables to the terminal’s strain relief rail
Hexagon screw M3x12L H/S D=5.5 H=3 SUS/H Nylok:
−For securing thicker cables to the terminal’s strain relief rail
Cable clip for securing the cables to the strain relief rail
Cable grommets which openings have different sizes; must be
attached to all cables before the cables are inserted into the
cable passages
Dummy grommets for sealing up unused cable passages
Tooth washer D=8.5 d=4.2 t=0.5 ST Ni
−For grounding the power supply cable
Nut (W) B=6 M4*0.7 H=2.5 ST Zn
−For grounding the power supply cable
Power supply cable Cable cover

9

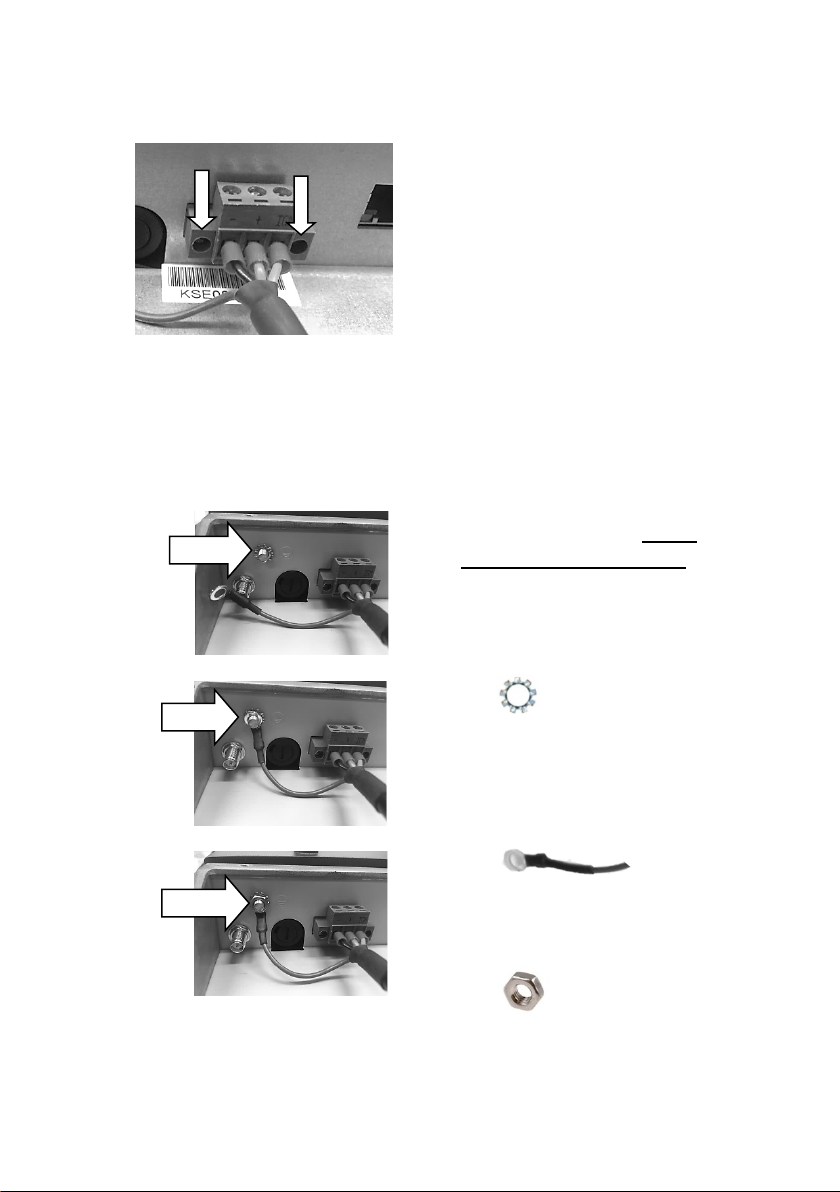

STEP 1: Plugging in and screwing on the power supply cable
−Plug the power supply cable into the
power supply plug-in location.
−Tighten both mounting screws hand-
tight. The screws required for this are
already fixed in the delivered cable
plug.
STEP 2: Secure the ring tongue of the power supply cable to the
ground bolt (important for correct grounding!)
NOTICE: To make sure the device
is grounding correctly, it is
important to follow the correct
order to put the components on the
ground bolt as below (from inside
to outside):
1. Place toothed washer first:
2. Then put the ring tongue of
the power supply cable (flat
side faces the DLT-V6210
connector panel):
3. Place the nut and tighten it
hand-tight:
1
2
3

10
STEP 3: Securing the power supply cable to the strain relief rail
−
Attach the matching cable grommet to the power supply
cable.
NOTICE: The cable grommet must completely surround the
cable. The opening of the cable grommet must be slightly
smaller than the cable diameter. If the opening is too large
or too small, the sealing of the device will not be ensured.
As a delivery standard, screws and cable clips are fixed on the DLT-V6210
strain relief rail.
−Unscrew and remove the screws and the cable clip fixed on the cable
passage you want to use for the power supply cable.
−Insert the power supply cable and the cable grommet in the cable passage of
the strain relief rail.
−Place the cable clip on the power supply cable.
−Secure the cable clip to the strain relief rail using 2 pcs of Phillips screws
(middle round screw head) M3x10L:
−Tighten the mounting screws alternatingly.
NOTICE: Tighten the mounting screws sufficiently but on no account pinch or
crush the cable. If you do, the cables may break or the cable insulation may
get damaged.
STEP 4: Connecting the USB, Ethernet, COM and antenna cables
Proceed as described with the power supply cable above.
−Attach the matching cable grommet to the cable.
−Insert both components in the cable passage.
−Secure it to the strain relief rail using cable clip and appropriate screws:
For thinner cables: Phillips screws M3x5L
For regular cables: Phillips screws M3x10L
For thicker cables: Hexagon screws M3x12L

11
Result (example):
STEP 5: Closing off unused cable passages
−Close off all unused cable
passages with dummy grommets
so that they are sealed.
STEP 6: Attaching the cable cover
−Place the cable cover on the
DLT-V6210 housing slot.
−Use 4 pcs of Phillips Screws M3x5L:
−Lock the screws loosely into the holes
of the cable cover.
−Then fully tighten the screws
alternatingly with 1 Nm torque.
Dummy grommets

12
8 Technical customer support
Advantech-Service & Support
Find out about our worldwide and comprehensive service
offering:
https://erma.advantech.com
Manufacturer address
Advantech Co., Ltd.
No. 1, Alley 20, Lane 26, Rueiguang Road,
Neihu District, Taipei 11491, Taiwan, R.O.C.
Web: www.advantech.com
E-Mail: [e-mail]
Warranty
The statutory warranty applies to the DLT-V6210 and accessories. It expires if
the operator carries out measures on the device that are reserved exclusively
for authorized Advantech-Service-Centers.
by Advantech Co., Ltd 2016-2022. All rights reserved.
We reserve the right to make changes to this document at any time – and
without prior notice. Advantech is not liable for technical or printing errors or
shortcomings in this document. Advantech accepts no liability for damage
caused directly or indirectly by the delivery, performance or use of this
document. The software and hardware designations as well as the brand names
used in this documentation are in most cases also registered trademarks and
are subject to the international law.
Document version: V1.11 (EN)
Document finished on: September 07, 2022
