Advantech CompactPCI MIC-3665A User manual

Advantech CompactPCI™
MIC-3665A/B
Dual Gigabit Ethernet
PMC Function Modules
Modular Industrial Computer

Copyright Notice
This document is copyrighted, 2004. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in
this manual at any time without notice. No part of this manual may be reproduced,
copied, translated or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
Acknowledgements
! IBM and PC/AT are trademarks of International Business Machines Corporation.
! Intel and is trademark of Intel Corporation.
! Microsoft Windows® is a registered trademark of Microsoft Corp.
! PICMG™, CompactPCI™, and the PICMG™ and CompactPCI™ logos are
trademarks of the PCI Industrial Computers Manufacturers Group.
! All other product names or trademarks are properties of their respective owners.
FCC
This device complies with the requirements in part 15 of the FCC rule：Operation is
subject to be following two conditions：
(1）this device may not cause harmful interference
(2）this device must accept any interference received, including interference that
may cause undesired operation.
Part No. 2002366500 1st Edition
Printed in Taiwan DEC. 2004
i

Product warranty
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for one year from the date of
purchase.
This warranty does not apply to any products which have been repaired or altered
by persons other than repair personnel authorized by Advantech, or which have
been subject to misuse, abuse, accident or improper installation. Advantech
assumes no liability under the terms of this warranty as a consequence of such
events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is
defective, it will be repaired or replaced at no charge during the warranty period. For
out-of-warranty repairs, you will be billed according to the cost of replacement
materials, service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. For example, CPU
speed, Advantech products used, other hardware and software used, etc. Note
anything abnormal and list any on-screen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise
authorization) number from your dealer. This allows us to process your return more
quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt) in
a shippable container. A product returned without proof of the purchase date is not
eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to
your dealer.
ii

Packing List
Ensure that the following materials have been received, immediately after opening
the box containing your MIC-3665 card:
• One MIC-3665 Dual Gigabit Ethernet PMC card
• One CD-ROM disc containing device drivers
• One warranty certificate
• This user's manual
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Technical Support and Sales Assistance
If you have a technical question, please visit Advantech's support website, located
at: http://support.advantech.com.tw. For more information about Advantech's
products and sales service, please visit our homepage located at:
http://www.advantech.com.tw
iii

Contents
Copyright Notice........................................................................ i
Acknowledgements.................................................................... i
Product warranty………………………………………………………………. ii
Packing List............................................................................... iii
Technical Support and Sales Assistance……………………………….. iii
Contents.................................................................................... iv
Tables and Figures..................................................................... iv
Chapter 1: Introduction ............................................................. 1
1.1 Description ........................................................................... 2
1.2 Features................................................................................ 3
1.3 Specifications......................................................................... 4
1.4 Safety Precautions.................................................................. 5
Chapter 2: Hardware and Drivers Installation ........................... 6
2.1 Initial Inspection.................................................................... 7
2.2 MIC-3665 Connector Locations................................................. 8
2.3 Card Installation..................................................................... 8
2.4 Cable connecting info………........................................................ 9
2.5 Front Panel LED Indicators....................................................... 9
2.6 Drivers/Utilities Installation...................................................... 10
Appendix A: Pin Assignment..................................................... 11
A.1 RJ-45 Pin Assignments……….................................................... 12
A.2 PMC Pin Assignments............................................................... 12
Tables and Figures

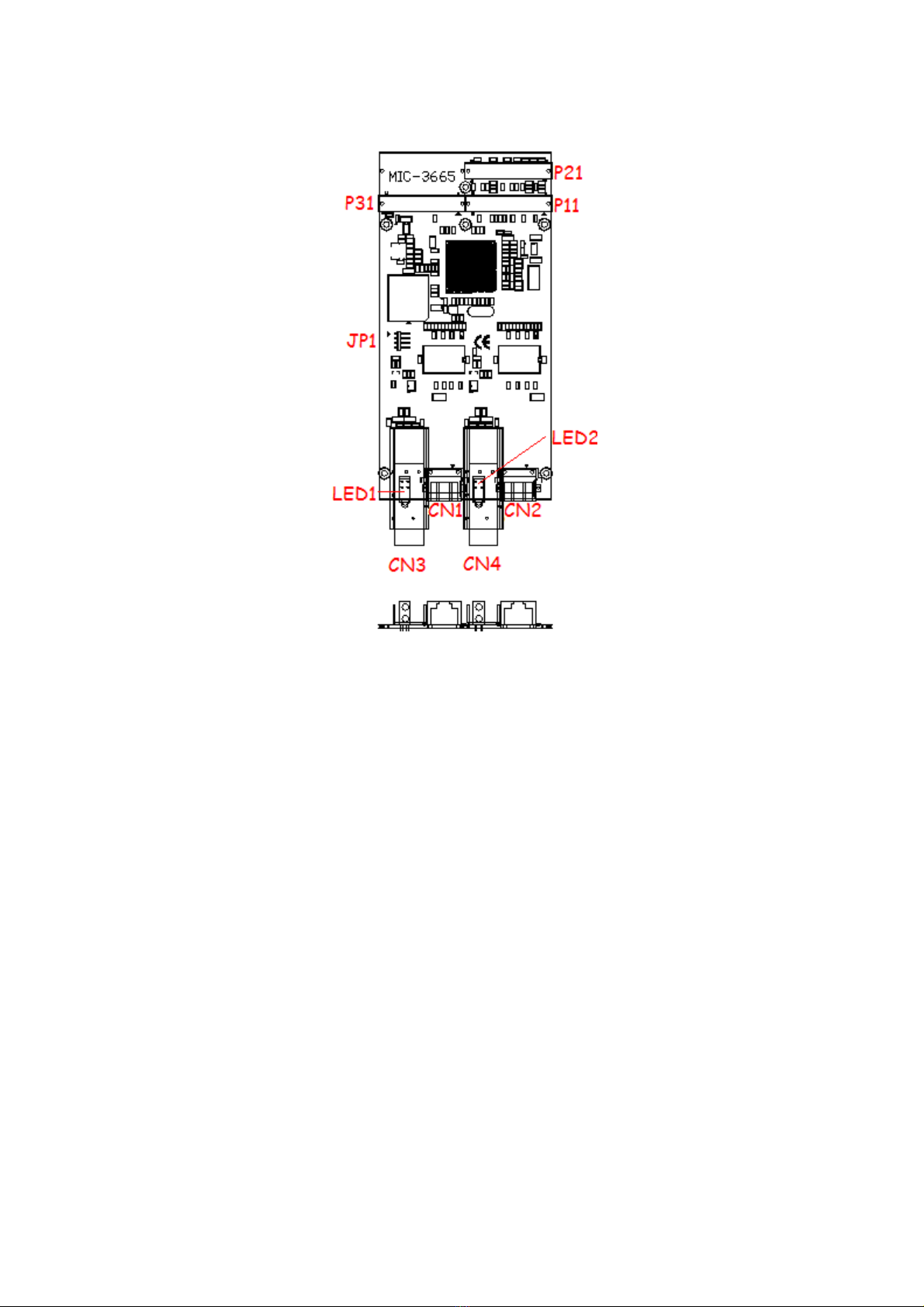

Figure 2-1: MIC-3665 connector locations ....................................... 8
Figure 2-2: MIC-3665 front panel LEDs............................................ 10
Table 2-1: MIC-3665 Gigabit Ethernet physical media support……………. 9
Table 2-2: MIC-3665 LED Indicator definitions.................................. 9
Table A-1: MIC-3665 RJ-45 pin assignments..................................... 11
Table A-2: MIC-3665 PMC pin assignments……………………………………………. 12
iv

1
Introduction
1

1.1 Description
The MIC-3665 provides dual high performance Gigabit Ethernet interface controller
port on a single-wide PMC module. Both RJ-45 and fiber interfaces are available on
different modules. The RJ-45 Ethernet network interface complies with the IEEE
802.3 for 10BaseT and 100BaseTx, and IEEE 802.3ab for 1000BaseT over category
5 twisted pair cable. Both full duplex and half duplex modes are available. The
MIC-3665 eliminates machine bottlenecks and allows easy migration from existing
Category-5 networks to Gigabit Ethernet. Featuring cost-effective and flexible
auto-negotiating 10/100/1000 Mbps performance, the MIC-3665 is designed to
automatically scale with growing networks. Another choice is Fiber SFP LC Interface
based on IEEE 802.3z for 1000Base-X which provides dual integrated low powered
MAC/SERDES functionality. The MIC-3665 fiber module alleviates bottlenecks and
increases uptime with Gigabit performance in multi-mode fiber-optic networks. The
fiber module also delivers high throughput while conserving CPU resources. The
MIC-3665 is able to cache up to 64 packet descriptors in a single burst for efficient
PCI bandwidth use. A large 64 Kbytes on–chip buffer maintains superior
performance as available PCI bandwidth changes. Programmable host memory
receiving buffers (256 Bytes to 16 Kbytes) and cache line size (16 Bytes to 256
Bytes) enable efficient use of PCI bandwidth as well, allowing back-to-back
transmission with minimum interface latency. It also features a 100BaseTX and
1000BaseT auto-detection CSMA/CD interface controller. It supports a number of
sophisticated features, including auto-negotiation, collision detection, link detection,
I/O is via one front panel RJ-45 connector. The module is compliant with standard
single-wide PMC IEEE P1386.1 and PCI 2.3 specifications.
2

1.2 Features
•High performance wire speed, each port 1.9 Gb sustained raw throughput over
133/100/66 PCI-X
•One adapter for all common platforms with driver support for Linux and Windows
•Supports 33/66 MHz, 32/64 bit PCI interfaces and 100/133 MHz PCI-X
•Installs in any PCI-capable CompactPCI system with a vacant PMC Mezzanine slot
(PMC card)
•Utilizes 3.3 volt power supply and contains onboard power regulators
•Full duplex Gigabit Ethernet Interface over standard CAT-5/CAT-5e cabling
•Complies with all PCI revision 2.3 mechanical and electrical requirements
•Fully IEEE 802.3u, IEEE 802.3ab, 802.3z and IEEE 1386 compliant
•Compatible with all 10/100/1000Base-T/TX hubs, switches and routers
•Link quality monitor evaluates and adjusts to actual line conditions by managing
echo and cross-talk cancellation, equalization, timing and skew compensation
•Automatic gain control maximizes signal strength
•Burst rate of upto 256dwords (1024 bytes) over PCI bus
•Optional jumbo packets, 802.3x full-duplex flow control with automatic pause,
802.1D and 802.1Q priority with multiple priority queues
•10BaseT/100BaseTX/1000BaseT Ethernet port using front panel RJ-45 connector
•1000Base-X Fiber LC interface, single front panel SFP connector
•Single-wide 32/64 bit PMC module
•LED indicators for speed (10/100/1000) and link/activity
•Auto-negotiating protocol selection
•Transmit and receive FIFOs
•Drivers for VxWorks, NetWare (5.1/6.0/6.5), DOS, Novell ODI, OS/2, Linux (kernel
2.4), FreeBSD (Kernel 4.7), Windows® 95/98/NT/2000/XP/2003
(Professional/Server, 32/64 Bit) available
3

1.3 Specifications
• IEEE 802.3/802.3u 10Base-T/100Base-TX compatible
• IEEE 802.3ab 1000Base-T compatible
• IEEE 802.3z 1000Base-X (1000Base-SX, 1000base-LX) compatible*.
• CompactPCI Mezzanine Specification Revision 1.0
• Complies with PCI Bus Specification 2.3
• RJ-45 connector: The RJ-45 connector can use IEEE 802.3 10 Base-T compliant
Category 3, 4, or 5 cables. It can only use a Category 5 UTP cable for 100Mbps
/1Gbps operation. Select a high-quality brand of Category 5 cable from your local
supplier. The maximum length of the cable is 100 meters
• Fiber SFP (Small Form Factor) connector: Supports 802.3z (1000Base-X)
Fiber transceivers. Both single mode and multimode (1000Base-SX, 1000Base-LX)
are supported.
• Controller chip: Intel 82546GB
• Driver support: VxWorks, NetWare (5.1/6.0/6.5), DOS, Novell ODI, OS/2, Linux
(kernel 2.4), FreeBSD (Kernel 4.7), Windows® 95/98/NT/2000/XP/2003
(Professional/Server, 32/64 Bit)
• Power consumption: +3.3 V @ 1.0 A (max.)
• Operating temperature: 0 ~ 60° C (32 ~ 140° F)
• Storage temperature: -20 ~ 70° C (-4 ~ 158° F)
• Dimensions: 51 mm x 100 mm (2.0" x 3.9")
• Weight: 0.2 kg (0.44 lb)
• Emissions: CE mark to CISPR 11 Class A; FCC Class A.
*Agilent® HFBR-57M5AP (1000Base-SX multimode 850nm module) is fully
tested, and is suggested for multimode usage.
4

1.4 Safety Precautions
Follow these simple precautions to protect yourself from harm and your system
from damage.
1. To avoid electric shock, always disconnect the power from your system chassis
before you work on it. Don't touch any components on the card or other cards while
the system is on.
2. Disconnect power before making any configuration changes. The sudden rush of
power as you connect a jumper or install a card may damage sensitive electronic
components.
3. Always ground yourself to remove any static charge before you touch your CPU
card. Be particularly careful not to touch the chip connectors. Modern integrated
electronic devices, especially CPUs and memory chips, are extremely sensitive to
static electric discharges and fields. Keep the card in its antistatic packaging when it
is not installed in the PC, and place it on a static dissipative mat when you are
working with it. Wear a grounding wrist strap for continuous protection.
5

2
Hardware
and Drivers
Installation
6

2.1 Initial Inspection
We carefully inspected the MIC-3665 mechanically and electronically before we
shipped it. It should be free of marks and scratches and in perfect working order on
receipt. As you unpack the MIC-3665, check it for signs of shipping damage
(damaged box, scratches, dents, etc.). If it is damaged or fails to meet
specifications, notify our service department or your local sales representative
immediately. Also notify the carrier that was used to ship the product to your
location from our factory or distributor. Retain the shipping carton and packing
material for inspection by the carrier. We will make arrangements to repair or
replace the unit after an inspection. When you handle the MIC-3665, remove it from
its protective packaging by grasping the front metal panel. Keep the anti-vibration
packing. Whenever you remove the card from the PC, store it in this package for
protection.
Warning! Discharge your body’s static electric charge by touching the back of the
grounded chassis of the system unit (metal) before handling the board. You should
avoid contact with materials that hold a static charge such as plastic, vinyl and
Styrofoam. Handle the board only by its edges to avoid static damage to its
integrated circuits. Avoid touching the exposed circuit connectors.
7

2.2 MIC-3665 Connector Locations
Figure 2-1: MIC-3665 connector locations
! P11/P21/P31: CompactPCI PMC connector
! CN1/CN2: RJ-45 10/100/1000Base-T/TX connector
! CN3/CN4: Fiber LC Interface 1000Base-X connector
! LED1/LED2: LED Activity/Speed (for RJ-45)
! JP1: Pin connector for LED Activity (for Fiber)
2.3 Card Installation
The MIC-3665 is a PCI bus master PMC module. It can be installed only in a
CompactPCI™ board which supports PMC interface. Improper installation of a card
can easily damage the backplane of the chassis. The MIC-3665 install guide helps
you to install and remove the module easily and safely. Follow the procedure below
to install the MIC-3665 into a PMC carrier:
To install a card:
1. Shut off the system power
2. Connect the MIC-3665 to the CPU’s PCI mezzanine connector and attach it with
the four screws.
3. Connect the Ethernet Category 5 cable to the RJ-45 connector (or LC cable to the
8

Fiber LC Interface) on the front plate.
4. Power up the system
5. Configure your system using the network driver appropriate to your operating
system.
2.4 Cable connecting info
2.4.1 Fiber cabling:
Insert the fiber optic cable into the LC type connector so that the self-locking tab
clicks into position. Connect the opposite end to a 1000Base-SX switch. Ensure that
the TX port of the adapter is connected to the RX port of the switch, and RX to the
TX, check the red light from RX port. The maximum length is typical:
Table 2-1: Gigabit Ethernet physical media support
Fiber Core Diameter Type Fiber Bandwidth Mhz* km Distance
62.5/125 um multi-mode* 160 Mhz * km 2 to 220 m
62.5/125 um multi-mode 200 Mhz * km 2 to 275 m
50.0/125 um multi-mode 400 Mhz * km 2 to 500 m
50.0/125 um multi-mode 500 Mhz * km 2 to 550 m
8.0/125 um single-mode 500 Mhz * km 5-10 km
* (850 nm Laser for multimode-SX, 1310nm laser for single-mode-LX)
2.4.2 RJ-45 cabling:
Insert the fiber optic cable into the RJ-45 connector so that the self-locking tab
clicks into position. The maximum cable length is typically 100 meters.
2.5 Front Panel LED Indicators
There are two diagnostic LEDs on the front panel. These LEDs show the operating
status of the MIC-3665.
Table 2-2: LED Indicator definitions
ON OFF
LINK/
ACTIVITY
The link between the hub/switch and
adapter is active
LED blinks during data transmission
No link between the hub/switch and
adapter
SPEED*RED for 1000Base-T
Green for 100Base-TX
Operating in 10Base-T
* MIC-3665 Fiber has no “speed” LEDs (only in 1000Base-X)
9

10Base-T
100Base-TX
1000Base-T
Figure 2-2: MIC-3665 front panel LEDs.
2.6 Drivers/Utilities Installation
The MIC-3665 supports PCI Plug and Play. The BIOS automatically detects the
MIC-3665 while booting, and assigns an IRQ level and I/O address. No jumper or
switch is required for user configuration. The MIC-3665 uses one Intel 82546GB
Gigabit Ethernet controller chip. Thus it is software compatible with Intel's PROSet
utility.
• \Intel Ethernet family\Dos: DOS, OS/2, ODI
• \Intel Ethernet family\WinNT: Windows NT 4.0
• \Intel Ethernet family\W98SE: Windows 98 SE/ME
• \Intel Ethernet family\W2k: Windows 2000/XP/2003
• \Intel Ethernet family\W2k3_64: Windows Server 2003 (64Bit Itanium only)
• \Intel Ethernet family\WinNTE: Windows NT Embedded 4.0
• \Intel Ethernet family\WinXPE: Windows XP Embedded
• \Intel Ethernet family\Linux: Linux 2.2.x, 2.4.x, 2.6.x 32/64 Bit
• \Intel Ethernet family\FreeBSD: Kernel 4.5+
• \Intel Ethernet family\Netware: Novell Netware 4.x, 5.1+
• \Intel Ethernet family\Solaris: Solaris 7, 8
*The latest drivers can also be found in Intel’s website
http://developer.intel.com/design/network/drivers/
10

A
Pin Assignments
APPENDIX
1. RJ-45 pin assignments
The RJ-45 media connector on your card or hub/switch has specific leads that
correspond to each of the eight pins on the RJ-45 jack. This cable is responsible for
the transmission and reception of all data over the network. Refer to the table and
diagram below for the pin assignments.
Table A-1: MIC-3665 RJ-45 pin assignments
Pin Signal Description
Pin 1000Base-T 100Base-TX, 10Base-T
1 MDIA[0] + TX+
2 MDIA[0] - TX-
3 MDIA[1] + RX+
6 MDIA[1] - RX-
4 MDIA[2] + Reserved
5 MDIA[2] - Reserved
7 MDIA[3] + Reserved
8 MDIA[3] + Reserved
11

2. PMC pin assignments
Table A-2: MIC-3665 PMC pin assignments
P11 32-bit PCI
1 NC TCK -12V NC 2
3 GND INITA# 4
5 INTB# INTC# NC 6
7 NC BUSMODE1# +5V 8
9 NC INTD# PCI-RSVD NC 10
11 GND PCI-RSVD NC 12
13 CLK GND 14
15 GND GNT# 16
17 REQ# +5V 18
19 NC VIO AD[31] 20
21 AD[28] AD[27] 22
23 AD[25] GND 24
25 GND C/BE[3]# 26
27 AD[22] AD[21] 28
29 AD[19] +5V 30
31 NC VIO AD[17] 32
33 FRAME# GND 34
35 GND IRDY# 36
37 DEVSEL# +5V 38
39 NC GND/PCIXCAP LOCK# 40
41 NC SDONE# SBO# 42
43 PAR GND 44
45 NC VIO AD[15] 46
47 AD[12] AD[11] 48
49 AD[09] +5V 50
51 GND C/BE[0]# 52
53 AD[06] AD[05] 54
55 AD[04] GND 56
57 NC VIO AD[03] 58
59 AD[02] AD[01] 60
61 AD[00] +5V 62
63 GND REQ64# 64
12

P21 32-bit PCI
1 NC +12V TRST# NC 2
3 NC TMS TDO NC 4
5 NC TDI GND 6
7 GND PCI-RSVD NC 8
9 NC PCI-RSVD PCI-RSVD NC 10
11 NC BUSMODE2# +3.3V 12
13 RST# BUSMODE3# NC 14
15 3.3V BUSMODE4# NC 16
17 NC PCI-RSVD GND 18
19 AD[30] AD[29] 20
21 GND AD[26] 22
23 AD[24] 3.3V 24
25 IDSEL AD[23] 26
27 +3.3V AD[20] 28
29 AD[18] GND 30
31 AD[16] C/BE[2]# 32
33 GND PMC-RSVD NC 34
35 TRDY# +3.3V 36
37 GND STOP# 38
39 PERR# GND 40
41 +3.3V SERR# 42
43 C/BE[1]# GND 44
45 AD[14] AD[13] 46
47 M66EN AD[10] 48
49 AD[08] 3.3V 50
51 AD[07] PMC-RSVD NC 52
53 +3.3V PMC-RSVD NC 54
55 NC PMC-RSVD GND 56
57 NC PMC-RSVD PMC-RSVD NC 58
59 GND PMC-RSVD NC 60
61 ACK64# +3.3V 62
63 GND PMC-RSVD NC 64
13

14
P31 32-bit
1 NC PCI-RSVD GND 2
3 GND C/BE[7]# 4
5 C/BE[6]# C/BE[5]# 6
7 C/BE[4]# GND 8
9 NC VIO PAR64 10
11 AD[63] AD[62] 12
13 AD[61] GND 14
15 GND AD[60] 16
17 AD[59] AD[58] 18
19 AD[57] GND 20
21 NC VIO AD[56] 22
23 AD[55] AD[54] 24
25 AD[53] GND 26
27 GND AD[52] 28
29 AD[51] AD[50] 30
31 AD[49] GND 32
33 GND AD[48] 34
35 AD[47] AD[46] 36
37 AD[45] GND 38
39 NC VIO AD[44] 40
41 AD[43] AD[42] 42
43 AD[41] GND 44
45 GND AD[40] 46
47 AD[39] AD[38] 48
49 AD[37] GND 50
51 GND AD[36] 52
53 AD[35] AD[34] 54
55 AD[33] GND 56
57 NC VIO AD[32] 58
59 NC PCI-RSVD PCI-RSVD NC 60
61 NC PCI-RSVD GND 62
63 GND PCI-RSVD NC 64
