AEG ABC58FX User manual

ABC58FX

2
2
1
1
6
5
3
3
4
1
4
2
3
7
2
2

33
TECHNICAL DATA ABC58FX
Rated output voltage...............................................................................58 V DC
Rated input voltage.................................................................................220 - 240 V, 50 Hz AC
Quick charge current (4.0 Ah).................................................................5 A
Quick charge current (6.0 Ah).................................................................5 A
Battery charging time with 58 V / 4.0 Ah.................................................65 min
Battery charging time with 58 V / 6.0 Ah.................................................105 min
Weight according EPTA-Procedure 01/2003..........................................4680 g
IP Degree................................................................................................IP20
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
The product is not intended to be used or cleaned by persons
with reduced physical, sensory, or mental capabilities, or lack
of experience or knowledge, unless they have been given
instructions concerning the safe use of the product by a person
legally responsible for their safety. They should be supervised
while using the product. Children shall not use, clean, or play
with the product, which when not in use, should be secured out
of their reach.
WARNING Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
WARNING Do not recharge primary cells (non-
rechargeable).
WARNING Mains voltage must correspond with the
voltage specifications on the product.
■Before using the product, check that the charger enclosure,
cable, and plug are not damaged. If damage is found, do
not use the product and bring it to an authorised service
centre for repair.
■The product must not be damp and should never be used
in a damp environment.
■The product is for indoor use only.
■Do not use the product if it has suffered any heavy shock or
jolting, or is damaged in any other way.
■When charging, do not expose the product to sunlight or
other heat source. Recommended temperature range at
charging vicinity is 10° to 25°C.
■Due to the heat generated during charging, do not use the
COMPATIBLE BATTERY PACKS
Type Voltage Rated Capacity No. of Battery Cells Cell Type Charge time
AB58LI-401 58 V 4.0 Ah 2x14 Li-ion 65 minutes (1-2pcs)
130 minutes (3-4pcs)
ABP58LI-601 58 V 6.0 Ah 2x14 Li-ion 105 minutes (1-2 pcs)
210 minutes (3-4 pcs)
LED FUNCTIONS
Type Side 1 Side 2
Function/Color Green Red Yellow Green Red Yellow
Power standby/Pack waiting OFF ON OFF OFF ON OFF
Testing/Evaluation OFF FLASH OFF OFF FLASH OFF
Charging FLASH OFF OFF FLASH OFF OFF
Fuly charged ON OFF OFF ON OFF OFF
Temperature protection
mode OFF ON FLASH OFF ON FLASH
Defective FLASH FLASH OFF FLASH FLASH OFF

4
4
product on a combustible surface.
■Do not use the product near flammable materials, such as
cloth, packaging materials, paint, spray paint or aerosols,
lubricants, thinners, petrol containers, gas containers, or
gas appliances.
■Do not cover any ventilation slots and provide adequate
ventilation during operation.
■Never modify, disassemble, or attempt to repair the product
yourself.
■Do not allow the charger or battery packs to become
contaminated with any material that could be conductive,
such as, metallic particles from grinding, cutting, or
machining processes.
■Remove the plug of the product from the power socket
when it is not in use or when cleaning it.
■Only use extension cable that is approved and in good
condition.
■Do not charge battery packs that show signs of leaks.
Dispose of them properly.
■Never charge a damaged battery pack. If damaged,
replace immediately.
■If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer
or its service agent.
WARNING! Do not insert any object into the ventilation
slots or charging connector. This can cause damage to the
appliance and may increase the risk of personal injury and
property damage.
WARNING! Do not alter or modify the unit from the
original design or function. This may increase the risk of
serious personal injury or property damage.
WARNING! Before you plug in your product, make
sure that the supply voltage used corresponds to that
indicated on the rating plate.
SPECIFIED CONDITIONS OF USE
The charger is only intended to charge 58V AEG Li-ion battery
packs listed in this manual.
The product is only for use indoors in dry conditions.
The product is not intended to charge any other type of battery
or be used as a power supply or any other purpose. It should
never be used in explosive or inflammable environments.
Do not use the product for any other purpose.

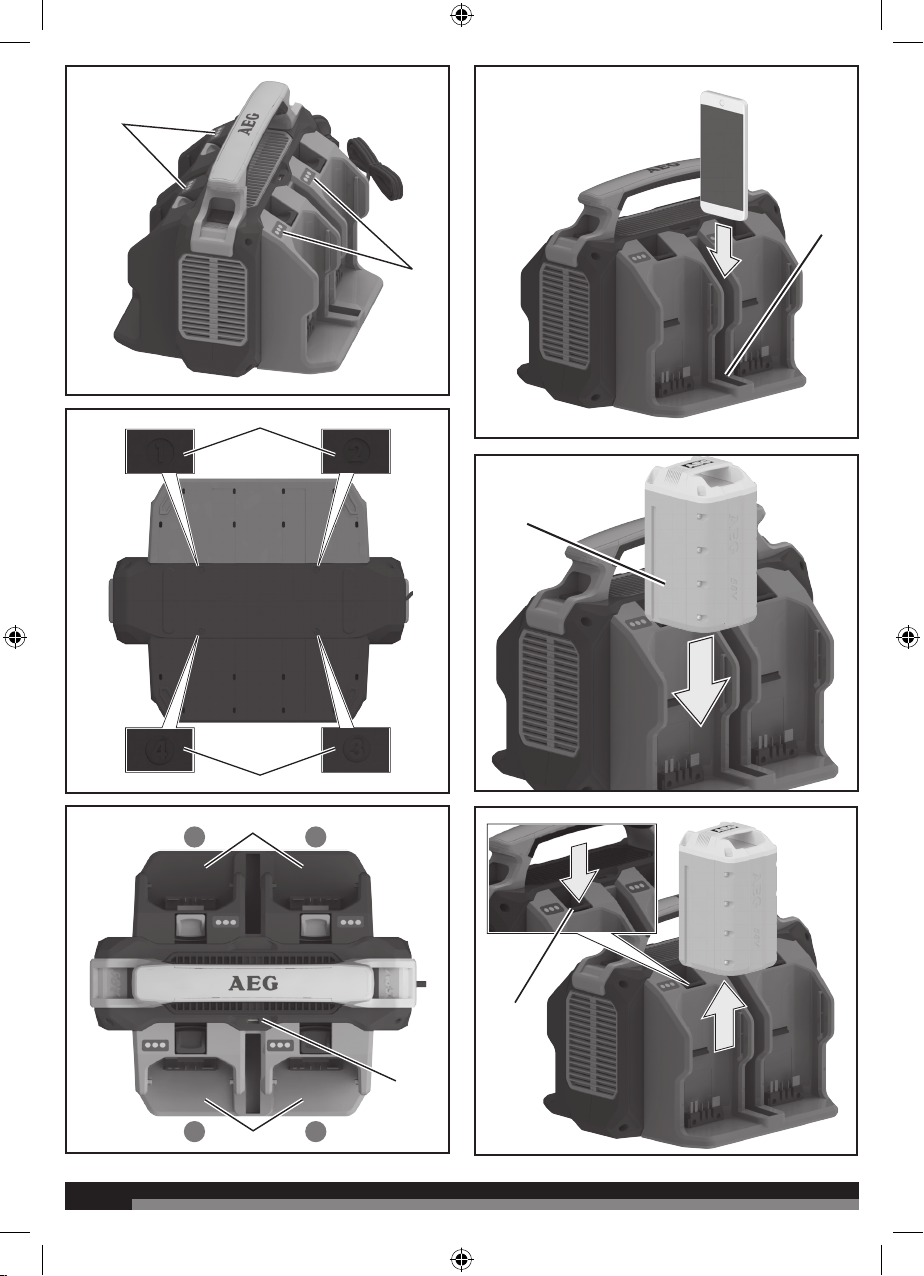

DESCRIPTION
1. LED indicators
2. Battery port number
3. Battery port
4. USB charging port
5. Cell phone holder
6. Battery pack
7. Latch release button
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of them as waste. The product, accessories,
and packaging should be stored for
environmentally friendly recycling.
OPERATION
WARNING! Do not allow familiarity with products to
make you careless. Remember that a careless fraction of a
second is sufcient to inict serious injury.
WARNING! Do not use any attachments or accessories
not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can
result in serious personal injury.
WARNING! Never operate the charger where there is
a possibility of inammable or explosive gases or vapour.
Keep well away from petroleum, paint and cleaning supplies,
and gas-red heating systems.
WARNING! Charge in a well-ventilated area. Do
not block charger vents. Keep them clear to allow proper
ventilation.
CHARGING THE BATTERY PACK
Battery packs are shipped in a low charge condition to prevent
possible problems. Therefore, you should charge them before
first use. If the charger does not charge your battery pack
under normal circumstances, bring both the battery pack and
charger to an authorised service centre.
NOTE: When multiple battery packs are connected to the
charger, the battery packs are charged two at a time. The
batteries will be charged in the order they are placed. Batteries
placed on the same side (side 1 or side 2) will be charged
simultaneously.
Make sure the power supply is normal household voltage, 220
– 240V, 50Hz, AC only.
NOTE: After charging is complete, the green LED will remain
on until the battery pack is removed from the charger, or
charger is disconnected from the power supply.
The battery pack will become slightly warm to touch while
charging. This is normal and does not indicate a problem.
Do not place the charger and battery pack in an area of extreme
heat or cold. They will work best at normal room temperature.
NOTE: The charger and battery pack should be placed in a
location where the temperature is more than 10°C but less than
38°C.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the battery pack will become
hot. A hot battery pack may be placed directly onto the charger
port, but charging will not begin until the battery temperature
cools to within the acceptable temperature range. When a hot
battery pack is placed on the charger, the red LED will be on,
and the orange LED will begin flashing. When the battery pack
cools, the charger will automatically begin charging.

55
CHARGING A COLD BATTERY PACK
A cold battery pack may be placed directly onto the charger
port, but charging will not begin until the battery temperature
warms to within the acceptable temperature range. When a
cold battery pack is placed on the charger, the red LED will be
on, and the orange LED will begin flashing. When the battery
packs warms, the charger will automatically begin charging.
BATTERY PROTECTION FEATURES
AEG 58 V lithium-ion batteries are designed with features that
protect the lithium-ion cells and maximize battery life. If the
tool stops during use, release the trigger to reset and resume
operation. If the tool still does not work, the battery needs to
be recharged.
WARNING! If at any point during the charging process
none of the LEDs are lit, remove the battery pack from
the charger to avoid damaging the product. Do not insert
another battery. Return the charger and battery to your nearest
service centre for service or replacement.
USING THE USB CHARGING PORT
The USB charging port provides a charger power of 5 volts DC
up to 2 amps for your cell phone, MP3 player, tablet, or other
USB devices. Consult the manual for the specific charging
requirements of your device.
Connect one end of a USB cable (not provided) to your device,
and the other end to a USB charging port on the charger to
begin charging your device.
NOTE: Attempting to charge devices rated more than 2 amps
could damage the USB charging ports and/or the charger.
MAINTENANCE
■When not using or when cleaning the product, disconnect it
from the power supply and remove the battery pack.
■Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloth or soft brush to remove dirt and dust.
■Do not, at any time, let brake fluids, gasoline, petroleum-
based products, and penetrating oils come in contact with
plastic parts. They contain chemicals that can damage,
weaken, or destroy plastic.
WARNING Hazardous voltages are present within the
product; do not disassemble.
■There are no user serviceable or replaceable parts inside
the product. In case of damage or failure, bring the product
to an authorised service centre for repair.
STORAGE
Store the product in a cool, dry place.
Ensure no metal lings or swarf can fall into the vents during
storage. Metal lings and swarf coming into contact with
electrical components of the product may cause serious injury.
SYMBOLS
Safety alert
Please read the instructions carefully
before starting.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
This appliance is indoor use only. Never
expose appliance to rain.
T5.0A
Time-lag fuse 5.0 A
Class II, double insulation
Switch mode power supply unit
Switch mode power supply unit with a
non-inherently short circuit-proof safety
isolating transformer
Do not dispose of electric tools together
with household waste material. Electric
tools and electronic equipment that have
reached the end of their life must be
collected separately and returned to an
environmentally compatible recycling
facility.

Techtronic Industries GmbH
Max-Eyth-Straße 10
71364 Winnenden
Germany
Techtronic Industries (Australia) Pty. Ltd.
31 Gilby Road,
Mount Waverley VIC 3149,
Australia
Techtronic Industries New Zealand Ltd.
2 Landing Drive, Auckland Airport,
Mangere, New Zealand 2022
961060012-01
