Pump Module
User Guide
1

Pump Module User Guide
This guide describes the Agilent Pump Module, which fills and
empties Agilent autofilling accessories.
This guide contains the following topics:
•“General safety information” on page 2
•“Laboratory setup requirements” on page 6
•“Pump Module overview and components” on page 8
•“Autofilling options” on page 9
•“Setup workflow” on page 14
•“Installing an autofilling reservoir or wash station” on page 14
•“Connecting power and communication” on page 15
•“Routing the tubing” on page 17
•“Installing a Weigh Station” on page 25
•“Maintenance and troubleshooting” on page 27
For instructions on how to configure the autofilling parameters and
how to use the Pump Module in a protocol, see the user
documentation for your automation software and liquid- handling
device. You can search the product knowledge base or download
the latest version of a PDF file from the Agilent Technologies
website at:
www.agilent.com/chem/askb

Pump Module User Guide
General safety information
2Pump Module User Guide
General safety information
Before installing and using the Pump Module
Before installing and using the Pump Module, make sure you are aware of the
potential hazards and understand how to avoid being exposed to them. You
must be properly trained in the correct and safe installation and operation of
the device.
Intended product use
Agilent Technologies products must only be used in the manner described in
the Agilent Technologies product user guides. Any other use may result in
damage to the product or personal injury. Agilent Technologies is not
responsible for any damages caused, in whole or in part, by improper use of
the products, unauthorized alterations, adjustments or modifications to the
products, failure to comply with procedures in Agilent Technologies product
user guides, or use of the products in violation of applicable laws, rules or
regulations. Except as otherwise expressly provided in Agilent Technologies
product user guides, any alteration, adjustment or modification to the products
will void the product warranty and may invalidate the safety compliance
certification.
The Pump Module is not intended or approved for diagnosis of disease in
humans or animals. You assume full responsibility for obtaining any regulatory
approvals required for such use and assume all liability in connection
therewith.
Safety labels
Pay attention to any safety labels affixed to your device. A safety label consists
of a warning symbol that indicates a risk of danger. A description of the
warning and information that will help you to avoid the safety hazard are
provided in this user guide.
The following figure shows the location of the warning labels on the Pump
Module.
WARNING Do not remove the device’s exterior covers or otherwise disassemble the
system or device. Doing so can expose you to hazards that could cause serious injury and
damage the device.

3
Pump Module User Guide
General safety information
Pump Module User Guide
Figure Safety symbols under the opened pump head cover
Warnings in the user documentation or on the device must be observed during
all phases of operation, service, and repair of this device. Failure to comply
with these precautions violates safety standards of design and the intended use
of the product. Agilent Technologies assumes no liability for the customer’s
failure to comply with these requirements.
The following table lists the common symbols you might find on the system or
device. The symbol on the label indicates the type of hazard. A description of
the warning and information that will help you avoid the safety hazard are
provided in this guide.
Symbol Description
Indicates that you must read the accompanying
instructions (for example, the safety guide) for more
information before proceeding.
Indicates hazardous voltages.
Indicates pinch, crush, or cut hazard.
Indicates laser hazard.
00306
PumpModule

Pump Module User Guide
General safety information
4Pump Module User Guide

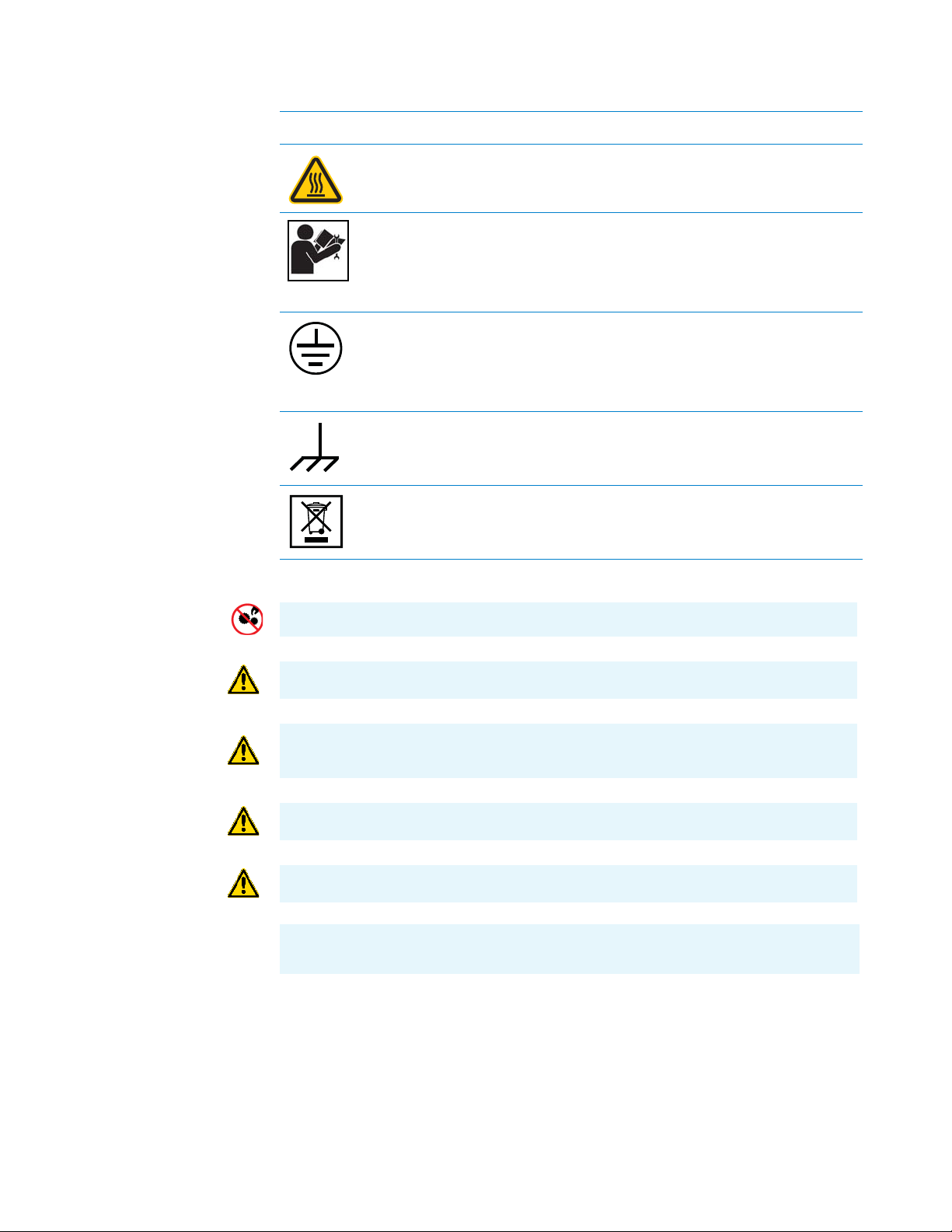

Indicates hot surface hazard.
Indicates that to prevent serious injury, guards,
interlocks, and safety devices should be restored to
correct operation when installing parts or making
repairs. Refer to user or service documentation for
additional information.
Indicates protective conductor terminal, which is bonded
to conductive parts of an equipment for protection
against electric shock in case of a fault and is intended
to be connected to an external protective earthing
system.
Indicates frame or chassis terminal, which is bonded to
conductive parts of an equipment for safety purposes.
Indicates that you must not discard this electrical/
electronic product in domestic household waste.
Symbol Description
WARNING Pinch hazard! Do not allow fingers to contact moving parts.
WARNING Ensure that the Pump Module is turned off before lifting the flip-top cover on
a pump head. Keep the covers closed while the pumps are running.
WARNING Do not remove the exterior Pump Module covers or otherwise disassemble
the device. Doing so can expose you to hazardous-voltage electronics and damage the
Pump Module.
WARNING Ensure that protective clothing and eye protection are worn if hazardous
products are being pumped.
WARNING Ensure that liquid does not contact the device electronics. Periodically
inspect the tubing for leaks.
CAUTION Do not lift the Pump Module by the peristaltic pumps that are mounted on the
front of the device. Doing so could damage the Pump Module.

5
Pump Module User Guide
General safety information
Pump Module User Guide
Safety and regulatory compliance
Compliance standards
The Pump Module complies with the applicable EU Directives and bears the
CE mark. See the Declaration of Conformity or Declaration of Incorporation, as
applicable, for details. The Pump Module is designed to comply with the
regulations and standards listed in the following table.
Electromagnetic compatibility
If the Pump Module causes interference with radio or television reception,
which can be determined by turning the device off and on, try one or more of
the following measures:
•Relocate the radio or television antenna.
•Move the device away from the radio or television.
•Plug the device into a different electrical outlet, so that the device and the
radio or television are on separate electrical circuits.
•Make sure that all peripheral devices are also certified.
•Make sure that appropriate cables are used to connect the device to
peripheral equipment.
•Consult your equipment dealer, Agilent Technologies, or an experienced
technician for assistance.
Changes or modifications not expressly approved by Agilent Technologies could
void the user's authority to operate the equipment.
Sound emission declaration
Sound pressure: Lp < 70 dB according to EN ISO 779:2010.
Schalldruckpegel: Lp < 70 dB nach EN ISO 779:2010.
Regulatory Compliance Standard
EMC
European Union EMC Directive 2004/108/EC
IEC 61326- 1:2005 / EN 61326- 1:2006
Canada ICES/NMB- 001:2004
Australia/New Zealand AS/NZS CISPR 11:2004
Safety
European Union Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
IEC 61010- 1:2001 / EN61010- 1:2001
IEC 61010- 2- 081:2001+A1:2003 /
EN 61010- 2- 081:2002+A1:2003
Canada CAN/CSA- C22.2 No. 61010- 1- 04
CAN/CSA- C22.2 No. 61010- 2- 081- 04
USA ANSI/UL 61010- 1:2004

Pump Module User Guide
Laboratory setup requirements
6Pump Module User Guide
South Korean Class A EMC declaration
This equipment is Class A suitable for professional use and is for use in
electromagnetic environments outside of the home.
Laboratory setup requirements
Placement considerations
The Pump Module must be located near a power source to connect the power
cord, and near the controlling liquid- handling device to connect the
communication cable. If applicable, the Pump Module must be positioned to
enable connecting the cable from the Agilent Weigh Station, Weigh Pad, or
Weigh Shelf.
IMPORTANT Make sure the Pump Module is located away from heat and air
conditioning ducts and away from direct sunlight, as these conditions could
interfere with the Pump Module performance.
Specifications
The following figure shows the Pump Module dimensions.
Figure Pump Module dimensions (front and side view)
h
hἽGὤὤGO 㛹ⱨ㟝Gⵝ㋕䋩㐔ὤ㣄㣠 P
㧊G₆₆⓪G㠛ⶊ㣿 Oh PG㩚㧦䕢㩗䞿₆₆⪲㍲G䕦Gⰺ㧦G⡦⓪G㌂㣿㧦⓪G㧊G㩦㦚G㭒
㦮䞮㔲₆G⹪⧒GⳆ SGṖ㩫㣎㦮G㰖㡃㠦㍲G㌂㣿䞮⓪Gộ㦚G⳿㩗㦒G⪲G䞿┞┺ U
00310
25.4 cm
14.6 cm 23.5 cm

7
Pump Module User Guide
Laboratory setup requirements
Pump Module User Guide
The dimensions and additional site requirements are as follows.
Environmental requirements
Ambient environment
The Pump Module is for indoor use only. The following table lists the operating
and storage specifications.
If you have integrated devices, your system might require additional cooling
depending on the number and types of integrated devices.
Related information
Specification Value
Dimensions
Height 25.4 cm (10.0 in)
Width 14.6 cm (5.75 in)
Depth 23.5 cm (9.25 in)
Electrical 100–240 V~, 50/60 Hz, 1.5 A
Operating Specification
Pollution degree 2
Installation category II
Temperature 0–40 °C
Humidity 10–90% RH, non- condensing
Altitude 1–2000 m
For information about... See...
Safety guidelines “General safety information” on page 2
Pump Module maintenance “Maintenance and troubleshooting” on
page 27

Pump Module User Guide
Pump Module overview and components
8Pump Module User Guide
Pump Module overview and components
Overview
The Pump Module contains two peristaltic pumps, one that pumps the fresh
source fluid into a reservoir, and a second one that pumps the waste fluid
from the reservoir. Optionally, you can use the Pump Module with an Agilent
Weigh Station, Weigh Shelf, or Weigh Pad to provide precise liquid- level control
for an autofilling reservoir or wash station.
Components
The following figure shows the primary components and the table provides
descriptions of each component.

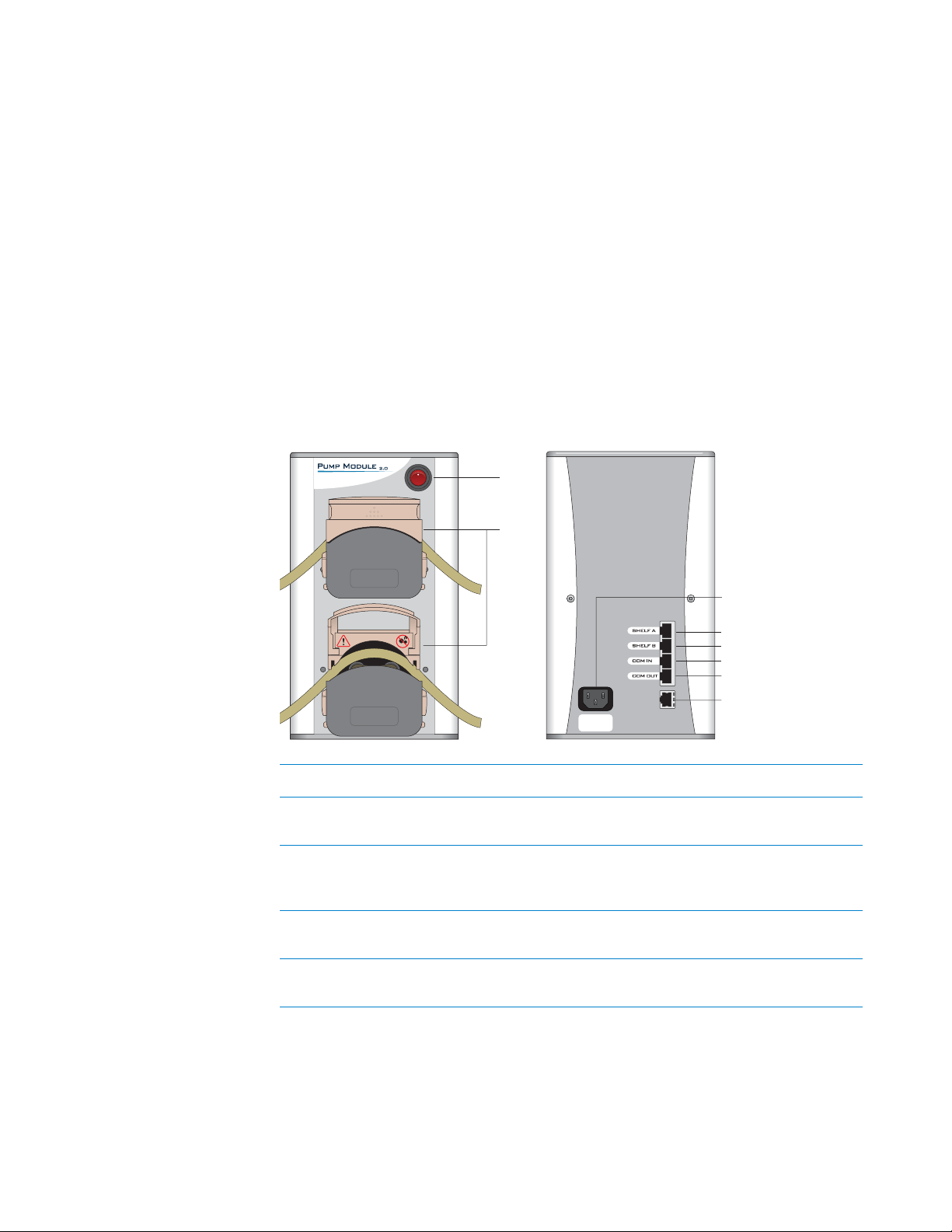

Figure Pump Module front view (left) and rear view (right)
Item Feature Description
1Power
switch
Turns on or turns off the power.
2Peristaltic
pump
Pumps fluid in either a forward or reverse direction, as
specified in the automation control software. Each pump
has a flip- top cover that enables you to route the tubing.
3AC power
connector
Connects the power cable.
4SHELF A
port
Connects the communication cable from a Weigh Shelf,
Weigh Station, or Weigh Pad to the Pump Module.
1
2
100V-240V
50/60Hz
1.5 Amps
3
4
5
6
7
8
