AirSep NewLife Elite User manual

Patient Manual
Oxygen Concentrator
Includes Oxygen Monitor, Air Outlet,
Dual Flow, and Pediatric Flow
Options
Click for pricing and product details

DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL. IF
YOU ARE UNABLE TO UNDERSTAND THE WARNINGS AND INSTRUCTIONS, CONTACT YOUR EQUIPMENT
PROVIDER BEFORE ATTEMPTING TO USE THIS EQUIPMENT; OTHERWISE, INJURY OR DAMAGE MAY
RESULT.
Smoking while using oxygen is the number one cause of fire, injuries and related
death s . You must follow these safety warnings:
Do not allow smoking, candles, or open flames in the same room with the device or within 5 feet
(1.52 meters) of the oxygen - carrying accessories.
Smoking while wearing an oxygen cannula may cause facial burns and possibly death.
Removing the cannula and putting it on bedding, sofas, or other cushion material will cause a
flash fire when exposed to a cigarette, heat source, or flame.
If you smoke, these 3 steps may save your life: turn off the oxygen concentrator, take off the
cannula, and leave the room where this device is located.
English: A multilingual version of the manual is available through your equipment provider
.
Español : Una versión multilingüe del manual está disponible a través de su proveedor d e equipo.
Français: Une version multilingue du manuel est disponible par l'intermédiaire de votre fournisseur de matériel.
Deutsche
:
Eine mehrsprachige Version des Handbuchs ist in Ihrer Geräte - Anbieter.
³No Smoking ±Oxygen in Use´
signs must be prominently displayed in the home, or where the
oxygen concentrator is in use. Patients and their caregivers must be informed about the dangers of
smoking in the presence of, or while using, medical oxygen.

TABLE OF CONTENTS
AirSep
®
NewLife®
Elite
Oxyge n Concentrator
AirSep NewLife Elite
Oxygen Concentrator 1
Important Safety Rules 1
Why Your Physician Prescribed Oxygen 6
What is an Oxygen Concentrator? 7
How to Operate Your Oxygen Concentrator 8
Filters
12
Ox ygen Without Humidifier
12
Oxygen With Humidifier
13
Nasal Cannula
14
Proper Setting of Oxygen Flowmeter
15
Cleaning, Ca re, and Proper Maintenance 16
Cabinet
16
Filters
17
Reserve Oxygen Supply 17

TABLE OF CONTENTS
AirSep® NewLife® Elite
Oxygen Concentrator
Troubleshooting 18
Product Specifications 20
Classification 21
Oxygen Monitor Option 22
Function of the Oxygen Monitor 22
Alarm Signal 22
Air Outlet Option 23
Operating the NewLife Elite Air Outlet
23
Dual Flow and Pediatric/
Low Flow Options 30
Dual Flow Application 31
Pediatric/Low Flow Application 31
Setting the Pediat ric Flowmeter 32
Symbols/Abbreviations 33

MN078-1 Rev F
8/12
1
[Read the Important Safety Rules section before operating this equipment.]
AirSep® NewLife® Elite Oxygen Concentrator
This Patient Manual will acquaint you with AirSep¶s NewLife Elite Oxygen Concentrator. Make sure you read and understand all the
information contained in this manual before you operate your unit. Should you have any questions, your Equipment Provider will be happy
to answer them for you.
Important Safety Rules
Carefully review an d familiarize yourself with the following important safety information about the NewLife Elite Oxygen
Concentrator.
³No Smoking
±
Oxygen in Use
´
signs must be prominently displayed in the home, or where the oxygen
concentrator is in use. Patients and their caregivers must be informed about the dangers of smoking in the
presence of, or while using, medical oxygen.
This device supplies high -concentration oxygen that promotes rapid burning. Do not allow smoking or open
flames within the same room of (1) this device, or (2) any oxygen-carrying accessory. Failure to observe
this warning can result in severe fire, property damage and / or cause physical injury or death.
This unit is not to be used for life support. Geriatric, pediatric, or any other patients unable to communicate
discomfort while using this machine may require additional monitoring. Patients with hearing and/or sight
impairment(s) may need assistance with monitoring alarms.
If you feel discomfort or are experiencing a medical emergency, seek medical assistance immediately
Use no oil, grease, or petroleum -based or other flammable products on or near nasal end of cannula or the
NewLife Elite unit. Oxygen accelerates the combustion of flammable substances.

MN078-1 Rev F
8/12
2
Electrical shock hazard. Disconnect the power cord from the electric outlet before you clean the unit to
prevent accidental electrical shock and burn hazard. Only your Equipment Provider or a qualified service
technician should remove the covers or service the unit.
Do not leave a nasal cannula under bed coverings or chair cushions. If the unit is turned on but not in use,
the oxygen will make the material flammable. Set the I/0 power switch to the
0
(off) position when the
NewLife Elite unit is not in use.
Do not use extension cords with this unit or connect too many plugs into the same electrical outlet. The use
of extension cords could adversely affect the performance of the device. Too many plugs in one outlet can
result in an overload to the electric al panel causing the breaker/fuse to activate or fire if the breaker or fuse
fails to operate.
Use only voltage specified on back panel label.
Do not use your oxygen concentrator in the presence of flammable gases. This can result in rapid burning
causing property damage, bodily injuries or death.
Care should be taken to prevent NewLife Elite from getting wet or allowing water to enter the unit. This can
cause the unit to malfunction or shut down, and cause an increased risk for electrical sh ock or burns.
Do not use liquid directly on the unit. A list of undesirable chemical agents includes but is not limited to
the following: alcohol and alcohol - based products, concentrated chlorine - based products (ethylene
chloride), and oil -based prod ucts (Pine -Sol, Lestoil). These are NOT to be used to clean the plastic
housing on NewLife Elite, as they can damage the unit¶s plastic.

MN078-1 Rev F
8/12
3
Clean the cabinet, control panel, and power cord only with a mild household cleaner applied with a damp
cloth or sponge, and then wipe all surfaces dry. Do not allow any liquids to enter the concentrator.
Ensure concentrator is operated in an upright position.
AirSep recommends an alternate source of supplemental oxygen in the event of a power outage, alarm
condition, or mechanical failure. Consult your physician or Equipment Provider for the type of reserve
system required.
Federal (USA) law restricts this device to sale or rental by order of a physician or other licensed health care
provider.
It is very important to follow the prescribed level of oxygen flow. Do not increase or decrease the flow until
you first consult your physician.
In the event of an alarm or you observe the NewLife Elite is not working properly; consult the
troubleshooting section of this manual. If you cannot resolve the problem, consult your Equipment
Provider.
Do not operate this unit in a restricted or confined space where ventilation can be limited. This can cause
the device to overheat and affect performance.
Storing the device outside of its temperature specifications may affect performance (refer to the
specification section of the manual).

MN078-1 Rev F
8/12
4
If the alarm is weak or does not sound at all, consult your Equipment Provider immediately.
Position the unit away from curtains or drapes, hot air registers or heaters. Be certain to place the unit on a
flat surface and make sure all sides are at least 1 foot (30 cm) away from a wall or other obstruction. Do
not place the unit in a confined area. Choose a d ust and smoke free -location away from direct sunlight. Do
not operate the unit outdoors unless the unit is plugged into a Ground Fault Circuit Interrupter (GFCI )
protected outlet.
If the humidifier bottle tubing is not properly connected to the humidifier bottle fitting or the oxygen outlet,
an oxygen leak can occur.
Normally, you should not need to adjust the flowmeter on your unit. If you turn the flowmeter adjustment
knob clockwise, you will decrease and can shut off the flow of oxygen from you r unit. For your
convenience, the flowmeter is marked in ½ lpm increments from 1 to 5 lpm. For units with the pediatric
flowmeter option, the flowmeter is marked in 1/8 lpm increments for flow settings up to 2 lpm.
To prevent a voided AirSep warranty, follow all manufacturers¶instructions.
Replace the disposable cannula periodically following normal usage according to your Equipment Providers
recommendations.
AirSep does not recommend the sterilization of this equipment.
Do not attempt any maintenance other than the possible solutions listed below.

MN078-1 Rev F
8/12
5
Always follow the cannula manufacturer¶s instructions for proper use. Consult your licensed health care
provider to determine how often the cannula should be replaced.
The standard NewLife Elite Oxygen Concentrator accommodates prescriptions from 1 to 5 lpm.
For prescriptions levels below 1 lpm, you must operate the NewLife Elite unit for at least 5 minutes at 2
lpm
.
The use of some oxygen administration accessories not specified for use with this oxygen concentrator
may impair its performance.
The use of certain humidifiers not specified for use with this oxygen concentrator may impair its performance.
To Equipment Provider:
The following humidifier bottle is recommended for use with the NewLife Elite Oxygen
Concentrator:
AirSep Part No.
HU003 - 1
To Equipment Provider:
The following oxygen administration accessories are recommended for use with the
NewLife Elite Oxygen Concentrator:
•
Nasal Cannula w ith 7 feet (2.1 m) of tubing: AirSep Part No.
CU002 - 1.
•
Oxygen Outlet Adapter: AirSep Part No.
F0025 - 1
.

MN078-1 Rev F
8/12
6
[Read the Important Safety Rules section before operating this equipment.]
Why Your Physician Prescribed Oxygen
Man y people suffer from a variety of heart, lung, and other respiratory diseases. A significant number of these patients can benefit
from supplemental ox ygen therapy at home, in the hospital, or at a medical facility.
Oxygen is a gas that makes up 21% of the room air we breathe. Our bodies depend on a steady supply to function properly. Your
physician prescribed a flow or setting to address your particular respiratory condition.
Although Oxygen i s a non - additive drug, unauthorized oxygen therapy can be dangerous. You must seek medical advice before you
use this oxygen concentrator. The Equipment Provider who supplies your oxygen equipment will demonstrate how to set the
prescribed flow rate.
It is very important to select the prescribed level of oxygen flow. Do not increase or decrease the flow until you
fi rst consult your physician.

MN078-1 Rev F
8/12
7
[Read the Important Safety Rules section before operating this equipment.]
What i s an Oxygen Concentrator?
Oxygen concentrators were introduced in the mid- 1970¶s and have become the most convenient, reliable source of supplemental
oxygen available today. Oxygen concentrators are the most cost - effective, efficient, and safe st alternative to using high - pressure
oxygen cylinders or l iquid oxygen. An oxygen concentr ator provides all the oxygen you need with no cylinder or bottle deliveries
required.
The air we breathe contains approximately 21% oxygen, 78% nitrogen, and 1% other gases. In the NewLife Elite unit, room air passes
through a regenerative, adsorbent mate rial called ³molecular sieve.´This material separates the oxygen from the nitrogen . The result is
a flow of high - concentration oxygen delivered to the patient.
There is never a danger of depleting the oxygen in a room when you use your NewLife Elite unit.

MN078-1 Rev F
8/12
8
[Read the Important Safety Rules section before operating this equipment.]
How to Operate Your Oxygen Concentrator

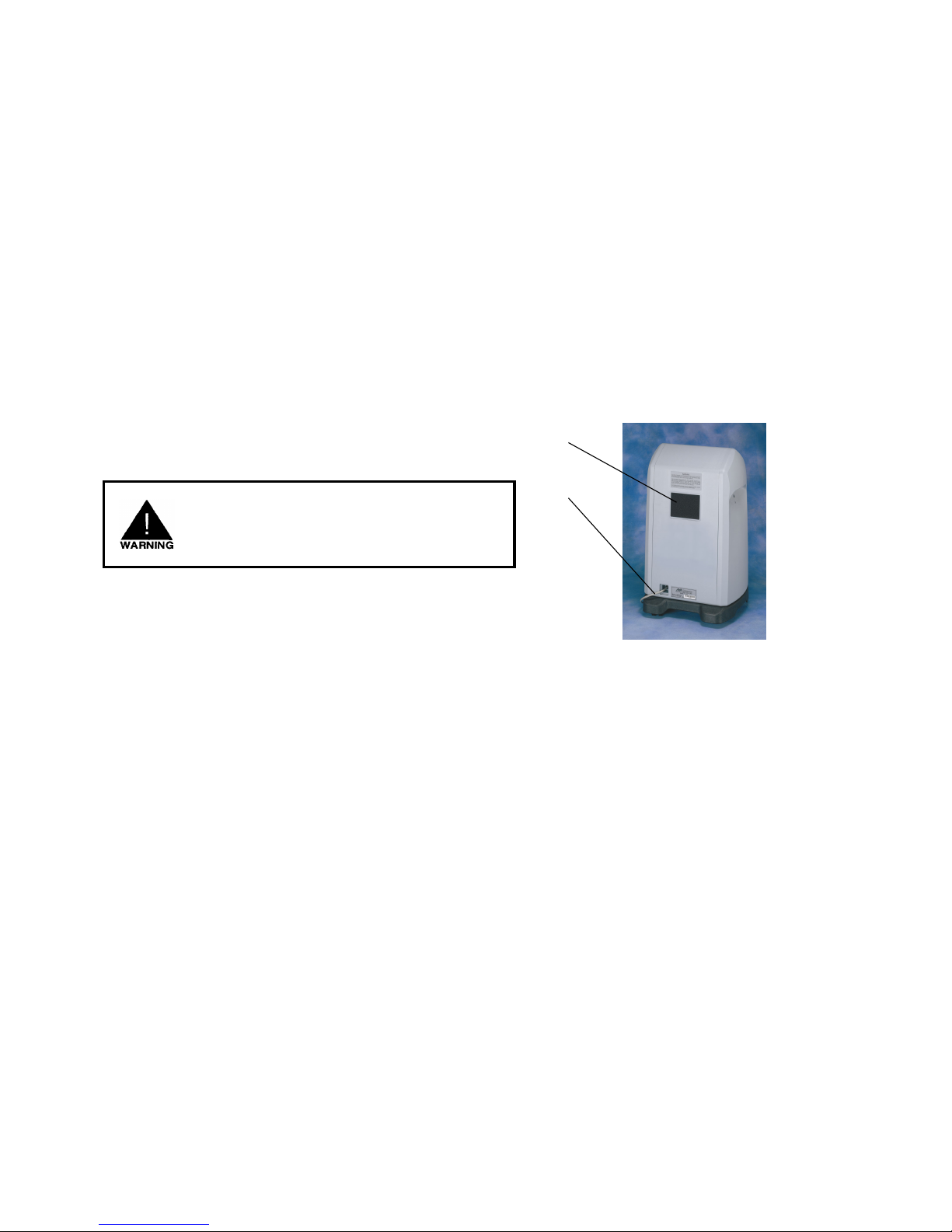

First, become familiar with the important parts of your NewLife Elite
Oxygen Concentrator (Figures 1a and 1 b).
A. On/Off (I/0
)
Power Switch:
Starts and stops the operation of the unit.
B. Circuit Break er Reset Button:
Resets the unit after electrical overload shutdown
C. Digital Hour Meter:
R ecords the unit¶s total hours of operation.
D. Flowmeter/Adjustme nt Knob :
Controls and indicates the oxygen flow rate in liters per minute
( l pm).
E. Oxygen
Outlet :
Provides connections for a humidifier (if required) or nasa l cannula.
F. Top and Side Handles:
Figure 1a
Enables convenience in carrying the unit.
G. Operating Instructions:
Explains procedures to operate the unit.
F
E
G
D
F
C
B
A

MN078-1 Rev F
8/12
9
[Read the Important Safety Rules section before operating this equipment.]
I . Air Intake Gross Particle Filter:
Prevents dust and other airborne particles from entering the
unit.
J . Power Cord :
Allows connection of unit into electrical outlet.
Do not use extension cords with this unit or connect
too many plugs into the same outlet. Too many plugs
in one outlet can result in an overload to the electrical
panel c ausing the breaker/fuse to activate or fire if the
breaker or fuse fails to operate.
1. Locate the unit near an electrical outlet in the room wher
e you spend
most of your time.
2. Position the unit away from curtains or drapes, hot air registers, heaters,
and fireplaces. Be certain to place the unit so all sides are at least 12 inches
(30.5 cm) away from a wall or other obstruction. Do not place the unit in a
Figure 1b
confined area.
3. Turn the unit so that the operating controls are within easy reach and the air intake on the back of the unit is not obstructed.
4. Connect oxygen accessories such as a humidifier (if required),
nasal cannula, and/or extension tubing to the oxygen outlet.
5.
Completely unwrap the power cord (Figure 1b).
I
J

MN078-1 Rev F
8/12
10
[Read the Important Safety Rules section before operating this equipment.]
6.
Insert power cord into the electrical outlet.
7. Locate the power switch on the front
of the unit, and switch it to
the I position (on). (Figure 2.)
A battery -operated audible alarm must sound for a 5- second
test to indicate a good battery and alarm.
If the alarm is weak or does not sound at all, consult
your Equ ipment Provider immediately.
Figure 2
The standard New Life Elite Oxygen Concentrator
accommodates prescriptions from 1 to 5 lpm .
8. Dual Flow and High Flow Applications: Set the flowmeter adjustment
knob(s) to the prescribed lpm, in any combination of flows up to a total
of 5 lpm for Dual 5 un its (Figure 3).
or
Pediatric/Low Flow Applications:
Set the flowmeter adjustable knob(s)
to the prescribed lpm up to 2 lpm in 1/8 liter (125 ccm) increments.
Figure 3
The concentrator is now ready for use.
On/Off
Power Switch

MN078-1 Rev F
8/12
11
[Read the Important Safety Rules section before operating this equipment.]
9.
To turn the concentrator off, press the
I/0
switch to the
0
position.
Ensure concentrator is operated in an upright position
For prescriptions levels below 1 lpm, you must operate the NewLife Elite unit for at least
5 minutes at 2 lpm
.
10.
If the NewLife Elite unit fails to operate properly, refer to the Troubleshooting sectio n for a list of probable causes and
solutions.

MN078-1 Rev F
8/12
12
[Read the Important Safety Rules section before operating this equipment.]
Filters
Air enters the NewLife Elite unit through an air intake gross particle filter located on the
back off the oxygen concentrator. This filter removes dust particles and other large particles from
the air. Bef ore you operate the NewLife Elite unit, make sure this filter is clean and positioned
correctly
(Figure 4).
The supplemental oxygen p roduced by the NewLife Elite unit receives additional filtration
f rom a product filter located within the oxygen concentrator. Your Equipment Provider performs
m aintenance on the product filter in addition to other maintenance on the unit.
Figure 4
The use of some oxygen administration accessories not specified for use
with this oxygen concentrator may impair its performance.
Oxygen Without Humidifier
1.
I
f your physician did not prescribe a humidifier, connec t the oxygen tubing directly to
the unit¶s Oxygen outlet. A sep arate outlet fitting is su pplied for this type of connection
(Figure 5).
Figure 5

MN078-1 Rev F
8/12
13
[Read the Important Safety Rules section before operating this equipment.]
Operating With Humidifier
Following these steps if your physician prescribed an oxygen humidifier as part of your therapy:
1.
Remove or unscrew the reservoir bottle from the humidifier (If you have a pre-
filled
unit, do not perform this step. Proceed directly to step 4.)
2.
Fill the reservoir with cool or cold water (distilled water is p
referred) to the fill lin e indicated
on the bottle. DO NOT OVERFILL.
3. Screw the reservoir bottle back together.

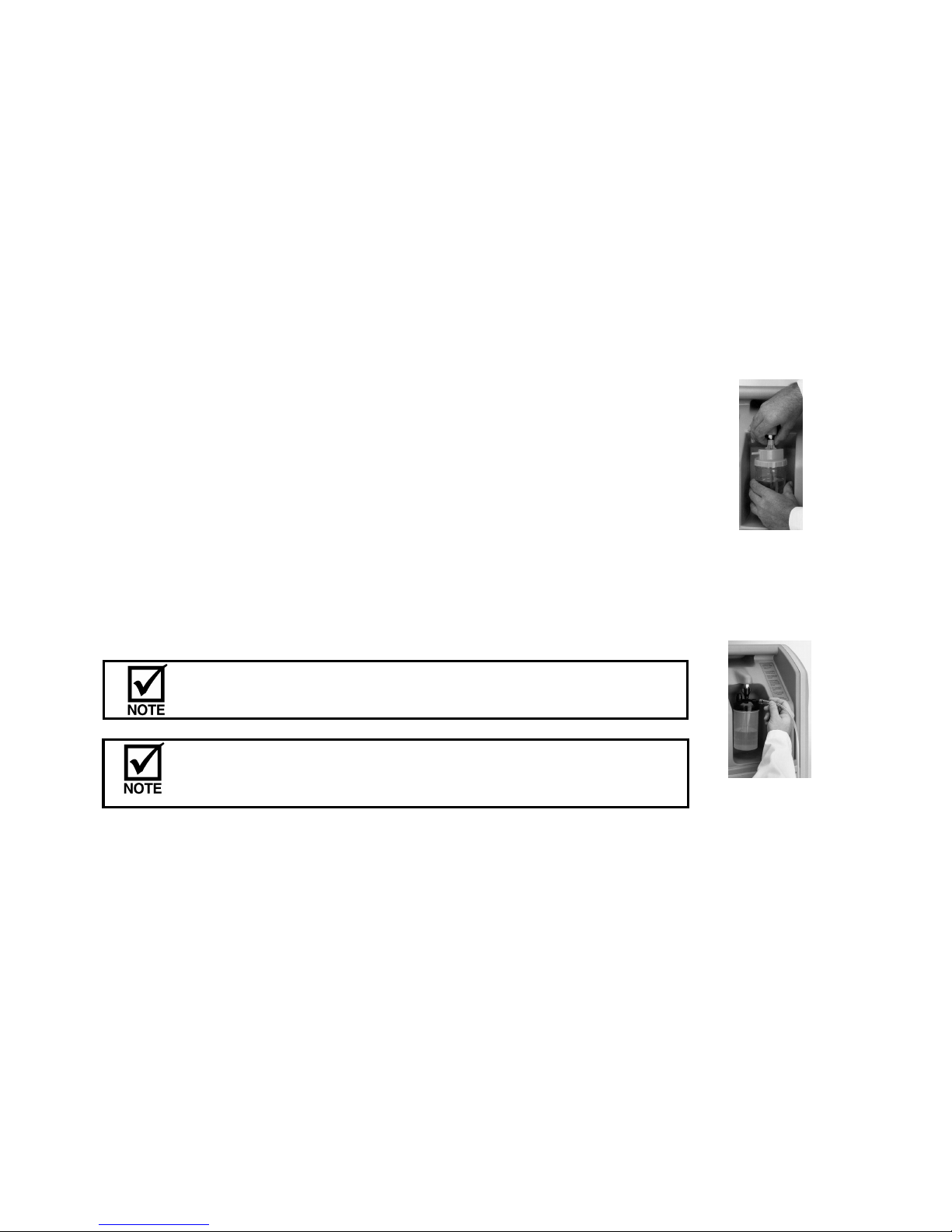

Figure 6
4. On the top of the humidifier, turn th e thread nut counterclockwise while you connect the
humidifier to the oxygen outlet, and tighten securely (Figure 6).
5. Connect oxygen tubing from the nasal cannula to the humidifier outlet fitting (Figure 7).
The use of certain humidifiers not specified for use with this oxygen concentrator may
impair its performance.
Figure 7
To Equipment Provider:
The following humidifier bottle is recommended for use with
the NewLife Elite Oxygen Concentrator:
AirSep Part No.
HU003 - 1

MN078-1 Rev F
8/12
14
[Read the Important Safety Rules section before operating this equipment.]
Nasal Cannula
Your physician has prescribed either a nasal cannula , face mask , or other accessories (Figure 8). In
most cases the m anufacturer has already connected the oxygen supply tubing to the nasal cannula,
f ace mask, or other accessory . If not, f ollow the manufacturer¶s instructions for proper connection.
Connect the oxygen tubing to the o xygen outlet adapter or humidifier.
To Equipment Provider:
The following oxygen administration accessories ar e
recommended fo r use with the NewLife Elite Oxygen Concentrator:
•
Nasal Cannula with 7 feet (2.1 m) of tubing: AirSep Part No.
CU002 - 1.
•
Oxygen Outlet Adapter: Ai rSep Part No.
F0025 - 1
.
Figure 8
