The AL-KO iQ7 XTREME Controller
incorporates a number of unique features
designed to maximise the performance of
your braking system.
Auto Detect
The AL-KO iQ7 XTREME incorporates
an ‘Auto Detect’ function that
enables it to identify which type of
braking system has been connected
and alters its electronic signal
automatically in order to achieve
maximum brake performance.
When in Electric Brake mode (if
installed) the LED on the mouse is
orange. The intensity will increase as
braking increases.
In AL-KO iQ7 XTREME mode the
LED on the mouse is green and will
change to orange when brakes are
applied. The intensity will increase as
braking increases.
IMPORTANT!
If changing between trailers utilising
varying actuator types (i.e. AL-KO
iQ7 XTREME to Electric), the tow
vehicle power supply will need to be
turned off then turned on again to
enable trailer detection.
Controller Components
Brake Pad
The patented AL-KO iQ7 XTREME
Pad is mounted onto the brake
pedal of the tow vehicle. A pressure
UGPUKVKXGƂNOKPEQTRQTCVGFKPVQ
the pad measures the force being
applied in a braking situation and
converts this into a variable voltage
signal.
Mouse
The AL-KO iQ7 XTREME Mouse is to
be mounted in the cab of the towing
vehicle within easy reach of the
driver.
The mouse serves a number of
functions:
Panic Button - The panic button
provides an antisway function.
Should the trailer get into a sway the
panic button is pressed, applying
a light braking force to the trailer
independent to the towing vehicle.
The brakes will be applied lightly for
3 seconds only and should assist in
the straightening of the trailer. The
tow vehicle & trailer stop lights are
also activated.
Variable Gain Control - Enables the
driver of the towing vehicle to set the
amount of trailer braking from within
the cab. Ideally the gain should be
set so as the towing vehicle and
trailer brake together.
Excessive braking of the trailer will
result in premature wearing of the
trailers brake shoes/pads.
AL-KO iQ7 XTREME Controller
(ECU)
The AL-KO iQ7 XTREME continually
monitors the state of the electric
system to ensure safe operation.
The early detection of potential faults
are all continually monitored with
the driver informed of any such
fault through the AL-KO iQ7 mouse
(audible and visual signals).

Page 3
Wiring Loom
The AL-KO iQ7 XTREME Wiring Loom has been specially designed to
UKORNKH[VJGKPUVCNNCVKQPRTQEGUUCPFKUQWVNKPGFKPƂIWTG
Figure 1. Generic Wiring Diagram
Figure 2. Socket Wiring
Vehicle Socket Female (Vehicle)
Pin No. Colour Function
8 Red 12 Volt Power Supply (+ve)
10 Black Earth (-ve)
11 Brown Fault Signal
12 Blue Control Voltage
(Pin No's 11 & 12 refer to Sensabrake™ hydraulic actuator only)

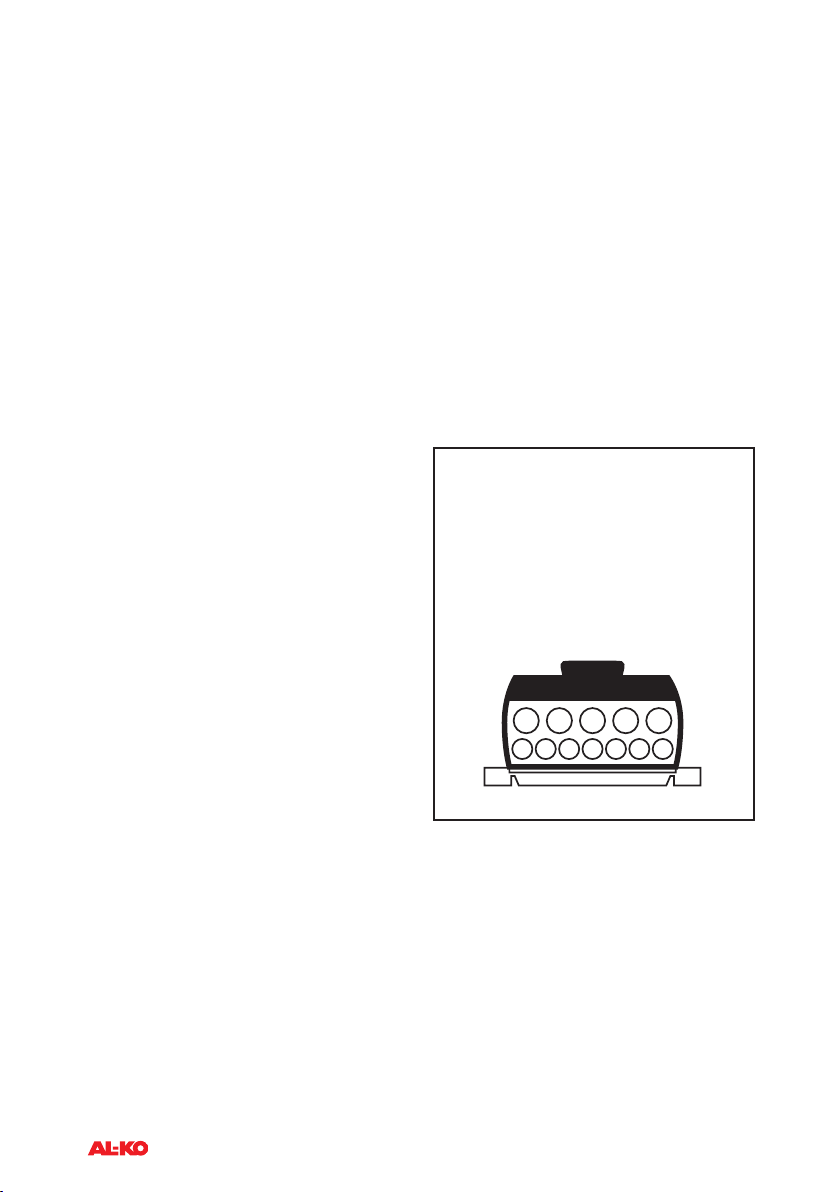

12 Pin Socket
3 5 6 1274
101112 9 8
30 amp resettable
circuit breaker
12 volt battery
RED to EVO BLACK to EVO
Figure 4. iQ7 Pad
iQ7 Pad
Backing plate
Brake pedal
Figure 5. Mouse
INSTALLATION
Towing Vehicle
Note: It is recommended that all in-vehicle
electrical work is undertaken by a registered
auto electrician, and that the bare copper
EQPFWEVQTUVQRKPUCTGPQV
UQNFGTGFDGHQTGƂVVKPI
IMPORTANT!
 6JGK3:64'/'OWUVDGKPUVCNNGFYKVJC
XQNVPGICVKXGITQWPFU[UVGO
2. The iQ7 XTREME must be mounted away
from all other electronic control
devices e.g. electric throttle control.
3. Route all wires as far from the radio
antenna as possible to reduce AM
interference.
It is critical that when installing the
AL-KO iQ7 XTREME Controller that
the factory supplied wiring loom is used.
4. Should additional wire be required make
sure that it is of similar or larger
gauge than supplied. Under no
circumstances should wire thinner than
the factory supplied loom be used as this
may affect product performance
and void the warranty.
5. The collection of water inside the
electrical trailer connection will reduce
the life of the connector and may result
in inadequate or intermittent braking.
To minimise corrosion build up inside
the connector, it is suggested that an
appropriate corrosion preventative
compound be applied to conductive
surfaces. Refer to maintenance section.
MAINTENANCE:
The AL-KO iQ7 is an intelligent trailer braking
system that has onboard diagnostic software.
Should the system detect a fault, the operator
will be informed via a visual and audible
alarm inside the tow vehicle. This does not
however mean that the system should not
regularly be maintained.
It is suggested that before each use:
 %JGEMVJGDTCMGƃWKFNGXGNQHVJG#.-1
iQ7 system.
2. Check all electrical leads and connectors
for broken wires, damaged or corroded
connectors etc.
It is suggested that an appropriate
corrosion preventive compound be
periodically applied to all exposed wiring
and connectors.
3. Always ensure the trailer plug and socket
are kept in good working condition. They
must be kept clean and dry to prevent
electrical leakage that may cause the
trailer brakes to provide indequate or
intermittent braking.
 $TCMGƃWKFUJQWNFDGTGRNCEGFCPPWCNN[
or more frequently in heavy use.

www.alko.com.au
(KIWTG)GPGTKE9KTKPI
Diagram
Figure 1. Generic Wiring Diagram
Figure 2. Socket Wiring
Vehicle Socket Female (Vehicle)
Pin No. Colour Function
8 Red 12 Volt Power Supply (+ve)
10 Black Earth (-ve)
11 Brown Fault Signal
12 Blue Control Voltage
(Pin No's 11 & 12 refer to Sensabrake™ hydraulic actuator only)
12 Pin Socket
3 5 6 1274
101112 9 8
30 amp resettable
circuit breaker
12 volt battery
RED to EVO BLACK to EVO
Figure 4. iQ7 Pad
iQ7 Pad
Backing plate
Brake pedal
Figure 5. Mouse
WARNING: When not in use over
extended periods of time, please
ensure the actuator is activated
periodically (approximately every
four weeks) to ensure moving
components remain in good
operating condition and seals
remain lubricated. Failure to do
so may result in incorrect product
performance and could result in
serious damage or injury.
FAULT SIGNALS
%QPUVCPVDGGRKPICPFƃCUJKPI
Situation: Actuator pressure has not
been reached, trailer disconnected
while ignition still on, low voltage
alarm, or excessive moisture in
trailer socket causing short circuit.
(QWTDGGRUƃCUJGUCVQPGUGEQPF
intervals followed by rest period of 4
UGEQPFUTGRGCVUHQTOKPWVGU
Situation: Compressor has been
QRGTCVKPIHQTOQTGVJCPUGEQPFU
EQPVKPWQWUN[YKNNPQVQRGTCVGHQT
minutes while cooling).
VERIFYING ELECTRICAL
INSTALLATION
After completion of electrical
installation it is important to verify
correct installation using the
following procedure. For this test the
trailer needs to be connected to the
vehicle
C 9KVJVJGGPIKPG4700+0)OGCUWTGVJG
voltage at the tow vehicle battery.
D 9KVJVJGGPIKPG4700+0)CPFVJG
trailer connected, apply the trailer
brakes so as to engage operation of the
trailer mounted compressor. While the
EQORTGUUQTKU4700+0)OGCUWTGVJG
actuator supply voltage at the trailer plug
CETQUURKPRKP
c) Maximum voltage drop from the battery
VQVJGVTCKNGTRNWIOWUVPQVGZEGGF
XQNVU4GHGTVQƂIWTGHQTRKPNC[QWV
F +HVJGDCVVGT[XQNVCIGKUNGUUVJCP
volts the battery should be tested, and
all electrical connections between the
battery, AL-KO iQ7 XTREME controller,
and trailer plug checked for correct
operation and repaired or replaced where
necessary.
4GHGTVQƂIWTGHQTRKPNC[QWV
0QVG8GJKENGUƂVVGFYKVJHCWNVHGGFDCEM
systems or digital signaling may require
KUQNCVKQPTGNC[UƂVVGFVQVJG#.-1K3
XTREME ignition and brake light supplies.
Power and earth supplies must come direct
from the battery. This should ensure that the
AL-KO iQ7 XTREME controller is independent
of the vehicles electronics.
Page 4

TESTING
Hydraulic AL-KO iQ7 Actuator only
After the Initialisation sequence has been
completed, test the system set-up as follows:
a) Turn on the ignition. The mouse will
produce the ‘fault signal’ indicating that
CUWHƂEKGPVRTGUUWTGJCUPQV[GVDGGP
achieved in the actuator. This signal will
NCUVHQTCRRTQZKOCVGN[UGEQPFU
until a working pressure has been
reached. The compressor will however
remain on after the signal has stopped,
until working full pressure has been
CEJKGXGFCRRTQZUGEQPFU
b) Once the ‘fault signal’ has stopped, wait
CHWTVJGTUGEQPFUDGHQTGWPFGTVCMKPI
brake proportionality testing. Find an
appropriate stretch of road where brake
testing can be undertaken without the
disruption of other road users.
c) Set the gain control slider on the mouse
to the middle position.
F &TKXKPICVCRRTQZKOCVGN[MORGTJQWT
apply the brakes. Take note of the braking
proportionality between the towing
vehicle and the towed vehicle. If they are
not similar then adjust the gain slider to
the right for more trailer braking or left
for less trailer braking. If the gain slider
is UGVQPHWNNCPFKPUWHƂEKGPVVTCKNGT
DTCMKPIQEEWTUVJGPTGRGCVUVGRUCPF
in the initialisation sequence (page 6). At
step 2 place less pressure on the brake
pedal.
e) When proportional braking has been
established the system is ready for use.
Electric Brakes only
After the Initialisation sequence has
been completed, test the system
set-up as follows:
a) Set the gain control slider on the mouse
to the middle position.
D &TKXKPICVCRRTQZKOCVGN[MORGTJQWT
apply the brakes take note of the braking
proportionality between the towing
vehicle and the towed vehicle. If they are
not similar then adjust the gain slider to
the right for more trailer braking or left
for less trailer braking. If the gain slider
KUUGVQPHWNNCPFKPUWHƂEKGPVVTCKNGT
DTCMKPIQEEWTUVJGPTGRGCVUVGRUCPF
in the initialisation sequence (page 6). At
step 2 place less pressure on the brake
pedal.
c) When proportional braking has been
established the system is ready for use.
IMPORTANT!
Please ensure trailer socket is
mounted in a position that does
not enable water contact or pooling
around terminals.
Under no circumstances should the trailer
plug or socket be submerged under
water as this may result in inadequate or
intermittent braking.
IMPORTANT!
24 Volt Vehicles: Vehicles operating
a 24 volt system must utilize the
#.-1K38&%EQPXGTVGT2CTV
PQ(CKNWTGVQFQUQYKNN
void any warranty claim.
IMPORTANT
For Electric Brake Installation Only, a
separate 7 pin socket must be used
when connecting electric brakes.
%QPPGEVVJG.#4)'DNWGGNGEVTKE
brake wire to pin 5 of the 7 pin
socket. The remaining 6 pins should
be looped into the corresponding
RKPUQHVJGRKPUQEMGV
Page 5

www.alko.com.au
UNDER NO CIRCUMSTANCES SHOULD THE ELECTRIC BRAKE WIRE (BLUE) BE CONNECTED
TO THE 12 PIN SOCKET.
Pin No. Colour Function
8Red 12 Volt Power Supply (+ve)
10 Black Earth (-ve)
11 Brown Fault Signal
12 Blue Control Voltage
INITIALISATION SEQUENCE
The object of the initialisation
sequence is to establish minimum
and maximum braking pressure
limits based on the towing vehicles
braking characteristics.
This sequence need only
be undertaken during initial
installation, however should braking
EJCTCEVGTKUVKEUTGSWKTGOQFKƂECVKQP
the sequence can be repeated.
Step 1:
Set the Mouse gain to the minimum
position (i.e. far left) and start the
vehicle with panic button pressed
down (simultaneously). DO NOT
have your foot on the brake pedal
when starting the vehicle. Two
UJQTVDGGRUCPFVYQƃCUJGUHTQO
the mouse indicates you are in
calibration mode.
Step 2:
Place light pedal pressure on the
brake pedal at the point that you
require maximum trailer braking and
press the panic button. Three beeps
CPFVJTGGƃCUJGUKPFKECVGVJCVVJG
maximum brake pressure calibration
has occurred correctly.
Note:
If the maximum brake pressure
calibration is set too high,
KPUWHƂEKGPVVTCKNGTDTCMKPIYKNNQEEWT
Repeat the initialisation sequence.
At Step 2 place a lighter brake pedal
pressure.
Note:
All steps have ‘sensible limit’ checks
and will revert to default values if
expected values are not found.
Wiring Description
Earth
The black wire labelled “Earth”
(ground) is to be wired into the
VQYKPIXGJKENGUXQNVXGVGTOKPCN
of the battery - at no stage should
it be connected to the chassis or
vehicle body.
12 Volt Power Supply
6JGTGFYKTGNCDGNNGFp$CVVGT[XG
volt’ is to be wired into the towing
XGJKENGUXQNVXGVGTOKPCNQHVJG
DCVVGT[6JGCORTGUGVVCDNGEKTEWKV
DTGCMGTCUUWRRNKGFCPFƂVVGFVQVJG
loom must also be incorporated as
close as possible to the battery on
this supply line.
Page 6

6JGCOREKTEWKVDTGCMGTUJQWNFDG
secured to a non-conductive surface
of the vehicle. The terminals must be
insulated using electrical insulating
tape or similar.
Ignition Supply
The yellow wire labelled “Ignition
Supply” is to be wired direct to the
lighter socket supply line or similar.
This power supply must only be live
after the ignition is turned on and
OWUVDGXQNVU
Brake Light
The orange wire labelled “Brake
Light’ is to be wired to the brake
light circuit. This is connected at the
RKPRNWIWUKPIVJGVTCKNGTDTCMG
light wiring (Typically red wire at pin
6JKUOWUVDGXQNVUYJGPVJG
brake is activated.
AL-KO iQ7 Controller
It is suggested that the AL-KO iQ7 is
CVVCEJGFƂTON[WPFGTVJGFCUJDQCTF
of the towing vehicle using cable
ties (or similar) so as not to interfere
with the normal operation of the
vehicle and so as to protect the
Figure 1. Generic Wiring Diagram
Figure 2. Socket Wiring
Vehicle Socket Female (Vehicle)
Pin No. Colour Function
8 Red 12 Volt Power Supply (+ve)
10 Black Earth (-ve)
11 Brown Fault Signal
12 Blue Control Voltage
(Pin No's 11 & 12 refer to Sensabrake™ hydraulic actuator only)
12 Pin Socket
3 5 6 1274
101112 9 8
30 amp resettable
circuit breaker
12 volt battery
RED to EVO BLACK to EVO
Figure 4. iQ7 Pad
iQ7 Pad
Backing plate
Brake pedal
Figure 5. Mouse
components and connectors. This
must be as far as possible from the
vehicle’s electronic control units
including electronic throttle control
units in order to prevent possible
electrical interference.
AL-KO iQ7 Pad
 4GOQXGVJGDTCMGRCFTWDDGTHTQOVJG
brake pedal of the towing vehicle.
2. Using the template from the back page
of this manual drill the two 5.5mm holes
through the brake pedal as indicated on
the template.
3. Attach the AL-KO iQ7 pad to the brake
RGFCNCPFUGEWTGCUUJQYPKPƂIWTG
Figure 1. Generic Wiring Diagram
Figure 2. Socket Wiring
Vehicle Socket Female (Vehicle)
Pin No. Colour Function
8 Red 12 Volt Power Supply (+ve)
10 Black Earth (-ve)
11 Brown Fault Signal
12 Blue Control Voltage
(Pin No's 11 & 12 refer to Sensabrake™ hydraulic actuator only)
12 Pin Socket
3 5 6 1274
101112 9 8
30 amp resettable
circuit breaker
12 volt battery
RED to EVO BLACK to EVO
Figure 4. iQ7 Pad
iQ7 Pad
Backing plate
Brake pedal
Figure 5. Mouse
IMPORTANT
Make sure the steel backing plate is
installed between the AL-KO iQ7 pad
and the brake pedal!
4. Secure the Pad cable so as to prevent
damage and so as not to interfere with
normal operation. Excessive clamping or
over tensioning may damage the cable
voiding the warranty.
5. Run the cable to the EVO controller
mounted under the dashboard and plug
into the controller. Secure the pad cable
UWHƂEKGPVN[VQGPUWTGKVFQGUPQVKORGFG
the movement of the brake pedal.
Page 7

www.alko.com.au
Figure 1. Generic Wiring Diagram
Figure 2. Socket Wiring
Vehicle Socket Female (Vehicle)
Pin No. Colour Function
8 Red 12 Volt Power Supply (+ve)
10 Black Earth (-ve)
11 Brown Fault Signal
12 Blue Control Voltage
(Pin No's 11 & 12 refer to Sensabrake™ hydraulic actuator only)
12 Pin Socket
3 5 6 1274
101112 9 8
30 amp resettable
circuit breaker
12 volt battery
RED to EVO BLACK to EVO
Figure 4. iQ7 Pad
iQ7 Pad
Backing plate
Brake pedal
Figure 5. Mouse
AL-KO iQ7 Mouse
6JG5NKFGT)CKP%QPVTQNRTQXKFGUCFFKVKQPCN
‘instant’ user adjustment of control
sensitivity.
Remove the outer surface of the adhesive
tape on the back of the AL-KO iQ7 mouse.
Firmly secure to the dashboard of the towing
vehicle in a position that is within easy reach
of the driver but not in a position where the
panic button may be accidentally pressed.
Run the cable to the AL-KO iQ7 XTREME
controller mounted under the dashboard and
plug into the controller.
European vehicle installations
For some late model European tow vehicles
VJCVCTGƂVVGFYKVJpHCWNVHGGFDCEMU[UVGOUq
there may need to be special consideration in
the wiring installation. In particular, the brake
light supply and ignition feed to the AL-KO
iQ7 XTREME controller from the Tow vehicle.
These vehicles are likely to run a digital “Bus”
system that will send an alarm signal back
to the dash of the vehicle. These vehicles
will need to have the brake light wired to the
brake light supply from the tow vehicle via a
low current draw relay. The power supply to
the relays will need to come direct from the
DCVVGT[XQNVXG6JGKIPKVKQPUWRRN[YKNN
also need to be run through a low current
draw relay as well. This will then isolate the
AL-KO iQ7 In Car kit to the battery supply
only, therefore not interfering with the tow
vehicle on board “fault feedback system”.
Selected vehicles may need to be wired using
low current draw relays to the brake light
and ignition supplies. Your approved AL-KO
International installer will be able to advise.
MAINTENANCE
The AL-KO iQ7 is an intelligent trailer
braking system.
This does not however mean that the
system should not regulary be
maintained.
It is recommended that before each
use:
 %JGEMVJGDTCMGƃWKFNGXGNQHVJG#.-1
iQ7 system.
2. Check all electrical leads and connectors
for broken wires, damaged or corroded
connectors etc. It is suggested that
an appropriate corrosion preventive
compound be periodically applied to all
exposed wiring and connectors.
$TCMGƃWKFUJQWNFDGTGRNCEGFCPPWCNN[QT
more frequently in heavy use.
WARNING
When not in use over extended
periods of time, please ensure the
actuator is activated periodically
(approximately every four weeks) to
ensure moving components remain
in good operating condition and
seals remain libricated. Failure to do
so may result in incorrect product
performance and could result in
serious damage or injury.
Page 8

Figure 5.
Mouse
AL-KO INTERNATIONAL PTY LTD WARRANTY
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage.You are
also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
AL-KO International Pty Ltd (ABN 96 003 066 813)
(“AL-KO”) provides the following warranty in relation
to its AL-KO iQ7 XTREME Actuator, AL-KO iQ7
Actuator and In Car Kit (“Product”).
The benefits of this warranty are in addition to any
rights and remedies imposed by Australian State
and Federal legislation that cannot be excluded.
Nothing in this warranty is to be interpreted as
excluding, restricting or modifying any State or
Federal legislation applicable to the supply of goods
and services which cannot be excluded, restricted
or modified.
WARRANTY
AL-KO warrants that, subject to the exclusions
and limitations below, the Product will be free from
defects in materials and workmanship for a period
of 12 months from the date of installation. This
warranty is not transferable to a subsequent person
if the Product is sold by the original purchaser
during the warranty period. If a defect appears in the
Product before the end of the warranty period and
AL-KO finds the Product to be defective in materials
or workmanship, AL-KO will, in its sole discretion,
either:
(a) replace or repair the Product or the defective
part of the Product free of charge; or
(b) cause the Product or the defective part of the
Product to be replaced or repaired by a
qualified repairer free of charge.
AL-KO reserves the right to replace defective
parts of the Product with parts and components
of similar quality, grade and composition where an
identical part or component is not available. Goods
presented for repair may be replaced by refurbished
goods of the same type rather than being repaired.
Refurbished parts may be used to repair the goods.
WARRANTY CLAIMS
1. If a fault covered by warranty occurs ‘ the
customer must first contact AL-KO at the
contact address listed below, or the retailer
from which the Product was purchased.
2. Any warranty claim must be accompanied by:
(a) proof of purchase;
(b) full details of the alleged defect; and
(c) any relevant documentation (such as
maintenance records).
3. The customer must make the Product available
to AL-KO or its authorised repair agent for
inspection and testing. If inspection and testing
finds no defect in the Product, the customer
must pay AL-KO’s costs of service work and
testing.
4. AL-KO will bear the cost of the transport of the
Product to and from AL-KO or the authorised
repair agent where the defect is covered by this
warranty. AL-KO will organise for the transport
at the time the claim is made. The customer
must bear the cost of the transport from AL-KO
or the authorised repair agent where the claim
is not covered by this warranty.
EXCLUSIONS
The warranty will not apply where:
(a) the Product has been repaired, altered or
modified by someone other than AL-KO or an
authorised repair agent;
(b) AL-KO cannot establish any fault in the Product
after testing and inspection;
(c) the Product has been used other than for the
purpose for which it was designed;
(d) the defect in the Product has arisen due to the
customer’s failure to properly use and
maintain the Product in accordance with
AL-KO’s instructions, recommendations and
specifications (including maintenance);
(e) the Product has been subject to abnormal
conditions, including environment, temperature,
water, fire, humidity, pressure, stress or similar;
(f) the defect has arisen due to abuse, misuse,
neglect or accident; or
(g) unauthorised parts or accessories have been
used on or in relation to the Product.
LIMITATIONS
AL-KO makes no express warranties or
representations other than set out in this warranty.
The repair or replacement of the Product or part of
the Product is the absolute limit of AL-KO’s liability
under this express warranty.
EXTENDED AL-KO WARRANTY
AL-KO International will extend the warranty for a
further 24 months (therefore the warranty will be
valid for months from date of installation) where the
following conditions are satisfied:
(a) the Brake Controller/In Car Kit has been
installed by an AL-KO International approved
installer*;
(b) the customer has completed the warranty form
on the Product instruction manual and sent it
back to AL-KO International for registration;
(c) the customer has attached to the completed
warranty form a copy of the original installation
invoice provided to the customer by the AL-KO
International approved installer*;
(d) the copy of the original installation invoice
clearly shows the date of installation and
the details of the AL-KO International approved
installer*;
(e) The Brake Controller is an AL-KO approved
Motion Sensing Controller (see page 6); and
the Actuator AL-KO iQ7 has been installed by
an approved OEM manufacturer.
If anything listed in (a) to (f) above is not complied
with then AL-KO International reserves the right to
limit the warranty to a 12 month period.
(*) A list of the approved installers is available at
www.alkoi .com.au
Failure to comply with the installation and
verification instructions may result in incorrect
operation or premature product failure that could
lead to serious injury, accident, or death and will
also void this product warranty.
CONTACT
AL-KO International Pty Ltd
67 Nathan Road, Dandenong South, VIC, 3175
Phone: [phone].
Email: [e-mail]

www.alko.com.au
EXCLUSIONS
The warranty will not apply where:
(a) the Product has been repaired, altered or modified by someone other than
AL-KO or an authorised repair agent;
(b) the Product was improperly installed;
(c) AL-KO cannot establish any fault in the Product after testing and inspection;
(d) the Product has been used other than for the purpose for which it was
designed;
(e) the defect in the Product has arisen due to the customer’s failure to properly
use and maintain the Product in accordance with AL-KO’s instructions,
recommendations and specifications (including maintenance);
(f) the Product has been subject to abnormal conditions, including environment,
temperature, water, fire, humidity, pressure, stress or similar;
(g) the defect has arisen due to abuse, misuse, neglect or accident;
(h) the defect has arisen due to a power surge or of the fault in the supply of
electricity; or
(i) unauthorised parts or accessories have been used on or in relation to the
Product.
(j) the defect is a deterioration of the appearance of the Product including
corrosion.
(k) the defect is a result of wear & tear.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT AL-KO’S PERMISSION.
ALL PART NUMBERS, DIMENSIONS AND SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
Visit
www.alko.com.au
further information
VIC: 67 Nathan Road, Dandenong South, 3175 Phone: [phone] Fax: [phone]
NSW: 26 Hallstrom Place, Wetherill Park, 2164 Phone: [phone] Fax: [phone]
QLD: 13 Union Circuit, Yatala, 4207 Phone: [phone] Fax: [phone]
NZ: 1 Airpark Drive, Airport Oaks, Mangere, Auckland Phone: [phone] Fax: [phone]
When unpacking, make sure that the product is intact and
undamaged. If any parts are missing or broken, please call
[phone] as soon as possible.

3. The customer must make the Product available
to AL-KO or its authorised repair agent for
inspection and testing. If inspection and testing
finds no defect in the Product, the customer must
pay AL-KO’s costs of service work and testing.
4. AL-KO will bear the cost of the transport of the
Product to and from AL-KO or the authorised
repair agent where the defect is covered by this
warranty. AL-KO will organise for the transport at
the time the claim is made. The customer must
bear the cost of the transport from AL-KO or the
authorised repair agent where the claim is not
covered by this warranty.
EXCLUSIONS
The warranty will not apply where:
(a) the Product has been repaired, altered or
modified by someone other than AL-KO or an
authorised repair agent;
(b) AL-KO cannot establish any fault in the Product
after testing and inspection;
(c) the Product has been used other than for the
purpose for which it was designed;
(d) the defect in the Product has arisen due to the
customer’s failure to properly use and maintainthe
Product in accordance with AL-KO’s instructions,
recommendations and specifications (including
maintenance);
(e) the Product has been subject to abnormal
conditions, including environment, temperature,
water, fire, humidity, pressure, stress or similar;
(f) the defect has arisen due to abuse, misuse,
neglect or accident; or
(g) unauthorised parts or accessories have been
used on or in relation to the Product.
LIMITATIONS
AL-KO makes no express warranties or
representations other than set out in this warranty.
The repair or replacement of the Product or part of the
Product is the absolute limit of AL-KO’s liability under
this express warranty.
EXTENDED AL-KO WARRANTY
AL-KO International will extend the warranty for a
further 24 months (therefore the warranty will be valid
for months from date of installation) where the
following conditions are satisfied:
(a) the Brake Controller/In Car Kit has been installed
by an AL-KO International approved installer*;
(b) the customer has completed the warranty form
on the Product instruction manual and sent it
back to AL-KO International for registration;
(c) the customer has attached to the completed
warranty form a copy of the original installation
invoice provided to the customer by the AL-KO
International approved installer*;
(d) the copy of the original installation invoice clearly
shows the date of installation and the details of
the AL-KO International approved installer*;
(e) The Brake Controller is an AL-KO approved
Motion Sensing Controller (see page 6); and the
Actuator AL-KO iQ7 has been installed by an
approved OEM manufacturer.
If anything listed in (a) to (f) above is not complied with
then AL-KO International reserves the right to limit the
warranty to a 12 month period.
(*) A list of the approved installers is available at
www.alkoi .com.au
Failure to comply with the installation and
verification instructions may result in incorrect
operation or premature product failure that could
lead to serious injury, accident, or death and will
also void this product warranty.
Template for
SB06
AUTO PEDAL
Template for
SB05
MANUAL PEDAL

NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT AL-KO’S PERMISSION.
ALL PART NUMBERS, DIMENSIONS AND SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
Visit
www.alko.com.au
further information
VIC: 67 Nathan Road, Dandenong South, 3175 Phone: [phone] Fax: [phone]
NSW: 26 Hallstrom Place, Wetherill Park, 2164 Phone: [phone] Fax: [phone]
QLD: 13 Union Circuit, Yatala, 4207 Phone: [phone] Fax: [phone]
NZ: 1 Airpark Drive, Airport Oaks, Mangere, Auckland Phone: [phone] Fax: [phone]
When unpacking, make sure that the product is intact and
undamaged. If any parts are missing or broken, please call
[phone] as soon as possible.
