Alpine i207-WRA User manual

Jeep Wrangler
i207-WRA 20201016v1 1/19
Jeep Wrangler
i207-WRA
Restyle Installation Manual
Model: Wrangler
Model Year: 2007-2017
Note:
Design and specifications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by an Alpine authorized dealer.
Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Warning Ignoring the content marked by this indication and using the product incorrectly is
expected to lead to death or serious injury.
Caution Ignoring the content marked by this indication and using the product incorrectly is only
expected to lead to injury or property damage.
Jeep Model Year
Wrangler 2007-2017
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
Warning: Before you begin wiring, remove the ground wire from the negative
terminal of the battery. Failing to do so can lead to electric shock, injury or damage
to equipment.
Introduction
Congratulations on purchasing the i207-WRA. This installation manual is designed to take you through the
step-by-step installation of the i207-WRA into a 2007 and 2017 Jeep Wrangler. Please familiarize yourself with
the owners manual and if you still have additional questions please call 1-800-TECH-101.

Jeep Wrangler
i207-WRA 20201016v1 2/19
Types of Precautions
Forbidden
Indicates actions that are forbidden
(must not be performed)
Mandatory
Indicates actions that are
mandatory (must be performed)
Forbidden
Indicates that disassembly is
forbidden.
Marks content that should receive
your full attention.
Warning
Do not disassemble or modify the product. Doing so could lead to an accident, fire,
or electric shock.
Forbidden
Store screws and other small objects where small children cannot reach them. If one of these
small objects is swallowed, consult with a doctor immediately.
When replacing fuses, be sure to use fuses with the specified current rating. Failing to do so could
lead to an accident or fire.
Forbidden
Mandatory
Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to
an accident or fire.
Mandatory
Before you begin wiring, remove the ground wire from the negative terminal of the battery.
Failing to do so could lead to electric shock or injury.
Do not cut the insulation on a cord and take power from another device. Doing so could
lead to fire or electric shock.
Forbidden
Do not install the product in a location where it will obstruct the driver’s forward view;
interfere with the operation of the steering wheel, gearshift, or the like; or pose a
threat to passengers. Doing so could lead to an accident or injury.
Forbidden
When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank,
electrical wiring, and the like. This kind of damage could lead to an accident or fire.

Jeep Wrangler
i207-WRA 20201016v1 3/19
When installing and grounding the product, do not use any of the bolts or nuts of the
steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working
or lead to fire.
Forbidden
Do not install the product near the passenger-side airbag. Doing so could interfere with the
operation of the airbag and lead to an accident or injury.
Forbidden
Bundle cords so that they don’t interfere with driving. Wrapping cords around the steering
wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.
Caution
Connect the product properly according to the instructions. Failing to do so could lead
to fire or an accident.
Forbidden
Do not sandwich cords between the seat railing or allow them to touch protrusions.
Resulting breaks or shorts could lead to electric shock or fire.
Do not block vents or heat sinks. Doing so could lead to fire or damage equipment.
Use the accessories according to the instructions, and attach them securely.
Failing to do so could lead to an accident or damage equipment.
Forbidden
Do not install the product where it may be exposed to water or in a place with high levels
of humidity or dust. Doing so could lead to fire or damage equipment.
Forbidden
The installation and wiring of this product requires specialized skills and experience.
Have the product installed by an Alpine authorized dealer.

Jeep Wrangler
i207-WRA 20201016v1 4/19
Tools Required
Panel Removing Tool 7mm Sockets #2 Phillips Screwdriver
Wire Cutters Extension Ratchet
T20 Torx

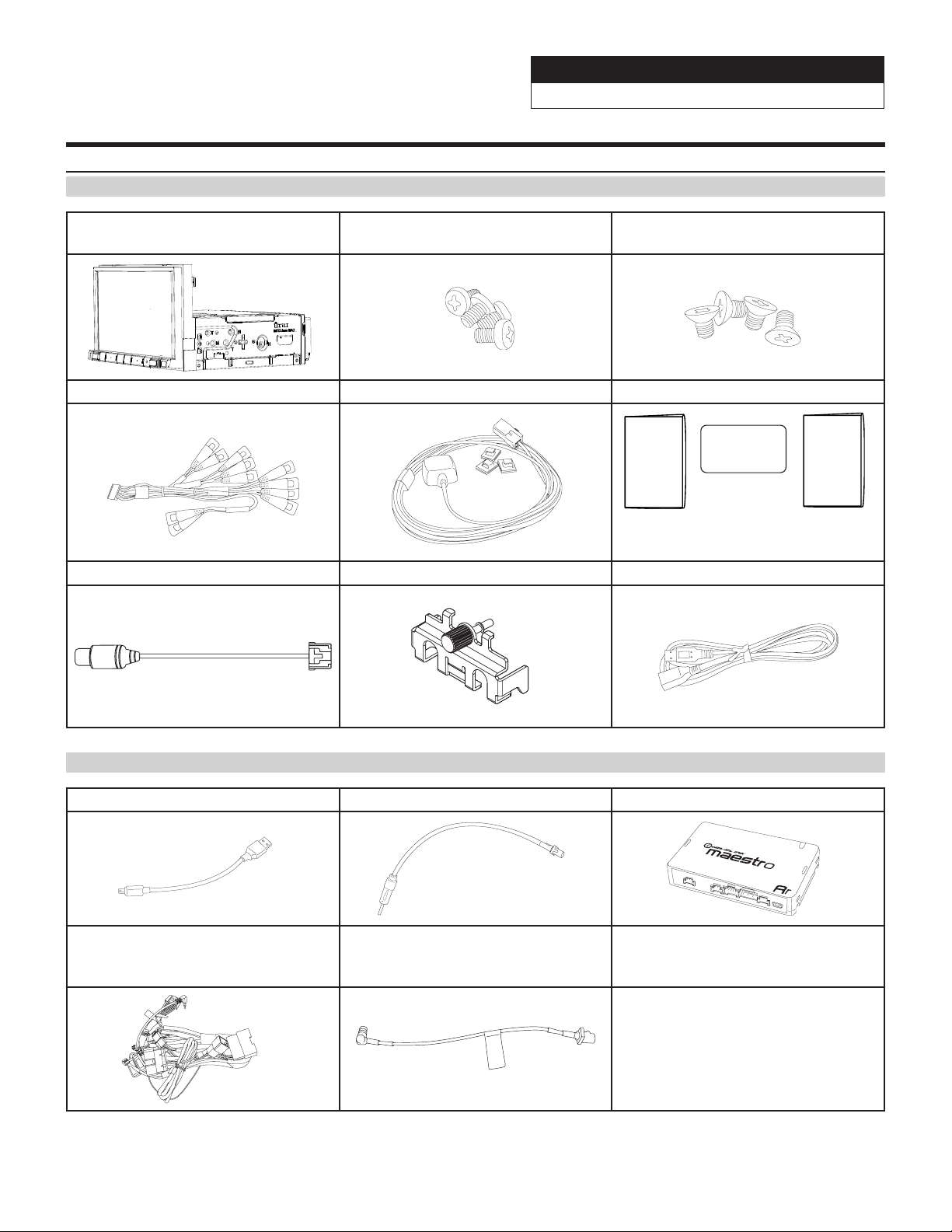

Accessory List
Installation Kit Parts
Rear Support Bracket
(only for 2011-2017)
Side Mounting Brackets Add-on Microphone

Jeep Wrangler
i207-WRA 20201016v1 5/19
Accessory List
Head Unit Box Parts (i207-WRA)
iLX-207 Head Unit Round Head Screws (4pcs) Flat Head Screws
(4pcs Not Used)
AUX/Pre Out Harness GPS Antenna & Wire Hooks Documents
Alpine
Registration Card
Installation
Manual
OM QR Card
Direct Camera Adapter Source Unit HDMI Bracket USB Extension Cable
iDatalink Maestro Box Parts (ALP-MRR4/ALP-HRN-WRA3)
Maestro Flashing Cable FM/AM Antenna Adapter iDatalink Maestro Module
Main Harness
SiriusXM Radio Antenna Adapter
(only for vehicles with factory
SiriusXM)

Jeep Wrangler
i207-WRA 20201016v1 6/19

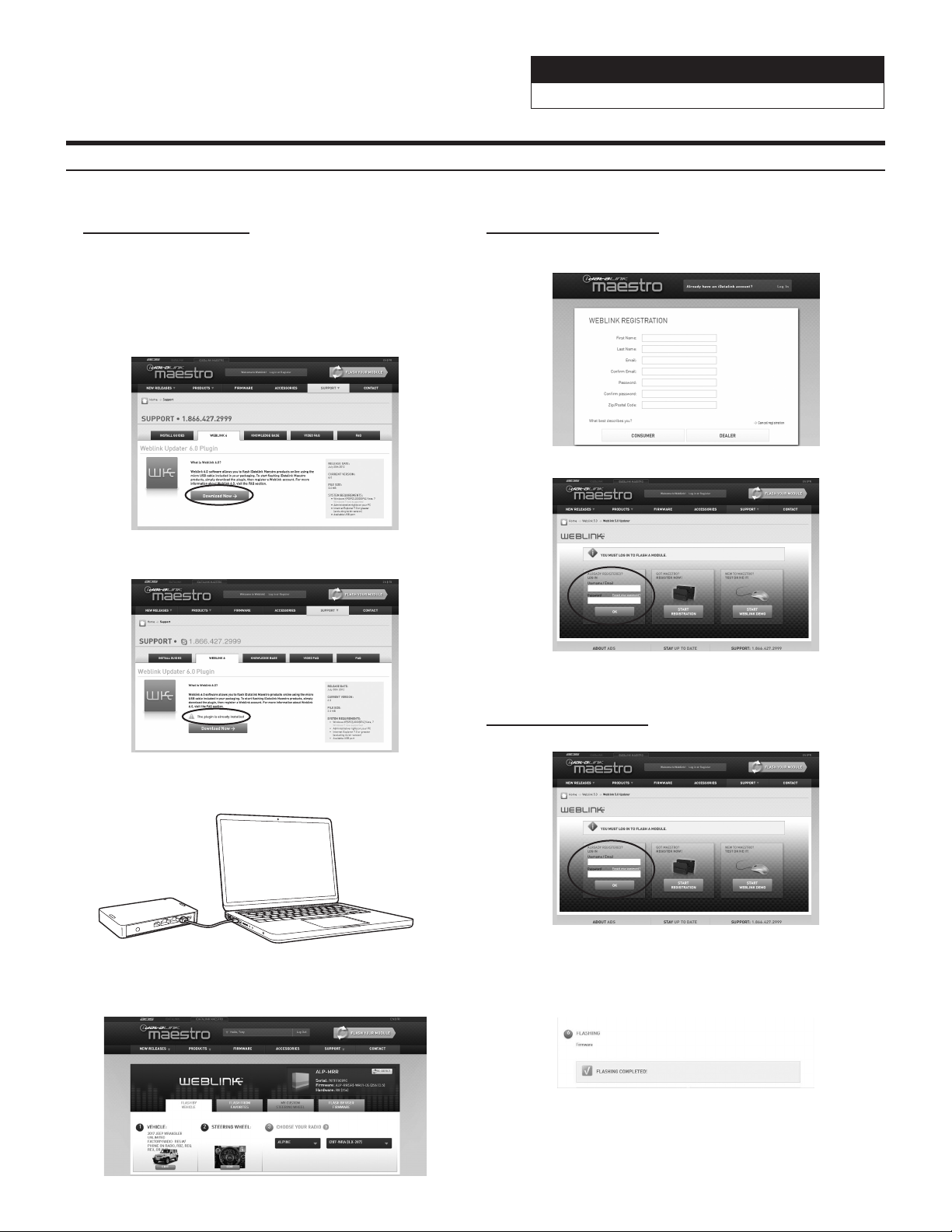

Programming the iDatalink Maestro Module
1INSTALL THE WEBLINK PLUG-IN
Go to:
idatalinkmaestro.com/plugin and follow the installation steps. The
Maestro module must be programmed specically for each vehicle
and radio. Take care to enter the correct vehicle information,
factory options, head unit model, and head unit serial number.
The head units serial number is a 9 character alphanumeric value
which is found on the head units label, underneath the bar code.
Review the System Requirements before installing.
If the plugin is already installed, the caution, “The plugin is already
installed” appears. Please skip to step 2.
3 CONNECT YOUR MAESTRO MODULE
Use your Maestro module to connect to your PC.
5 PROGRAM YOUR MODULE
Follow the programming steps for your vehicle.
2REGISTER A WEBLINK ACCOUNT
Go to:
idatalinkmaestro.com/register and complete the registration process.
A conrmation email will be sent to you requiring validation.
For existing customers, click log in.
4 LOG INTO WEBLINK
Go to:
idatalinkmaestro.com/login.
Enter your username and password, then click OK.
6 Once Programing is complete “FLASHING
COMPLETED!” will be displayed.
Proceed to the next page to complete installation.
NOTE: If serial number is invalid, Call ADS at
1-866-427-2999 with the serial number.

Jeep Wrangler
i207-WRA 20201016v1 7/19
Component Locations
IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor
GPS performance.
Jeep
Jeep SINCE 1941
Add-on Microphone
iDatalink Maestro Module
SiriusXM Tuner
(Sold Separately)
GPS Antenna Installation
IMPORTANT: Follow the GPS antenna installation procedure shown below. Failure to do so will result in poor
GPS performance for CarPlay and Android Auto.
Wire Hook
GPS Antenna
Peel the plastic layer
off from the double
side tape of the GPS
antenna and place the
GPS antenna on top of
the driver side roof
frame. T20 Torx to
remove the visor.

Jeep Wrangler
i207-WRA 20201016v1 8/19

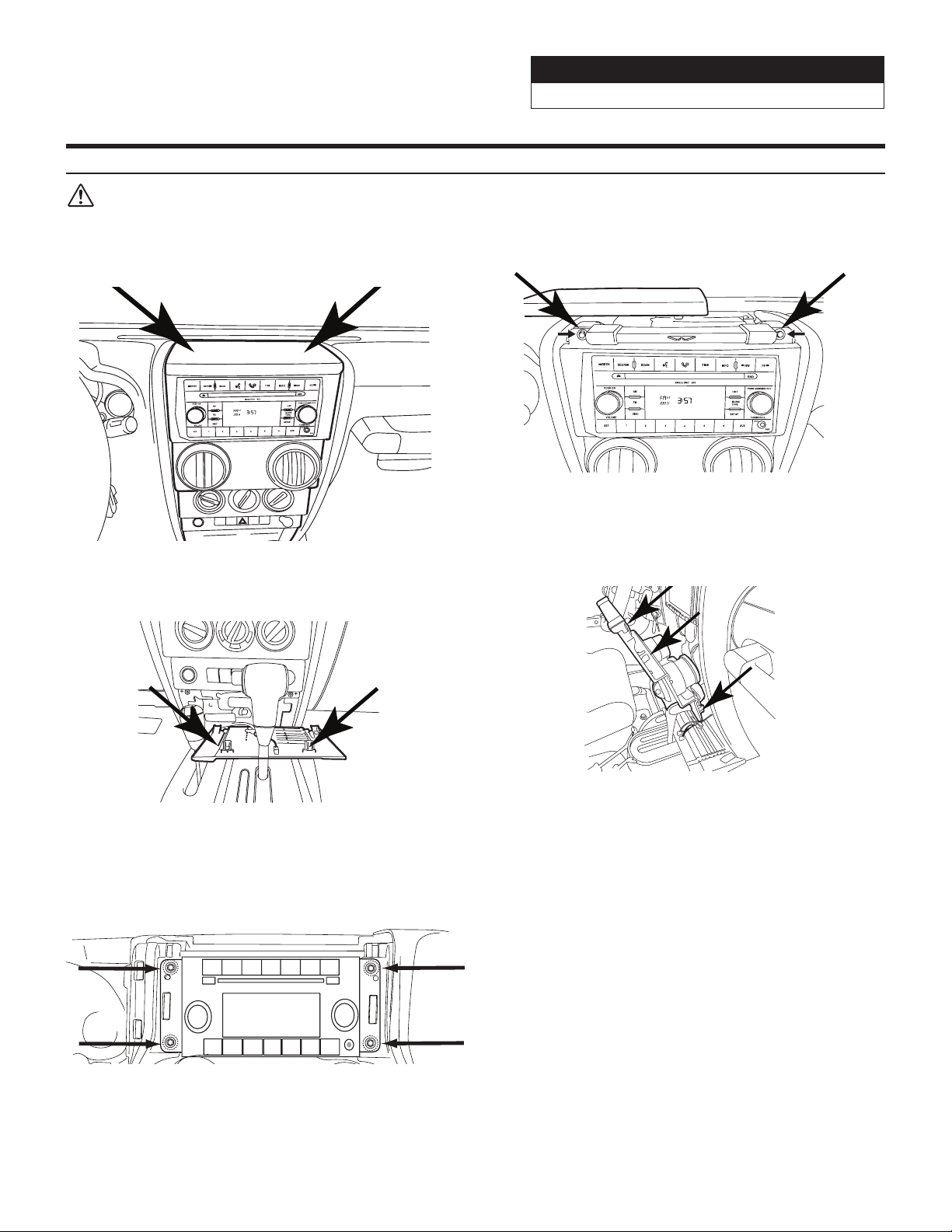

Factory Unit Disassembly Process (2007-2010 Only)
DISCONNECT THE BATTERY BEFORE
CONTINUING. FAILURE TO DO SO WILL
DISABLE MANY FEATURES.
1Remove top by releasing 2 rear clips on the back of
the top panel and then pull panel forward.
3Release 2 clips on the top of the bottom panel. This
will expose two 7mm screws. Remove using a 7mm
socket with ratchet & extension.
5Extract (4) 7 mm screws and remove the factory
radio.
2Release 2 clips on the top of the bottom panel. This
will expose two 7mm screws. Remove those.
4Use panel removal tool to remove dash panel by
releasing 6 clips (3 per side)

Jeep Wrangler
i207-WRA 20201016v1 9/19
Factory Unit Disassembly Process (2011-2017 Only)
DISCONNECT THE BATTERY BEFORE
CONTINUING. FAILURE TO DO SO WILL
DISABLE MANY FEATURES.
1Remove the rubber cover from the top center
storage area and extract (1) 7mm screw.
3Remove the window switch pod using a panel
removing tool and extract (1) 7mm screw.
5Extract (4) 7 mm screws and remove the factory
radio.
2Remove the knee cover panel and extract (2) 7mm
screws located to the right and left sides of the
steering wheel column.
Right side of
steering wheel
column.
Left side of
steering wheel
column.
4Remove the dash panel.
6Extract (2) 7 mm screws from the factory radio
bracket and remove it.
2

Jeep Wrangler
i207-WRA 20201016v1 10/19

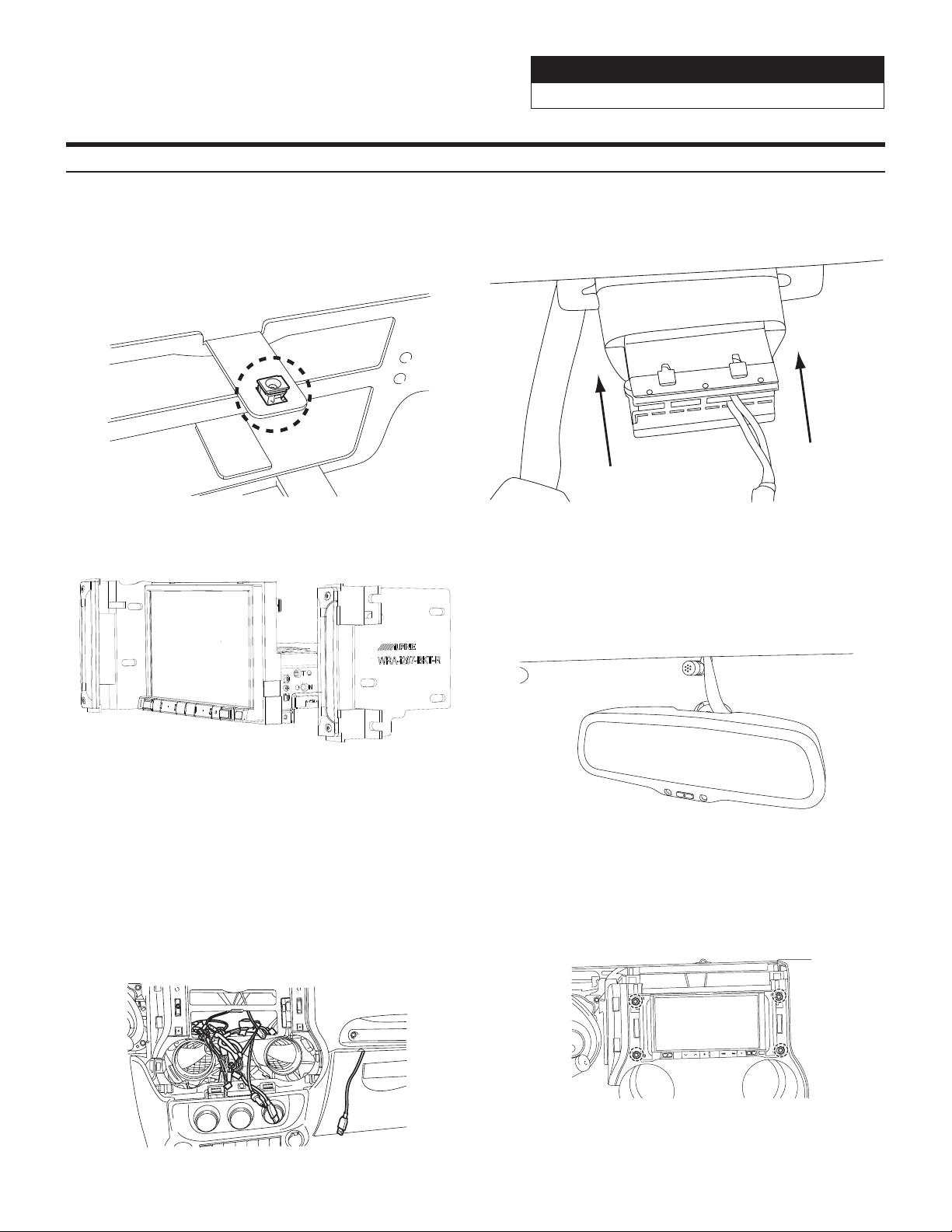

Installation Instructions
2Plug the OBDII connector on to the OBDII port
below the driver side dash and run the extension to
the radio cavity.
4Mount the microphone as illustrated and run the
cable to the radio cavity. You will need to use a T20
Torx to remove the visor. For optimal performance
it should be mounted by the rear-view mirror as
illustrated.
6Mount the i207-WRA head unit using the factory
7mm screws and return factory panels to their
corresponding place
VOICE MENU
1Attention: For 2011-2017 vehicles only. Insert the
push clips from the factory bracket. Install the rear
support bracket, using the (2) 7mm screws that
were removed from the factory bracket, to attach
head unit bracket in the same place.
3Attach the side brackets using the provided 8mm
round head screws.
5Run the USB extension cable to an area you want to
plug in at (typically the glove box or center console
areas), connect the main harness, antenna, and
other adapters to the factory harnesses and secure
them. Route all cables through the lower opening of
the rear support bracket as shown below.
For 2007-2010 vehicles: Connect the main harness,
run the USB extension from the back of the head
unit to desired location, connect antenna, other
adapters, and secure them.

Jeep Wrangler
i207-WRA 20201016v1 11/19

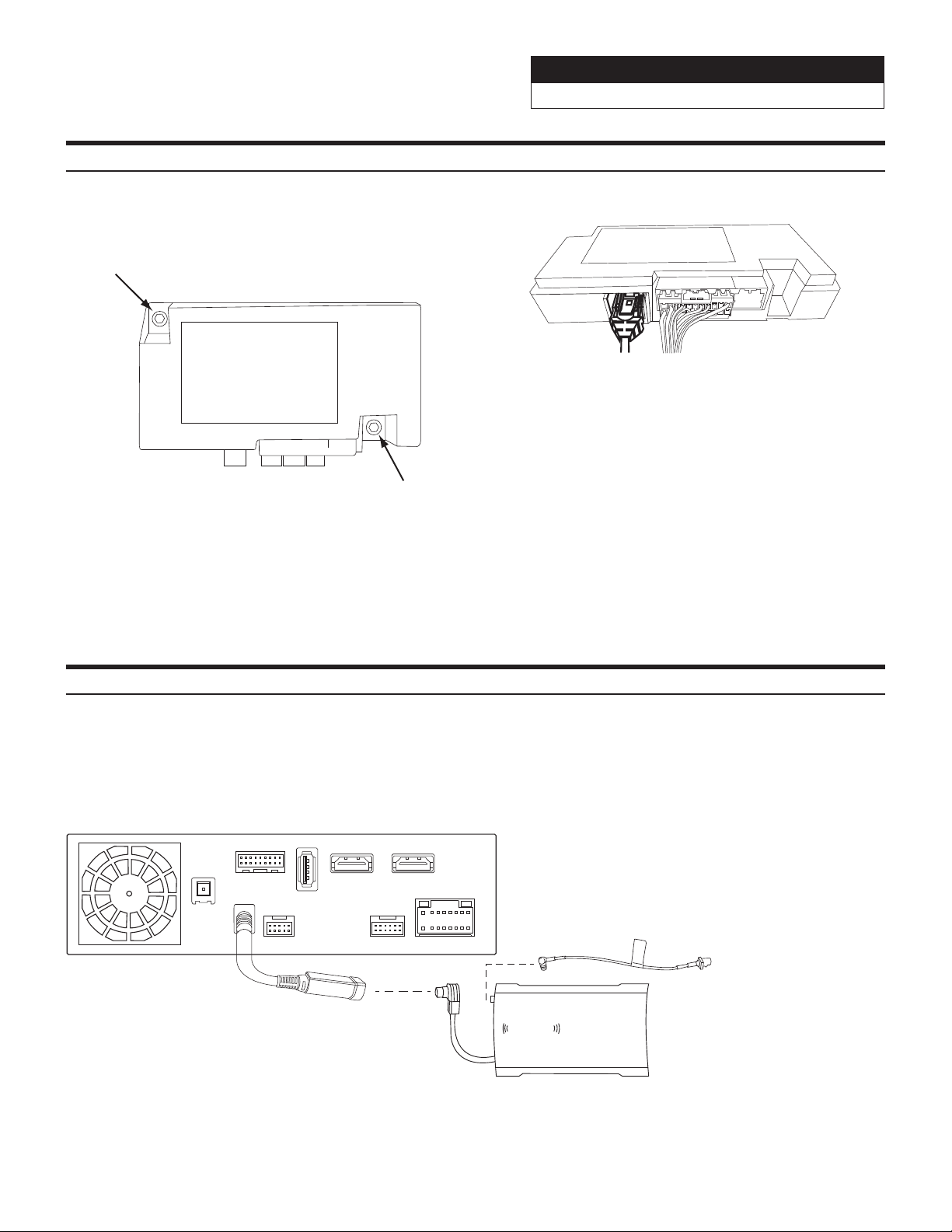

Disconnecting the Uconnect® (only for 2011-2017 vehicles with factory Uconnect®)
1Remove the factory climate control panel. It is
clipped on and can be removed with a panel
removing tool. Extract the (2) 7mm bolts from
Uconnect® module.
3Secure the Uconnect® module to the original
location using the 7mm bolts.
2Disconnect the 24pin OEM connector.
NOTE: Since the factory Uconnect® system is
not going to be used you can unplug the 24 pin
connector shown in step 2. If Uconnect® module is
not disconnected the Uconnect® system will stay
paired with previously paired phones. The user’s
phone may connect to both Bluetooth devices
simultaneously resulting in unpredictable and
potentially distracting behavior.
Connecting A SiriusXM Module (Sold Separately)
There is no way to integrate the factory SiriusXM
tuner. Once the radio is removed, the factory
SiriusXM is removed. As the title states, SiriusXM
requires a tuner sold separately. This diagram
shows how to integrate the antenna connection.
For vehicles with factory SiriusXM connect
the adapter to the factory SiriusXM antenna in
the radio cavity. The factory SiriusXM antenna
is located on the passenger side B-pillar.
For vehicles without factory SiriusXM use
the antenna that is included with the SXV300
SiriusXM Tuner.
SXM/DAB
CAN I/F
USB
HDMI IN HDMI OUT
POWERW. REMOTEPRE OUT
GPS
SiriusXm
connect

Jeep Wrangler
i207-WRA 20201016v1 12/19

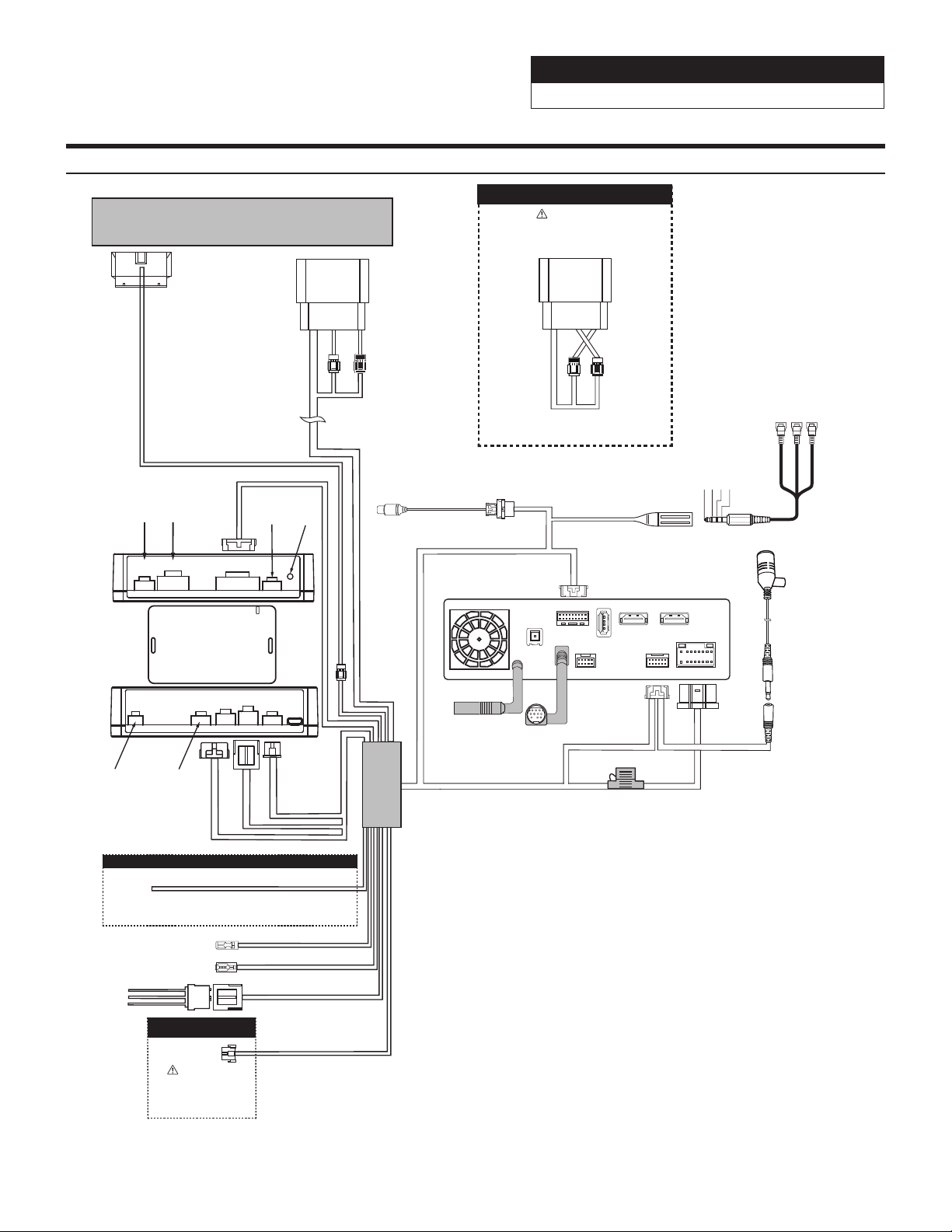

i207-WRA Wiring Diagram
CAN I/F
GPS
USB
W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN HDMI OUT
ANTENNA
Direct Camera Input
Connect to SXM adapter
iLX-207 Source Unit
Power Harness
Front
Rear
Rear
Front
For factory amplied vehicles switch the
speaker connectors, front to rear and
rear to front.
AMPLIFIED VEHICLES
Failure to follow this procedure will
result in no audio from Navigation and
Bluetooth sources.
Microphone
WARNING!
Aux Input
Audio L (White) Audio R (Red) Ground Video (Yellow)
(Yellow)
(Red)
(White)
Aux Input Cable
(Sold Separate 3rd Party Cable)
Audio Only No Video
iDatalink MAESTRO Module
18-pin Black
Connector
10-pin Green
Connector
(Vehicle signals)
3-pin Black
Connector
(Power)
4-pin Black
Connector
(Data)
Blue Power Antenna
Blue/White Amp Turn-on
AUX Power
3-pin Black Connector
Black - Ground
Yellow -12V+
Red - Acc 12V+
Rear View Camera
6-pin Black Connector
White/Gray Manual Transmission Reverse Input
For manual transmission vehicles ONLY. Connect the
White/Gray wire to the White/Gray wire located
on the passenger side kick panel.
Rear View Camera
WARNING!
The use of this connection
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
MANUAL TRANSMISSION VEHICLES
18-PinChime10-Pin
Red
Not
Used Reset
Button
If using
KAC-001
see page 17
3-Pin 4-Pin 3-Pin 4-Pin10-Pin
Blue
Not
Used
*
Not
Used
If using
HCE-TCAM1-WRA
see page 18
Main Harness
Not
Used
Direct Camera Adapter
To Vehicle Connectors
To OBDII Connector Power/Speaker
16-pin Green Connector
Front
Rear
Rear
Front
Rear
Not
Used

Jeep Wrangler
i207-WRA 20201016v1 13/19
i207-WRA HDMI Usage With An iPhone
Lightning To HDMI
adapter needs to be
purchased from Apple.
Third party adapters may
not work
For Android users most
Android phones do not have
HDMI adapters.The easiest way to
connect is with a Miracast adapter
(for example a Roku Stick
or Amazon Firestick).
Or
iPhone
Android Phone
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
Some Android phones may
have a HDMI adapter. That
would be sold separately by
the phone manufacturer. Third
party adapters will not work.
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
i207-WRA HDMI Usage With An Android Phone
Lightning To HDMI
adapter needs to be
purchased from Apple.
Third party adapters may
not work
For Android users most
Android phones do not have
HDMI adapters.The easiest way to
connect is with a Miracast adapter
(for example a Roku Stick
or Amazon Firestick).
Or
iPhone
Android Phone
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
Some Android phones may
have a HDMI adapter. That
would be sold separately by
the phone manufacturer. Third
party adapters will not work.
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.
CAN I/F
GPS
USB
EXT. KEY W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN
ANTENNA
iLX-207 Source Unit
HDMI OUT
Do not use the head unit’s
USB to power HDMI devices.
This port is meant for Apple
CarPlay, Android Auto, and
USB ash drives.
For all phones the USB
power source needs to
be a 2A source. This will
require a separate USB
power source to be installed
in the vehicle.

Jeep Wrangler
i207-WRA 20201016v1 14/19
i207-WRA Wiring Diagram
Power cable
W.REMOTE cable
DVD REMOTE
(Brown)
MON REMOTE
(Brown)
REMOTE IN
(Brown/White)
REMOTE OUT
(Brown)
STEERING REMOTE
SUBW
MIC IN
FRONT OUT
REAR OUT
To remote control input lead of
DVE-5300
To remote control input lead of Rear
Monitor
To remote control output lead
To remote control input lead
To steering remote control interface
box
Microphone (Included)
To input terminal of amplier when
adding an external amplier
PRE OUT cable
Interface cable
DVD STATUS IN
(Red/White)
To remote control output lead of
DVE-5300
SPEED SENSOR
To SiriusXM Tuner
(Green/White)
CAMERA
IDATALINK I/F
AUX INPUT
REMO
(Blue/White)
REVERSE
(Orange/White)
P. ANT
(Blue)
PARKING BRAKE
(Yellow/Blue)
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
ACC
(Red)
BATT
(Yellow)
GND
(Black)
Vehicle Antenna
GPS Antenna (Included)
To the vehicle speed pulse line
To Front, Rear or Side camera
To iDataLink module
To AUX output device or iDataLink
module
To amplier or equalizer
To plus side of the back lamp signal
lead of the car
To power antenna
To the parking brake signal lead
Rear Left
Front Left
Front Right
Rear Right
Speakers
Battery
Ignition key

Jeep Wrangler
i207-WRA 20201016v1 15/19

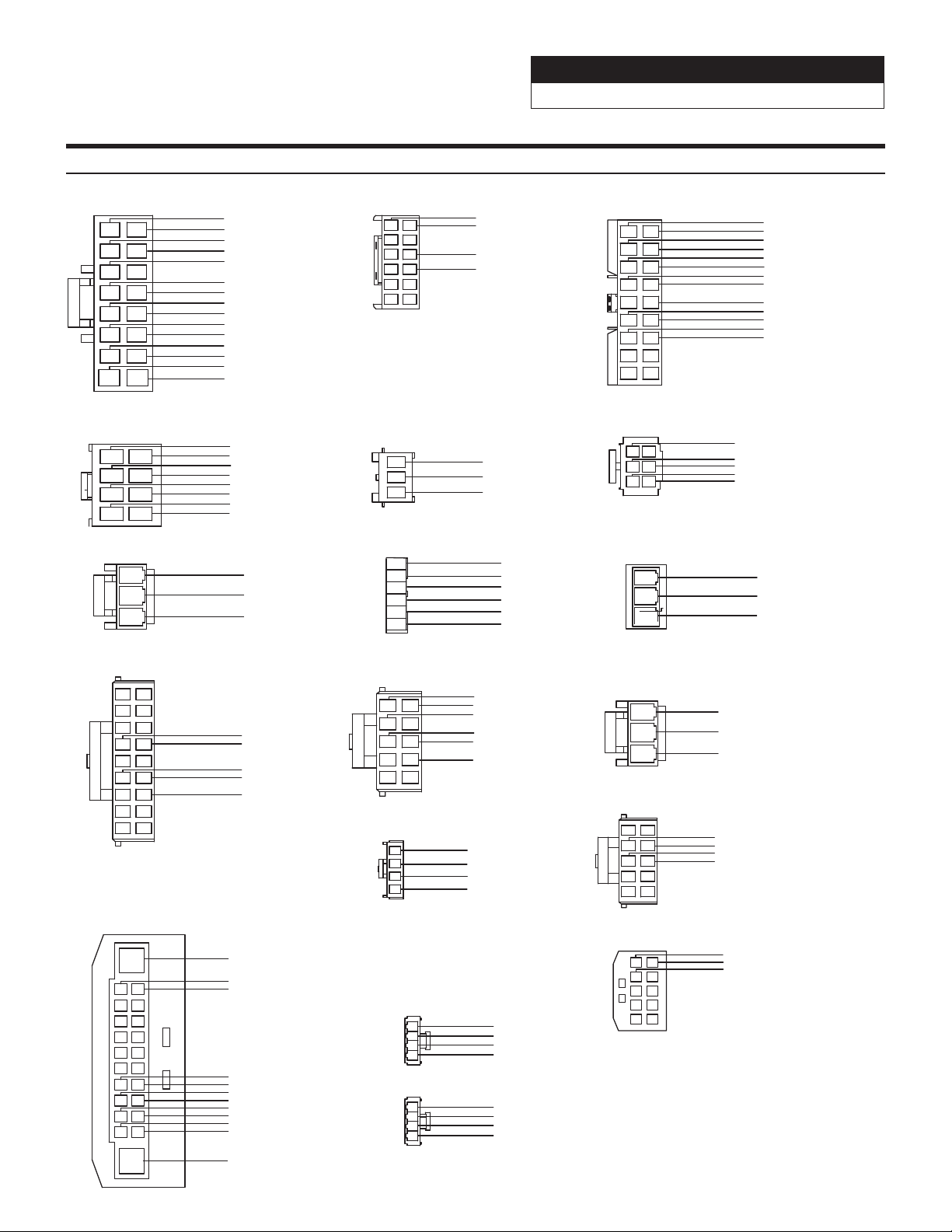

Wire Harness Pin Outs
Cam Aux Data
1 2
3
9
11
13
15
17
4
8
10
12
14
16
18
5
7
6
Red 22AWG
Blue 22AWG
Black 22AWG
White 22AWG
White 22AWG
Blue 22AWG
Black 22AWG
Red 22AWG
Black 22AWG
Black 22AWG
White 22AWG
Green/White 22AWG
Red 22AWG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Radio Main
Blue 22AWG
Red 20AWG
Blue/White 22AWG
Orange/White 22AWG
Yellow/Blue 22AWG
Purple 20AWG
Gray 20AWG
Purple/Black 20AWG
Gray/Black 20AWG
Green 20AWG
White 20AWG
Green/Black 20AWG
White/Black 20AWG
Yellow 18AWG
Black 18AWG
1
2
3
4
5
6
Direct Camera
Black 22AWG
Black 22AWG
Red 22AWG
Blue 22AWG
Black 22AWG
White 22AWG
1
3
5
7
9
11
2
4
6
8
10
12
Remote Harness
Red/White 22AWG
Brown 22AWG
3
5
1
4
6
2
Rear Camera
Black 22AWG
Yellow/Black 22AWG
Red 22AWG
Orange/White 22AWG
Orange 22AWG
3
2
1
4
5
6
7
8
DVD Display
Red 22AWG
Red/White 22AWG
Brown 22AWG
Pink/Silver 22AWG
Black 22AWG
Black/Silver 22AWG
Yellow 22AWG
Orange/Silver 22AWG
1
2
3
Key Harness
Black/Silver 22AWG
Orange/Silver 22AWG
Pink/Silver 22AWG
1
2
3
KAC-001 Power
Yellow 18AWG
Red 18AWG
Black 18AWG 1
2
3Yellow 18AWG
Red 18AWG
Black 18AWG
Alternate Power
Data SWC
12
11
13 14
16
15
17 18
12
4
3
6
5
8
7
910
Brown/Red 22AWG
Brown/Yellow 22AWG
Red/Brown 22AWG
Yellow/Brown 22AWG
Yellow/Black 22AWG
1 2
43
6
5
87
9 10
Audio In
White/Red 22AWG
White/Brown 22AWG
Grey/Red 22AWG
White/Brown 22AWG
4
6
87
9 10
1 2
3
5
Radio I/O
Orange 22AWG
White/Grey 22AWG
Orange/White 22AWG
Green/White 22AWG
Yellow/Blue 22AWG
Blue/White 22AWG 1
2
3Yellow 18AWG
Red 18AWG
Black 18AWG
Power/ACC
4
1
2
3
iDatalink
Blue 22AWG
White 22AWG
Black 22AWG
Red 22AWG
1
2
3
4
5
6
7
8
9
10
Wrangler Harness
White/Red 22AWG
White/Brown 22AWG
Gray/Red 22AWG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Brown/Yellow 22AWG
Gray 20AWG
Brown/Red 22AWG
Yellow 18AWG
Black 18AWG
Green 20AWG
Gray/Black 20AWG
Green/Black 20AWG
White 20AWG
Purple 20AWG
White/Black 20AWG
Purple/Black 20AWG
1
2
3
4
Wrangler Harness
Purple 20AWG
Purple/Black 20AWG
Green 20AWG
Green/Black 20AWG
Speaker Harness
1
2
3
4
Gray 20AWG
Gray/Black 20AWG
White 20AWG
White/Black 20AWG
Speaker Harness
White 22AWG
Black 22AWG

Jeep Wrangler
i207-WRA 20201016v1 16/19
Remote Turn-On Lead (Blue/White)
Subwoofer RCA Connectors
Front Output RCA Connectors
Rear Output RCA Connectors
RCA Extension Cable (sold separately)
(Blue/White)
REMOTE ON
(Blue/White)
Subwoofer
REMOTE
Amplier for subwoofer
(sold separately)
To subwoofer input terminal
(Red)
(White)
SUBW
FRONT OUT
REAR OUT
To front input terminal
Amplier 4 ch
(sold separately)
To rear input terminal
Front speaker
Rear speaker
REMOTE ON
(Blue/White)
(Red)
(White)
(Red)
(White)
CAN I/F
GPS
USB
W.REMOTE POWER
SXM/DAB
PRE OUT
HDMI IN HDMI OUT
ANTENNA
Connection Of An External Amplifier

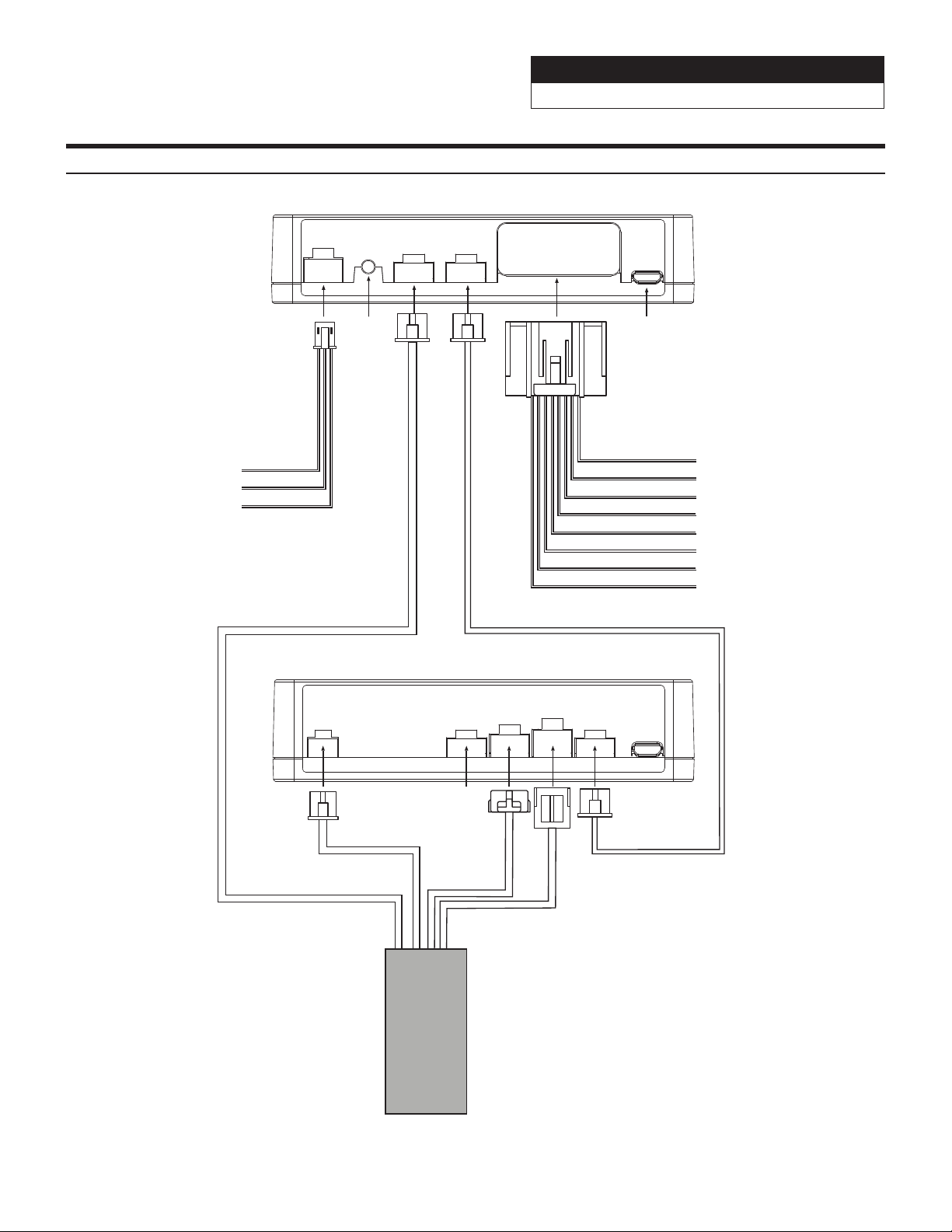

Connection Of HCE-TCAM1-WRA (Optional Accessory)
To HCE-TCAM1-WRA
CAN I/F
GPS
USB
EXT. KEY
SXM/DAB
PRE OUT
ANTENNA
Direct Camera Input
Direct Camera Adapter
iLX-207 Source Unit
Rear View Camera
6-pin Black Connector
Main Harness
Rear View Camera
WARNING!
The use of this connection
is intended for Alpine
HCE-TCAM1-WRA rear
view camera ONLY.
To HCE-TCAM1-WRA
This connection goes to
the direct video input of
the head unit through the
adapter. If you do not make
this connection there will be
no video to your iLX-207.
This connection goes to
the camera connector on
the main harness. This
handles the power, ground,
reverse light, and illumination
connections.

Jeep Wrangler
i207-WRA 20201016v1 17/19
Connection Of KAC-001 (Optional Accessory)
4 Pin
Black Data
POWER RESET HEADUNIT CAN OUTPUT UPDATE
BATT* (Yellow) Output 1 (Purple)
Output 2 (White/Red)
Output 3 (Brown)
Output 4 (Blue)
Output 5 (Green)
Output 6 (Pink)
Output 7 (White)
Output 8 (Gray)
Connect to Relay/output to
accessories (Sold separately)
Reset
Button
Interface Harness (4-pin White)
Power Harness (3-pin White)
8ch Output Harness (24-pin White)
Interface Cable (4-pin) (included with ADS module)
USB port
(Firmware
updates only)
ACC (Red)
GND (Black)
*Fuse Rating: 7A
To 4 Pin Black Data
Connect to IDATALINK I/F
cable from head unit.This is
the 4 pin data connector
shown on page 12 in the
installation diagram that
comes directly off of the
main harness
Main Harness
3 Pin
Black
4 Pin
Blue
10 Pin
Green
3 Pin
Black
Not
Used
To Head Unit
Maestro Module Side View
KAC-001 Side View

Jeep Wrangler
i207-WRA 20201016v1 18/19
Set Up Guide
1Turn the vehicle’s Ignition switch to ACC.
2Turn ON the i207-WRA by pressing any key.
3Select the user language and press OK.
4With the vehicle parked, engage the parking brake, release the parking brake and engage the parking brake
again.
5If a camera is present, turn it ON in the system menu. (MENU/SETUP/SYSTEM/CAMERA/CAMERA SELECT).
6AUDIO MUTE ON REVERSE- By default, when the vehicle is shifted into reverse the AUDIO will MUTE. If this
feature is not desired turn it off in the AUDIO MENU (MENU/SETUP/SOUND/MUTE WHILE BACKING UP).
7If the AUX Input is being use be sure to turn it ON in the SETUP MENU. (MENU/SETUP/SOURCE/AUX).
8Set the DVD player (if optional DVD player is installed). (MENU/SETUP/SOURCE/HDMI).
9When the KAC-001 (External Accessory Control Module) is present be sure to turn it ON in the SETUP MENU.
(MENU/SYSTEM/EXTERNAL ACCESSORIES/EXTERNAL ACCESSORY CTLR).
10 Vehicle information- Set the desired gauge information. (MENU/VEHICLE INFO/GAUGES/CAR SETTINGS).
Troubleshooting Guide
Symptom Possible Cause Remedy
1
iPhone not working with
HDMI.
Not using Apple HDMI to Lightning
adapter.
Purchase the HDMI to Lightning adapter
directly from Apple. Not all 3rd party
adapters work the same.
Didn’t plug USB power into a 2A
source.
Do not plug into the USB from the Alpine
head unit. A third party USB adapter will
need to be used that is 2A.
2
Android phone is not working
with HDMI.
Using incorrect HDMI adapter.
If the phone has the feature to use an HDMI
adapter it must be the one purchased from
the manufacturer of the phone, not a third
party adapter.
Miracast adapter isn’t plugged into
a 2A source.
Do not plug into the USB from the Alpine
head unit. A third party USB adapter will
need to be used that is 2A.
Miracast adapter has resolution
settings that are too high.
Plug the adapter into another monitor (for
example a television in the home) and reduce
the resolution settings.
3
iDatalink website says serial
number is invalid.
Incorrect serial number is being
used.
In the i207-WRA settings confirm the serial
number. MENU/SETUP/GENERAL/ABOUT.
Serial number may not be in
iDatalink database. Call ADS at 1-866-427-2999 and verify.
4 No output from RCA’s Maestro module is flashed for
amplified system. Re-flash module for non-amplified system.

Jeep Wrangler
i207-WRA 20201016v1 19/19
Troubleshooting Guide Continued
Symptom Possible Cause Remedy
5
Headunit will not turn on.
One of the power wires does not
have proper voltage
Test the power wires with a digital multimeter
and trace from there.
4 pin Maestro data cable is
disconnected or damaged.
Check for proper connection or
disconnected pins.
OBD2 cable is not plugged in. Connect OBD2 connector to the OBD2 port.
Monitor or main harness are not
connected.
Check for proper connection or
disconnected pins.
6
Cannot enter SETTINGS
MENU.
Vehicle is in motion or parking
brake is not engaged.
With vehicle in (P)PARK engage the parking
brake. Release the parking brake and
engage the parking brake a second time, as
shown in the Setup Guide on page 18.
8Sound mutes when vehicle is
shifted into reverse.
Mute on reverse is turned on in the
SOUND menu. Change Mute on reverse to off.
9Only the front speakers are on
for SXM Radio. SXM Tuner has not been activated. Activate SXM Tuner.
10 The vehicle is incorrectly
positioned on the Navigation
display.
Poor GPS signal. Ensure the recommeded GPS antenna route
was used. See page 7.
11
CarPlay, Android Auto, or
off-road navigation map
positioning issues.
GPS antenna is positioned
incorrectly.
GPS antenna is obstructed and doesn’t have
line of sight to the sky. Perform a factory
reset. The unit will automatically recalibrate.
12
CarPlay, Android Auto, or
off-road navigation vehicle
position icon heading in
wrong direction
Reverse Signal is not connected or
not reliable.
Ensure that Reverse wire is connected. Also
ensure that no 3rd party interface module(s)
interfere with the Reverse Signal. The head
unit uses the Reverse Signal to achieve
optimal positioning performance.
13
iPhone or Android phone is
not recognized
when connected to the
USB cable.
Loose or disconnected USB cable. Check the USB connection behind
the headunit.
Non-compatible cable.
Use the cable supplied with the
iPhone or Android phone and only plug into
the extension provided with the head unit.
Third party adapters and long extensions
may not work. Only use USB extension that
came with the head unit.
Dirty charging port on phone. Clean charging port.
14
Volume controls on bezel and
steering wheel controls do not
work.
The setting for External Processor
was turned on.
That setting should only be checked when
using an external sound processor. When
there isn’t one being used in the audio
system it needs to be in the default setting
of off. MENU/SETUP/SYSTEM/EXTERNAL
ACCESSORIES/EXTERNAL AUDIO
PROCESSOR/OFF
15 Video not working with Aux
Input.
The Aux Input is only meant for
audio.
There is no way for the video portion to be
active.
