1000-BQ2/96
HOT HOLDING BANQUET CARTS
ITEM NO. _______________________
ANSI/NSF 4
Stainless steel exterior with two (2) dutch doors and transport handles on each end of the cart. The cabinet has an
ON/OFF power switch, an adjustable temperature control knob, and a digital display. The unit has a temperature range
of 60°F (16°C) to 200°F (93°C) and a temperature display light that indicates the temperature within the cabinet has
reached the desired holding temperature. Four (4) chrome plated wire shelves are included. A full-perimeter, wall-
friendly bumper is included, along with four (4) 6" (152mm) heavty duty casters, 2 rigid and 2 swivel with brake.
Flexible choice of preplated meal service: This banquet cart will also hold covered meals without plate carriers.
Additional shelves will equip cart to hold preplated meals without covers, trays, and bulk food items in pans.
■■MODEL 1000-BQ2/ 96: obile banquet cart with dutch doors with capacity of 96 meals (10" covered plates)
S ECIAL INFORMATION:
●Plate covers are not furnished.
●Plate carriers are optional.
●Since plates and plate covers
vary in size, cabinet may not
hold maximum quantity of
meals specified.
● HALO HEAT . . . a controlled, uniform heat source that
gently surrounds food for better appearance, taste, and longer
holding life.
●Close temperature tolerance and even heat application provides even heat
from top to bottom – side to side.
●Holds preplated food fresh, flavorful, and hot.
●No moisture pans, water or canned heat needed.
●Designed to adapt to any type of banquet holding:
– Covered plates, stacked
– Covered or uncovered plate carriers
– Accepts trays for banquet service
– Additional shelves for full-size and half-size pans (gastronorm pans)
●Dutch doors designed to keep heat in the top portion of the cabinet while
removing plates from the bottom.
●Non-magnetic stainless steel interior resists corrosion.
●Full perimeter, wall-friendly bumper, transport handles, and heavy
duty casters.
W164 N9221 Water Street • .O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
HONE: 262.251.3800 800.558.8744 U.S.A./ CANADA FAX: [phone].329.8744 U.S.A. ONLY
www.alto-shaam.com
#46 - 1/08
P R I N T E D I N U .S.A.
DC-2868
DC-2869

ELECTRICAL
VOLTAGE HASE CYCLE/HZ AM S kW CORD & LUG INCLUDED
125 1 50/60 12.8 1.6 NE A 5-15P
15A- 125V PLUG
208-240 (UL)1 50/60 6.5 1.6 NE A 6-15P
at 208 1 50/60 5.9 1.2 15A - 250V PLUG
at 240 1 50/60 7.0 1.6
230 1 50/60 6.5 1.5 CEE 7/7
220-230V PLUG
CAPACITY
240 lbs (109 kg) AXI U
VOLU E AXI U : 150 QUARTS (190 LITERS)
LATES: (without plate carriers)
— 10" (254mm) with covers: 96
— 10-3/4" (273mm) with covers: 80
LARGER DIA ETER ITE S WILL RESULT IN REDUCED PLATE CAPACITIES
ANS: Full-size and half-size pan combinations (per shelf)
— 12" x 20" (530mm x 325mm - GN 1/1): 2
— 12" x 10" (265mm x 325mm - GN 1/2): 4
ADDITIONAL WIRE SHELVES WITH SUPPORT CLIPS WILL ACCO ODATE VARIOUS
CO BINATIONS OF 2-1/2" (65mm), 4" (100mm) OR 6" (150mm) DEEP PANS
SHELF CA ACITY: (per shelf, without covers)
— 10" (254mm) plates: 6
— Shelves maximum: 16 SPACING ON CENTERS 3-5/32" (80mm)
CLEARANCE REQUIREMENTS
Full perimeter bumper accommodates all
clearance requirements.
INSTALLATION REQUIREMENTS
Cabinet must be installed level. It must not be
installed in any area where it may be affected by
steam, grease, dripping water, high temperatures,
or any other severely adverse conditions.
WEIGHT
NET 392 lb (178 kg)
SHI 450 lb (204 kg)
CARTON 77" X44" X35"
D I M E N S I O N S :(1956mm x 1118mm x 889mm)
O P T I O N S & A C C E S S O R I E S
late Carriers, chrome plated (EACH HOLD 4 PREPLATED EALS)
■■Uncovered " " Carriers DC-2868
Plate dia: 10" (254mm) max. • 7-3/4" (197mm) min.
Vertical rung spacing: 2-5/8" (67mm)
CAPACITY: 24 CARRIERS, 96 PREPLATED EALS
■■Covered "C" Carriers DC-2869
Plate dia: 9-3/4" (248mm) max. • 7-3/4" (197mm) min.
Vertical clearance between top and bottom carrier: 11-5/8" (295mm)
CAPACITY: 24 CARRIERS, 96 PREPLATED EALS
■■Shelf & Shelf Supports (for each extra shelf) 1061/ 11533
late Carriers, chrome plated (EACH HOLD 4 PREPLATED EALS)
■■Uncovered "E " Carriers DC-23580
Plate dia: 12-1/2" (318mm) max.• 9-1/2" (241mm) min.
Vertical rung spacing: 2-5/8" (67mm)
CAPACITY: 16 CARRIERS, 64 PREPLATED EALS
■■Covered "EC" Carriers DC-23676
Plate dia: 12-1/2" (318mm) max.• 9-1/2" (241mm) min.
Vertical clearance between top and bottom carrier: 11-5/8" (295mm)
CAPACITY: 16 CARRIERS, 64 PREPLATED EALS
■■Wire Shelf, chrome plated SH-2835

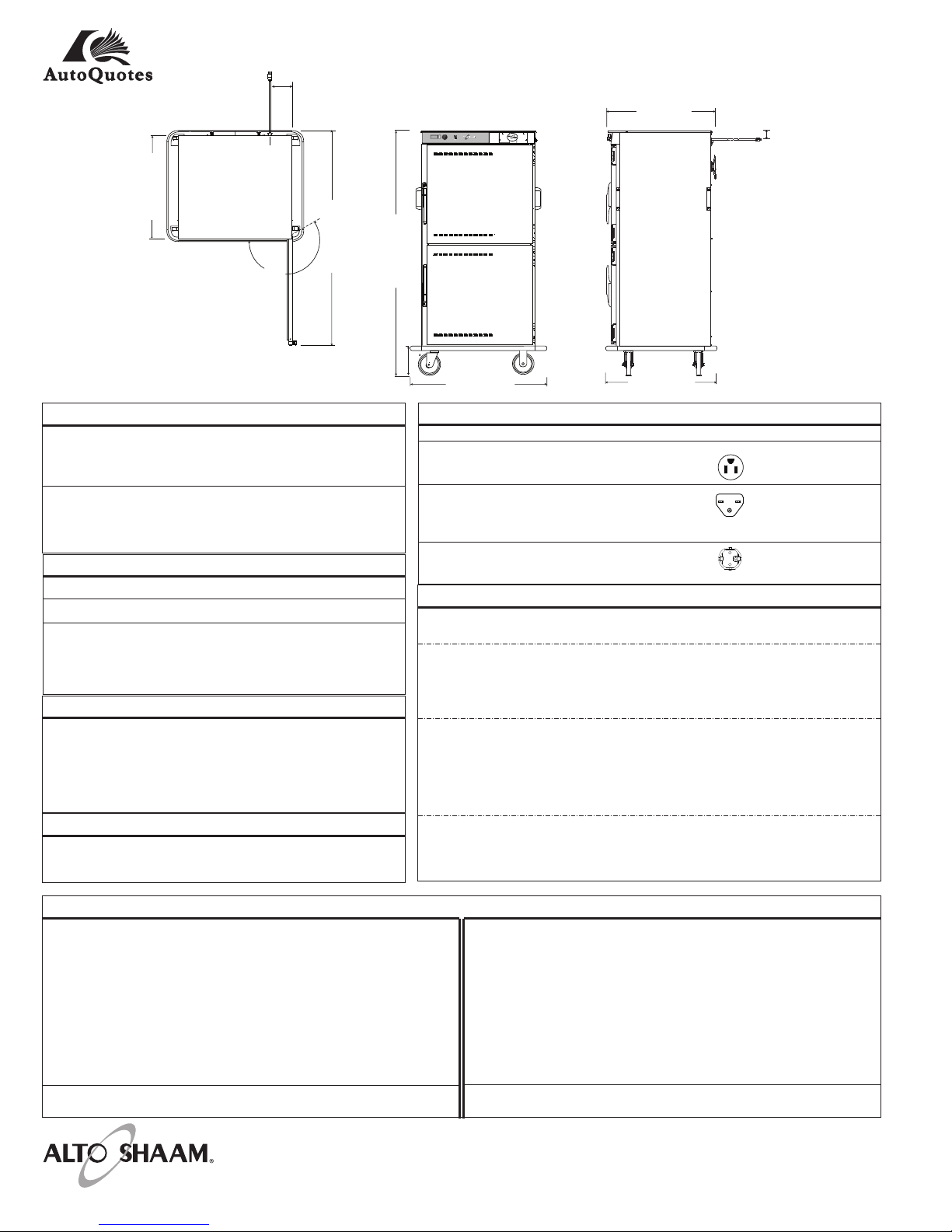

210.0
O
59-1/16" (1500mm)
28-7/16" (722mm)
6-3/16"
(156mm)
Electrical Connection
2-1/8" (54mm)
From Top
67-1/2" (1714mm)
37-9/16" (954mm) 30-7/16" (773mm)
30" (762mm)
I
o
I
o
8-1/16" (204mm)
2-1/8" (54mm)
1000-BQ2/96
HOT HOLDING BANQUET CARTS
(H x W x D)
W164 N9221 Water Street • .O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
HONE: 262.251.3800 800.558.8744 U.S.A./ CANADA FAX: [phone].329.8744 U.S.A. ONLY
www.alto-shaam.com
#46 - 1/08 P R I N T E D I N U .S.A.
D U E T O O N G O I N G P R O D U C T D E V E L O P E N T, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E
15A-125V PLUG
NEMA 5-15P
20 AMP 125 VOLTS
PLUG, NEMA 5-20P
PLUG: NEMA 6-15P
15A, 250V
PLUG, CEE 7/7 (SCHUKO)
16 AMP 250V (#701410)
PLUG,CEE 7/7 (SCHUKO)
16AMP 250V (#701410)
DIMENSIONS: H x W x D
EXTERIOR:
67-1/2" x 37-9/16" x 30-7/16"
(1714mm x 954mm x 773mm)
INTERIOR ER DOOR O ENING:
53" x 28-1/4" x 25-1/2"
(1346mm x 718mm x 648mm)
15A-125V PLUG
NEMA 5-15P
20 AMP 125 VOLTS
PLUG, NEMA 5-20P
PLUG: NEMA 6-15P
15A, 250V
PLUG, CEE 7/7 (SCHUKO)
16 AMP 250V (#701410)
