Alto-Shaam HN2-48 User manual

ITEM NO. _______________________
HEATED DISPLAY CASE
The display case is constructed of 18 gauge, non-magnetic stainless steel. A curved, tempered glass front encloses the
display case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator
side are included. Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal.
Framed end clear glass with rubber gasket material protects glass edges from chipping and breakage. The base is
divided into two (2) individually managed heat zones with each zone controlled by a separate thermostat with a range
of 1 through 10 and heat-on indicator light. Overhead lights are controlled by ON/OFF switches in two (2) light
zones. Two (2) 125V plug outlets are included on 120/208-240V units only. Counter-top display cases include one set
of 4" (102mm) legs.
■■H 2-48 - 48” (1219mm) length
■■H 2SYS-48 - 48” (1219mm) length, with base
■■H 2-48/P - 48” (1219mm) length, self-service opening across full length of case front
■■H 2SYS-48/P - 48” (1219mm) length, with base, self-service opening across full length of case front
● HALO HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
● Holds and displays hot food fresh and moist for hours —
without adding water.
● Expandable system to meet your specific requirements.
● Matches profile of leading heated display case.
● HOT DISPLAY CASE
— Curved glass styling.
— Displays hot food without condensation on glass.
— Thermostatically controlled heat source radiates from the
base of the display case in multiple heat zones.
— Overhead light zones with shatterproof coated bulbs.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
●DECORATOR BASE
— Standard black painted front and end panels.
●SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available across the full length of case.
— Front mounted heat-guard provides customer protection.
ANSI/NSF 4
W164 9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHO E: 262.251.3800 800.558.8744 U.S.A./CA ADA FAX: [phone].329.8744 U.S.A. O LY
WEBSITE: www.alto-shaam.com
®
HN2SYS-48
P R I N T E D I N U .S.A.D U E T O O N G O I N G P R O D U C T D E V E L O P M E N T, S P E C I F I C A T I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E . #94 - 07/07
HN2-48 SERIES
HN2SYS-48 SERIES
HEATED DISPLAY SYSTE MS
HN2-48
FACTORY INSTALLED OPTIONS
●The system base is not sold as a separate
item. Order the full HN2SYS model to
receive the base.
●Panel Color Choices
➥Specify color choice:
■■Black, standard
■■Stainless Steel, optional
■■Custom Color, optional

D I M E N S I O N S (HXWXD)
H 2-48 EXTERIOR:
37-3/4" x 48" x 41-15/16"
(958mm x 1219mm x 1065mm)
H 2SYS-48 EXTERIOR:
52-3/8" x 48" x 41-15/16"
(1328mm x 1219mm x 1065mm)
WELL DIME SIO S (WXLXD):
27-3/16" x 45-5/16" x 4-1/2"
(690mm x 1151mm x 114mm)
INSTALLATION REQUIREMENTS
Display case must be installed level. The display case
must not be installed in any area where it may be
affected by steam, grease, dripping water, high
temperatures, or any other severely adverse conditions.
Do not install a heated display case near a cold air source
such as a freezer, air conditioning vents, or in any area
where outside air fluctuation can affect performance.
W164 9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHO E: 262.251.3800 800.558.8744 U.S.A./CA ADA FAX: [phone].329.8744 U.S.A. O LY
WEBSITE: www.alto-shaam.com
®
WEIGHT(EST. )
MODEL ET SHIP
HN2-48 305 lb (138 kg) 380 lb (172 kg)
HN2SYS-48 350 lb (159 kg) 425 lb (193 kg)
HN2-48/P 305 lb (138 kg) 380 lb (172 kg)
HN2SYS-48/P 350 lb (159 kg) 425 lb (193 kg)
CRATED DIME SIO S (EST.): HXWXD
HN2-48: 45" x 60" x 55" (1143mm x 1524mm x 1397mm)
HN2SYS-48: 60" x 60" x 66" (1524mm x 1524mm x 1664mm)
PA N C O N F IG U R AT I O N
PA SIZE DIME SIO S QTY.
FULL-SIZE & ONE-THIRD**: 12" x 20" x 2-1/2" (GN 1/1) 3
12" x 6" x 2-1/2" (GN 1/3) 3
HALF-SIZE & ONE-THIRD**: 12" x 10" x 2-1/2" (GN 1/2) 6
12" x 6" x 2-1/2" (GN 1/3) 3
FULL-SIZE SHEET PANS: 18" x 26" x 1" 2
MAX. CAPACITY/VOLUME:48 lbs (22 kg)
30 QUARTS (36 LITERS)
* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.
S P E C I F I C AT I O N S
●Six (6) overhead lights with two (2) light zones.
● Two (2) base heat zones with two (2) adjustable
thermostats with a range of 1 through 10, and two (2)
heat-on indicator lights.
● Two (2) tinted, reflective, tempered glass sliding
doors on operator side.
● One (1) 10" x 36" (254mm x 914mm) operator-side
work shelf.
● Self-serve model HN2-48/P has a self-serve pan insert
26-7/16" x 45-3/16" x 2" (672mm x 1148mm x 51mm)
and includes two (2) Wire Pan Grids.
OPTIONS & ACCESSORIES
■■CUTTI G BOARD W/ GRAVY LA E 5005638
■■GAUGE, I TERIOR AMBIE T TEMP. GU-33384
■■GLASS, TEMPERED DIVIDER GL-26984
GLASS, TEMPERED E D PA E, BRO ZE
■■LEFT-SIDE GL-26949
■■RIGHT-SIDE GL-26948
■■I DEPE DE T ELECTRICAL OUTLET 5001781
PA EL KIT, COU TER TOP
■■BRUSHED STAI LESS STEEL 5004595
■■CUSTOM COLOR 5004598
PA EL KIT, SYSTEM
■■BRUSHED STAI LESS STEEL 5004601
■■CUSTOM COLOR 5004604
PA EL KIT, SYSTEM E D PA EL
■■BLACK FORMICA, 1" (25mm) 5004615
■■PA , 4" (102mm) DEEP SELF-SERVICE 1001990
■■PLATFORM SCALE - 120/208-240V ONLY 55265
■■SHEET PA DIVIDER BAR PACKAGE 5002802

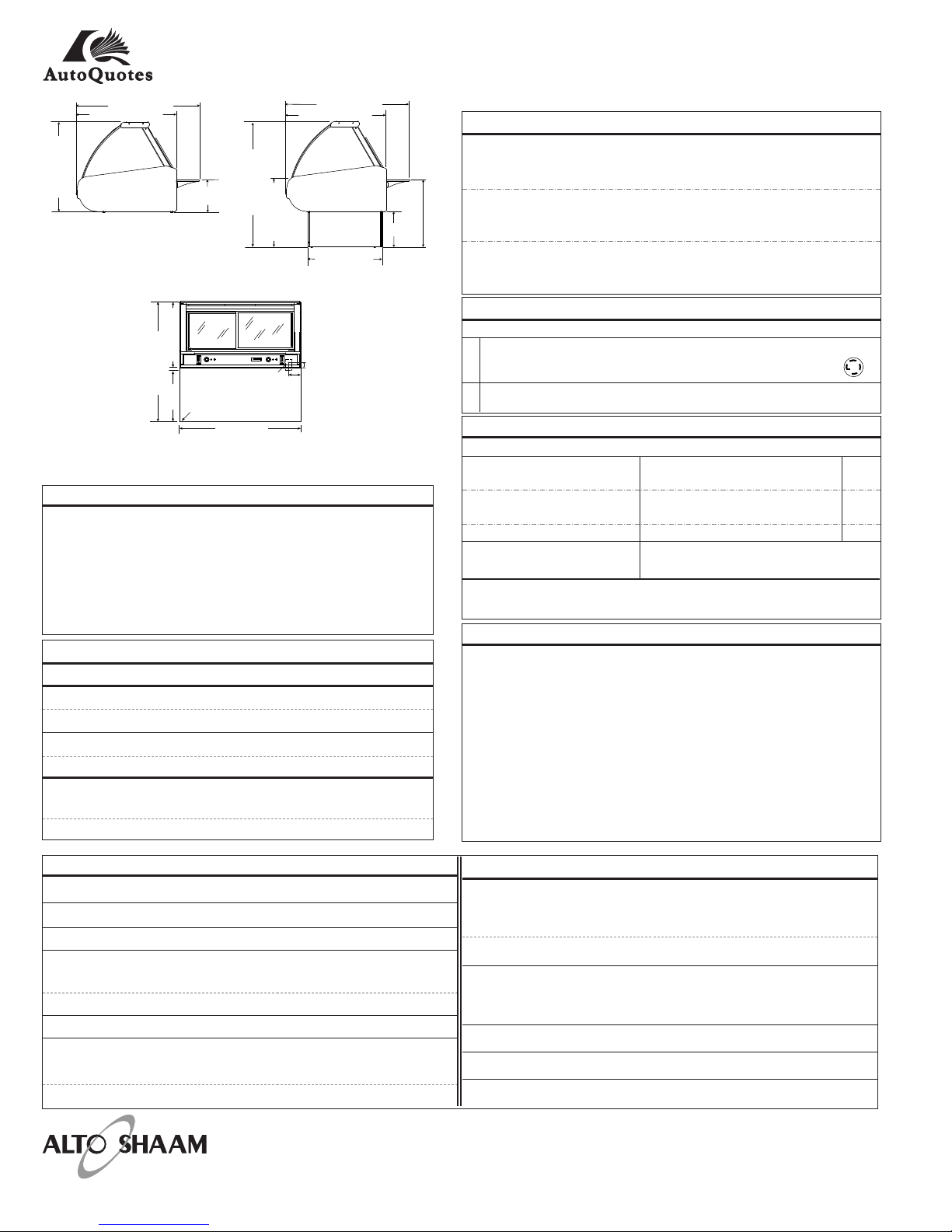

41-15/16" (1065mm)
51-3/4" (1312mm)
13-1/2"
(344mm)
37-3/4" (958mm)
28-1/8" (713mm)
28-5/8" (726mm)

30-3/4" (781mm)
14-15/16"
(378mm)
51-3/4" (1312mm)
52-3/8" (1328mm)

41-15/16" (1065mm)
48" (1219mm)
37-3/4" (958mm)
14-15/16"
(378mm)
52-3/8" (1328mm)
3" (76mm) ADJUSTABLE 
PEGS IN EACH CORNER
ELECTRICAL CORD
6-13/16"
(172mm)
3-1/8"
(77mm)
HN2SYS-48
HN2SYS ProfileHN2 Profile
#94 - 07/07 D U E T O O N G O I N G P R O D U C T D E V E L O P M E N T, S P E C I F I C A T I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
T
yler Huss.eps
revised 5/30/02
added L14-20P Plug Configuration
E L E C T R I C A L
VOLTAGE PHASE CYCLE/HZ AMPS kW
120/ 1 50/60 14.0 3.3 NEMA L14-30P
208-240V 30A, 250V PLUG
230V 1 50/60 13.5 3.1 BARE END, NO PLUG
230 208-240
HN2-48 SERIES
HN2SYS-48 SERIES
HEATED DI SPLAY S YSTEMS
