Amana AP095R User manual

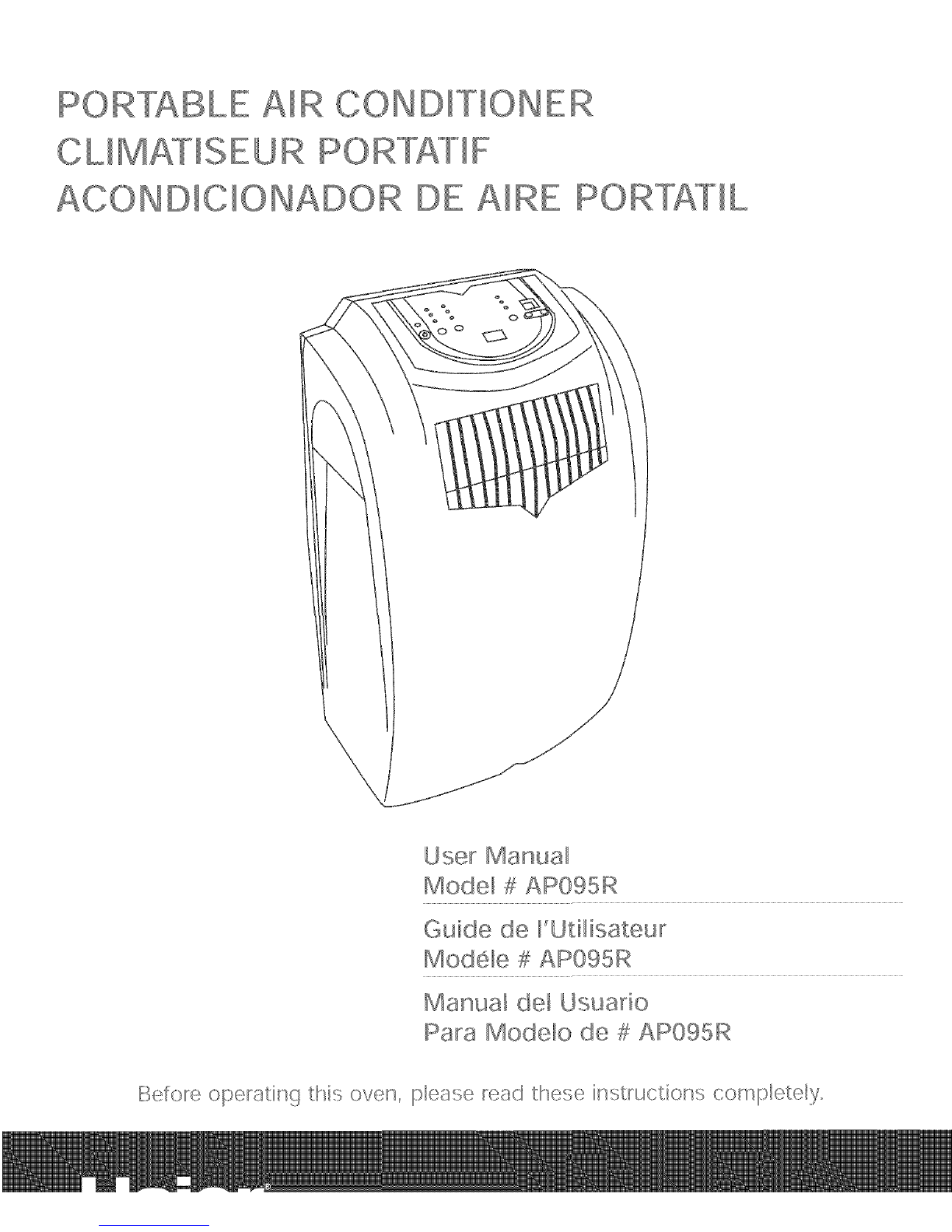

PORTABLE A_R CONDiTiONER
PORTAT_F
ACOHD_C_O B DE A_RE PORTAT_L
User Manual
Model # AP095R
Guide de I_Utilisateu_ *
Mod6b # AP095R
Manua_ de_ Usua_io
Pa_a Modelo de # AP095R
I,_fo_ _operating thb_ oven_ please _ead the.> instructions corn@ _t_ly

A Wo A ana
Thank You for buying a dependable, energy saving and easy to operate Amana air conditioner_ This
manual contains useful information for you to maintain, operate, install and safely use your air con
ditioner_ Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with
the ultimate level of comforL
Please read instructions carefully before using the product. Also, do not forget to fill out and mail
the Product Registration Card.
Product
Record Your Model and Serial Number. On
Attach the sales receipt to this guide and keep for future reference. Model and serial number can
be obtained from the serial label, which is on }/our air conditioner. For all your service calls during
the warranty period the following information will be needed:
TABLE
FCA_ED VOL_S ! 25/60 250/60
WALL OUTLET
T_ME DELAY FUSE Plu_ Plu_ Plu_m
(or circuit braker)

SAFETY
WARNING: Following these basic precautions will reduce the risk
of fire, electrical shock, injury or death when using
your air conditioner.
Air conditioner must be connected to proper eUectdcaUoutUet with the correct eUectdcaU
suppUy_ (see tame previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT
OR REMOVE THE GROUNDING PRONG. If you do not have a three prong eUectric
receptacUe outUet in the waUU,have a certified eUectddan instaUUthe proper recepta
cue. The wall receptacle MUST be property grounded.
;) Do not operate air conditioner if power cord is frayed or otherwise damaged_ AUso
avoid using it if there are cracks or abrasion damage aUong the Uength, pUugconnector
or if the unit maUfunctions or is damaged in any manner_ Contact an authorized service
for examination, repairs or
adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. Also the exhaust hose should be free
of any obstructions.
6) Always unplug the air conditioner before servicing it or moving iL
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemi
cals coming in contact with },our air conditioner.
8) Do not place any object on the top of the uniL
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioners near a bathtub, shower or wash basin.

°ons
Please keep this manual in a safe place_
Do not use liquid or a spray to clean this producL Use a damp cloth_
Do not place the product in an insecure or elevated place as it may fall and cause damage or
injury_
Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside
and disable them or cause them to function improperly_
Never try to dismantle the product by yourselfl Unsupervised dismantling and incorrect reassem
bly of the inside of the back cover may damage the electrical circuit and affect its performance_
When
maintenance is required, please contact the local service center or local distributor.
Do not swipe anything through the card slot except a credit card to avoid damage to the magnet
ic head or deformation of the contact point. This will cause failure of the card swiping function.
When depositing anything in the safe, do not forcibly insert large objects or a large quantity of
objects. To do so may result in difficulty closing the safe door or damage to articles.
Test the energy level of the batter}, regularly. In the event of a low battery, replace batteries
immediately.
Thank you for purchasing the SAFE HOUSE Security Safe.
Please read this manual carefully before operating and store it
carefully for future reference
Staple your receipt to your manual. You will need it to obtain
warranty service.
Model number
Serial number
Date of purchase

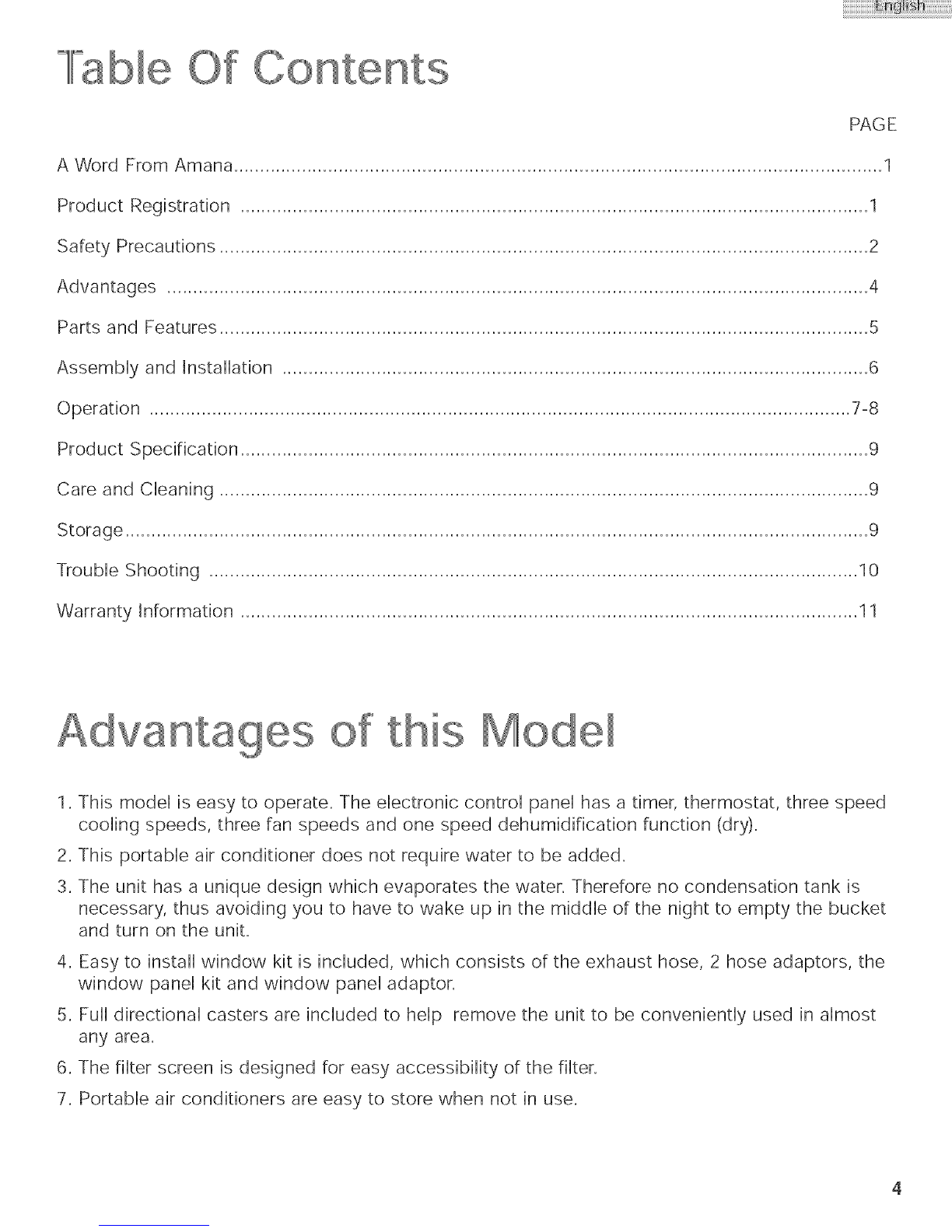

°Iable Of Contents
Advantages of this Model
1. This model is easy to operate. The electronic control panel has a timer, thermostat, three speed
cooling speeds, three fan speeds and one speed dehumidification function (dry}.
2. This portable air conditioner does not require water to be added.
3. The unit has a unique design which evaporates the water. Therefore no condensation tank is
necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket
and turn on the unit.
4. Easy to install window kit is included, which consists of the exhaust hose, 2 hose adaptors, the
window panel kit and window panel adaptor.
5. Full directional casters are included to help remove the unit to be conveniently used in almost
any area.
6_The filter screen is designed for easy accessibility of the fiker.
7_ Portable air conditioners are easy to store when not in use.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii @!i! ! ! . i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i!ii i......
and

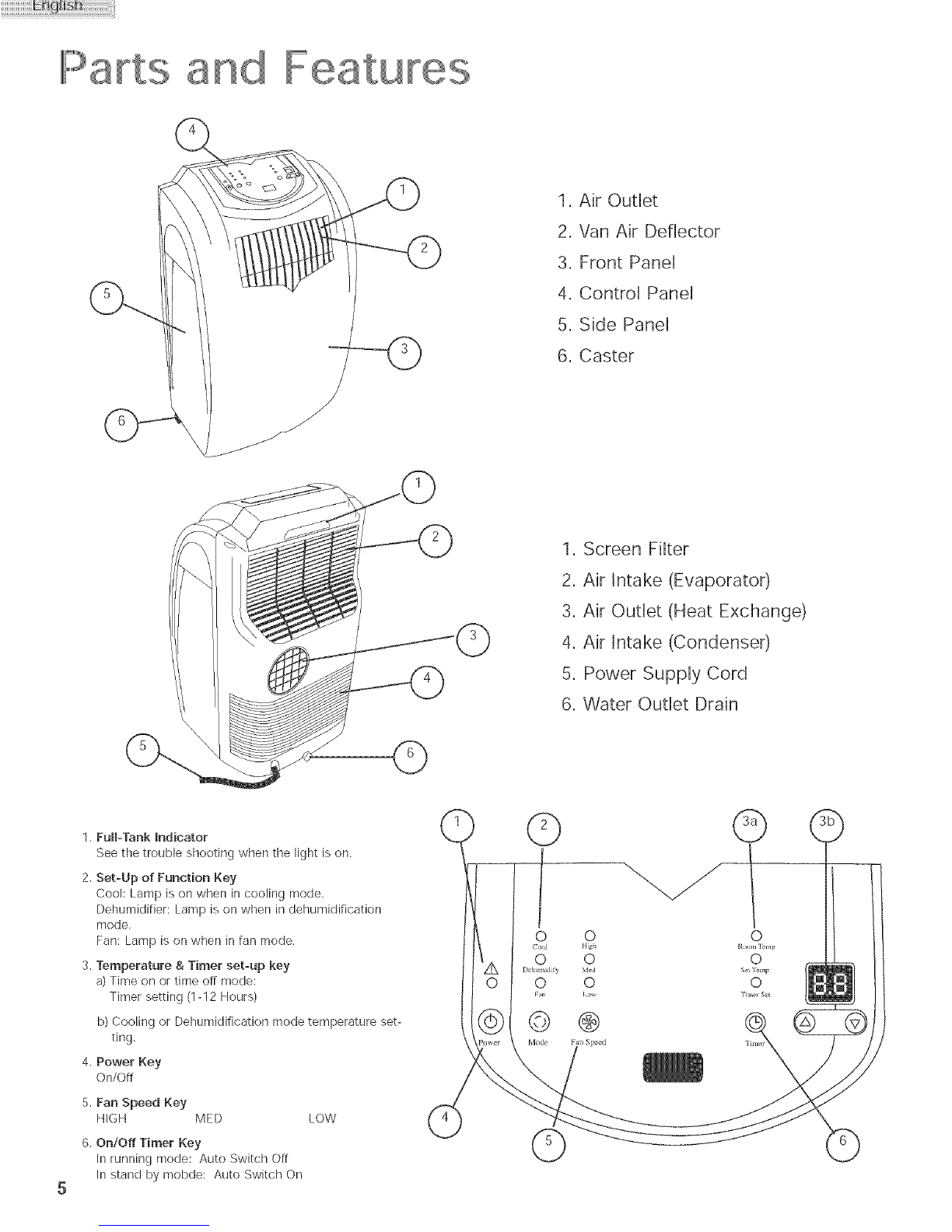

1. Air Outlet
2. Van Air Deflector
3. Front Panel
4. Control Panel
5. Side Panel
6. Caster
1. Screen Filter
2. Air Intake (Evaporator)
3. Air Outlet (Heat Exchange)
4. Air Intake (Condenser)
5. Power Supply Cord
6. Water Outlet Drain
©
1. Full-Tank mndicator
See the trouble shooting when the light is on.
2. SetoLJp of Function Key
Cool: Lamp is en when in cooling mode.
Dehumidifier: Lamp is on when in dehumidification
mode.
Fan: Lamp is on when in fan mode.
3. Temperature & Timer set-up key
a) Time en or time of[ mode:
Timer setting (1-12 Hours)
b) Ceoling or Dehumidificatien mode temperature set-
ting,
4. Power Key
On/Of[
5.
6.
Fan Speed Key
HIGH MED LOW
On/Off Timer Key
In running mode: Auto Switch Off
In stand by mebde: Auto Switch On
©
O O
0 0
0 0
©
©

and nsta
Accessories Include
1. Plastic panel 2 pieces
2. Window Panel Adaptor 1 piece
3. Screws 4 pieces
4. Heat Exhaust hose connector 2
pieces
5. Heat Exhaust hose1 piece
© © ©
1. Adjust the Plastic Panel to the width or height of },our window and tighten
the 2 screws that are attached to the panek
2. Push the round Window Panel Adapter through the rear of the Plastic
Panek
Line up the hobs and tighten the Adapter with 4 screws that are included
in
the kiL (Tighten screws from the front).
3. Install the Window Plastic Panel into the window. If necessary use duct
tape
to better secure the panek
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhausL (See Illustration A)
5. Move the unit to the window, extend the hose and attach the other end of
the hose to the window. Align the tabs on the hose and window panel
adapters and fasten them togethen
B
Hose Connector Exhuast Hose Hose Connector

on
NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any
reason. This is for the oils and the coolants to settle and level off.
1. After a normal shut down wait for 3 minutes before restarting the unit so as to complete the
compressor cycle.
2. Use an 115v/15 amp outlet for the air conditioner. Do not use any other electrical appliances on
this line or you may trip the fuse. Use a dedicated line for this air conditioner.
3. Do not place the air conditioner in direct sunlight or close to any heating appliances
(eg. baseboard heaters, stoves, etc).
4. Operate on a flat surface only.
5. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
6. Keep unit at least 1 foot away from the wall.
7. Check and clean the filter once every week for highest efficiency.
NOTE: Do not use unit without filter.
8. If the unit is not being used for a long period of time, remove the plug from the water drain pipe
and drain out any condensed water.
When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start
in a low fan cool mode. The temperature reading out on the LED will be the current room tempera
ture. When turning on the unit during regular usage, it will remember the last shut off setting. If you
want to operate the air conditioner as a dehumidifier, then adjust to dehumidify mode.
SETTING THE TEMPERATURE
To set the temperature, press the + or the key to raise or lower the temperature. The temperature
can be raised or lowered in the cool or dry mode. The temperature cannot be adjusted in the fan
mode.
FAN SPEEDS
There are 3 adjustable speeds in the cool and fan mode: Low, Medium & High_ In the dry or
dehumidification mode the fan will only operate at low speed.
ON/OFF TIME SET
The air conditioner has a 112 hour on!off builtin timer. To delay the start time for 1 12 hours at 1
hour intervals, simply press "Timer" key (or On/OFF Timer Key) to adjust the start time. Note that the
unit has to be plugged in to an electrical outlet for the timer to operate.
To automatically shutoff the unit, press "Timer" key while the unit is running to adjust the shutoff
time. The auto shutoff switch operates in all 3 modes: Cool, Dry & Fan.
NOTE: The temperature can be set between 60°F to 89°E

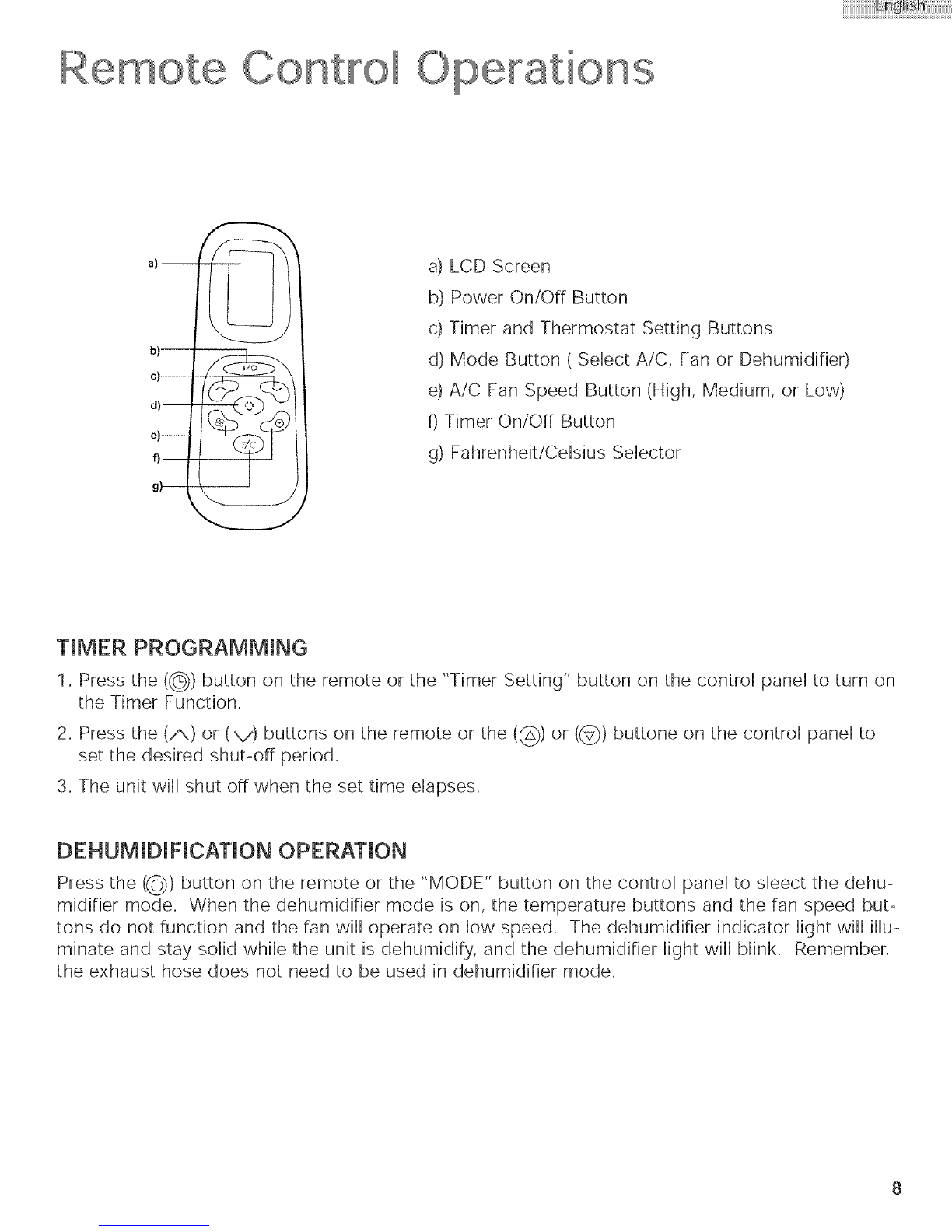

Remote Cont I ODe tions
b)
c)
d)
e)--
f)
g} ..... J
a) LCD Screen
b) Power On/Off Button
c) Timer and Thermostat Setting Buttons
d) Mode Button ( Select A!C, Fan or Dehumidifier)
e) A/C Fan Speed Button (High, Medium, or Low)
t) Timer On/Off Button
g) Fahrenheit!Celsius Selector
TIMER PROGRAMMING
1. Press the ((_) button on the remote or the "Timer Setting" button on the controU pand to turn on
the Timer Function.
2. Press the (/X) or (V} buttons on the remote or the ((_) or ((_) buttone on the control panel to
set the desired shutoff period.
3. The unit will shut off when the set time elapses.
DEHUMiDIFiCATiON OPERATION
Press the ((_) button on the remote or the "MODE" button on the control panel to sleect the dehu
midifier mode. When the dehumidifier mode is on, the temperature buttons and the fan speed but
tons do not function and the fan will operate on low speed. The dehumidifier indicator light will illu-
minate and stay solid while the unit is dehumidify, and the dehumidifier light will blink. Remember,
the exhaust hose does not need to be used in dehumidifier mode.

S

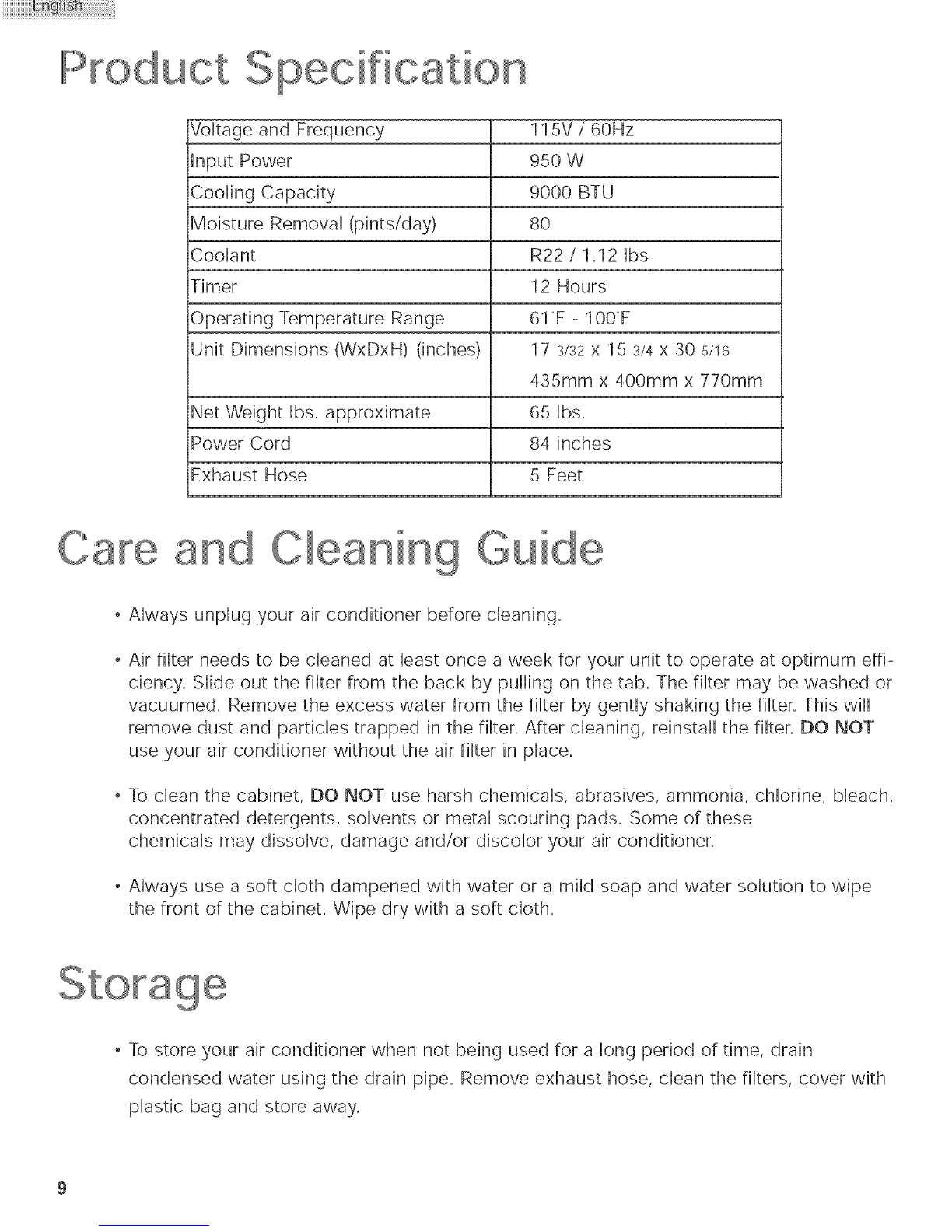

Voltage and Frequency 115V /60Hz
Input Power 950 W
Cooling Capacity 9000 BTU
Moisture Removal (pints/day) 80
Coolant R22 /1.12 Ibs
Timer 12 Hours
Operating Temperature Range 61°F 100°F
Unit Dimensions (WxDxH) (inches) 17 3/32 x 15 s/4 x 30 5/16
435mm x 400mm x 770mm
Net Weight Ibs. approximate 65 Ibs.
Power Cord 84 inches
Exhaust Hose 5 Feet
Care and Cleaning Guide
, Always unplug your air conditioner before cleaning.
Air filter needs to be cleaned at bast once a week for your unit to operate at optimum effi
ciency. Slide out the filter from the back by pulling on the tab. The filter may be washed or
vacuumed. Remove the excess water from the filter by gently shaking the filter. This will
remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT
use your air conditioner without the air filter in place.
, To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach,
concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
, Always use a soft cloth dampened with water or a mild soap and water solution to wipe
the front of the cabinet. Wipe dry with a soft cloth.
, To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover with
plastic bag and store away.
