Product SPecificationS
PTAC
PACkAged TerminAl Air CondiTioner
And HeAT PumP

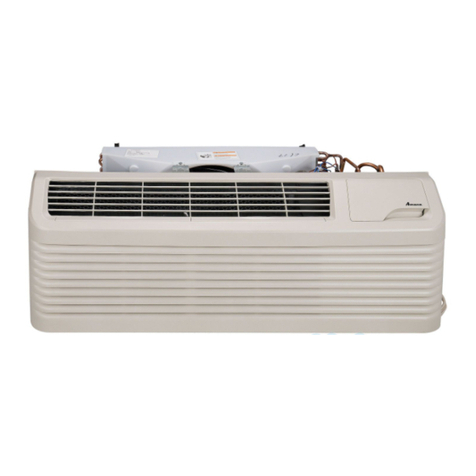

Our new PTAC is the quietest PTAC we’ve ever built! No
other unit in the industry oers so many extras already
built inas standard on every unit. Don’tsettle foranything
less than the Amana® brand Standard Advantage!
Features
• BentCoilDesign maximizes airow through the 25%-increased
primary and secondary coil surfaces, further cooling the re-
frigerant and maximizing the sealed system life. This design
also maximizes the fan slinger ring, adding side surface for
condensate evaporation and reduced condensate overow.
• Forward-curved9-BladeCondenserFan moves more air more ef-
ciently and with much less operating sound than fans with
fewer blades.
• RemovableTopCondenserShroud allows easy access to clean con-
denser coil and maintains the unit’s efciency and capacity.
• Pull-outFilterDesign allows easy access to clean or replace the
lter. The slide-out design also allows you to use many op-
tional approved lter media, such as our Activated Charcoal
Filter Kit (CFK01B).
• ElectronicTemperatureLimiter in the DigiSmart™ PTAC allows you
to effortlessly select any of the four pre-programmed room
temperature ranges by simply ipping an easily accessible set
of switches. Save energy and money by avoiding the extreme
temperature settings that can occur with guest operation.
• DeepBasePan&Sub-cooler holds additional condensate water
and allows more of the coil surface to be immersed in
condensate water, which further cools the refrigerant and
maximizes heat transfer. The new sub-cooler design is in
the deepened base pan and adds additional heat transfer.
• NEW Stonewood Room Front offers distinctive contours and a
modern appearance to enhance the character of even the
most luxurious room, while the sleek 7⅜” depth — one of
the shallowest in the industry — maximizes usable space
for your guests.
• NEWStonewoodWallSleeve has been dramatically strengthened
for more rigidity. The sleeve’s base pan is now made of
drawn steel, so the sleeve has no breakable corner seams
that can potentially leak if improperly installed. (This item
purchased separately.)
50 Hz
240/200 Volt

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 3
2 www.goodmanmfg.com SS-PTAC50
• EnergyEfciencies:Our units’ high efciencies can qualify you for many of the rebates offered by electrical
power companies. EERs up to 11.6 and COPs up to 3.3 keep energy consumption to a minimum.
• QuietOperation:Our PTAC has been redesigned to be the quietest PTAC we’ve ever built. The unit’s state-of-
the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-lled
nights. Operating sound levels are further dampened when the unit is in “low fan” mode of operation.
• IncreasedDehumidicationCapacity:Maintain lower humidity levels in rooms while cooling them without the
need for expensive add-ons. As a result, guests feel more comfortable at higher temperatures, thus reduc-
ing cooling costs, and increasing the life of your furniture, wall coverings, and xtures is extended, which
means fewer replacement costs.
• CondensateDispersionSystem:Our condensate dispersion system removes condensate from indoor cooling op-
eration by throwing water directly on to the outdoor “bent” coil for rapid evaporation and increased cool-
ing efciencies. The slinger ring on the new, enhanced 9-bladed fan draws water up and into fan blades.
This water is then atomized and evaporated into the atmosphere through the condenser. Increased sur-
face area from the unique “bent” coil design allow more water to be evaporated on the sides of the coils
and helps to minimize condensate run-off.
• FreezeProtection:When the unit senses temperatures of 40°F or below, the unit activates the fan motor and
either the electric resistance heater or the hydronic heater. This may help prevent bursting water pipes or
broken xtures caused by freezing temperatures.
• Easy-to-useControls:No complex controls to confuse your guests and create phone calls for your manager.
Controls are easy to read, understand, and activate.
• 7⅜”UnitFront:Enhance valuable room space with our slim unit front, which has a sleek 7⅜” depth, one of
the shallowest silhouettes in the industry today. In addition, to inhibit guest-tampering, the front can be
secured to the chassis with a hidden screw.
• VersatileStyle:Our unit’s stylish design and neutral color make it compatible with virtually any room décor
or architectural design. The unit becomes less noticeable as it blends into the room’s color scheme.
• EasytoServiceandLEDDiagnostics:The main components are easily serviced and there is no guessing to deter-
mine the problem with our easy-to-read diagnostics. For example: two blinks indicate a blown or missing
fuse while one blink every 5 seconds means the board is operating correctly. This diagnostic light is visible
by removing the front cover.
• StonewoodRoomFront:Our Stonewood room front strikes the balance between attractive styling and practical
design. Distinctive contours and a modern appearance enhance the character of even the most luxurious
room, while the sleek 7⅜” depth maximizes usable space for your guests.
• RemoteThermostatControl:The DigiSmart wireless remote thermostat is unique in the industry. When this
optional accessory is set up, both the remote thermostat and unit control panel continue to control the
unit, providing exibility and home-like system control. Installation requires no more than pressing two
buttons. No need to run wires or make electrical connections. In addition, a wired remote thermostat is
available (RTS02).
• RemoteTemperatureSensing:Guests enjoy ultimate comfort with consistent climate control. When the eld-
installed thermistor (RTS02) is used, the unit-mounted thermostat is overridden to allow more accurate,
internal wall-sensing of room ambient temperature.
STAndArd feATureS

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 3
2 www.goodmanmfg.com SS-PTAC50
• ExtendedHeatPumpHeating:Heat pump models will operate in the heating mode down to as low as 24°F out-
door ambient, providing additional hours of energy-saving operation.
• ZeroFloorClearance:Theunit can be installed ush to a nished oor, if desired. (Some accessories do not have
zero clearance).
• 30-SecondFan-OffDelay:Thefan continues to run 30 seconds after the compressor has stopped in either cooling
or heat pump mode and after electric heat has been turned off. This improves efciency by dispersing the
conditioned air on the coils into the room.
• CompressorLock-In:This feature helps prolong the life of the compressor by preventing short-cycling. When
the compressor is switched from Off to On because room temperature has risen or fallen below the speci-
ed limit, it will remain on for at least 4 minutes. If the temperature set-point is changed during this 4
minutes, the lock-in feature is overridden.
• AutomaticEmergencyHeat:No more “my unit is not heating” complaints during the middle of the night. Heat
pump units will automatically switch over to electric resistance heat if the heat pump compressor system
fails or if the heating load is greater than the unit capacity.
• FanModeSwitch:Take advantage of each unit’s dual options — select continuous fan operation or cycle the
fan ON and OFF with the thermostat.
• ReducedOutdoorSoundTransmission:With our STC (Sound Transmission Coefcient) rating of 27, we keep out-
door sounds out of doors. By installing the optional STC 30 Rating Accessory Kit, ratings can be increased
to STC 30, thereby meeting or exceeding most ratings requirements. (Kit ordered separately.)
• HiddenVentilationControl:The ventilation control lever is hidden from the occupant's view to allow you to
manage ventilation requirements.
oPTionAl ACCeSSory
WallSleeve(14⅛”x42”x161/16”):No more worries about changing out non-standard sleeves that do not accommodate
the bulk of what the industry has to offer. Our wall sleeve is an industry-standard size of 14⅛” deep x 42” wide x
161/16” high. (Please Note: Wall Sleeve must be ordered separately.)
STAndArd feATureS (ConT.)

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 5
4 www.goodmanmfg.com SS-PTAC50
nomenClATure
PT C 09 5 A 35 A *
1,2 3 4,5 6 7 8,9 10 11
Product Category Engineering
PT Package Terminal MDigiSmart Unit
(230 / 208v or 265v only)
Unit Type N Premium DigiSmart w/ LED
CAir Conditioner (230 / 208v or 265v only)
HHeat Pump
Special Features
Nominal Cooling Capacity A Standard Model
07 7,000 BTU/h BPower Vent
09 9,000 BTU/h CSeacoast Model
12 12,000 BTU/h DCondensate Disposal Pump
15 15,000 BTU/h FHydronic w/Power Vent & Door
GHydronic w/Power Door
Electrical H Hydronic w/Manual Door
2115v, 60 Hz JPower Door
3230/208v, 60 Hz, 1 Phase KCondensate Pump w/ Power Vent
4265v, 60 Hz, 1 Phase LCondensate Pump w/ Power Door
5240/220v, 50 Hz, 1 Phase Y230/208-volt Fuse Holder
Major Design Series Heater Sizes
0.0 kW 35 3.5 kW (230/208v)
1.5 kW 3.7 kW (265v)
2.5 kW 50 5.0 kW
00
15
25

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 5
4 www.goodmanmfg.com SS-PTAC50
PTC SPeCifiCATionS — Cooling/eleCTriC HeAT
Model description
cooling cycle data
BtU/hWatts eer aMps
PTC105B30AM Cooling w/ electric heat 10,000 / 9,900 910 / 900 11.0 / 11.0 3.6 / 3.8
PTC125B30AM Cooling w/ electric heat 12,000 / 11,800 1,250 / 1,230 9.6 / 9.6 5.0 / 5.2
PTH105B30AM Heat Pump w/ aux. Elec. Heat 9,900 / 9,700 900 / 880 11.0 / 11.0 3.6 / 3.8
PTH125B30AM Heat Pump w/ aux. Elec. Heat 11,800 / 11,600 1,250 / 1,230 9.6 / 9.6 5.0 / 5.2
Cooling dATA
reverSe CyCle HeAT PumP HeATing dATA
Model description
reverse cycle
BtU/hWatts c. o. p.
PTH105B30AM Heat Pump w/ aux. Elec. Heat 9,900 / 9,700 850 / 830 3.4 / 3.4
PTH125B30AM Heat Pump w/ aux. Elec. Heat 11,700 / 11,500 1,180 / 1,160 2.9 / 2.9
eleCTriC HeAT dATA
Model description
electric heat
BtU/hWatts aMps
PTC105B30AM Cooling w/ electric heat 10,200 / 8,500 3,100 / 2,600 13.1 / 12.0
PTC125B30AM Cooling w/ electric heat 10,200 / 8,500 3,100 / 2,600 13.1 / 12.0
PTH105B30AM Heat Pump w/ aux. Elec. Heat 10,200 / 8,500 3,100 / 2,600 13.1 / 12.0
PTH125B30AM Heat Pump w/ aux. Elec. Heat 10,200 / 8,500 3,100 / 2,600 13.1 / 12.0
notes:
• Important: Maximum overcurrent circuit protection MUST be based on the electric heat data for all units.
• PTC and PTH 10 units are based from Domestic 265-volt, 12,000 BTU/h units.
• PTC and PTH 12 units are based from Domestic 265-volt, 15,000 BTU/h units.
• All units can be available with seacoast protection.
• Important: Never operate any unit in ambient conditions above 115° F.

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 7
6 www.goodmanmfg.com SS-PTAC50
PTAC ACCeSSorieS
WAll Sleeve 14⅛” (d) x42” (W) x161/16” (H)
Our insulated, Stonewood Beige metal sleeves with industry-
standard dimensions are shipped with a weather board for
use during construction. The WS900D is an industry-standard
depth of 14⅛”. The extra-deep sleeves can be custom-ordered
starting at16”to24”(D)in1”increments.Sleevesmaybeshipped
separately to allow for installation during construction.
WS900D Standard 14⅛” D
WS9**D1 Extra Deep
(16” to 24”)
42"
16
1
/
16
"
14⅛"
ouTdoor grilleS
Available in stamped-aluminum or architecturally louvered
for application with a WS900D wall sleeve.
AGK—Extruded aluminum architectural grille available with
anodized aluminum nish and a baked-on paint nish for
durability. Choose from three stock colors or a custom color:
CB (Clear Anodized), DB (Dark Brown/Bronze), TB
(Stonewood Beige), WB (White), SB (Special/Custom Colors)
PGK—One-piece injection molded grille using a polymer
blend of engineered thermoplastic high-impact strength
material with chemical resistance and an exterior UV
protective coating.
Choose from three stock colors:
DB (Dark Brown/Bronze), TB (Stonewood Beige), WB (White)
StandardOutdoorGrille
SGK01B Single Pack
ArchitecturalGrille
AGK01*B Single Pack
PGK01*B Single Pack
CondenSATe drAin kiT
Attaches to the wall sleeve base pan for controlled internal or
external disposal of condensate.
DK900D: Condensate Drain
Kit (use with WS900D)
DK9001D: Condensate Drain
Kit (use with WS900B and
extra-deep wall sleeves)
Wire HArneSS kiT (noT SHoWn)
For quick connections of the remote thermostat or front desk
with jumpers and connectors.
PWHK01C
Wire Harness Kit
DK900D
remoTe eSCuTCHeon kiT (noT SHoWn)
Optional kit for use with units controlled via a wired, remote
thermostat. Covers control touch-pad for wired thermostat
installations.
REK10B
Remote Escutcheon Kit
(10 pack)
Each kit contains 80 wires and wire nuts,
enough to attach a thermostat and one
additional accessory to 10 PTAC units.
Wires come in assorted colors for easy
attachment.
Sub-bASe kiT
The fully skirted sub-base conceals wiring while providing
strong support, if needed. Plug-in receptacle and eld-wiring
access speeds installation. Electrical accessories, such as fuse
holders, circuit breakers, and disconnect switches meet NEC
requirements.
PTSB320E 230/208V 15/20A
PTSB330E 230/208V 30A
PTSB420E 265V 15/20A
PTSB430E 265V 25A
PTSB000E Non-electrical
Skirting Skirting
Leveling Legs
Optional
Fuse Holder
Location
Optional
Power Switch and Circuit Breaker
Location
Power Receptacle
Subbase Box Assembly
HArd-Wire kiT (noT SHoWn)
Used to permanently wire to the chassis when a standard
sub-base and power cord are not used.
PTPWHWK4 Hard-Wire Kit
PoWer diSConneCT SWiTCH (noT SHoWn)
The PSHW**A power-disconnect switch can be used for 265-
volt or 230/208-volt physical disconnect, where required by
local codes. The switch is rated at a 30-amp capacity and for
use with Amana®brand standard sub-bases or PTPWHWK4
Hard-Wire Kits.
PSHW03A 230/208V
PSHW04A 265V

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 7
6 www.goodmanmfg.com SS-PTAC50
THermoSTATS
The following thermostats
oer remote control ease. Any
thermostat other than those
listed must be submitted to
Goodman Company, LP, for
approval prior to use.
Model Heat
Stages Cool Stages Display Type Shape&Orientation
* PTC Models Only
** PTC and PTH Models
C5200609 1* 1Mechanical Manual Round
D9945801 2** 1Mechanical Manual Rectangular/Horizontal
1246005/6 1* 1Mechanical Manual Rectangle/Vertical or Horizontal
1246001 1* 1Digital Manual Rectangular/Horizontal
1246003 2** 1Digital Manual Rectangular/Horizontal
1246004 2** 1Digital Program Rectangular/Horizontal
1241501 2** 1Digital Auto Change Rectangular/Vertical
PTAC ACCeSSorieS (ConT.)
fuSe Holder kiT
Cartridge-style fuses can be installed in the fuse holder for
use in the sub-base or chassis. Available in 15-, 20-, and 30-
amp sizes. (included on 265-volt unit).
FHK315C 230/208V 15A
FHK320C 230/208V 20A
FHK330C 230/208V 30A
CirCuiT breAker kiT (230/208v only)
The circuit breaker kit, available in 15-, 20-, or 30-amp
sizes, can be used with Amana®brand sub-bases. It gives
overcurrent protection, and its location allows you to turn
the unit on or o without tools.
CBK3**C
Circuit Breaker Kit
duCT exTenSion kiT
Extends air distribution to an adjoining room. Consists of a
main duct for the room of origin and an extension duct to
reach the adjoining room and terminal duct. PTDK01A allows
for the new B Series unit to work with the A Series duct kits.
MDK02B Main Duct
EDK02B Extension Duct
TDK02 Terminal Duct
PTDK01A Transition Duct Only
See below.
TRANSITION BAFFLES
Main Duct Kit
Extension Duct Kit
Terminal Duct Kit
PoWer venT kiT (noT SHoWn)
Installation of Power Vent increases CFM up to approximately
95. Vent door will automatically close when unit fan is o.
PVK3A 230/208V
PVK4A 265V
PoWer door kiT (noT SHoWn)
Vent door will automatically open when unit fan is on.
PDK3A 230/208V
PDK4A 265V
CondenSer bAffle kiT
For use on non-baed grilles. These deectors direct the
air toward the center and away from the inlet to prevent
recirculation of the hot condenser air.
DGK1B
Condenser Bae Kit
Basepan
Condenser
Condenser Baffles

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 9
8 www.goodmanmfg.com SS-PTAC50
PTAC ACCeSSorieS (ConT.)
STC 30-rATing ACCeSSory kiT (noT SHoWn)
Raises sound ratings from 27 to 30 to meet or exceed most sound test requirements. STC101A 10 Pack
HeATer kiT—for HeATer-leSS uniTS only (noT SHoWn)
Optional 1.5 kW heater kits are available for use only
with models originally shipped without electric heat. Ask
salesperson for details.
ModelNominalBTUs 230V 208V 265V
Rated Watts All 1,500 1,200 1,500
Full Load Amps
(incl. fan)
7K & 9K 6.9 6.2 6.1
12K & 15K 7.1 6.4 6.3
Min. Ampacity 7K & 9K 8.6 8.6 7.5
12K & 15K 8.8 8.8 7.7
Fuse Size All 15 15 15
Sub-bASe exTenSion Cover kiT
Converts older 30-amp sub-bases to allow for installation of the larger 30-amp LCDI power
cord and plugs.
SBEC10A 10 Pack
CondenSATe removAl PumP (noT SHoWn)
Can be eld-installed. Assists in removing condensate developed by heat pump operation
and transfers it to indoor coil to dissipate into room while adding humidity to the room.
CDP302 230/208V
CDP402 265V
SeCuriTy key loCkS (noT SHoWn)
In conjunction with the tamper-resistant front, the installation of Amana®brand security
key locks prevents tampering of the controls used to set temperature, heating and cooling
functions. UL approved for institutional use only.
KL03B Security Key Lock
rePlACemenT SPAre filTerS (noT SHoWn)
Helps keep dirt and lint out of the air and off the coil, thus increasing the unit's efficiency.
Amana®brand filters are easy to remove, wash, and replace.
FK10A Filters (10-pack) - A Series
FK10B Filters (10-pack) - B Series
rePlACemenT CHArCoAl filTer kiT (noT SHoWn)
Absorbs airborne odors caused by cigarette, pipe, or cigar smoke and odors caused by
mold, mildew, etc. Filters are made of polyester fibers coated with activated charcoal and
are individually wrapped. These permanent filters can be washed or cleaned and reused.
Call your Amana®brand PTAC salesperson for details.
CFK10A Charcoal Filters - A Series
(10-pack)
CFK10B Charcoal Filters - B Series
(10-pack)
HydroniC HeAT kiT
Add-on kits t all units allowing the addition of hydronic water or hydronic steam heat to
cooling and heating units. The kits feature left- or right-hand piping. Unit retains complete
service access with a kit installed. Unit must be connected to and operated by a wall
thermostat.
HWK03 Hydronic Water Kit
HVK03 Hydronic Steam Kit
Unit Controls
Compartment
Hydronic Air
Discharge
5-1/2" PTAC UNIT WALL SLEEVE
3-1/4"
1-7/8"
3-1/4"
1-7/8"
2-3/4"
2 places
15/32"
2 places
Hydronic Heat Kit-Top View
4-1/8" Hydronic Front
3"
Wall Sleeve
Top of Wall Sleeve
Bottom of Wall Sleeve
Toe Plate
0" - 3.0" Long
10-13/16"
+1/8"
-0"
Hydronic Heat Kit-Side View
Hydronic Air
Inlet
8-1/4"
20-3/16"
2-1/8"
53"
Steam/Water
Coil Position
Hot Water Inlet / Outlet Connections
Steam Inlet / Outlet Connection
Hot Water Inlet / Outlet Connections
Steam Inlet / Outlet Connections
16-3/4"
Outlet Connection
Steam Inlet
Hydronic Heat Kit-Right View
HydroniC vAlveS (noT SHoWn)
Water and steam valves are available for use with the HWK03
(water) and HVK03 (steam) heat kits. (See Architects and
Engineers Manual for specications.)
VS2WNCA* Two-Way / 24-V / NC / Steam
VS2WNOA* Two-Way / 24-V / NO / Steam
VW2WNCA* Two-Way / 24-V / NC / End Switch
VW2WNOA* Two-Way / 24-V / NO / End Switch
VW3WNC2B* Three-Way / 24-V / NC / NO / End
Switch
* Pop-top Actuator
HydroniC TrAnSformer relAy kiT (noT SHoWn)
Add-on kit that allows eld conversion of a standard PTC unit to a hydronic unit.
HTK3A 230/208V
HTK4A 265V

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 9
8 www.goodmanmfg.com SS-PTAC50
digiSmArT™ ACCeSSorieS
dd01A — digidoor: WireleSS rf oCCuPAnCy SenSor
The DigiDoor is a combination door switch and room motion sensor powered by 2 AAA batteries that are included in the kit.
Once wirelessly linked to an Amana® brand DigiSmart™ PTAC, the DigiDoor monitors room occupancy and automatically activates the Energy Management
System (EMS) temperature set-back function.
You can further rene your EMS programming by conguring the DigiSmart with up to 100,000 EMS set-back combinations, either through the DigiSmart
touch-pad or wirelessly through the optional DigiTenna DT01A and DP01A Gateway.
The DigiTenna (DT01A) is required for the DigiDoor to communicate to the DigiSmart PTAC
dP01A — digiPlATform: Web-enAbled PlATform ConTroller
The DigiPlatform uses standard 115-volt power and communicates by antennae to each Amana® brand DigiSmart ™ PTAC with a DigiTenna (DT01A) on an
encrypted 2.4 GHz signal using the 802.15 Zigbee standard.
All DigiSmart™ suite of peripherals linked to a DigiSmart™ PTAC can be monitored, controlled, and upgraded easily through the DigiPlatform wireless RF
network.
Because it is Web-enabled, all DigiPlatform functions can be accessed through the Amana® brand Hotel Link software contained in the DigiPlatform.
The DigiPlatform has several other software applications embedded in the device that allow optional connectivity to a property management system to
monitor room rental status. Optional drivers and/or software are required.
Being BACnet- and LAN-compliant allows the DigiPlatform to integrate with almost every property controller available in the industry today. The DigiPlat-
form allows operational monitoring of each PTAC and peripheral device. Additional optional software may be required.
DigiPlatform can use a 120-volt or 240-volt power source; may require a power cord.
dS01A — digiSTAT” rf WireleSS remoTe-mounTed THermoSTAT
The DigiStat is a remote wall-mounted thermostat that can control the Amana® brand DigiSmart™ PTAC from anywhere in the room. It is powered by 2 AAA
batteries that are included in the kit.
The DigiStat communicates on a two-way RF encrypted signal. Settings can be changed either at the DigiStat or on the PTAC at the DigiSmart touch-pad.
Settings are automatically relayed to the other device within moments.
A DigiTenna (DT01A) is required for the DigiStat to communicate with the DigiSmart PTAC.
dSuk01b — digiSmArT ConTrol boArd uPgrAde kiT
Any Amana® brand Series A or Series B PTAC produced since 1996 can be upgraded with a DigiSmart™ control board.
The DSUK01B is a eld-installation kit to convert an older ‘knob control’ Amana® brand PTAC to the new DigiSmart™ LED control.
The converted Amana® brand PTAC has the same energy management system as a DigiSmart™ PTAC and can connect to the DigiSmart™ suite of peripheral
devices.
dT01A — digiTennA: WireleSS rf gATeWAy TrAnSCeiver AnTennA
The DigiTenna mounts inside the Amana® brand DigiSmart PTAC, hidden from sight. It is powered through PTAC and requires no
batteries. It is required for any of the DigiSuite RF wireless devices to communicate with the Amana® brand DigiSmart PTAC.
The DigiTenna communicates to any of the Amana DigiSmart suite of devices via an encrypted 2.4 Ghz signal using the 802.15 Zigbee standard. Some
Amana® brand DigiSmart PTACs may require upgrades to the latest DigiSmart software to allow RF devices to be linked to the control.
For use with: DD01A and DS01A, both required parts of package
remoTe energy mAnAgemenT SySTemS (emS) reAdy
An 18-pin low-voltage connector links the unit to many wired energy management systems (EMS). The control board has low-voltage terminals for a wired
room motion sensor, a door switch, or a remote-mounted thermostat. Two serial communication ports also allow for future communications capability to
many other types of Amana-approved wireless RF peripheral devices.
remoTe THermoSTAT reAdy
The unit has an 18-pin connector with seven dedicated low-voltage terminals for easy connection to a wide variety of remote wired thermostats. The unit’s
off-board 20-va transformer has enough power to supply energy to most commercially available thermostats. Also, the unit can be congured to be used
with either a “B” or an “O” terminal, further increasing the types of thermostats that can be connected to the unit.

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 11
10 www.goodmanmfg.com SS-PTAC50
uniT WiTH ACCeSSory WAll Sleeve And Sub-bASe ACCeSSory
11-3/8"
40°
21-1/2"
1 -3 /8"
13/16"
14-1/8"
4"
2-3/4"
15°
7-3/8"
1/2" O.D.
COPPER
DRAIN TUBE
AIR DISCHARGE GRILLE IS
REVERSIBLE TO PROVIDE EITHER
15° OR 40° DISCHARGE ANGLE
HINGED
CONTROL
DOOR
OPTIONAL
SUBBASE
13/16"
7/8"
STAMPED GRILLE
1-3/8"
ARCH GRILLE
WALL SLEEVE
16-1/16"
rigHT vieW
3 "
1"
1"
6-1/8" 9 - 9 / 16" 24 - 5 / 16"
40"
42"
Location of external drain holes
on bottom flange of Wall Sleeve
3" Clearance
to side walls
Air
Flow
Air
Flow
Air
Flow
Air Discharge Grille
Control
Door
ToP vieW
58" CORD SET 230V/208V UNIT*
18" CORD SET 265V UNIT*
3-1/4"
MIN
2"
MAX
2-5/8"
42"
16-1/16"
R IGHT
LEFT
1" AND 3/4" CONCENTRIC KNOCKOUTS BACK
& BOTTOM OF SUBBASE (ELECTRICAL ONLY)
fronT vieW
58” LCDI CORD SET 230V/208V UNIT*

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com 11
10 www.goodmanmfg.com SS-PTAC50
Mounting
Holes
(Drilled by
Installer)
Plastic
Anchor
Screws
Expansion
Anchor Bolt
Toggle Bolt
Wood Screw
Alternative
Fastening Method
(Field Supplied)
frAming for ACCeSSory WAll Sleeve (WS900d)
FASTENINGWALLSLEEVE
When installed in an opening, the Wall Sleeve must be horizontally level (side-to-side) and pitched ¼bubble to the outside. (NOTE:
To ensure unit’s maximum efciency,DONOT over- or under-pitch.)
FINISHED FLOOR
42 1/4"
16 1/4"
MIN
MAIN STUD
JACK STUDS
HEADER - 4" x 4" OR
DOUBLE 2"x 4" ON EDGE
SUB-FLOOR
CRIPPLE
JACK STUD
ADJUST FRAMING TO
SECURE THIS DIMENSION
Wall Sleeve must extend
a minimum of ¼” beyond
outside wall to allow for
proper caulking.
WallSleeveOpeningHeight
ShouldBeSquaredwith
WallSleeveOpeningWidth
H = 16¼"
W = 42¼"
INSTALLATIONNOTES
1. If Sub-base (PTSB***E) is installed, allow minimum 3¼” height
clearance and maximum 5” height clearance between wall
sleeve and oor; allow minimum 2¾” protrusion from a
nished wall. See Note 4 if using hydronic units.
2. Drain Kit (DK900D) shipped separately. Can be mounted
either right side, left side or bottom of sleeve. If mounted
to bottom of sleeve, allow 2” height clearance from oor
to bottom of sleeve.
3. For UL approval, 265V units must use Amana® brand Sub-
base(PTSB***E) or Amana® brand HardWireKit (PTPWHWK4).
Overcurrent protection on 265V units must be by cartridge-
style time delay fuses, whichareincludedandfactory-installedon
theAmana®brand265Vchassis.
4. If HydronicKit(HWK03 or HVK03) is installed, WallSleevemust
extend exactly 3" into the room from the nished interior
wall. If using the Amana® brand Sub-base (PTSB***E), only
the minimum 3¼” height clearance between wall sleeve
and oor is permissible.
5.If DuctKit (MDK02B) is installed, allow a minimum of 2⅜”
into the room from the nished interior wall.
PowerReceptacleConguration
277VRatingPowerCordPlugs
NEMA7Conguration
G
W
20 amp
G
W
30amp
250VRatingPowerCordPlugswithLCDIDevice
NEMA6Conguration
PowerCordPlugs
15 amp 20 amp
30amp
All units come with factory-installed power cords.
All units less than 250 volts come with LCDI device.
NEMA6-30R; 250V receptacle,
used on 230/208V units
G
NEMA7-30R; 277V receptacle,
used on 265V units
G
NEMA6-15R; 250V receptacle,
used on 230/208V units
G
NEMA6-20R; 250V receptacle,
used on 230/208V units
G
W
NEMA7-20R; 277V receptacle,
used on 265V units
G
NEMA6-30R; 250V receptacle,
used on 230/208V units
G
NEMA7-30R; 277V receptacle,
used on 265V units
G
NEMA6-15R; 250V receptacle,
used on 230/208V units
G
NEMA6-20R; 250V receptacle,
used on 230/208V units
G
W
NEMA7-20R; 277V receptacle,
used on 265V units
G

P roduCT S PeCifiCATionS P roduCT S PeCifiCATionS
SS-PTAC50 www.goodmanmfg.com PB
12 www.goodmanmfg.com SS-PTAC50
Amana
®
is a trademark of Maytag Corporation and used under license to Goodman Company, L.P. All rights reserved. Our continuing commitment to quality products
may mean a change in specications without notice. Copyright © 2012 • Goodman Company, L.P. • Houston, Texas • Printed in the USA.
Maintaining the unit’s eciency while saving time and money is easy. The lter is easily accessed for
cleaning or replacement without removing the unit front.
Step 1: Open the intake grille louver. Step 2: Pull the lter up and out.
Pull-ouT eASy ACCeSS filTer
