Amino US/Asia Standard Remotes User manual

The Amino US/Asia Remote
Version 2
December 3rd 2003
Amino Communications
Amino Communications Ltd
Amino Remote Controls
User Guide for
US/Asia Standard Remotes

The Amino US/Asia Remote
Page 2
1Overview....................................................................................................................................3
2Batteries ....................................................................................................................................4
3Remote Modes ..........................................................................................................................6
4TV Control .................................................................................................................................7
4.1 TV Brand Codes.................................................................................................................9
5STB Control.............................................................................................................................10
6Remote Brand Codes..............................................................................................................12

The Amino US/Asia Remote
Page 3
1 Overview

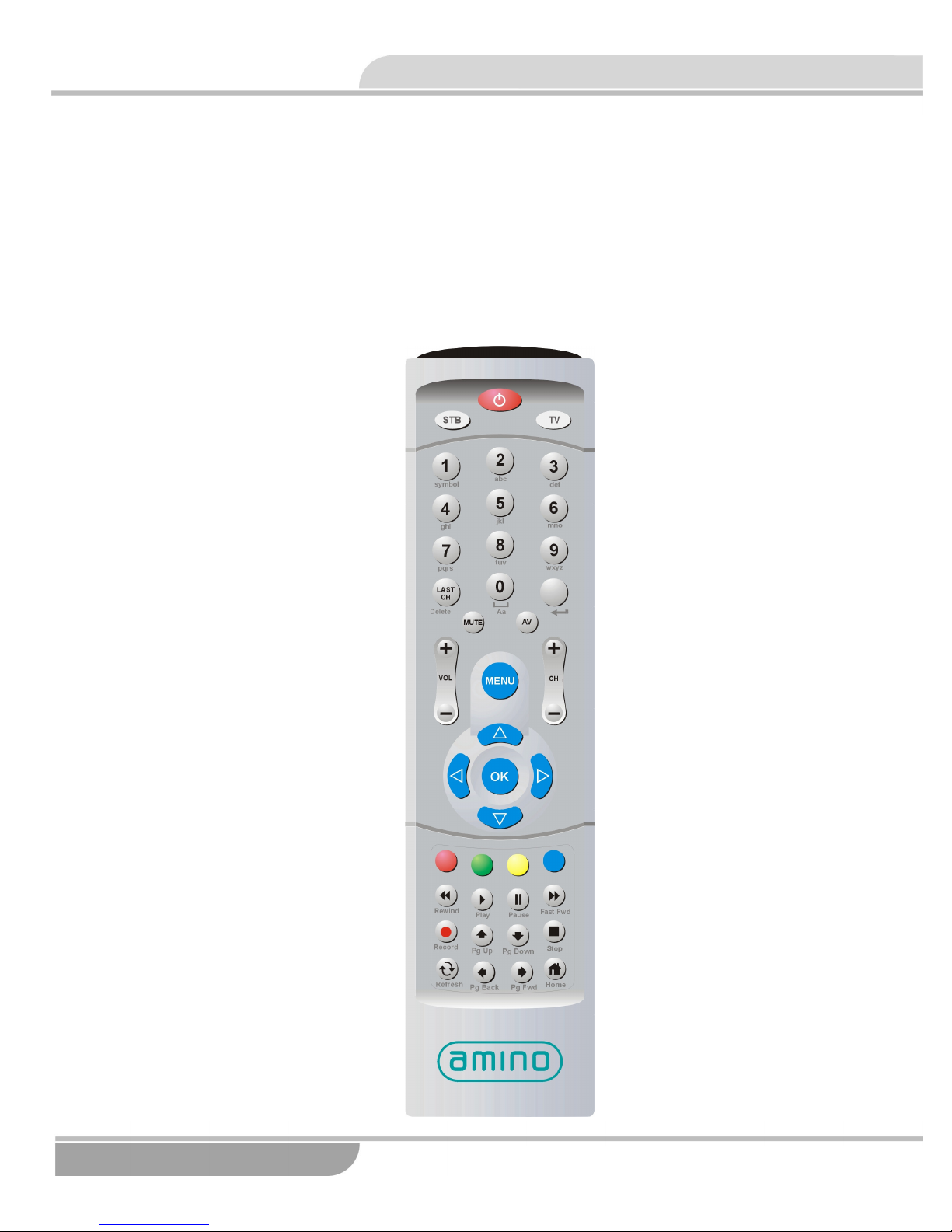

The Amino remote control is designed to complement the Amino range of
Set-Top Boxes in terms of style, quality and functionality.
The remote is universal; capable of controlling the basic functions of the
television as well as the Amino Set-Top-Box.

The Amino US/Asia Remote
Page 4
2 Batteries
The remote takes 3 batteries, type AAA, MN2400, UM-4 or LR03.
Alkaline batteries should be used for best performance.
The battery cover is removed by pushing lightly on the recess and sliding
the cover downwards.
The batteries must be inserted in the correct direction.
The battery cover is replaced by sliding the cover upwards until it snaps into
place.

The Amino US/Asia Remote
Page 5
Note
To prevent children from opening the battery compartment, it is
possible to secure the battery compartment cover by use of the screw
provided:
• Remove the battery cover and, using a 0pt Posidrive™
screwdriver, remove the silver screw that is now visible at the
base of the remote control.
• Fit the batteries and replace the battery compartment cover.
• Now re-
fit the screw at the base of the cover.
Do not over-tighten the screw!

The Amino US/Asia Remote
Page 6
3 Remote Modes
The remote control operates in one of two modes, either STB mode or TV
mode.
The mode is selected by pressing the TV or STB mode-select
button at the top of the remote. When pressed, the TV or STB mode–select
buttons illuminate for 1 second to indicate that the mode has been set.
When any function button on the remote is pressed, the TV or STB button
will light to indicate that a command is being transmitted in that mode.
If a button has no valid function in that mode, neither the TV nor STB mode
buttons will light.

The Amino US/Asia Remote
Page 7
4 TV Control
In TV mode, the remote can control the following TV functions:

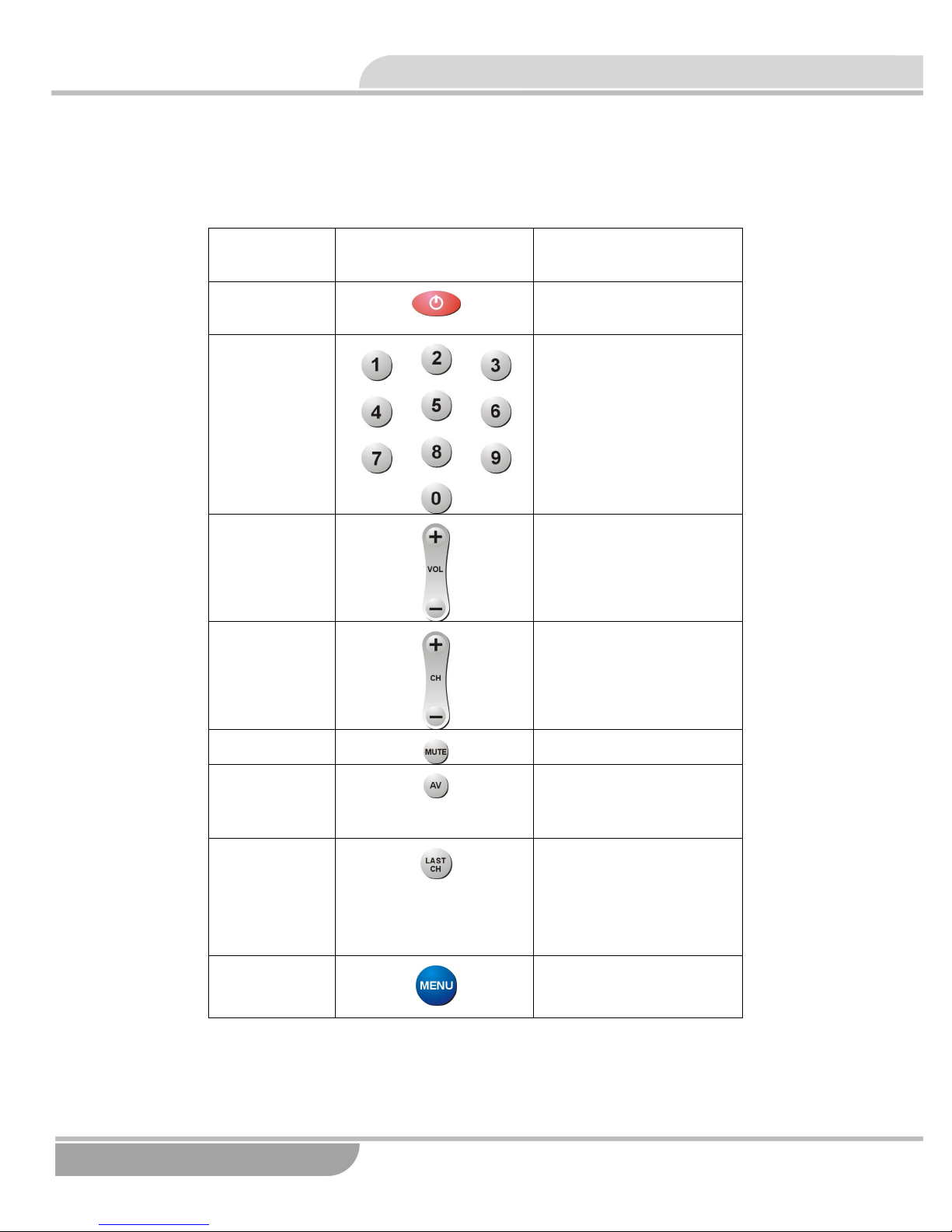

TV Function Default Button
Symbol Description
Power Toggles the TV power.
(Note 1)
Direct
channel
number entry
Allows direct entry of
TV channel numbers
Volume
up/down
TV volume up and
volume down
Channel
up/down
TV channel up and
channel down
Mute TV mute/un-mute
AV Cycles the TV through
the available AV inputs
(Note 2)
Last Channel
Toggles the TV
between the last
displayed TV channel
and the current TV
channel (Note 3)
Menu Displays the TV Menu
(Note 4)

The Amino US/Asia Remote
Page 8
Navigation &
OK
Navigate the TV menu
(Note 4)
Note 1. All TVs will power off with this button. Some TVs will switch on
when the power button is next pressed and other TVs will only power on
when a channel button or channel +/- is pressed.
Note 2. Some TV’s will cycle through available AV inputs using the Channel
+/- button. Other TVs only use the AV button to access the AV inputs.
Note 3. Not all TVs support this function.
Note 4. Some TVs use the menu, navigation and OK buttons to access
settings that are not commonly changed (Closed-caption display, for
example) Not all TVs support this function.

The Amino US/Asia Remote
Page 9
4.1 TV Brand Codes
In order for the remote to transmit the correct signals to control the TV, the
remote must be programmed with a 3-digit code corresponding to the type
of TV in use.
This is done in the following way:
• Identify the make of the TV that is in use. E.g. Sony, Magnavox etc.
• Find the TV make listed in the branding table in Appendix A.
• Simultaneously press and hold the TV and OK buttons on the
remote.
• After approximately 2 seconds, the TV button will light.
• Release the TV and OK buttons – the TV button remains illuminated.
• Now enter the 3-digit brand code according to the make of the TV
that is being controlled.
• As each of the digits are entered, the TV button will briefly flash off
and on again
• When the third digit has been entered, the TV button will go out.
• If a TV brand code has been entered that the remote does not
recognize, the TV button will flash rapidly for a second and remain
illuminated. If this happens, re-enter the correct TV brand code.
• Verify that the remote control works with the TV.
Most TV makes have more than one brand code listed in the brand code
table – if this is the case try all brand codes that are listed for that make until
a suitable match is found.
If no brand code is listed for the TV, try brand codes for Philips and NEC
TVs.

The Amino US/Asia Remote
Page 10
5 STB Control
In STB mode, the remote can control the following STB functions:
STB Function Default Button
Symbol Description
Power Toggles the STB
power.
Direct
channel
number entry
Allows direct entry of
STB channel numbers
Also function as text
entry buttons when
web-browsing. (Note 1)
Volume
up/down
TV Volume up and
volume down (Note 2)
Channel
up/down
STB Channel up and
channel down
Mute Toggles TV mute
(Note 2)
AV Cycles the TV through
the available AV inputs
(Note 2)
Delete Deletes a single
character, left of the
current cursor position,
in text entry boxes
Enter Acts as a return key
when entering text.
(Same function as OK
button)

The Amino US/Asia Remote
Page 11

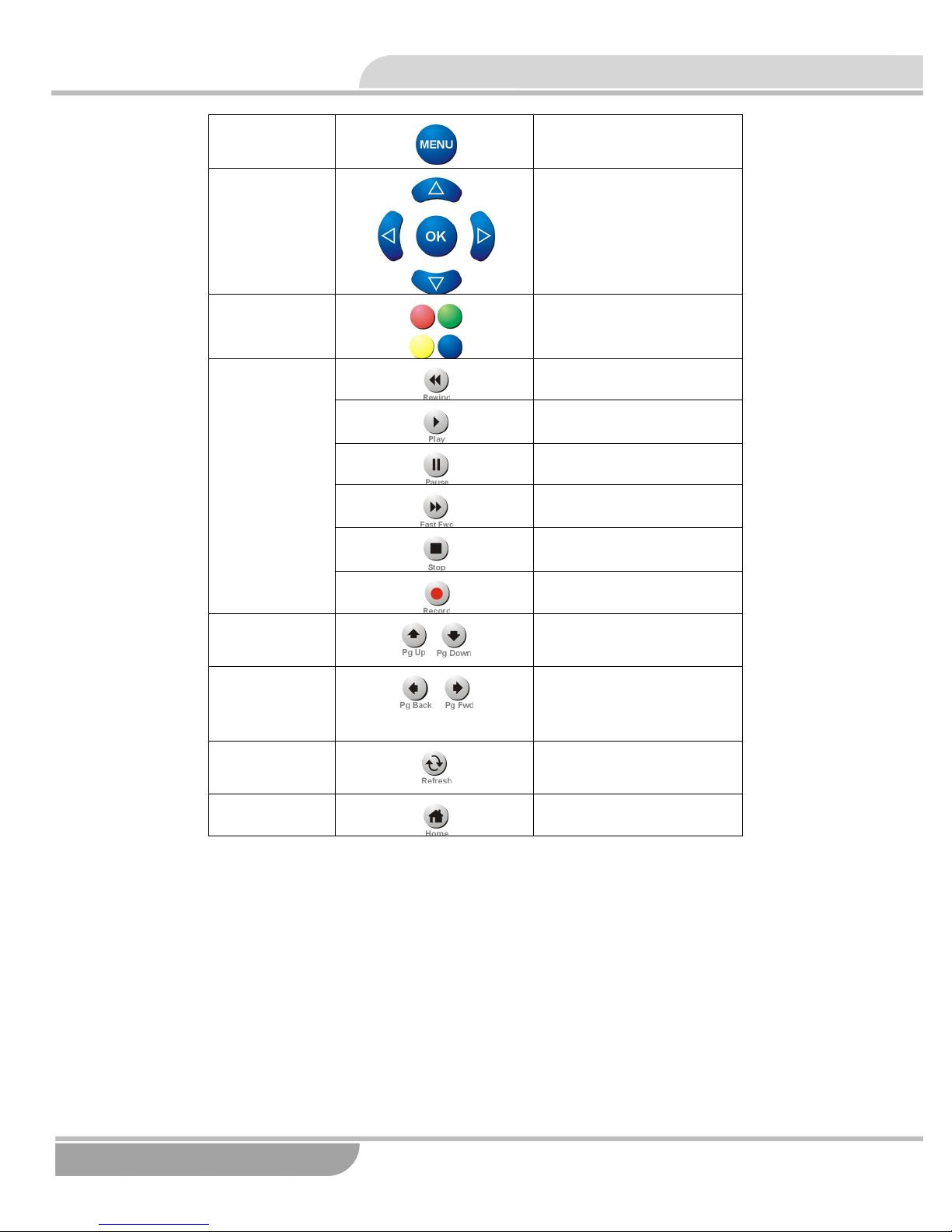

Menu Displays the main
menu
Navigation &
OK
Navigate the menus
and web pages.
Navigation Coloured navigation
buttons
Rewind the movie
Play the movie
Pause the movie
Fast Forward the movie
Stop the movie
Video Control
Record the movie
Page Control
Scroll up and down the
current page
View the previous page
or the next page (if
already visited)
Refresh (reload) the
current page
Jump to home page
Note 1. Text entry may not be supported by your Set-Top-Box.
Note 2. These buttons control the TV functions in both TV mode and STB
mode.

The Amino US/Asia Remote
Page 12
6 TV Brand Codes
Version 0.1 October 24th 2003
A TANDY
094
ABEX
115
ADMIRA
114, 127, 200
ADVENTURA
113
AI
KO 105,112, 197
AIWA
148
ALARON
109, 217
AKAI
033, 110, 111, 157
ALBA
043
ALLERON
109
AMBASSADOR
108
AMERICA
105
AMPRO
234
AMSTRAD
048, 108
ANAM
025, 104, 105, 106, 107
ANAM NATIONAL
104, 214
AOC
036, 041, 102, 103, 111, 116
ARCHER
116
AUDIOS
ONIC 100
AUDIOVOX
105, 116, 197, 199
BAUER 044
BAUR 100
BAYSONIC 105
BEIJING 151, 155, 156
BELCOR 036, 103, 157
BELL & HOWELL 038, 098, 099
BEON 100
BRADFORD 105
BROCKWOOD 036, 103
BROKSONIC 083, 116, 200
BUSH 100
CANDLE 035, 036, 041, 096, 097, 111, 113, 215
CAPEHART 102
CARNIVALE 041, 157

The Amino US/Asia Remote
Page 13
CARVER 010, 163, 213
CATHAY 100
CELEBRITY 095, 195, 232
CENTURION 041
CHANGHONG 154, 155, 156, 162
CINERAL 105, 197, 199
CITIZEN 035, 036, 041, 092, 093, 094, 096, 097, 105, 111,
112, 113, 149, 197, 215
CLAIRTONE 101
CLARIVOX 100
CONCERTO 035, 097, 215
CONROWA 175
CONTEC 090, 091, 101, 105
CORANDO 094
CRAIG 025, 105
CROSLEY 163, 213
CROWN 094, 105
CURTIS MATHES 016, 036, 038, 041, 055, 069, 075, 093, 094, 098,
111, 114, 127, 149, 163, 196, 198, 212, 213, 215 ,
219, 228, 229, 231, 233
CXC 105
DAEWOO 029, 030, 033, 036, 072, 094, 100, 103, 105, 112,
119, 153, 157, 158, 159, 160, 199, 197
DANSAI 100
DAYTRON 036, 094, 103
DENON 069
DECCA 027, 100
DIXI 033, 100, 107
DUMONT 001, 036, 089, 103
DWIN 076
DYNATECH 088
ELECTROBAND 095, 101, 195, 232
ELECTROHOME 094
ELECTRON 094
ELIN 100
ELTA 033
EMERSON 000, 002, 006, 007, 008, 009, 011, 036, 038, 041,
081, 082, 083, 084, 085, 086, 087, 090, 092, 094,
098, 101, 103, 105, 108, 109, 200, 217
ENVISION 036, 041, 111

The Amino US/Asia Remote
Page 14
ERRES 100
ETRON 033
FERGUSON 100
FINLUX 100
FISHER 017, 038, 080, 098
FORMENTI 044
FORMONTI 100
FORTRESS 114
FUJITSU 109, 217, 224
FUNAI 048, 105, 109, 141, 150, 152, 217
FUTURETECH 105
GE 013, 016, 020, 036, 041, 075, 076, 077, 078, 079,
081, 086, 104, 114, 127, 196, 199, 212, 214, 228,
229, 231, 233
GEC 027, 100
GEMINI 039
GENEXXA 043
GIBRALTER 089, 103, 111
GOODMANS/TASHIKO 027, 066, 100
GRADIENTE 028, 065, 157, 215
GRANADA 100
GRUNDIG 178, 179, 180, 181, 182, 183, 184, 185, 186, 187,
188
GUNPY 105, 109, 217
H/K 072
HALLMARK 036, 041, 086
HANSEATIC 100
HARLEY Davidson 109, 217
Harman/Kardon 163, 213
HARVARD 105, 106
HINARI 100, 109
HITACHI 018, 035, 067, 068, 069, 070, 071, 087, 094, 097,
135, 215
HYPSON 100
IMA 105
INDIANA 100
INFINITY 163, 213
INFINITY REFERENCE 010
INTERFUNK 100
INTEQ 001, 089

The Amino US/Asia Remote
Page 15
ITT 061
JANEIL 113
JBL 010, 163, 213
JCB 095, 195, 232
JENSEN 031
JINXING 153, 154, 155, 156, 157, 162, 163, 164, 165, 169,
173
JVC 026, 028, 064, 065, 066, 084
KAWASHO 090
KAYPANI 102
KEC 105
KENWOOD 036, 041, 103, 111
KLOSS 063, 072, 113
KONKA 221, 222, 225, 226
KTV 041, 092, 094, 101, 105, 111
LEYCO 100
LG(GOLDSTAR) 003, 012, 035, 036, 041, 073, 074, 086, 094, 097,
100, 103, 111, 115, 215
LIESENK & TTER 100
LLOYTRON 094
LOEWE 100
LOGIK 099, 177
LUXMAN 035, 097, 215
LXI 010, 036, 038, 041, 062, 076, 086, 098, 163, 196,
213, 228, 233
MAGNAVOX
010, 034, 039, 040, 041, 042, 058, 059, 060, 061,
063, 066, 096, 111, 163, 213, 217, 218, 230
MAJESTIC
099
MARANTZ
010, 022, 036, 041, 100, 111, 213
MARK
100
MATSUSHITA
019
MATSUI
027, 033, 100
MEDIATOR
100
MEGATRON
036, 041, 069, 086, 116
MEI
101
M
-ELECTRONIC 100
MEMOREX
022, 033, 036, 038, 041, 057, 086, 097, 098, 099,
177, 215, 217
METZ
179, 183, 189, 190, 191, 192, 193, 194

The Amino US/Asia Remote
Page 16
MGA
022, 036, 056, 041, 057, 086, 103, 111
MIDLAND
001, 019, 075, 076, 089, 094, 115, 200, 212, 228,
233
M
-ELECTRONIC 075, 089, 196
MINUTZ
079
MITSUBISHI
022, 032, 036, 056, 057, 066, 079, 086, 103, 110,
114, 138
MONTGOMERY
109
MOTOROLA
022, 041, 104, 114, 127, 157, 214
MTC
035, 036, 041, 088, 093, 097, 101, 103, 111, 149,
215
MULTITECH
088, 105, 127
NAD
036, 055, 062, 086, 105
NEC
024, 035, 036, 041, 066, 097, 103, 105, 111, 132,
171, 215
NECKERM
ANN 100
NEI
100
NIKKAI
027, 043, 100, 115
NIKKO
036, 041, 086, 105, 111, 112, 197
NOSHI
053
NOVABEAM
072
NTC
105, 112, 157
ONWA 041, 105, 157, 197
OPTIMUS 038, 055, 105
OPTONICA 019, 054, 098, 114, 198
ORION 083, 100, 127, 217
OSAKI 027, 115
OTTO VERSAND 100
PANASONIC 010, 019, 025, 075, 083, 104, 109, 131, 137, 143,
200, 212, 214
PANDA 154, 172
PENNY
016, 019, 036, 041, 052, 053, 062, 073, 075, 076,
078, 079, 086, 093, 094, 103, 104, 111, 115, 116,
212, 215, 228, 231, 233
PEONY 156, 162
PHILCO 036, 041, 058, 059, 060, 061, 062, 063, 069, 075,
079, 096, 103, 111, 149, 157, 196, 213
PHILIPS 010, 040, 069, 100, 157, 163, 200, 213
PHONOLA 100
PILOT 010, 036, 041, 094, 103, 111, 163
PIONEER 051, 055, 087, 157, 223

The Amino US/Asia Remote
Page 17
PORTLAND 036, 094, 103, 105, 112, 198
PRICECLUB 093
PRINCETON 227
PRISM 075, 157, 197, 212
PROSCAN 075, 076, 228, 233
PROTECH 100
PROTON 036, 050, 086, 094, 102, 116, 196, 219
PULSAR 001, 036, 041, 089
PULSER 103
QUASAR 025, 075, 089, 104, 157, 212, 214
QUELLE 100
RADIO SHACK 036, 041, 038, 054, 075, 094, 103, 105, 112, 115,
127, 157, 196, 215, 228, 233
RADIOLA 100
RCA 005, 014, 015, 018, 019, 036, 041, 049, 053, 075,
076, 077, 087, 103, 114, 212, 216, 223, 228, 229,
233, 231, 235, 236, 237
REALISTIC 036, 038, 041, 054, 086, 094, 097, 098, 103, 105,
111, 115, 157, 196, 215
RHAPSODY 101
R-LINE 100
RUNCO 001, 041, 089, 098, 105, 111, 157, 220
SAISHO 033, 108
SAMPO 036, 041, 094, 102, 105, 111, 115
SAMSUNG 033, 034, 035, 036, 041, 086, 093, 094, 097, 100,
103, 111, 115, 149, 215
SAMSUX 094
SANSEI 199
SANSUI 200
SANYO 017, 023, 027, 038, 066, 080, 091, 098, 123, 125,
126, 202, 203, 204, 205, 206, 207, 208, 209, 210,
211
SBR 100
SCHEIDER 100
SCIMITSU 036, 103, 157
SCOTCH 036, 041, 086
SCOTT 036, 041, 083, 086, 094, 103, 105, 109, 217
SEARS 010, 016, 017, 035, 036, 038, 041, 048, 052, 062,
076, 080, 086, 097, 098, 109, 141, 163, 196, 213,
215, 217, 228, 233
SEMIVOX 105
SEMP 062

The Amino US/Asia Remote
Page 18
SHANGHAI 156, 168
SHARP 046, 047, 054, 066, 091, 091, 111, 114, 127
SHOGUN 036, 103, 157
SIGNATURE 099, 177
SIMPSON 058, 096, 218
SOLAVOX 115
SONOKO 100
SONTEC 100
SONY 037, 045, 066, 084, 095, 128, 144, 195, 232
SOUNDESIGN 036, 041, 086, 096, 105, 109, 217
SOUNDWAVE 100
SPECTRICON 116
SQUAREVIEW 048, 141
SSS 036, 089, 103, 105, 157
STAR-LITE 105
SUPREM 095, 195, 232
SUPRE-MACY 113
SURPA 035, 097
SYLVANIA 010, 036, 041, 044, 058, 059, 060, 061, 063, 096,
111, 157, 163, 213
SYMPHONIC 048, 141
SYSLINE 100
TANDY 027, 043, 114, 127
TATUNG 027, 088, 100, 104, 116, 214
TCL 156, 163, 170
TECHNOL ACE 109, 217
TECHNICS 019, 075, 212
TECHWOOD 035, 075, 097, 157, 212, 215
TEKNIKA 010, 022, 035, 036, 057, 093, 094, 096, 097, 099,
103, 105, 109, 112, 113, 157, 163, 177, 197, 213,
215, 217
TELEFUNKEN 157, 215
TELETECH 033
TERA 050
THAKRAL 167
THORM 100
TMK 035, 036, 041, 086, 097, 108, 215
TNCI 001

The Amino US/Asia Remote
Page 19
TOSHIBA 038, 052, 062, 066, 093, 098, 130, 149
TOSONIC 101
TOTEVISION 094
TRICAL 091
UNIVERSAL 078, 079
UNIVERSUM 100
VECTOR RESEARCH
036, 041, 111
VESTEL
100
VICTO
R028, 065
VIDEO CONCEPT
110
VIDIKRON
010, 021, 163, 213
VIDTECH
036, 041, 086, 103
VIKING
113
WARDS
010, 036, 041, 045, 054, 058, 059, 060, 061, 077,
078, 079, 086, 097, 099, 103, 109, 111, 177, 213,
215, 217
WATSON
100
WHITE Westinghouse
200
XOGEGO 161, 162, 166, 174, 176
YAMAHA 036, 041, 103, 111
YOKO 100
ZENITH 001, 004, 089, 099, 105, 177, 197, 200
ZONDA 116
120, 121, 122
124, 127
129
133
134, 136, 141, 145
140, 142
146
149
14M01
134, 136, 141, 145

The Amino US/Asia Remote
Page 20
14M02
146
14M10
147
20M01
134, 136, 141, 145
20M02
134, 136, 141, 145
20M03
132
25M010
147
D25AV10
147
