Amroad DP101R User manual

AMROAD DP101R

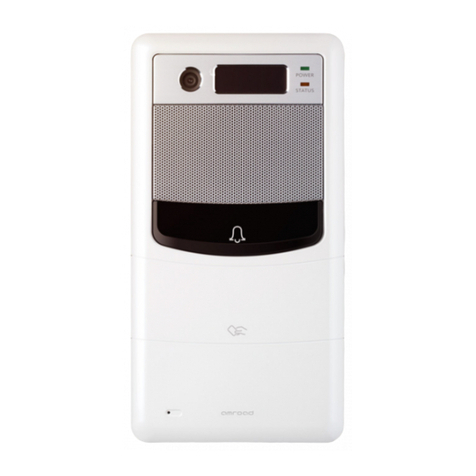

DOOR STATION
~
Installation Manual

AMROAD DP101R
Contents
Contents.......................................... i
Package Contents ............................1
The Size of Main Unit ...................... 2
Rear Side......................................... 3
Reset Button............................................. 3
Installing Procedures ......................4
Back Plate ................................................. 4
Wire and Cable Connection ..................... 5
Screw Main Unit ....................................... 6
IO Application ................................ 7
Electric Bolt .............................................. 8
Electric Bolt and Open Button................. 9
Electric Strike...........................................10
Electric Strike and Open Button ..............11
Lighting condition Function.................... 12
Contents
i

AMROAD DP101R
Package Contents
1. Front Panel x1
2. Main Unit x1
3. Back Plate x1
4. Screw M4 -L10 x4
5. L-shaped screw driver for security screws x1
6. Water Stopper x4
7. Screw for Earth Wire x1
8. Wall mounted screw pack (Self tapping
screws TP3-L16 x4、Wall plugs x4)
9. Terminal Connector x1
10. H type Terminal Connector for Power Wire
x1
11. Extraction Tool x1
12. Relay x1
Package Contents
1

AMROAD DP101R
The Size of Main Unit
The Size of Main Unit
2

AMROAD DP101R
Rear Side
Reset Button
1. The device will be switched to the static IP
mode and reboot itself when the user has
pressed the reset button for 3 seconds. IP is
"192.168.0.50".
2. When the button has been pressed for
more than 6 seconds, the device will be
back to the factory setting and reboot
itself.
3. If press for more than 6 seconds, system
will clean Master RFID Card, Configuration,
and Number Entry Screen data。Network
default is DHCP mode.
Rear Side
3

AMROAD DP101R
Installing Procedures
Back Plate
1. Make sure that is able to let the AC wires,
Ethernet cable, and Earth Wire pass
through the hole. The bottom of standard
wall box is height 138cm from the floor.
2. Sets up Back Plate in accordance with the
figure above.
3. Use Wall Mounted Screw Pack to fix Back
Plate on the wall.
4. Connect the ground wire to the Back Plate.
Remember to tighten the screws on both
sides. In order to prevent power surge and
lighting strike from damaging the device,
the Back Plate should be connected to the
earth wire of the building.
Installing Procedures
Back Plate
4

AMROAD DP101R
Wire and Cable Connection
1. Connect Ethernet Cable. (RJ-45 Connector).
2. Connect the AC wire of DP101R to H-type
power connector. Please be careful when
you are connecting, be sure to check the AC
condition before you start to connect the
wires.
3. Please screw the earth cable to the “Wall
Mounting Box.”
Installing Procedures
Wire and Cable Connection
5

AMROAD DP101R
Install Main Unit
1. After connecting the wires and cables
properly, then screw the 4 screws (M4 -L10)
and water stoppers that come with the
package into the front panel.
2. Make sure Main Unit is attached on the wall
for waterproof.
3. Put back front cover.
4. Apply Silicon Glue around the Main Unit if
required to strengthen waterproof ability.
5. Please double check all installation
procedures again, then you may power on
the general power switch to start the
configuration procedures.
Installing Procedures
Install
Main Unit
6

AMROAD DP101R
IO Application
Electric Lock
The DP101R can connect with various electric
locks, including Electric Strikes, Electric Bolts
and Electromagnetic locks.
Wiring Connection and Web Page Setup
There are two types of electric door lock
applications as below. One is Electric Strike,
and the other is Electric Bolt. For more electric
locks, please follow the same method for
connection.
IO Application
7

AMROAD DP101R
Electric Bolt
The Electric Bolt is closed when +12 V is
supplied.
The Electric Bolt is opened when +12V is
not supplied.
IO Application
Electric Bolt
8

AMROAD DP101R
Electric Bolt and Open Button
The Electric Bolt is closed when +12 V is
supplied.
The Electric Bolt is opened when +12V is
not supplied.
IO Application
Electric Bolt
9

AMROAD DP101R
Electric Strike
The Electric Strike is opened when +12 V is
supplied.
The Electric Strike is closed when +12V is
not supplied.
IO Application
Electric Strike
10

AMROAD DP101R
Electric Strike and Open Button
The Electric Strike is opened when +12 V is
supplied.
The Electric Strike is closed when +12V is
not supplied.
IO Application
陰極鎖
IO Application
Electric Strike
11

AMROAD DP101R
Lighting condition Function
SSR Specification
There are many types of SSR in the market; you
may refer to the following specifications which
are the one we use on above applications.
Model name: SS2415DZ
General Characteristics:
- Normal Open (NO)
- +LED
Input Specifications
- Control Current (Arms)：--
- Control Voltage Range (Vrms)：DC 4-32V
Output Specifications
- Load Current (Arms)：Max 15A
- Load Voltage Range (Vrms)：AC 70-240V
IO Application
Lighting condition Function
12
