Andatech AlcoSense NEXUS User manual

Fuel Cell Breathalyser
Version 1.0. Updated Nov 2020.

Congratulations on buying your new AlcoSense®Nexus breathalyser.
Now, when you are drinking, you can be more aware of your alcohol level before
you get into the car and possibly drive dangerously.
We hope you enjoy owning your AlcoSense®Nexus breathalyser. If you have
any questions regarding the unit or want to speak with us further, please visit
andatech.com.au or call 1300 800 200 (between 9am and 5pm Monday to Friday).
Introduction
Specifications
Indication of %BAC 0.000 - 0.300% BAC
Accuracy ±0.0025%BAC at 0.050%BAC
Warm-up Time 5 seconds ~ 2 minutes
Response Time Within 5 seconds (at 0.050% BAC, 24°C)
Mouthpiece Only compatible with AlcoSense® mouthpieces
Sensor Type Large industrial grade fuel cell sensor
Display Time 10 seconds
Internal Memory 100 tests
Power Supply 2 x AAA alkaline batteries
Weight 82.7g including batteries
Dimensions (mm) 105 high x 51 wide x 17 deep
Calibration
Manufacturer recommended: Every 6 months or 500 tests,
whichever comes first
Australian Standards Requirement: Every 6 months
Ambient Conditions Operations: -5°C - 40°C; Storage: -10°C - 50°C
Additional Features
Auto switch off after 1 minute of inactivity
Calibration reminder after 1000 tests
Supports external microSD card (up to 8GB)
Compatible with iOS and Android (iSOBER / i-SOBER mobile
app)

Components
Power/Enter Button
Micro SD Card Slot
Battery Cover
Up Button
Down Button
Groove for
Opening Cover
AAA Batteries
Digital LCD Display
Mouthpiece Slot
Contents: Breathalyser, Hard Case, Mouthpieces(x5),
AAA Batteries(x2), Pouch, and User’s manual
Operating Instructions
1. Press the power button once. (Please note that if you press and hold the power
button, you will be able to check your firmware, last calibration, and the number
of uses since your last calibration. The default pin code is: 0000).
2. Allow the device to warm up until “BLOW” is displayed on the screen.
3. Blow into the device for 4 seconds, or until the beep stops and the device makes
two ‘clicks’. If you stop blowing before the beeping stops, the device will fail to
record your BAC and display “FLOW” on the screen.
4. Your results will show on the device’s screen, and will be visible for 10 seconds.
Note: Readings over 0.300%BAC will be displayed in numerical value on the
mobile app but as ‘OL’ on the device.
5. The device will automatically shut down after 4 minutes of inactivity.
1 2 3 4

To check total
usage count:
To set the date:
To check date
and time:
C: Number of tests since the last calibration
F: Number of tests with alcohol detected
S: Total number of tests taken on the device

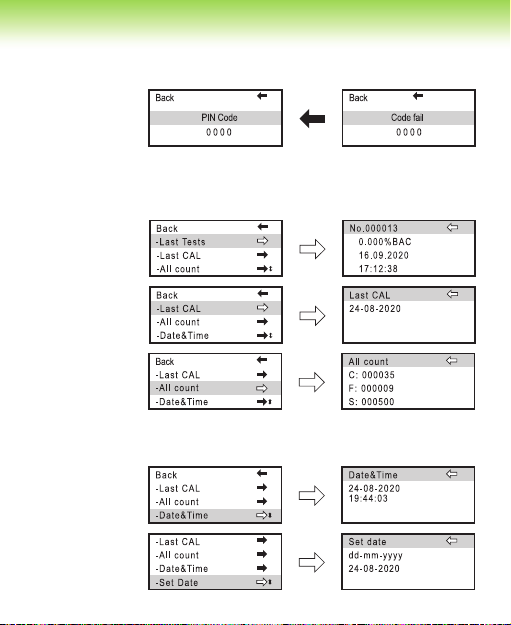

User Mode
Enter the pin code using the Enter button to confirm, and the
Up and Down buttons to change the numbers.
The pin code is “0000” by default. Please contact Andatech if
you have lost or forgotten the code after changing it.
To check last
calibration date:
To check last
test results:
Remove the battery cover to access the up and down buttons on the back of the device.
Switch on the
device. Press the
“down” button to
enter User Mode.

To set or
change pin code:
To set the time:
Operating Instructions (App)
1. Download the iSOBER / i-SOBER app onto your mobile phone and log in. Then,
switch on or enable Bluetooth connectivity on your mobile phone.
Note: Please log in with an account (Facebook or Google) to start saving test
results and to view past test results. Test results history is not available when
logging in as a guest.
2. Switch on the Nexus device. “APP” will appear on the display screen.
3. Press the “Device List” button on the mobile phone app and select your Nexus
device to connect (e.g. SENTECH_XXXXXX).
4. Once the device is connected, press the “TEST” button on the mobile app to take
a test. The device will start initialising.
5. Follow the mobile app’s step-by-step instructions to take and complete a test.
Note: By default, ‘camera mode’ is enabled on the mobile app and you will be

How to remove the battery cover
1. Locate the groove, which is located on the
back of your device.
2. Slide your finger into the groove, and gently
pull the battery cover off.
3. Please note that you should only use
regular, non-rechargeable, non-heavy duty
alkaline batteries in your device.
The breath sample was not strong enough for a measurement. Please
take another test and provide a strong, steady, continuous blow during the
sampling process. Do not stop blowing until the beep stops and the device
makes two ‘clicks’.
The battery power is low. Please replace the batteries.
If you test over 1,000 tests, the device will display the “CAL” sign for
3 seconds, and then proceed to warm up for testing. Please send the
breathalyser back for calibration.
Pressure error sensor. Please contact us at 1300 800 200.
Sensor error. Please contact us at 1300 800 200.
Out of operation temperature range - please check the ambient temperature
and operating temperature. If the problem still persists, please contact us
at 1300 800 200.
FLOW
Bat
CAL
Err1
Err2
Err3
Warning Display
prompted to take a picture of yourself while taking the test. This may be useful
for self-accountability or verification purposes. You can disable ‘camera mode’
under the mobile app’s ‘Settings’ tab.
6. After the test is completed, the app will display the test results. You can then
add location information, leave comments about the test, or share the results
on your phone via SMS, email, or social media.

Limits
AUSTRALIAN BLOOD ALCOHOL LIMITS: Adult License 0.05% BAC
Some drivers are restricted to lower levels of BAC. Please refer to your local
transport authority for your correct limit. If in any doubt do not drink and drive.
The safest level when driving is none at all. Alcohol impairs your judgement and
can make you drowsy or sleepy.
Disclaimer
PLEASE NOTE:
This product must be used in accordance with the instructions in this manual
and – in particular - must not be allowed to get wet.
This product is intended to provide the user with an indication of alcohol on the
breath. However, neither the manufacturer nor the supplier gives any warranty
(express or implied) that the product can give any indication of blood alcohol
level.
A person’s BAC (Blood Alcohol Concentration) can only be accurately measured
by the administration of a blood test. This product only measures breath alcohol
content which, in turn, only gives an approximately indication of blood alcohol
concentration.
In these circumstances the user of this product should not rely on the
information provided thereby as an accurate indication of his blood alcohol
concentration or of his level of intoxication or of his fitness to drive and in
particular should not take any action in reliance on such information as the
product can provide no more than an indication of alcohol on the breath.
If the user of this product makes any decision or takes any action based on the
use of the product such decision or such action shall be at the sole risk of the
user and neither the manufacturer nor the supplier assumes any responsibility
for such decision or action.
In particular, neither the manufacturer nor the supplier shall be in any way
liable if the user of the product asserts that the product led him to believe that
he was fit to operate a motor vehicle and is subsequently found not to be so fit.
1.
2.
3.
4.
5.
6.

Recalibration & Service
The AlcoSense®Nexus uses a fuel cell sensor to measure breath alcohol levels.
Depending upon the amount of alcohol registered by the sensor after a period of
time, it will require recalibration.
Andatech recommends the AlcoSense®Nexus to be calibrated every 6 months
or after 500 uses, whichever comes first. To maintain it to Australian Standards,
calibration every 6 months is required.
Warnings
a. Allow at least 20 minutes after eating or drinking before testing. Any type of
alcohol remaining in the mouth of saliva may interfere with proper testing
and requires about 20 minutes to disperse. This includes alcohol-based
mouthwash or similar products.
b. Avoid testing in high wind conditions or in poorly ventilated or enclosed spaces.
Poor ventilation may also lengthen the time required for warm up between tests.
c. Do not blow smoke, saliva or other contaminants into the mouthpiece, as the
sensor may become damaged. Wait at least 20 minutes after smoking before
conducting a test.
d. Do not use the breathalyser as a tool to drink and drive.
e. Do not blow fluid into the instrument as it will damage the sensor and void your
warranty.
f. Do not store in an extreme environment where high temperature or high
humidity exists. Keep out of the reach of children.
g. To maintain accuracy, we recommend professional recalibration every 6 months.
h. Blood alcohol concentration can continue to rise for up to 2 hours after the
cessation of drinking. If a caution result or a result is close to the designated
BAC, it is recommended to wait and retest after 20 minutes.
i. It can take 10 hours or more for the alcohol level to return to a zero after a high
blood alcohol level has been reached. A further test should be carried out later
in the day of the following morning.

Warranty Details
It is our aim to provide you with quality products that you can trust. Our products
come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or a refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
The Guarantee
The product is guaranteed to be free from defects in workmanship and parts for
a period of 3 years from date of purchase. Defects that occur within this warranty
period, under normal use and care, will be repaired, replaced or refunded at our
discretion, solely at our option with no charge for parts and labour. The benefits
conferred by this warranty are in addition to all rights and remedies in respect of
the product that the consumer has under the Trade Practices Act and similar state
laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable. Please
keep your purchase docket or receipt as proof of purchase and as proof of date on
which the purchase was made. The purchase docket (or a copy) or receipt must be
presented with the warranty when making a claim under this warranty.
Service during the Warranty Period
To claim for warranty, contact us on 1300 800 200 or support@ andatech.com.au to
get an RA# (Return Authorisation Number). Ensure that the RA# is clearly stated
on the outside of the packaging and that the product is properly packaged so that
no damage occurs to the product during transit. Shipping of the product back to
us for warranty will be at your cost. A product return without the RA# or proof of
purchase will not be accepted.

Extent of Warranty
This warranty is limited to defects in workmanship or parts. All defective products
or parts will be repaired or replaced. This warranty does not cover manuals and
packaging.
Normal Wear and Tear
This warranty does not cover normal wear and tear to the product or parts.
Exclusions
This warranty does not cover:
• Calibration costs.
• Any defect caused by an accident, misuse, abuse, improper operation, lack
of reasonable care, unauthorised modification, loss of parts, tampering or
attempted repair by a person not authorised by the distributor.
• Any product that has been damaged by a lightning strike either directly or
indirectly or a main power surge or liquid ingress.
• The product if it is located outside of Australia.
• Any damage caused by improper power input or improper cable connection.

Product Registration
my.andatech.com.au is a central location where you can register your warranty,
sign up to receive calibration reminders and schedule calibrations. Once you have
registered you can add as many AlcoSense products as needed to that account.
Register online at my.andatech.com.au
Product Registration Form
If you prefer the old fashioned method, complete this form and forward to the
address below along with a copy of your proof of purchase.
Andatech Pty Ltd
PO BOX 3038, Nunawading VIC 3131 Australia.
Product ...........................................................................................................
Serial Number.................................................................................................
Date of Purchase ............................................................................................
Place of Purchase ...........................................................................................
Surname .........................................................................................................
Given Name .....................................................................................................
Address ...........................................................................................................
Suburb .............................................................................................................
Postcode................................State .................................................................
Contact no. ......................................................................................................
Email ...............................................................................................................
AlcoSense®Nexus

Andatech Pty Ltd
www.andatech.com.au
1300 800 200
