Andatech AlcoSense SOBERPOINT 3 User manual

USER’S MANUAL
Andatech®
SOBERPOINT 3
Wall Mounted Breathalyser

2
Thank you for purchasing an Andatech®Soberpoint 3 breathalyser.
The Andatech®Soberpoint 3 is a Fuel Sensor type coin or button-operated
breathalyser. It can help prevent alcohol-related incidents on industrial
sites, in gaming venues, restaurants and bars. The device is easy and
convenient to use, with clear on-screen instructions and indicator lights to
inform users of their BAC level.
We hope you enjoy owning your Andatech®Soberpoint 3 breathalyser. If
you have any questions regarding the unit or want to speak with us further,
please visit andatech.com.au or call 1300 800 200 (between 9am and
5:30pm Monday to Friday).
Components

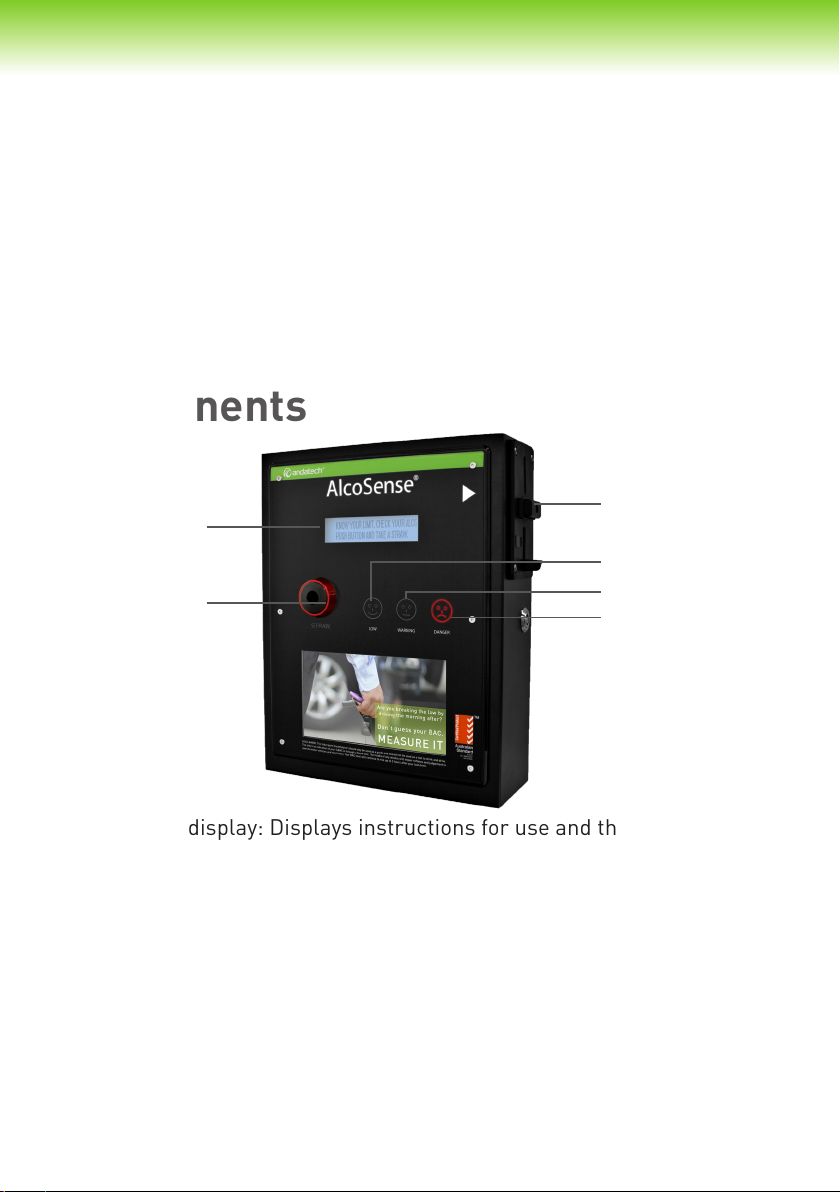

• LCD display: Displays instructions for use and the test results.
• Bulls eye: This is where the user places the straw to blow into the
machine. The sampling time is 3 seconds.
• Coin Slot / Button: Located on the right side of the machine. The
coin slot only accepts the coin denomination specified. Others are
returned.
• Straw outlet (separate / optional): This is where the straws used
to perform the test emerge from the machine.
• Good / Warning / Danger Light: Illuminates depending on the test
result (refer to page 5).
LCD Display
Coin Slot / Button
Good Light
Warning Light
Danger Light
Bulls Eye

3
Specifications
Indication of BAC 0.000 to 0.250 %BAC
Warm up time Within 30 seconds
Response time Within 6 seconds at 0.100 %BAC
Accuracy ±0.005 %BAC at 0.100 %BAC
Ambient conditions Operation: 5 °C to 40 °C
Storage: 5 °C to 50 °C
Sensor Replaceable fuel cell sensor
Display LCD module
Result Reading Good: Less than 0.02%BAC
(0.00~0.20‰ or 0.00~0.10mg/l)
Warning: 0.02 ~ 0.05%BAC
(0.20~0.50‰ or 0.10~0.20mg/l)
Danger: More than 0.05%BAC
(More than 0.50‰ or 00.25mg/l)
Calibration Unlimited tests, every 6 months
Mouthpieces Cylindrical straw
Power supply AC 110 ~ 220, 50/60 Hz, 1.0A input
DC 12V, 3.0A output
Coin mechanism /
button
Specify denomination of single coin /
Push button to activate
Weight 3.5kg (including DC power supply)
Dimensions (mm) 330 (height) x 255 (width) x 90 (thickness)

4
Set up functions
1. Buzzer
You can turn the buzzer sound on or off by using ‘On’ or ‘Off’.
2. Low Pass Level
The default number can be set from 0.000 to 0.040%BAC.
Test results higher than this setting but lower than "High Pass Level"
will trigger the yellow "Warning" indicator.
3. Hi Pass Level
The default number can be set from 0.050 to 0.100%BAC.
Results above this setting will trigger the red "Danger" indicator. This
should normally be set to the legal driving limit.
Connect power cable
1. Open up the back of the machine.
2. Connect the power cable to power inlet located at
the bottom right (see diagram) of the circuit board.
3. Plug in the power cable to a power source and
switch it on. The machine will start up.
To enter the settings menu, at the top right corner of the circuit board,
press the two buttons labelled “SW1” and “SW2” together at the same
time and hold them down for at least four seconds, then release.
You will see the message “To enter the set up mode”
Setting Up
ON OFF
0.000%BAC
Enter Set Up Mode
SW2
SW2 SW2
SW1
SW1+SW2
SW2S W2
SW2
0.040%BAC0.010 ... 0.030%BAC
0.050%BAC
Exit
0.100%BAC0.060 ... 0.090%BAC
SW2S W2
SW1
SW1
SW1
SW2

5
Operating Instructions
The following instructions will be displayed on the LCD screen.
1. KNOW YOUR LIMIT. CHECK YOUR ALCOHOL LEVEL.
WAIT 10 MINUTES AFTER LAST DRINK BEFORE TESTING.
PUSH BUTTON OR INSERT COIN(S), AND TAKE A STRAW.
2. WARMING UP, PLEASE WAIT ...
3. BLOW STEADILY UNTIL TONE ENDS
If you stop blowing before the tone ends or do not blow hard enough throughout
the test, "Flow Error" will be displayed on the LCD screen.
Please wait until "Blow steadily" message is displayed and try again.
4. SAMPLING IS COMPLETED.
"ANALYZING"
5. The test result is displayed.
When the measurement is complete, the blood alcohol concentration result will
appear on the LCD screen. Then the guide will indicate whether or not you can
drive, aided by the face lamp lights. The message for each level is:
Good
Very little of no alcohol has been detected.
Don't drink and drive!
Warning
A moderate amount of alcohol has been detected.
Don't drink and drive!
Danger
A high level of alcohol has been detected.
Don't drink and drive!
1. Blood alcohol concentration can continue to rise for up to 2 hours after the
cessation of drinking.
2. It can take 10 hours or more for the blood alcohol level to return to zero after a
high blood alcohol level has been reached and in such cases, further test should be
carried out later in the day.
3. During testing, any alcohol traces left in your mouth will increase the value of the
blood alcohol concentration level. Remove these traces before testing. Highest
accuracy is achieved 30 minutes after drinking.
4. Cigarette smoke may also increase the blood alcohol concentration value displayed.
Allow one minute after smoking before testing.
Precautions

6
Materials Needed
1. Soberpoint 3 (Not applicable
for Lite versions)
2. Android phone or tablet
a. Normal
Operation
1. Wifi Status LED 2. Mode Control Switches
a. Top LED solid
green
Device is connected
to the internet and
ready to use.
b. Top and bottom
LED solid green
Device is in setup
mode.
Setup Software for Android Phone
1. On your android device, navigate to
resources.andatech.com.au/software/soberlive-setup-app.apk
2. Download and install the setup software to your android device.
b. Setup
Mode
Soberpoint Component Location
3. Setup software for Android phone
4. Wi-fi router with internet
connection
WIFI Setup

7
Setting Wi-Fi Settings
1. Put the Soberpoint in “Setup Mode”
a. Ensure the Soberpoint is unplugged
and powered down
b. Adjust the “Mode Control Switches”
to the setup mode position (see
component location section)
c. Power on the Soberpoint unit
d. Check status LED’s to ensure
Soberpoint is in Setup Mode
2. Connect Android device to the
Soberpoint
a. Open the Android device Wi-Fi
settings menu
b. Locate and select “LimitedAP” from
the list of available Wi-Fi signals
c. Use password “1234567890” to
complete connection.
d. Write Wi-Fi settings to the
Soberpoint
3. Open setup software on the Android
device
a. Press the connect button
b. AP SSID: Enter the SSID of your
Wi-Fi router
c. AP Security: Enter the security
setting of your Wi-Fi router
d. AP Password: Enter the password of
your Wi-Fi router (Case Sensitive)

8
e. If no password is required, check “None”
f. Device ID: Enter your Soberpoint device ID (See sticker inside
Soberpoint)
g. Device Password: Enter your Soberpoint device PW here (See sticker
inside Soberpoint)
h. Verify all entries are correct
i. Press “Write” button
j. Press “Disconnect” button
4. Restore Soberpoint to normal operation
a. Ensure the Soberpoint is unplugged and powered down
b. Adjust the “Mode Control Switches” to the “Normal Operation”
position (see component location section)
c. Power on the Soberpoint unit
d. Check status LED’s to ensure Soberpoint is in “Normal Operation”
Mode
5. Verify operation
a. Take a breath test with the Soberpoint
b. On your computer, log in to your account at my.andatech.com.au
c. In the same browser, go to hub.andatech.com.au/ui/soberlive
d. Click “View Data” next to the Soberpoint you have set up
e. Your previous test will show
f. If the test is not showing up on the list, ensure that you are logged
in with the correct username (the Soberpoint should show up under
your registered products list). If the test still does not show up,
contact Andatech to address the issue.
6. View uploaded results
a. Follow steps b, c and d from "Verify Operation" above.

9
The product software is easy to maintain and can be changed without any
special skills. It will automatically check and adjust the accuracy rate of
measurement.
SW1. Total Count
SW2. Set the coin number
SW3. Testing mode
1. To check the total amount of tests, press SW1 and the display window will
show the test.
Press SW1 for 2 seconds and the count will be reset to 0, automatically
returning to normal operation mode. Wait a few seconds after testing.
2. When you adjust the number of coins for each test, press SW2 for 2
seconds.
The display window will show “set the coin number”, then press SW2
again. It will allow from 0 to 10 coins per test.
Example: If number 2 is entered, two coins are required. The default
number is set to 1.
This should only be changed for mechanical coin acceptors. For digital
multiple coin acceptors, leave coin number at 1 and program price using
coin mechanism.
Maintenance

10
Replace the sensor only with those provided by the manufacturer.
Please refer to the following diagram and instructions for sensor
replacement:
A. Verify existing settings
Enter menu and document current settings
a. Press SW1 and SW2 simultaneously, hold until setup screen displays
b. Press SW1, document buzzer on/off: _____________________________
c. Press SW1, document low pass setting: __________________________
d. Press SW1, document high pass level: ___________________________
B. Replace sensor
Please refer to the diagram below and the Troubleshooting Section (page
14) for replacement issues.
1. Turn the power off. (Very Important!!)
Replacing Sensors
234
5
Disconnect the unit from the power source.
a.
b.
c.
d.
To Enter Set Up Mode
Exit
Low Pass Level
0.010 %BAC
Buzzer
ON
High Pass Level
0.050 %BAC

11
2. Open the rear door of the SoberPoint and unscrew the four screws
holding the sensor board in place
3. Pull out the sensor board above the arrow direction
4. Plug out the connector and exchange the new sensor board
5. Plug in connector, carefully install the sensor board and replace the
four screws
6. Turn on the power and perform a test to check the unit is operational
C. Adjust breathalyser settings
Enter menu and adjust settings
a. Press SW1 and SW2 simultaneously, hold until setup screen displays
b. Press SW1, press SW2 to turn buzzer on or off
c. Press SW1, press SW2 to set low pass level
d. Press SW1, press SW2 to set high pass level
e. Press SW1, then SW2 to exit
ON OFF
0.000%BAC
Enter Set Up Mode
SW2
SW2 SW2
SW1
SW1+SW2
SW2S W2
SW2
0.040%BAC0.010 ... 0.030%BAC
0.050%BAC
Exit
0.100%BAC0.060 ... 0.090%BAC
SW2S W2
SW1
SW1
SW1
SW2

12
1. Flow error
If you stop blowing or you do not breathe strongly enough “Flow Error” will
be displayed on LCD.
Please wait and try again and the machine will return to the waiting mode.
2. Sensor error
A. Check if the alcohol sensor is positioned correctly on the board.
B. If you still have the error message, replace the sensor.
3. Calibration
When the unit is due for calibration it shows, “CALIBRATION IS REQUIRED
shortly” and the unit will shut down within 5 days.
4. Over Limit
Unit has returned a reading in excess of 0.250% BAC.
Warning Display

13
1. The machine is plugged in, but there is no power
a. Ensure you are using the correct power adapter for your region and that the
power adapter is functioning.
b. Make sure that the line attached to the power adapter is connected correctly to
the power socket on the bottom of the machine.
2. The machine does not work after a coin is inserted
a. Make sure you use the correct currency & coin denominations. The machine
will only accept the specified set of coin/s; others will be returned.
b. Select ”Coin number“ using the SW2 button, then ensure the corresponding
coin number set on the display window is correct. As explained above, the
machine will work only if you use the specific type / number of coins.
3. There is no buzzer sound
The option for buzzer sound can be selected. In the set up mode, check the status
of the set up as explained above.
4. The machine does not respond after the user blows into the sampling hole
Check if the display window shows “Sensor error”. If it does, the machine may
have a problem. You need to take the action corresponding to the error number
as previously explained under the “Warning Display” heading.
5. The machine does not return to waiting mode after testing
The results are displayed for about 10 seconds. To go back to the measuring
mode, the alcohol blown into the machine must be eliminated completely.
A higher level of alcohol increases the time required for this elimination to be
completed, normally up to 2 minutes for very high readings. If it does take more
than one minute, the sensor may be malfunctioning. Contact customer service if
this is the case.
6. The machine asks the user to take another test after a test has already been
taken.
The button may have been pushed too many times or too many coins were
inserted into the machine. Turn the machine off and then back on again to return
it to its normal operation.
Troubleshooting

14
Disclaimers
• This product must be used strictly in accordance with the instructions in
this manual.
• This product is intended to provide the user with an indication of alcohol
on the breath. However, neither the manufacturer nor the supplier
gives any warranty (express or implied) that the product can give any
indication of blood alcohol level.
• A person’s BAC (Blood Alcohol Concentration) can only be accurately
measured by the administration of a blood test. This product only
measures breath alcohol content which, in turn, only gives an
approximate indication of blood alcohol concentration.
• In these circumstances the user of this product should not rely on the
information provided thereby as an accurate indication of their blood
alcohol concentration or of their level of intoxication or of their fitness
to drive and in particular should not take any action in reliance on such
information as the product can provide no more than an indication of
alcohol on the breath.
• If the user of this product makes any decision or takes any action based
on the use of the product such decision or such action shall be at the
sole risk of the user and neither the manufacturer nor the supplier
assumes any responsibility for such decision or action.
• In particular, neither the manufacturer nor the supplier shall be in any
way liable if the user of the product asserts that the product led them
to believe they were fit to operate a motor vehicle and are subsequently
found not to be so fit.

15
Measurements & Conditions for Test
• Use a clean straw for each test.
• Do not allow samples containing smoke, tobacco or other chemical
products to enter the unit, as damage to the fuel cell can occur.
• There must be an interval of at least 15 minutes after alcohol
consumption as alcohol residue in the mouth may give a false reading.
Such residue may also be left by aromatic drinks, mouthwash, medicines
and drops, as well as by belching and vomiting. Rinsing your mouth with
water or non-alcoholic drinks does not substitute for an interval.
• A person’s blood alcohol concentration (BAC) can continue to rise for up
to 2 hours after drinking alcohol. If a caution results or a result is close
to the designated BAC, it is recommended to wait and retest after 20
minutes.
• It can take 10 hours or more for a person’s BAC to return to zero after a
high BAC has been reached. A further test should be carried out later in
the day or the following morning.
LIABILITY FOR PROPER FUNCTION OR DAMAGE
The liability for proper functioning of the instrument is
irrevocably transferred to the owner or operator in the event the
instrument is serviced or repaired by personnel not employed
or authorised by Andatech. In such an event, the warranty will
be void.

16
Warranty Details
It is our aim to provide you with quality products that you can trust.
Our products come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement or a
refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major
failure.
The Guarantee
The product is guaranteed to be free from defects in workmanship and
parts for a period of 1 year from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge
for parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer has
under the Trade Practices Act and similar state laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase docket or receipt as proof of purchase and as
proof of date on which the purchase was made. The purchase docket (or a
copy) or receipt must be presented with the warranty when making a claim
under this warranty.
Service during the Warranty Period
To claim for warranty, contact us on 1300 800 200 or send and email to
[email protected]om.au to get an RA# (Return Authorisation Number).
Ensure that the RA# is clearly stated on the outside of the packaging and
that the product is properly packaged so that no damage occurs to the
product during transit. Shipping of the product back to us for warranty will
be at your cost. A product return without the RA# or proof of purchase will
not be accepted.

17
Extent of Warranty
This warranty is limited to defects in workmanship or parts. All defective
products or parts will be repaired or replaced. This warranty does not
cover manuals and packaging.
Normal Wear and Tear
This warranty does not cover normal wear and tear to the product or
parts.
Exclusions
This warranty does not cover:
• Calibration costs.
• Any defect caused by an accident, misuse, abuse, improper operation,
lack of reasonable care, unauthorised modification, loss of parts,
tampering or attempted repair by a person not authorised by the
distributor.
• Any product that has been damaged by a lightning strike either directly
or indirectly or a main power surge or liquid ingress.
• The product if it is located outside of Australia.
• Any damage caused by improper power input or improper cable
connection.

18
WARRANTY
The manufacturer warrants for 1 year from the date
of purchase, the product to be free from defects in
workmanship or material (excluding recalibration) under
normal use. The manufacturer’s obligation under this
warranty is limited to replacing, adjusting or repairing
the unit if returned along with proof of purchase. This
warranty is void if the unit has been tampered with,
damaged or abused in any way.
Visit my.andatech.com.au to register your warranty
online and receive calibration reminders.
CALIBRATION AND SERVICE
Andatech recommends the Andatech® Soberpoint 3 to
be calibrated every 6 months to maintain its accuracy to
Australian Standards AS3547 requirements.
To register your product warranty, receive calibration
reminders and book in a calibration, please go to
my.andatech.com.au or contact:
Andatech
Hotline: [phone]
Website: www.andatech.com.au

19
Set and “forget”
Save costs
Priority calibration
EASY WAY TO MANAGE YOUR CALIBRATIONS
Sign up for a Breathalyser Management
Plan and save time and money each
year. It’s the easiest way to get your
breathalyser calibrated every 6 months,
and saves you the hassle of booking it in
each time.
Go to andatech.com.au/breathalyser-management
or call 1300 800 200 for more information.

1300 800 200 (AU) | [phone] (International)
[email protected]
www.andatech.com.au V2.3. Updated Feb 2020.
