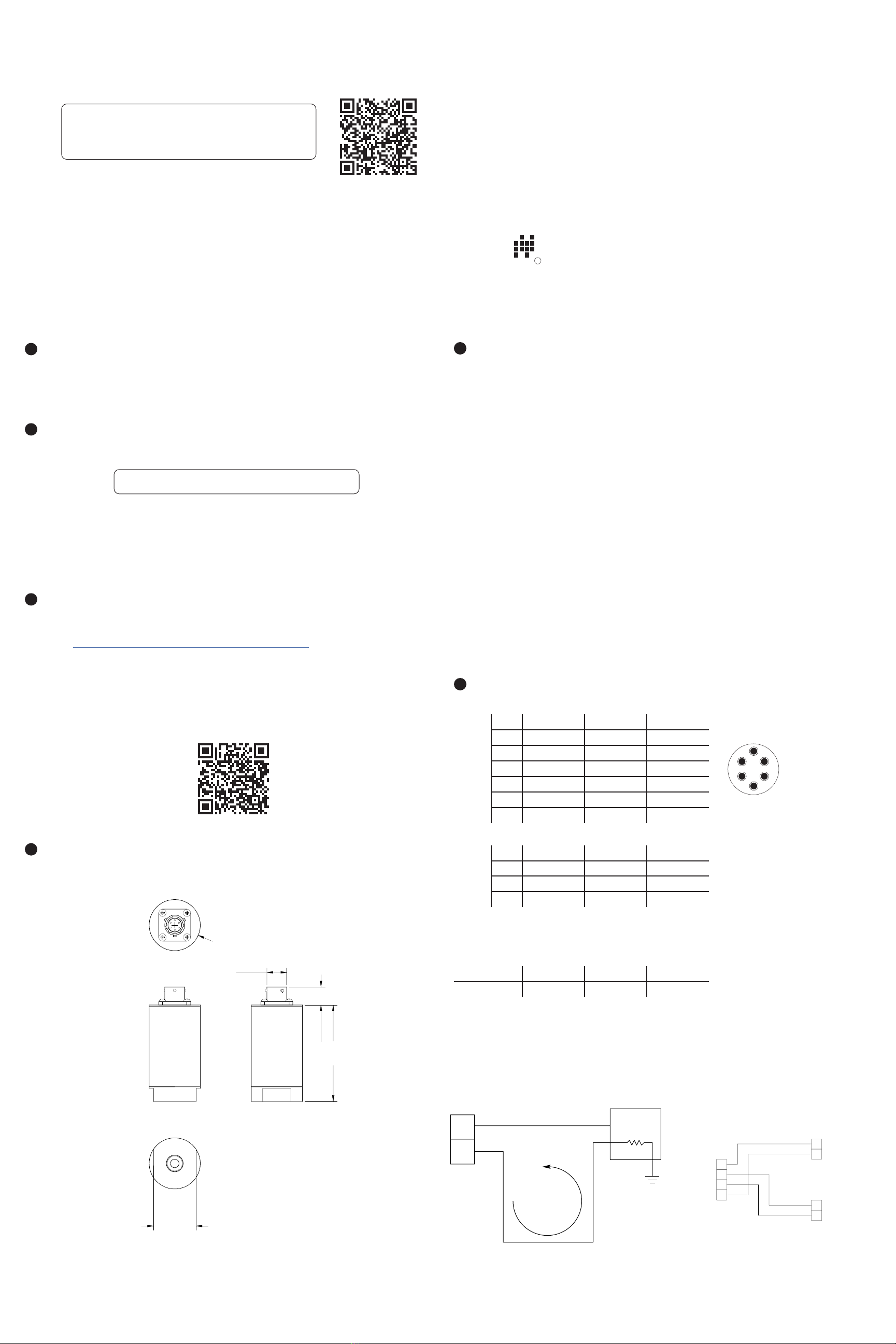

APG PT-300 User manual

Each label comes with a full model number, a part number, and a serial number. The model
number for the PT-300 or PT-301 will look something like this:
The model number correlates with all the congurable options and tells you exactly what you have.
Compare the model number to the options on the datasheet to identify your exact conguration.
You can also call us with the model, part, or the serial number and we can help you.
The label aslo includes the pinout, as does this installation guide.
You’ll also nd all hazardous certication information on the label.
SAMPLE: PT-300-L1-100-psi-G-E5-5-P5-N3-M1-S0
PT-300 Pressure Transmitters
Installation Guide
For The PT-300
R
APG
Automation Product Group, Inc.
1025 W 1700 N Logan, UT 84321
www.apgsensors.com | phone: [phone] | email: [email protected]
Thank You
Thanks for purchasing a PT-300 pressure transmitter from us! We appreciate your business and
your trust. Please take a moment to familiarize yourself with the product and this manual before
installation. If you have any questions, at any time, don’t hesitate to call us at 888-525-7300.
1.Description
2. How To Read Your Label
3. Warranty
4. Dimensions
5. Mounting Instructions
6. Wiring Information
7. Removal Instructions
8. General Care
9. Repair Information
6Wiring Information
Table of Contents
PT-300 Pin Out Table
6 Pin
Bayonet
4-20 mA 0-5 VDC 0-10 VDC
A+ Excitation + Excitation + Excitation
B- Excitation + Output + Output
C N/C - Output - Output
D N/C - Excitation - Excitation
E N/C N/C N/C
F N/C N/C N/C
Pigtail
Red + Excitation + Excitation + Excitation
Grn N/C + Output + Output
Wht N/C - Output - Output
Blk - Excitation - Excitation - Excitation
N/C indicates no connection
For alternate pinouts, please consult factory
PT-300 Supply Power Table
4-20 mA 0-5 VDC 0-10 VDC
Power Supply 9-28 VDC 9-28 VDC 12.5-28 VDC
6 Pin
Bayonet
Connector
A
F
E
D
B
C
5Mounting Instructions
Mounting your pressure transducer is easy if you follow a few simple steps:
• Never over-tighten the sensor. This can compress the diaphragm, changing how it reacts
to pressure. In all cases, tigthen the sensor as little as possible to create an adequate seal.
On straight threads, tighten only until you feel the o-ring compress - making sure you don’t
damage or extrude the o-ring.
• Always use thread tape or sealant compound on tapered threads. Straight threads use an
o-ring. If using thread tape, wrap the tape in the opposite direction of the threads so it does
not unravel as you screw it into place. Unraveling can cause uneven distribution and seal
failure.
• Always start screwing in your sensor by hand to avoid cross-threading. Thread failure can be a
problem if you damage threads by over-tightening them or by crossing threads.
4Dimensions
NOTE: Scan the QR code to the right to see the full
user manual on your tablet or smartphone. Or visit
www.apgsensors.com/support to nd it on our website.
The PT-300 series pressure transmitter oers reliability over a wide range of pressures and in harsh
industrial conditions.
1Description
2How To Read Your Label
3Warranty
This product is covered by APG’s waranty to be free from defects in material and workmanship
under normal use and service of the product for 24 months. For a full explanation of our Warranty,
please visit https://www.apgsensors.com/about-us/terms-conditions. Contact Technical Support to
recieve a Return Material Authorization before shipping your product back.
Scan the QR code below to read the full explanation of our Warranty on your tablet or smartphone.
Part # 122950-0031
Doc #9004806 Rev A1
.530"
[13mm]
2.834"
[72mm]
ø1.500"
[ø38mm]
1.250"
[32mm]
.590"
[15mm]
Excitation Voltage
0-5 VDC: 9-28 VDC
0-10 VDC: 12.5-28 VDC
Typical 4-20 mA Circuit
- EXCITATION
+ EXCITATION
4-20 mA
CURRENT
LOOP
+ Vin
Process
Controller
RL
Typical 0-5 and 0-10 VDC Circuit
E
xcitation +
Output +
Output -
Excitation -
Excitation+
Excitation-
Power
Supply
V+
V-
Meter
Excitation Voltage
4-20 mA : 9-28 VDC

8General Care
Your pressure transmitter is very low maintenance and will need little care. As long as it was
installed correctly, it can be However, in general, you should:
• Keep the sensor and area around it generally clean.
• Avoid applications for which the sensor was not designed, such as extrememe temperatures,
contact with incompatible corrosive chemicals, or other damaging environments.
• Inspect the threads whenever you remove the sensor from duty or change its location.
• Avoid touching the diaphragm. Contact with the diaphragm, especially with a tool, could
permanently shift the output and ruin accuracy.
• Cleaning the diaphragm or the diaphragm bore should be done with extreme care. If using a
tool is required, make sure it does not touch the diaphram.
9Repair Information
If your pressure transmitter needs repair, contact us via email, phone, or online chat on our
website. We will issue you an RMA number with instructions.
• Phone: [phone]
• Email: [email protected]
• Online chat at www.apgsensors.com
7Removal Instructions
Removing your pressure transducer from service must be done with care. It’s easy to create an
unsafe situation, or to damage your sensor, if you are not careful to follow these guidelines:
• Make sure the pressure is completely removed from the line or vessel where your sensor is
installed. Follow any and all procedures for safely isolating any media contained inside the line
or vessel.
• Remove the sensor with an appropriately sized wrench (per your process connection).
• Clean the sensor’s threads of any sealant compound or tape. Inspect the threads and the
diaphragm for any damage.
• Store your sensor in a dry place between 14° and 140° F (-10° - 60° C).
DANGER: Removing the pressure transmitter while there is still pressure in the line or
vessel could result in injury or death.
IMPORTANT: Any contact with the diaphragm can permanently damage the sensor. Use
extreme caution.
