APG PT-400 Series User manual

APG
R
Doc #9002825
Part # 200201
Rev F, 08/2022
PT-400
User Manual

ii Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Table of Contents
Introduction ................................................................................................................ iii
Warranty Statement.................................................................................................. iv
Chapter 1: Specications and Options..................................................................... 1
Dimensions ........................................................................................................................................1
Specications ................................................................................................................................... 2
Model Number Congurator.......................................................................................................... 3
Electrical Connectors and Pinout Table ..................................................................................... 4
Chapter 2: Installation and Removal Procedures and Notes..............................5
Tools Needed..................................................................................................................................... 5
Physical Installation Notes ........................................................................................................... 5
Mounting Instructions ................................................................................................................... 5
Electrical Installation ..................................................................................................................... 6
Removal Instructions ..................................................................................................................... 6
Chapter 3: Maintenance .............................................................................................7
General Care...................................................................................................................................... 7
Zero Trimming.................................................................................................................................. 7
Re-Calibration................................................................................................................................... 8
Repair and Returns.......................................................................................................................... 8
Chapter 4: Hazardous Location Installation and Certication ..........................9

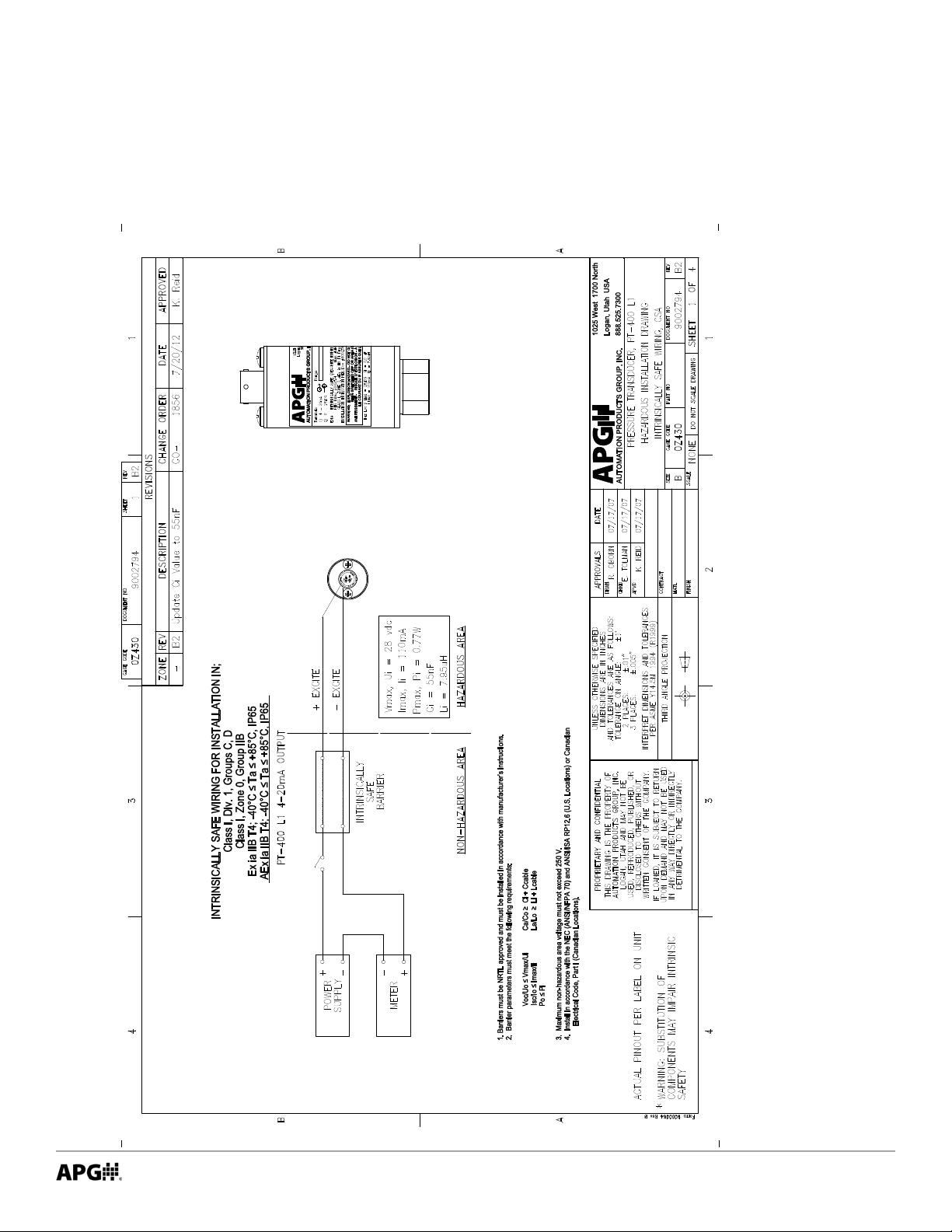

Intrinsically Safe Wiring Diagram ............................................................................................... 9
Non-Incendive Wiring Diagrams...........................................................................................10-12
CSA Certicate of Compliance............................................................................................... 13-16

iii
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Introduction
Thank you for purchasing a PT-400 series pressure transmitter from APG. We appreciate your business!
Please take a few minutes to familiarize yourself with your PT-400 and this manual.
The PT-400 series of pressure transmitters oers reliability over a wide range of pressures and in harsh
industrial conditions and hazardous locations. It is certied intrinsically safe for hazardous areas in the US,
Canada, Europe and internationally by CSA, ATEX, and IECEx for Class 1, Zone 0 environments. The small
size, integrated electronics, wide operating temperature range, and durability, make the PT-400 the perfect
instrument for static and dynamic pressure measurements with an amplied output signal.
Reading your label
Every APG instrument comes with a label that includes the instrument’s model number, part number, serial
number, and a wiring pinout table. Please ensure that the part number and pinout table on your label
match your order. The following electrical ratings and approvals are also listed on the label. Please refer to
the Certicate of Compliance and at the back of this manual for further details.
IMPORTANT: Your PT-400 MUST be installed according to drawing 9002794 (Intrinsi-
cally Safe Wiring Diagram or Non-Incendive Wiring Diagrams) as indicated above to meet
listed approvals. Faulty installation will invalidate all safety approvals and ratings.
Electrical ratings
Input: 9 to 28 Volts DC; Outputs: 4-20mA / 0-5VDC / 0-10VDC (per order)
Exia Class I Division 2; Groups C, D T4
Class I, Zone 2, Group IIB
AEx nC IIB T4: Ta: -40°C to 85°C
Ex nL IIB T4: Ta: -40°C to 85°C
Maximum Working Pressure: 10,000 PSI
PT-400-L1 (4-20mA)
Vmax Ui= 28VDC, Imax Ii = 110mA, Pmax Pi = 0.77W, Ci = 0.055μF, Li = 7.95μH
Install in accordance with drawing 9002794, sheet 2 (page 10).
PT-400-L3/L10 (0-5V/0-10V)
Vmax Ui= 28VDC, Imax Ii = 110mA, Pmax Pi = 0.77W, Ci = 0μF, Li = 0μH
Install in accordance with drawing 9002794, sheets 3 & 4 (page 11 & 12).
Input: 9 to 28 Volts DC; Output: 4-20mA (per order)
Exia Class I Division 1; Groups C, D T4
Class I, Zone 0, Group IIB
AEx ia IIB T4: Ta: -40°C to 85°C
Ex ia IIB T4: Ta: -40°C to 85°C
Maximum Working Pressure: 10,000 PSI
Vmax Ui= 28VDC, Imax Ii = 110mA, Pmax Pi = 0.77W, Ci = 0.055μF, Li = 7.95μH
Install in accordance with drawing 9002794, sheet 1 (page 9).
US
C
237484
US
C
237484

iv Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Warranty Statement
This product is covered by APG’s warranty to be free from defects in material and workmanship under
normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit
https://www.apgsensors.com/about-us/terms-conditions. Contact Technical Support to receive a Return
Material Authorization before shipping your product back.
Scan the QR code below to read the full explanation of our Warranty on your tablet or smartphone.
The following approvals only apply to the L1 (4-20mA) version
ATEX Directive:
Sira 12ATEX2294
II 1G Ex ia IIB T4 Ga
Ta: -40°C to 85°C
U
i≤ 28 V, Ii≤ 110 mA, Pi≤ 0.77 W, Ci = 0.055μF, Li = 7.95μH
IECEx CSA 12.0018
Ex ia IIB T4 Ga

1
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Chapter 1: Specications and Options

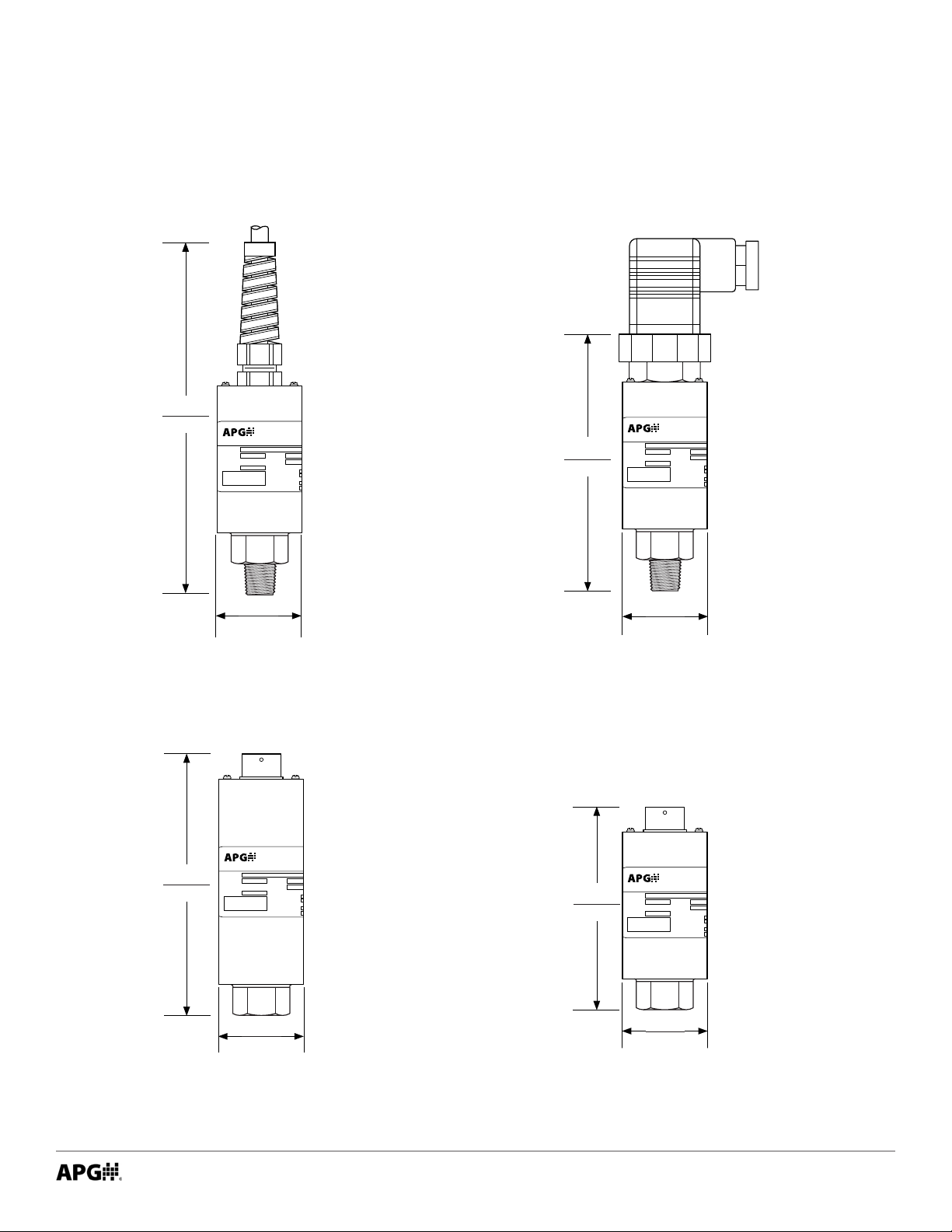

• Dimensions
1.50
38.10
5.80
147.32 1025 W 1700 N
Logan, Utah USA
888.525.7300
=
=
Automation Products Group, Inc.
1025 W 1700 N
Logan, Utah USA
888.525.7300
Automation Products Group, Inc.
1025 W 1700 N
Logan, Utah USA
888.525.7300
Automation Products Group, Inc.
Wiring
Pin A: +Ex
Pin B: -Ex
Pin C: N/C
Pin D: N/C
Pin E: N/C
Pin F: N/C
Serial #: Date:
Due:
Mfg:
Model #:
Part #: Output:
Range:
Made in USA
Wiring
Pin A: +Ex
Pin B: -Ex
Pin C: N/C
Pin D: N/C
Pin E: N/C
Pin F: N/C
Serial #: Date:
Due:
Mfg:
Model #:
Part #: Output:
Range:
Made in USA Wiring
Pin A: +Ex
Pin B: -Ex
Pin C: N/C
Pin D: N/C
Pin E: N/C
Pin F: N/C
Serial #: Date:
Due:
Mfg:
Model #:
Part #: Output:
Range:
Made in USA
Made in USA
Model #:
Serial #:
Part #:
N/CPin C: N/CPin D:
Mfg:
Output:
Range:
- Exc
+ Exc
Wiring:
Pin B:
Pin A:
Due:
Date:
Pin E:
Pin F: N/C
N/C
Automation Products Group, Inc. 888.525.7300
Logan, Utah USA
1025 West 1700 N
PT-400 with Pigtail and male
NPT Total length of PT-400 with DIN 43650 and L-Bracket
is equal to total length of PT-400 with Pigtail.
PT-400 with DIN 43650 and L-Bracket and male
NPT
PT-400 with 4 or 6 pin Bayonet on
Long Can and female NPT
PT-400 with 4 or 6 pin Bayonet on Short Can and
female NPT
1.50
38.10
4.45
113.03
1.50
38.10
4.50
114.30
1.50
38.10
3.50
88.90

2Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Performance
Pressure Ranges 0 to 30K PSI
Analog Output 4-20mA, 0-5VDC, 0.5-4.5VDC, 1-5VDC, 0-10VDC
Over Pressure 2X Full Scale or limit of tting, whichever is less
Burst Pressure 3.0X Full Scale or limit of tting, whichever is less
Accuracy
Linearity, Hysteresis & Repeatability ±0.25% of Full Scale (BFSL) (1% for pressure ≤ 1 psi)
Thermal Zero Shift [±0.036% FSO/°C (±0.02% FSO/°F)]
Thermal Span Shift [±0.036% FSO/°C (±0.02% FSO/°F)]
Environmental
Operating Temperature -40 - 85°C / -40 - 185°F
Compensated Temperature
≤ 5 psi: No temperature specication
5 < x ≤ 10 psi: 0º - 60ºC / 32º - 140ºF
10 < x ≤ 1000 psi: -10º - 70ºC / 14º - 158ºF
> 1000 psi: -17º - 54ºC / 0º - 130ºF
Enclosure Protection IP67
Electrical
Supply Voltage (at sensor) 4-20 mA: 9-28 VDC
0 to 5 VDC: 9-28 VDC
0.5 to 4.5 VDC: 9-28 VDC
1 to 5 VDC: 9-28 VDC
0 to 10 VDC: 12.5-28 VDC
RS-485: 9-28 VDC
Output Signal @ 21°C 4-20 mA: 3-30 mA max.
0 to 5 VDC: 7mA max
0 to 10 VDC: 14mA max
Materials of Construction
Wetted Materials 316L Stainless Steel (≤ 1,000 psi)
17-4 Stainless Steel (> 1,000 psi)
Incoloy (10,000 - 30,000 psi)
Enclosure 316L Stainless Steel
Mechanical
Pressure Connection See model number congurator for complete list
Weight 283g (10 oz.)
Zero & Span Protective Set Screws Torque 28 oz-in
• Specications

3
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• Model Number Congurator
Model Number: PT-400 - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____
A B C D E F G H I J
A. Operation / Output
□L1▲4 - 20 mA output
□L3 0 - 5 VDC output
□L10 0 - 10 VDC output
□L12 1 - 5 VDC output
□L20 0.5 - 4.5 VDC output
Modbus †
□L5 RS-485 (Modbus/RTU), 4-wire
Pressure reading only
□L31 RS-485 (Modbus/RTU), 4-wire
Level calculations, tank volume
B. Common Pressure Ranges - PSI*
□5 □50 □200 □1000 □5000
□15 □60 □300 □2000 □10000
□30 □100 □500 □3000 □30000
*Other ranges available. Please consult factory.
C. Units of Measure
□psi▲□bar □kPa □inH2O
□fH2O□mmH2O□inHG
D. Pressure Type
□A Absolute (10 - 200 psi)
□S▲ Sealed (200 psi - 30,000 psi)
□G Gauge ( ≤ 500 psi)
□CG Compound Gauge (-1 - 1 psi or -15 - 15 psi)
E. Electrical Connection**
(Mating connector sold separately unless noted otherwise)
□E3 4 pin bayonet (PT 1H-8-4P or equiv.)††
□E4 4 pin M12 micro connector
□E5▲ Pigtail with cable (specify cable length below)
□E6 4 pin per DIN 43650, short can
(mating connector included)
□E17 6 pin bayonet (PT02E-10-6P)
□E19 1/2 in male NPT with cable, short can
□E34 Junction Box
□E36 1/2 in male NPT with 6 in ying leads, long can
□E40 3 pin bayonet†††
□E41 Blue Junction Box
□E45 4 pin minifast Turck
**Other connectors available. Please consult factory.
†Modbus output requires a long can
††Note: Not currently available with L5/L31 Modbus Output
†††Note: L1 4-20 mA Output only
F. Electrical Cable Length
□__ Number represents cable length, in 1-ft increments,
included on E5 and E19 options.
(ex. E5-10 equals pigtail, 10 ft cable)
G. Process Connection
□P0▲ 1/4 - 18 male NPT ( ≤ 10,000 psi)
□P1 1/2 - 14 male NPT ( ≤ 10,000 psi)
□P5 1/4 - 18 female NPT ( ≤ 15,000 psi)
□P6 1/2 female NPT ( ≤ 10,000 psi)
□P38 1 1/2 in. tri-clover with 3/4 in. diaphragm ( ≤ 1,000 psi)
□P52 1 1/2 in. male NPT ( ≤ 1,000 psi)
□P54 7/16 - 20 UNJF-3A Male w/ Cone ( ≤ 1,000 psi)
□P56 F250C High Pressure (10,000 psi - 30,000 psi)
□P57 F562-C40 High Pressure (10,000 psi - 30,000 psi)
H. Accuracy
1-5,000 PSI
□N0*▲±0.25% (1% for pressure ≤ 1 psi)
□N1* ±0.25% with NIST certication
□N2 ±0.1% with NIST certication
*Note: ±0.25% available at 10,000 psi for 4-20 mA output only.
10,000 PSI
□N12 ±0.5%
□N13 ±0.5% with NIST certication
I. Materials
□M1▲316L SS ( ≤ 1,000 psi)
□M2 17-4 SS ( > 1000 psi)
□M7 Incoloy (10,000 psi - 30,000 psi; P56/P57 only)
J. Compensated Temperature Range
□S0▲-17º - 54ºC / 0º - 130ºF ( > 1000 psi)
□S1 -40º - 82ºC / -40º - 180ºF ( > 1,000 psi)
□S3 -34º - 77ºC / -30º - 170ºF ( > 1,000 psi)
□S9▲0º - 60ºC / 32º - 140ºF ( 5 < x ≤ 10 psi)
□S10▲-10º - 70ºC / 14º - 158ºF (10 < x ≤ 1000 psi)
□S11▲ No Temperature Specication ( ≤ 5 psi)
▲This option is standard

4Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• Electrical Connectors, Pinout Table, and Supply Power Table
PT-400 Series Pin Out Table
6 Pin
Bayonet
4-20 mA 0-5 / 0.5-4.5 / 1-5 VDC 0-10 VDC RS-485
A + Excitation + Excitation + Excitation + Excitation
B - Excitation + Output + Output - Excitation
C N/C - Output - Output N/C
D N/C - Excitation - Excitation B (Tx-)
E N/C N/C N/C A (Tx+)
F N/C N/C N/C Case Gnd
4 Pin
Bayonet
A + Excitation + Excitation + Excitation N/A
B - Excitation + Output + Output N/A
C N/C - Output - Output N/A
D N/C - Excitation - Excitation N/A
4 Pin
DIN
1 + Excitation + Excitation + Excitation + Excitation
2 - Excitation + Output + Output A (Tx+)
3 N/C - Output - Output B (Tx-)
4 Case
Ground
- Excitation - Excitation - Excitation
4 Pin
M12
1 + Excitation + Excitation + Excitation + Excitation
2 - Excitation + Output + Output A (Tx+)
3 N/C - Output - Output - Excitation
4 N/C - Excitation - Excitation B (Tx-)
Cable
Red + Excitation + Excitation + Excitation + Excitation
Grn N/C + Output + Output B (Tx-)
Wht N/C - Output - Output A (Tx+)
Blk - Excitation - Excitation - Excitation - Excitation
Shld Gnd Gnd Gnd
Flying Leads
Red + Excitation + Excitation + Excitation + Excitation
Grn No wire + Output + Output B (Tx-)
Wht No wire - Output - Output A (Tx+)
Blk - Excitation - Excitation - Excitation - Excitation
Shld No wire No wire No wire No wire
Grn/
Ylw
Case
Ground
No wire No wire No wire
N/C indicates no connection
For alternate pinouts, please consult factory
PT-400 Series Supply Power Table
4-20 mA 0-5 / 0.5-4.5 / 1-5 VDC 0-10 VDC RS-485
Power Supply 9-28 VDC 9-28 VDC 12.5-28 VDC 9-28 VDC
A
F
E
D
B
C
+
3
2
4
1
A
B
D
C
12
3
4

5
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Chapter 2: Installation and Removal Procedures and Notes
• Mounting Instructions
Mounting your pressure transducer is easy if you follow a few simple steps:
• Ensure that the tting on your sensor matches the tting on your tank/vessel/pipe/etc. If the ttings do
not match, do not attempt to install the sensor. Contact the factory immediately.
• Never over-tighten the sensor. This can compress the diaphragm, changing how it reacts to pressure.
In all cases, tighten the sensor as little as possible to create an adequate seal. On straight threads,
tighten only until you feel the o-ring compress - making sure you don’t damage or extrude the o-ring.
• Always use thread tape or sealant compound on tapered threads. Wrap thread tape in the opposite
direction of the threads so it does not unravel as you screw the sensor into place. Unraveling can cause
uneven distribution and seal failure. For straight threads, use an o-ring.
• Always start screwing in your sensor by hand to avoid cross-threading. Thread failure can be a problem
if you damage threads by over-tightening them or by crossing threads.
• Wrench sized appropriately for your PT-400’s process connection.
• Thread tape or sealant compound for threaded connections.
• Tools Needed
The PT-400 should be installed in an area--indoors or outdoors--which meets the following conditions:
• Ambient temperature between -40°C and 85°C (-40°F to +185°F)
• Relative humidity up to 100%
• Altitude up to 2000 meters (6560 feet)
• IEC-664-1 Conductive Pollution Degree 1 or 2
• IEC 61010-1 Measurement Category II
• No chemicals corrosive to stainless steel (such as NH3, SO2, Cl2 etc.)
• Ample space for maintenance and inspection
• Class II power supply
• Physical Installation Notes

6Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• Check the pinout table on your PT-400 against your order.
• Check that your electrical system wiring matches the pinout table on your PT-400.
• For instruments with connectors, make the connection. Otherwise, attach your wires to the provided
terminal strip.
• Electrical Installation
Removing your PT-400 from service must be done with care. It’s easy to create an unsafe situation, or
damage your sensor, if you are not careful to follow these guidelines:
• Make sure the pressure is completely removed from the line or vessel where your sensor is installed.
Follow any and all procedures for safely isolating any media contained inside the line or vessel.
• Remove the sensor with an appropriately sized wrench (per your process connection).
• Clean the sensor’s tting and diaphragm of any debris (see General Care) and inspect for damage.
• Store your sensor in a dry place, at a temperature between -40° F and 180° F.
• Removal Instructions
DANGER: Removing your PT-400 Pressure Transmitter while there is still pressure in
the line could result in injury or death.

7
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Your PT-400 series pressure transmitter is very low maintenance and will need little care as long as it is
installed correctly. However, in general, you should:
• Keep the transmitter and the area around it generally clean.
• Avoid applications for which the transmitter was not designed, such as extreme temperatures, contact
with incompatible corrosive chemicals, or other damaging environments.
• Inspect the threads whenever you remove the transmitter from duty or change its location.
• Avoid touching the diaphragm. Contact with the diaphragm, especially with a tool, could permanently
shift the output and ruin accuracy.
• Clean the diaphragm or the diaphragm bore with extreme care. If using a tool is required, make sure it
does not touch the diaphragm.
Chapter 3: Maintenance
• General Care
• Zero Trimming
• Remove protective screw(s) with 5/64 allen wrench.
• Ensure that the transmitter is at 0 psig or 0 psia (vacuum if absolute).
• Using a jeweler’s screwdriver or a suitable instrument, adjust the “Z” pot until you have a 4 mA, 0 V,
0.5 V, or 1 V output.
• Replace protective screws(s) when nished.
IMPORTANT: Do not make changes to the Span adjustment (the “S” pot to the right,
see Figure 3.1) as part of the zero trimming. The Span should only be changed as part of
the recalibration of a gauge with a known pressure source.
Figure 3.1
Zero & Span
Adjustment
DANGER: Protective screws must be replaced using 28 oz-in of torque to create seal.

8Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Should your PT-400 series pressure transmitter require service, please contact the factory via phone, email,
or online chat. We will issue you a Return Material Authorization (RMA) number with instructions.
• Phone: [phone]
• Email: [email protected]
• Online chat at www.apgsensors.com
Please have your PT-400’s part number and serial number available. See Terms & Conditions (https://www.
apgsensors.com/about-us/terms-conditions) for more information.
• Repair and Returns
This procedure requires a known pressure source of at least ±0.1% accuracy in order to fully utilize the
accuracy potential of the PT-400. (If not available, you can return it to the factory for re-calibration.)
• Ensure that the transducer is at 0 psig or 0 psia (vacuum if absolute), and adjust zero as per instruc-
tions for zero trimming.
• Apply full scale pressure to the pressure port and adjust the Span (“S”) pot (on the right of Figure 3.1)
until the full scale signal is reached.
• Re-check zero and re-adjust the zero (“Z”) pot if required
• Repeat previous two steps until no further adjustment is required.
• Re-Calibration
NOTE: You may also return the PT-400 to the factory for repair and/or adjustment.

9
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Chapter 4: Hazardous Location Installation and Certication
• Intrinsically Safe Wiring Diagram (4-20mA Output)

10 Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• Non-Incendive Wiring Diagram (4-20mA Output)

11
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• Non-Incendive Wiring Diagram (0-5VDC Output)

12 Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• Non-Incendive Wiring Diagram (0-10VDC Output)

13
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
• CSA Certicate of Compliance
DQD 507 Rev. 2016-02-18 Page 1
Certificate of Compliance
Certificate: 1984045 Master Contract: 237484 (237484)
Project: 70159942 Date Issued: 2018-03-29
Issued to: Automation Products Group Inc
1025 West 1700 North
Logan, Utah 84321
USA
Attention: Joseph James
The products listed below are eligible to bear the CSA Mark shown
with adjacent indicators 'C' and 'US' for Canada and US or with adjacent
indicator 'US' for US only or without either indicator for Canada only.
Issued by:
Albert Jansen
Albert Jansen
PRODUCTS
CLASS 2258 03 - Process Control Equipment - Intrinsically Safe and Non Incendive systems - For Hazardous
Locations
CLASS 2258 83 - Process Control Equipment - Intrinsically Safe and Non Incendive systems - For Hazardous
Locations - Certified to US Standards
Class I, Div. 2, Groups C and D
Class I, Zone 2, Group IIB
Ex nL IIB T4; -40°C ≤ Ta ≤ +85°C
AEx nC IIB T4; -40°C ≤ Ta ≤ +85°C
Model PT-400-L1xxxx Pressure Transmitter. Rated 9-28VDC, 4-20mA; Maximum Ambient 85° C;
Temperature Code T4; Maximum Working Pressure 10,000 PSI. Enclosure type: IP65. Installed as per
Drawing 9002794. Single Seal. Non-Incendive with the following Entity Parameters:
Vmax, Ui = 28V
Imax, Ii = 110mA
Pmax, Pi = 0.77W
Ci = 0.055µF
Li = 7.95µH

14 Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Certificate:
1984045
Project:
70159942 Master Contract: 237484 Date Issued: 2018-03-29
DQD 507 Rev. 2016-02-18 Page 2
Model PT-400-L3/L10xxxx Pressure Transmitter. Rated 9-28VDC, 0-5V, 20mA or 0-10V, 20mA;
Maximum Ambient 85° C; Temperature Code T4; Maximum Working Pressure 10,000 PSI. Installed as
per Drawing 9002794. Single Seal. Non-Incendive with the following Entity Parameters:
Vmax, Ui = 28V
Imax, Ii = 110mA
Pmax, Pi = 0.77W
Ci = 0µF
Li = 0µH
Model PT-500-xxxx Pressure Transmitter, Rated 10-28VDC, 4-20mA; Maximum Ambient 85° C;
Temperature Code T4; Maximum Working Pressure 10,000 PSI; Single Seal. Non-Incendive with the
following Entity Parameters:
Vmax, Ui = 28V
Imax, Ii = 110mA
Pmax, Pi = 0.77W
Ci = 0µF
Li = 0µH
Conditions of Acceptability: PT-400, PT-500
1. The "x" in the Model designations may be any alpha-numeric character, to denote minor mechanical options,
not affecting safety.
2. These devices must be connected to a suitably certified and approved apparatus that provides non-incendive
outputs either equal to or less than those as indicated by the applicable control drawings. This certified apparatus
must be located in a safe area.
3. The equipment must be connected to a certified class 2 power supply

15
Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Certificate:
1984045
Project:
70159942 Master Contract: 237484 Date Issued: 2018-03-29
DQD 507 Rev. 2016-02-18 Page 3
CLASS 2258 04 - Process Control Equipment - Intrinsically Safe, Entity - For Hazardous Locations
CLASS 2258 84 - Process Control Equipment - Intrinsically Safe, Entity - For Hazardous Locations - Certified to
US Standards
Class I, Div. 1, Groups C, D
Class I, Zone 0, Group IIB
Ex ia IIB T4; -40°C ≤ Ta ≤ +85°C,
AEx ia IIB T4; -40°C ≤ Ta ≤ +85°C,
Model PT-400-L1xxxx Pressure Transmitter. Rated 9-28VDC, 4-20mA. Maximum Working Pressure:
10,000 PSI. Installed as per Drawing 9002794. Ambient Range: -40°C to +85°C. Enclosure type: IP65.
Single Seal. Intrinsically safe with the following entity parameters:
Vmax, Ui = 28V
Imax, Ii = 110mA
Pmax, Pi = 0.77W
Ci = 0.055µF
Li = 7.95µH
Model PT-500-xxxx Pressure Transmitter; Maximum Ambient 85° C; Temperature Code T4; Maximum
Working Pressure 10,000 PSI; Single Seal. Entity parameters as follows:
Vmax, Ui = 28V
Imax, Ii = 110mA
Pmax, Pi = 0.77W
Ci = 0.042µF
Li = 0.320µH
Conditions of Acceptability: PT-400, PT-500
1. The "x" in the Model designations may be any alpha-numeric character, to denote minor mechanical options,
not affecting safety.
2. These devices must be connected to a NRTL approved safety barrier (located in a safe area).
3. The equipment must be connected to a certified class 2 power supply

16 Tel: [phone] • Fax: [phone] • www.apgsensors.com • [email protected]
Certificate:
1984045
Project:
70159942 Master Contract: 237484 Date Issued: 2018-03-29
DQD 507 Rev. 2016-02-18 Page 4
CLASS 2258 02 - Process Control Equipment - For Hazardous Locations
CLASS 2258 82 - Process Control Equipment - For Hazardous Locations - Certified to US Standards
Class I Div. 1 Groups C and D
Model PT-405-xxxxxxxxx Pressure Transmitter. Rated 9-28VDC, 4-20mA. Maximum working pressure (MEMS):
1,000 psi). Maximum working pressure (Foil): 30,000psi. Ambient Range: -40°C to +85°C. Single Seal.
Conditions of Acceptability
1. The equipment must be connected to a certified class 2 power supply
2. The conduit connected to the equipment must be sealed within 18 inches of the equipment enclosure.
3. The "x" in the model designation may be any alpha-numeric character, to denote minor mechanical or
electrical options, not affecting safety.
