ARB 3540320 User manual

INSTALLATION GUIDE
3540320
Fitting Instruction No. 3781961
Revision Date 01/04/2020
Copyright © 2020 by ARB Corporation Limited
FORD RANGER DUAL CAB
SINGLE COMPRESSOR BRACKET
(SUITS PX, PX2, PX3
& USA 19ON MODELS)

No liability is assumed for damages resulting in the use of the information contained herein.
ARB Air Locker Air Operated Locking Differentials, ARB Air Locker Air Activation System
and Air Locker are trademarks of ARB Corporation Limited.
Other product names used herein are for identification purposes only and may be trademarks of their
respective owners.
ARB 4x4 ACCESSORIES
Corporate Head Office
42-44 Garden St Tel: [phone]
Kilsyth, Victoria Fax: [phone]
AUSTRALIA
3137
Australian enquiries [email protected]
North and South American enquiries [email protected]
Other international enquiries [email protected]
www.arb.com.au

3
Table of Contents
1 Introduction 4
1.1 Pre-Installation Preparation.......................................................................................4
1.2 Description.....................................................................................................................4
1.3 Kit Contents...................................................................................................................4
1.4 Tool-Kit Recommendations.......................................................................................5
1.4.1 Tools.........................................................................................................................5
1.4.2 Supplies...................................................................................................................5
2 Vehicle Preparation 6
2.1 Trim Removal.................................................................................................................6
2.2 Switch & Chuck Bracket Install ................................................................................7
2.3 Bracket Kit Preparation...............................................................................................9
3 Bracket Kit Install 10
3.1 Nutsert Install ..............................................................................................................10
3.2 Bracket Feet Install....................................................................................................12
4 Compressor Install 13
4.1 Orientation of compressor for best fit..................................................................13
4.2 Mounting compressor to bracket...........................................................................14
4.3 Plumbing up compressor for use with air chuck...............................................15
4.4 Connecting the Electrical System..........................................................................15
4.5 Post-Installation Check List..................................................................................... 16

1 Introduction
4
IMPORTANT:
To assure the highest level of planning and reliability goes into this installation,
please read this guide in its entirety before attempting any modifications to the vehicle.
1.1 Pre-Installation Preparation
Although your ARB Air Compressor Bracket comes complete with all the step by step
instructions you will need to install it, ARB recommends that you have your ARB Air
Compressor installed by a trained professional. Many ARB distributors around the world
have been fully instructed in Air Compressor installations by ARB, and have gained a wealth
of experience and skill from years of performing similar installations.
Make sure your Air Compressor Bracket kit is the correct model for your application and that
it contains all of the parts listed in section 1.3 below. Also, be sure you have appropriately
equipped yourself with all the necessary tools, parts, materials and knowledge to complete
this installation and minimize vehicle down time (see section 1.4 Tool-Kit Recommendations).
Please refer to your ARB Compressor and Air Locker Operating & Service Manuals for
information on operating, servicing, driving technique, or trouble shooting your ARB Air
Locker(s) if installed.
HINT: Place a mark inside each of the symbols as you complete each step.
It is very important NOT to miss any of the steps!
1.2 Description
The 3540320 Ford Ranger Dual Cab Compressor Bracket kit enables the installation of a
CKSA or CKMA with optional Air Locker Solenoids, Quick Connect Coupling, Switch and
ARB LINX PRV behind the rear seat of the vehicle.
1.3 Kit Contents
➢1 x 3752899 BRACKET COMPRESSOR MOUNT
➢2 x 3752900 BRACKET COMPRESSOR MOUNT BASE
➢1 x 3752901 COMPRESSOR SWITCH MOUNT PLATE
➢1 x 6177573 F/KIT BAG 3540320
o4x 180302 CABLE TIE
o16x 4584378 - WASHER FLAT M6x16x1.2
o1x 5811042 - NUT, MACHINED
o1x 6151046 - WASHER FLAT 6MM
o2x 6151173 - NUT FLANGE M6
o10x 6151213 - BOLT HEX HEAD M6x1.0x20
o1x 6151228 - BOLT HEX HEAD M6x1.0x30
o4x 6151261 - NUT U M6x1.0
o6x 6151278 - NUTSERT M6
o4x 6151402 - BOLT HEX HEAD M6x1.0x16

1 Introduction
5
1.4 Tool-Kit Recommendations
Below is a list of tools and supplies recommended to complete this installation:
1.4.1 Tools
Standard automotive sizes of sockets including; 10mm,14mm
Combination ring/open ratchet wrenches; 10mm x2 (for compressor mount
screws/nuts), 12mm (for Air line Elbows if installed), 14mm x2 (for hose connections)
Ratchet & short extension
Allen keys; 3mm (CKSA), 4mm (CKMA), for adjusting compressor body mount.
Screwdrivers; No.2 Phillips & Small flat
Torque Wrench 5 to 100Nm range
A leak test gauge (i.e., ARB# ALTG01).
A multimeter
A soldering iron.
1.4.2 Supplies
Thread lubricant/sealant compound for pressure fittings (e.g., LOCTITE #567 Teflon
paste or plumbing supply Teflon tape)
A soap and water mixture to test for air leaks.
Electrical tape.
Solder and/or automotive crimp fittings.
Silicone sealant (to seal area around Air Locker lines if installed)

2 Vehicle Preparation
6
2.1 Trim Removal
A manufacturer’s service manual and optional ARB operation & Installation manuals should
be used in conjunction with these instructions.
NOTE: Sections 2.1 & 2.2 only required if fitting the switch & air chuck bracket to the B-pillar
trim

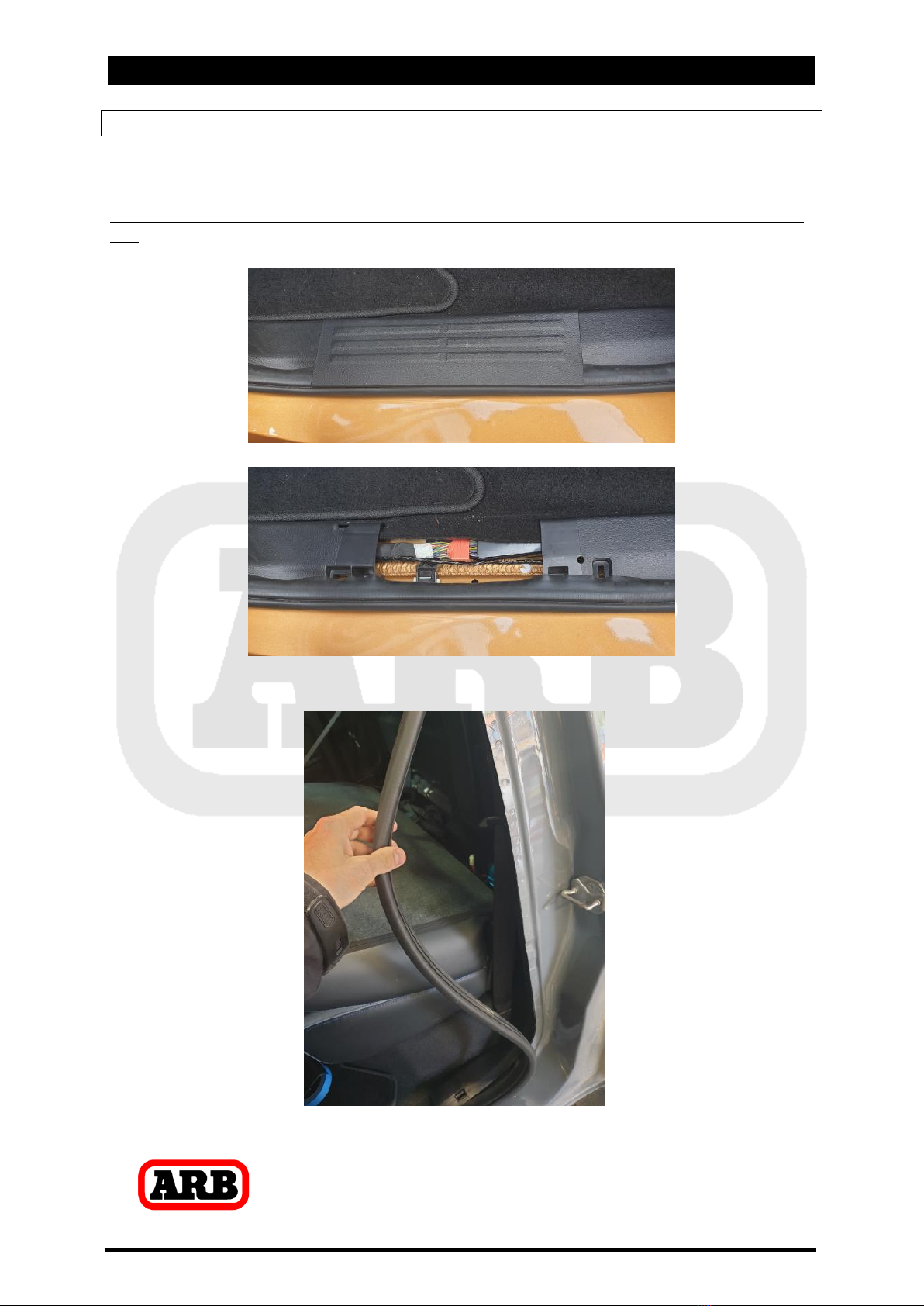

Remove scuff plate on LH rear door. It is held by plastic clips.
Pull back door seal on LH rear door jamb.

2 Vehicle Preparation
7
Unclip the B-pillar LH side lower plastic trim and carefully remove trim from
vehicle.
2.2 Switch & Chuck Bracket Install
Lay the trim down and position the bracket as shown. Mark the mount holes
with a permanent marker.
80m
m

2 Vehicle Preparation
8
Drill out the mount holes to 7mm. Mount the bracket as shown using 2x
M6x20 bolts, M6 flat washers & M6 flange nuts.
You may be required to cut a small section of plastic ribbing out to allow
clearance for the washer and nut.

2 Vehicle Preparation
9
Reinstall the plastic trim. Bracket should be positioned as shown. Reinstall
door jamb seal and scuff plate.
2.3 Bracket Kit Preparation
Fit the U-nuts to the 3752900 bracket mount feet as shown.
Loosely mount the feet to the compressor bracket using M6x20 bolts & M6 flat
washers as shown. Please note the orientation of the feet.

3 Bracket Kit Install
10
3.1 Nutsert Install
Sit the bracket assembly in desired position and mark the centre of the slotted
holes with a permanent marker. (PX3 shown).
Drill out the floor with a 10mm drill bit. Drill through both the carpet and the
steel floor.

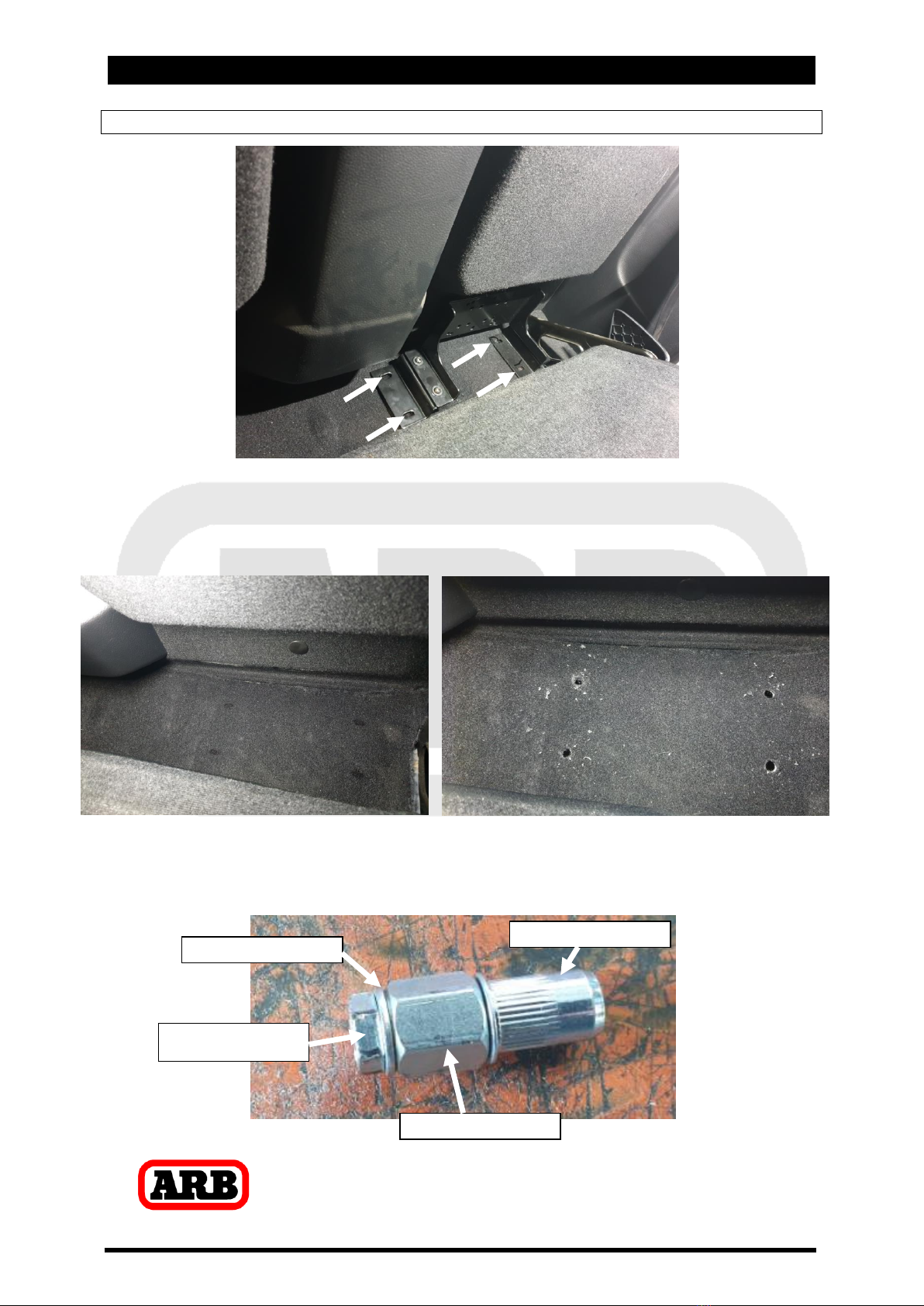

M6 Nutserts need to be fitted to the drilled holes. This can be done with a
nutsert gun. Alternatively, the fitting kit comes with a small nutsert fitting
device. Assemble the above components as shown. Use a small amount of
lubricant between the bolt head and washer.
M6x30 HIGH
TENSILEBOLT
M6 SILVER WASHER
12mm MACHINED NUT
M6 NUTSERT

3 Bracket Kit Install
11

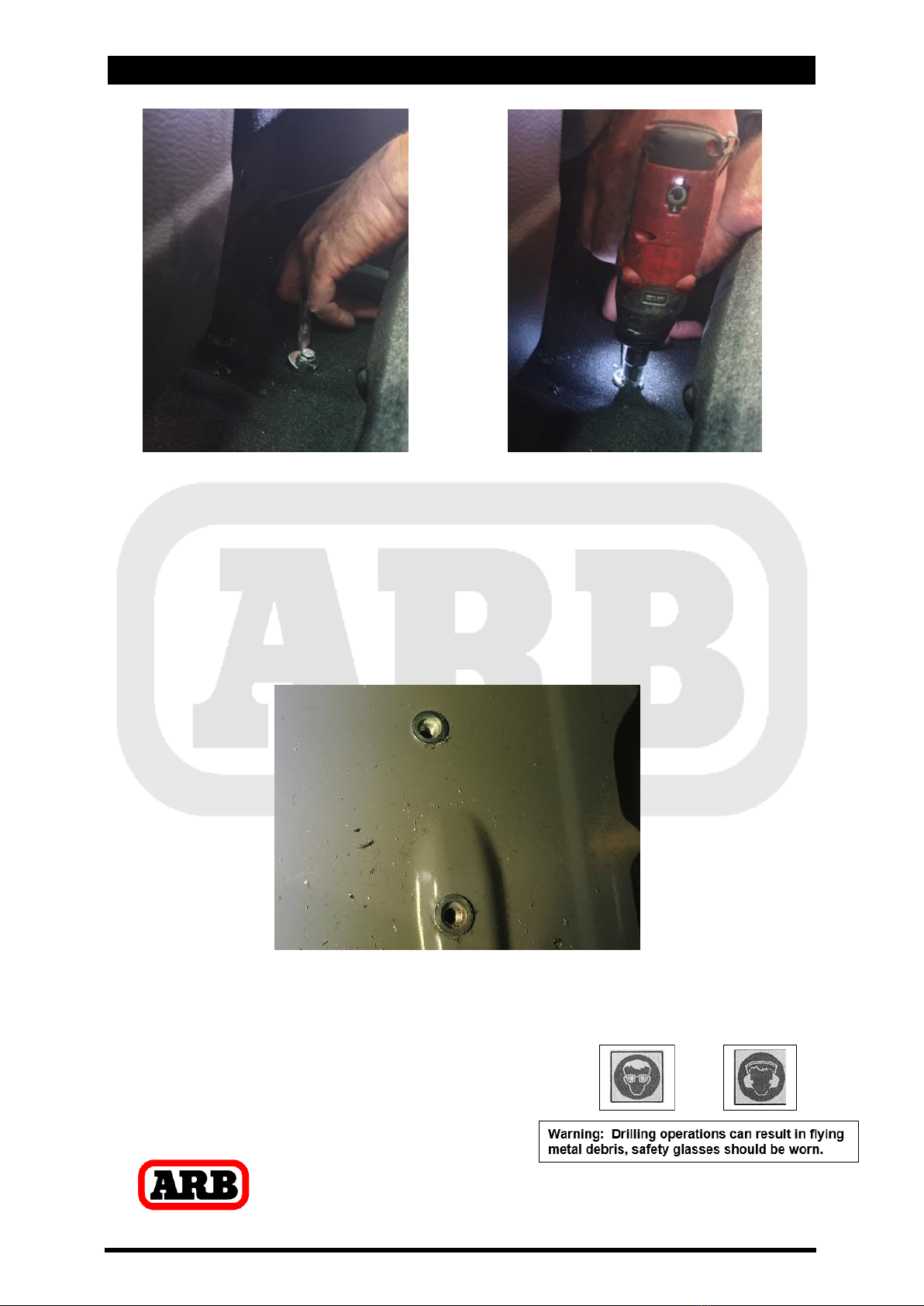

If using the supplied nutsert tool, hold the lower machined nut with a 12mm
spanner. Tighten the M6 bolt with a 10mm socket & ratchet or using an impact
driver as shown.
Tighten until you can feel a significant increase of resistance on the bolt.
Remove the bolt from the nutsert and repeat for the other 3 nutserts.
Note: Ensure that the nutserts have gone through the carpet and not pinched the
carpet. If need be, peel the carpet back to fit the nutserts.
Ensure nutserts have not pinched the carpet
Vacuum up all debris caused by drilling operations.

3 Bracket Kit Install
12
3.2 Bracket Feet Install

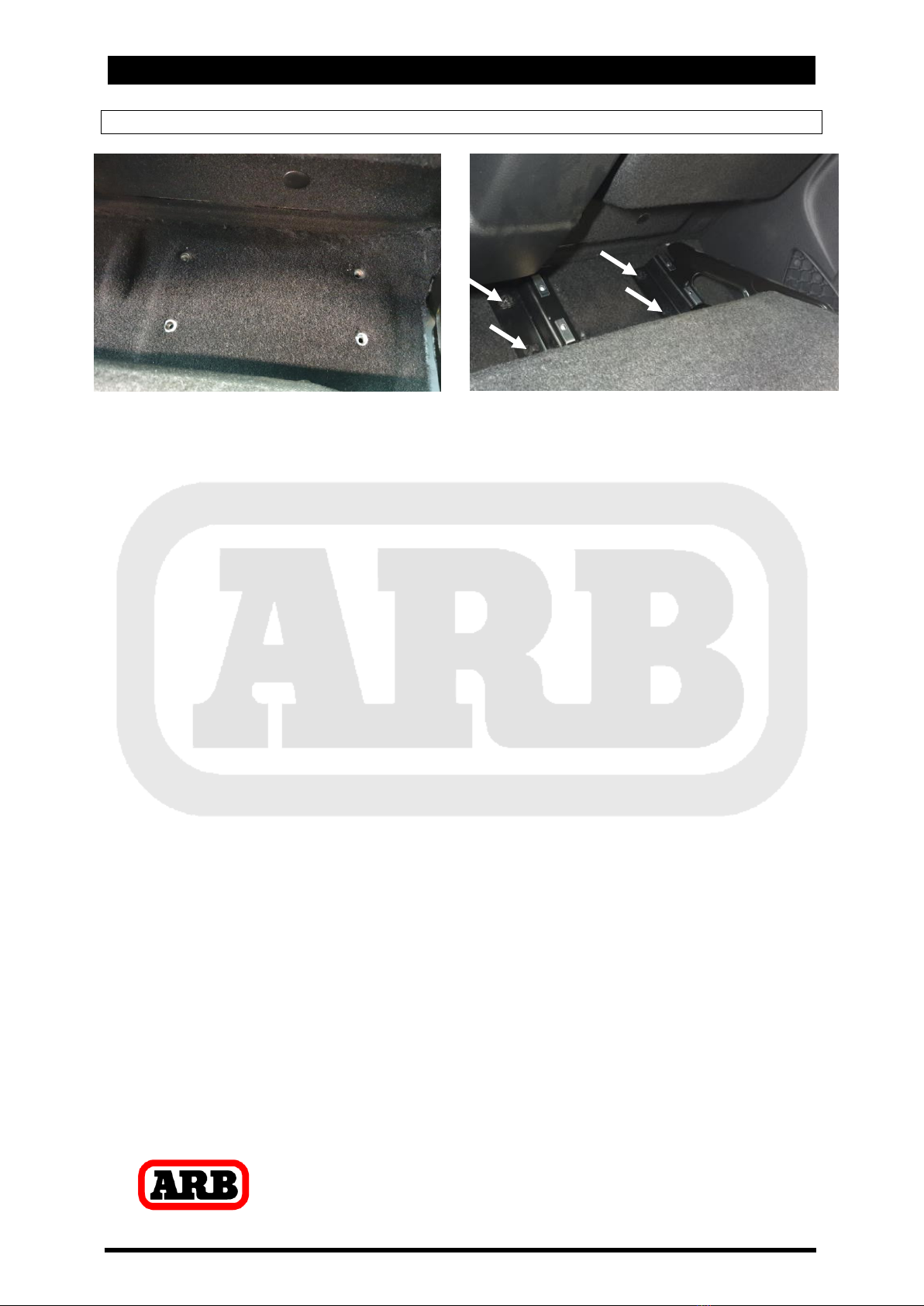

The floor should now look like the above LH image. Remove the mounting feet
from the bracket assembly used for marking hole positions. Install the
mounting feet as shown in the RH image above, using M6x20 bolts & M6
washers.
Torque fasteners to 9Nm [7 lbf.ft].

4 Compressor Install
13

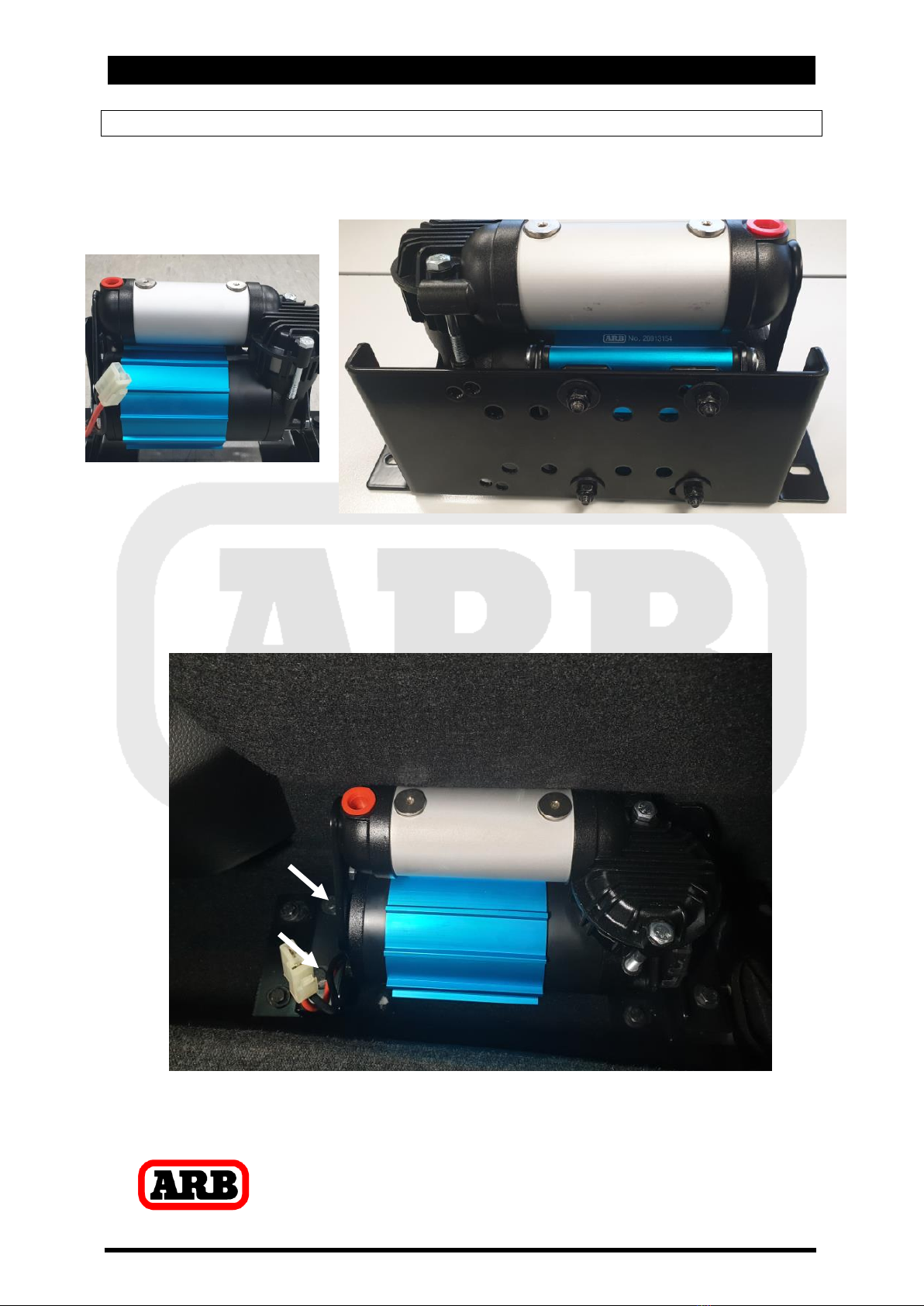

4.1.1 Orientation of compressor for best fit - CKMA
Loosen the two allen head screws and rotate the compressor 90°in the bracket as shown.
Tighten the allen head screws to 8Nm [6 lbf.ft].
Loosen the bolt holding the manifold using a 10mm spanner. Rotate the manifold 90°as
shown. Tighten the bolt to 9Nm [7 lbf.ft].
4.1.2 Orientation of compressor for best fit - CKSA
Loosen the two allen head screws and rotate the compressor 90°in the bracket as shown.
Tighten the allen head screws to 8Nm [6 lbf.ft].

4 Compressor Install
14
4.2 Mounting compressor to bracket
Mount the compressor to the bracket using the M6x16 screws and washers supplied with the
bracket fitting kit as shown. Manifold and manifold outlets should face upwards.
Tighten the M6 screws to 9Nm [7 lbf.ft].
Mount the compressor bracket (with compressor bolted to it) onto the bracket feet using 4x
M6x20 screws and M6 flat washers
Tighten the M6 screws to 9Nm [7 lbf.ft].
MANIFOLD BOLT

4 Compressor Install
15
4.3 Plumbing up compressor for use with air chuck
Below is an example of how to connect the compressor to the air chuck. Ensure that no part of
the air hose or fittings are in contact with the interior panel behind, or that it touches the seat
when closed.
Use an appropriate thread sealant on required fittings (as listed in section 1.4.2 of the
instructions)
4.4 Connecting the Electrical System
Refer to the installation guide that came with the compressor for detailed instructions for wiring
of the compressor
After completion of the wiring insert compressor switch into the switch mount bracket as
shown.
At this stage of assembly test system for correct operation and check for any air leaks around
connections
0740101 ADAPTOR JIC-4(M) to 1/4 NPT
0740106 ADAPTOR ¼ NPT (M/F/F) TEE
0740104 90 DEG ELBOW JIC-4(F) to JIC-4(M)
0740201 300mm REINFORCED HOSE
0740111 HOSE COUPLING
C035 PRESSURE SWITCH ¼ NPT

4 Compressor Install
16
4.5 Post-Installation Check List
Now that the compressor installation has been completed, ARB recommends that you take
the time to complete the following check list just to ensure that you haven’t missed any of the
vital steps.
The air system has been leak tested.
The air filter position will not be exposed to moisture, dust or dirt.
All air lines and wiring have been securely cable tied to resist snagging.
Switch(es) have been securely mounted within operator reach, yet well away from danger
of accidental engagement.
Switch(es) function properly and illuminate to indicate activation.
For warranty and service purposes, please fill in the following fields and supply a copy to the
customer (if applicable).
ARB PRODUCT MODEL NUMBER:
______________________________
SERIAL No:
______________________________
POINT OF SALE (NAME/LOCATION):
______________________________
DATE OF PURCHASE:
______________________________
INSTALLATION PERFORMED BY:
______________________________
DATE OF INSTALLATION:
______________________________
VEHICLE MAKE:
______________________________
VEHICLE MODEL:
______________________________
VEHICLE YEAR OF MANUFACTURE:
______________________________
