Argos 2667537 User manual

New Hallingford - 2 Door Sliding Robe
Dimensions
Width - 100,5cm
Depth - 60,3cm
Height -205,7cm
Issue6 - 02/12/2016
2498043
2747017
2362241
2458856
2667537
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
DR89958
Assembly Instructions - Please keep for future reference
Important–Please read these instructions fully before starting assembly
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: [email protected] (quoting your original order number)

2
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Safety and Care Advice
Important – Please read these instructionsfully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
• Parts of the assembly will be
easier with 2 people.
•To reduce the
likelihood of
damaging your
product please
ensure that your
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Care and maintenance
power drill is set on a low torque
setting.
• Remove all fittings from the
plastic bags and separate them
into their groups.
unit or your floor.
to its final position (in the same
Instruction video
• This manual is provided with an additional instruction
video. If the icon on the right is displayed at a particular
step in the manual, Follow the link: http://nlink.nu/homeretail1
Or scan the QR code on the left with your phone.
See page 2 for link
to instruction video!

3
Right side
(205.6 x 58cm)
2
P2350
Left side
(205.6 x 58cm)
1
P2350
3Slide door
(196.3 x 50cm)
4
P3723
Top
(96.7 x 55.7cm)
6
P1564
Bottom
(96.7 x 55.7cm)
7
P1565
Large horizontal
(96.7 x 46.7cm)
8
P1563
5
Plinth front
(96.6 x 14cm)
12
P7334C
Plinth back
(96.6 x 5.4cm)
P7335C
Pelmet
(100.5 x 6.5cm)
FA250
Foldy back
(199.3 x 98cm)
10
BO339330960/
BO33933160 (CAT2458856)
9
Mirror slide door
(196.3 x 50cm)
11
PS3722
Plinth top
(96.7 x 7cm)
P7293

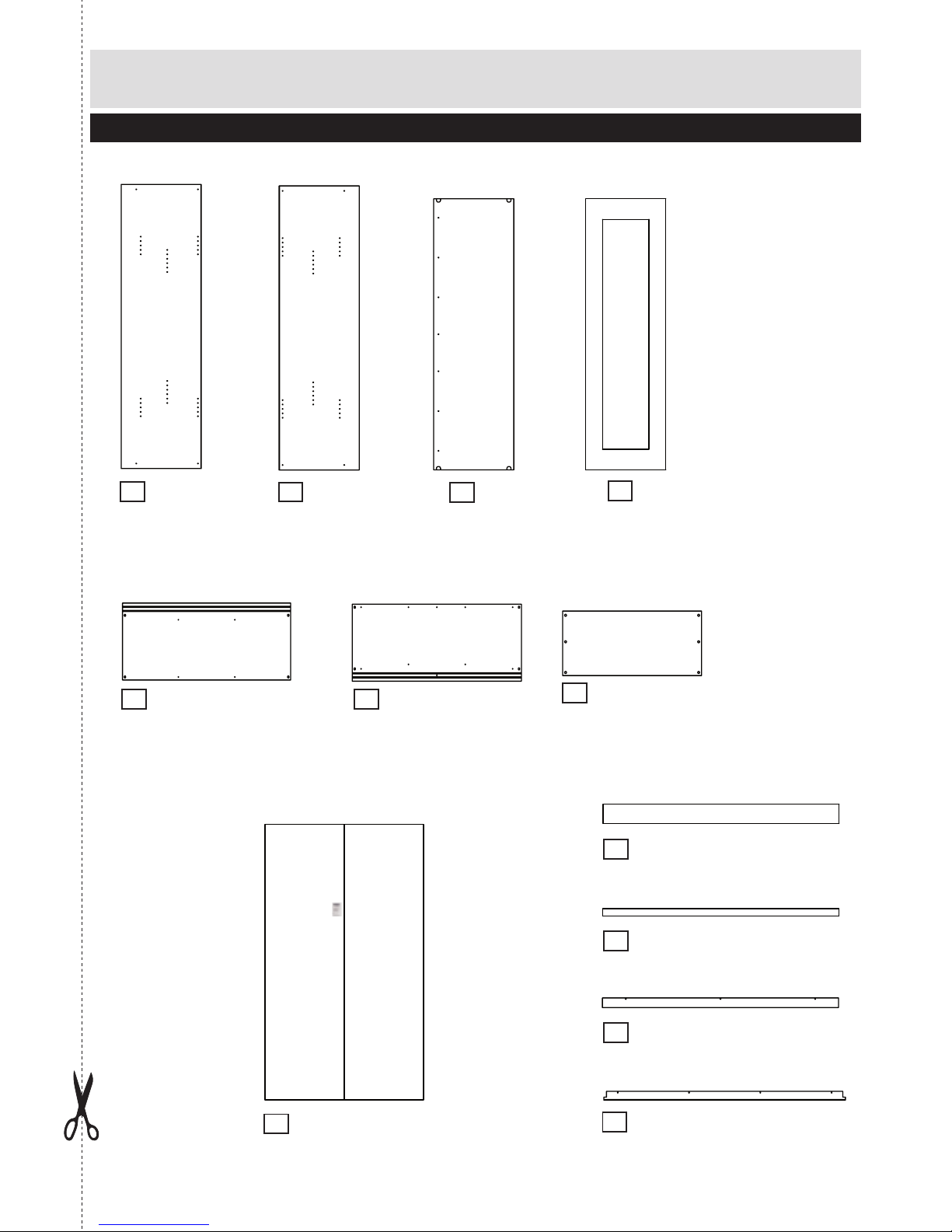

Components - Panels
Please check you have all the panels listed below
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: [email protected]

4
Chipboardscrew x10 (4x40mm)
A
Screw x 21 (3.9x32mm)
E
Expando housing x 3 (20x12mm)
B
Twister leg x 14 (5x24mm)
H
Expanding dowel x 3 (5x8.5mm)
C
I
Q
Pozi screw x 2 (4x12.5mm)
F
L-Bracket x 1
Backpanelscrew x 5 (4x15mm)
D
Sliding door guide x 4
K
Twister cam x 14
(15x12mm)
MP
Sliding door roller adjustable x 2
U
Sliding door roller x 2
L
G
J
Felt x 6
R
Doorstop x 5
ST
PR1964
PM1884
FK1416
FK1324
FK1012
FK1274
FK1011
FK1318
FK1056FK1051
FK1400
FK1235
Hanger rail support x 2
FK1217
FK1309
Peg x 3
FK1234
FK1273 FK1272
FK1417
Sliding rail x 4
(966mm)
Hanger rail x 1
(959mm)
PK1654
FA1515
Nail x 60
Handle moulding x 3
(1904mm)
WX

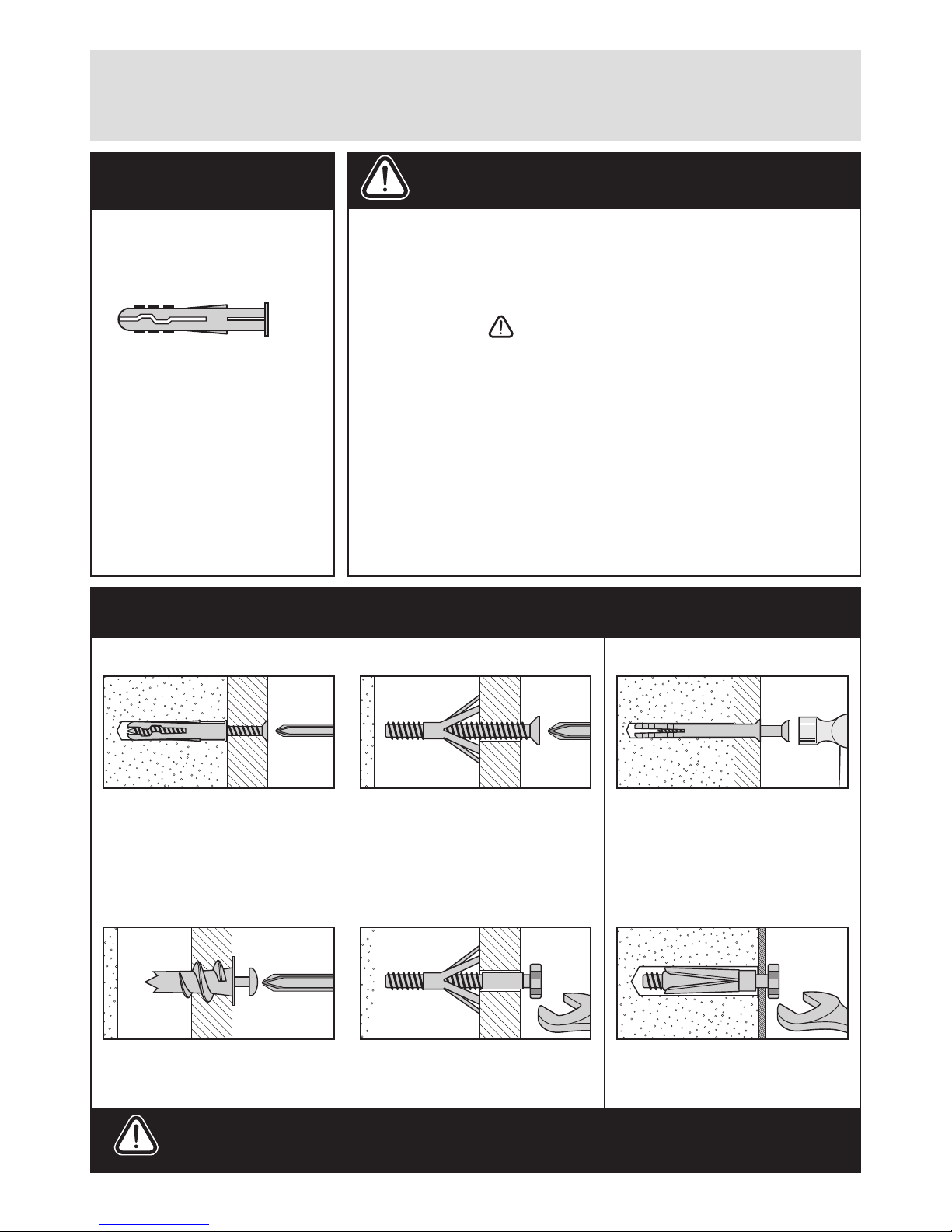

Wall plug and parkerscrew x 1
ZF99936

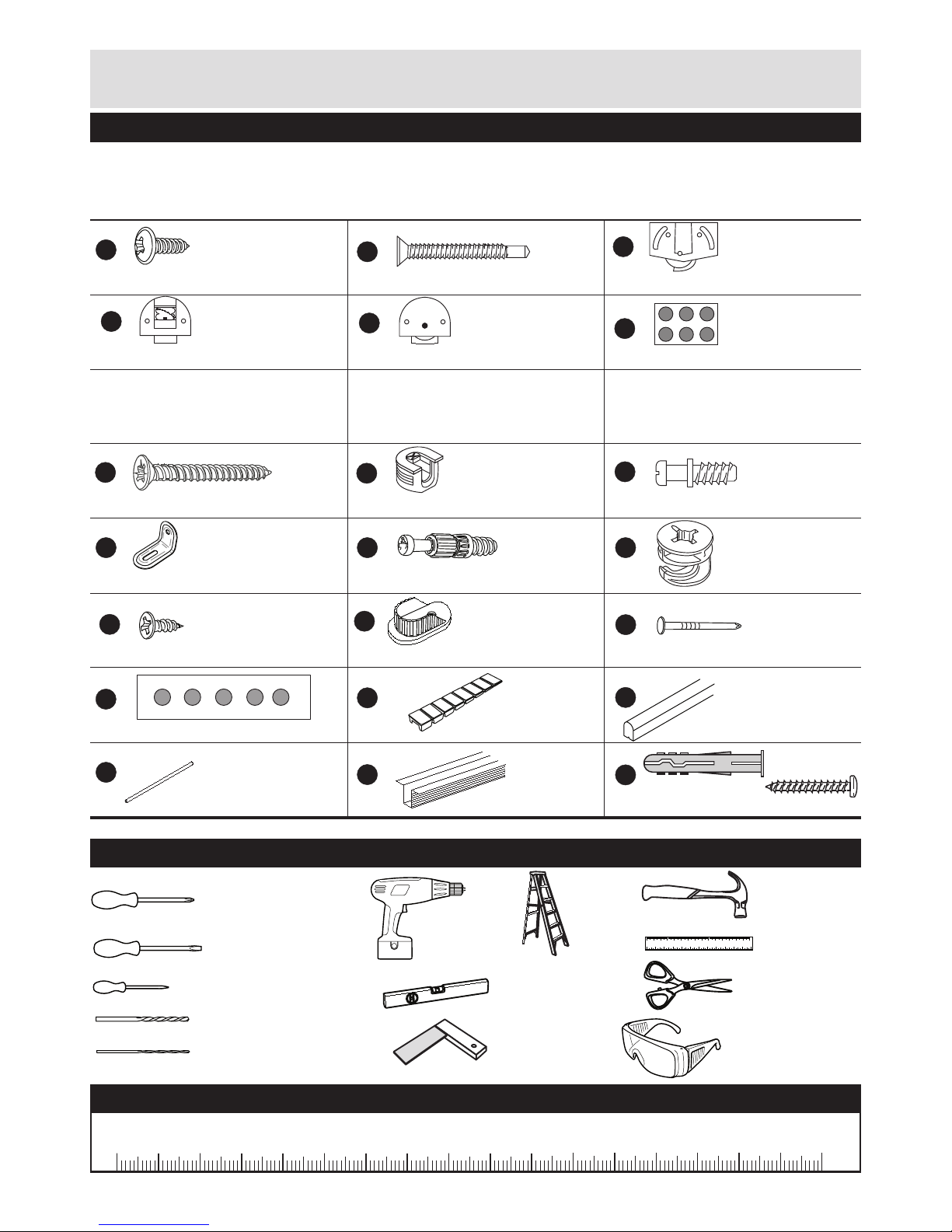

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Components - Fittings
Ruler- Use this ruler to help correctly identify the screws
Tools required
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
Phillips screwdriver
(medium & large)
Flatblade screwdriver
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or drill)
5mm Suitable drill bit
2.5mm Suitable drill bit
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Stairs
Piercer Scissors
(medium)
(small)
Spirit level
Setsquare
For damaged or missing parts, please visit:
www.argos-support.co.uk or email: [email protected]
Door-fittings
Fittings Carcase

5
a:
Step 2
Step 1
H
H
H
H
H
H
H
1/2

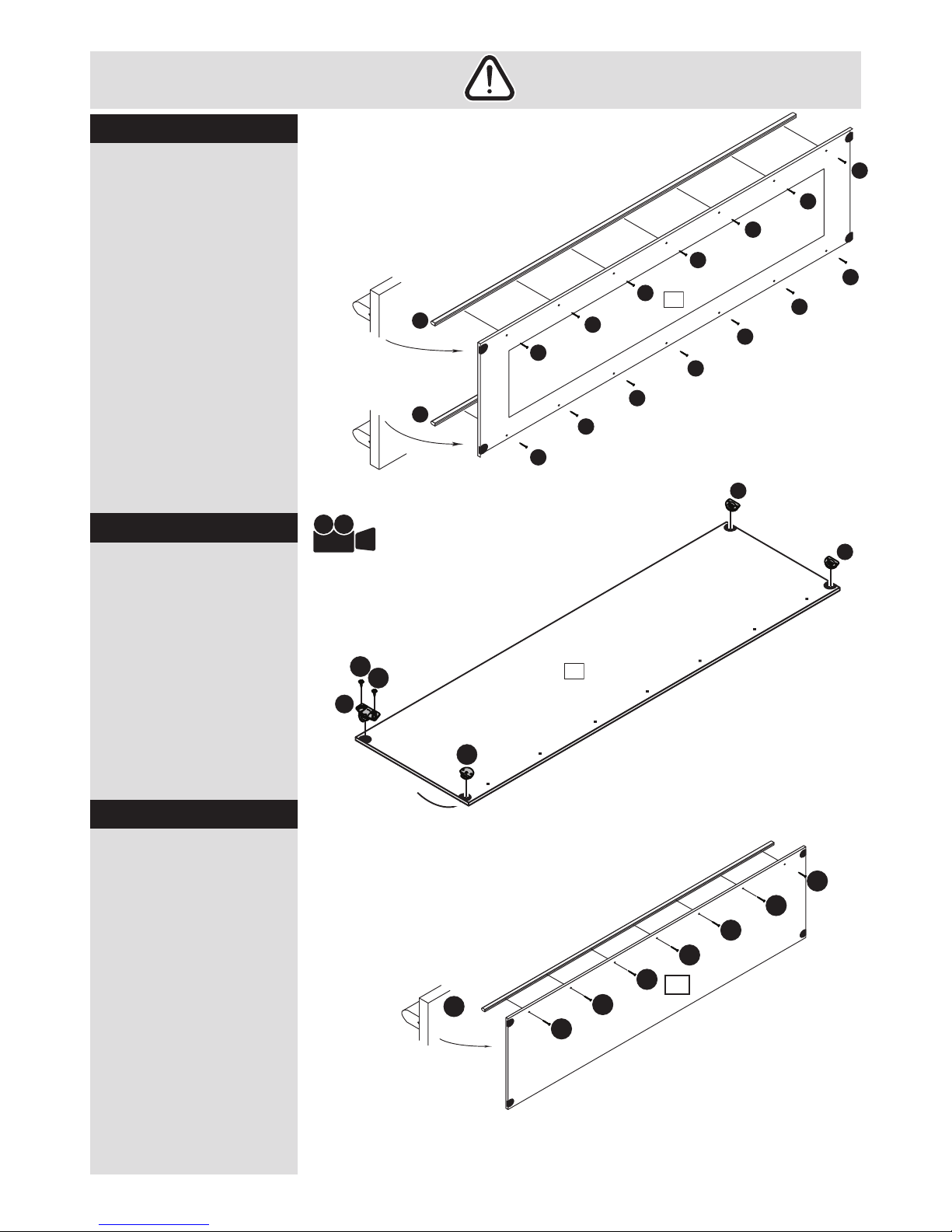

Insert fittings
a: Attach hanger rail
support Musing 12.5mm
screw Fonto sides 12.
Note: Two pannels
I
I
I
M
M
1
2
2
F
F

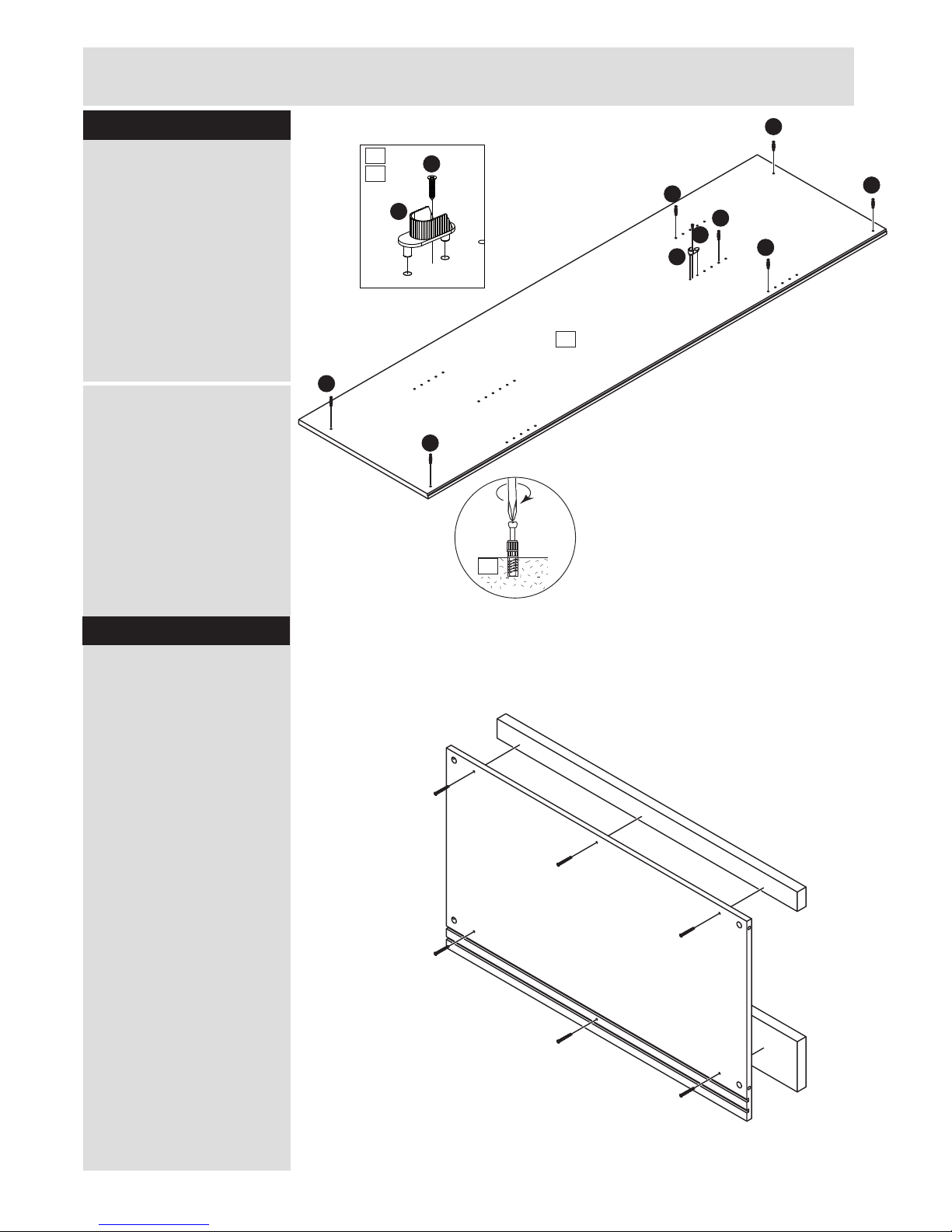

b: Screw twister leg H
into sides 12.
Note: twister leg Has far
as shown.
Do not over tighten.
Attaching plinths
b:
Align the sides of plinth
front 9with bottom 6as
shown and attach using
chipboardscrew A.
Note:
predrilled holes for 40mm
screw A.
Repeat with plinth back
0.
Assembly Instructions

6
Assembly Instructions

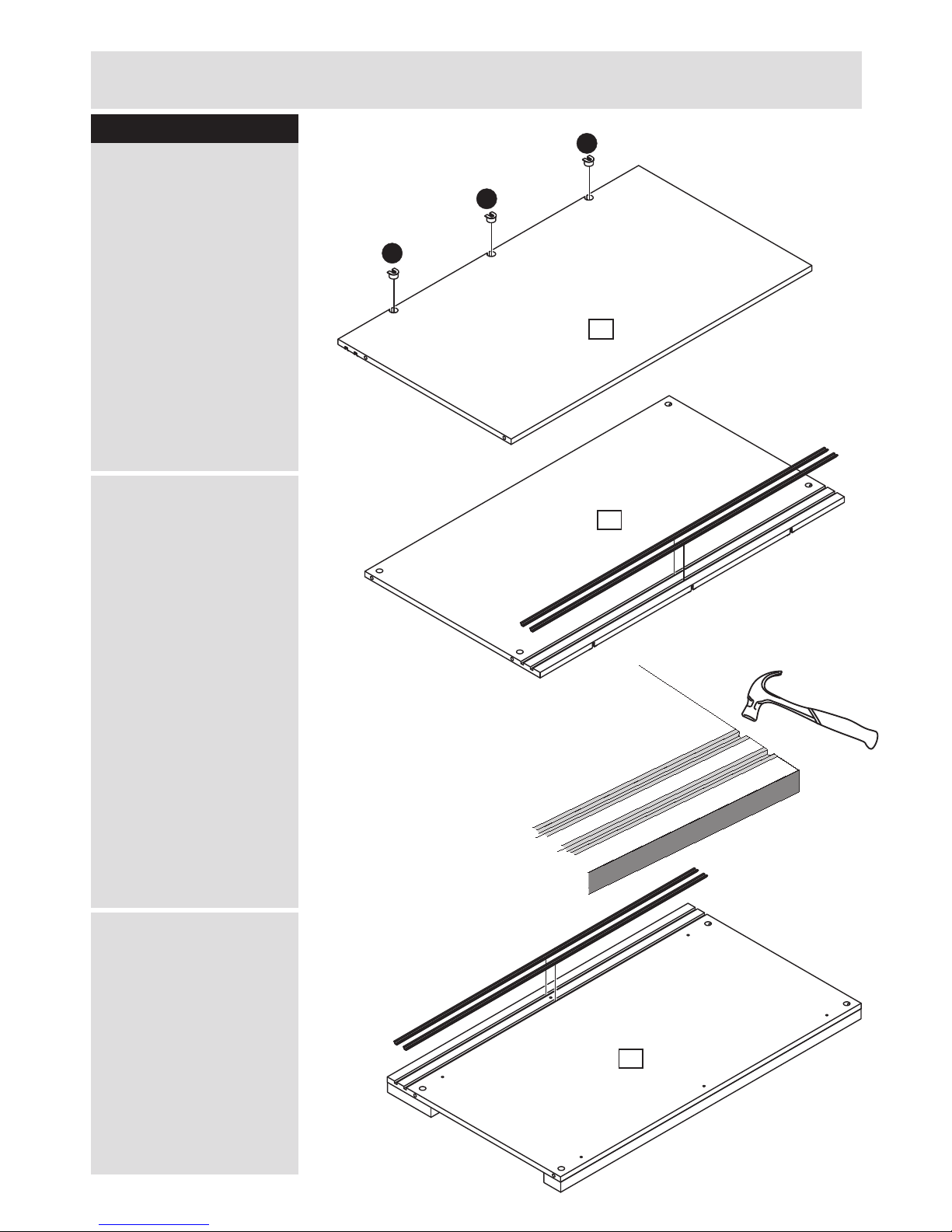

Step 3
Insert fittings
a: Insert expando
housings Binto top 5.
Flip panel
a:
B
B
B
5
6
5
b:
b: Carefully knock sliding
rail Winto top 5by using
a hammer.
Reapeat b for bottom 6.

Locate the 'mating'
panel over the Cam Leg.
Insert the Cam so the
longer 'slot' is pointing
towards the Cam Leg.
Use a Flat Bladed
Screwdriver to turn Cam
clockwise as far as it will go
The final 'locked' position will
be more than half a turn.
M
MI
I
7

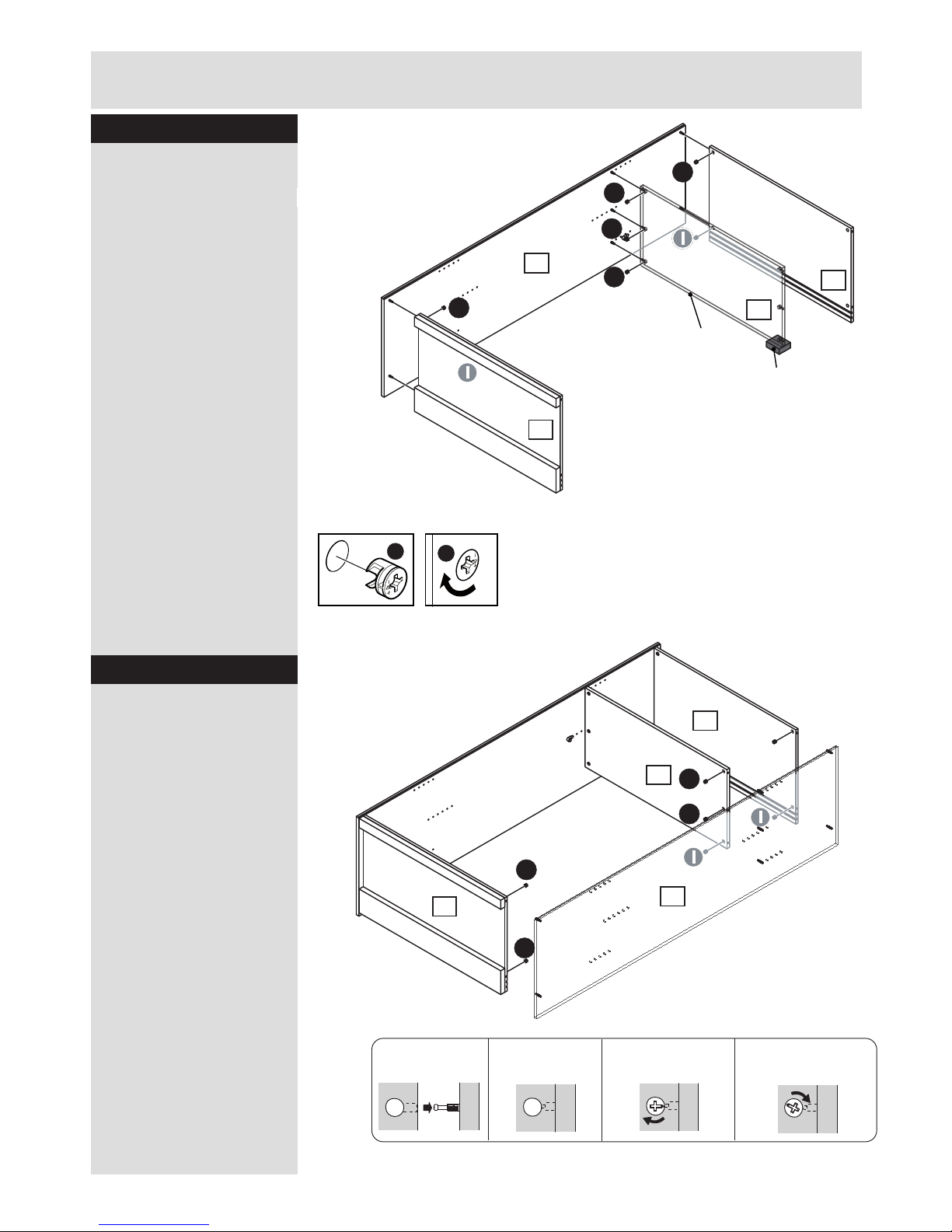

Step 4
Attaching panel
Repeat Step 4 for the
left side 1.
Position top 5, bottom 6
and horizontal 7.
Insert twister cam Iinto
panels 567 where
shown.
Usa a screwdriver to turn
twister cam Iclockwise
to lock.
Temporary support panel
7with packaging material
until attached to left side
1.
I
I
I
I
I
I
I
I
I
I
I
I
I
2
1
6
5
5
7
7
6
Step 5
Assembly Instructions
Finished
Temporary
support
front edge

8
Step 6
Fitting back panel
Attach foldy back 8to
back of wardrobe with
the coloured surface (with
the inside of the unit using
the Warning-label) facing
nails P.
Nails Pshould be spaced
about 150mm apart.
8
P
A:A = B:B
A
A
B
Important!
Cabinet MUST
be ‘square’
before back is
attached.
A
A
B
B
B
Assembly Instructions
See page 2 for link
to instruction video!

9
Step 7
Align the unit
Stand up the unit
Use a spirit level to check
if the base of this unit
is level front-to-back (1),
side-to-side (2) and
top-to-bottom (3) in the
three positions shown.
Use pegs Sto level your
unit in all three direction
shown. Knock peg Sin,
as far as you require,
under the ends of the unit
and then snap off peg
flush with the panel.
S
SNAP!
1
2
3
Assembly Instructions

10
Step 8
Insert hanger rail
Place hanger rail Uonto
hanger rail supports M.
Step 9
M
S
U
GLASS handle with care
Assembly Instructions
Insert fittings
Stick felts Qonto mirror
slide door 4where shown.
Insert Sliding door roller L
in mirror slide door 4on
the side which is flush with.
the handle mouldings T.
Insert sliding door roller
adjustables Jin slide door
4on the other side, fix
them with
backpannelscrews D.
Insert sliding door guides
Kon the other end of the
mirror slide door 4.
Q
Q
Q
Q
K
K
L
Q
Q
Q
4
D
D
J
L

11
GLASS handle with care
Step 10
Step 11
3
T
Flush with
end of Door
E
E
E
E
E
E
E
E
Fitting handle to door
Hold hande moulding T
up against front of slide
door 3, make sure the ends
are flush with one end of the
slide door 3.
Screw screws Einto the
‘V’ groove of the handle
moulding T.
Tip: start with the end 3
screws, then the centre
screw and finally the other
screws.
Step 12
flush
L
D
D
J
Insert Sliding door roller L
in slide door 3on the
side which is flush with the
handle mouldings T.
Insert sliding door roller
adjustables Jin slide door
3on the other side, fix
them with
backpannelscrews D.
Insert sliding door guides
Kon the other end of the
slide door 3.
3
K
K
Assembly Instructions
Fitting handle to
mirrordoor
Hold hande mouldings T
up against front of mirror
slide door 4, make sure
the ends are flush with one
end of the mirror slide door
4.
Screw screws Einto the
‘V’ groove of the handle
moulding T.
Tip: start with the end
screws, then the centre
screw and finally the other
screws.
T
T
Flush with
end of Door
Flush with
end of Door
E
E
E
E
E
E
E
E
E
E
E
E
E
E
T
T
E
E
E
E
E
E
E
E
E
E
E
E
E
E
4
See page 2 for link
to instruction video!

12
Step 13
To fit the top of the Doors
This lug fits into
the groove in
the track
This lug fits into
the groove in
the track
The switch in
the top glides
must be in this
position prior
to fitting the top
of the Doors.
To fit the bottom of the Doors
When the top
of the Door is
in position,
press the switch
to push lug into
the groove of
the track.
Mirrored Door
Fitting of the doors
a. Fit bottom slide door 3
into the rear track and lean
the top back to horizontal
7.
b.Fit mirror slide door 4
into the front track and
secure it.
c.Then fit top slide door 3
in rear track and secure.
See diagrams for more
information abour the fitting
of the doors.
LJ
K K
Important!
Double check if the
unit is level before
fitting the doors. If
this is not the case
please go back to
step 12.
3
4
Insert fittings
Screw expanding dowel C
into plinth top !.
Step 15
Step 14
Attaching plinth
Position the plinth top !
above the unit and slot
expanding dowels Cinto
the expando housing B.
The top of the plinth top !
must be flush with the top
of the unit.
Turn the screws in the
expando housings Bas far
as they will go.
C
C
C
11
7
L
J
K
Assembly Instructions
11
See page 2 for link
to instruction video!

13
Step 16
Step 17
Attaching pelmet
Position the pelmet @
above the unit drilling-holes
and turn the screws A
as far as they will go.
Attaching L-bracket
Position L-Bracket Gonto
top 6as shown, fix by
using 15mm screw D.
Note: there are no
pre-drilled holes for 15mm
screw D.
Use Xto fix on the wall,
please see last page for
more information.
X
12
A
A
A
A
G
X
D
6
Assembly Instructions

14
Step 18
R
R
R
R
Attaching door-stops
Stick 2 door-stops
onto the outside edge of
each plain door to act as
and side panels.
R
Assembly Instructions

15

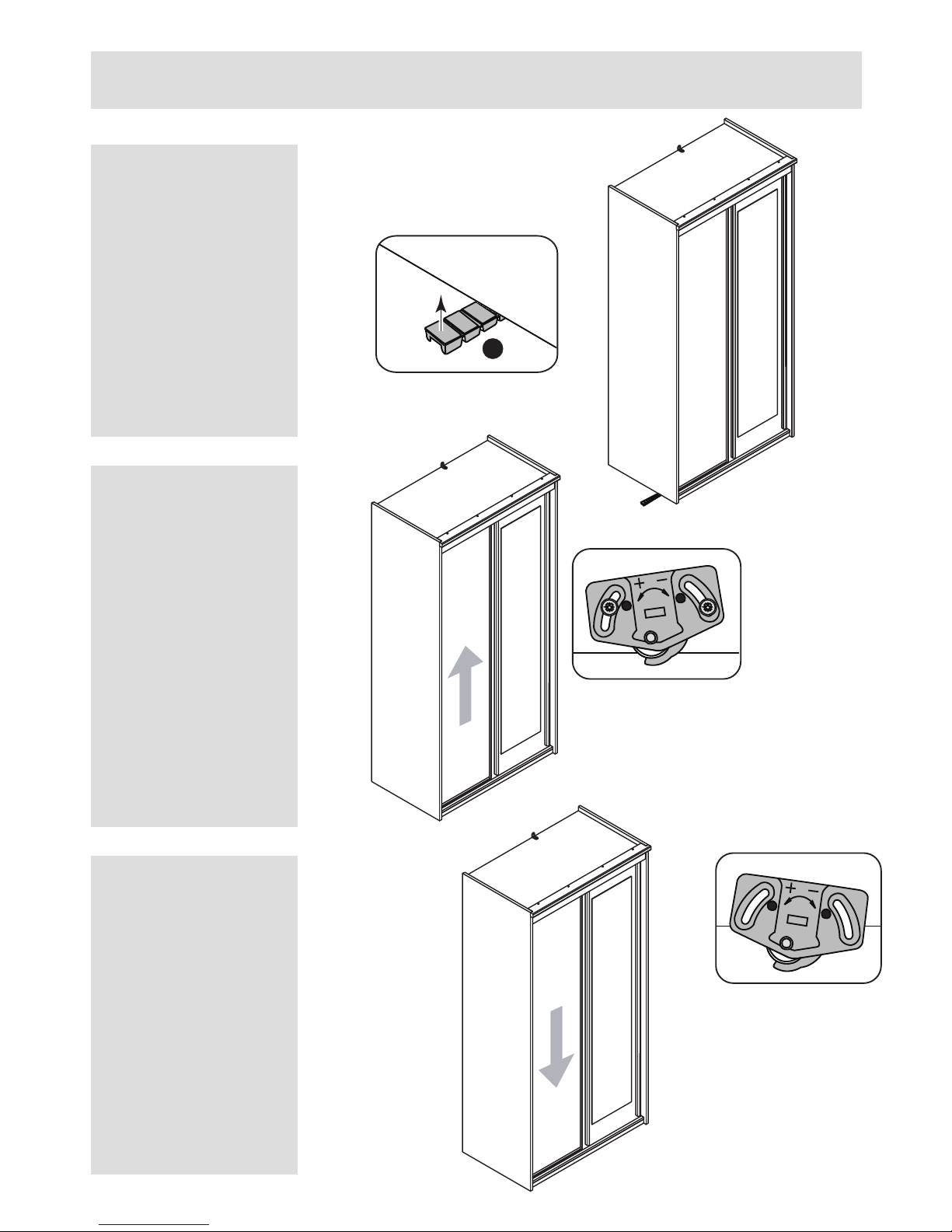

If your doors do not run smoothly
To raise the door, loosen
the screws and swivel the
glide towards the ‘+’ arrow.
Re-tighten the screws.
To lower the door, loosen
the screws and swivel the
glide towards the ‘-’ arrow.
Re-tighten the screws.
Raise the door
Lower the door
S
SNAP!
Level & square the unit
up: Knock the pegs Sin,
as far as you require,
under the ends of the
unit and then snap off
flush with the panel.
For more detailed
information see step 7.
Level & square the unit
Assembly Instructions

16
A Guide to - Wall Mounting & Fixings
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hamemr fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
