Argos Kids Sywell 246/7634 User manual

MADE IN
BRITAIN
Dimensions
Width - 104cm
Depth - 50cm
Height - 172cm
Kids Sywell - 3 Door Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 31/10/14
Important - Please read these instructions fully before starting assembly
ALR3021
246/7634
238/7460
228/8318
Issue 2 - 07/05/14 - Pins were going into the wrong surface of the Base.
Preparation of Top and Base are now separate steps.
Issue 3 - 23/07/14 - Changed Shelf to D2574A.
Issue 4 - 08/09/14 - Step 11 amended to show Backs being fitted.
Issue 5 - 31/10/14 - Argos code 238/9341 added to front page.
238/9341

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 59kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Rule
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)

Components - Panels
Please check you have all the panels listed below
2
1 2 3
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D2560A)
(1711 x 496mm)
Right Side (D2569A)
(1711 x 496mm)
Upright (D2923A)
(1656 x 468mm)
Shelf (D2574A)
(322 x 468mm) x 3
Door (D2563A)
(1650 x 333mm) x 3
Top (D2568A)
(1011 x 494mm)
Base (D2922A)
(1011 x 494mm)
Small Back (X1682-340)
(1682 x 340mm)
Large Back (X1682-694)
(1682 x 694mm)
567
4
10 11
Hanging Rail (FHR666)
(666mm long)
9
Rail (D2597A)
(674 x 125mm)
8

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A B C
D E F
G H
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K L
O
Bracket (F327) x 1 Hinge plate
(F523) x 9 Hinge (F522) x 9
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
13mm Screw (F79) x 1 13mm Screw (F63) x 22
I
F
Large locking
nut (F900) x 14
Wooden dowel (F22) x 14 Metal dowel (F901) x 14
25mm Screw (F95) x 6
Rail Holder
(F891) x 2
Nail (F51) x 36
M
Shelf stud (F110) x 14
Plastic Nail (F91) x 4
P
Handle (F315) x 3
Nail screw (F277) x 5
N
Back holder (F276) x 5
*These can also be round

A
A
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Prepare the upright
a: Insert 4 large locking
nuts into the upright
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 4 wooden dowels
into the upright .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw a metal dowel
into the upright .
Note: Tighten the metal
dowel up fully against
the panel.
b: Fit 3 hinge plates
onto the upright ,
making sure that the slot
is facing towards the
finished front edge.
Fit the rail holder to
the upright using 2
screws .
Step 1
Finished
front edge
C
C
C
C
C
F
I
F
K
K
K
K
C
A
10mm
A
A
Finished
front edge
K
3
I
F
3
C
3
A
3
3
3
b:
a:
Prepare top and base
a: Tap 4 wooden
dowels into the top .
Insert 4 large locking
nuts into the top .
Screw 2 metal dowels
into the top .
Note: Tighten the metal
dowels up fully against
the panels.
b: Tap 4 wooden
dowels into the base
..
Insert 4 large locking
nuts into the base
.
Screw 2 metal dowels
into the base .
B
B
6
B
3
B

Finished
front edge
Assembly Instructions
5
Step 2
Step 3
Prepare the top
Tap 4 wooden dowels
into the top .
Insert 4 large locking
nuts into the top .
Screw 2 metal dowels
into the top .
Note: Tighten the metal
dowels up fully against
the panels.
A
5
C5
A
A
A
A
C
C
C
C
b:
B
B
B
Finished
front edge
B
5
5
A
A
A
A
C
C
C
C
b:
plain
chipboard
surface
Finished
front edge
6
Turn the
base over
Prepare the base
a: Tap 4 wooden dowels
. into the base .
Insert 4 large locking
nuts into the base
.
Turn the base over
b: Screw 2 metal
dowels into the base
. .
A6
C
6
B
6
B
B

Assembly Instructions
6
Step 4
Step 5
Finished
front edge
Finished
front edge
Finished
front edge
B
C
Fit the top and base
to the upright
Push the top and the
base onto the upright
. .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the upright .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
5
6
3
3
C
C
5
3
plain
chipboard
surface
6
Finished
front edge
Prepare the left side
Screw 5 metal dowels
into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Fit the rail holder to
the left side using 2
screws .
B
1
K
K
K
K
B
B
B
B1
K
1
I
F
1
F
I
F
B

Assembly Instructions
7
Step 6
Step 7
Prepare the right side
Screw 4 metal dowels
into the right side .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
B
2
K
2
B
B
B
B
K
K
K
K
Finished
front edge
2
Fit the right side
Push the right side
onto the top and
base .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and base .
Step 8
5
6
2
5 6
25
6
C
A
A
C
C
plain chipboard surface
Prepare the rail
Tap 2 wooden dowels
into the rail .
Insert 2 large locking
nuts into the rail .
A
8
C8
8

Assembly Instructions
8
Step 9
Step 10
5
6
Finished
front edge
1
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top , base and
rail .
1
C
5 6
8
Fit the rail
Push the rail onto the
upright .
Use a screwdriver to
tighten the large locking
nut fitted to the rail .
8
3
C83
Note: Support the rail
until the left side has been
fitted in the next step.
88

yy
Assembly Instructions
9
Step 11
b:
c:
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
H
11
10
Fit the back panel
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
Place the small back
and large back down
onto the unit as shown,
with the white surface
facing the inside of the
unit.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the upright
panel’s edge.
b: Nail around the
outside edges only of the
2 back panels and
. .
Note: Do
not nail
where the
backs
meet. Nails
should be
spaced
about
150mm
apart.
c: Push the nail screws
. through the back
holders and tap them
down between the small
back and large back
. and into the back
edge of the divider.
Keep tapping the nail
screws in until the
back holders dig into
the small and large back.
10
11
H
11
10
N
M
N
M
NM +
x
yy
x
M
N
10
11
N
Note: These can
also be round
11
10
Note: If ever you need to take
the backs off to dismantle the
unit, the nail screws can be
taken out using a screwdriver.
M
N
Note: Nails should
be spaced about
150mm apart.

Assembly Instructions
10
Step 12
O
O
2
O
O
1
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Stand the unit up
for the next step.
O
1
2
Warning: The
unit is heavy.
Lift with care.
Fit the hanging rail
Push the hanging rail
into the rail holders .
9
I
9
I
9
Step 13

Assembly Instructions
11
Step 14
Fit the shelves and
door stops
For each shelf , insert
4 shelf studs at the
required height.
Lower the 3 shelves
down onto the shelf
studs .
Push the other 2 shelf
studs down into the
holes in the base to
act as door stops.
G
7
7
Gx 4
Gx 4
Gx 4
G
G
7
7
7
Step 15
Prepare the 3 doors
Push fit 3 hinges into
each of the 3 doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
L
4
90
L
L
F
F
L
F
F
L
F
F
4
x 3
6
GG
6

Assembly Instructions
12
Step 16
Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 2
screws .
L
L
L
K
K
K
L
K
P
D
4
4
a: b:
c: d:
K
L
K
K
B
K
L
L
L
A
L
K
B
e:
P
D
4
4
4
D
P
P

Assembly Instructions
13

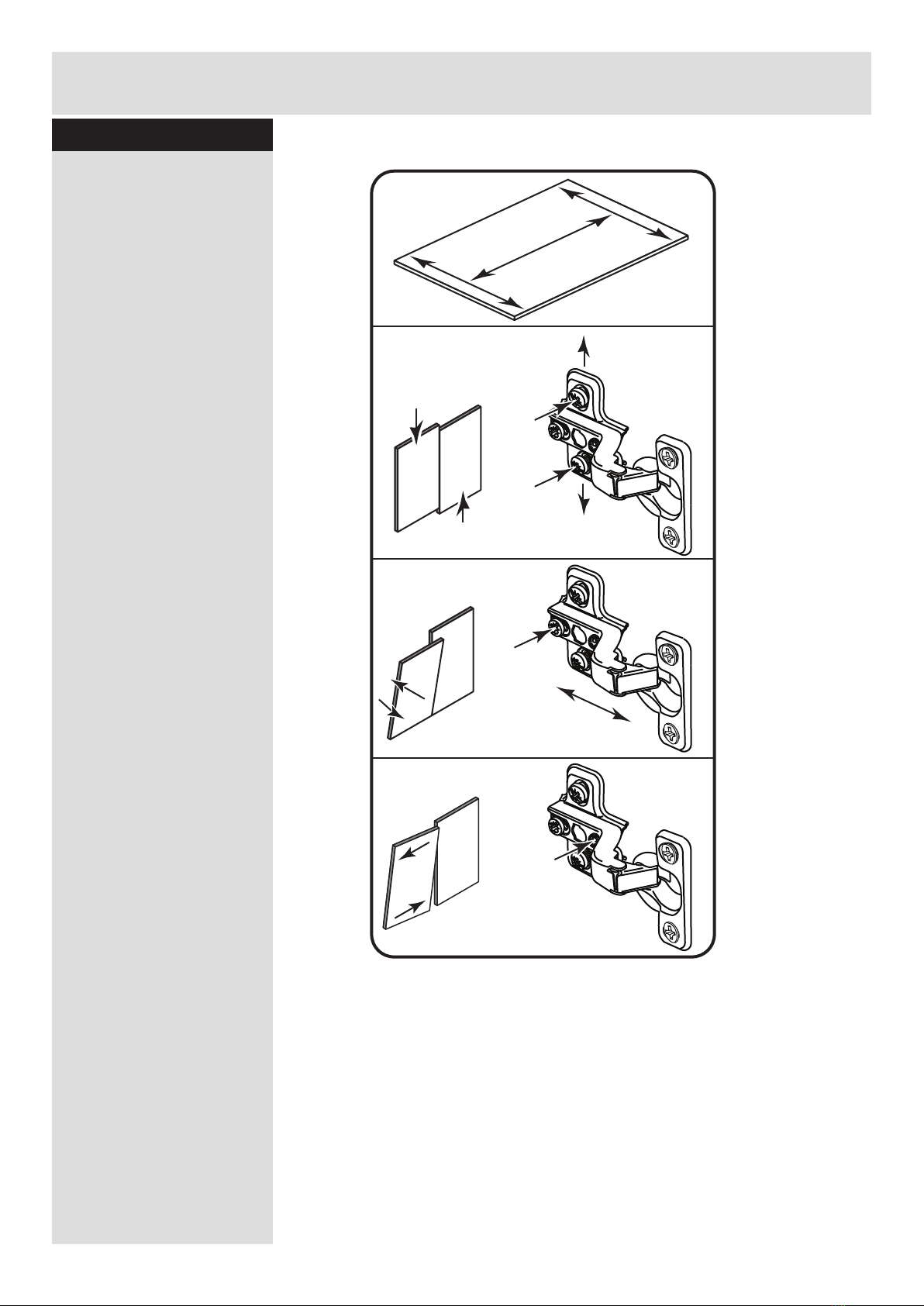

Step 17
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
14
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 18
Top of Unit
WALL WALL
Back of Unit
Fit the bracket
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
Assembly is complete
J
J
E
J
J
E
J
E
J
J

ALR3021

MADE IN
BRITAIN
Dimensions
Width - 104cm
Depth - 50cm
Height - 172cm
Kids Sywell - 3 Door Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 6 - 18/11/14
Important - Please read these instructions fully before starting assembly
ALR3021
246/7634
238/7460
228/8318
Issue 2 - 07/05/14 - Pins were going into the wrong surface of the Base.
Preparation of Top and Base are now separate steps.
Issue 3 - 23/07/14 - Changed Shelf to D2574A.
Issue 4 - 08/09/14 - Step 11 amended to show Backs being fitted.
Issue 5 - 31/10/14 - Argos code 238/9341 added to front page.
Issue 6 - 18/11/14 - Overbalance protector strap kit has replaced bracket and screw.
238/9341

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 59kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Rule
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)

Components - Panels
Please check you have all the panels listed below
2
1 2 3
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D2560A)
(1711 x 496mm)
Right Side (D2569A)
(1711 x 496mm)
Upright (D2923A)
(1656 x 468mm)
Shelf (D2574A)
(322 x 468mm) x 3
Door (D2563A)
(1650 x 333mm) x 3
Top (D2568A)
(1011 x 494mm)
Base (D2922A)
(1011 x 494mm)
Small Back (X1682-340)
(1682 x 340mm)
Large Back (X1682-694)
(1682 x 694mm)
567
4
10 11
Hanging Rail (FHR666)
(666mm long)
9
Rail (D2597A)
(674 x 125mm)
8

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A B C
D E F
G H
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K L
Hinge plate
(F523) x 9
Hinge (F522) x 9
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
13mm Screw (F63) x 22
I
Large locking
nut (F900) x 14
Wooden dowel (F22) x 14 Metal dowel (F901) x 14
25mm Screw (F95) x 6
Rail Holder
(F891) x 2
Nail (F51) x 36
M
Shelf stud (F110) x 14
Plastic Nail (F91) x 4
O
Handle (F315) x 3
Nail screw (F277) x 5
N
Back holder (F276) x 5
*These can also be round
Strap
Screw Washer x 2
Overbalance protector kit (F269) x 1
