Argos 906/5716 User manual

Dimensions
Width - 80cm
Depth - 33cm
Height - 86cm
Venetia - Shoe Storage
Assembly Instructions - Please keep for future reference
Issue 8 - 06/10/14
ALR2595
Issue 2 - 02/06/11 - Tools and Rule added to fittings page.
906/5716
Issue 3 - 17/05/12 - Argos code added.
Issue 4 - 20/12/12 - Title changed to Venetia.
Rebates taken off of the Left Side, Right Side, Top and Base - all gone up to issue B.
Shelves increased in size to 760 x 312mm - gone up to issue B.
MADE IN
BRITAIN
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: [email protected] (quoting your original order number)
Important - Please read these instructions fully before starting assembly
Issue 5 - 29/07/13 - Click have agreed with Argos to put their help line number on the Venetia range as a trial.
Issue 6 - 06/02/14 - Replaced the F284 screw (6x5/8 flange head) with a F79 screw (6x1/2 flange head).
Issue 7 - 25/07/14 - Deleted the blow up diagram at steps 4b and 5b and updated the text to current.
Issue 8 - 06/10/14 - The unit is now available in Oak or White with a different handle on each.
The handle screw has been changed to a Flange Blunt End.
Oak
White
323/9603
White

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 28kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

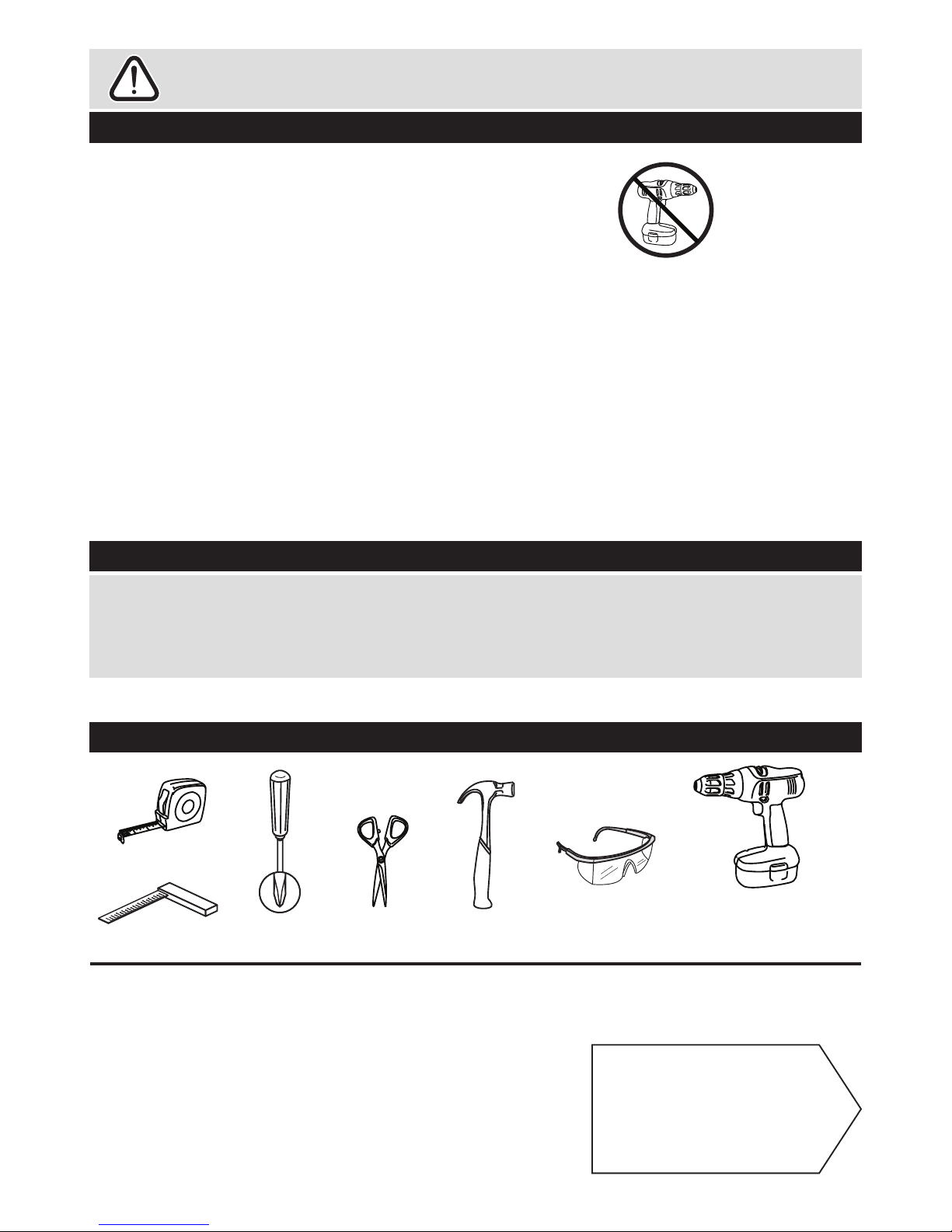

Tools required
Rule
Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(only use when drilling
walls and doors)
Square
mm 10 20 30 40 50 60 70 80 90 100 mm 10 20 30 40 50 60 70 80 90 100

2
1
80%
x 2
5
2
7 8
7 8
6
10
9
Back (X803)
(848 x 780mm)
Drawer Wrap (W429)
(1393 x 95mm)
Drawer Base (T429)
(319 x 740mm) 11
3
4
Left Side (D0844B)
(830 x 312mm)
Right Side (D0845B)
(830 x 312mm) Base (D0847B)
(797 x 329mm)
Top (D0846B)
(797 x 329mm)
Loose Shelf (D0850B)
(760 x 312mm) x 3
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
Oak Drawer Front (D0848A)
(786 x 138mm)
White Drawer Front (D3060A)
(786 x 138mm)
6
Oak Left Door (D3058A)
(683 x 392mm)
Oak Right Door (D3059A)
(683 x 392mm)
White Left Door (D3061A)
(683 x 392mm)
White Right Door (D3062A)
(683 x 392mm)
OR
OR

3
A B
D
C
Large locking
nut (F900) x 4
F
G H
Small locking
nut (F3) x 2
P
J
I
9mm Screw (F74) x 2
LK
9mm Screw (F73) x 4
Drawer runner (F1004) x 2
Q
Metal dowel (F901) x 6
Nail (F51) x 22
E
40mm Screw (F910) x 4 25mm Screw (F95) x 6
13mm Screw (F63) x 8
Plastic Nail (F91) x 4 Shelf support (F121) x 12
M ON
Bracket (F327) x 1
Handle (F236) x 3
Hinge plate (F523) x 4 Hinge (F518) x 4
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
13mm Screw (F79) x 1
Handle (F315) x 3
OAK UNIT WHITE UNIT
OR

4
Step 1
6
9
B
A
C
a:
A
b:
C
9
a:
b:
A
A
F
C
C
Prepare the drawer
front and wrap
a: Screw 2 metal dowels
. into the holes shown
on the back of the
drawer front .
Note: Tighten the metal
dowels up fully against
the panel.
b: Insert 2 small locking
nuts into the holes
shown on the drawer
wrap .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
A
6
C
9
Assemble the drawer
a: Place the drawer
base into the narrow
slot on the drawer wrap
. . Fold the wrap
around the base.
b: Turn the drawer wrap
assembly over and push
it onto the back of the
drawer front .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
10
9
6
C
Step 2
9
9
10
plain surface
9
6
6
Note: Due to the manufacturing
process, the holes for the
locking nut can be on either
surface of the drawer wrap.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)

Finished
front edge
Finished
front edge
Finished
front edge
Assembly Instructions
5

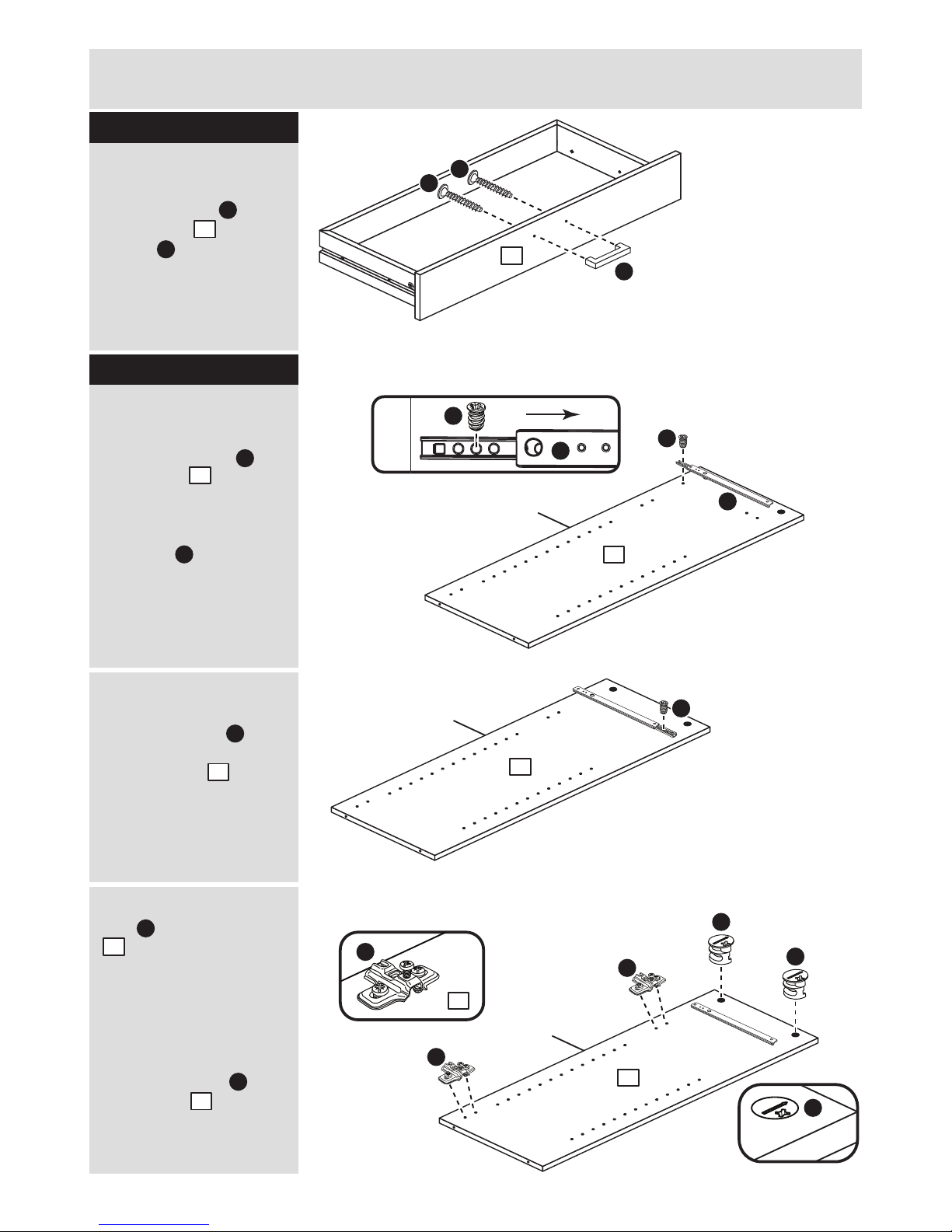

Step 3
Step 4
F
F
Q
Attach the handle
Attach a handle to the
drawer front using 2
screws .
Q
F
6
6
J
P
B
B
J
Fit runners to left side
a: Place a runner on
the left side . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Insert 2 large locking
nuts into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit 2 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
1
P
J
J
B
N
1
N
N
1
1
1
N
1
1
Finished
front edge
J
P
b:
c:
a:
B
1
This shows the handle
for the Oak unit.
You may have the
White unit.

Assembly Instructions
6

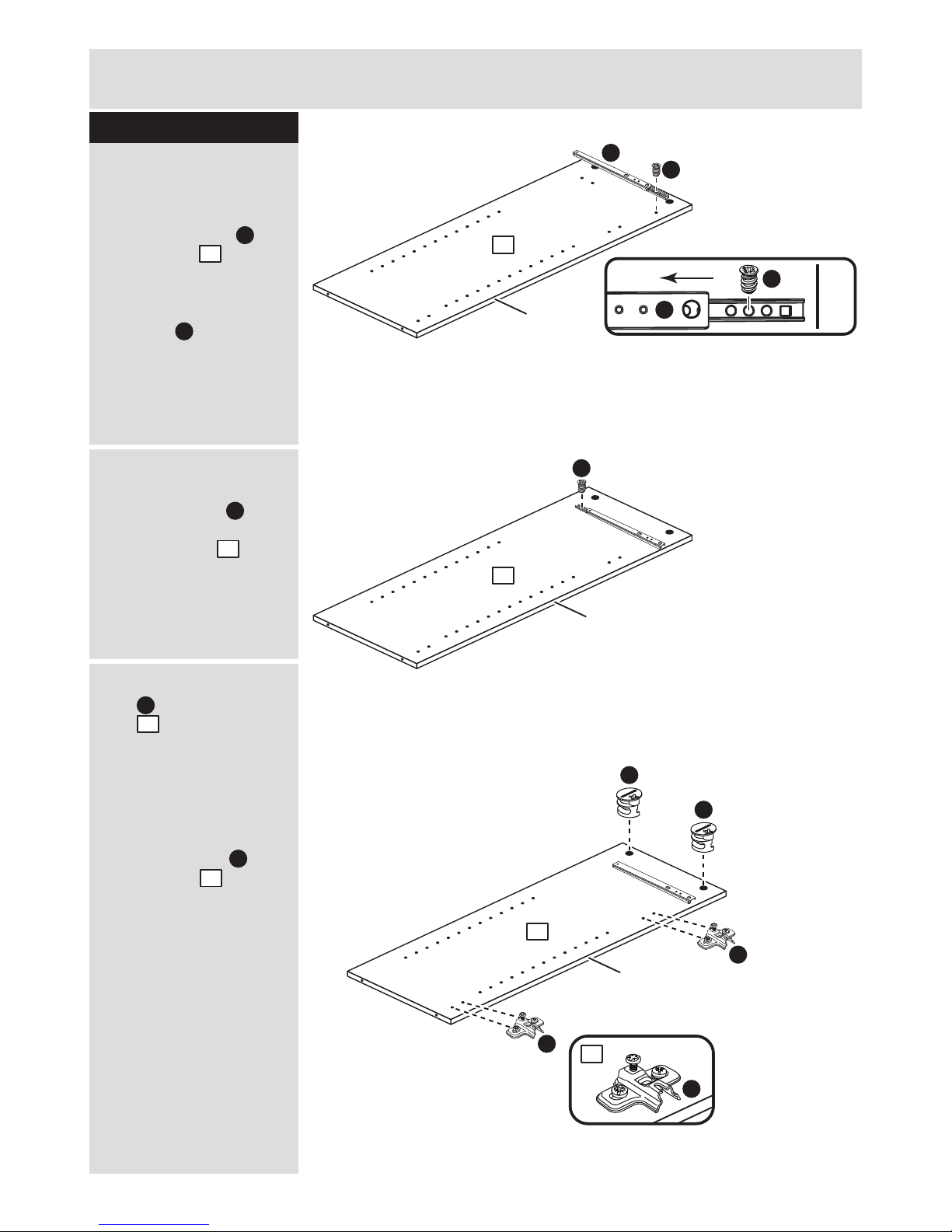

Step 5
Finished
front edge
J
P
J
P
J
Finished
front edge
b:
c:
a:
B
B
Fit runners to right
side
a: Place a runner on
the right side . Slide
back the top of runner
and use the 2nd hole
from the front to fit the
1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
c: Insert 2 large locking
nuts into the right
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit 2 hinge plates onto
the right side , making
sure that the slot is
facing towards the
2
P
J
J
B
N
2
2
N
N2
N
2
2
2
Finished
front edge
Finished
front edge
2

Finished
front edge
Finished
front edge
Assembly Instructions
7
Step 6
Prepare the top
Note: The top and base
panels are very similar but,
the holes in the top panel
are not drilled all the way
through.
Fix a bracket to the
middle of the top ,
flush to the back edge,
using screw .
Screw 4 metal dowels
into the holes shown on
the top .
A
A
A
A
Finished
front edge
M
3
M
3
3
G
A
Join the top and right
side
Push the top onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the right side .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
B
A
2
3
Step 7
3
2
3
2
B
B
2
G
M

Finished
front edge
Finished
front edge
Assembly Instructions
8
Step 8
3
Fit the left side
Push the left side
onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the left side .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
1
3
B
1
B1
Fit the base
Attach the base to
the left side and right
side using 4 screws
. .
E
E
E
E
Step 9
4
1
2
E
41
2

y
Assembly Instructions
9
Step 10
Fit the plastic nails
Tap the plastic nails
into the base as
shown.
The plastic nails
must go up into
the bottom
edge of the left
side and
right side .
K
K
4
1
2
2
Step 11
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about
150mm apart.
Stand the unit up
for the next step.
yy
x
x
D
10
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
b:
10
D
10
K
K
K
K
41

Assembly Instructions
10
Step 12
Step 13
Make sure that the plastic
sleeve is fully pushed
onto the shelf stud.
Fit the shelf studs
For each of the 3
shelves , insert 4 shelf
studs at the required
height. L
L
L
L
L
L
L
L
L
L
L
L
5
L
M
Secure unit to a wall
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the metal
bracket fitted under
the top of the unit.
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
Warning: Take
care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
3
L
WALL
WALL
Top of unit
M
3
M

Assembly Instructions
11

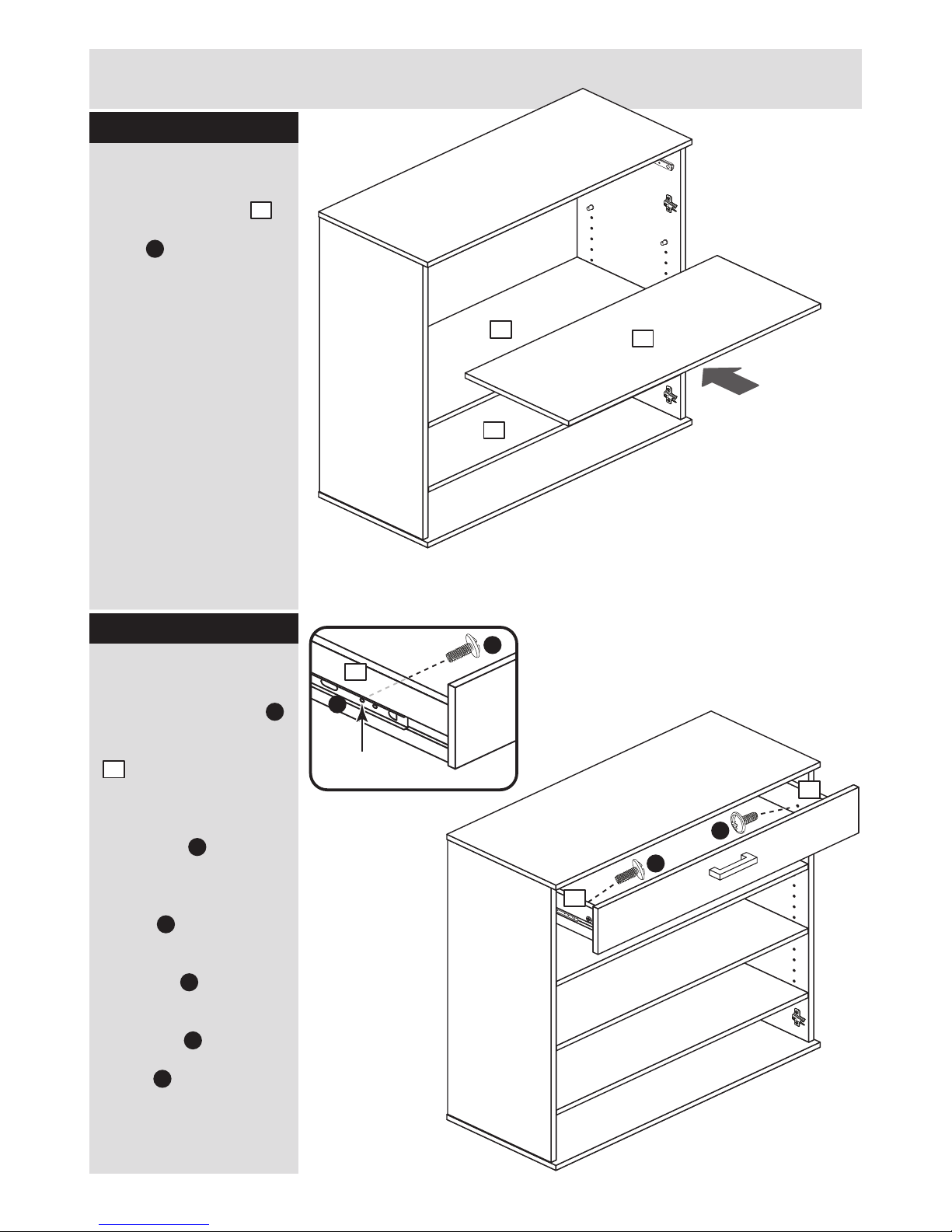

Step 14
Step 15
Fit the shelves
Lower the 3 shelves
down onto the shelf
studs .
5
L
Fit the drawer
Slide both the runners
forward and locate the
sides of the drawer wrap
. between them, lining
up the holes in the
drawer wrap with the
2nd 'threaded' holes in
the runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner .
Note: Do not overtighten
the screws .
If they catch on the
runner you may need
to loosen them slightly.
P
92nd threaded
hole
P
I
9
9
9
I
I
I
I
P
P
P
5
5
5
This shows the Oak unit.
You may have the White unit.

Assembly Instructions
12
Step 16

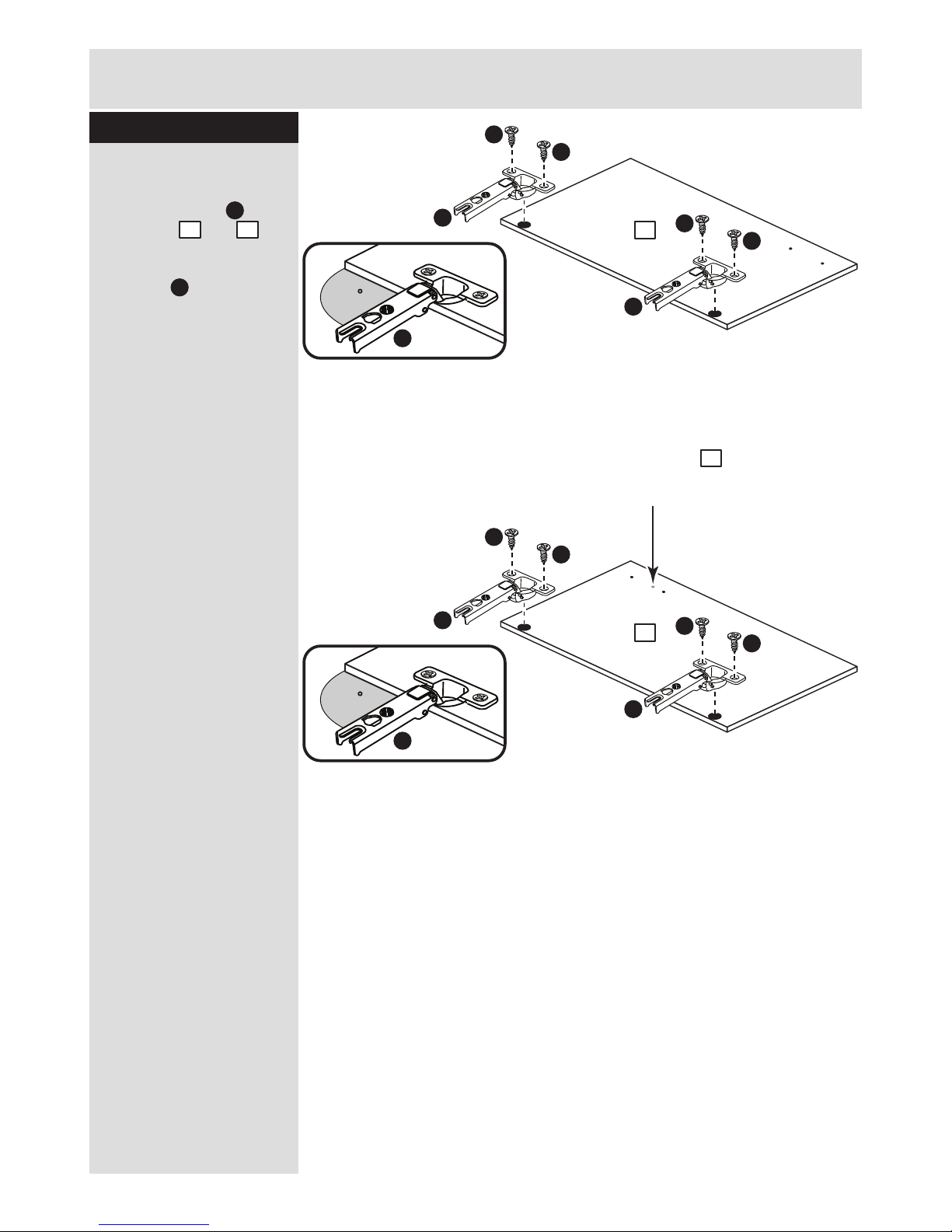

Prepare the doors
Push fit 2 hinges into
each door and .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
H
O
7 8 7
90
O
O
H
H
O
H
H
x 2
8
90
O
O
H
H
O
H
H
x 2
Note: The right door has
a shallow identification hole
between the 2 handle holes.
8

Q
Assembly Instructions
13
Step 17
F
F
Q
8
Fit doors and handles

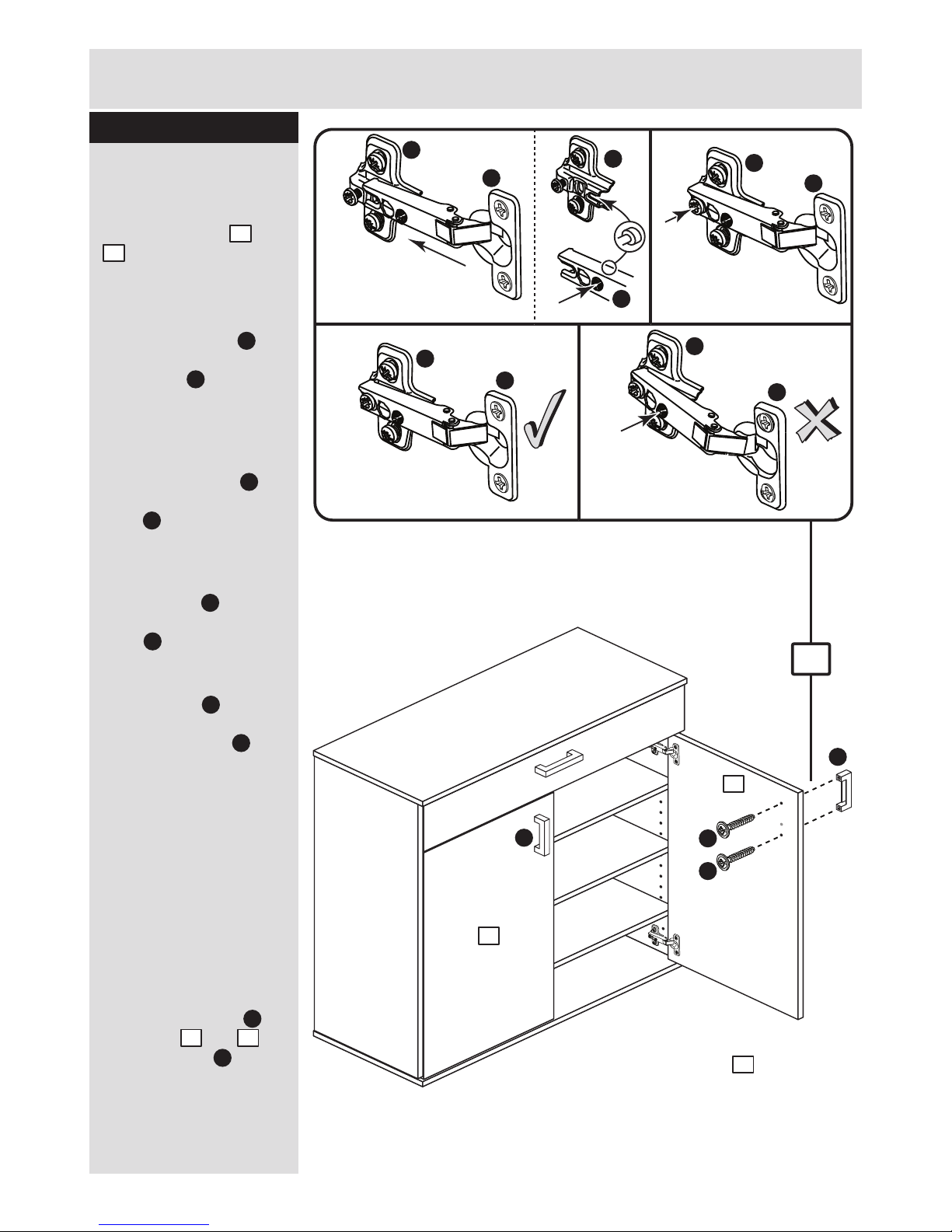

Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door and
using 2 screws .
O
O
O
N
N
N
O
N
Q
F
7
8
7 8
e:
a: b:
c: d:
N
O
N
N
B
N
O
O
O
A
O
N
B
7
Q
White
F
F
This shows the handles for the Oak unit.
You may have the White unit.
Q
8
7
Note: The right door has
a shallow identification hole
between the 2 handle holes.
8

Assembly Instructions
Step 18
14
b:
c:
d:
a:

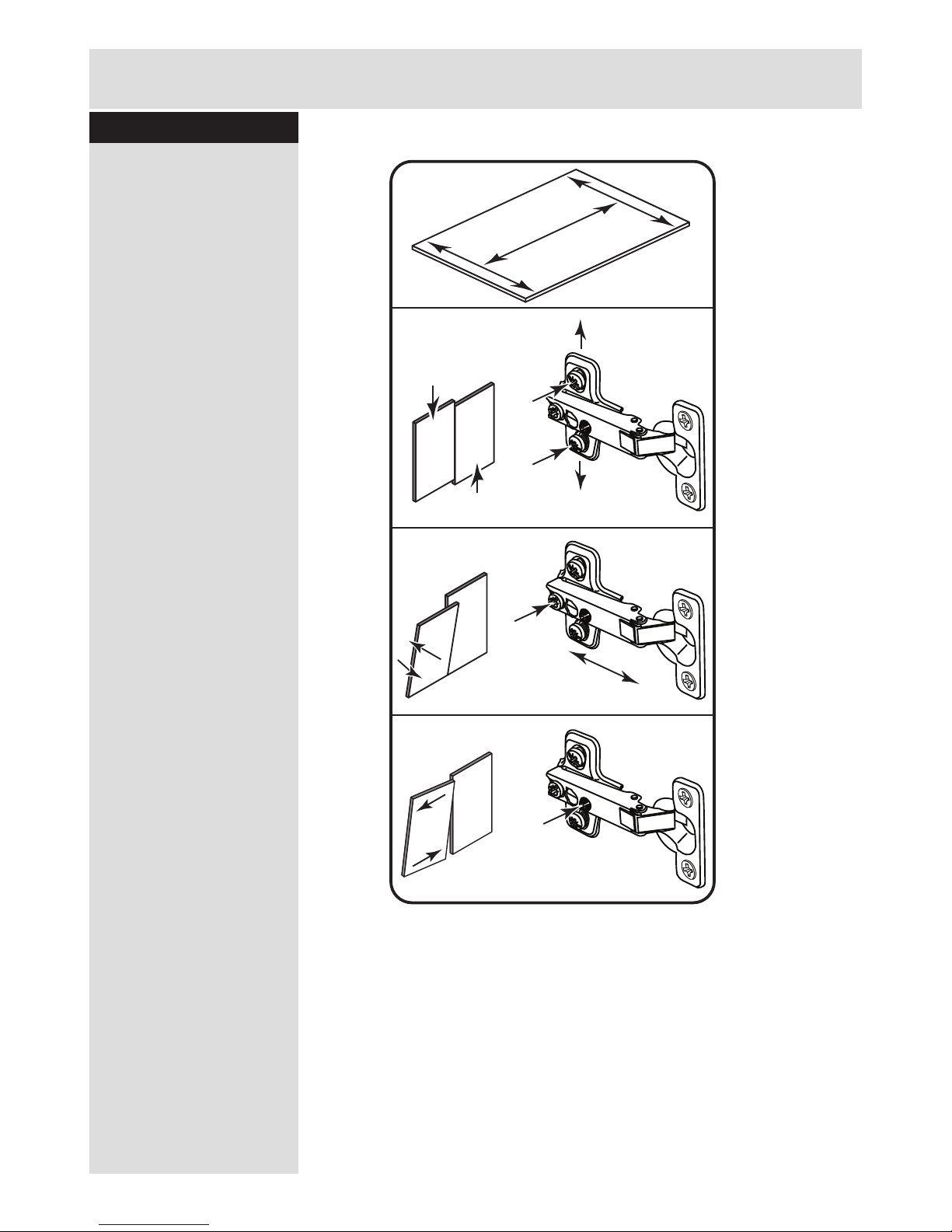

Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
15 ALR2595
Step 19
Assembly is complete
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: [email protected] (quoting your original order number and the reference numbers on the component pages)
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Oak
White
