Argos Mix and Match 709/2523 User manual

MADE IN
BRITAIN
Dimensions
Width - 103cm
Depth - 50cm
Height - 167cm
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 09/10/14
Important - Please read these instructions fully before starting assembly
ALR2842
709/2523
709/0848
355/3743
709/2516
Mix and Match - 3 Door Robe
Issue 2 - 09/10/14 - New code added for Beech 355/3743

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 58kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

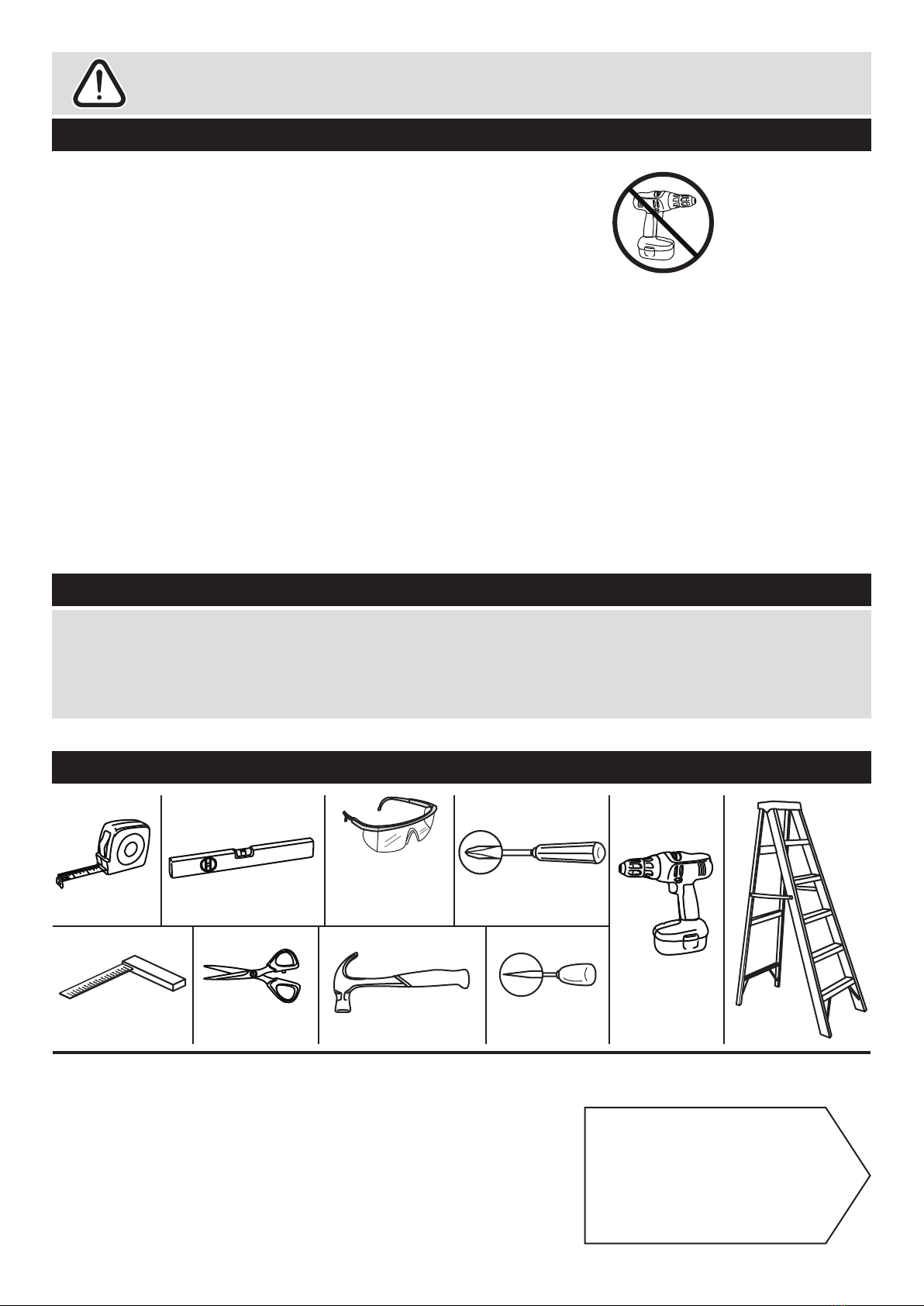

Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm 10 20 30 40 50 60 70 80 90 100 mm 10 20 30 40 50 60 70 80 90 100

Components - Panels
Please check you have all the panels listed below
2
80%
x 3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
1 2
Hanging Rail (FHR644)
(644mm long)
7
Left Side (D2021A)
(1668 x 494mm)
Right Side (D2022A)
(1668 x 494mm)
Upright (D2023A)
(1555 x 476mm)
Shelf (D2027A)
(332 x 476mm) x 2
Back (X949)
(1580 x 350mm)
Foldy Back (X948)
(1580 x 672mm)
Plinth (D2025A)
(999 x 80mm)
Door (D2026A)
(1567 x 330mm) x 3
Top (D2020A)
(999 x 492mm)
Base (D2024A)
(999 x 478mm)
3
4
5
6
8
9 10 11

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Silver Handle (F1091) x 3
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 8
B C
D E F
G H I
Nail (F51) x 40
Blue/Pink Handle (F215) x 3
J K
K
Rail holder
(F1014) x 2 Bracket (F327) x 1
25mm Screw (F50) x 6
13mm Screw (F63) x 20
40mm Screw (F910) x 14
Cranked Hinge
(F522) x 6
Hinge plate (F523) x 9
White units are supplied
with either Blue or Pink
Handles
Beech units are supplied
with Silver Handles
13mm Screw (F79) x 10
L
Straight Hinge
(F518) x 3
M
Shelf support (F121) x 8

A
A
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

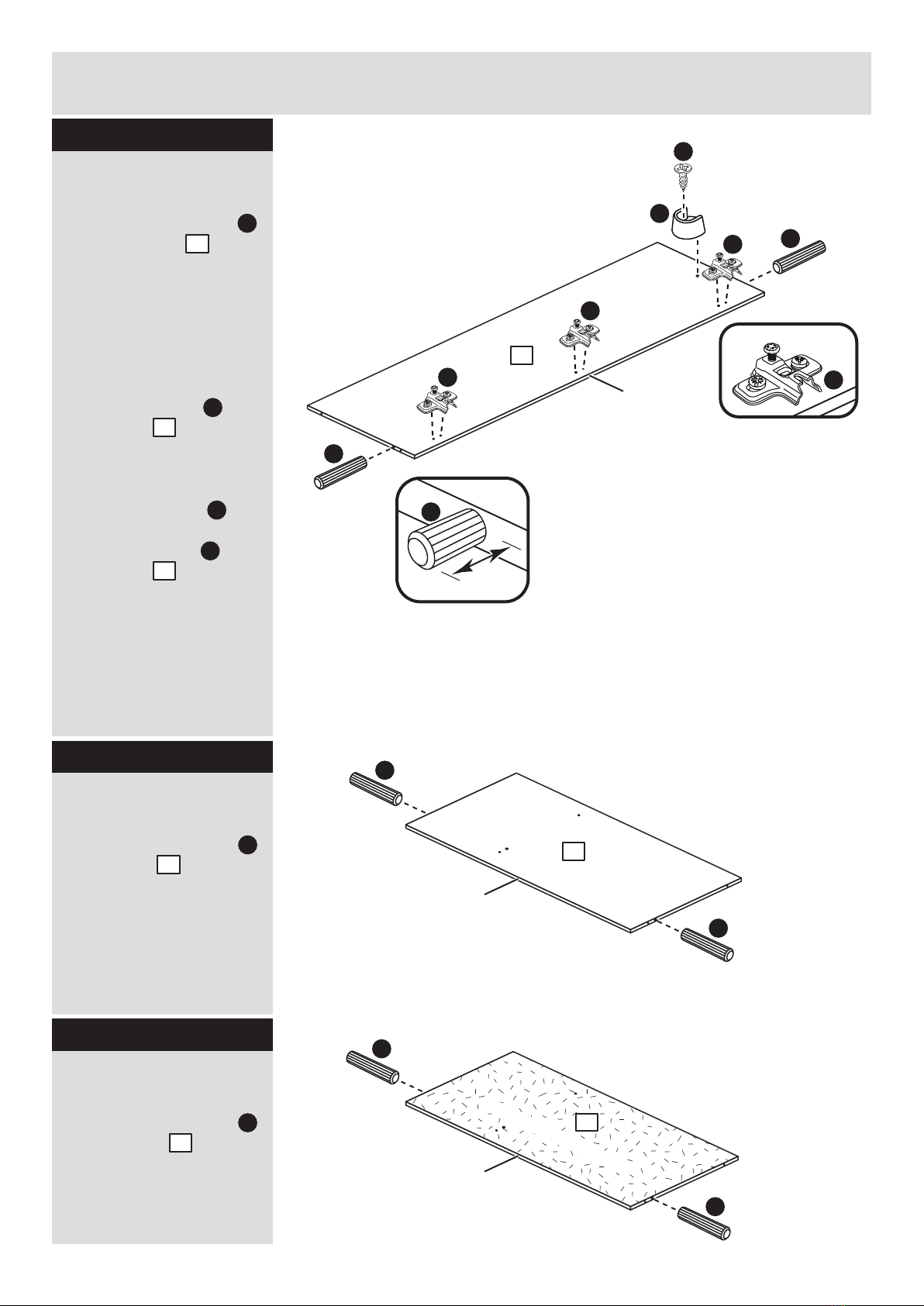

Prepare the upright
Tap 2 wooden dowels
into the upright .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Push a rail holder into
the upright . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the upright , making
sure that the slot is
facing towards the
finished front edge.
B
G
3
J
3
Prepare the top
Tap 2 wooden dowels
into the top .
4
Step 1
Step 2
B
G
J
J
J
J
A
A
10mm
A
A
3
Finished
front edge
A
A
3
plain chipboard surface
A
Prepare the base
Tap 2 wooden dowels
into the base .
5
Step 3
A
4
5
Finished
front edge
Finished
front edge

Finished
front edge
Finished
front edge
Finished
front edge
3
Assembly Instructions
5
Join the base and
upright
Push the base onto
the upright and
secure with 2 screws .
D
5
3
Step 4
Step 5
D
D
Fit the top
Push the top onto
the upright and
secure with 2 screws .
D
4
3
4
D
D
5
plain chipboard surface
3

Finished
front edge
Assembly Instructions
6
Step 6

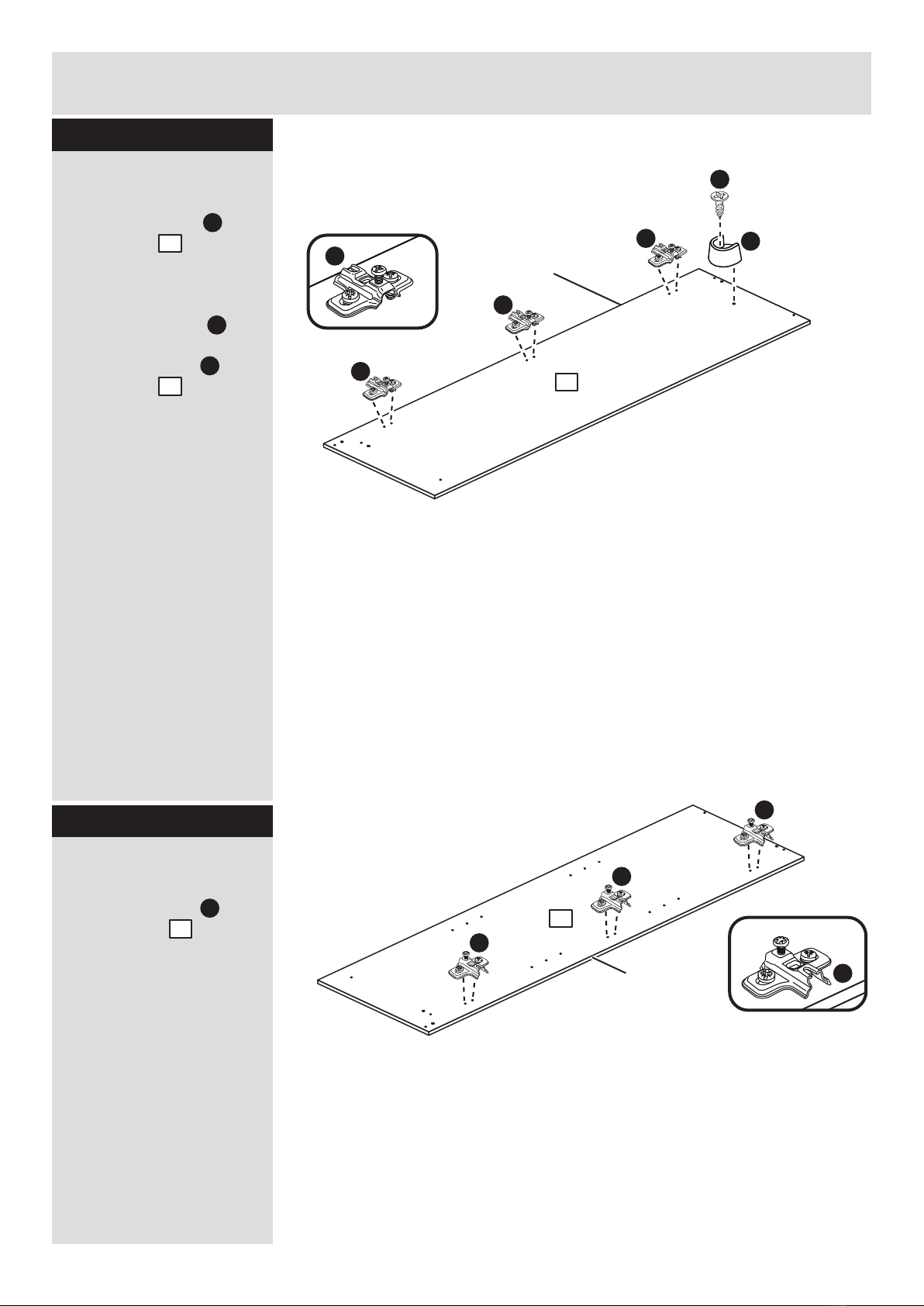

Prepare the left side
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then
secure with screw .
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
B
G
J
J
J
J
B
1
J
11
J
J
J
Finished
front edge
Step 7
Prepare the right side
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
J
22
J
G

Assembly Instructions
7
Step 8
Step 9
D
D
D
D
Fit the right side
Push the right side
onto the top and
base and secure with
4 screws .
2
2
4
5
D
4
5
A
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
6
A
A
plain chipboard surface
6

Assembly Instructions
8
Step 10
Step 11
Fit the left side
Push the left side
onto the assembly
and secure with 5
screws .
D
D
D
D
D
1
1
D
D
Fit the plinth
Push the plinth onto
the right side and
secure with screw .
6
2
D
plain chipboard surface
6
2

Assembly Instructions
9
Step 12
Make sure that the plastic
sleeve is fully pushed
onto the shelf stud.
L
Warning: The
unit is heavy.
Lift with care.
11
10
F
H
F
Fit the back panels
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
and foldy back , unit
colour facing down, onto
the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the upright
panel’s edge.
Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet. Nails
should be spaced about
150mm apart.
c: Using 9 screws ,
screw down between the
2 backs and into the
upright panel’s back
edge.
Note: You will need to
keep 1 screw to use
in the final step.
Stand the unit up for
the next step.
3
3
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
y
y
y
x
x
F
c:
11
10
Fx 9
H
b:
10
11
